Description
If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 2550W 48V expandable Solar Kit is an ideal choice. This system could generate approximately 10.2kWh per day.
ECO-WORTHY 170 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.

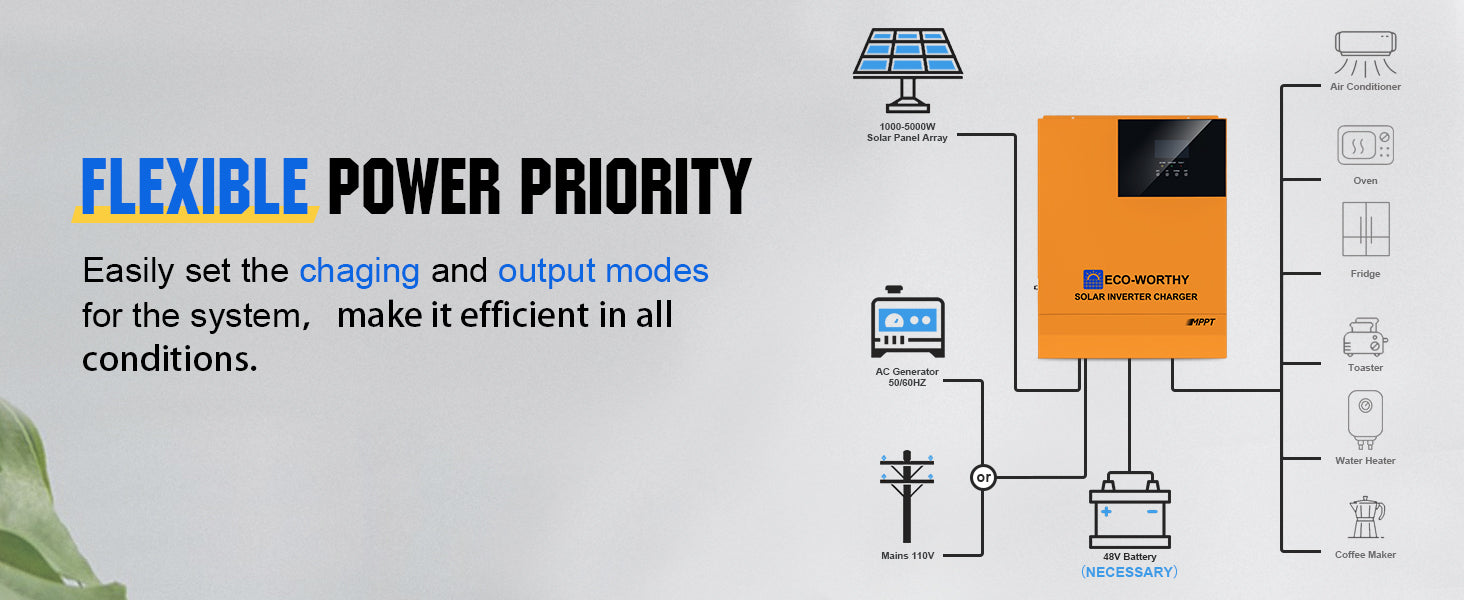

All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
4 strings PV Combiner box is greatly simplify input wiring of DC power distribution cabinet and controller. Providing lightning protection, short circuit protection and grounding protection and supervision for the performance of the photovoltaic system.
ECO-WORTHY 2550W 48V Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Package Includes
|

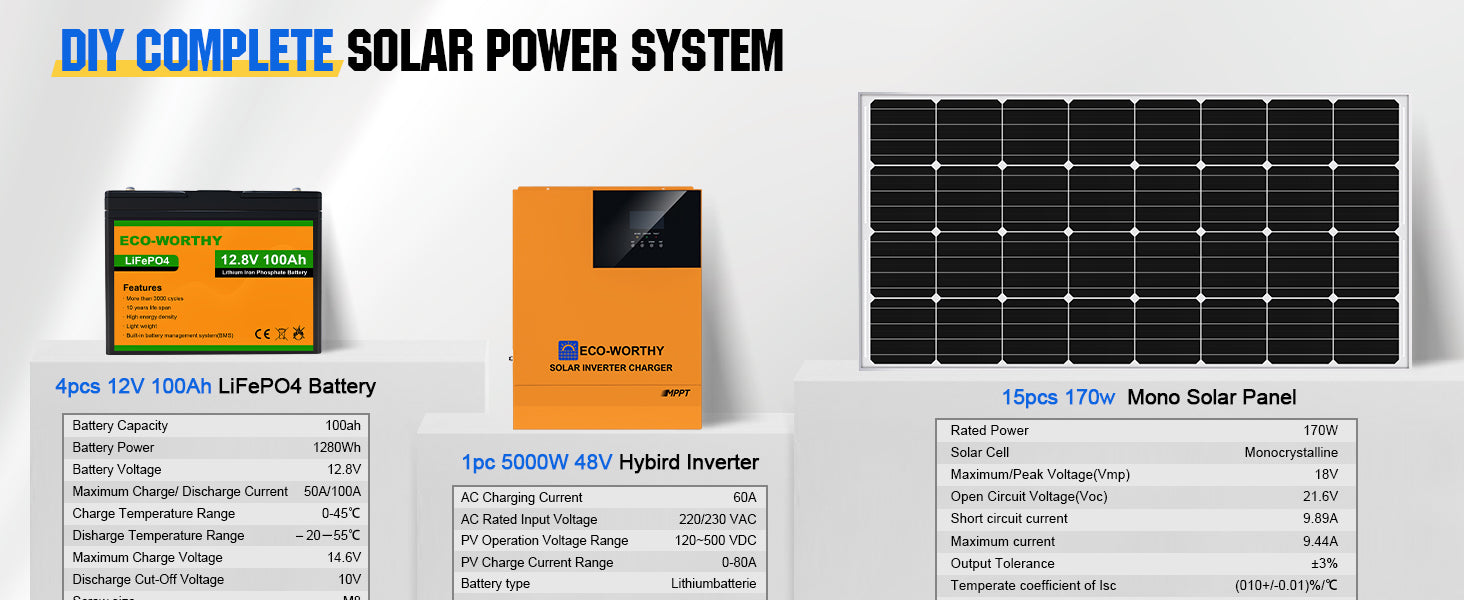

2550W (15-Panel) 48V Solar Kit 2550W Solar Panel/4.8kWh LiFePO4 Bank/5kW Pure Sine Wave Inverter Daily Production Estimate:10.2KWH |
15x 170W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 4 String PV Combiner Box
1x 5M 12AWG Extension Cable with MC4(Combiner Box to Controller)
3x 5M 12AWG MC4-MC4 Extension Cable(Panel to Combiner Box)
15x Z Mounting Bracket
Battery Bank Options-
4.8kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
1x 5000W 48V-220V Pure Sine Wave Inverter
4x 100Ah 12V LiFePO4 Lithium Battery
|

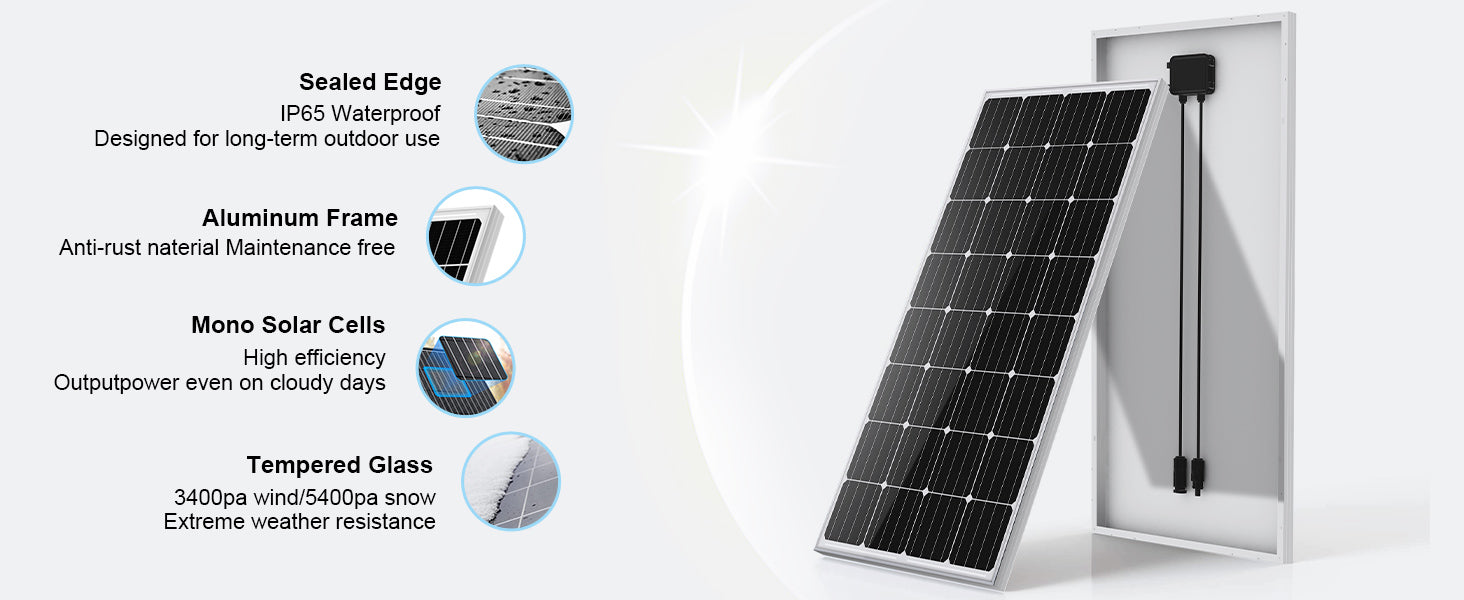

170W Monocrystalline Solar Panel High Efficient Monocrystalline Rated Power: 170W Open Circuit Voltage (Voc): 21.6V Peak voltage (Vmp): 16.6V Short Circuit Current (Isc): 9.89A Working Current (Iop): 9.44A Frame: heavy duty aluminium SLA Battery Voltage: 12V Comes supplied with MC4 connectors and 900mm leads Size: 1355*690*35mm (53.3*27.2*1.38inch) Weight: 25.17Lbs(11.42kg) |
5000W 48V All-in-one Inverter with 80A MPPT |
|
|
4 String PV Combiner Box Input Circuits Breakers: 4 Circuit Breaker Rating: 10A Protection Grade: IP65 Surge Lightning Protection: Yes Size: 8.66*6.69*4.33 inch(220*170*110mm) Weight: 4.4lbs(2kg) |
100Ah LiFePO4 Lithium Battery |
|
Why LiFePO4 Lithium Battery
Longer Life Span
Up to 80% capacity for 3000 cycles in recommended conditions. The typical SLA has 300-400 cycles. ECO-WORTHY Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Lightweight Champion
Our lithium battery is only 1/3 of the weight of a lead-acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
High Efficiency
It provides up to 95% of their rated capacity while a lead-acid battery is usually limited to 50%. You get all the juice down to the last drop. It can support fast charging or solar panel charging.
Extremely Safe
LiFePO4 batteries are safest battery type available today. ECO-WORTHY lithium battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.
![]() |
![]() |
![]() |
16.4 feet 12AWG Cables 16.4 feet red and black cable with connector. For extending the cables of panel and connecting to controller. |
Z Mounting Bracket 4 pieces of Z shape solar panel brackets. 8 pieces of stainless steel nuts and cap bolts. |
Y Branch Cable MC4 Connectors Compatible with MC4 solar connector. Easy installation for 2 solar panels connected in parallel. |
Warranty Information
Panels | 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate, 2-year limited material and workmanship warranty |
Accessories | 1-year material warranty |
System Components
|
170W 12V Monocrystalline Solar Panel |
|
100Ah LiFePO4 Lithium Battery |
|
4 String PV Combiner Box |
|
12AWG Solar Extension Cables |
|
Z Style Solar Panel Mounting Brackets |
|
12AWG 1 Pair of Y Branch MC4 Connectors |
