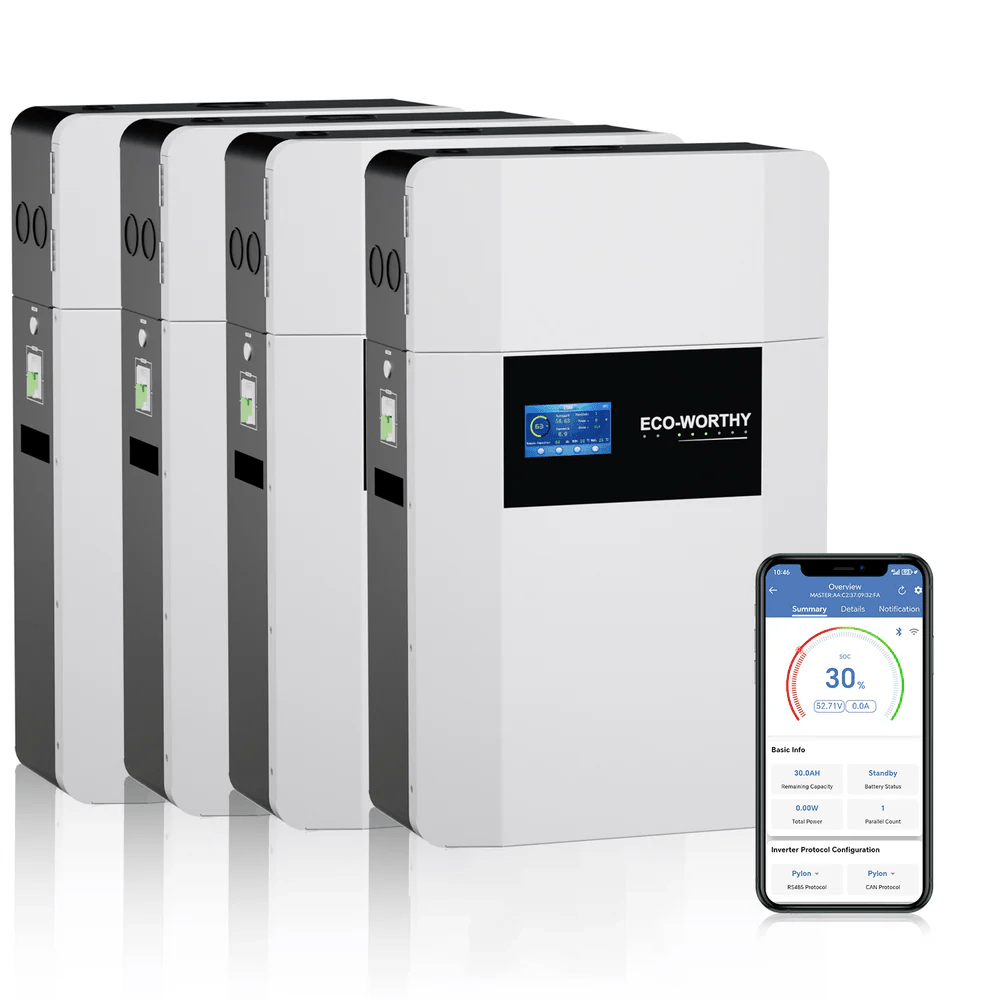

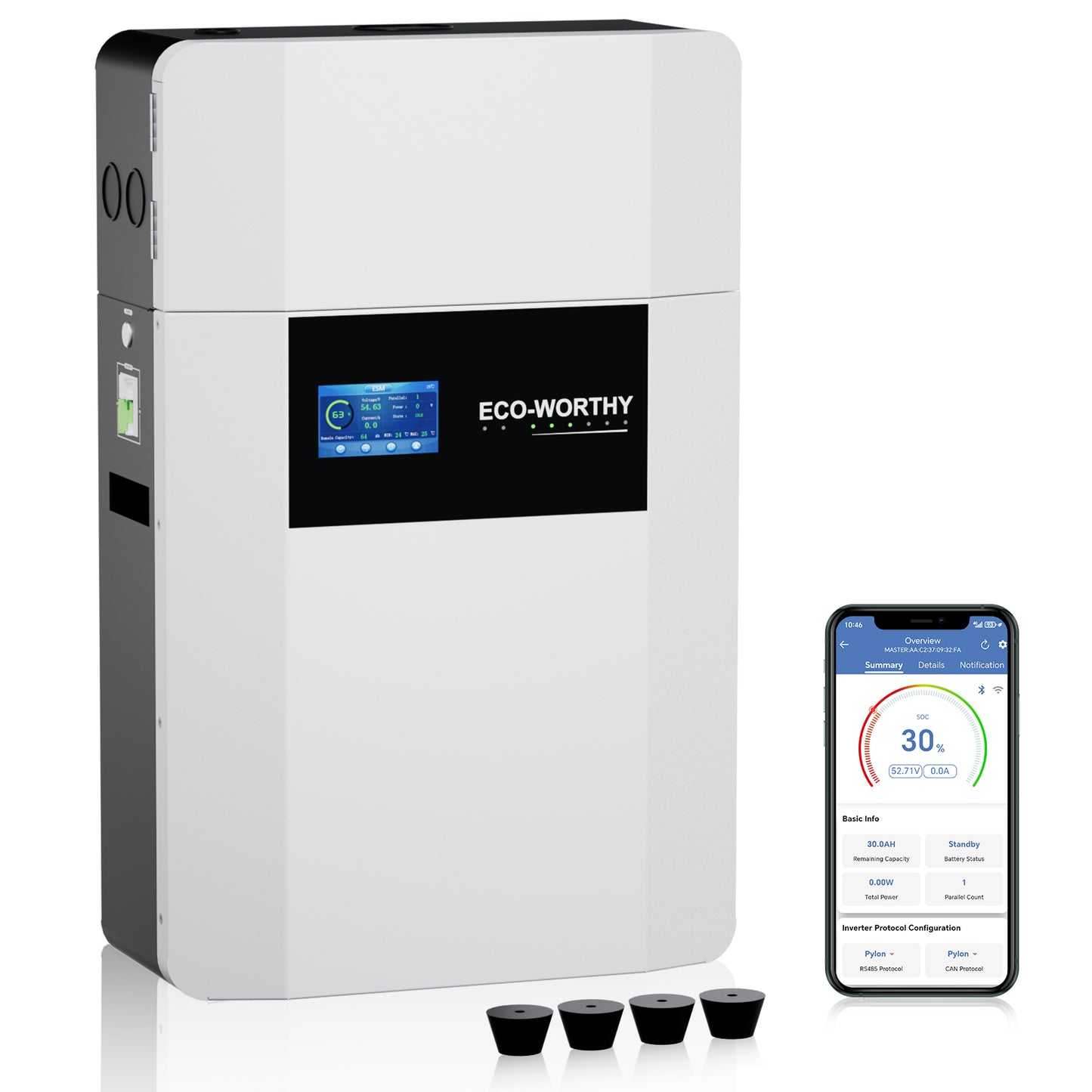

Eco-Worthy 48V 100Ah Wall-Mounted With Bluetooth & Wifi, 5.12kWh Lithium Battery
SKU: UK-L03L100AHBGLXH-1

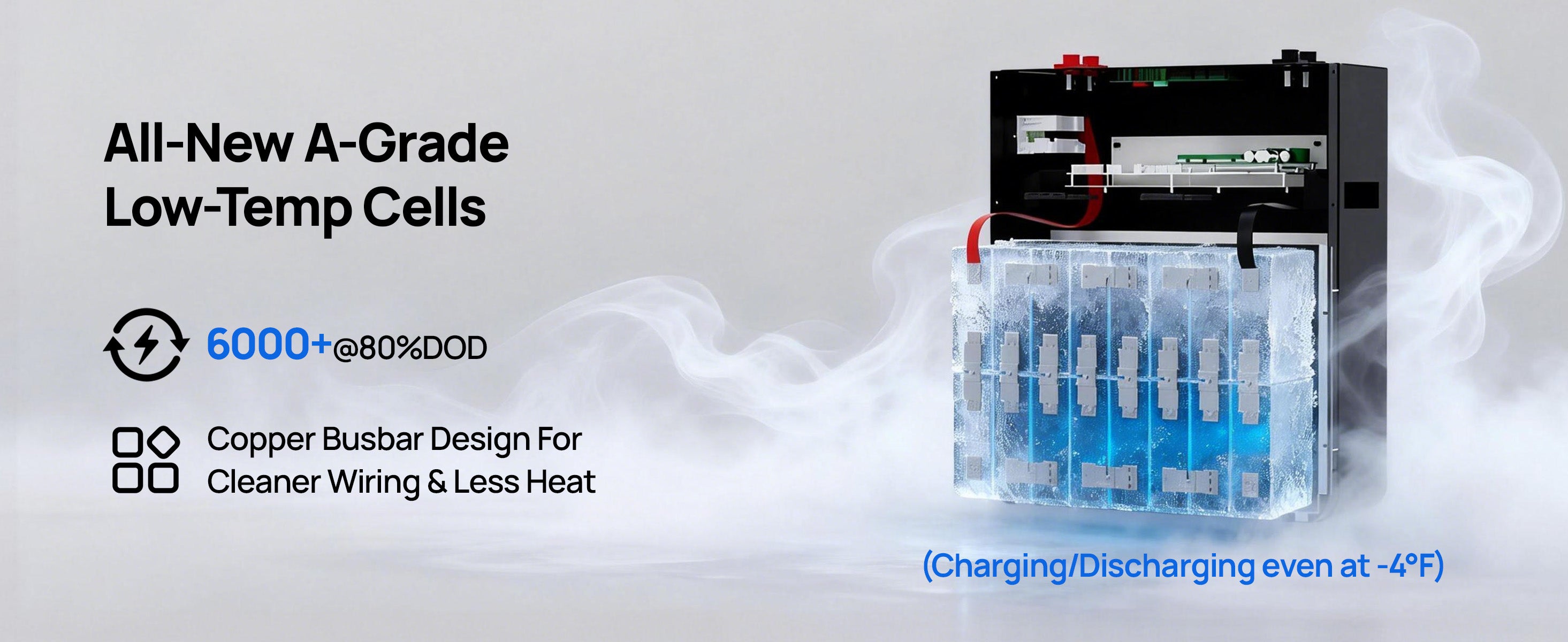

-4℉ Charge Available - Grade-A LiFePO₄ cells with special low-temp electrolyte for reliable charging and discharging down to -4℉ (-20℃). Over 6,000 cycles at 80% capacity ensure long-lasting, dependable home energy storage.

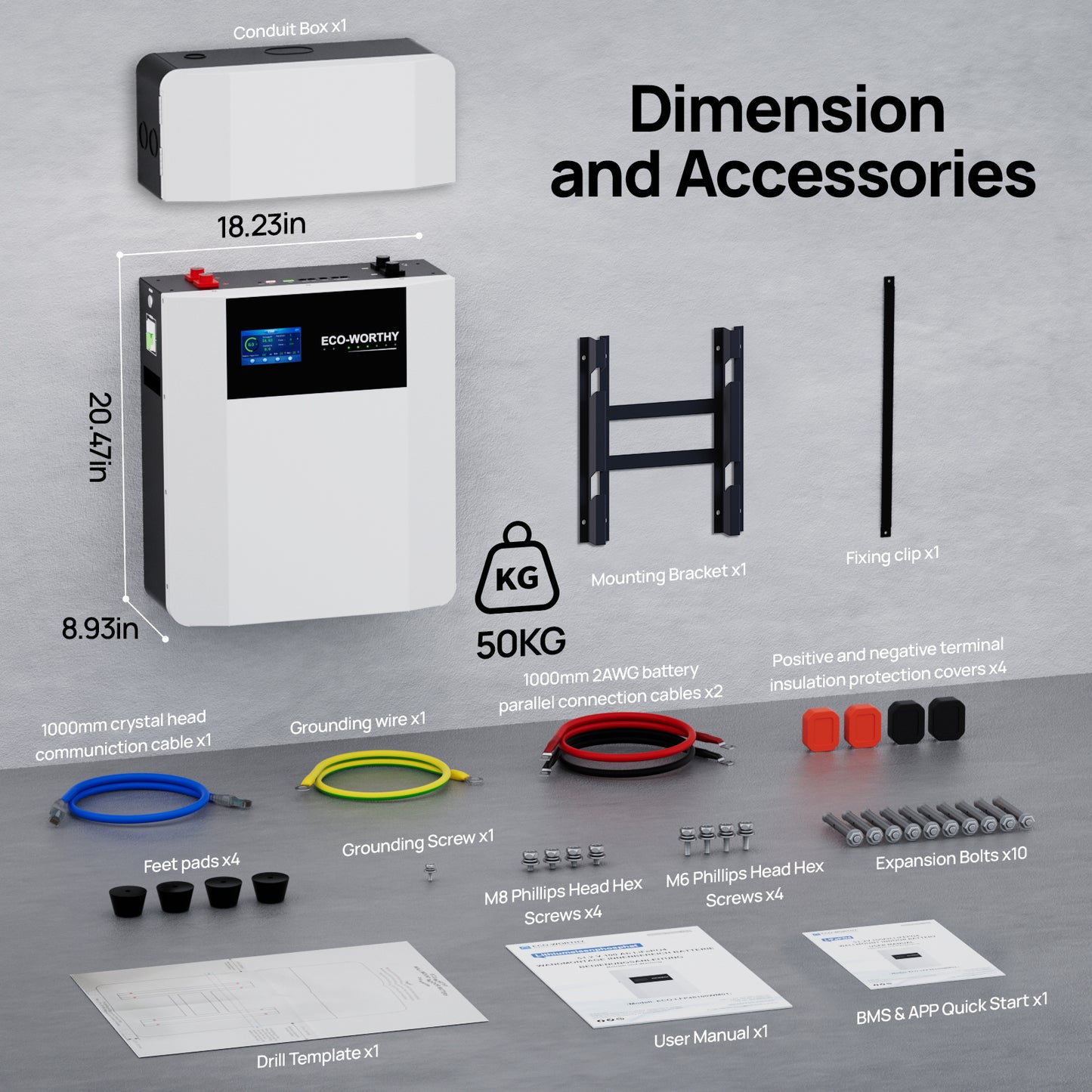

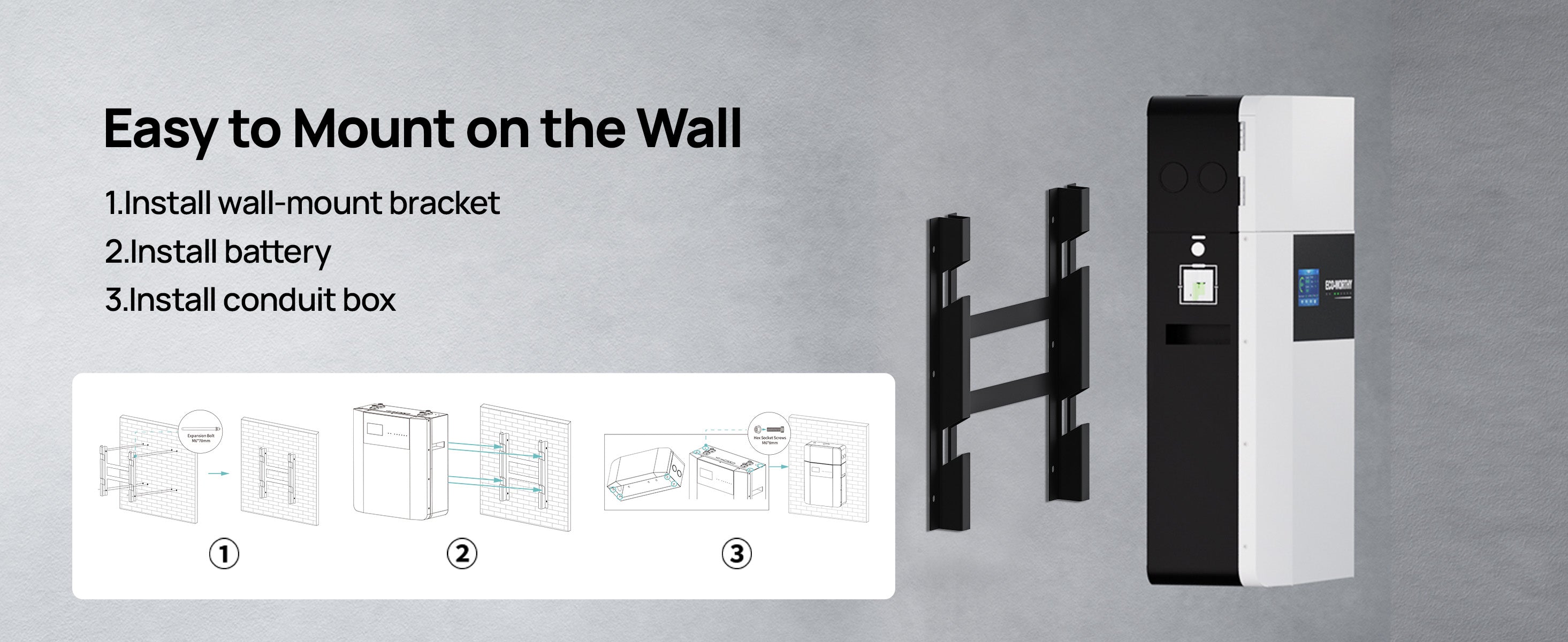

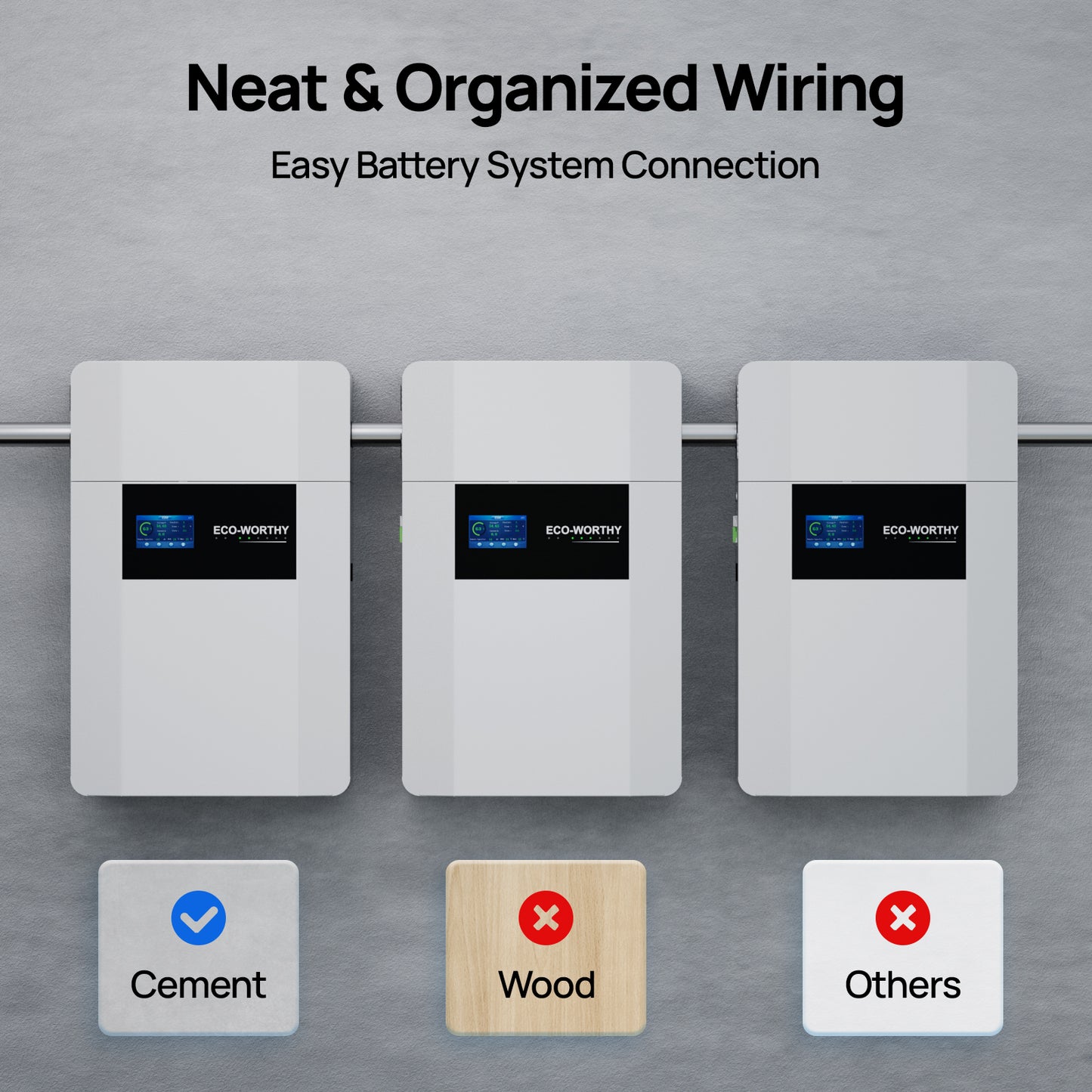

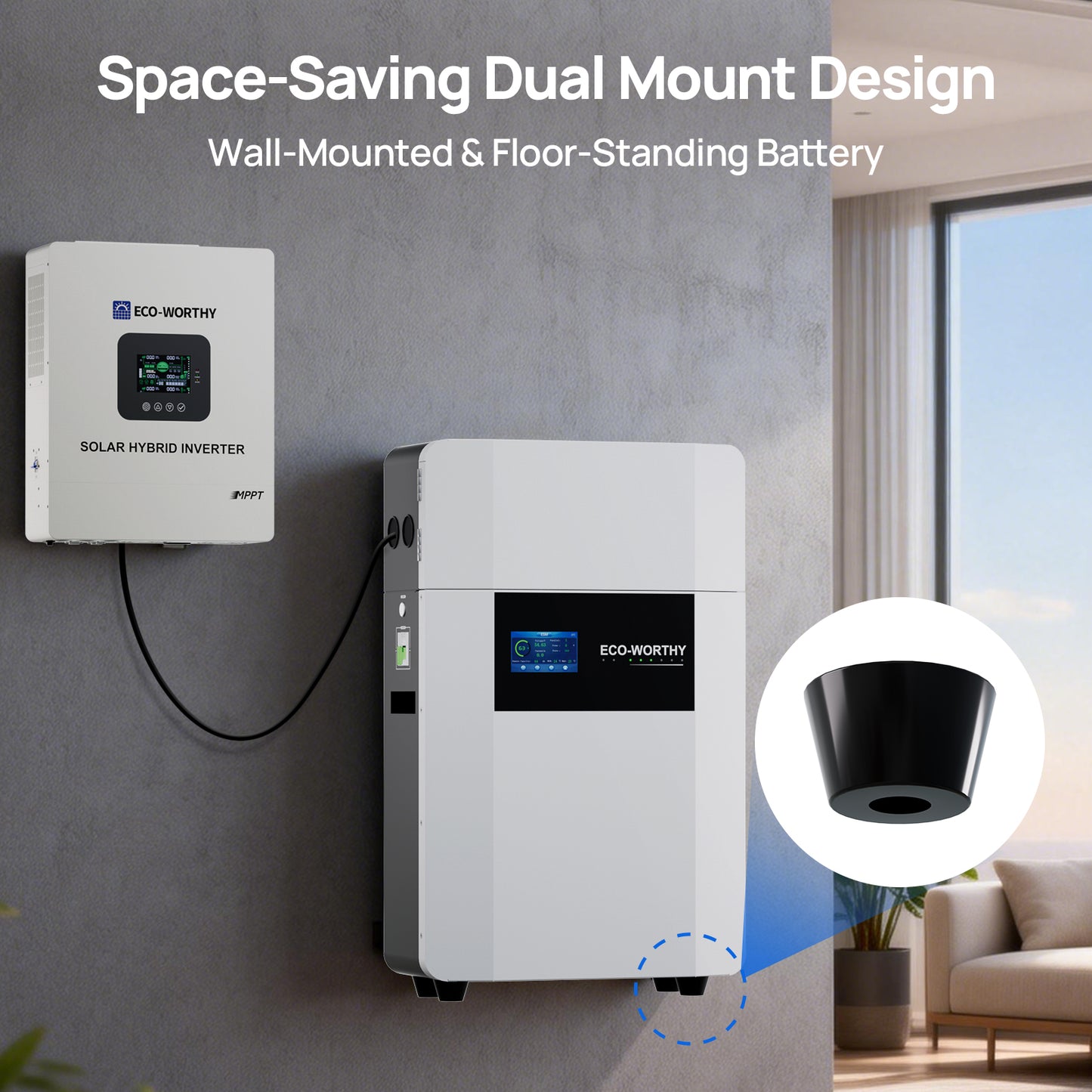

Flexible Wall & Floor Installation – Supports both wall-mounted and floor-standing installation, equipped with a conduit box to keep wiring neat and organized. Includes an installation guide and upgraded wall-mount bracket for enhanced stability, ensuring flexible adaptation to various usage scenarios.

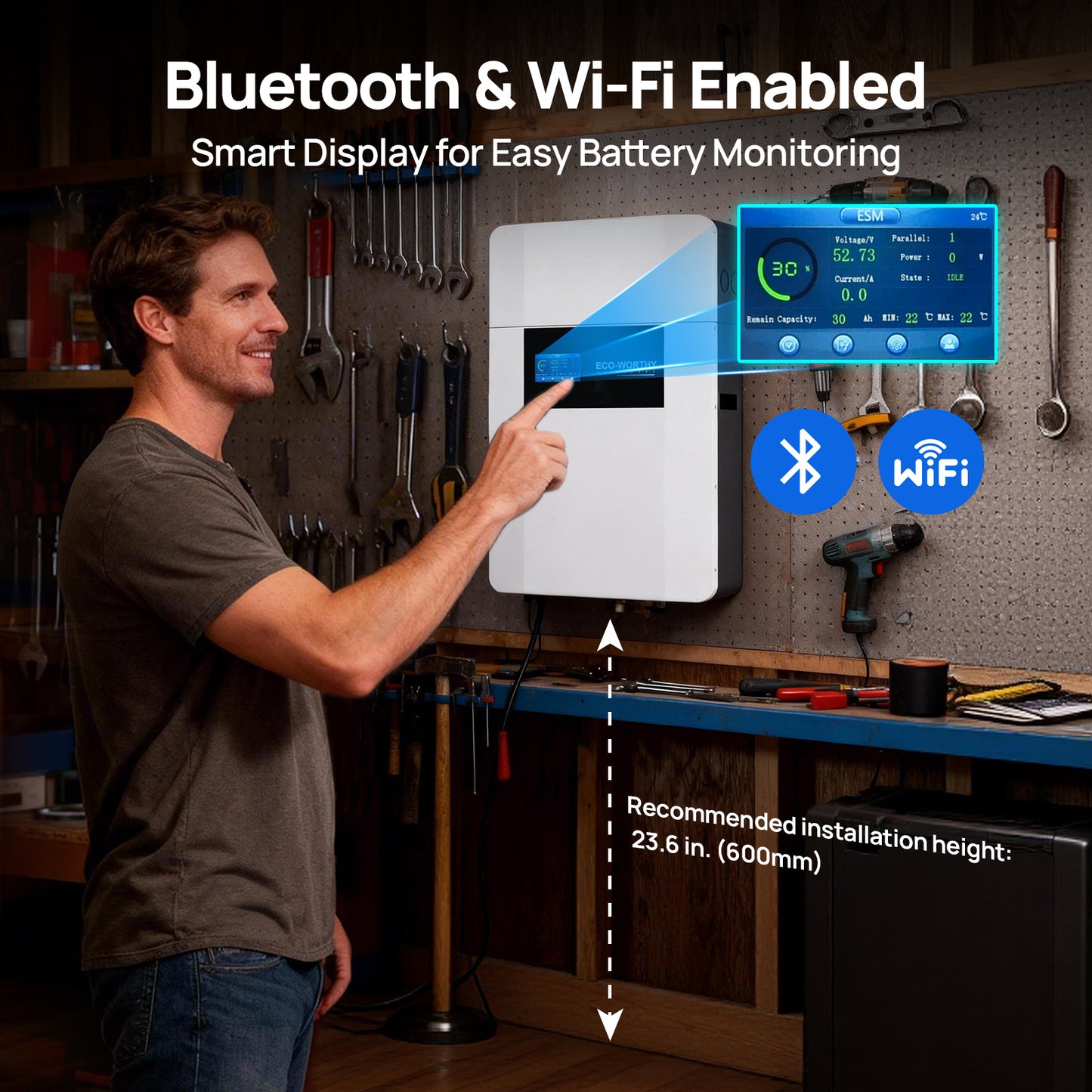

Easy to Monitor and Control – Featuring a 4.3-inch smart display with Bluetooth and Wi-Fi connectivity, allowing real-time monitoring of battery status through the screen or mobile app for effortless operation.
Built-In Multi-Layer Protection – Built-in intelligent BMS, 125A circuit breaker, and pre-charge circuit provide multiple layers of protection, effectively preventing overcurrent, short circuits, voltage spikes, and inrush current to ensure safe and stable system operation.

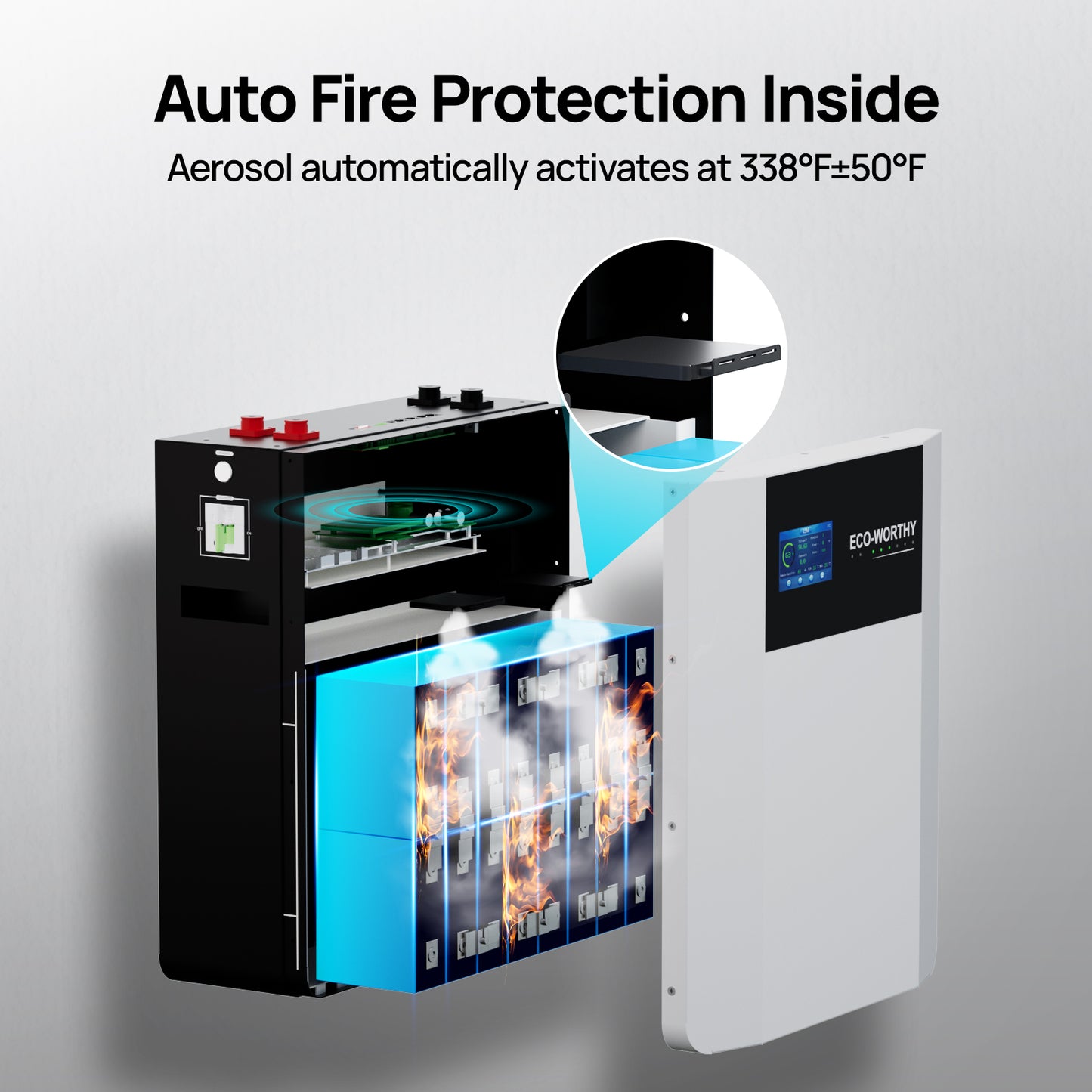

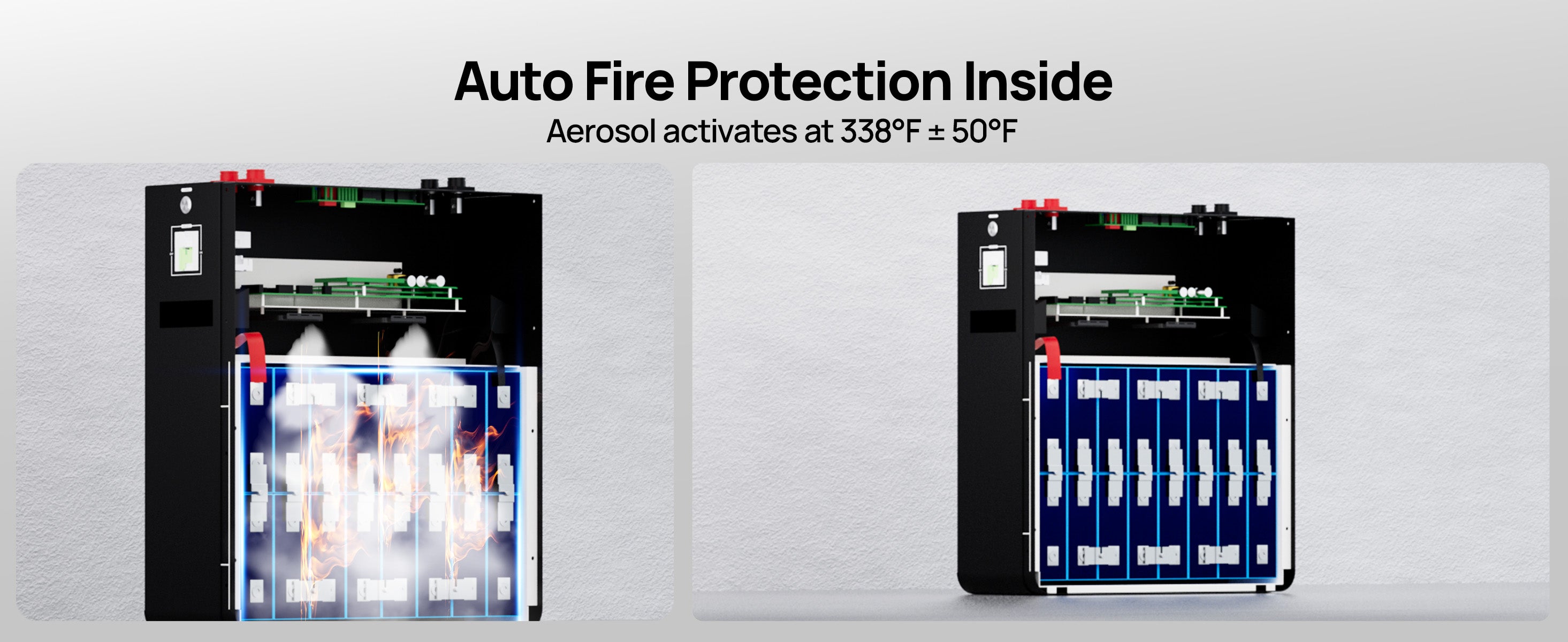

Integrated Fire & Impact Protection – Features a built-in aerosol fire suppression module to help mitigate thermal runaway risks under abnormal conditions. Paired with a high-strength metal enclosure for enhanced fire resistance and impact protection.
Long-Term Reliability & Support – Backed by a 10-year limited warranty and lifetime technical support, delivering long-term confidence for off-grid and energy storage applications.
Code:
Copy CodeCouldn't load pickup availability

| Items | ECO-LFP48100WM01 |
| Rated voltage | 51.2V |
| Max Charge voltage | 58.4V |
| Low voltage cut-off | 40.0V |
| Nominal energy | 5.12KWh |
| Usable energy | 5.12KWh |
| Nominal capacity |
100Ah |
| Dimension | 18.23*8.93*20.47in/46.3*22.7*52cm |
| Weight | 109lbs/50kg |
| Standard charge current |
≤50A |
| Max.charge current |
100A |
| Standard discharge current |
≤50A |
| Max.discharge current |
100A(initialtemp.≤35°C) |

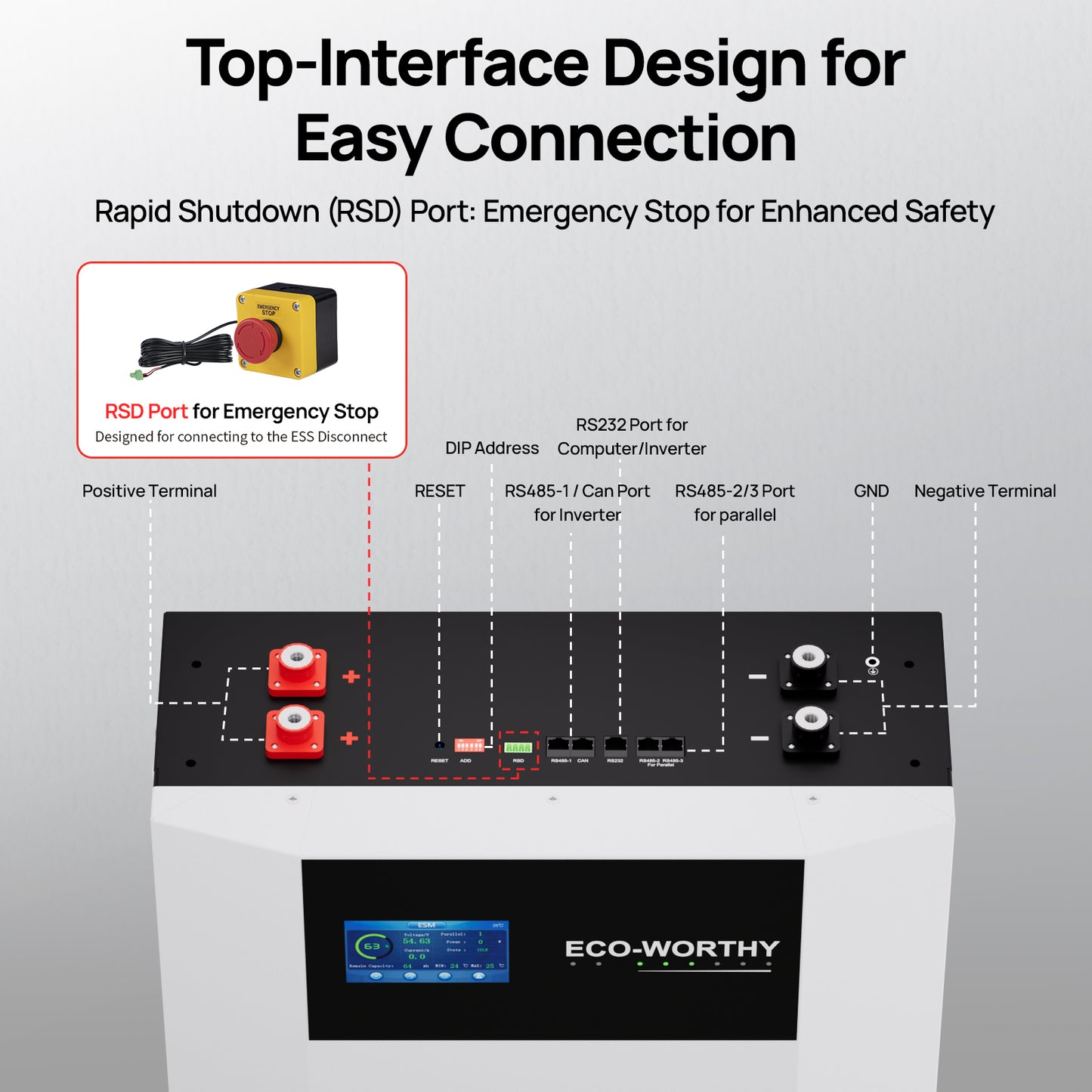

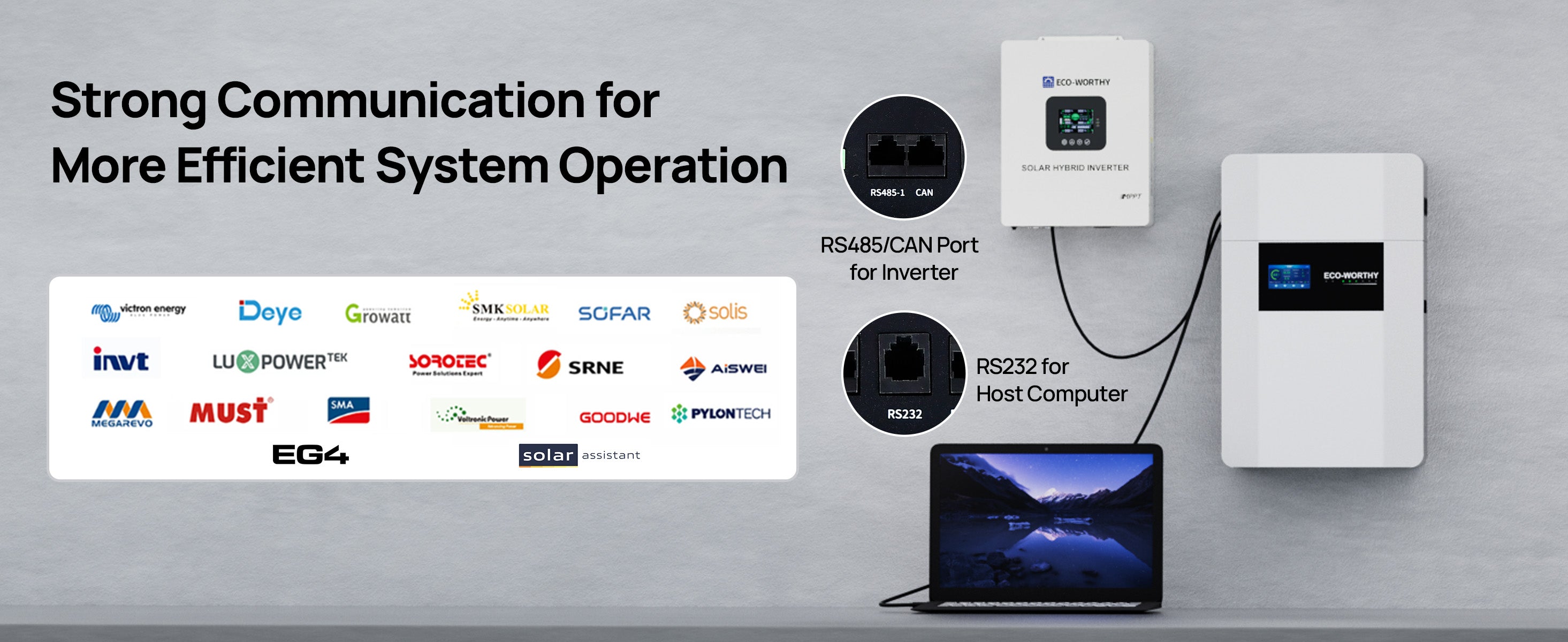

| Communication port |
RS485/CAN/RS232 |
| Max.parallel number |
32pcs |
| Rated capacity |
100Ah(0.5C,77°F) |
| Operating temperature |
Charge: -20~55°C Discharge: -20~55°C |
|
|
|
| Warranty | 10 Years |
