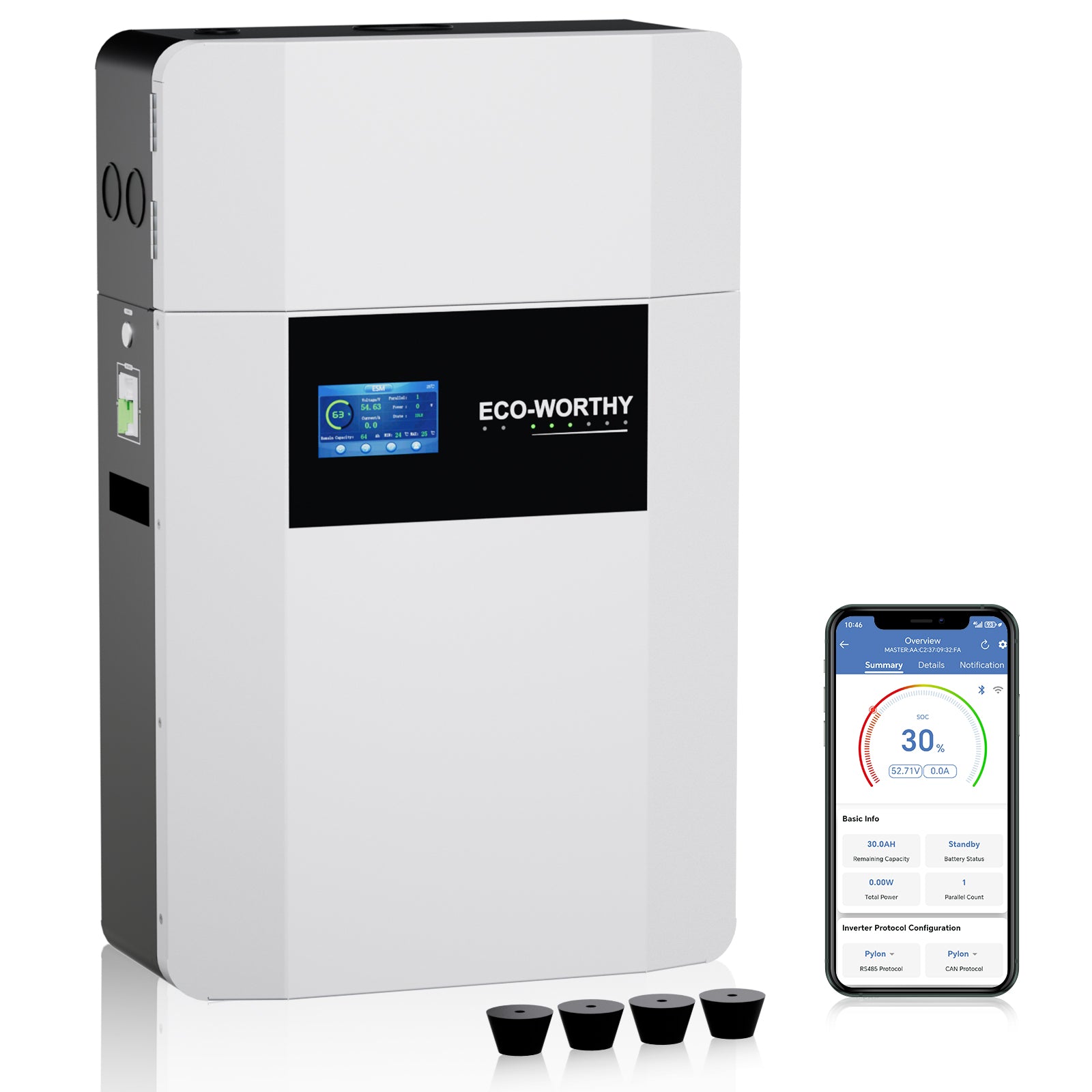

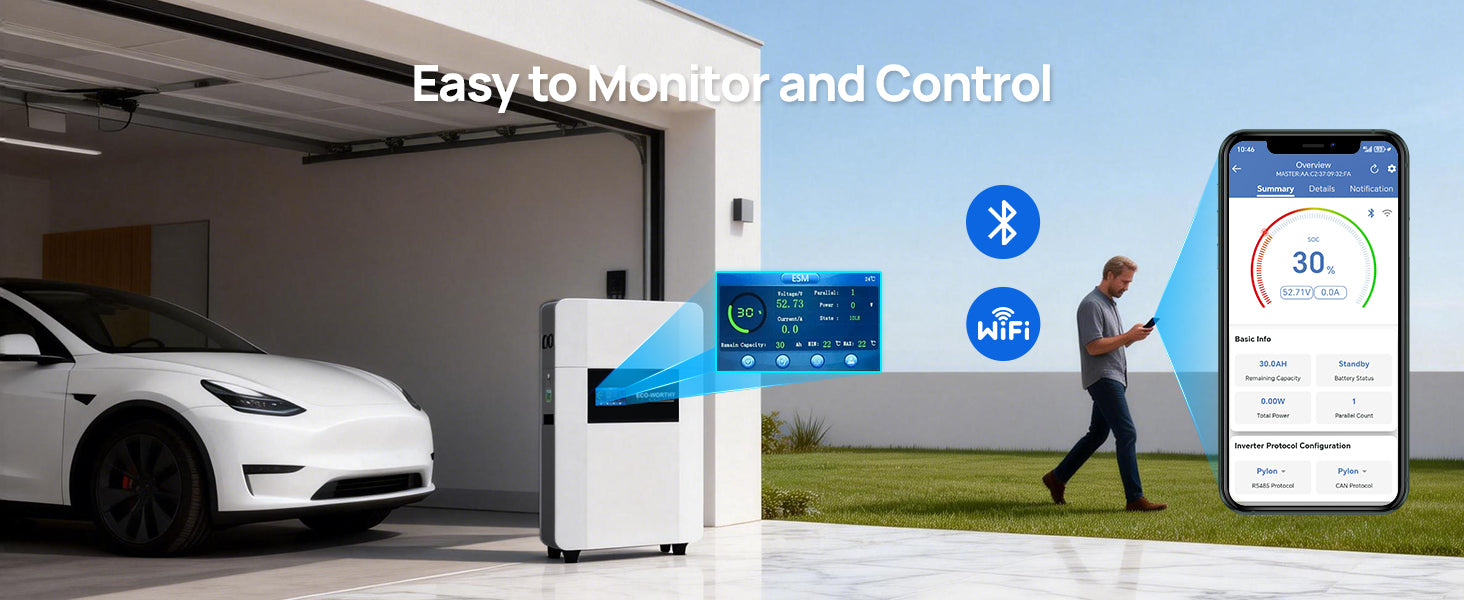

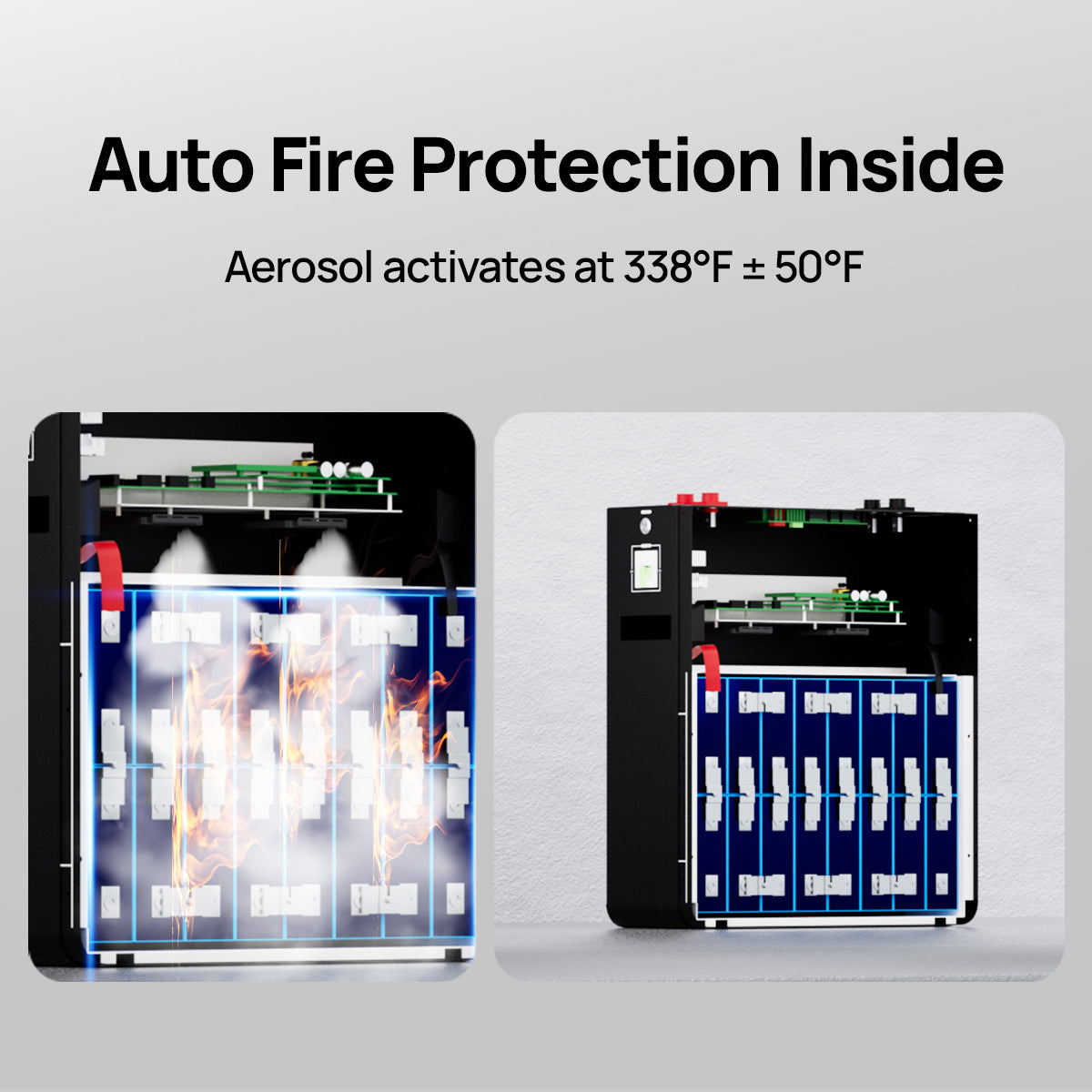

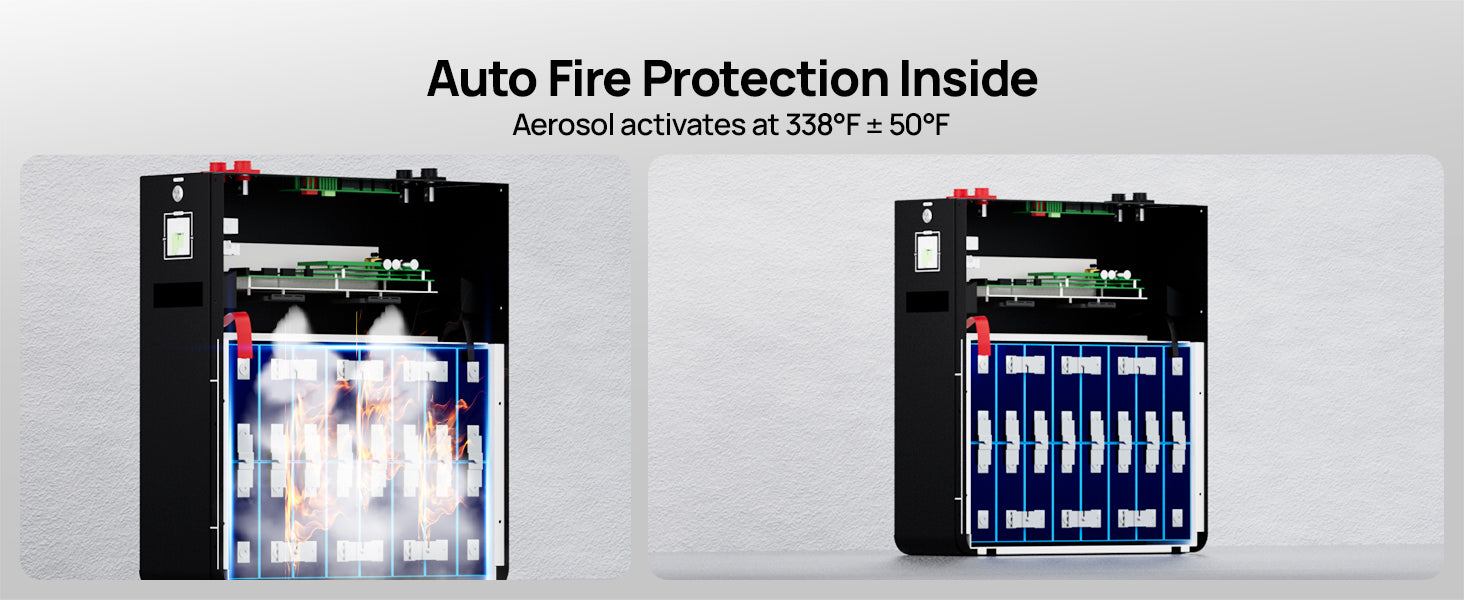

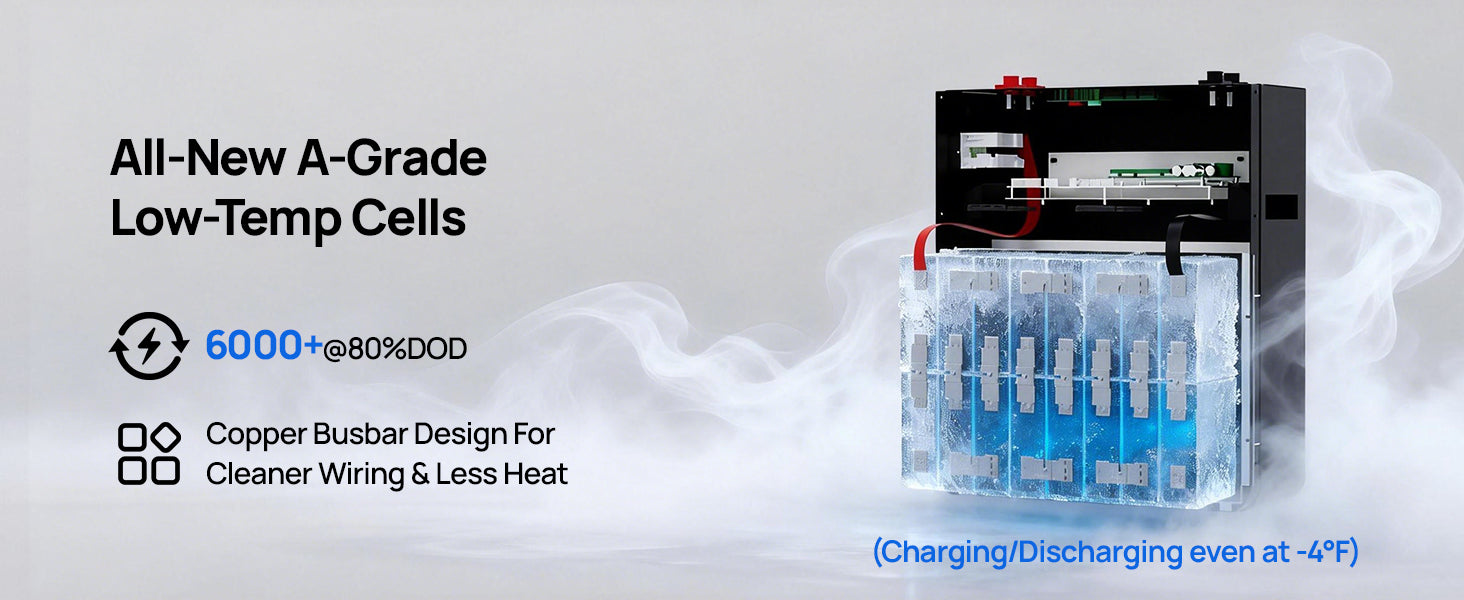

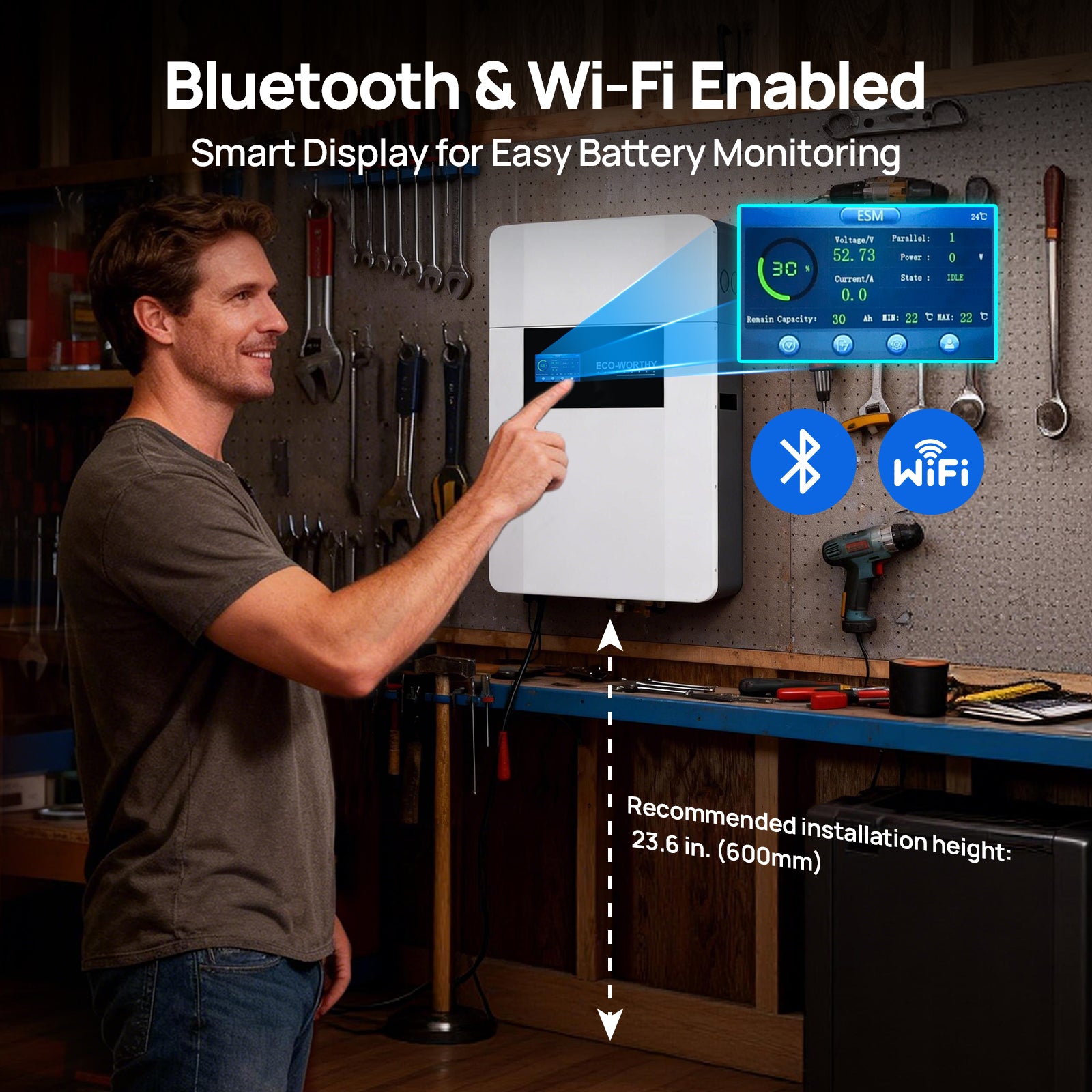

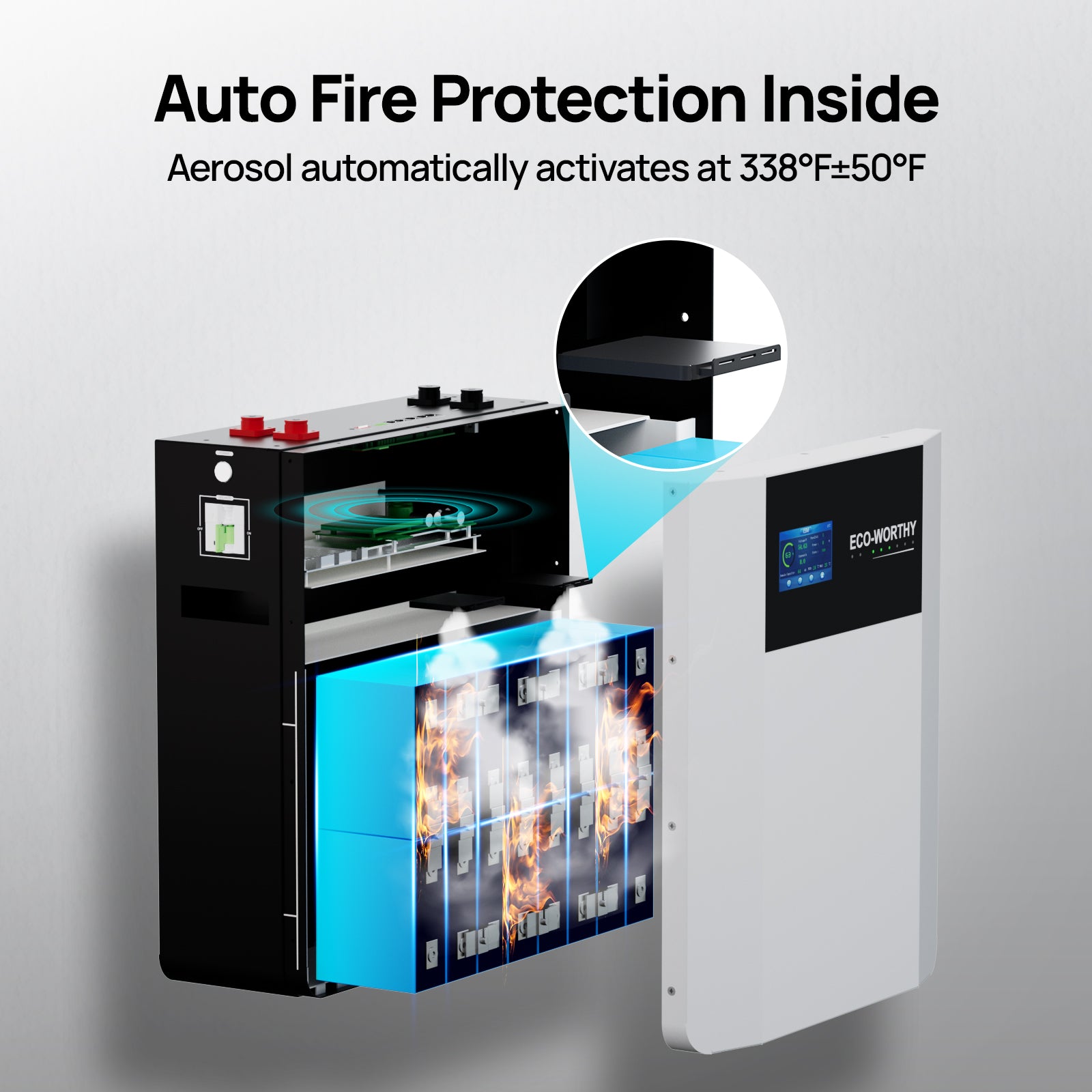

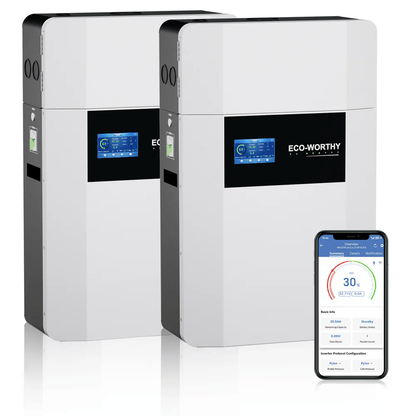

48V 100AH Wall-Mount Lithium Battery LiFePO4 | -4℉ Charge Available | Bluetooth & WiFi | 10 Years Warranty,-20°C Low-Temperature Resistant Cells,Fire-Resistant Design,Touchscreen Display,Bluetooth & WiFi Connectivity,Solar Energy Storage Ready,Reliable Home Backup Power.

The Best Home Energy Storage Solution

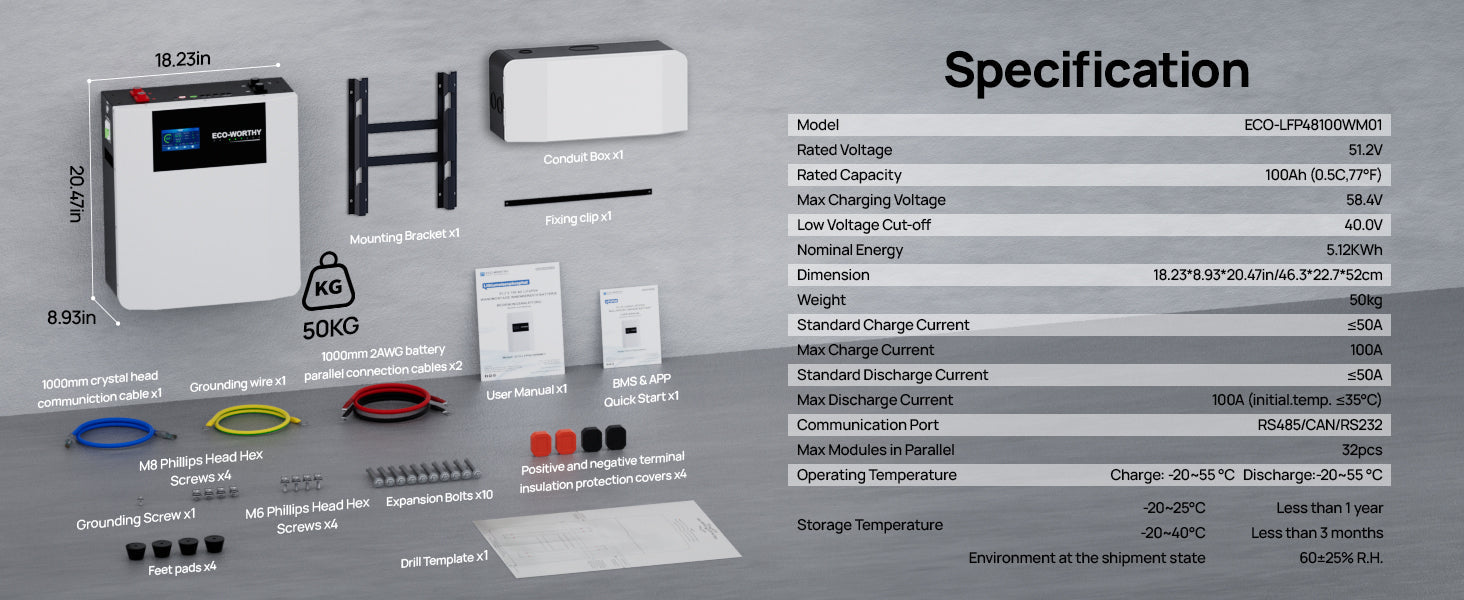

Technical Specifications

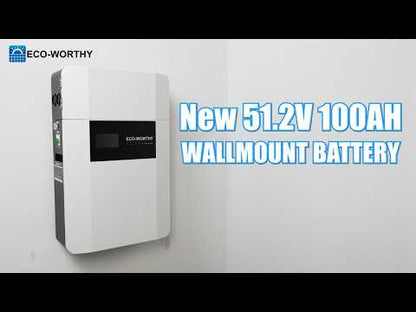

48V 100AH Wall-Mount Lithium Battery
Items
ECO-LFP48100WM01
Rated voltage
51.2V
Max.voltagerange
58.4V
Low voltage cut-off
40.0V
Nominal energy
5.12KWh
Usable energy
5.12KWh
Nominal capacity
100Ah

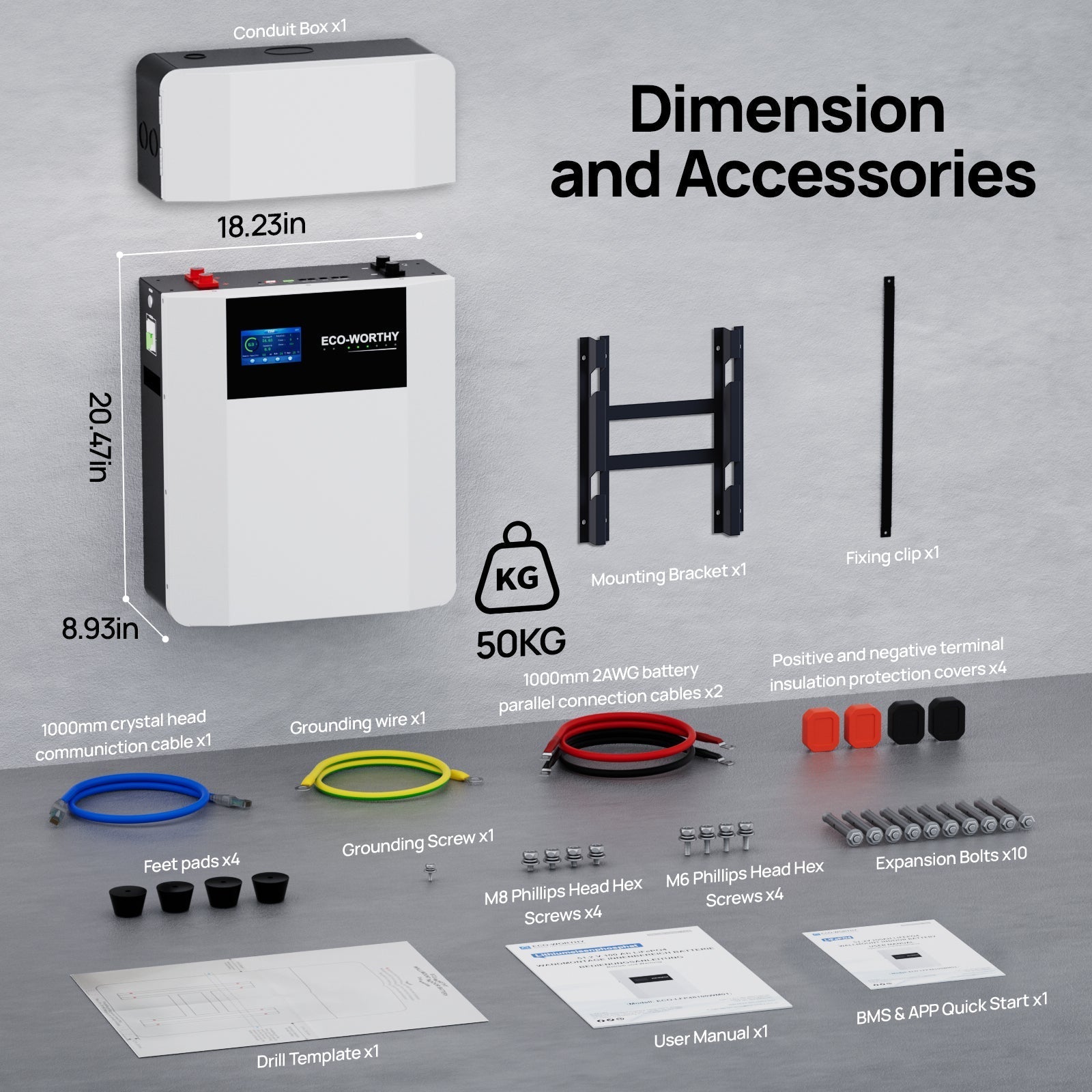

Dimension
18.23*8.93*20.47in/46.3*22.7*52cm
Weight
109lbs/50kg
Standard charge current
≤50A
Max.charge current
100A
Standard discharge current
≤50A
Max.discharge current
100A(initialtemp.≤35°C)

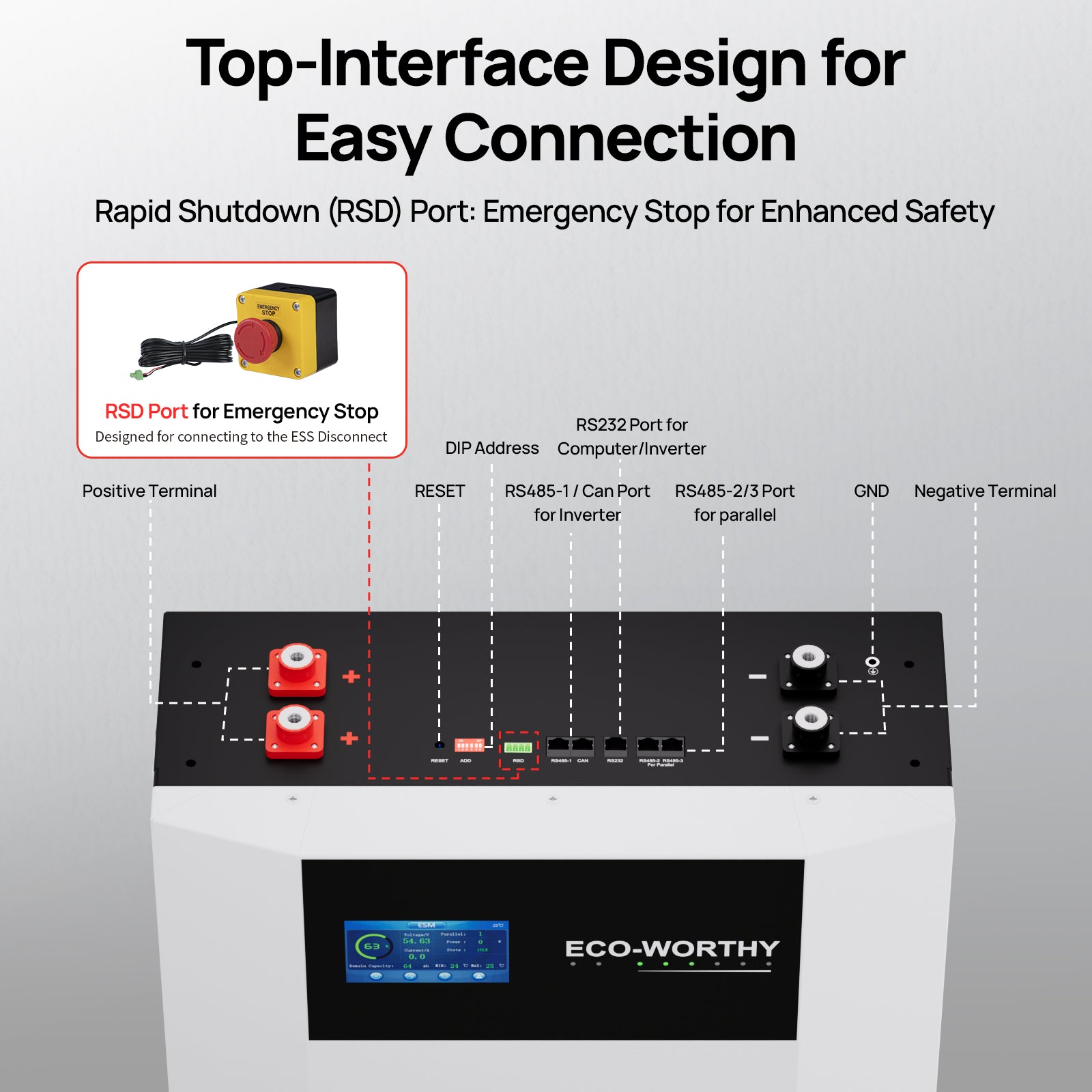

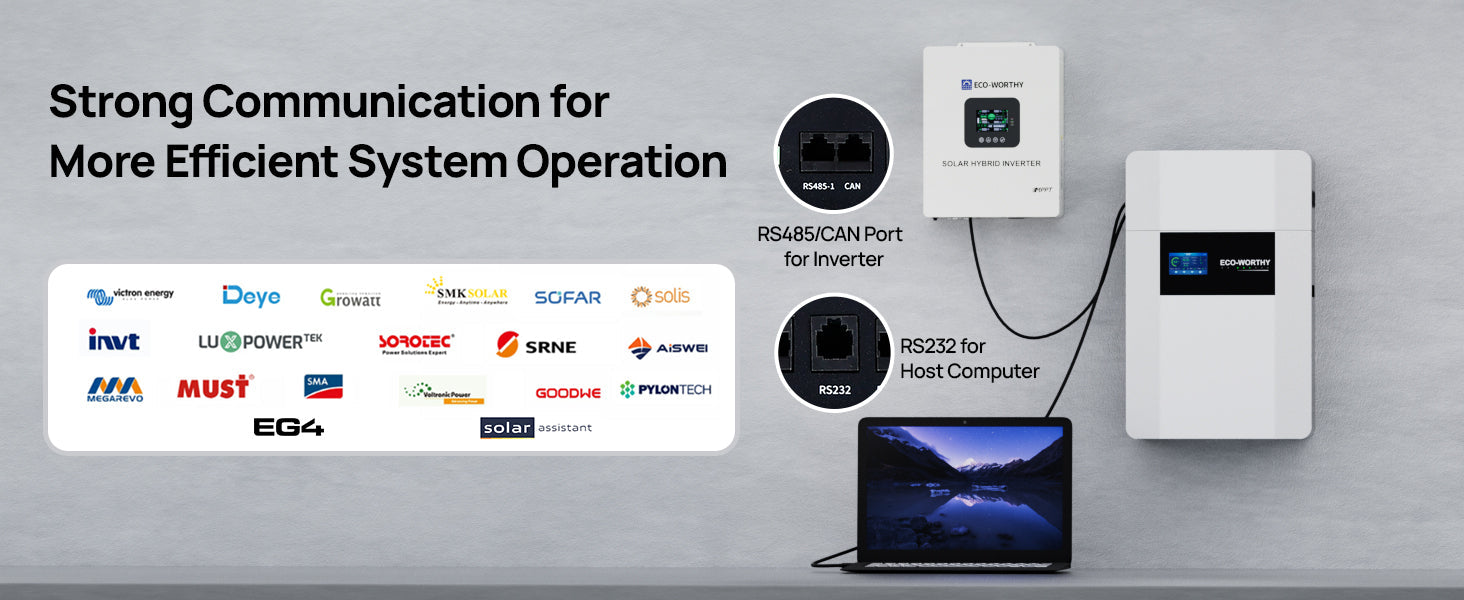

Communication port
RS485/CAN/RS232
Max.parallel number
32pcs
Rated capacity
100Ah(0.5C,77°F)
Operating temperature
Charge: -20~55°C Discharge: -20~55°C

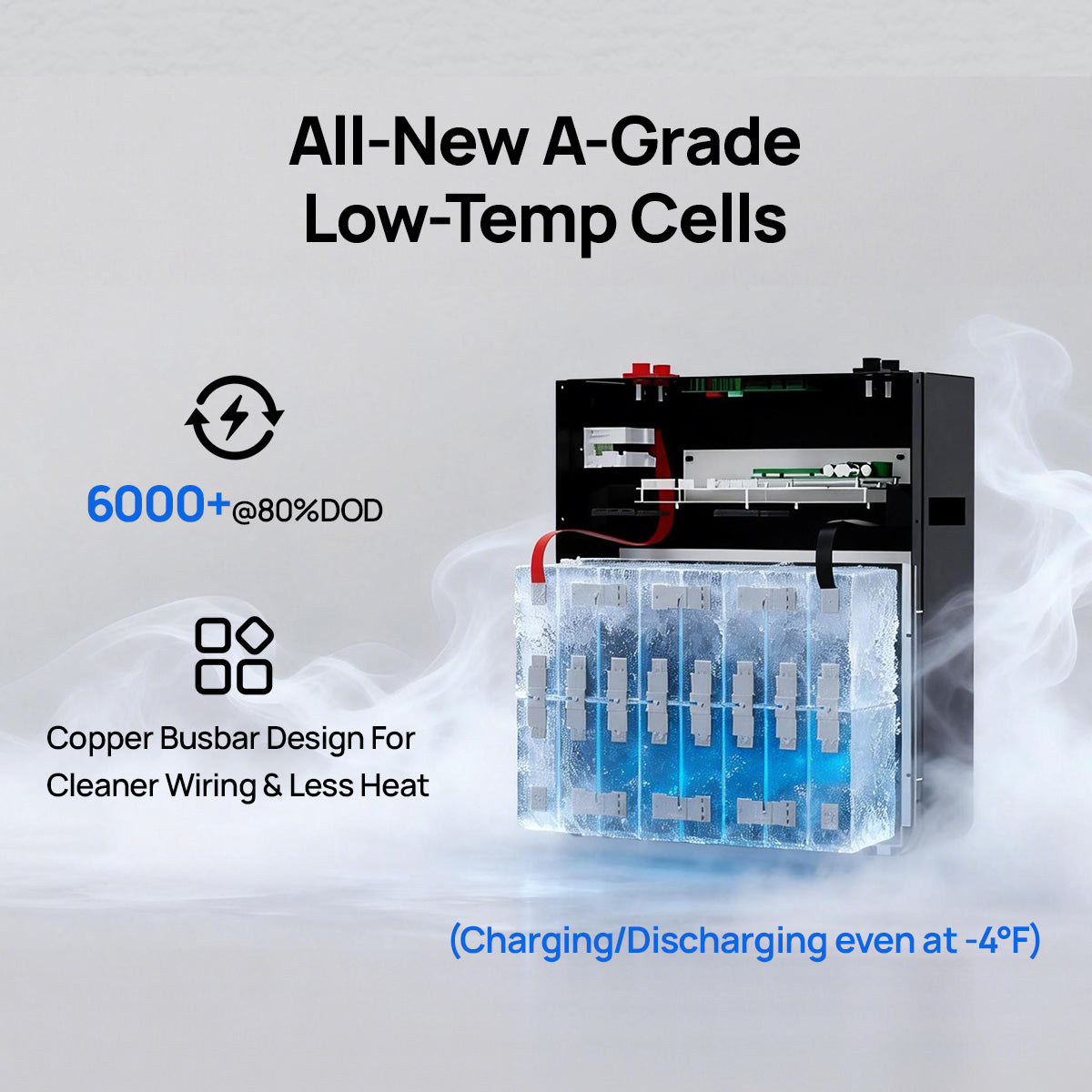

Cycle Life
≥6000 cycles @ 25 °C, 0.5C charge / 0.5C discharge, ≥80% SOH
Warranty
10 Years

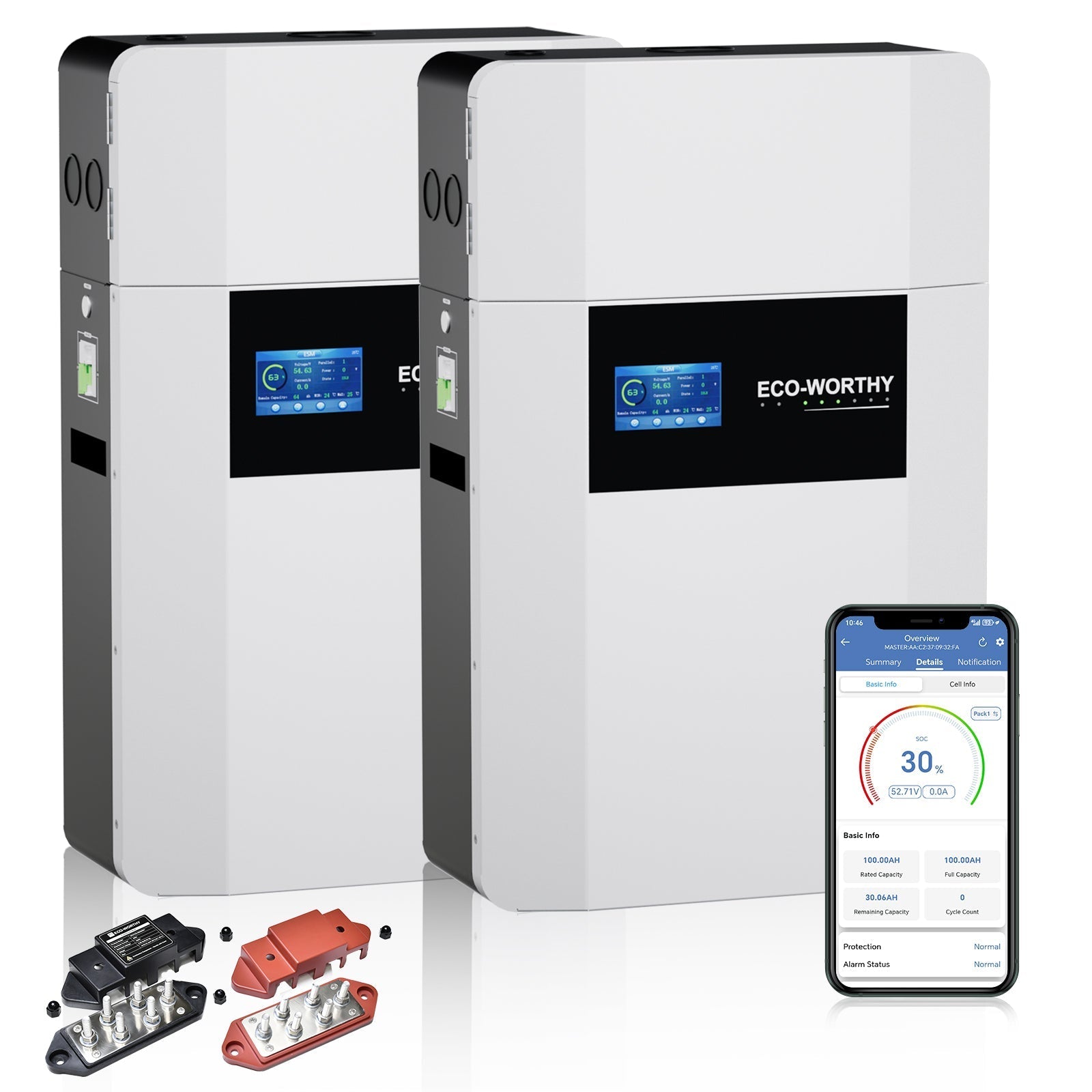

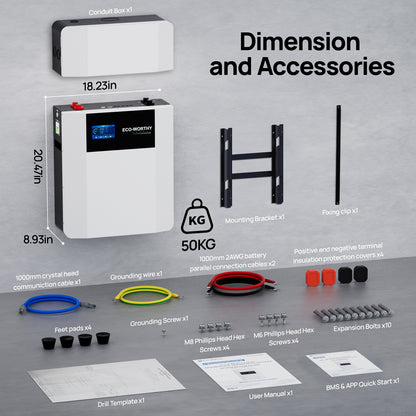

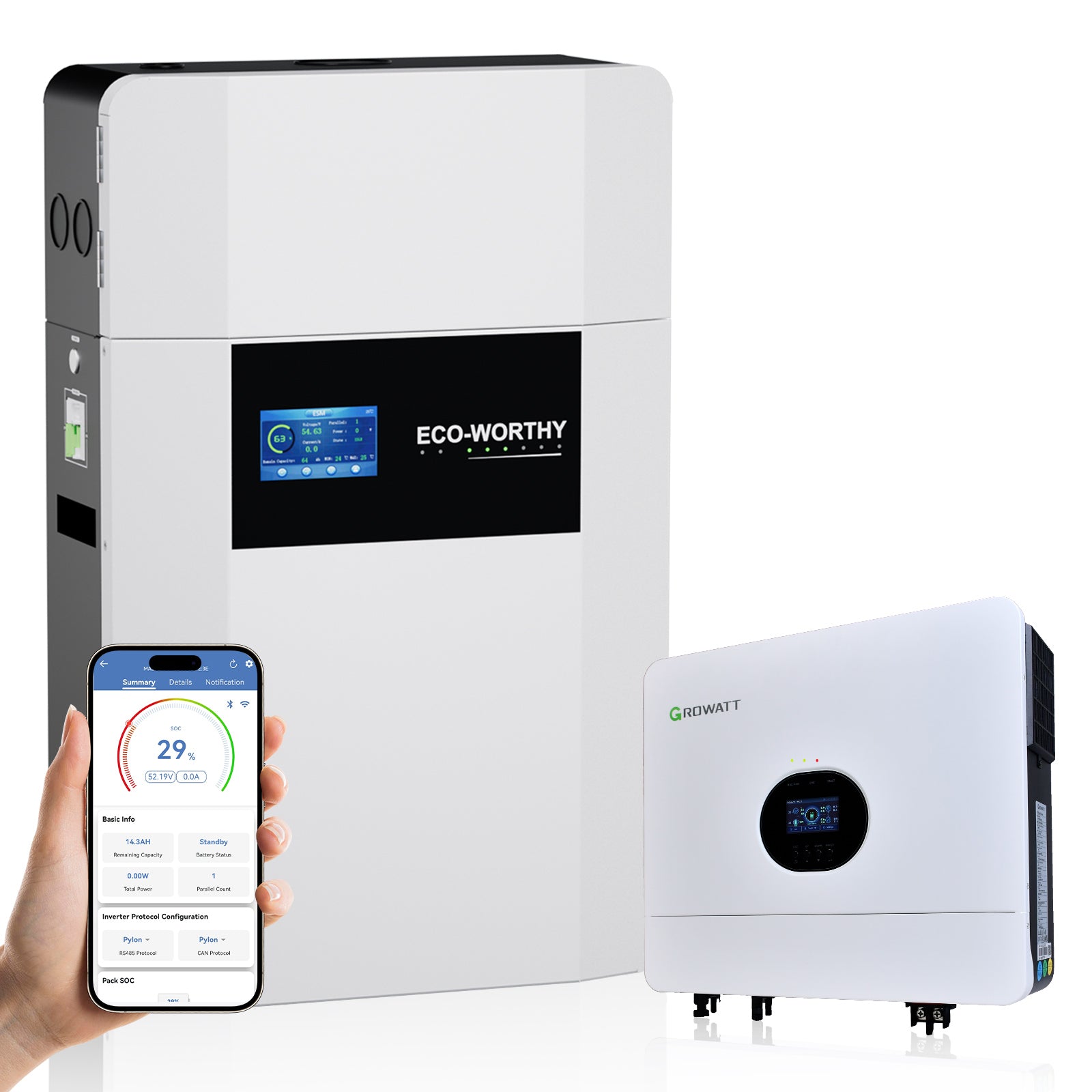

Included in the Box
Frequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

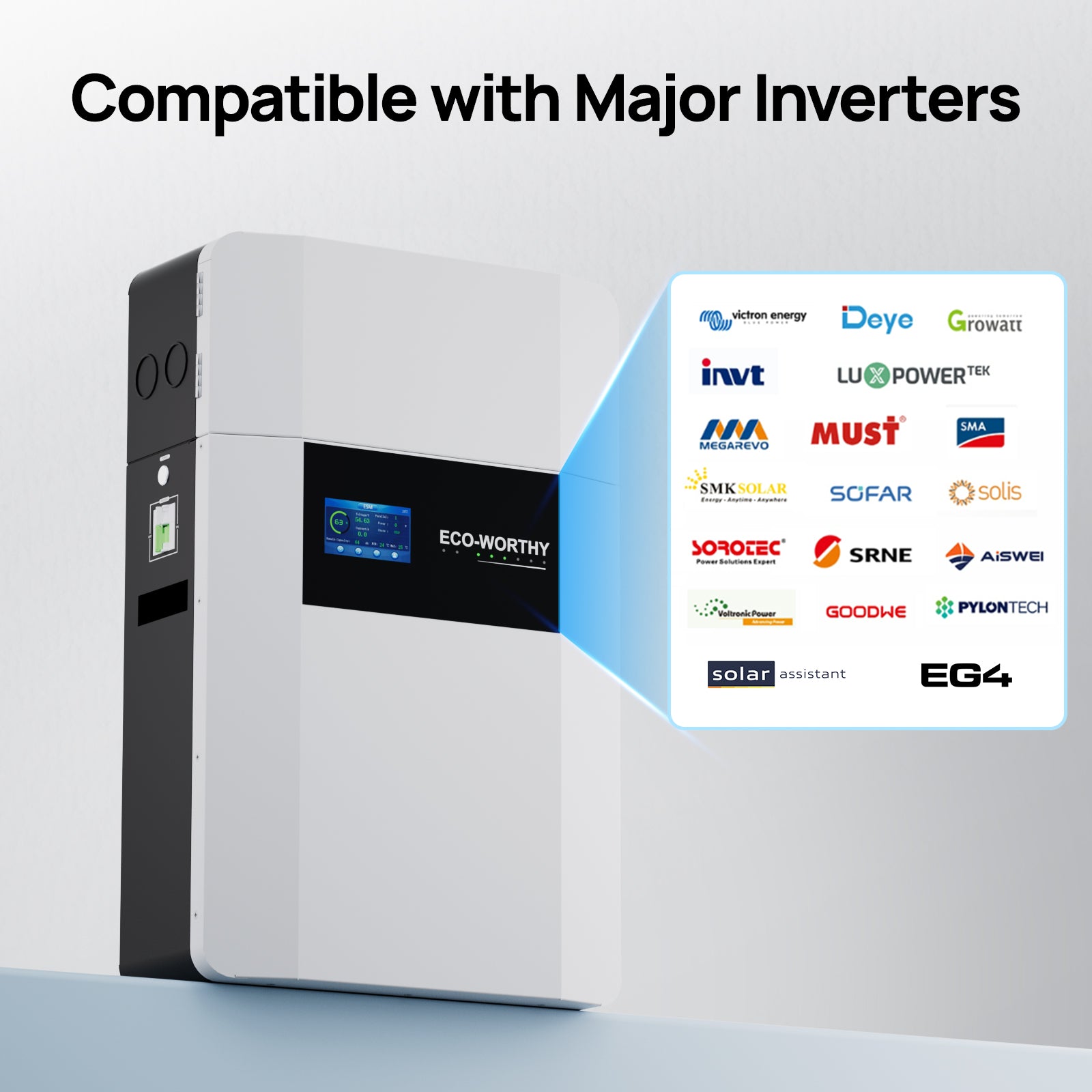

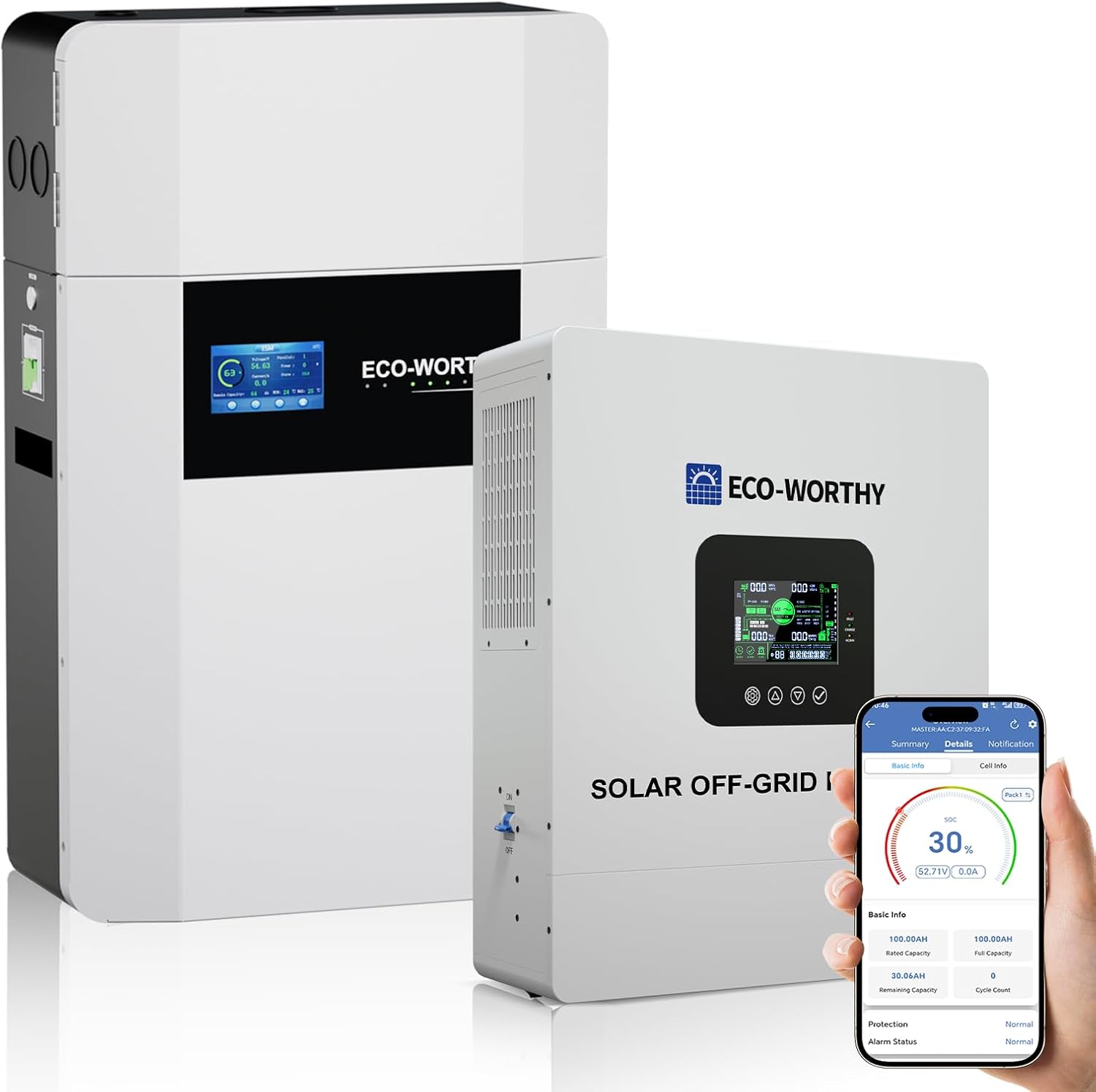

Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.
How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

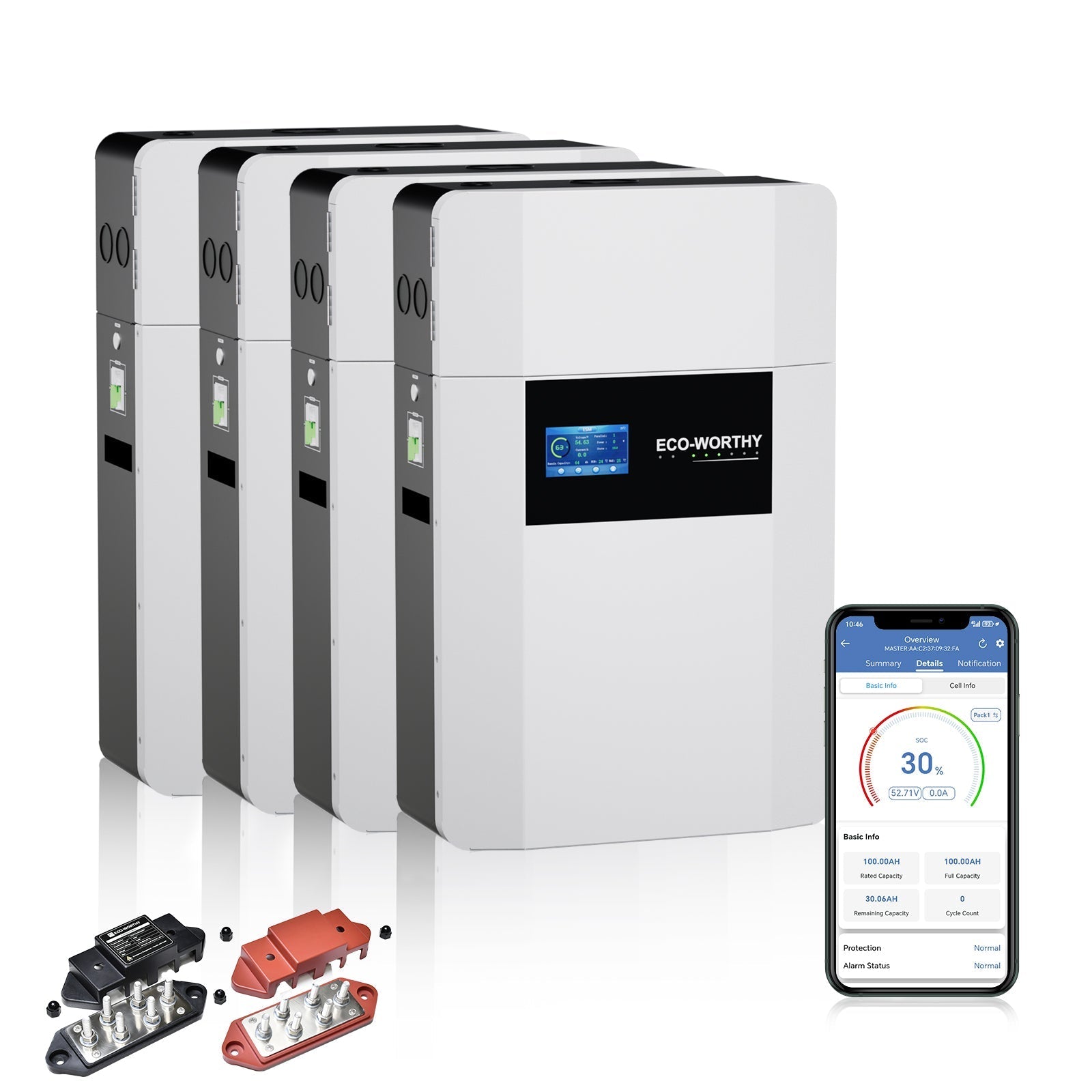

Can I expand the system later?
+

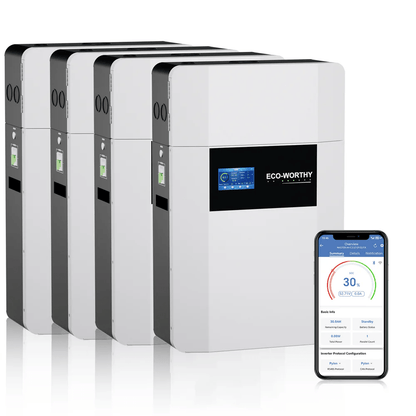

Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
