40A MPPT Solar Charge Controller 12V/24V DC Input and Bluetooth Module with Wirelessly Remote Control

40A MPPT Solar Charge Controller 12V/24V DC Input and Bluetooth Module with Wirelessly Remote Control
£119.99
£119.99 £149.99
save 20% Sold out
Shipping calculated at checkout.

SKU: L03MPPT40NBT02-1

·[Wide Range of Input&Output] Compatible with 12V or 24V DC PV system , it's able to handle maximum of 560W(12V)/1120W(24V) input solar array, and can draw maximum of 40A output current to battery bank.
·[Efficient MPPT Technology] Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%, 40% more than traditional PWM charge controller. It can keep a stable charging current even on cloudy days, making no waste of any sunlight.
·[Compatible with Various Batteries] It's able to charge and discharge different kinds of 12V/24V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries.
·[Reliable Electronic Protections] It has multiple protections to prevent those circuit issues, including Reverse Polarity, Short-Circuit, High Temperature, Over-Current, and Over-Voltage/Low-Voltage. Prevent explosion and fire condition, keep the controller safe during all time work.
·[Bluetooth Module]: Real-time monitoring of solar panel, battery, load status and other data of power generation & consumption data, data memory (daily average, monthly average) and setting memory.Bluetooth 5.0 tech for 82ft long distance monitoring and control for solar charge controller.Remote control of the load and parameter setting of the controller can be realized through the APP.
Learn More See Less
View full details
Description Specification Downloads Shipping
ECO-WORTHY 40A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded, Sealed batteries and Lithium batteries.

Customer Reviews

Based on 13 reviews
77%
(10)
15%
(2)
0%
(0)
0%
(0)
8%
(1)
R
Roblade
40A mppt controller. The good and the bad.

Overall very pleased with this controller, I was drawn to the easy to read display, I can see at a glance how my panels are producing and how my batteries are absorbing.

It’s a plug and play unit, push and hold a button, select battery type and away you go. You can download the app for the bt module, for more settings and see your power production/consumption for the previous year.

Build quality is extremely good, the case is made out of aluminium so the whole unit is a heat sink, great heat dissipation.

BUT…
the terminals. The unit has to be removed to gain access to the terminal screws, they are on the rear of the unit! So if you’re doing a lot of testing, it’s very tedious removing it every time. And also it would be nicer to have some nice and beefy terminals in there. The 24v version can handle 1120W of power, always go with biggest possible cable, unfortunately this unit can’t take that size cable in the connector blocks.

But over all, for the price it’s pretty hard to find a better unit, bought via eBay sale with discount for £75.

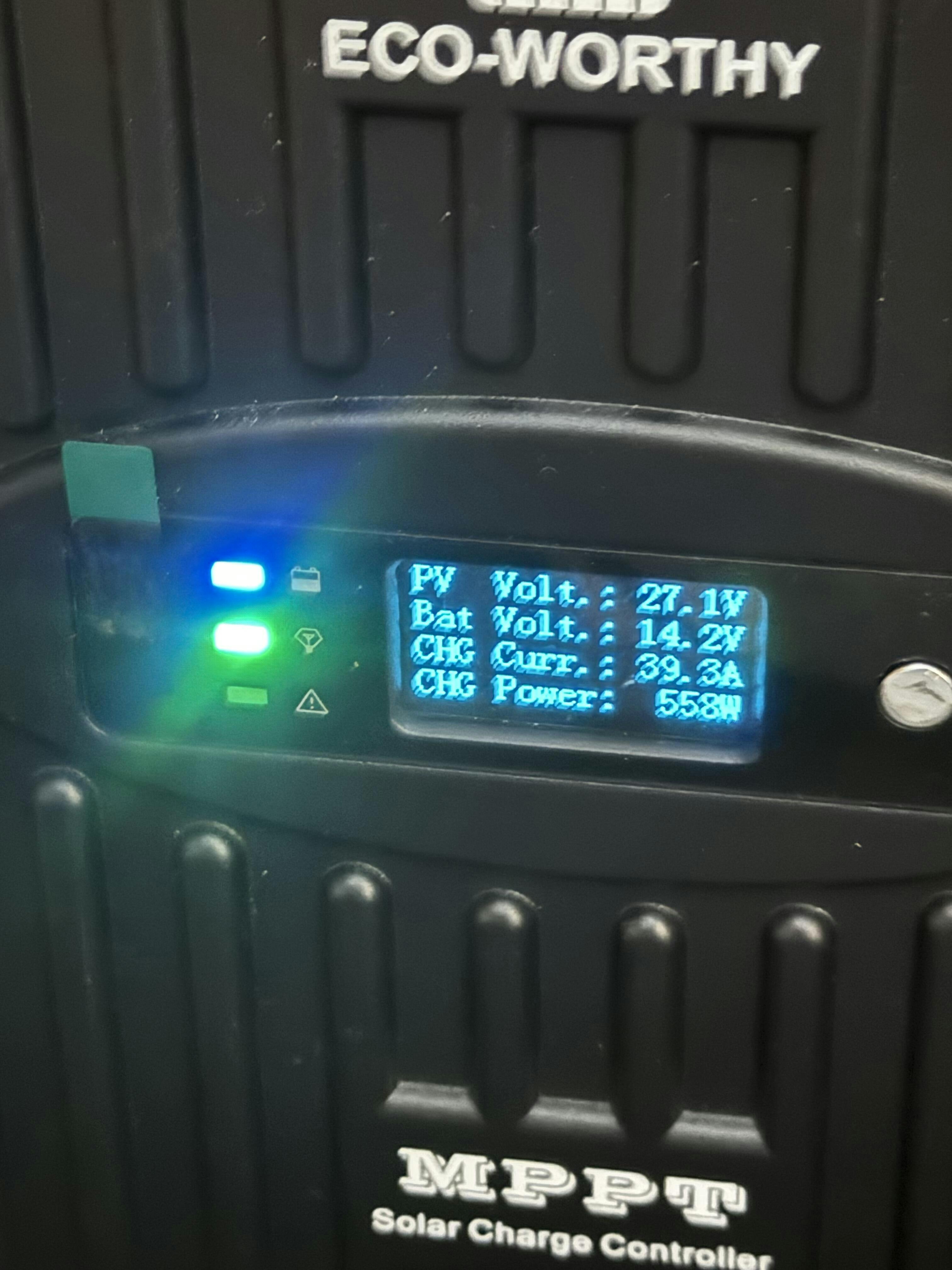

Picture shows power produced in Kent UK sun September day. 2s2p 250w panels 4 in total.

User picture
G
Gareth kelly
Solar charge controller

Very happy with my purchase, will require more items from you guys soon 😉

D
David Henley
Great

Great item does what it says and keeps everything in order blue tooth is a great feature too.

B
Bryan Lambert
Communications

Thanks for the possibility of a message to eco-worthy-uk. As you have put the brand is [our store]!
I'm just in the middle of re-cabling my array of solar panels to a triple bank of Eco-worthy 280ah batteries, one of which was Bluetooth enabled, so I could monitor the charge level remotely. The Bluetooth pairing works but the adding of the information to my internet does not connect. I have sent a help request to your contact desk on the 20th Aug to [****]. I'm still awaiting an outcome from that.
I'm apprehensive as to how the Bluetooth module will work when I set it up in the near future?

J
John Foster
Solar tracker

Absolutely amazing value for money everything about eco worthy second to none
