1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit

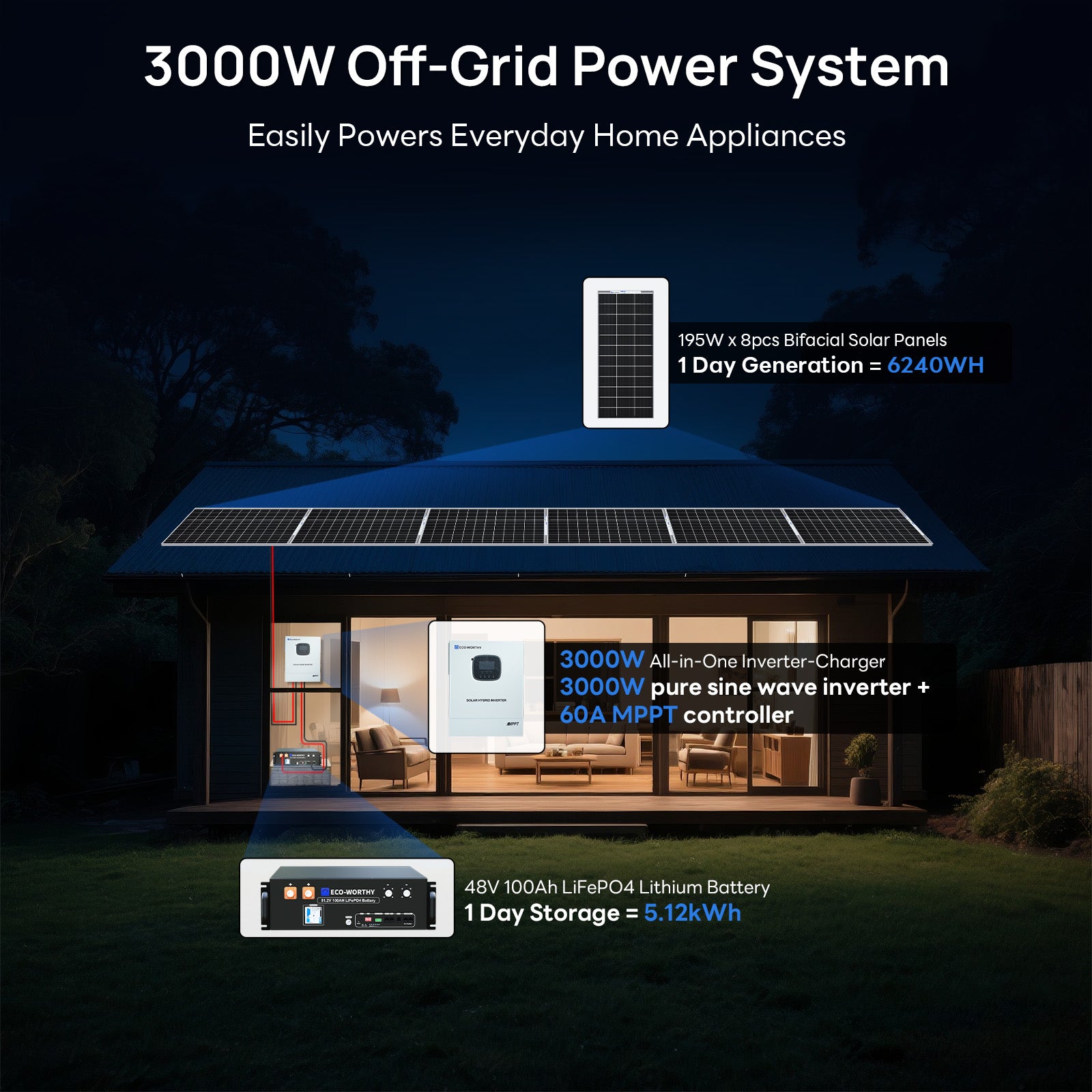

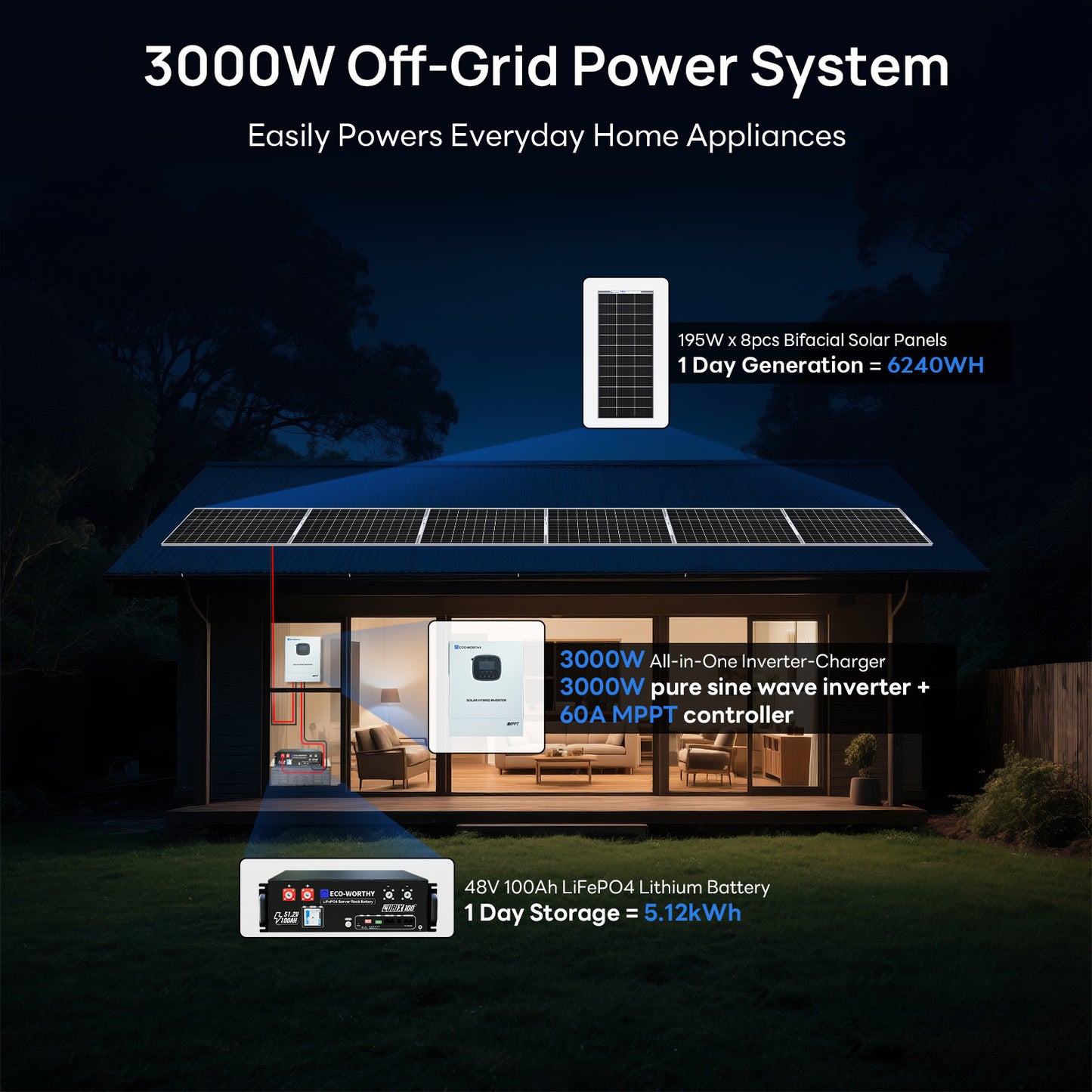

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 1560W 48V expandable Solar Kit is an ideal choice. This system could generate approximately 5.12kWh per day.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.

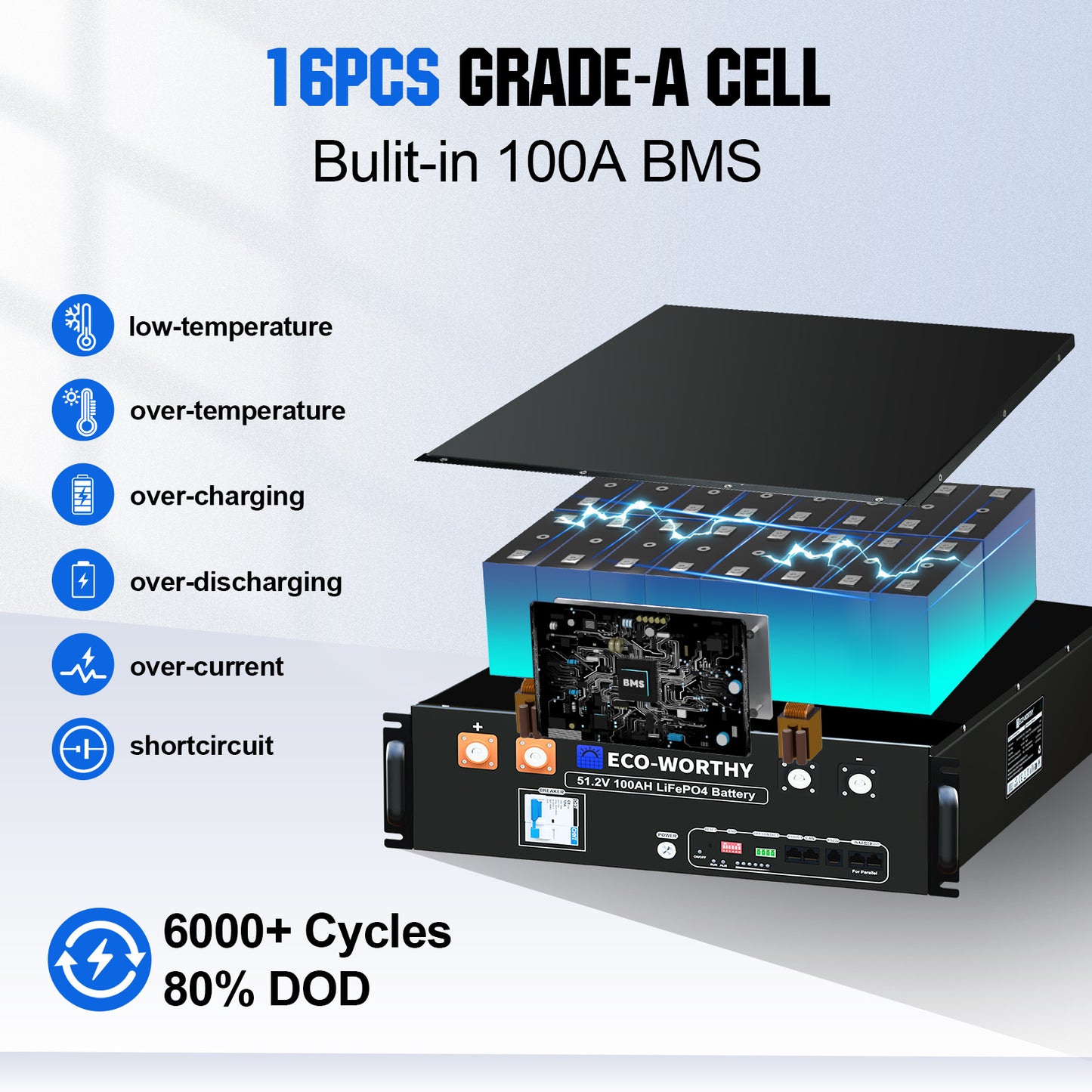

ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
3000W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.

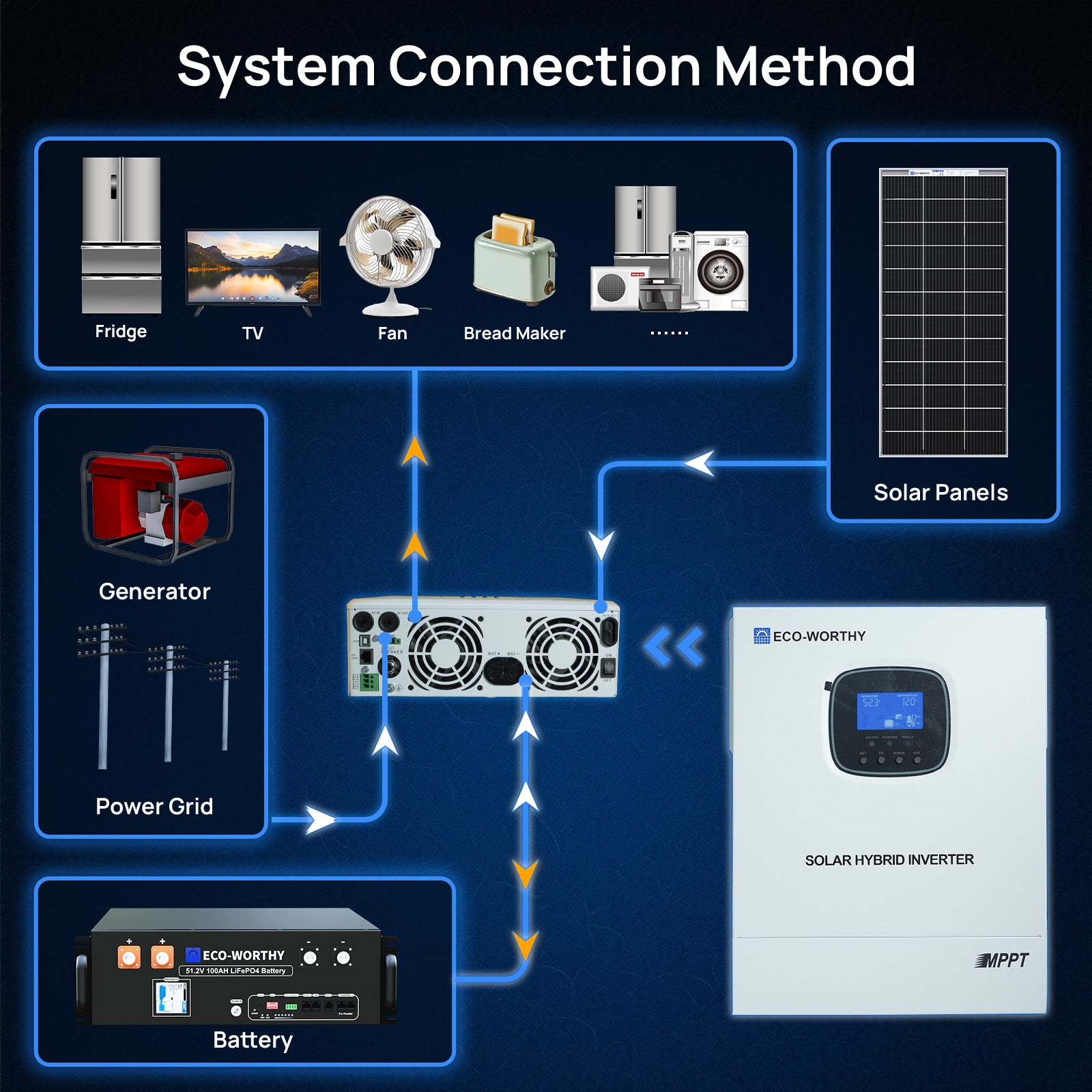

ECO-WORTHY 1560W 48V Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system.

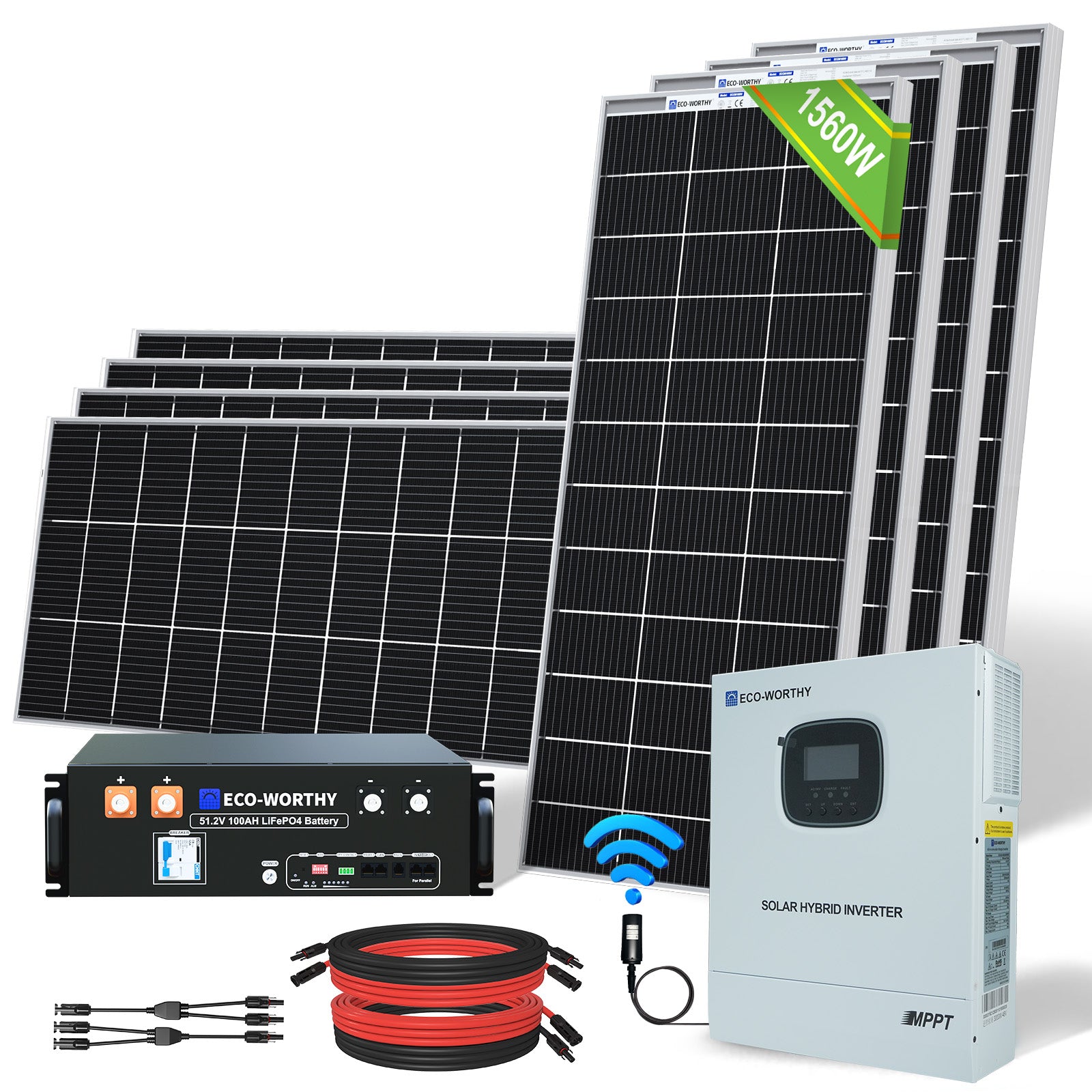

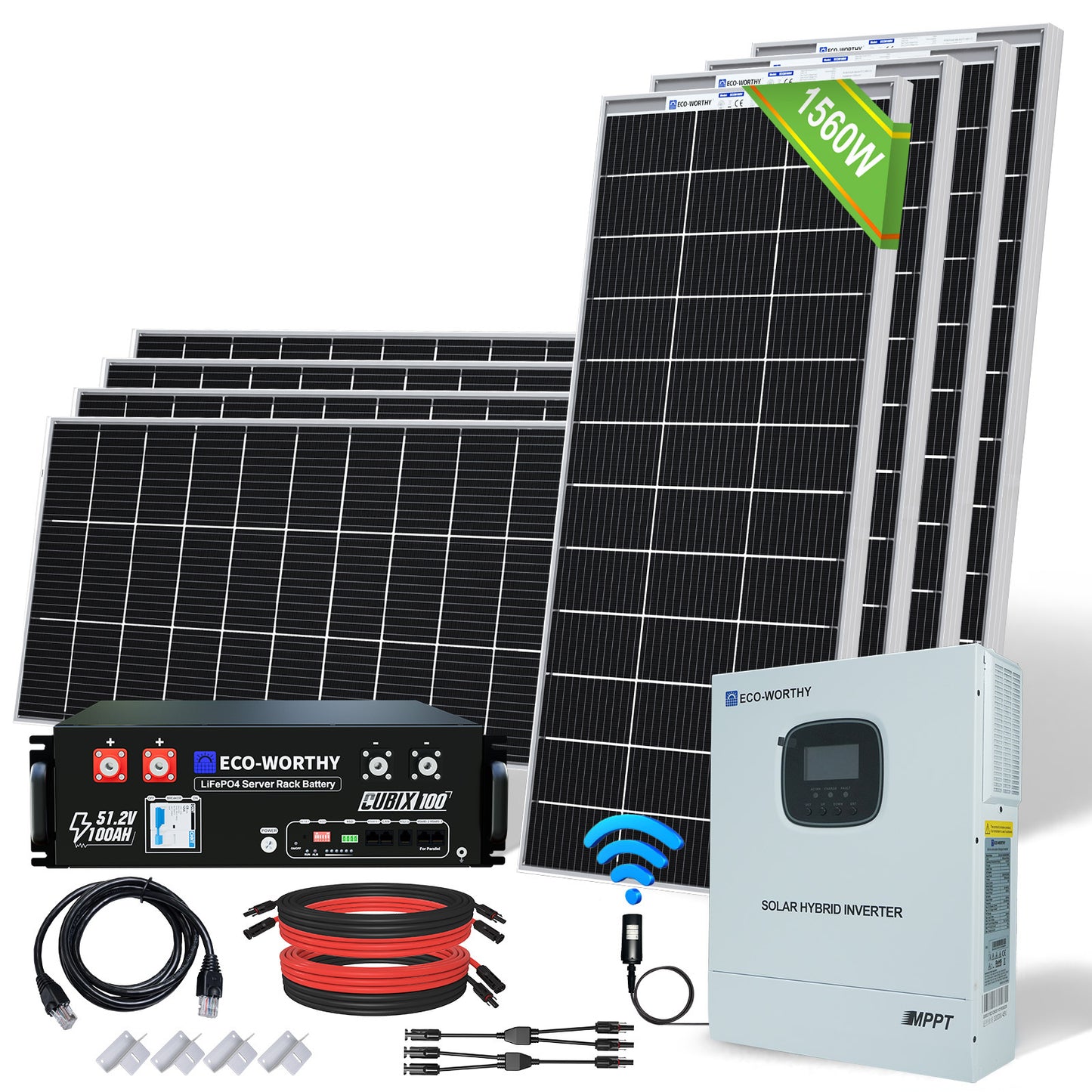

Package Includes
8x Bifacial 195W Mono Solar Panel

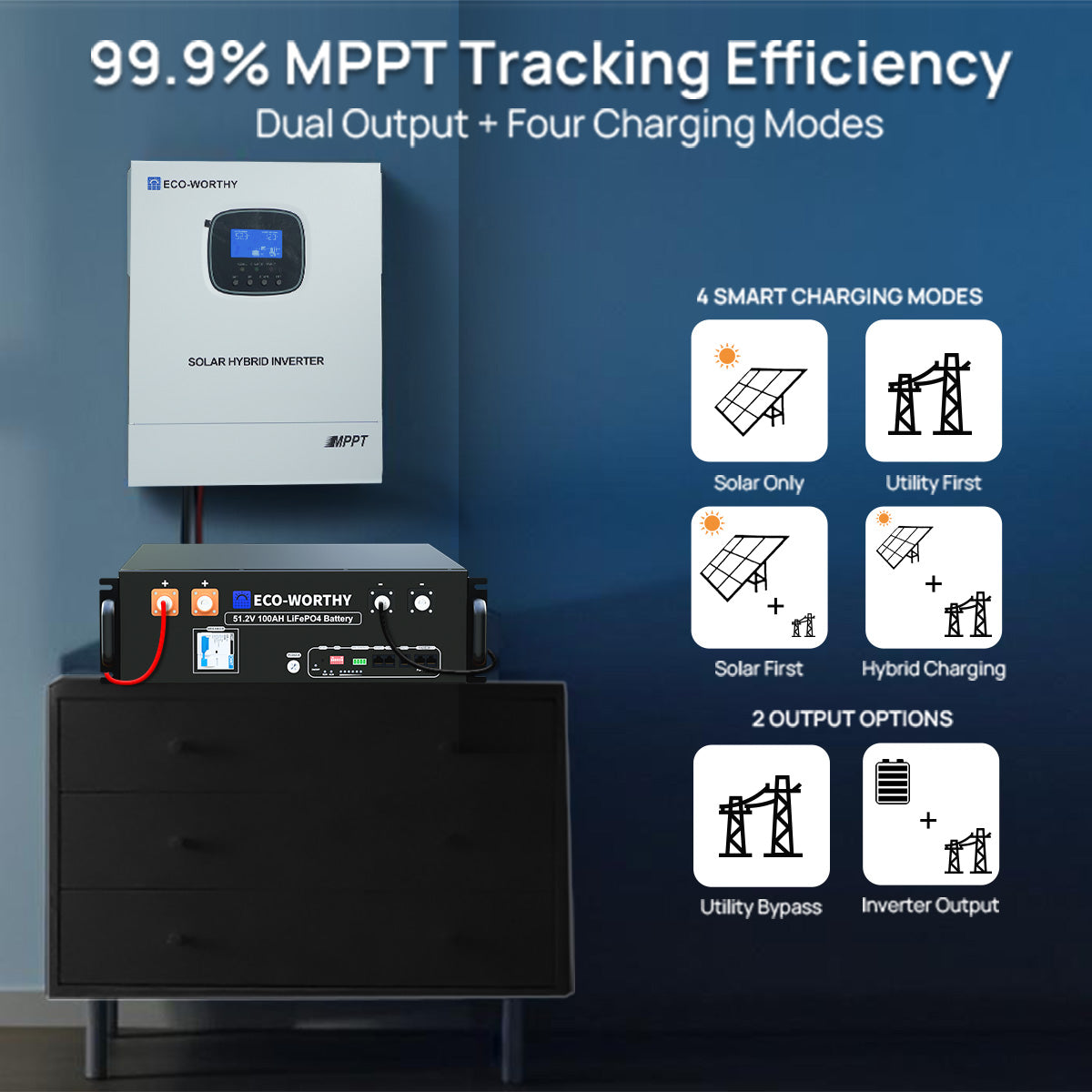

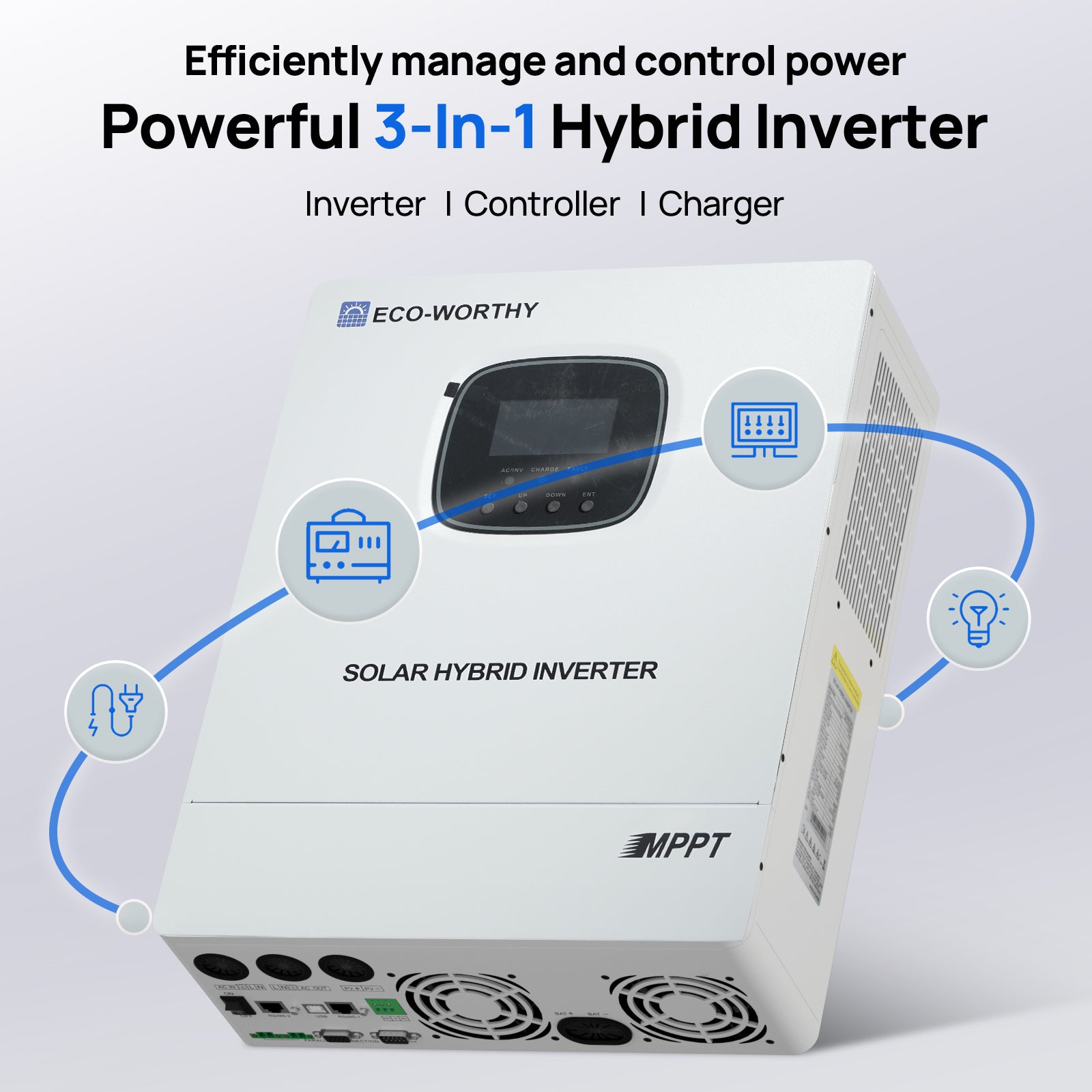

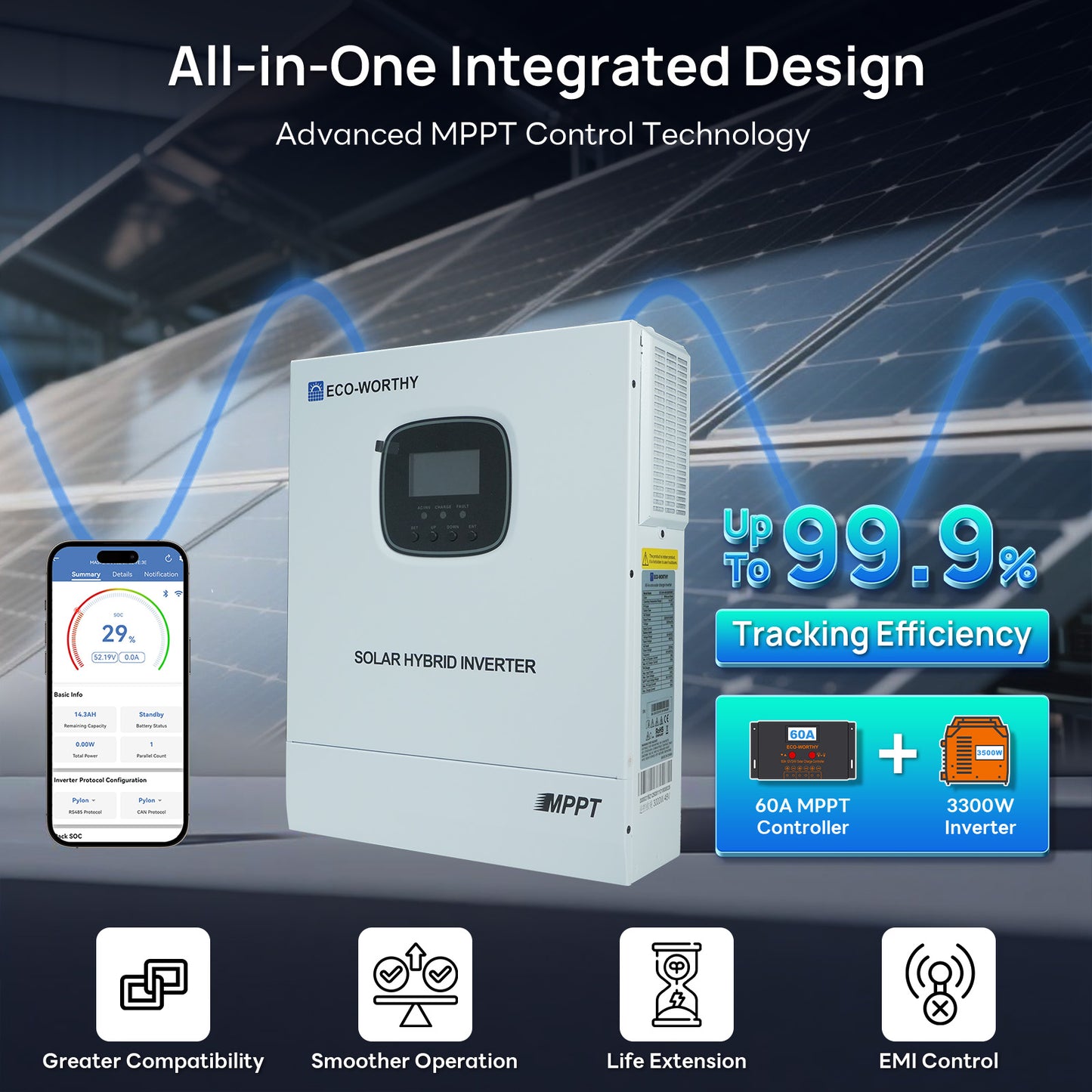

1x All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG Extension Cable with MC4-MC4

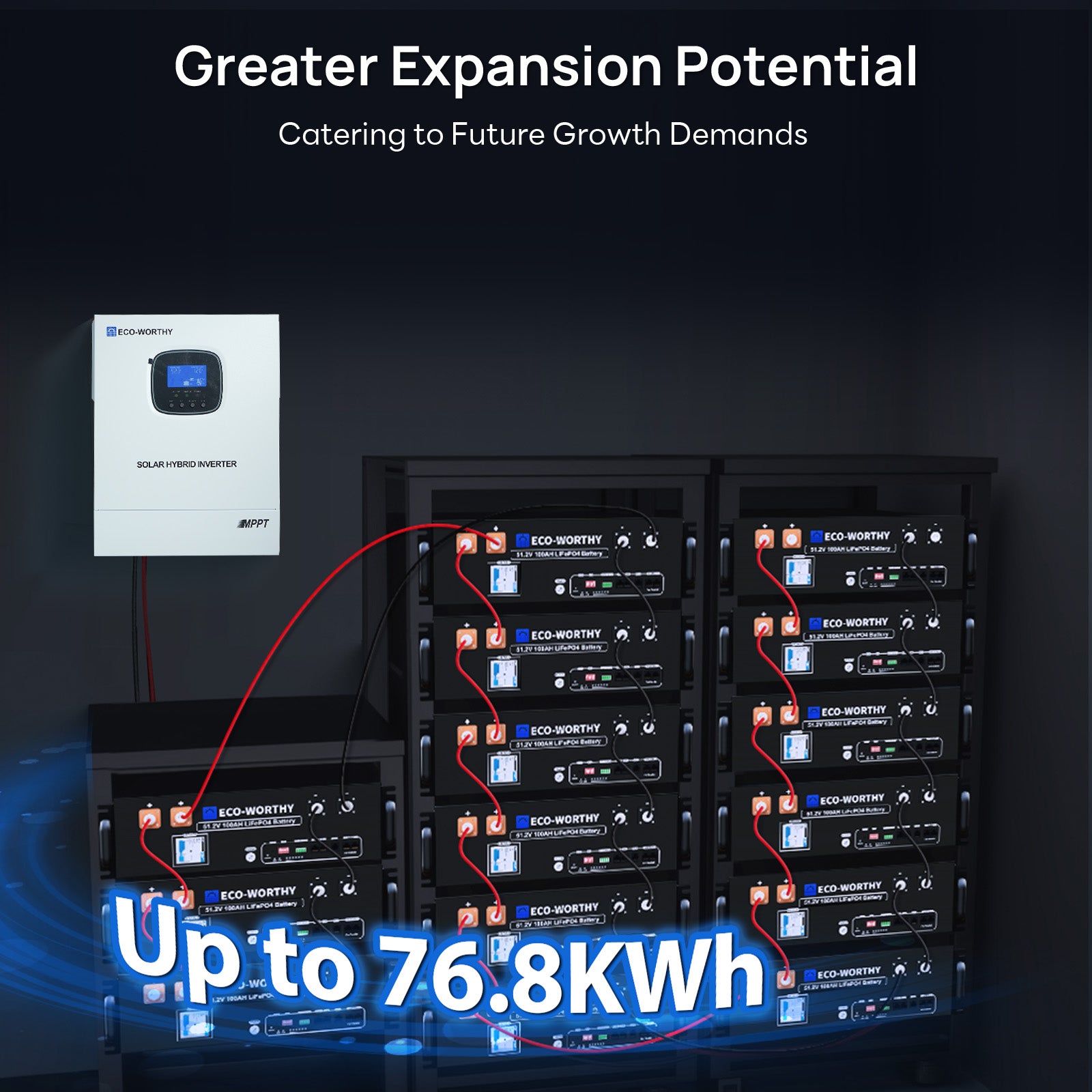

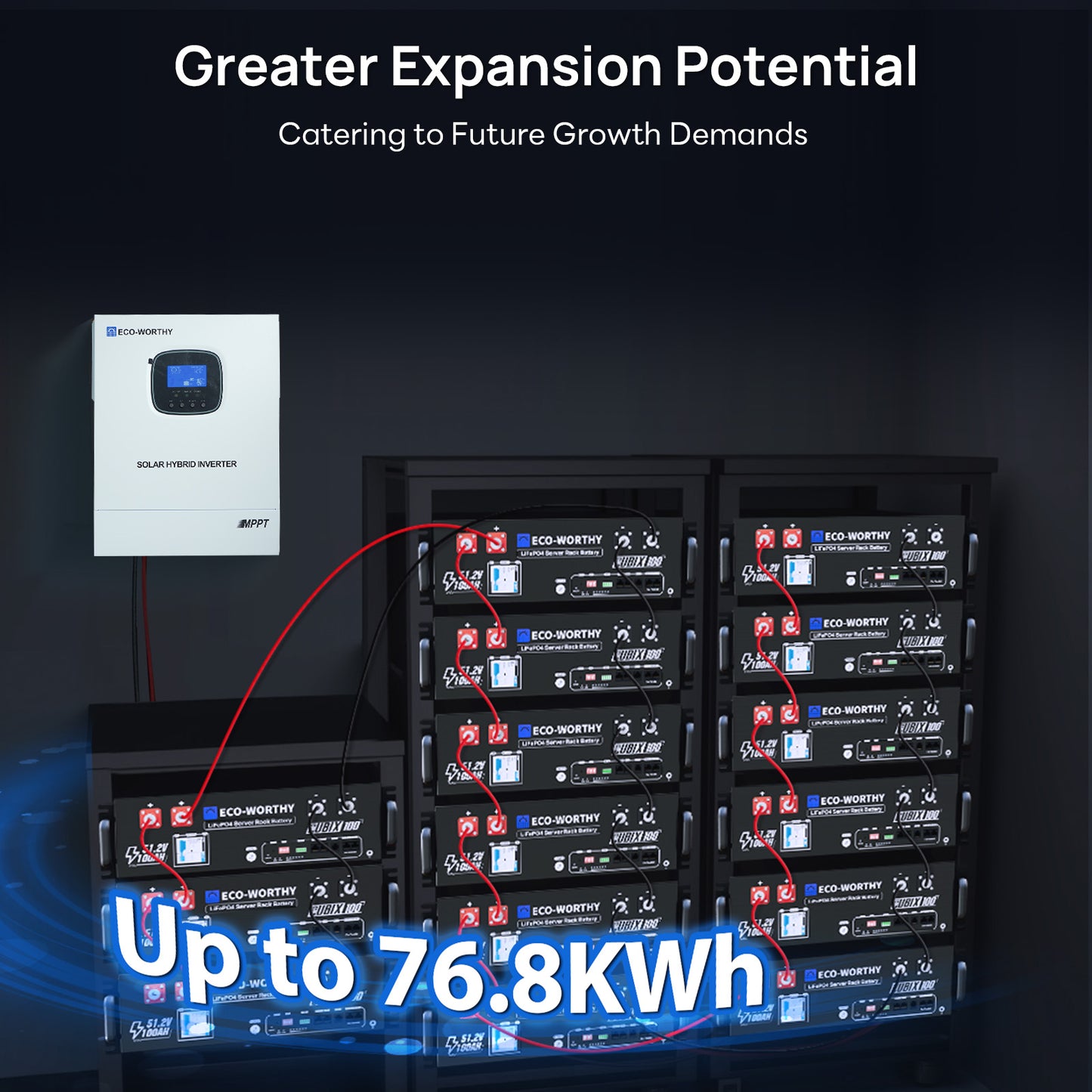

Battery Bank Options-
5.12kWh Lithium Battery Bank (optional)
with
1x 48V(51.2V) 100Ah Server Rack Battery
1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair

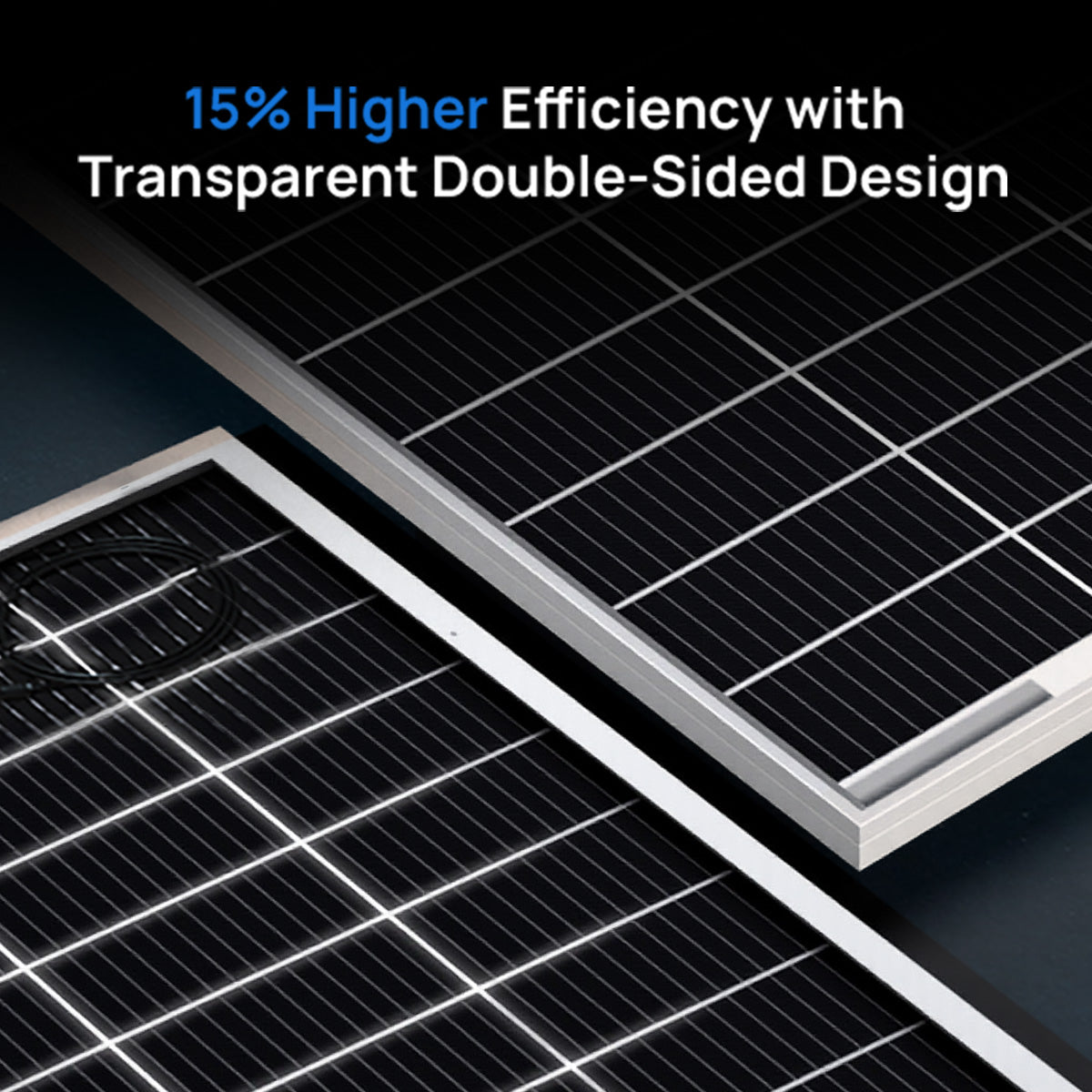

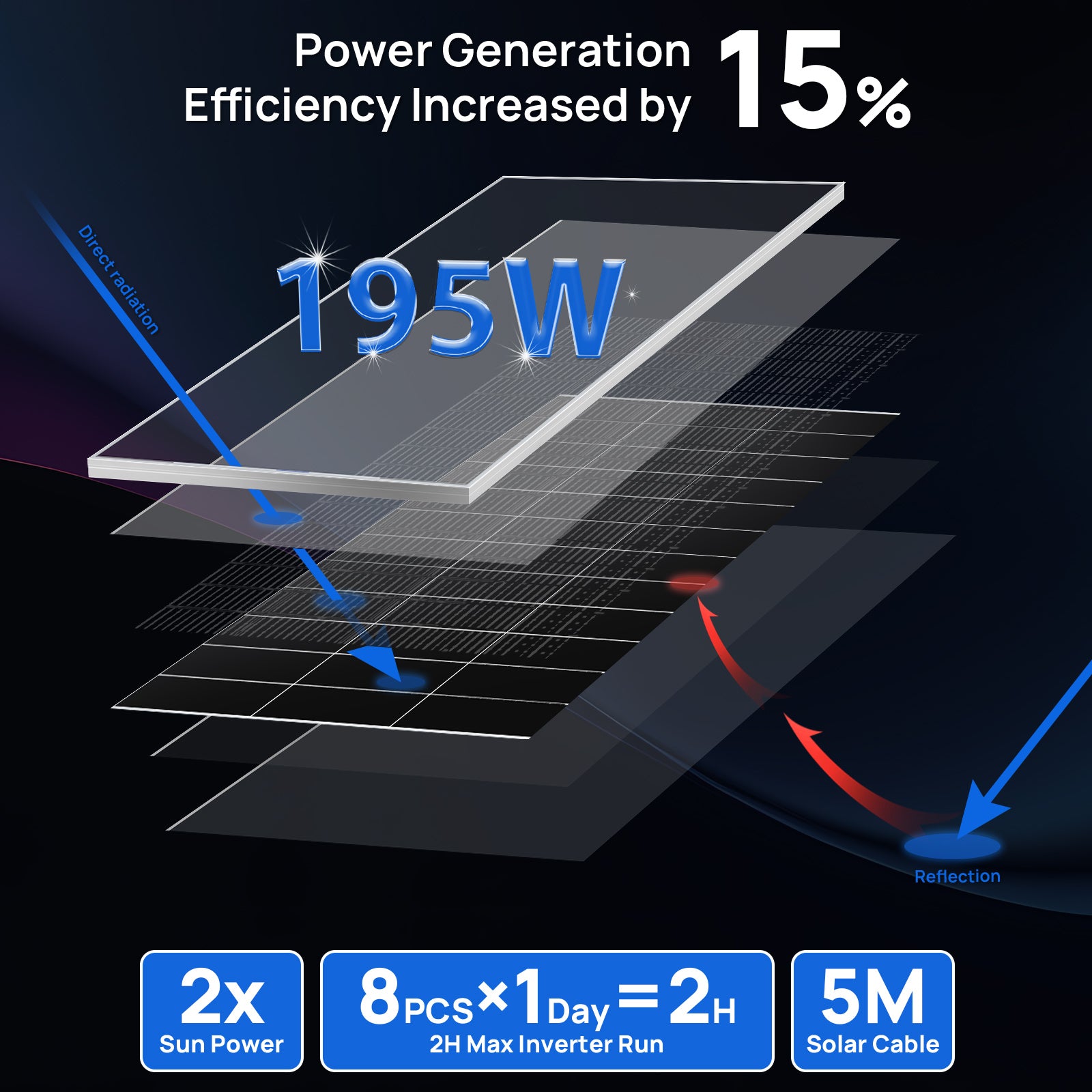

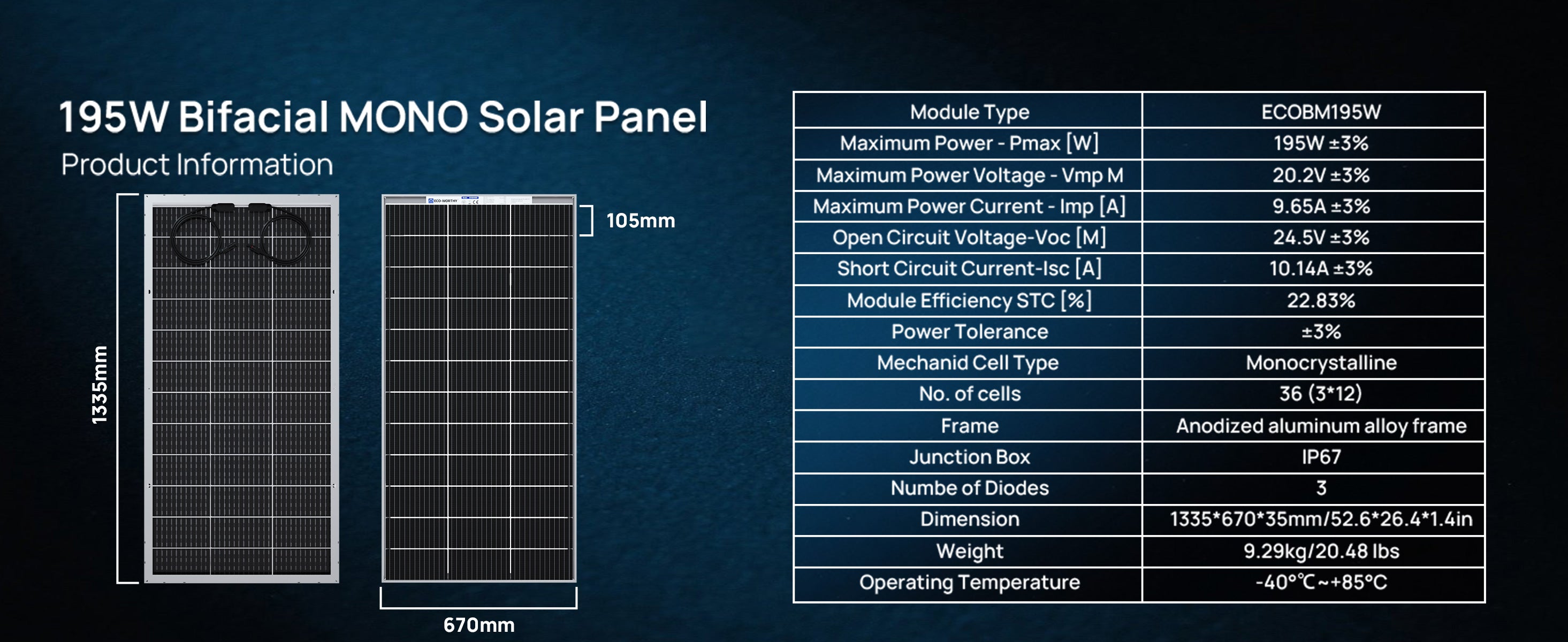

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

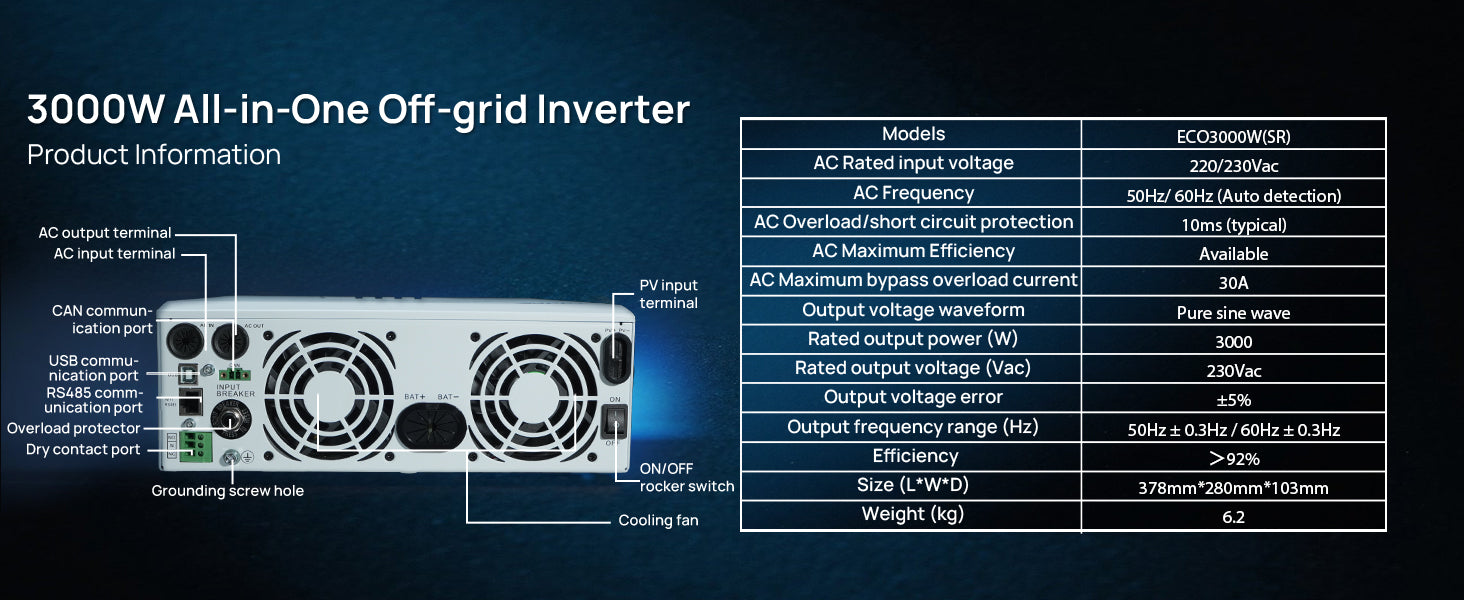

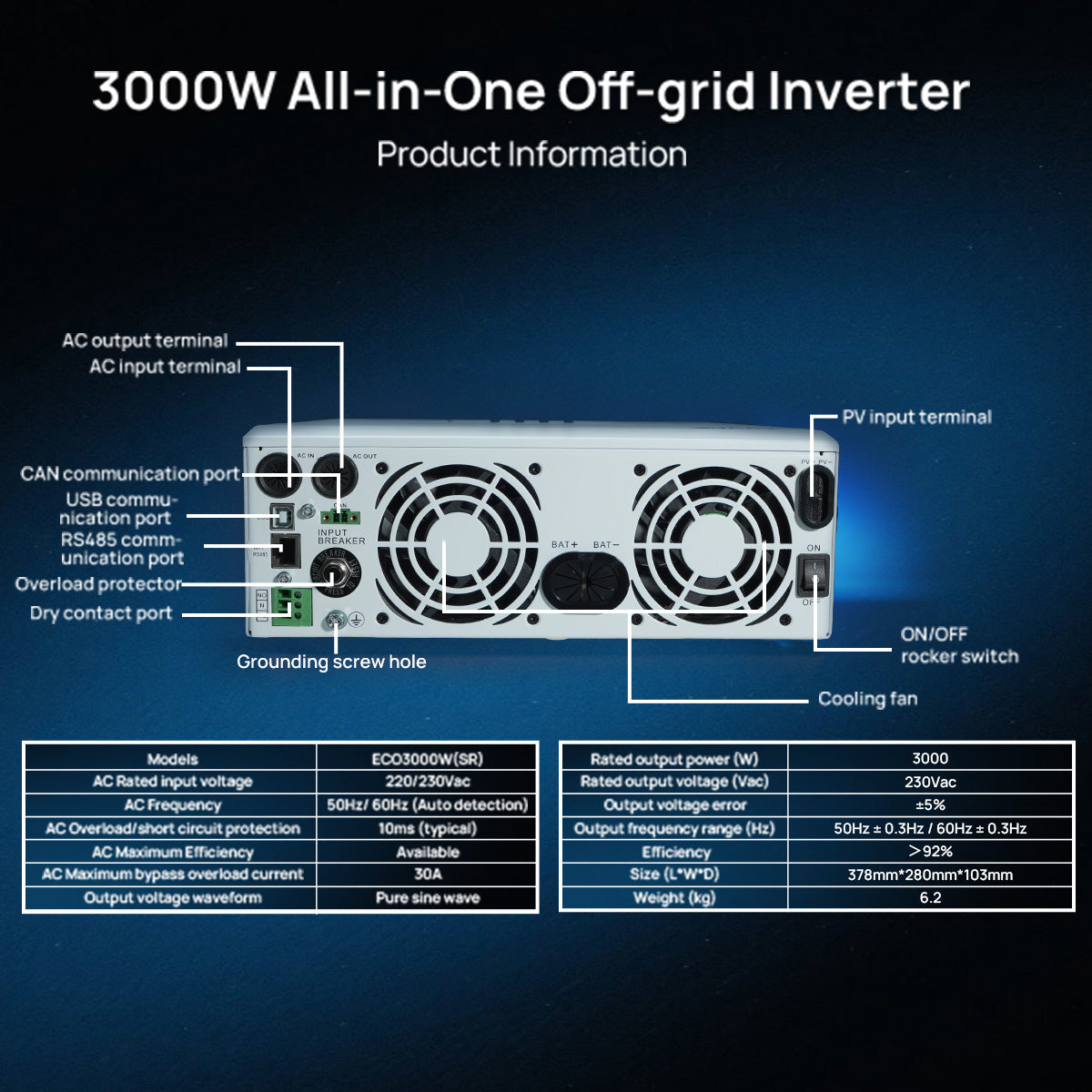

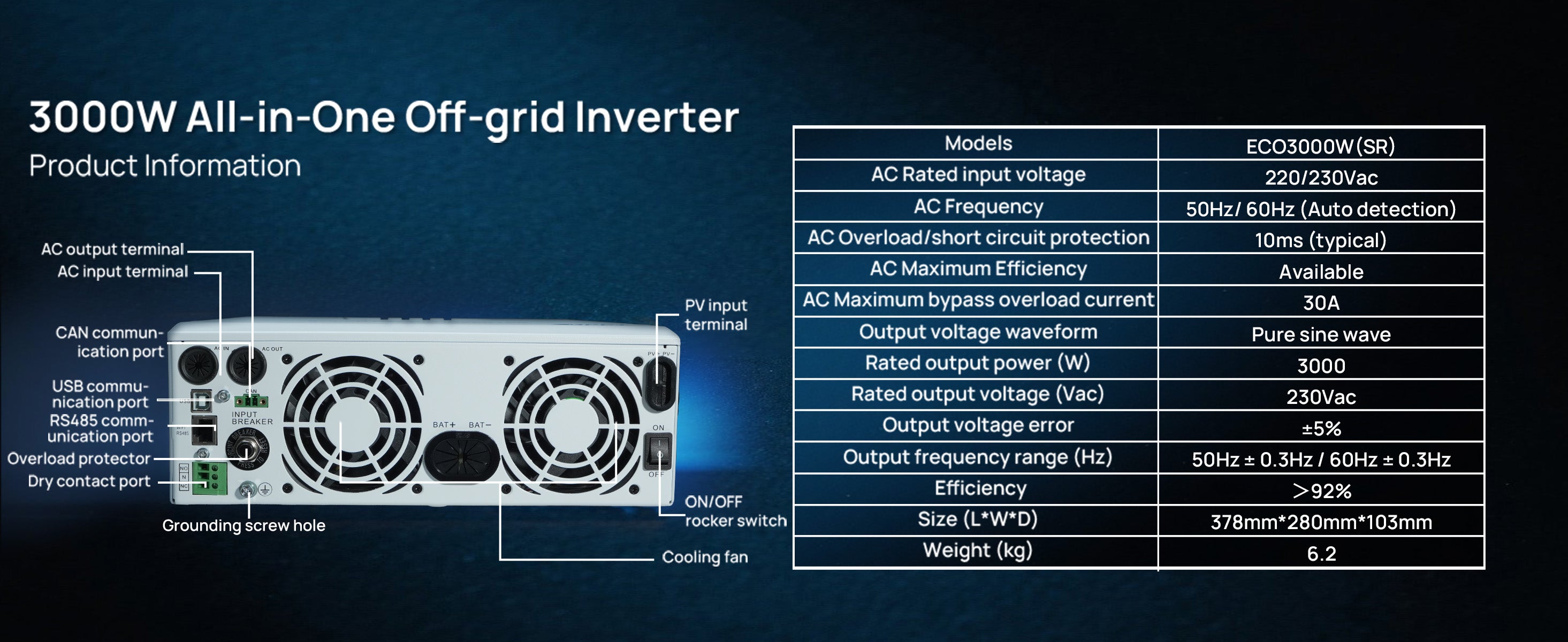

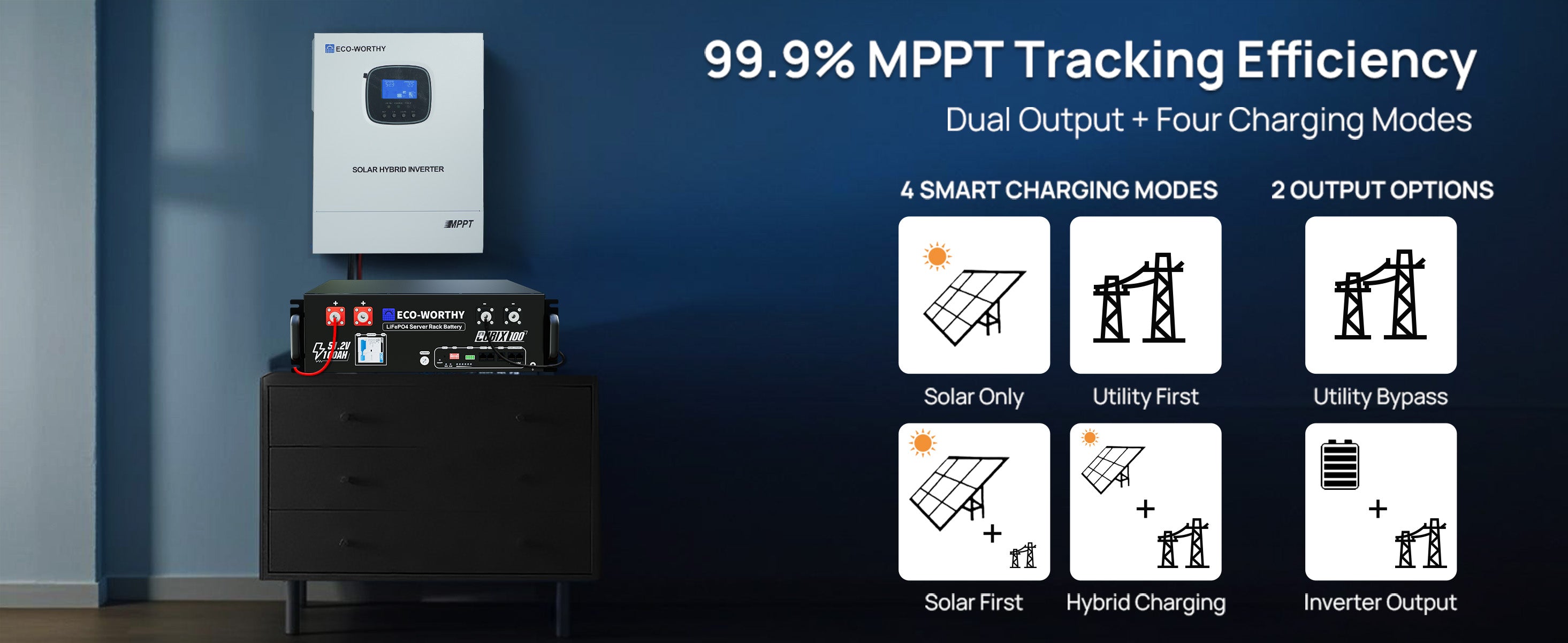

All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller

Models: ECO3000W(SR)	AC Rated input voltage: 220/230Vac
AC Frequency: 50Hz/ 60Hz (Auto detection)	AC Overload/short circuit protection: 10ms (typical)
AC Maximum Efficiency: Available	AC Maximum bypass overload current: 30A
Output voltage waveform: Pure sine wave	Rated output power (W): 3300w
Rated output voltage (Vac): 230Vac	Output voltage error: ±5%
Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz	Efficiency: ＞92%
Size (L*W*D): 378mm*280mm*103mm	Weight (kg): 6.2

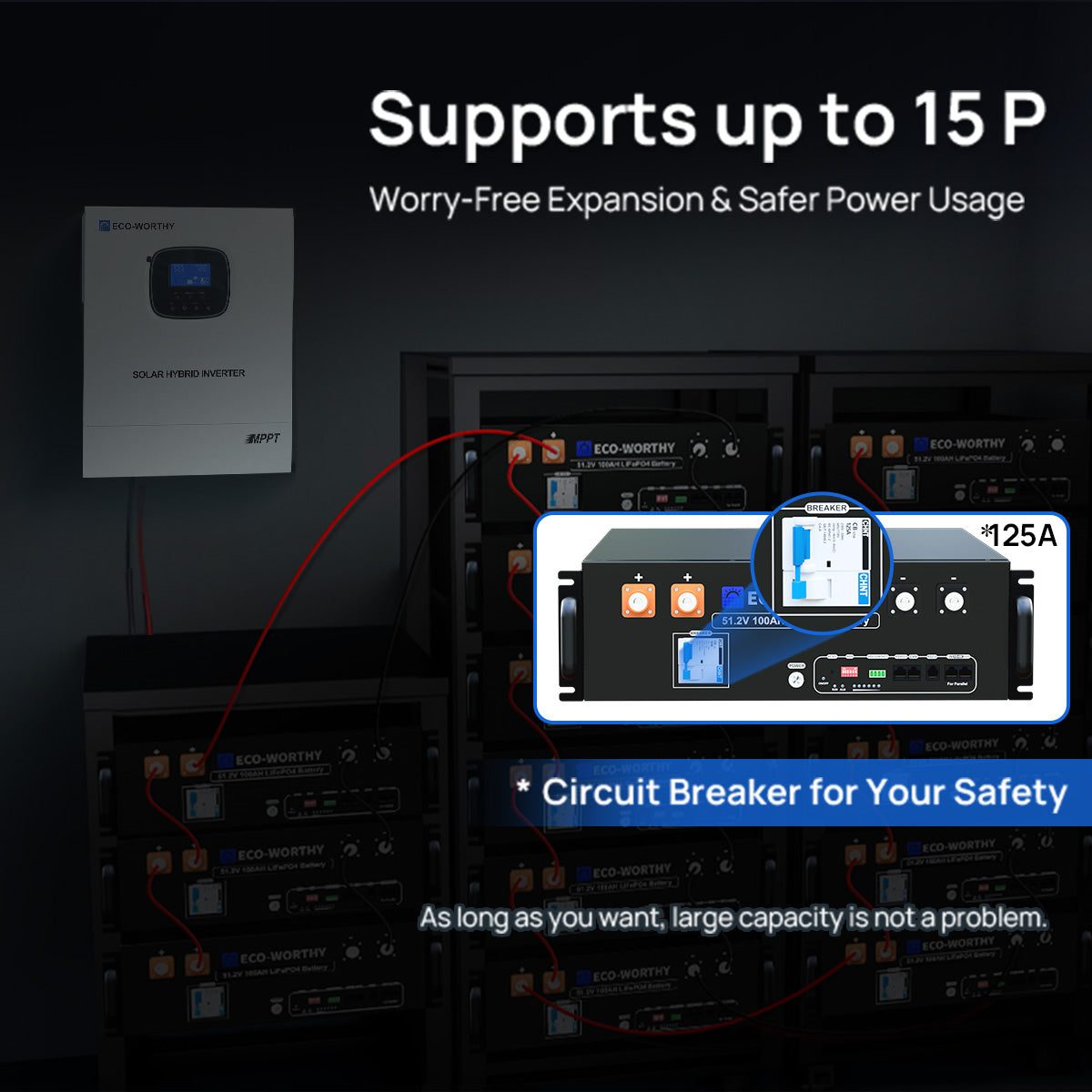

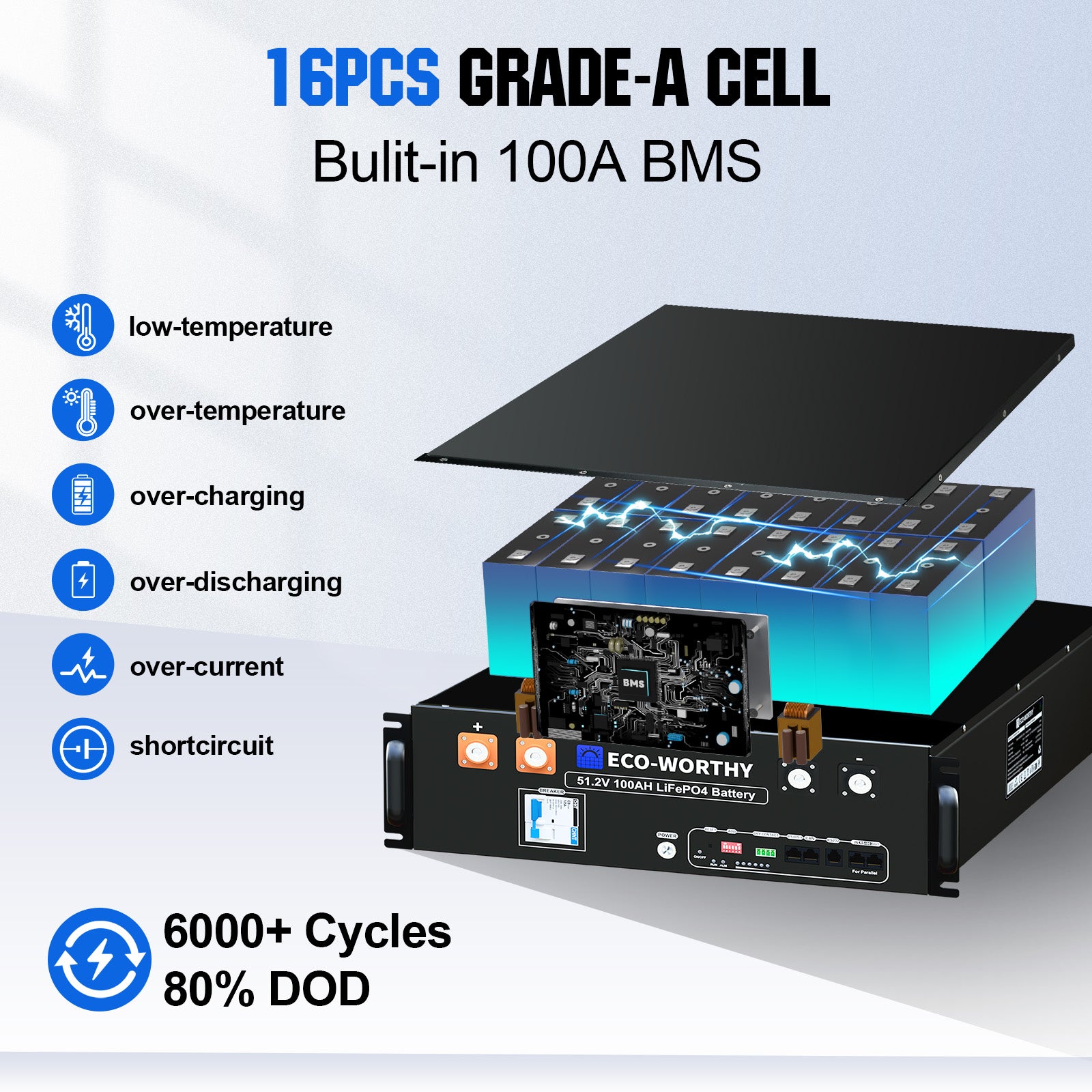

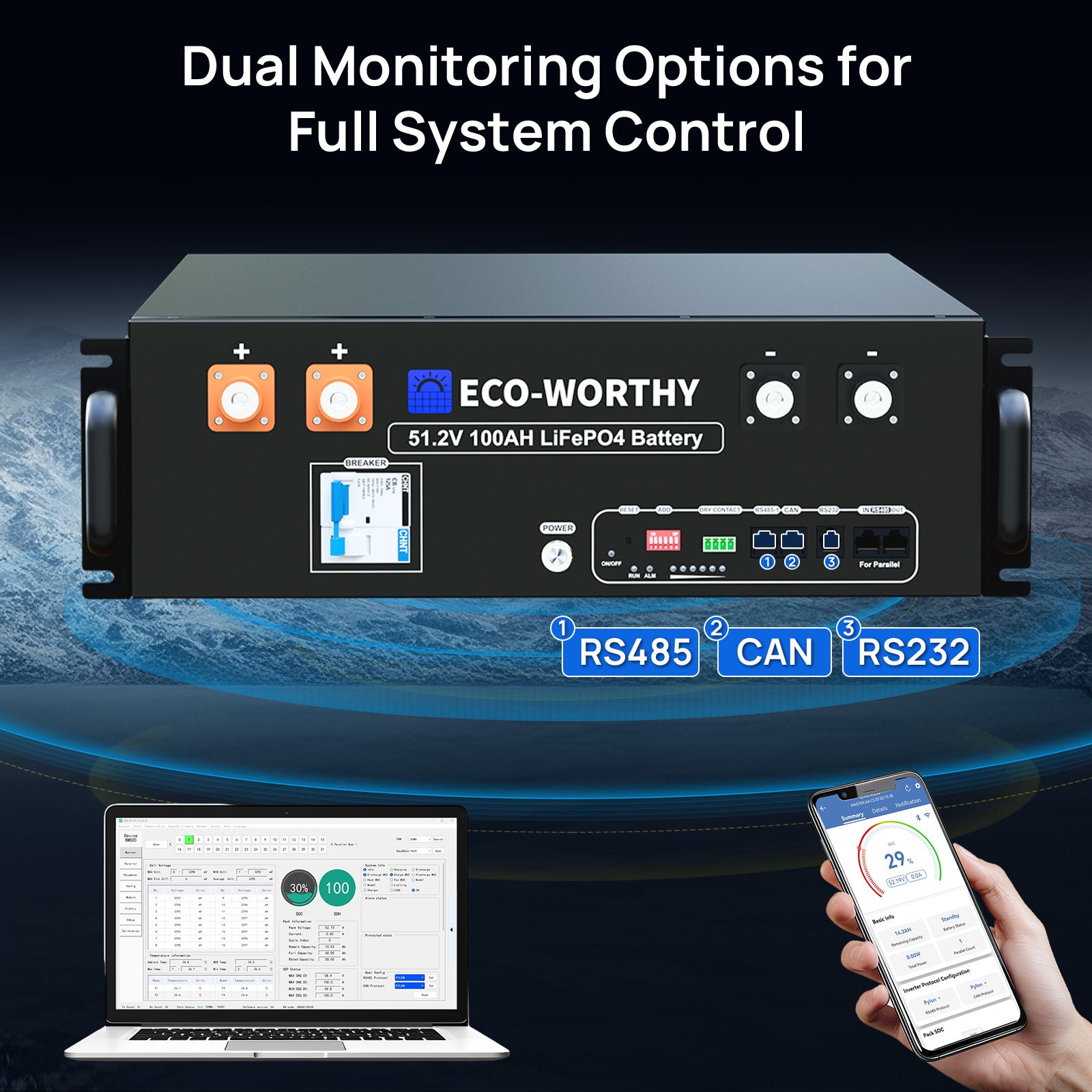

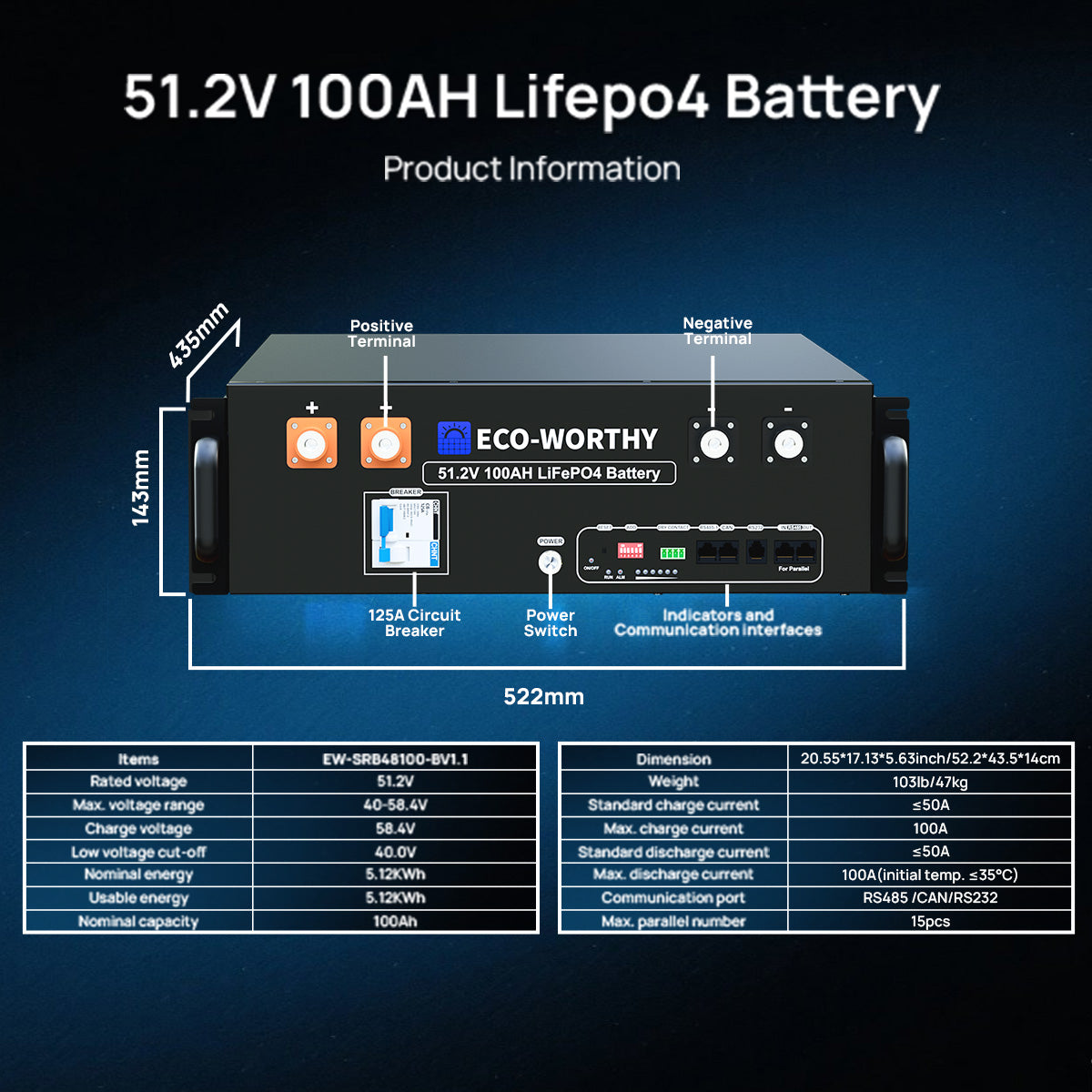

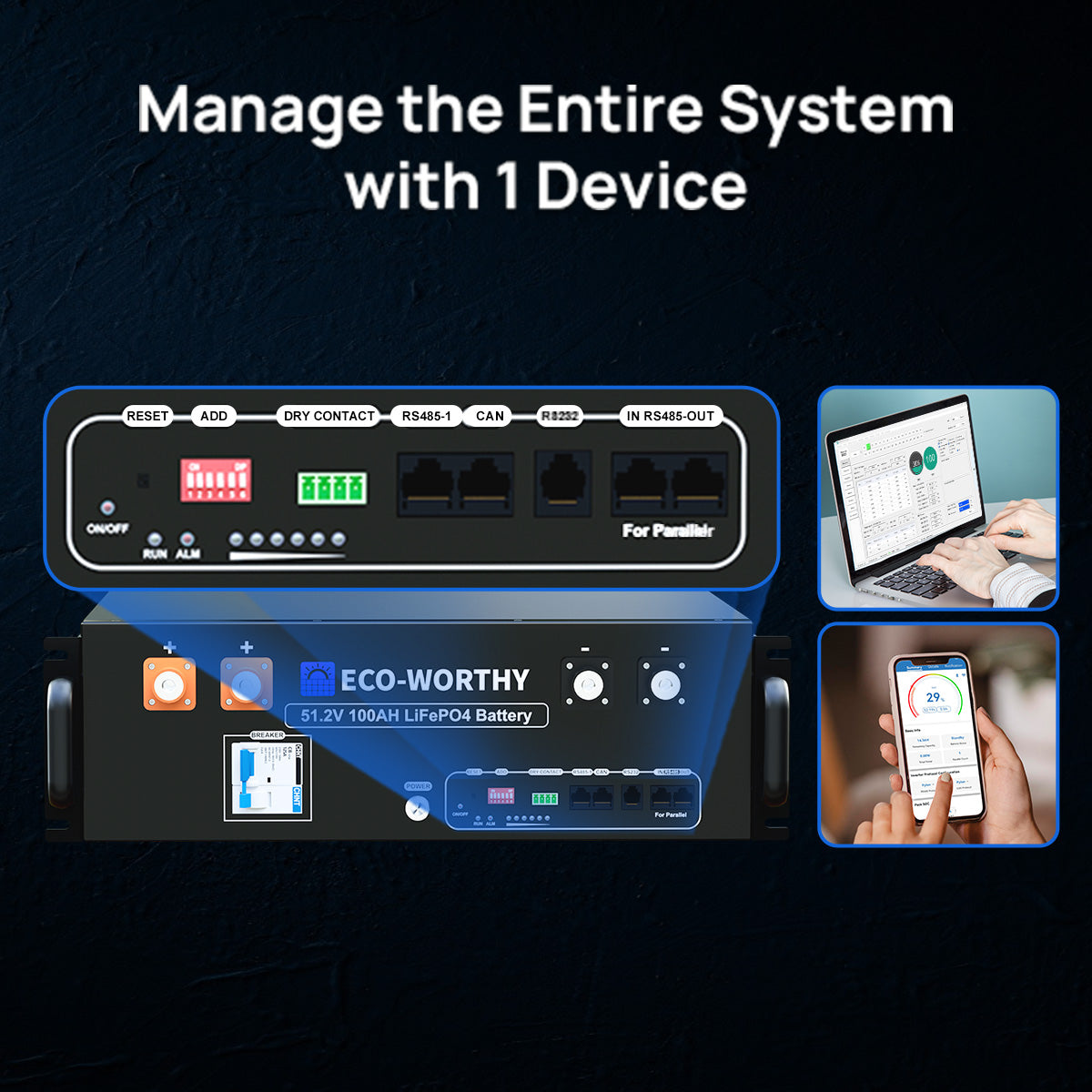

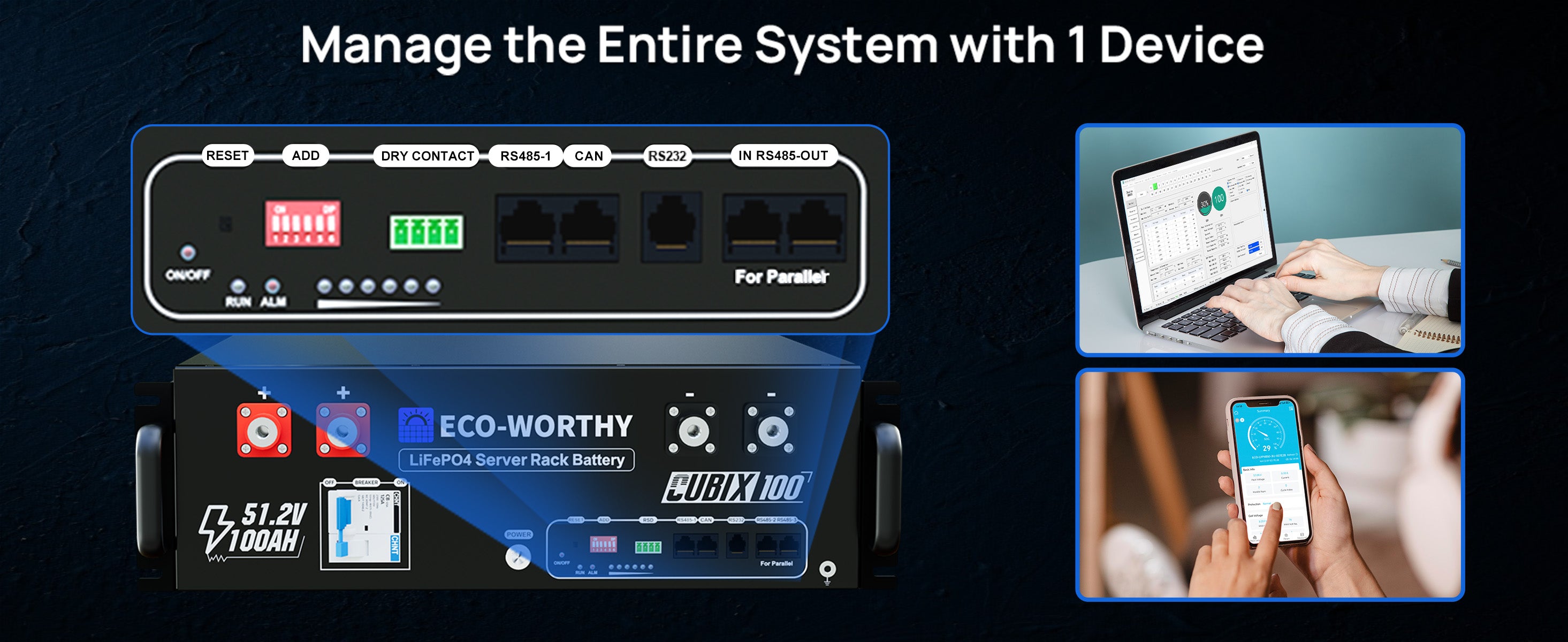

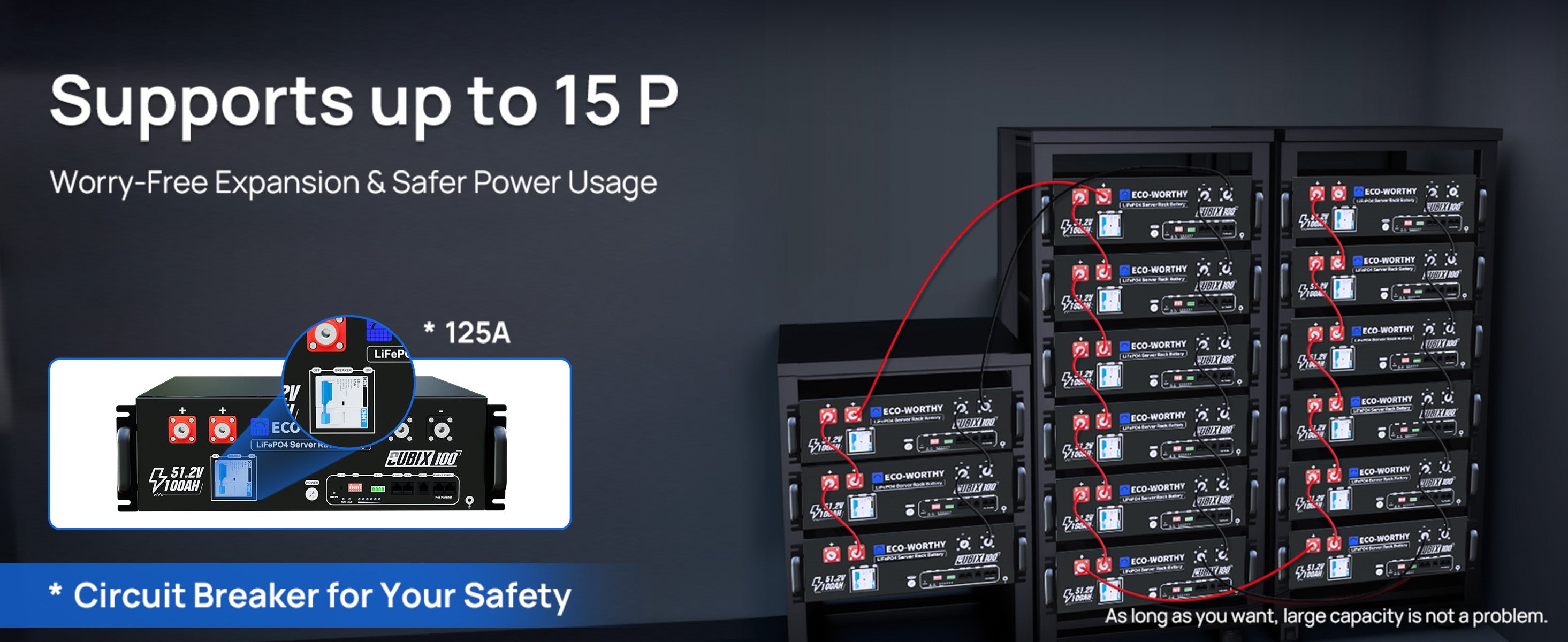

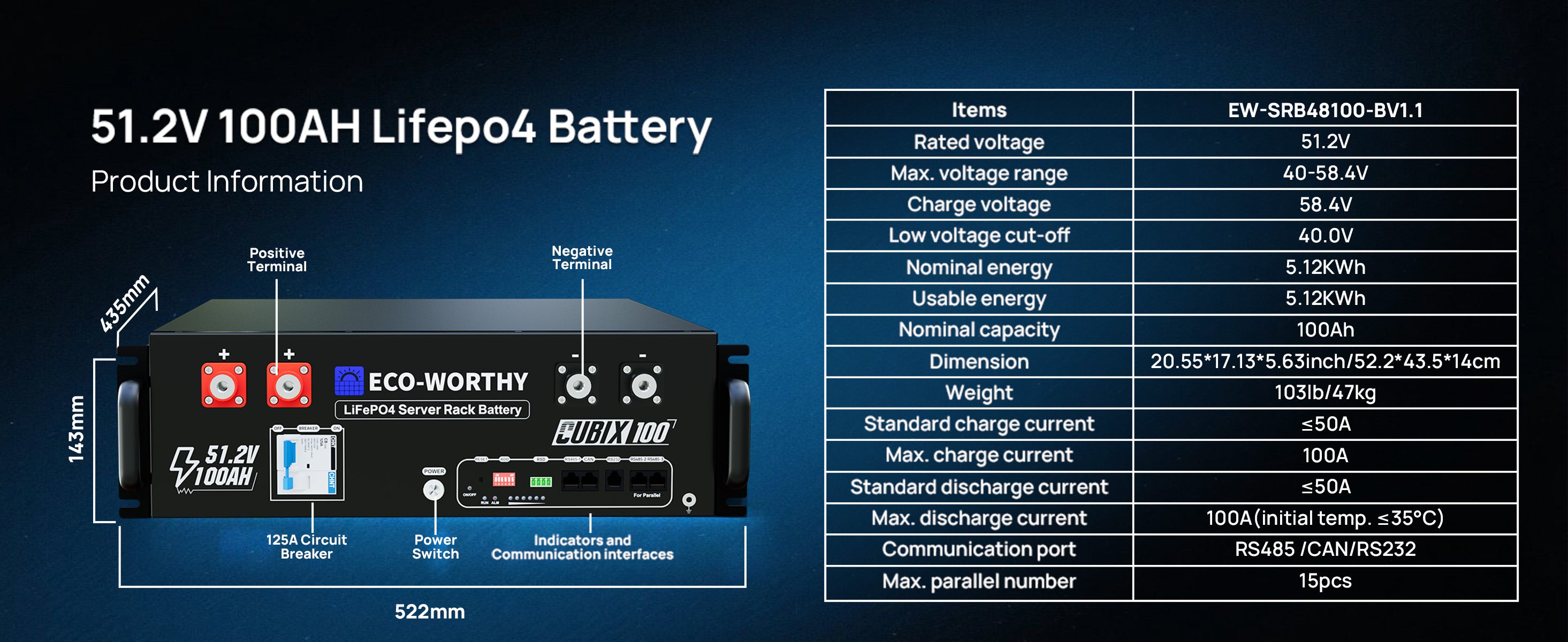

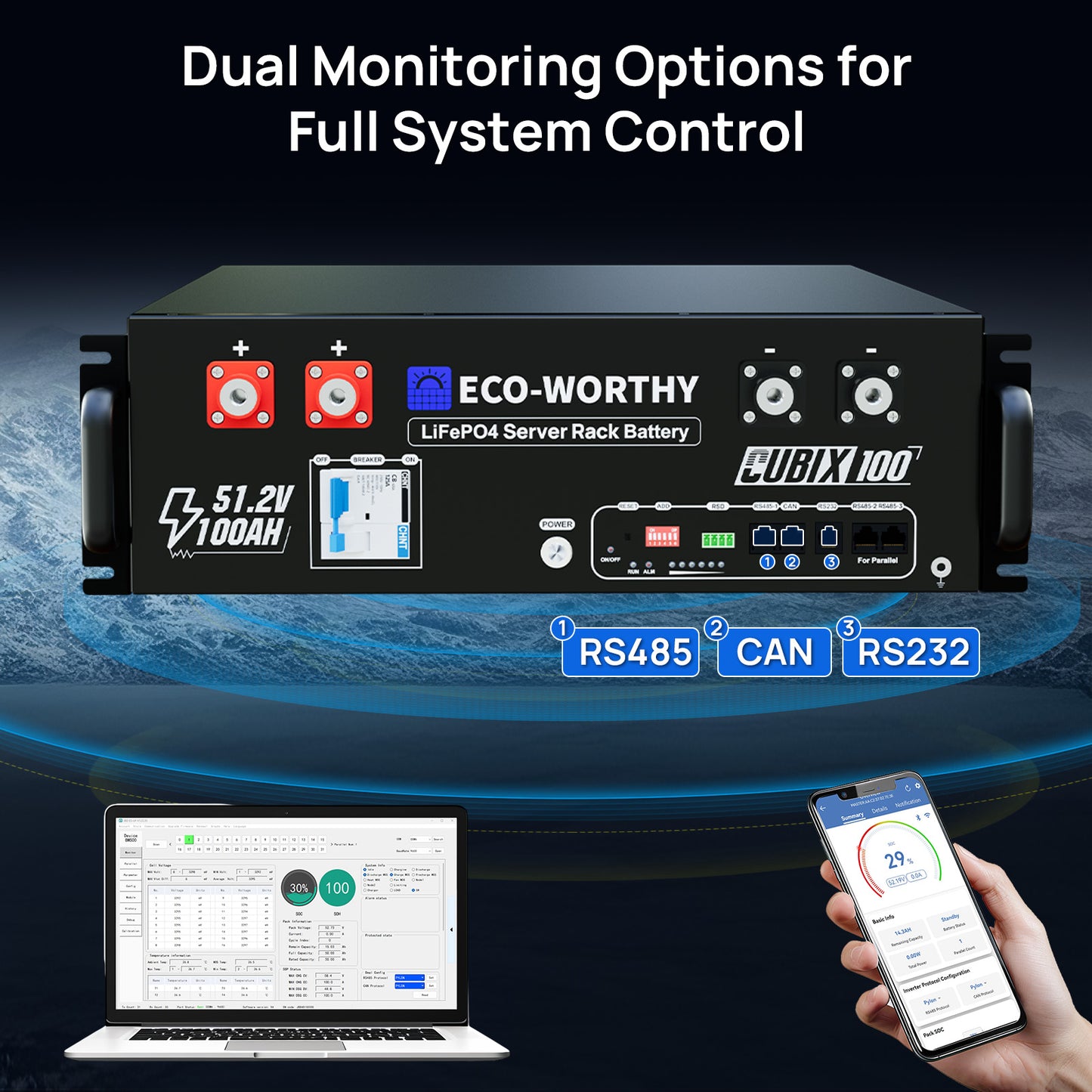

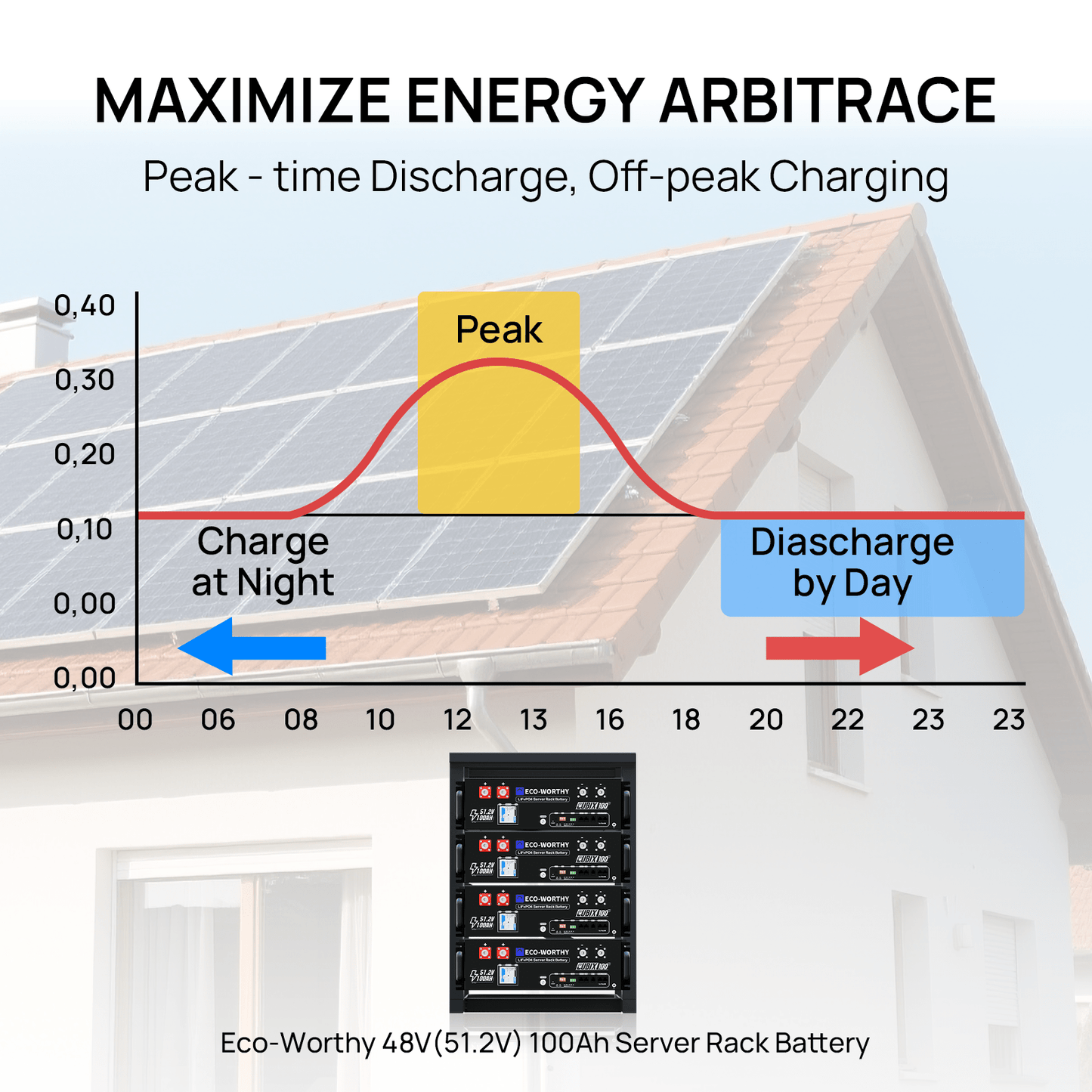

48V(51.2V) 100Ah Server Rack Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V

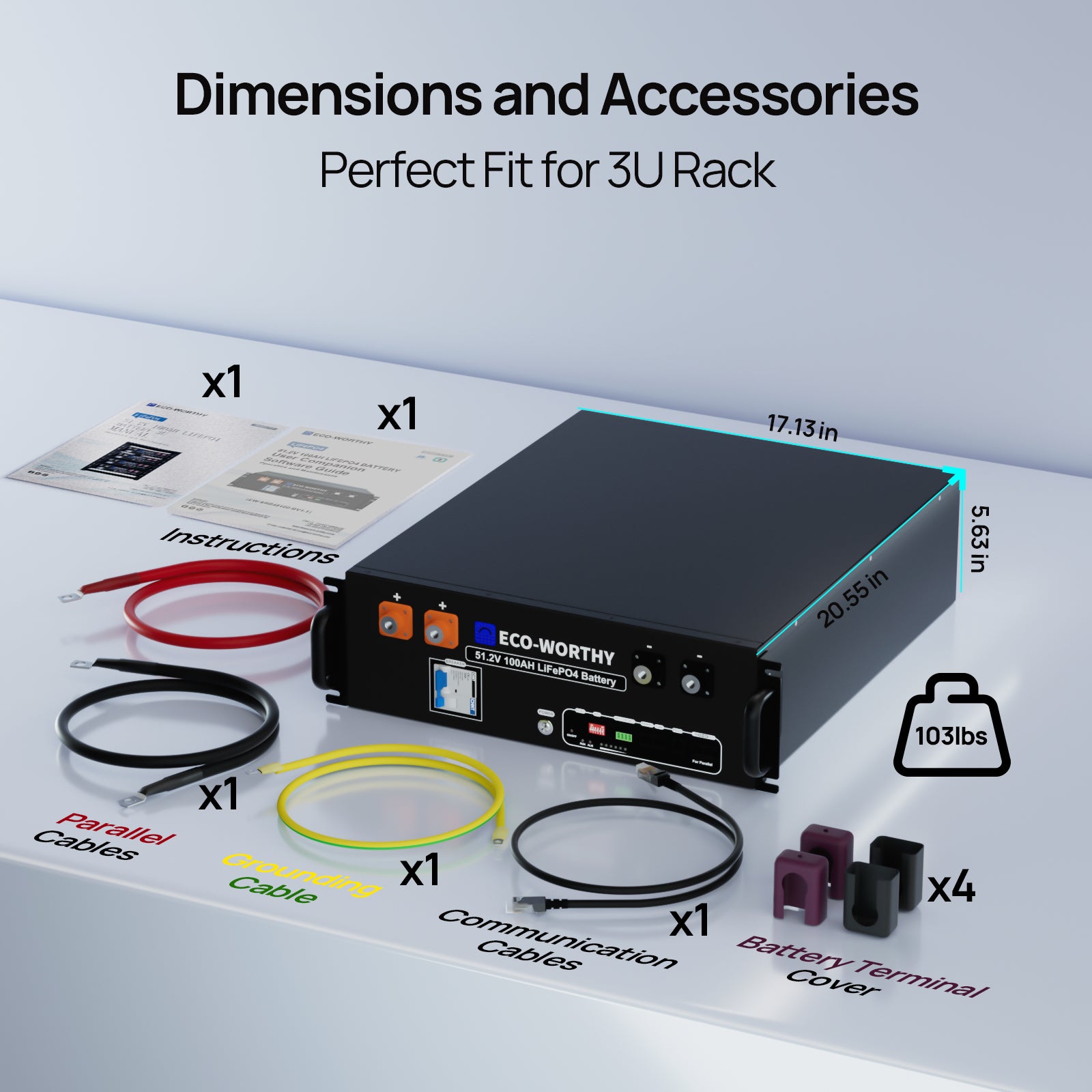

Screw size: M8	Battery Size: 22.09*19.02*5.24inch
Battery Weight: 94.8 lbs	Each battery comes with a pair of battery parallel cables



16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG
