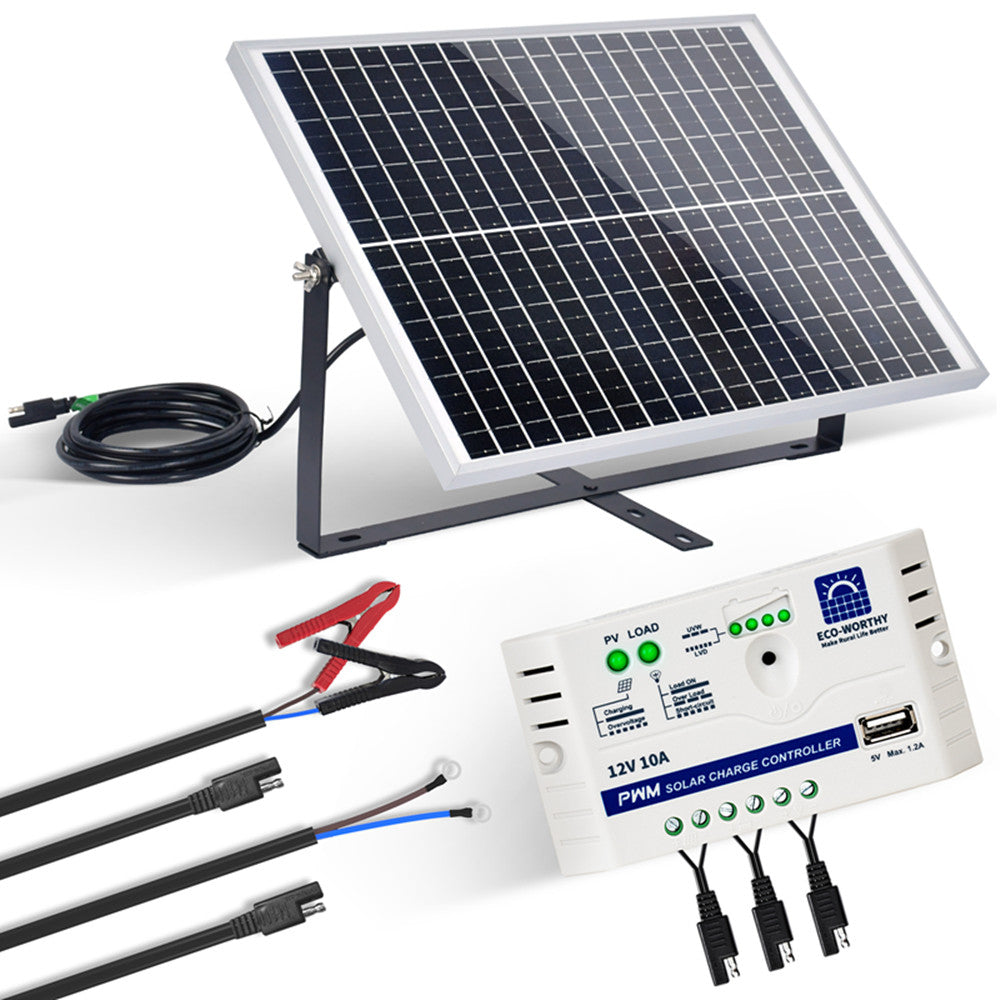

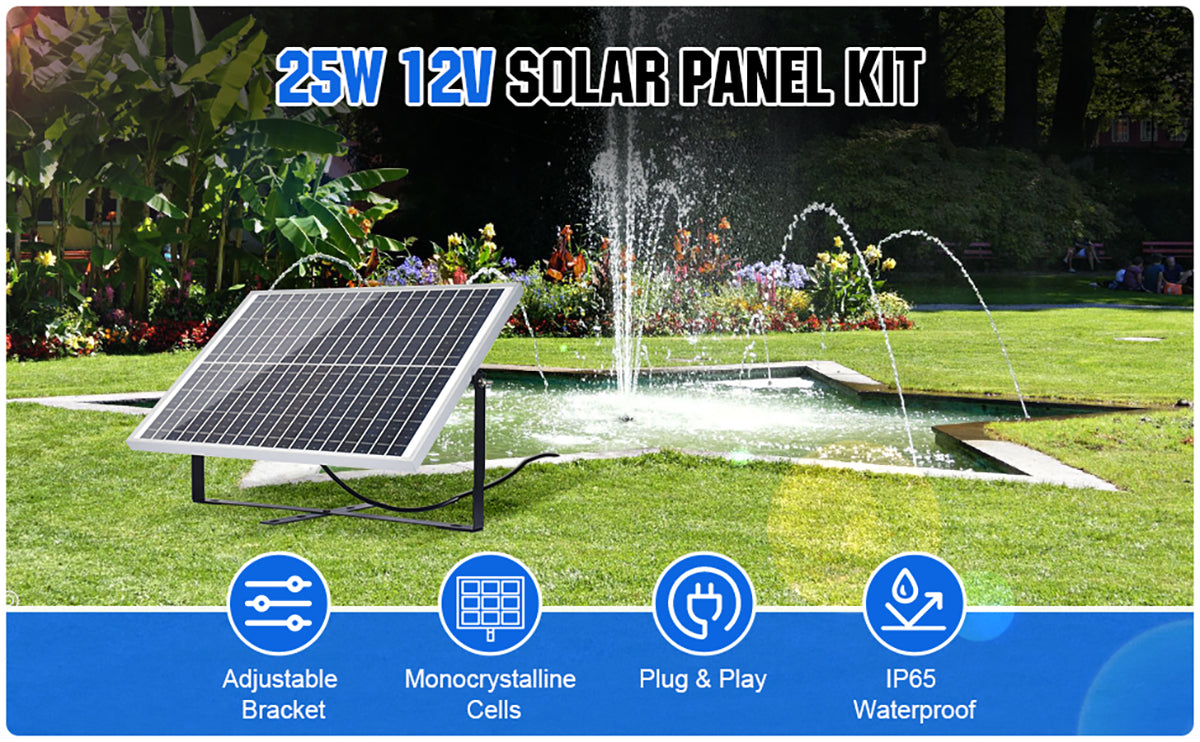

25W 12V Monocrystalline Solar Panel Trickle Charger Kit
SKU: L02M25-1

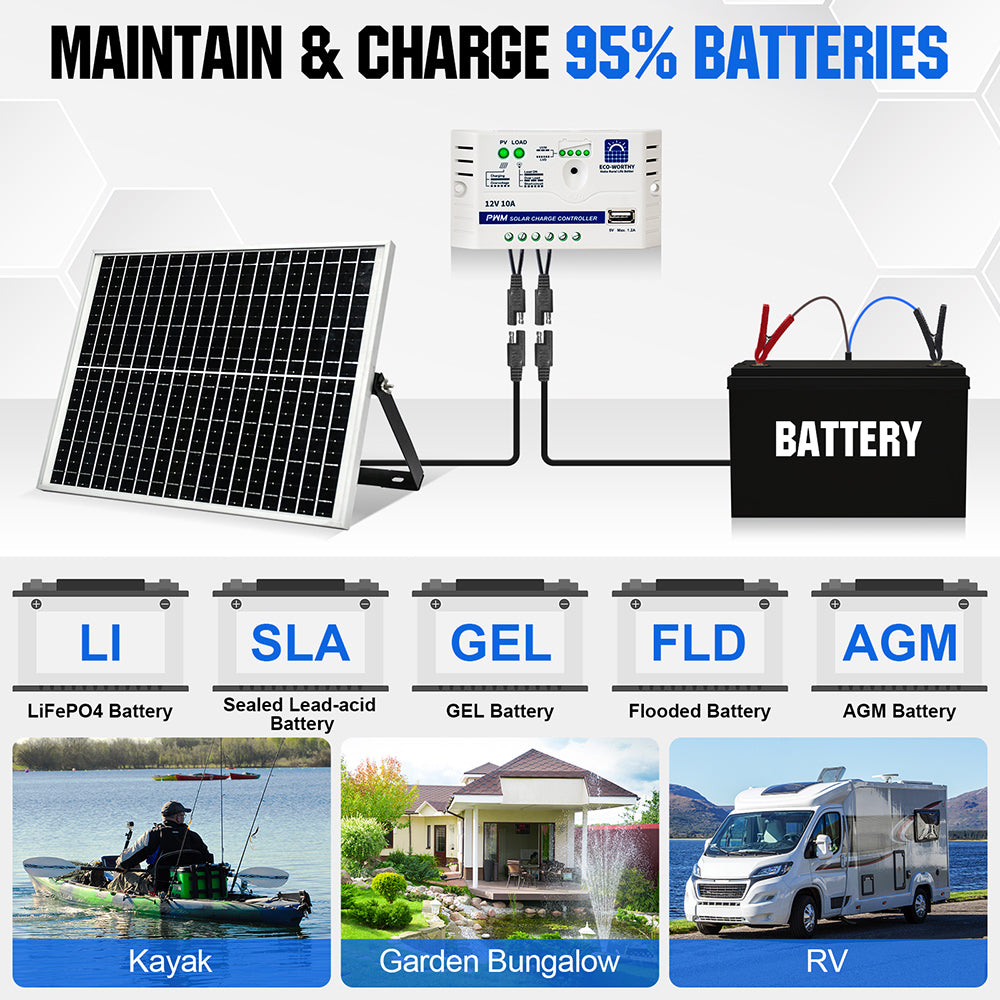

·Widely Used: Ideal solar power kit for variety of off grid applications including chicken coop, gate opener, water pump, shed, cabin etc where 12V deep cycle battery is used as well as charge and maintain Cars, RVs, Boats, Trailer battery.

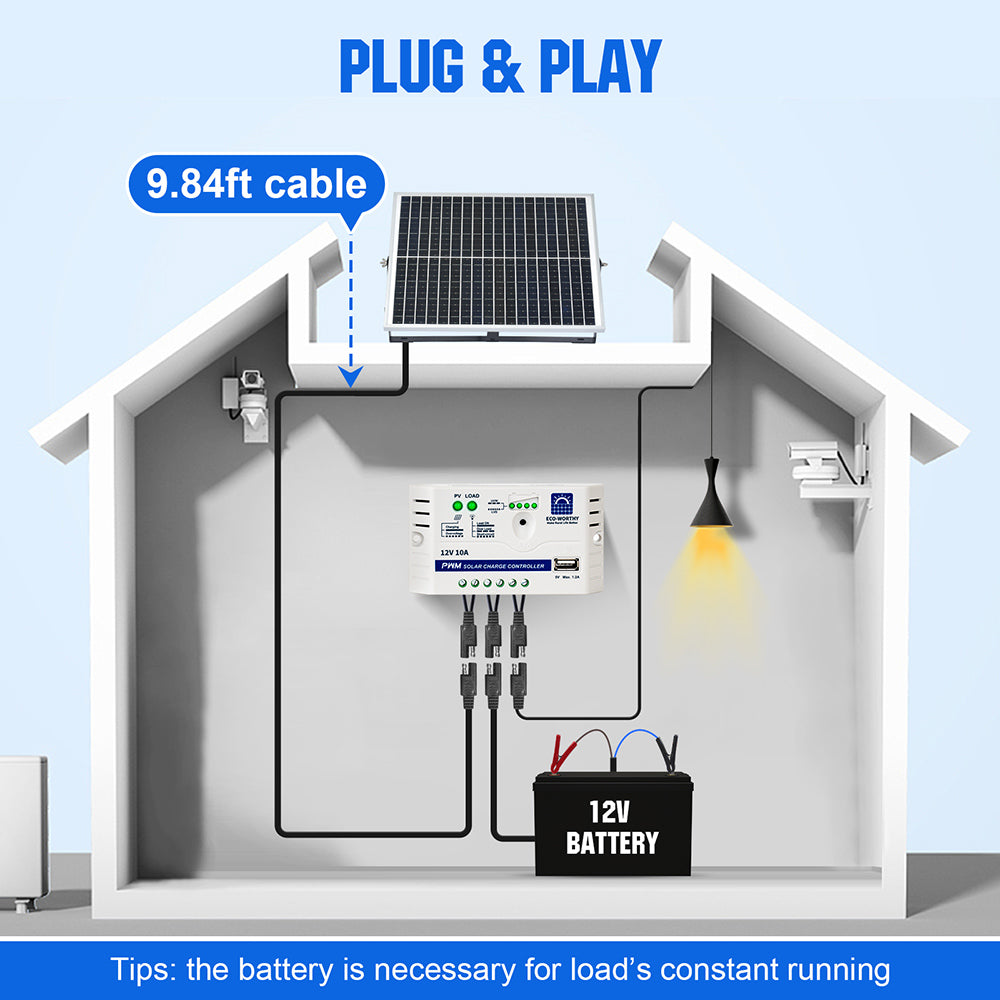

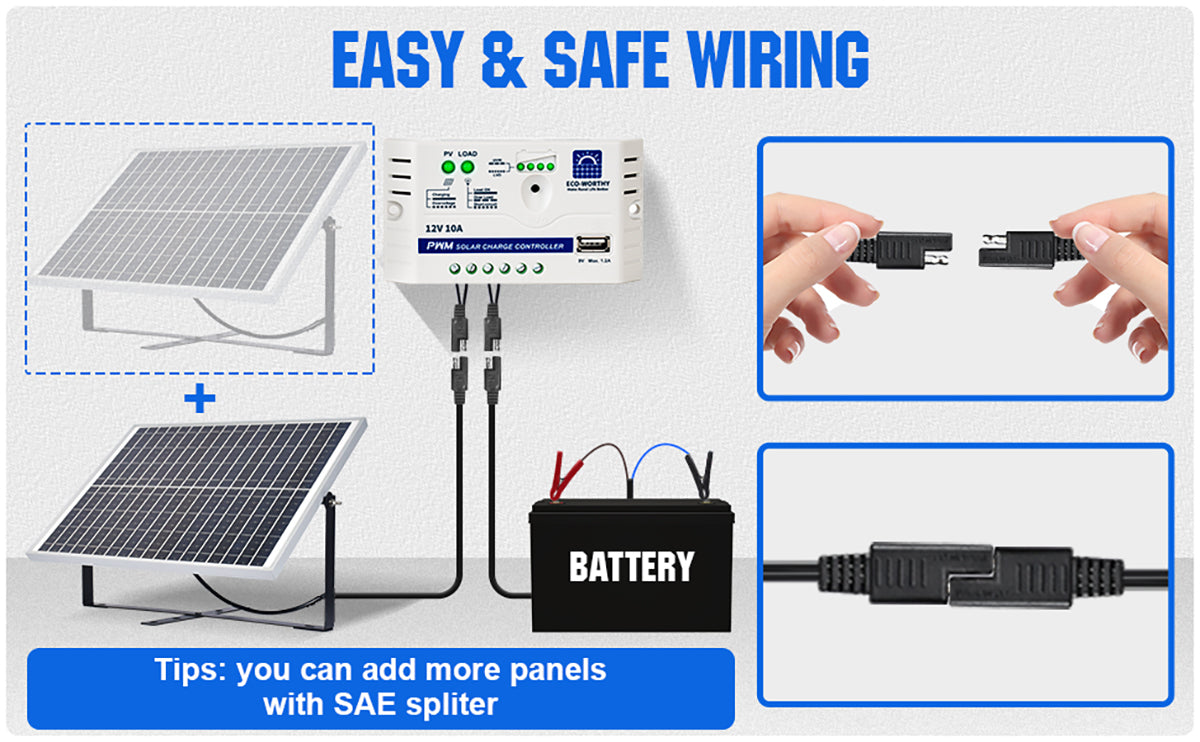

·Durable Panel: Waterproof 25 Watt solar panel with 9.84ft SAE connector cable, SAE connectors easy to connect and disconnect with controller, plug and play.

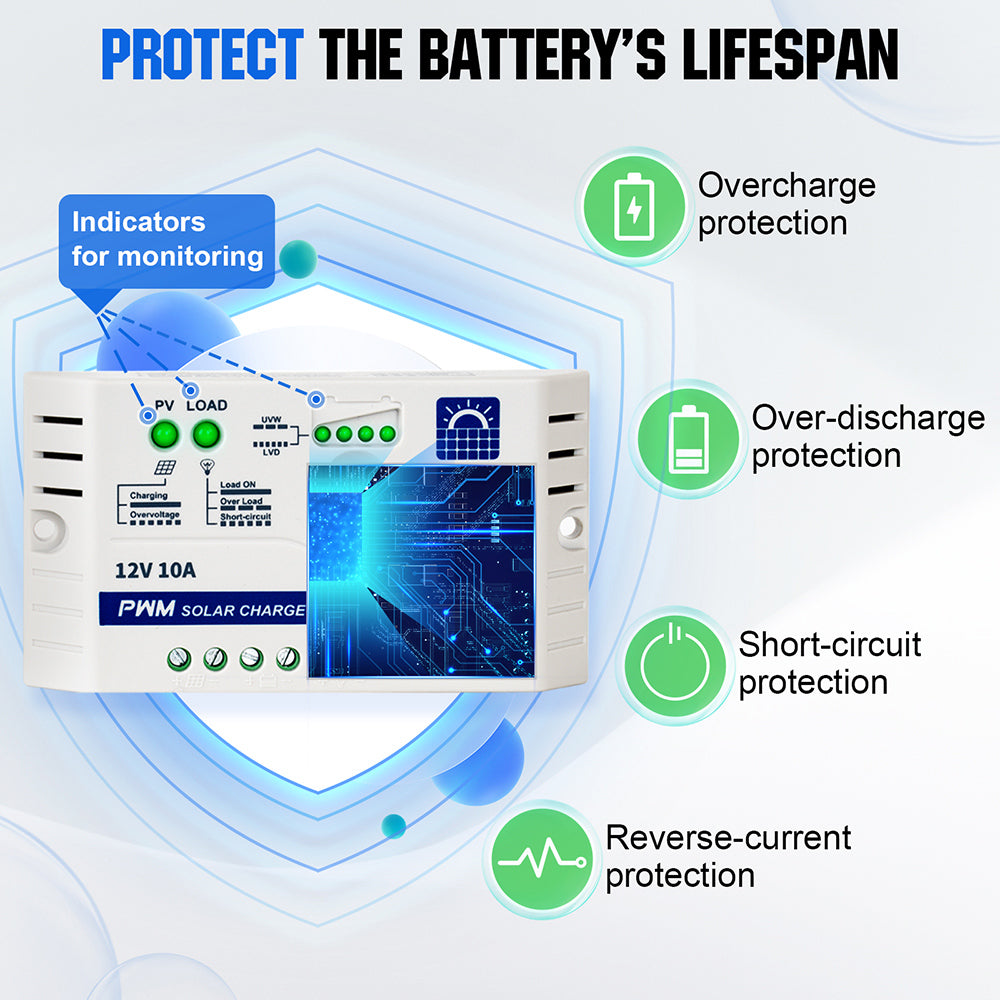

·Full Protections: USB charge controller prevents battery from over charge, dischage and short circuit, reversed polarity protection. Two indicators for checking status of charging and discharging.
Code:

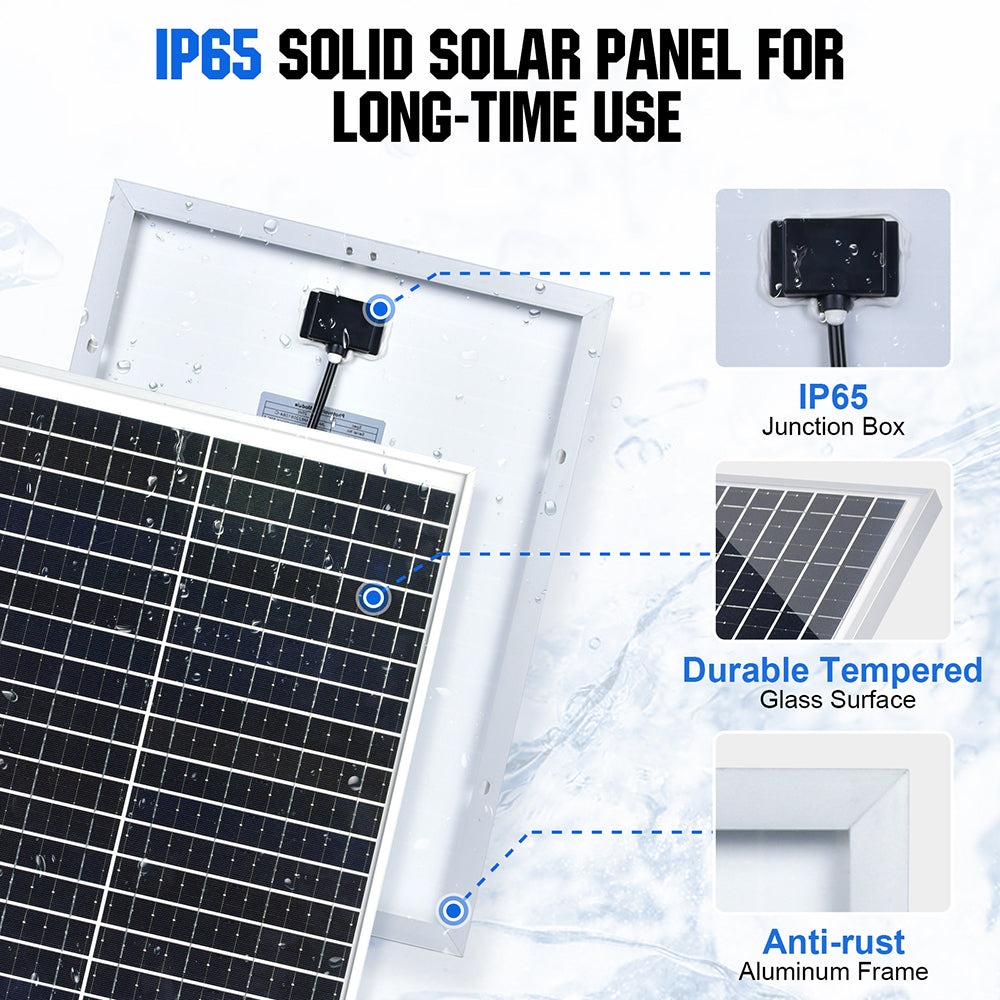

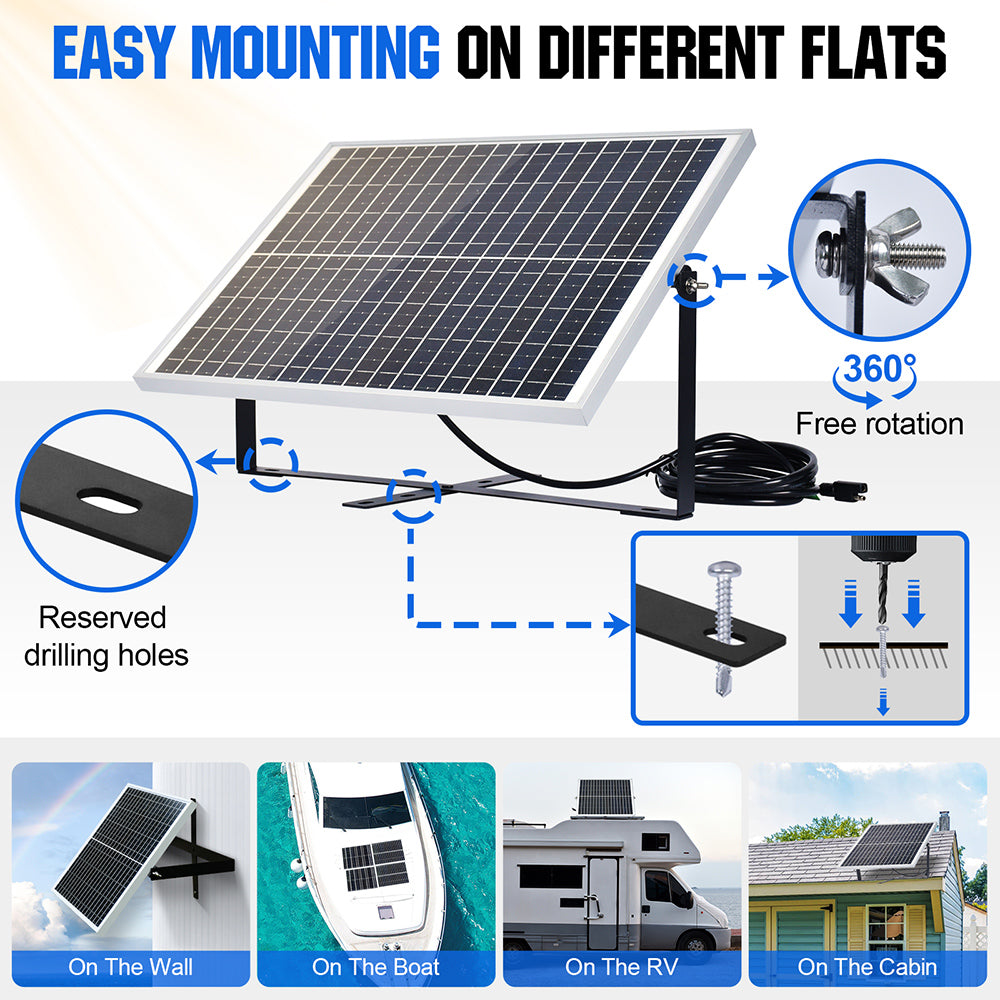

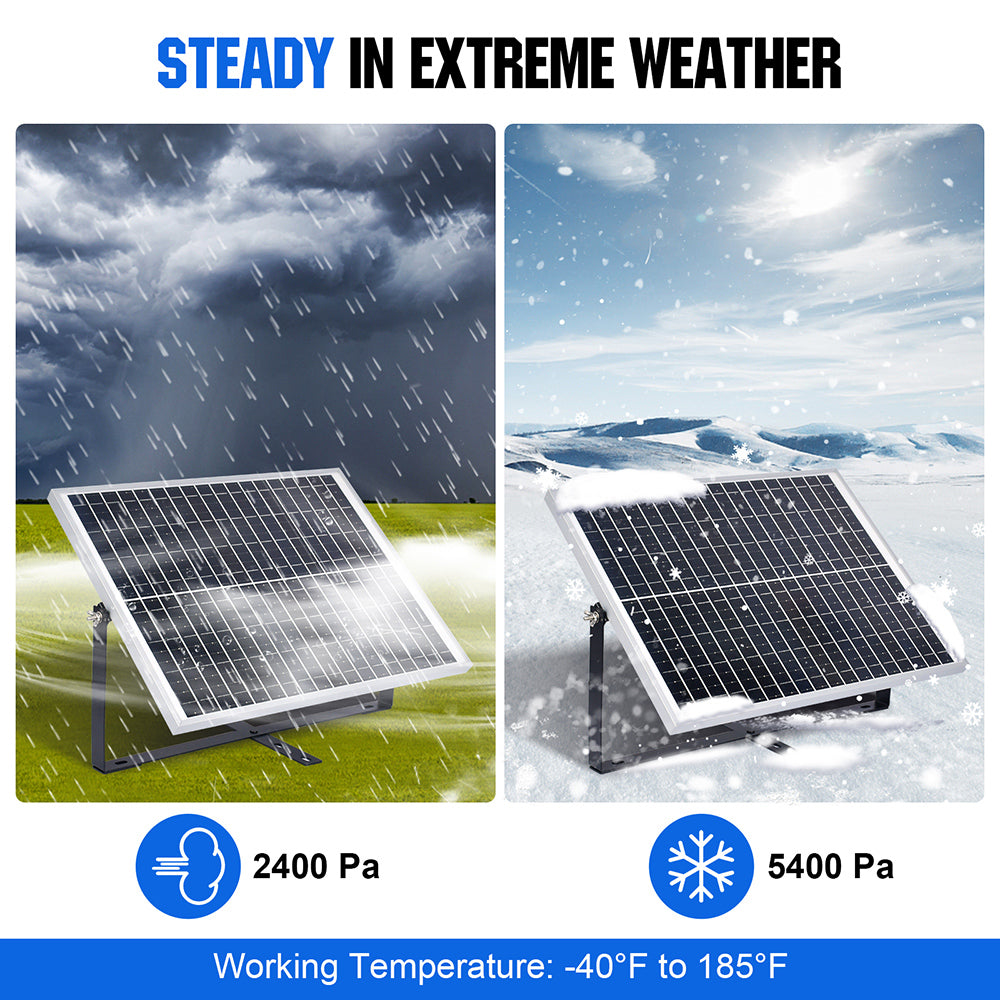

Copy CodeHigh-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output, totally 23 testing procedure to do quality control. Easy to install with pre-drilled holes on the back of panels for fast mounting, securing and cooling. Waterproof Junction Box, corrosion-resistant aluminum frame for extended outdoor use, allowing the solar panel to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

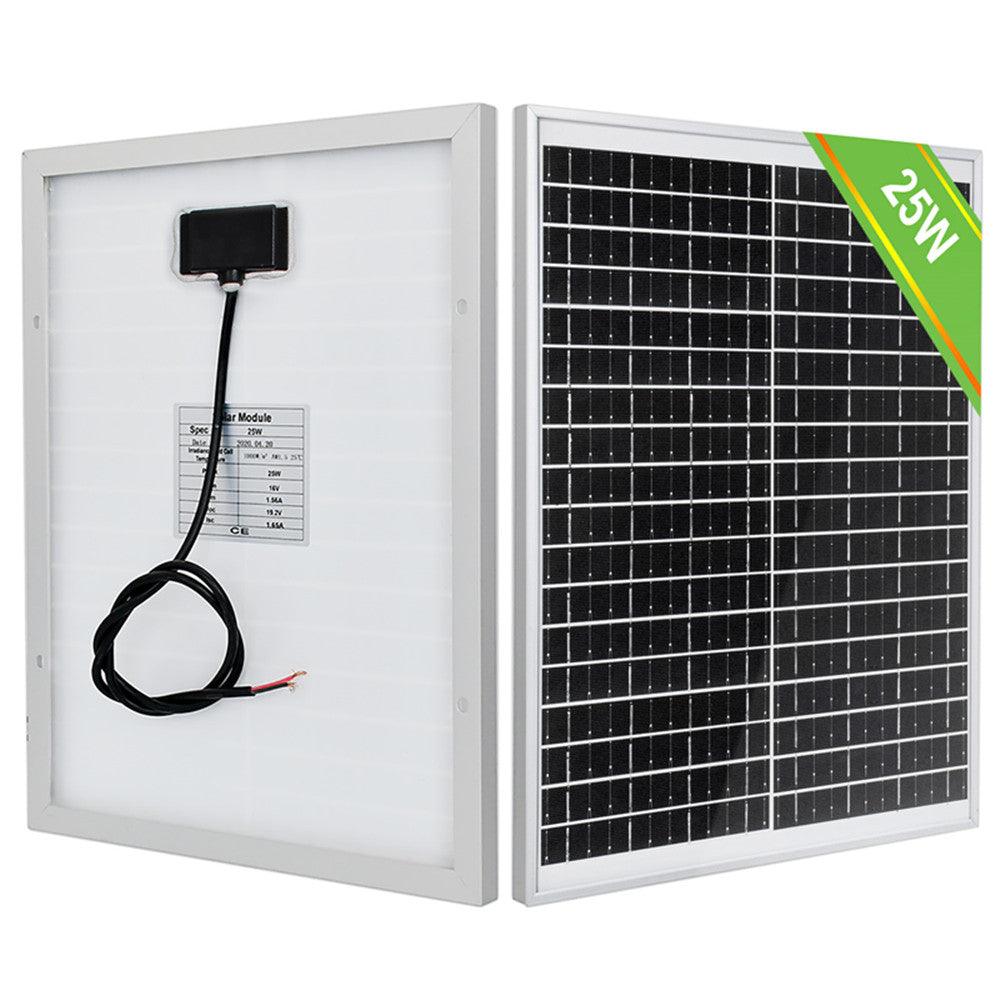

25W Monocrystalline Solar Panel
Rated Power: 25W | Voltage at Pmax(Vmp): 18V |
Short Circuit Current: 1.22A | Working current(lop): 1.11A |
Size: 16.9*13.4*0.7inches | Pre-installed cable: 39inch/19AWG |

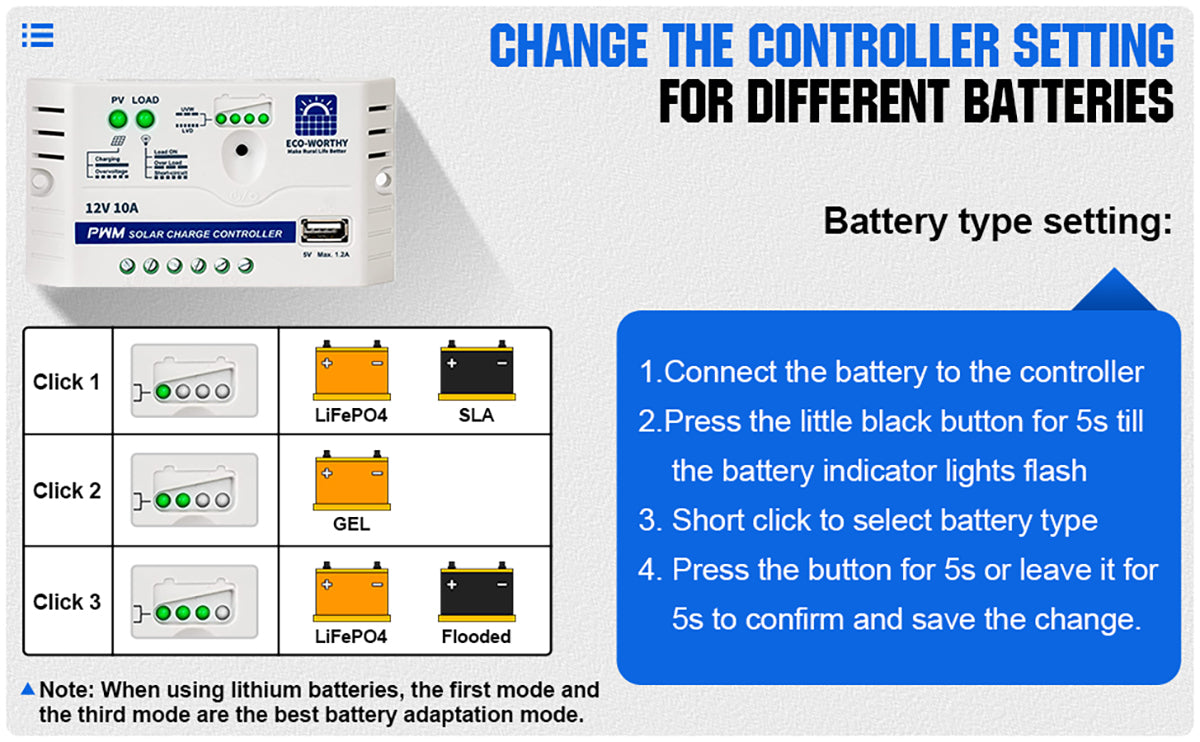

10A PWM Solar Charge Controller
Nominal output: 12V/24V | Rated charge/Discharge current: 10A |
Battery input voltage range: 8V~16V | Max. PV open circuit voltage: 30V |
USB output: 5V/1.2A | Dimension: 12*6.7*2.2cm |
Fitted this couple of week’s ago on my workshop as a battery charger for my 12V diesel heater. All appears to be working as it should do. I have beefed up the fixings onto the roof as concerned about strong winds
*****+
Brilliant
Not used yet...
Bought with a discount code of a tenner off.
It's fine for trickle/batt maintenance. As an introductory setup for PV newby experimenters it's a good starting kit. It's all possibly cheaper if you googled about but this kit is all together with cables and connectors and for it's intended purpose is perfectly fine.
I have a 34 quid full sine inverter and a £25 deep draw lead acid batt and a shunt. It comes all in at £110.
No complaints from me.
