880W 1360W 24V 4/8-Panel Off Grid Hybrid System with 400W Wind Generator & 120W Mono Solar Panel

Save 15%
SKU: L04WTG400-24M120NWZ-4

Hybrid Kits: 880W 24V Hybrid Kit
Inverter & Battery Bank Options: None
Price:
Sale price£739.99 Regular price£870.58

Description

If you are looking for a hybrid kit, ECO-WORTHY 880W 1360W 24V expandable hybrid kit is an ideal choice. This system certainly can be adapted to small homes in off-grid systems. A 400W wind generator produces about 60kWh per month in 10.5m/s average winds. ECO-WORTHY 120 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
For people looking to go off-grid, 880W 1360W 24V hybrid kits allow you to produce energy around the clock. This way, you can decrease the size of the battery system needed to power your home during the night. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

880W 24V Hybrid Kit
480W Solar+400W Wind Generator, 2.4kWh LiFePO4 Bank, Pure Sine Wave Inverter
Daily Production Estimate:3520WH

1x 400W Wind Turbine Generator
4x 120W Mono Solar Panel
1x 20A Hybrid Controller
1x 5M 12AWG Extension Cable with MC4
1x 9M 13AWG Wind Turbine Extension Cable
4x Z Mounting Bracket
1x Y MC4 Connector
Inverter & Battery Bank Options-
with Inverter Kit (optional)
Base Kit+
1x 1500W 24V-220V Pure Sine Wave Inverter
Complete Lithium Kit (optional)
with
1x 1500W 24V-220V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

1360W 24V Hybrid Kit
960W Solar+400W Wind Generator, 4.8kWh LiFePO4 Bank, Pure Sine Wave Inverter
Daily Production Estimate:5440WH

1x 400W Wind Turbine Generator
8x 120W Mono Solar Panel
1x 20A Hybrid Controller
1x 5M 12AWG Extension Cable with MC4
1x 9M 13AWG Wind Turbine Extension Cable
4x Z Mounting Bracket
3x Y MC4 Connector
Inverter & Battery Bank Options-

with Inverter Kit (optional)
Base Kit+
1x 3000W 24V-220V Pure Sine Wave Inverter
Complete Lithium Kit (optional)
with
1x 3000W 24V-220V Pure Sine Wave Inverter
4x 100Ah 12V LiFePO4 Lithium Battery

400W Wind Turbine Generator
Rated voltage: DC 27-54V
Battery voltage: DC 12/24V
Start-up wind speed: 2.5M/S
Rated wind speed: 10.5M/S
Rotor diameter: 3.93 feet(1.2M)
Rated speed: 800/min RPM
Number of blades: 3 pieces
Material: carbon fiber composite
Net weight: 17.6lbs(8kg)
Size: 27.1*14.4*8.3inch(687*365*210mm)
Suggested Tower Diameter: more than 3.15inch(8cm)

20A Hybrid Controller
Rated Battery Voltage: DC 12V/24V
Rated Wind Generator Capacity: 400W/800W
Wind Generator Braking Voltage: 14.5V/29V
Wind Generator Recover Voltage: 13.2V/26.4V
Rated Solar Power: 500W/1000W
Max Discharging Current: 20A

120W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 120W
Open Circuit Voltage (Voc): 21.6V
Peak voltage (Vmp): 17.3V
Short Circuit Current (Isc): 7.72A
Working Current (Iop): 6.67A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size:996*665*35mm (39.2"*26.2"*1.4")
Weight: 22lbs (9.8kg)

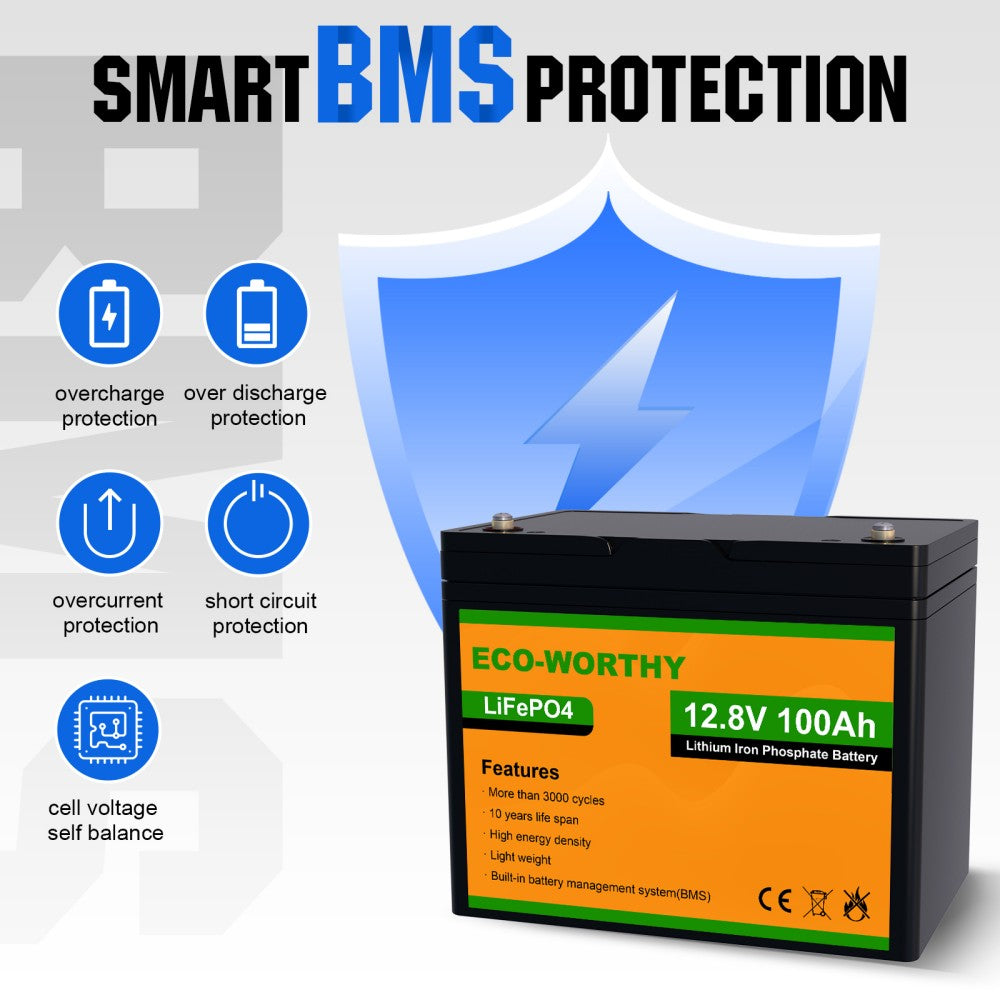

100Ah LiFePO4 Lithium Battery
Battery Capacity: 100AH
Battery Voltage: 12V
Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V
Continuous Charge/Discharge Current: 100A
Peak Charge/Discharge Current: 100A
Size: 10.2*6.6*8.2inch
Weight: 22.4lbs

1500W 24V Off Grid Inverter
Continuous Power: 1500W
Input Range: 21-30V DC
Output Volt:220V-50Hz
Waveform Pure Sine Wave
Surge Power: 3000W
Non-load Consumption: <12W
Efficiency: >90%
Dimension: 325*170*90mm

3000W 24V Off Grid Inverter
Continuous Power: 3000W
Input Range: 21-30V DC
Output Volt:220V-50Hz
Waveform Pure Sine Wave
Surge Power: 6000W
Non-load Consumption: <25W
Efficiency: >90%
Dimension: 390*216*153mm

16.4 feet 12AWG Cables
16.4 feet red and black cable with connector.
For extending the cables of panel and connecting to controller.
Z Mounting Bracket
4 pieces of Z shape solar panel brackets.
8 pieces of stainless steel nuts and cap bolts.
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.


Warranty Information

Panels 5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
Accessories 1-year material warranty


System Components

400W 12V/24V Wind Turbine

120W 12V Monocrystalline Solar Panel

1000W Off Grid Pure Sine Wave Inverter

1500W Off Grid Pure Sine Wave Inverter

100Ah LiFePO4 Lithium Battery

12AWG Solar Extension Cables

Z Style Solar Panel Mounting Brackets

12AWG 1 Pair of Y Branch MC4 Connectors

13AWG 29.5 feet Triple Core Wire
