130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 130W 260W 520W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 130 Watt 12V Flexible Mono solar panel is backed by 25-year linear power guarantee. The updated 30A/40A solar charge controller is suitable for Sealed, GEL, Flooded, Li batteries.
ECO-WORTHY 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

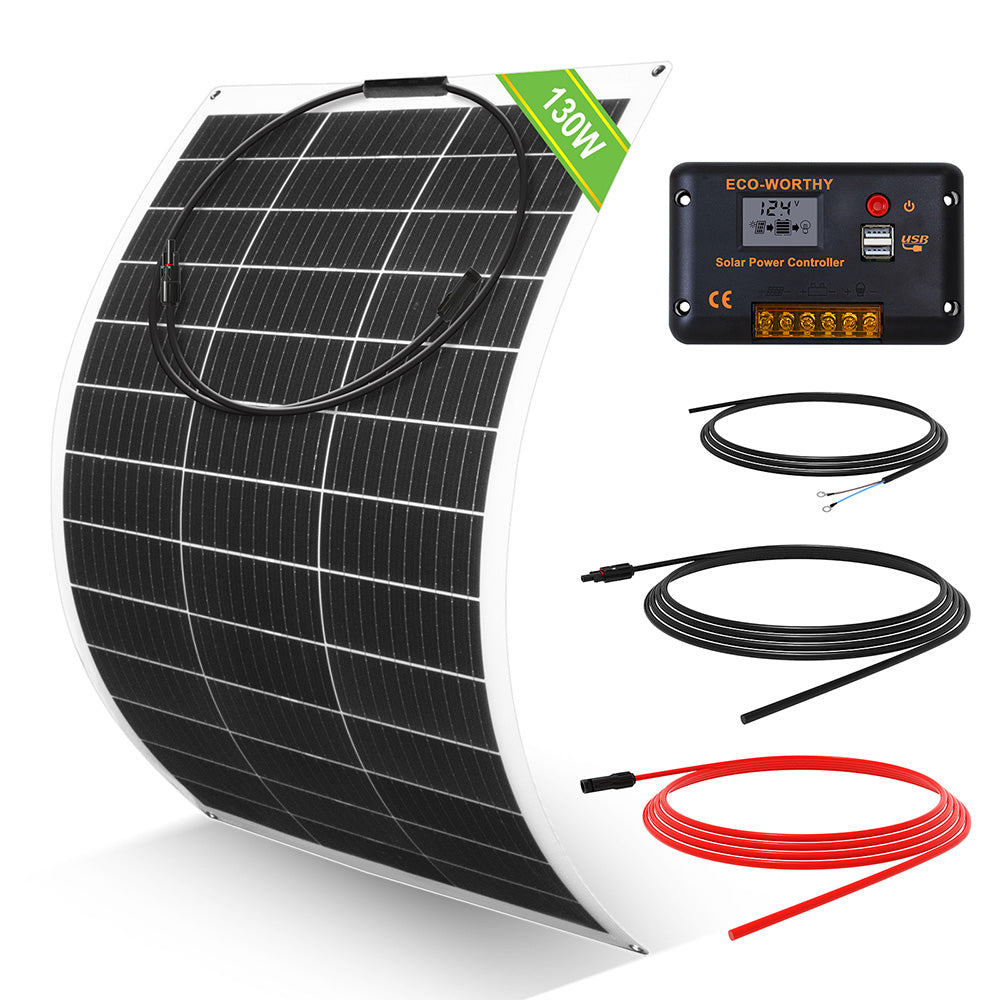

130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable

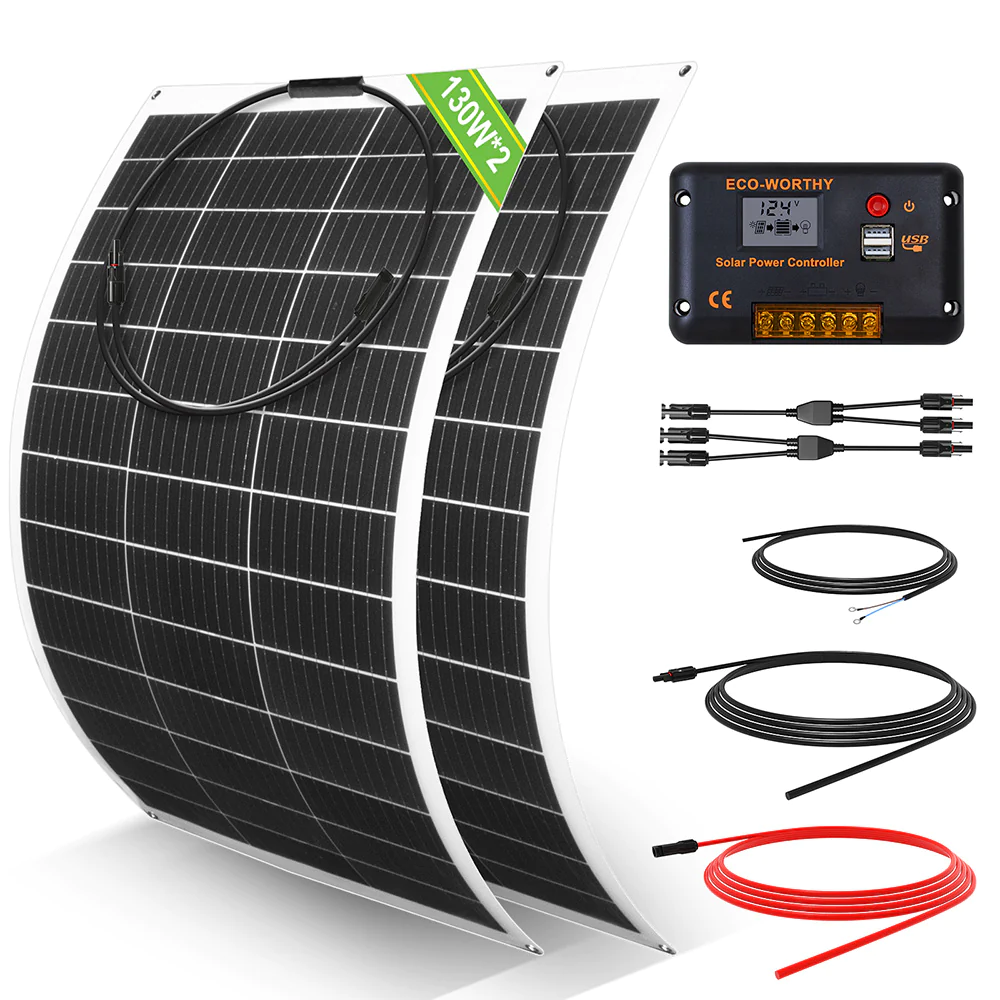

260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable

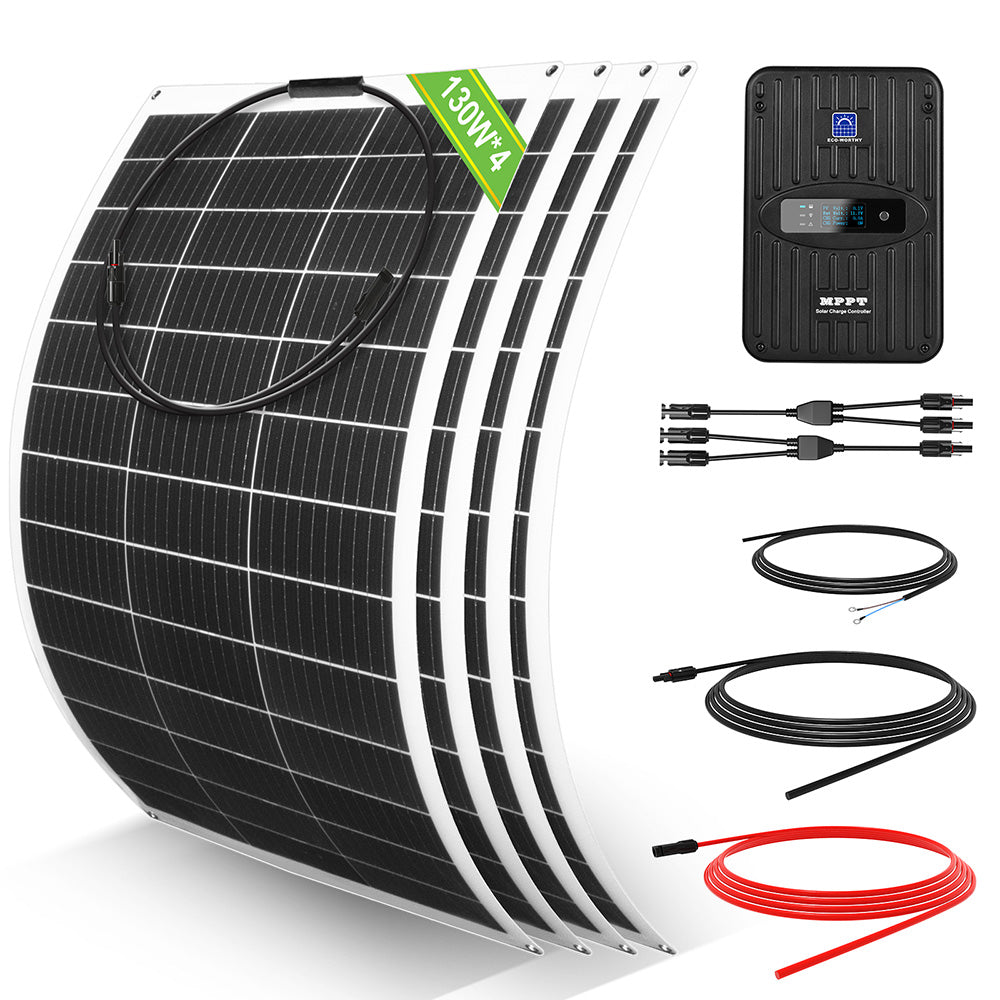

520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
1x 1.5M Tray Cable

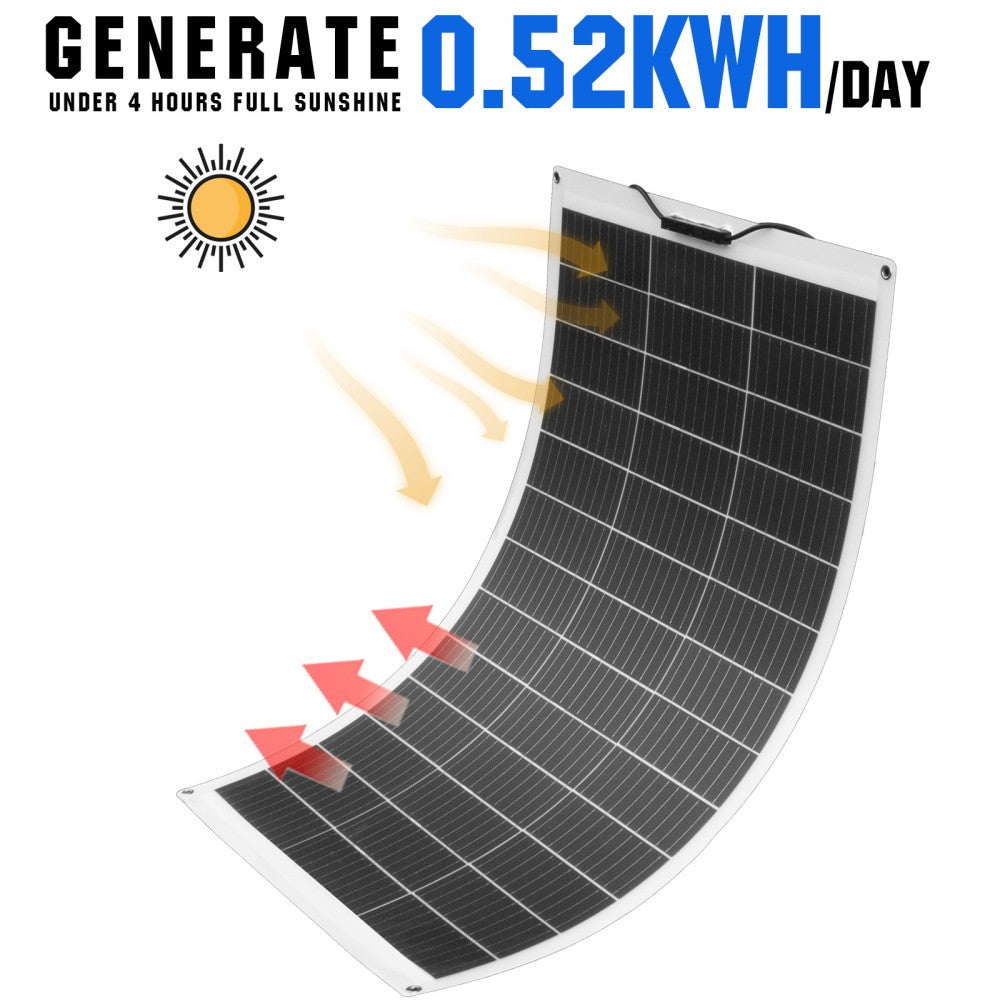

130W 12V Flexible Mono Solar Panel

Rated Power: 130W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 21.10V	Open Circuit Voltage(Voc): 24.50V
Short circuit current: 6.50A	Maximum current: 6.16A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Length of extension cable: 90cm（2.95ft）	Size of extension cable: 4mm²（11AWG）/MC4 Connector

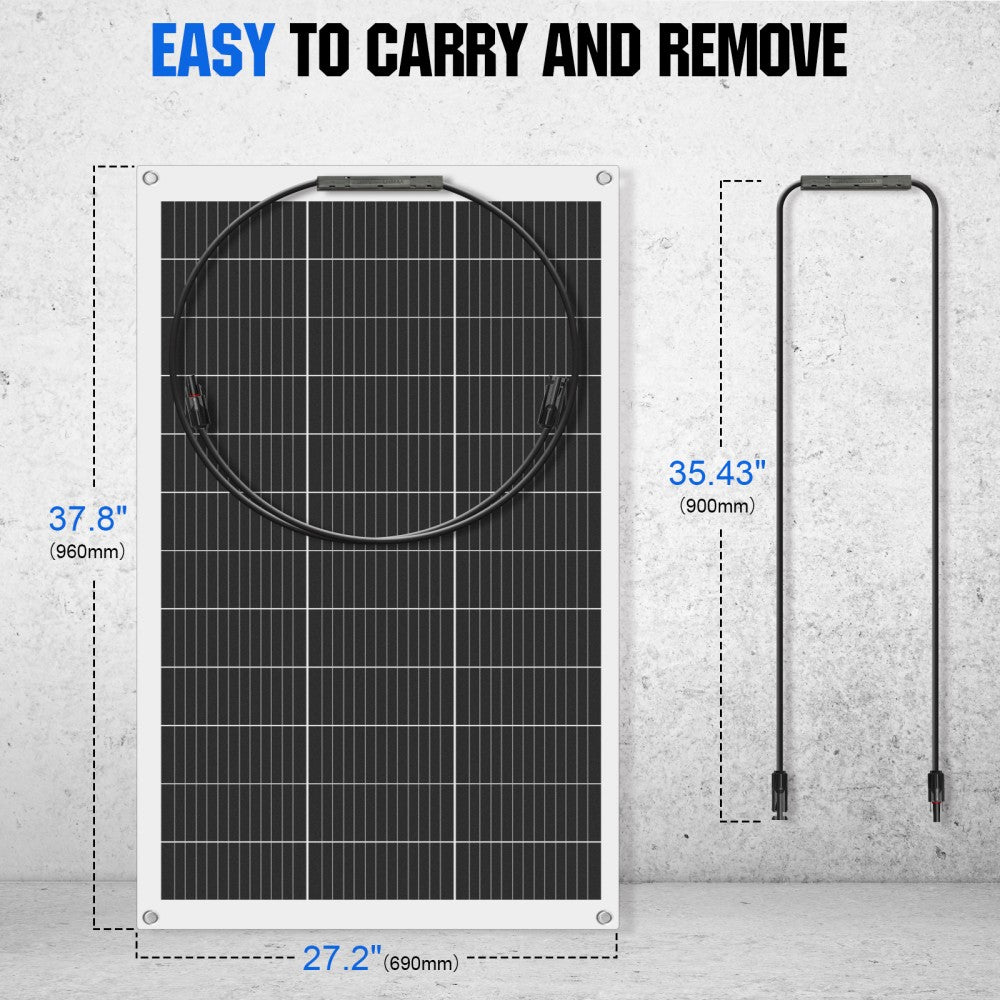

Weight: 4.40 lbs(2.0 kg)	Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in)

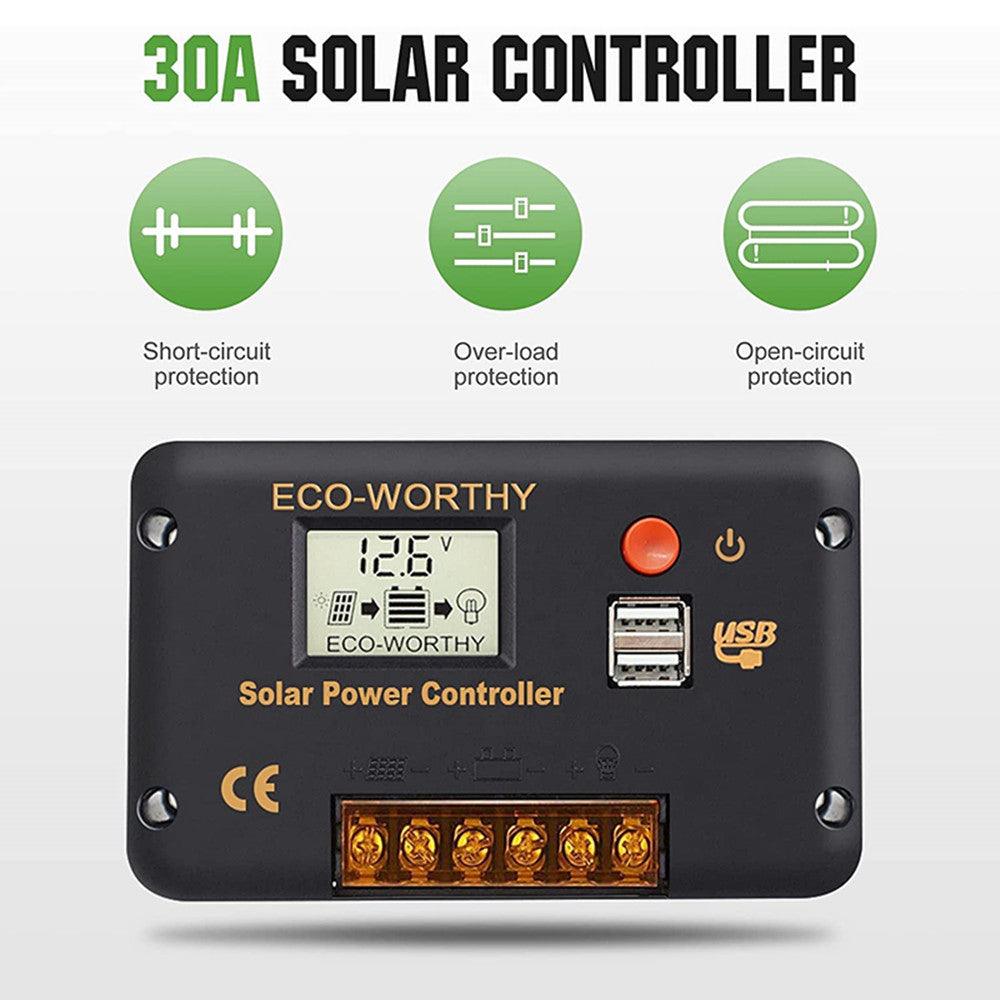

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

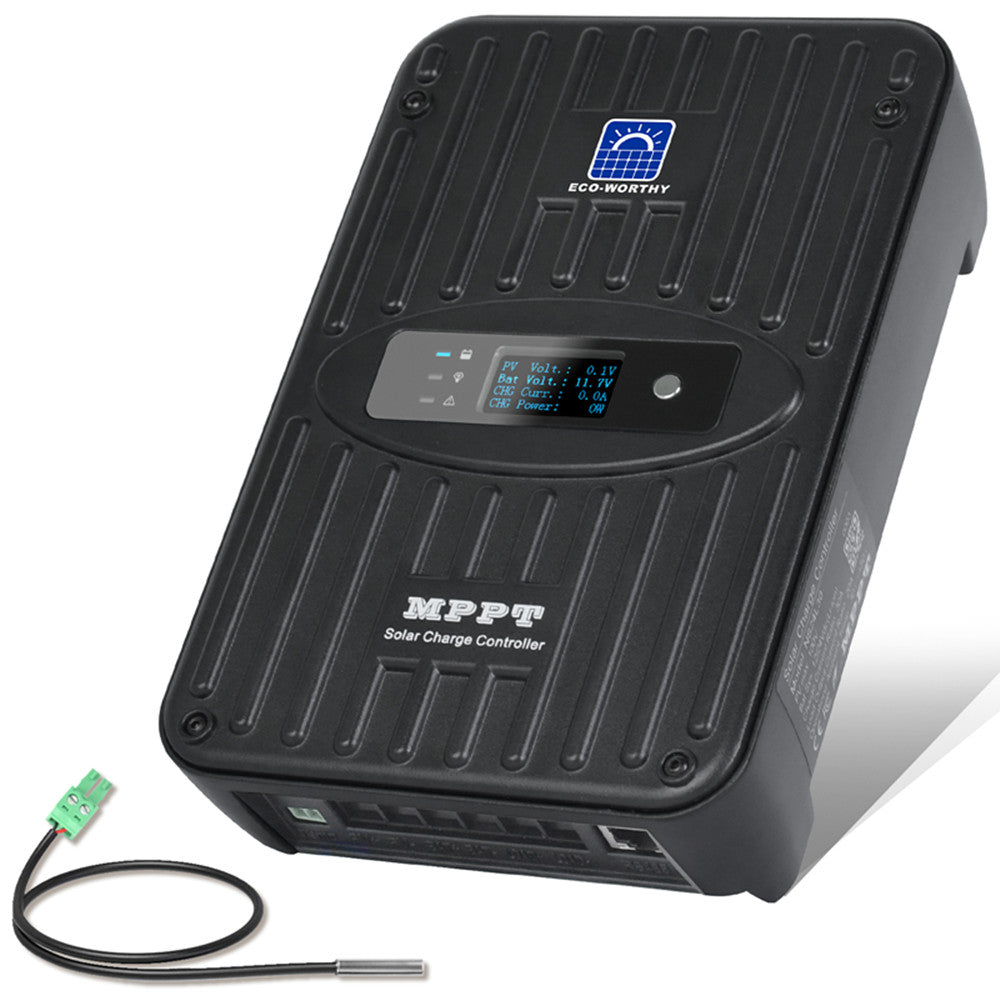

40A MPPT Solar Charge Controller

Battery voltage：12V/24V	Max Solar Input Power：560/1120W
Charging mode：MPPT	Rated Load Current：20A
Charge Efficiency (Peak)：97%	Self-Consumption：1~2W
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	Size：220*148*64mm/8.7*5.8*2.5inch
Max Charge current：40A	Weight：1.5KG
Max.PV Open-Circuit Voltage：<100V

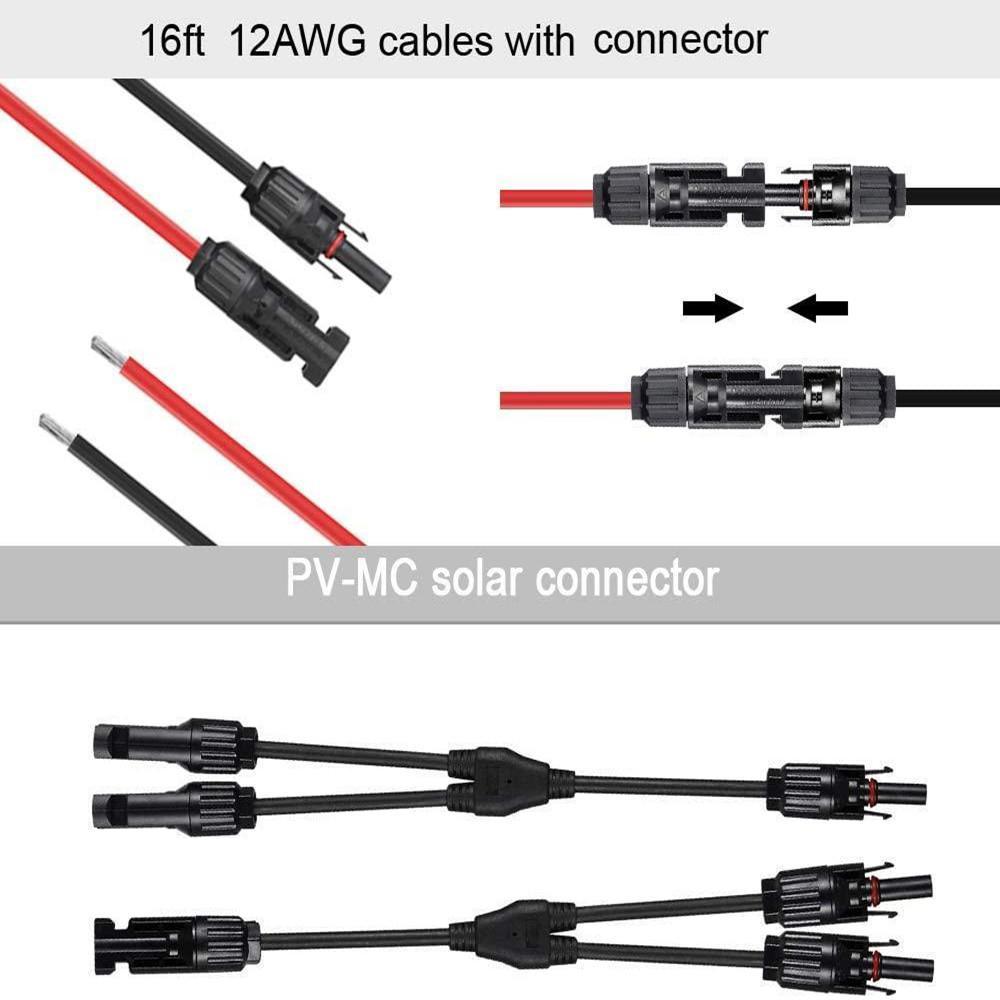

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
