If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 130W 260W 520W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 130 Watt 12V Flexible Mono solar panel is backed by 25-year linear power guarantee. The updated 30A/40A solar charge controller is suitable for Sealed, GEL, Flooded, Li batteries.
ECO-WORTHY 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us firstname.lastname@example.org.

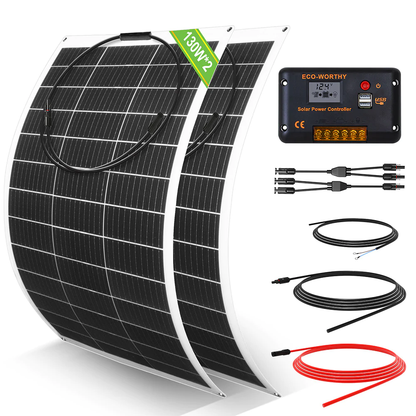

Package Includes 130W (1-Panel) 12V Solar Kit 1x 130W Flexible Mono Solar Panel 1x 30A PWM Solar Controller 1x 5M 12AWG Extension Cable with MC4 1x 1.5M Tray Cable 260W (2-Panel) 12V Solar Kit 2x 130W Flexible Mono Solar Panel 1x 30A PWM Solar Controller 1x 5M 12AWG Extension Cable with MC4 1x Y MC4 Connector 1x 1.5M Tray Cable 520W (4-Panel) 12V Solar Kit 4x 130W Flexible Mono Solar Panel 1x 40A MPPT Solar Controller 1x 5M 12AWG Extension Cable with MC4 3x Y MC4 Connector 1x 1.5M Tray Cable
130W 12V Flexible Mono Solar Panel
Rated Power: 130W
Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 21.10V
Open Circuit Voltage(Voc): 24.50V
Short circuit current: 6.50A
Maximum current: 6.16A
Output Tolerance: ±3%
Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃
Temperature range: －40℃～ +85℃
Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector
Weight: 4.40 lbs(2.0 kg)
Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in)
30A PWM Solar Charge Controller
Battery voltage: 12V/24V
Charging mode: PWM
Max Charge current: 30A
Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V
USB Output: 5V/2A
Working Temperature: -20℃~60℃
40A MPPT Solar Charge Controller
Max Solar Input Power：560/1120W
Rated Load Current：20A
Charge Efficiency (Peak)：97%
Max Charge current：40A
Max.PV Open-Circuit Voltage：<100V
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller
Rating Voltage: 600/1000V
Length: 5 meters（16 ft）
Conductor: Tinned copper wire
Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection
Temperature: -40°F to +185°F
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.
We hope you have enjoyed your online shopping experience with ECO-WORTHY. Please read below for more information about our shipping and return policies.
We offer a free shipping service for most of mainland UK. You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel. ORDER PROCESSING Procession time can take between 1-3 business days. The time it takes to prepare your item(s) to ship from our warehouse. This includes preparing your items, performing quality checks, and packing for shipment. SHIPPING TIME All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days. If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.
1-3 business days
Freight: Larger Panels Kits must be shipped by freight, the shipping time is 5-14 business days. Note: The shipping times mentioned above refer to the estimated times of business days that the shipment will take after an order has been shipped. Business days do not include Saturday/Sunday and any public holidays. These estimates are based on normal circumstances and are not a guarantee of delivery times. We are not responsible for the failures or delays in delivery resulting from any force majeure event, such as natural disaster, bad weather, war, and any other event beyond our direct control, such as public holidays and customs issues. Full refunds are not available under the following circumstances: 1. Delays caused by the buyer providing incorrect or incomplete delivery information; 2. Delays in delivery caused by any force majeure incidents, such as natural disasters, bad weather, and war; 3. Any un-insured order that is lost or stolen; 4. Delays in delivery caused by any other beyond ECO-WORHTY's control, such as public holidays and Customs issues.
GUARANTEES & RETURN POLICY
14 Days DOA Product Guarantee If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted. 30 Days No Reason Return Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit. Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense. Please be prepared with your invoice or the following information: Order number Proof of purchase Video or photo of the faulty product (if applicable) Mailing address Contact telephone number Please carefully follow our warranty process to minimize any delays: 1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number). 2. Tell us what steps you have already taken to resolve the issue. 3. Provide the item code indicated on the outer packaging. 4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.
I used this to charge a 12v deep cycle battery which supplies lights to a caravan at 12v (led) had lots of dark winter days since installation, may need to add another panel to this idea due to short winter days. I suspect, this will keep up no problem in summer on its own. This is the trouble with solar, more power is required as the solar panel out output diminishes due to daylight hours and less is needed when they produce more. Same with all solar. The system will be producing more than required for 2 3rds of the year. However, I am sincerely pleased with this product and ease of installation and use. UK
130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits
Phillip Boardman Boardman
130 watt solar with controler
Going to order additional solar panel should be enough power for off grid caravan
Flexible solar kit
All worked as it should no problems,, just wish I’d of upgraded to the better controller but that’s my fault for not researching first
A good product.
All seems to be working well. Easy to install. Would have been good to have been offered a through the roof connection kit?
