130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits with Lithium Battery
SKU: UK-L02AM130-CWMIUK600L50-1
Over £299 Get 5% OFF, Over £499 Get 10% OFF, Over £999 Get £100 OFF at checkout
Code:
Copy CodePure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Package Includes
130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery
260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery
520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 1100W 12V-220V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery
1x 16mm² 35cm Battery Interconnect Cable
130W 12V Flexible Mono Solar Panel
Rated Power: 130W | Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 21.10V | Open Circuit Voltage(Voc): 24.50V |
Short circuit current: 6.50A | Maximum current: 6.16A |
Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
Length of extension cable: 90cm(2.95ft) | Size of extension cable: 4mm²(11AWG)/MC4 Connector |
Weight: 4.40 lbs(2.0 kg) | Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in) |
30A PWM Solar Charge Controller
Battery voltage: 12V/24V | Charging mode: PWM |
Max Charge current: 30A | Discharge current: 30A |
Max.PV Open-Circuit Voltage: <50V | USB Output: 5V/2A |
Working Temperature: -20℃~60℃ | Weight: 150g |
Size: 138*82*30mm |
40A MPPT Solar Charge Controller
Battery voltage:12V/24V | Max Solar Input Power:560/1120W |
Charging mode:MPPT | Rated Load Current:20A |
Charge Efficiency (Peak):97% | Self-Consumption:1~2W |
Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded | Size:220*148*64mm/8.7*5.8*2.5inch |
Max Charge current:40A | Weight:1.5KG |
Max.PV Open-Circuit Voltage:<100V |
600W 12V Off Grid Inverter
Battery Input Voltage: 12V | Rated Power: 600W |
Peak Power: 1200W | Output Waveform: Pure Sine Wave |
Output Voltage: 220Vac | USB Output: 5V 1.2A |
Extension Cable: 6mm²,9AWG,1 meter | Output Frequency: 50HZ ± 0.3HZ |
AC Output Sockets: 1 | Temperature: -20℃-40℃ |
1100W 12V Off Grid Inverter
Output Continuous Watts(W): 1100W+18W USB | Surge Capacity (PeakPower): 2200W |
Rated Input DC (V,A): 12V Battery, 100A | Input Voltage Range: 10.5-16Vdc±0.3V |
Rated Frequency (Hz): 50Hz±1 | Rated Output AC (V,A): 230Vac±10%, 4.8A |
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1A |
Optimum Efficiency: 85% min | Fuse (A): 30A*4 |
FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
THD: <4.5% | Dimensions (L*W*H): 13.5*9.8*4.1 in |
Assembled Weight (kg): 7.67 lbs |
100Ah LiFePO4 Lithium Battery
Battery Capacity: 100ah | Battery Power: 1280Wh |
Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 100A/100A |
Charge Temperature Range: 0-45℃ | Disharge Temperature Range:﹣20-55℃ |
Maximum Charge Voltage: 14.6V | Discharge Cut-Off Voltage: 10V |
Screw size: M8 | Battery Size: 260*168*214mm(10.2*6.6*8.43inch) |
Battery Weight: 10.5kg(23.15lbs) |

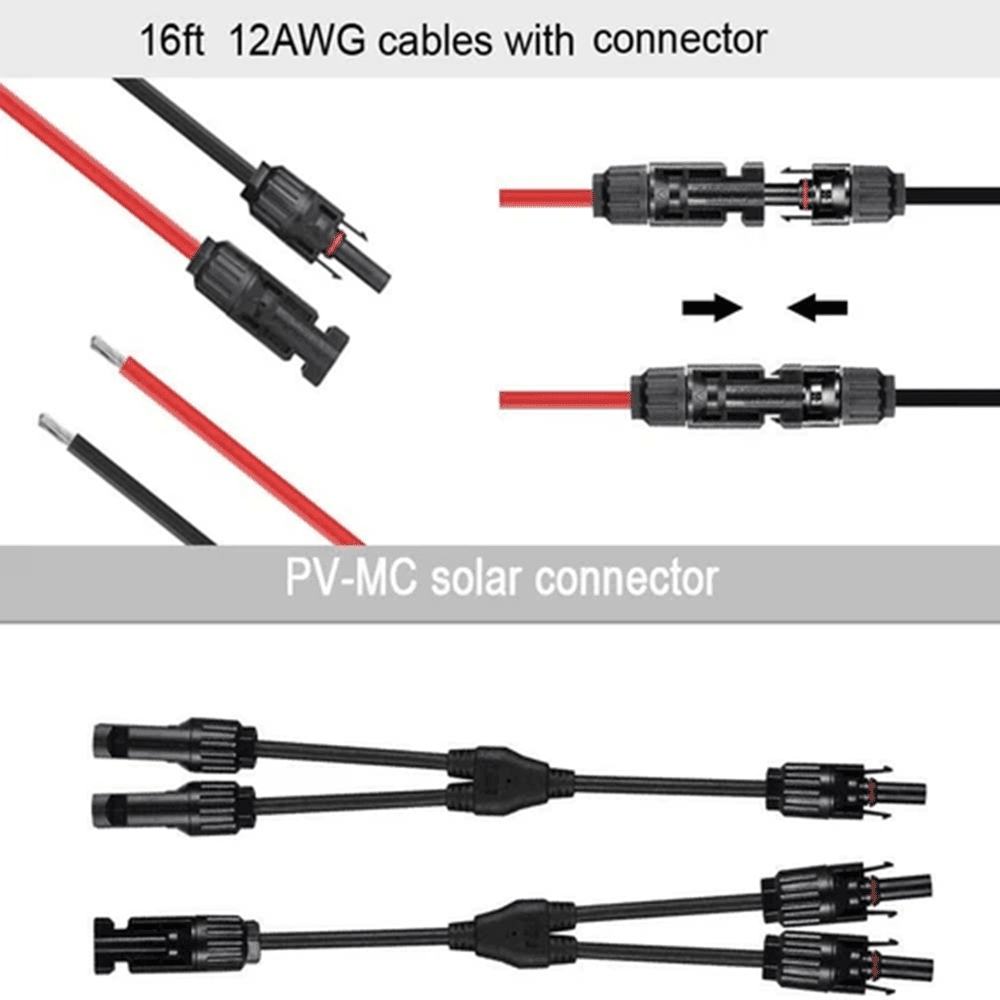

16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
Connector: MC4 | Weight: 0.742KG |
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
Fantastic service kit looks good just trying to fit panels .so waiting for you to get back to me
Fast delivery and great quality
The kit arrived in two shipments ahead of the published date, with warning from DPD who were bang on time.
The kit was easy to put together and produced free power straight away. I can't find fault with teh whole process, very good service.
Such an easy installation - all the kit was ready - only one cable to cut (between inverter and battery (positive) - a provided fuse had to be inserted) - the system was up and running in just few hours (the time required to build an good support for the controller, inverter etc) - Battery is charging - only one concern (I hope this is not going to be an issue) - very limited load currently applied (awaiting on pump and other equipments) meaning that the panels will produce more energy than required by the battery - that should be the purpose of the controller ! Otherwise - good kit and enjoyable project to assemble...
The solar panel is as advertised and came very quickly, the leads and charging controller arrived separately which I wasn't expecting, I was able to email customer service who reassured me tha thy were on their way, arrived the following day.
