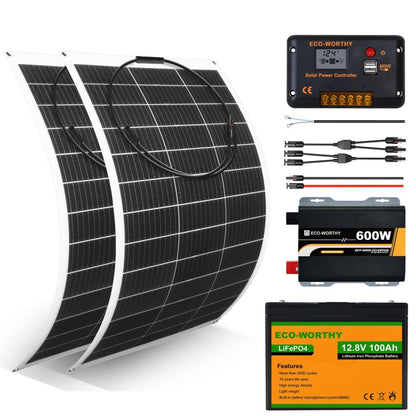

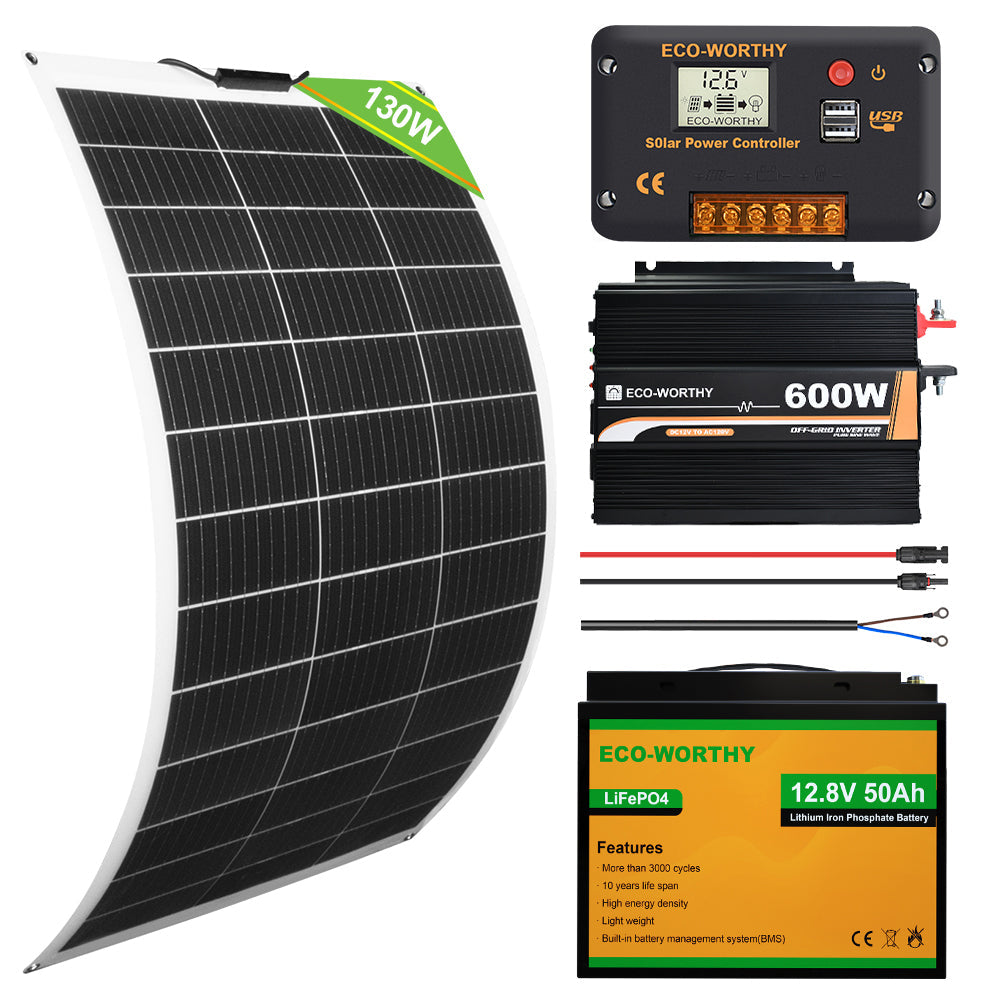

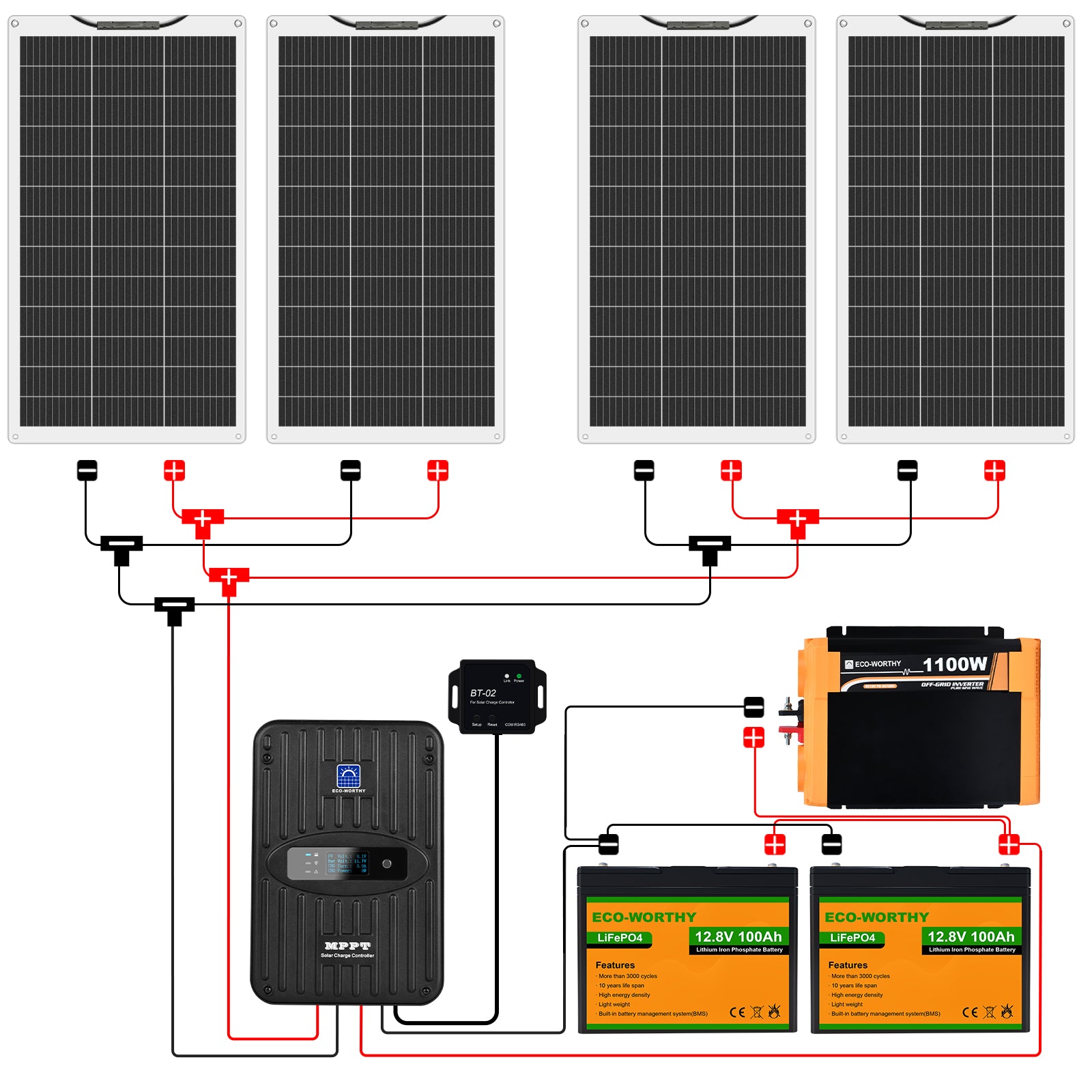

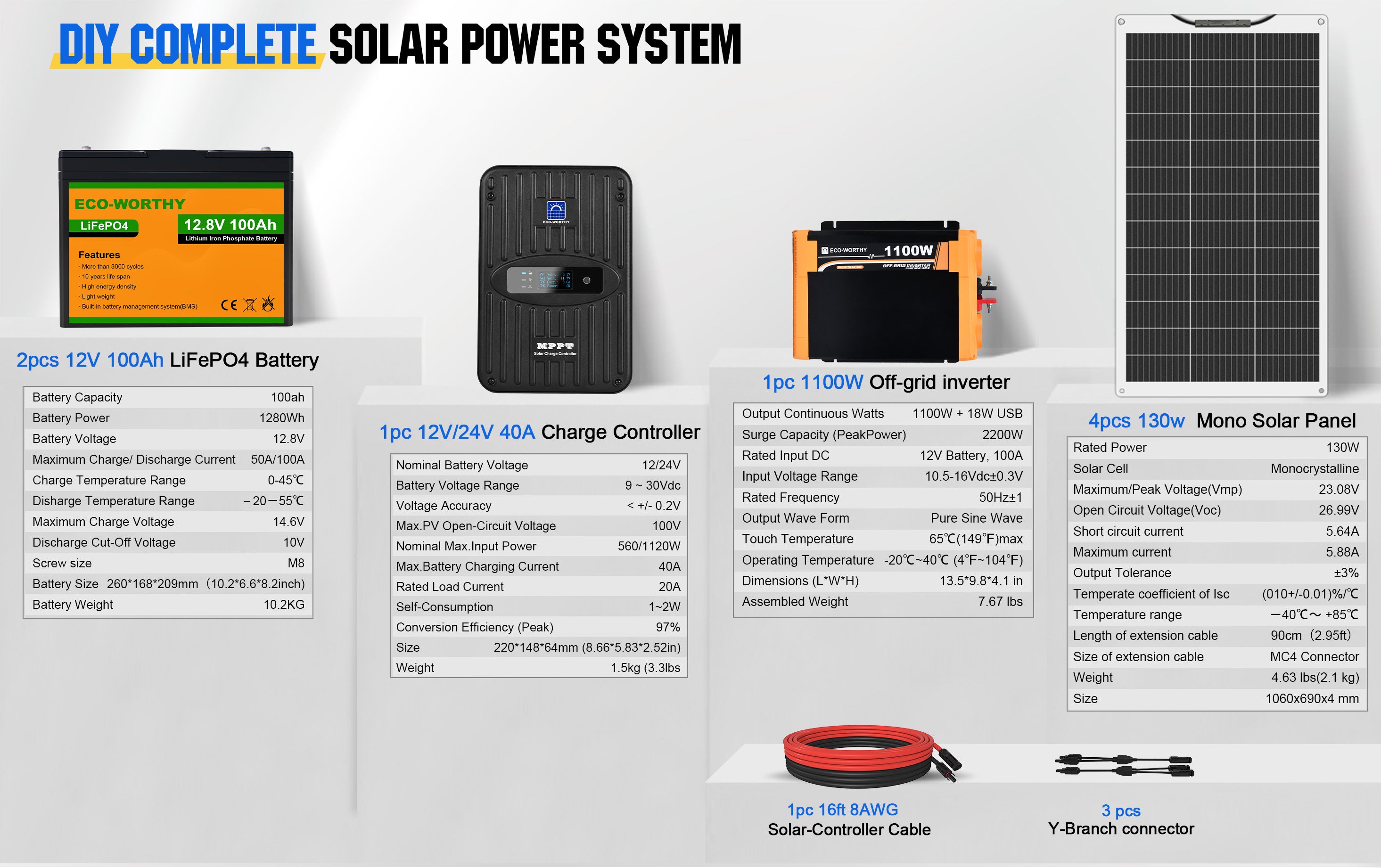

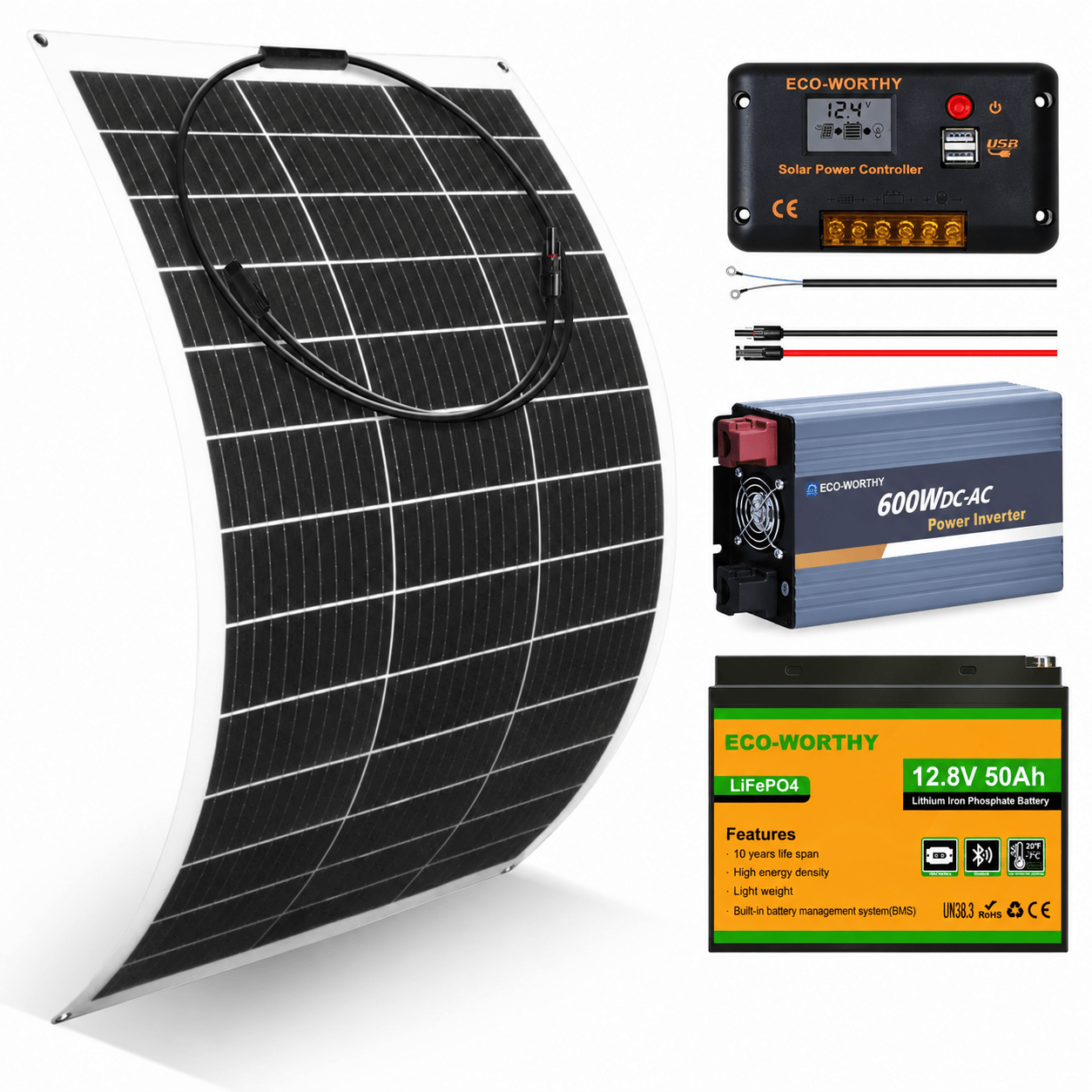

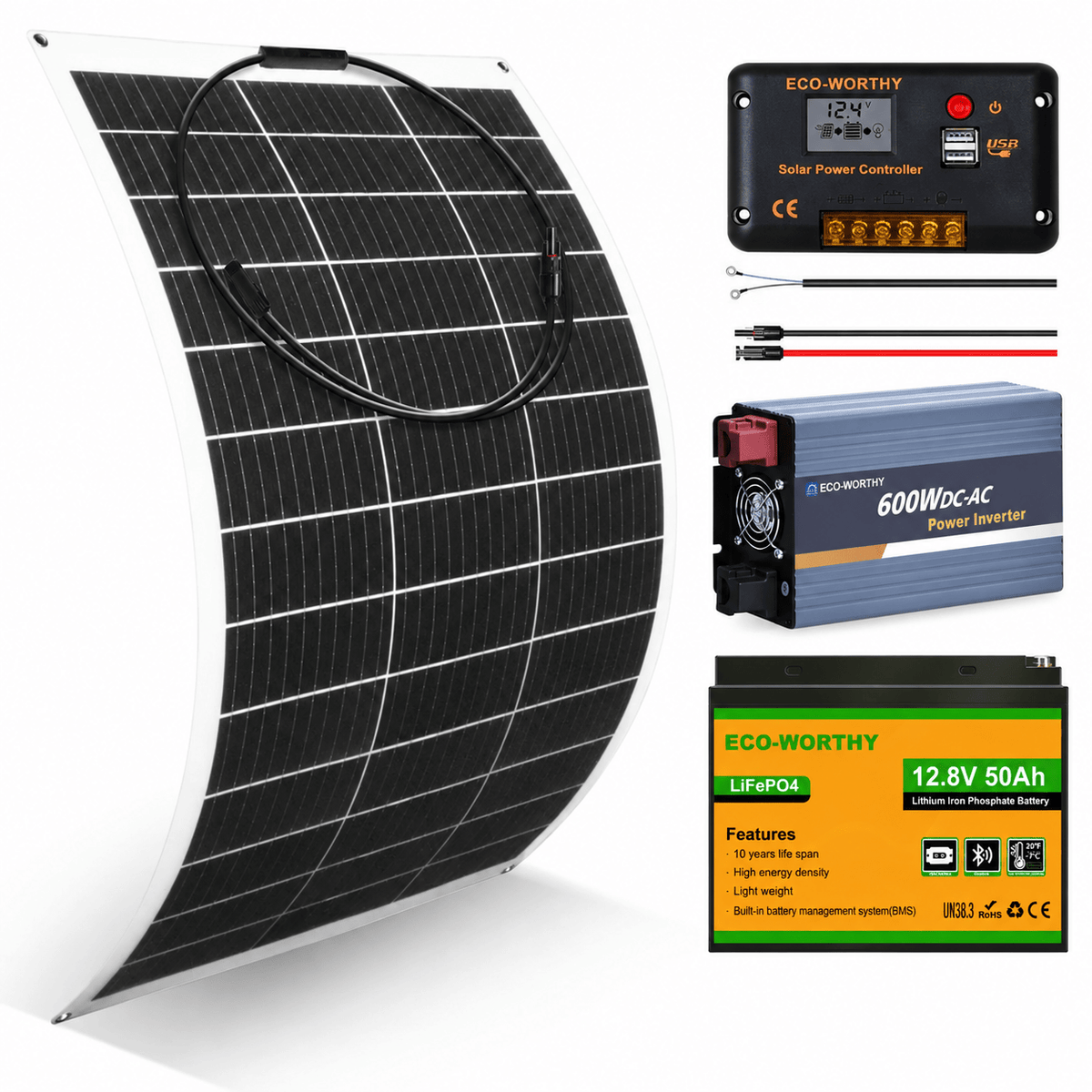

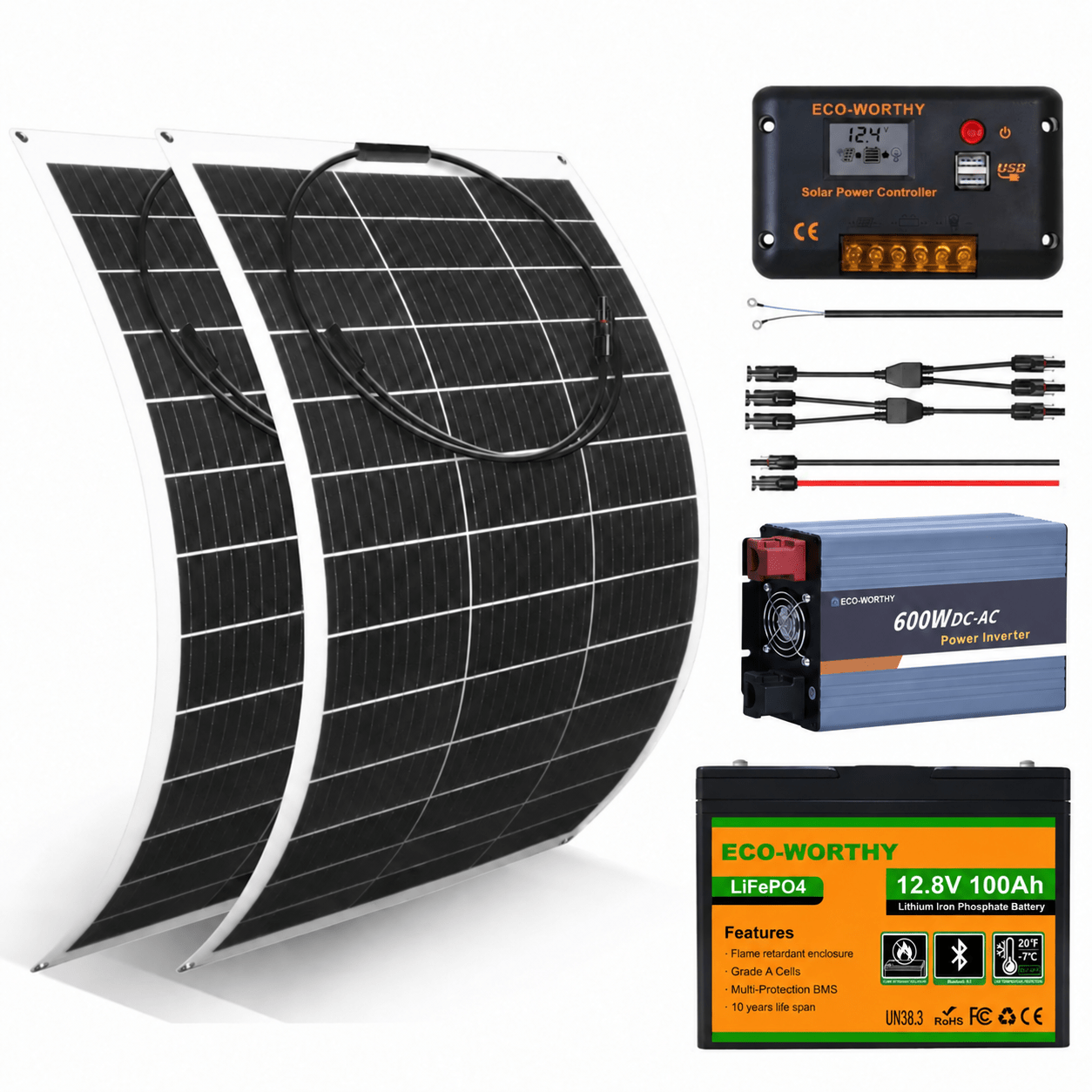

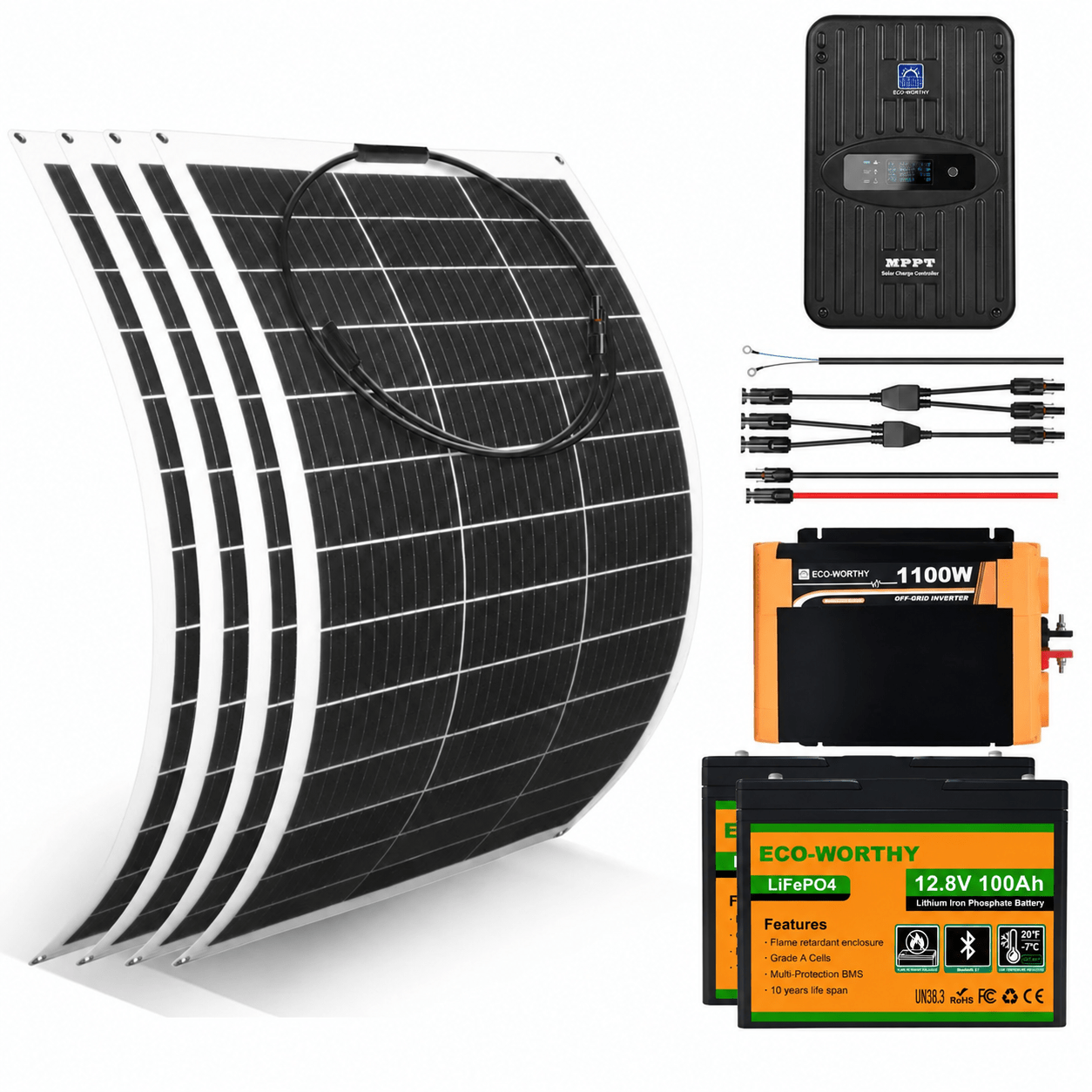

ECO-WORTHY 130W 260W 520W 12V (1/2/4xFlexible 130W) Off Grid SolarPanel Kits with Battery and Inverter

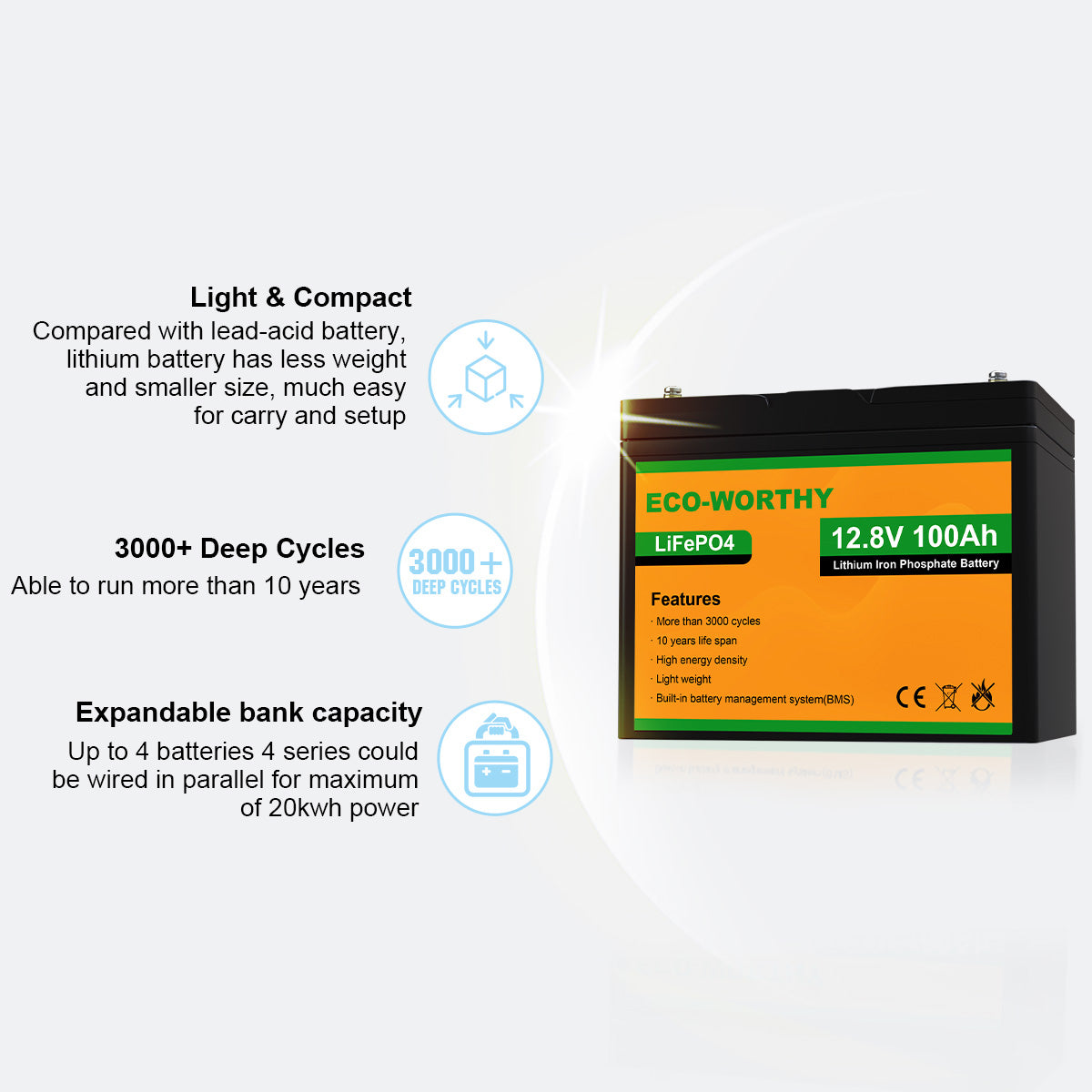

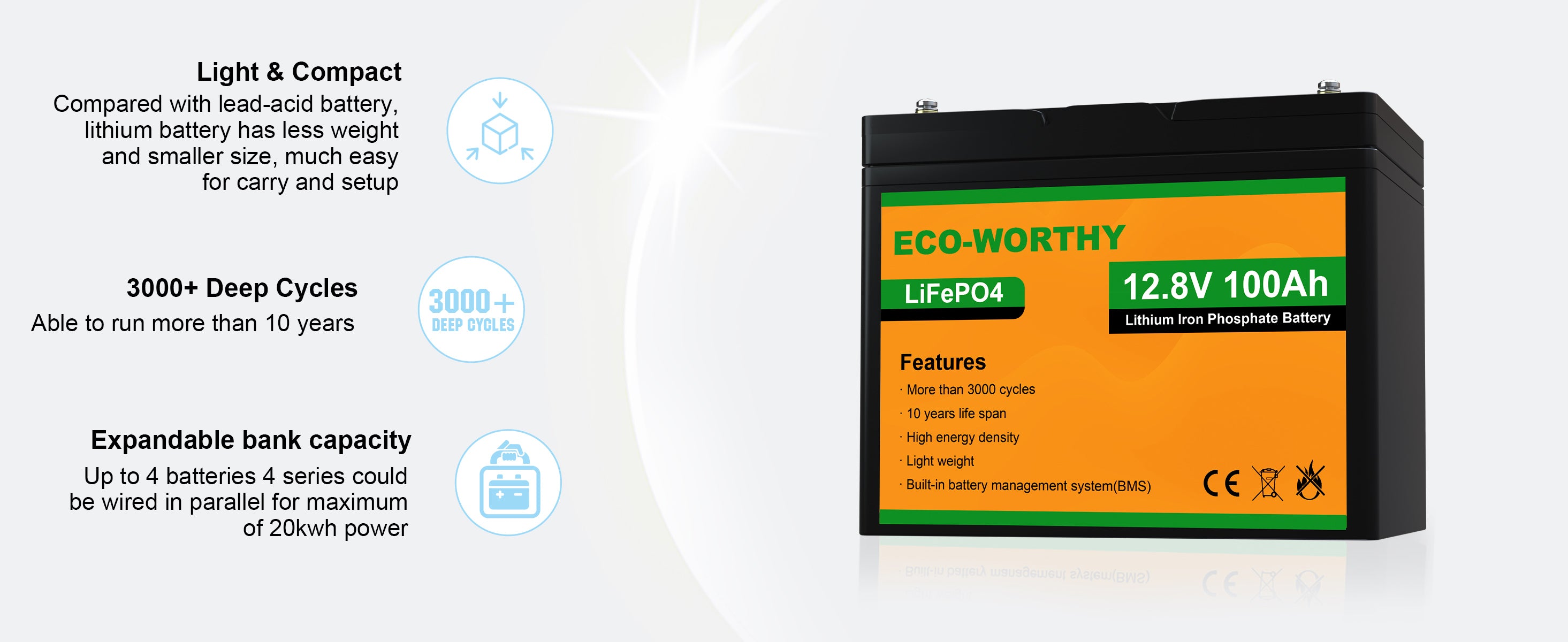

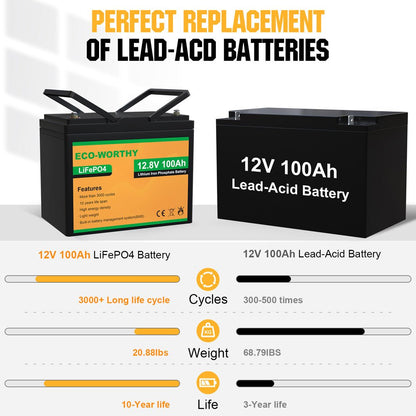

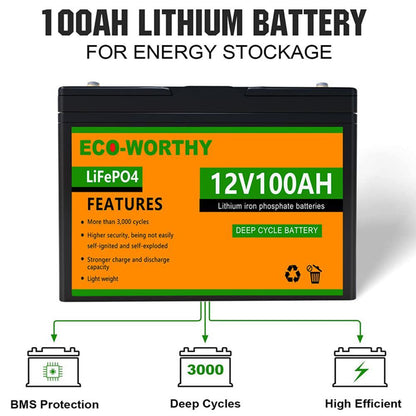

Battery Capacity:

100Ah

Battery Power:

1280Wh

Battery Voltage:

12.8V

Maximum Charge/ Discharge Current:

100A/100A

Charge Temperature Range:

0-45℃

Discharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

14.6V

Discharge Cut-Off Voltage:

10V

Screw size:

M8

Battery Size:

260*168*214mm（10.2*6.6*8.4inch）

Battery Weight:

10.5 kg

Battery Capacity:

50Ah

Battery Power:

640Wh

Battery Voltage:

12.8V

Maximum Charge/ Discharge Current:

50A/50A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

14.6V

Discharge Cut-Off Voltage:

10V

Screw size:

M6

Battery Size:

232*135*181mm（9.1*5.3*7.1inch）

Battery Weight:

5.74kg（12.65lbs）

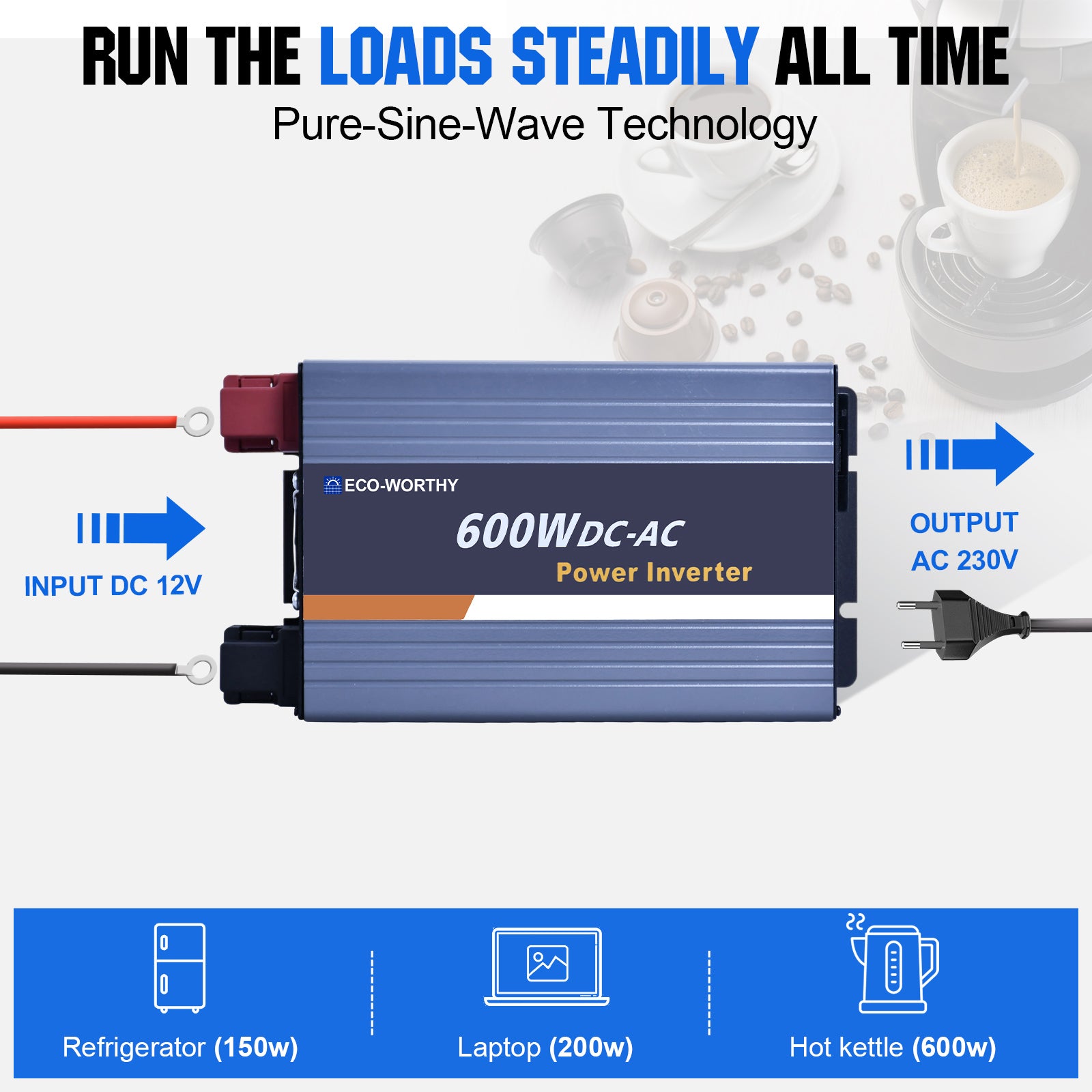

Battery Input Voltage:

12V

Rated Power:

600W

Peak Power:

1200W

Output Waveform:

Pure Sine Wave

Output Voltage:

230Vac

USB Output:

5V 1.2A

Extension Cable:

6mm²,9AWG,1 meter

Output Frequency:

50HZ ± 0.3HZ

AC Output Sockets:

1

Operating Temperature Range:

-20℃-60℃

Demensions LxWxH:

270x150x78mm

Net Weights:

17KG

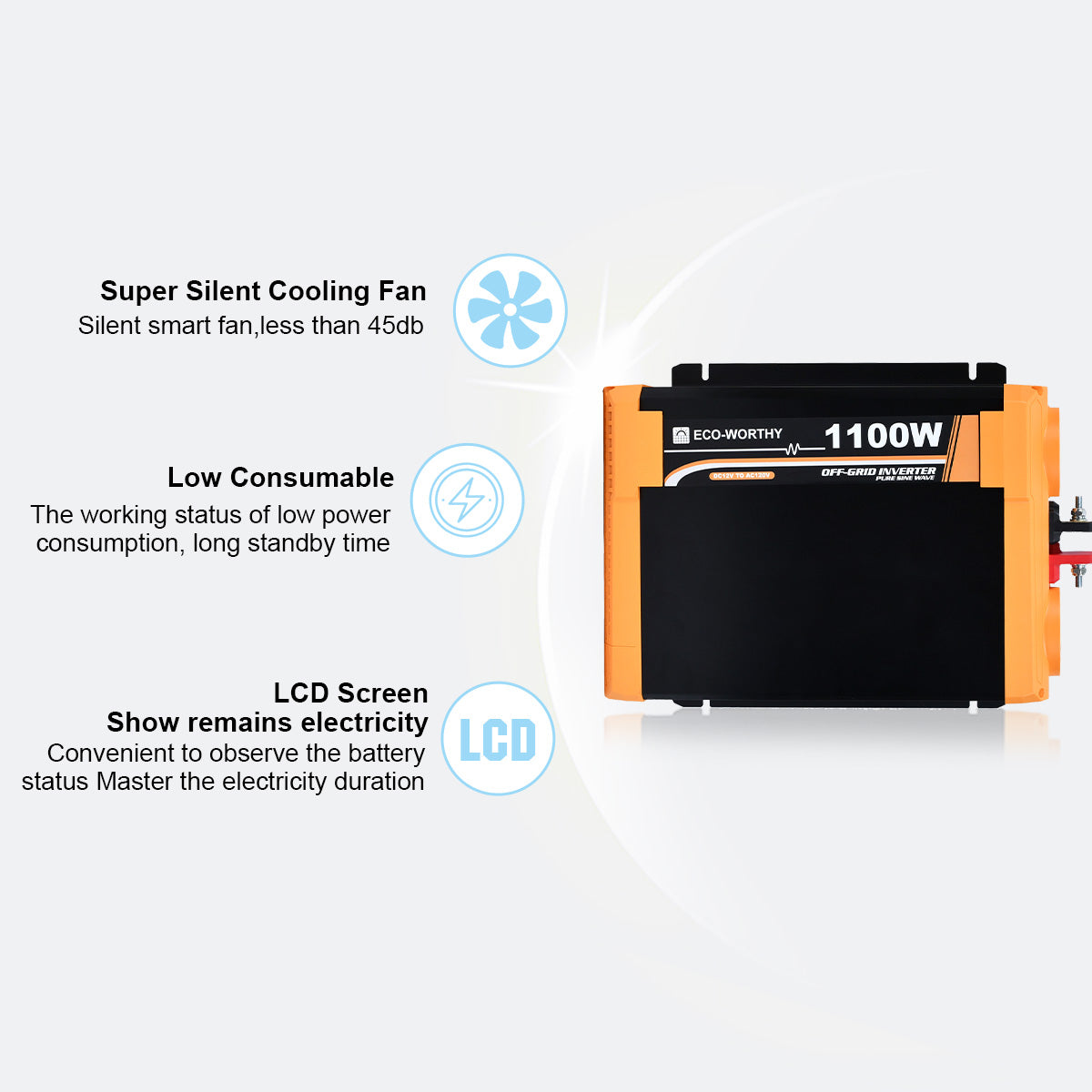

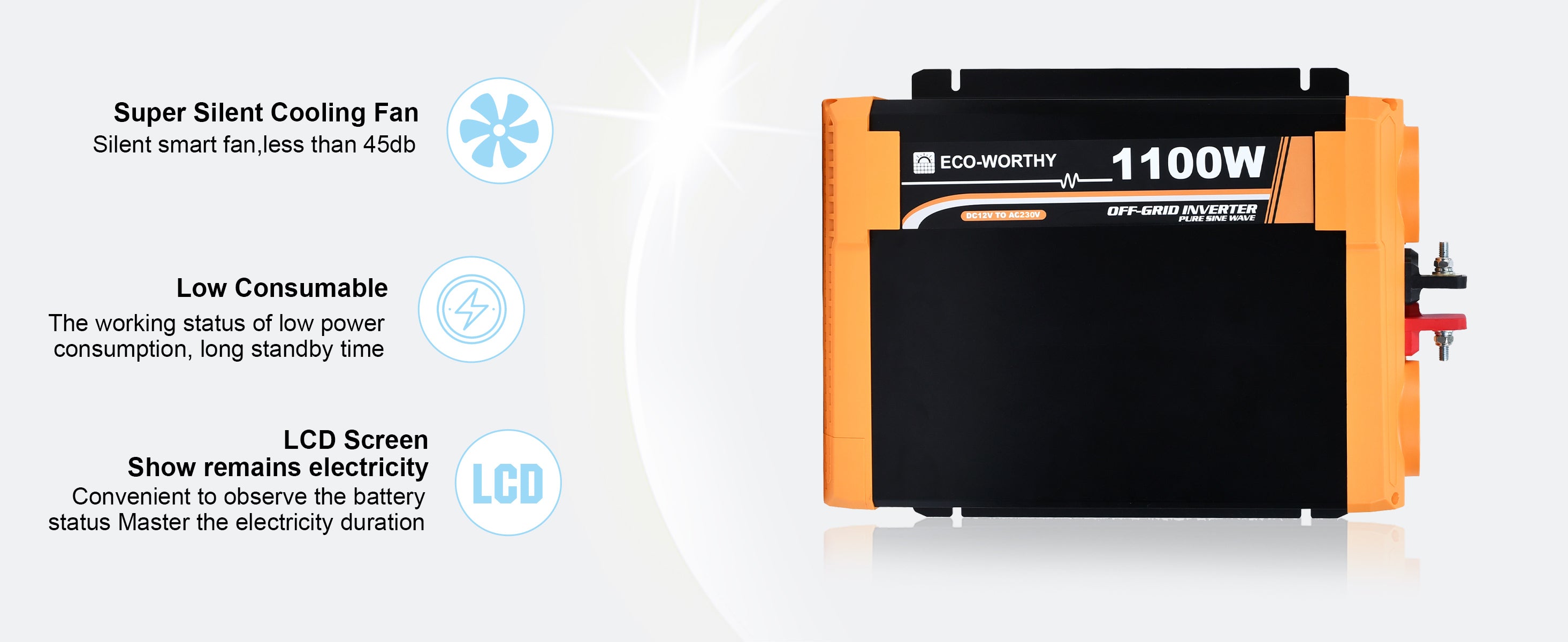

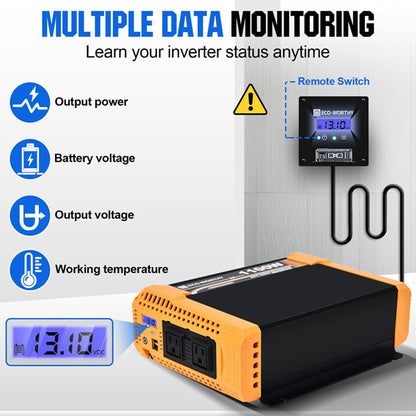

Output Continuous Watts(W):

1100W+18W USB

Surge Capacity (PeakPower):

2200W

Rated Input DC (V,A):

12V Battery, 100A

Input Voltage Range:

10.5-16Vdc±0.3V

Rated Frequency (Hz):

50Hz±1

Rated Output AC (V,A):

230Vac±10%, 4.8A

Rated Output USB (V,A):

2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)

No Load Current:

<1A

Optimum Efficiency:

85% min

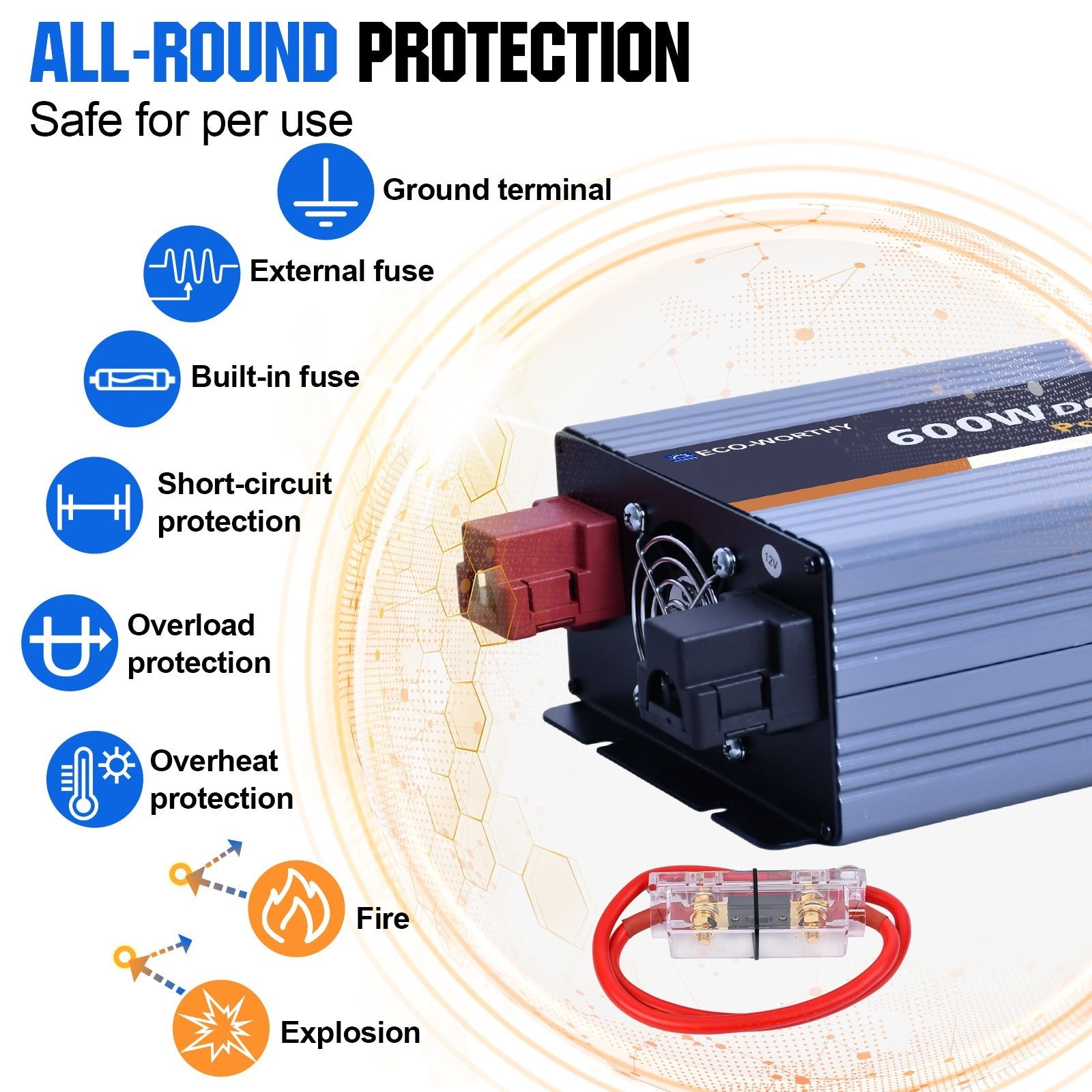

Fuse (A):

30A*4

FuseType:

Internal Blade

Output Wave Form:

Pure Sine Wave

Touch Temperature:

 65℃(149℉)max

Operating Temperature:

-20℃~40℃ (4℉~104℉)

Operating/Storage Humidity RH:Cooling System:

5~95%

Cooling System:

Thermo Fan

THD:

<4.5%

Dimensions (L*W*H):

13.5*9.8*4.1 in

Assembled Weight (kg):

7.67 lbs

External fuse(A):

120A

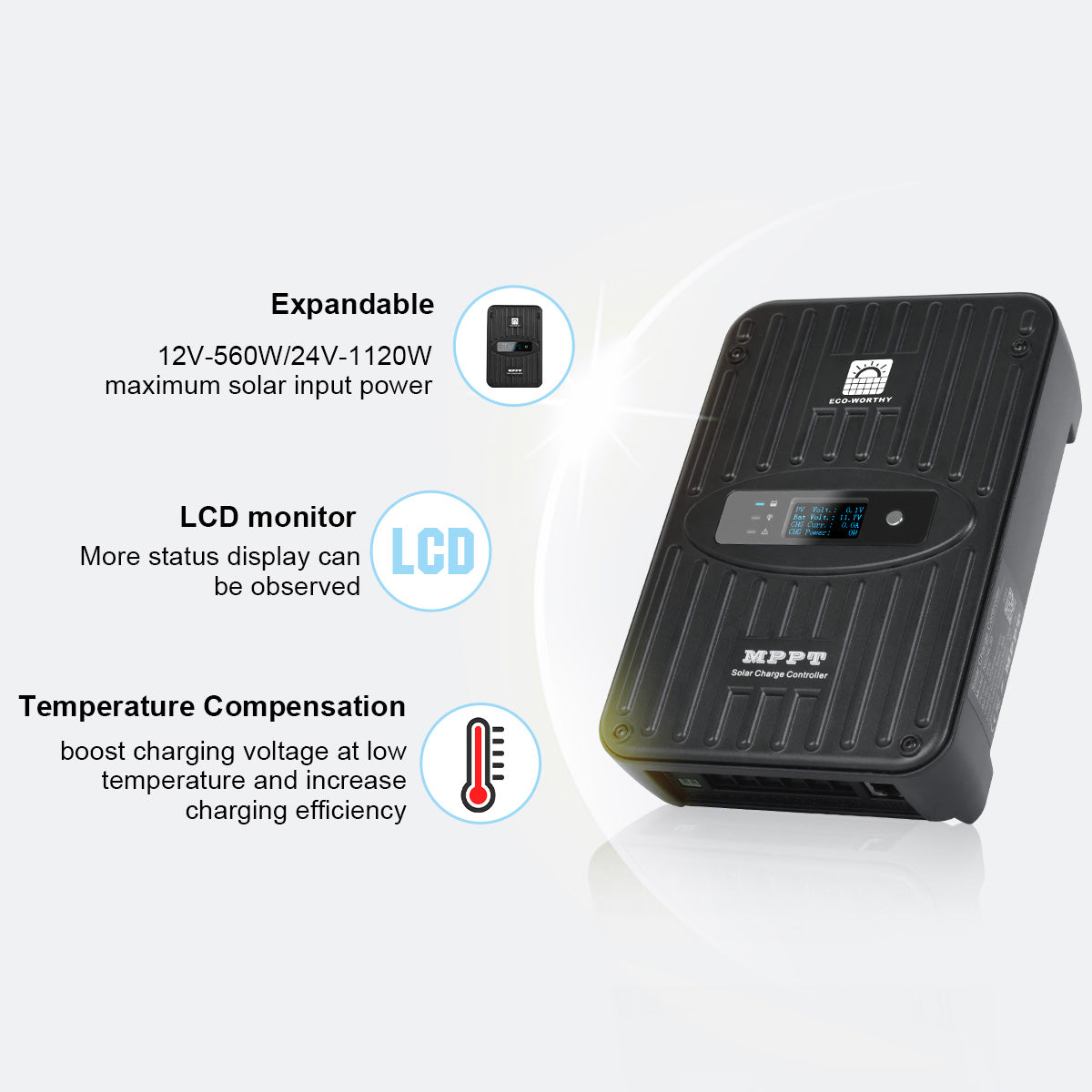

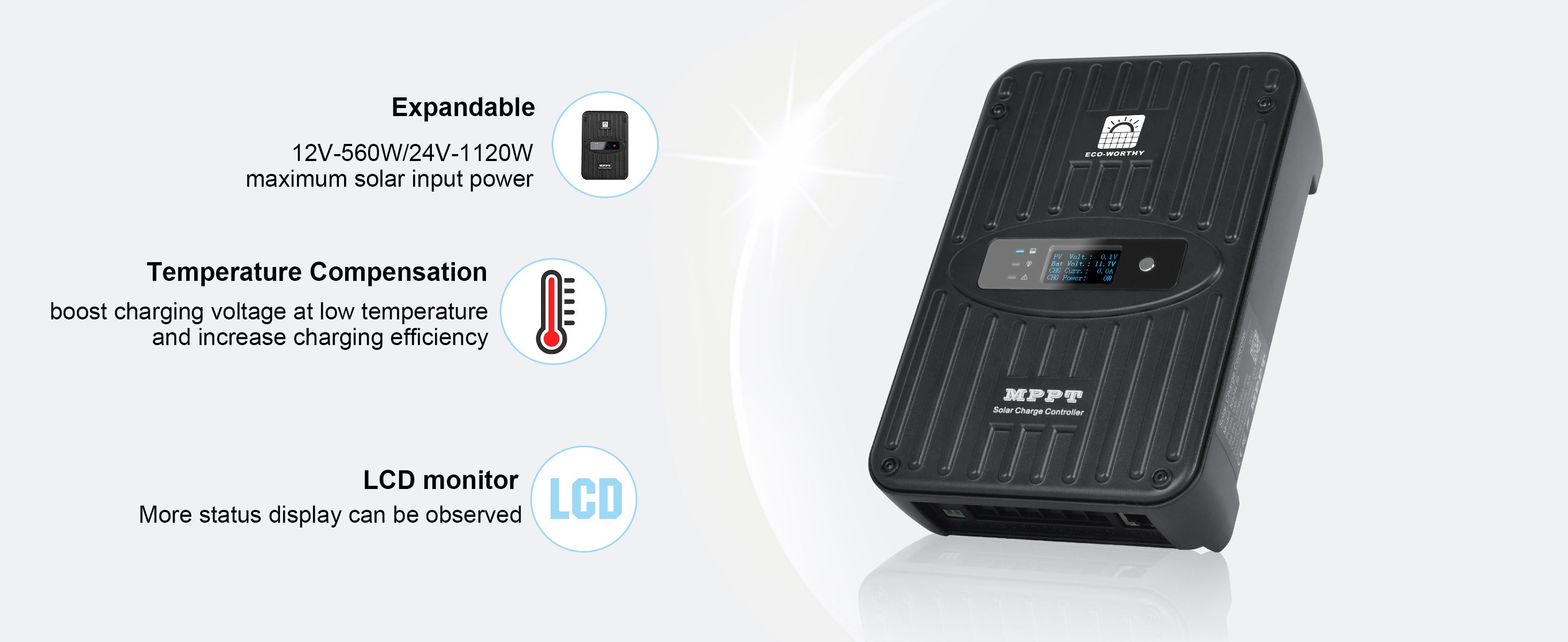

Battery voltage:

12V/24V

Max Solar Input Power:

560/1120W

Charging mode:

MPPT

Rated Load Current:

20A

Charge Efficiency (Peak):

97%

Self-Consumption:

1~2W

Battey Type:

LiFePO4,AGM,Sealed,Gel,Flooded

Size:

220*148*64mm/8.7*5.8*2.5inch

Max Charge current:

40A

Weight:

1.5KG

Max.PV Open-Circuit Voltage:

<100V

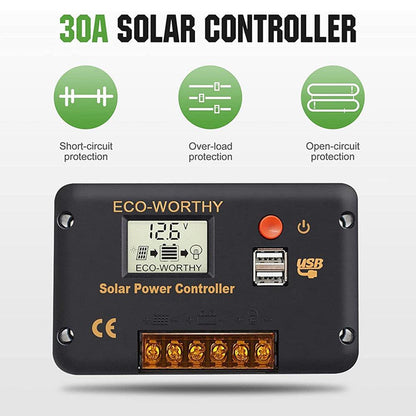

Battery voltage:

12V/24V

Charging mode:

PWM

Max Charge current:

30A

Discharge current:

30A

Max.PV Open-Circuit Voltage:

<50V

USB Output:

5V/2A

Working Temperature:

-20℃~60℃

Weight:

150g

Size:

138*85*30mm

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Cable Type:

Connecting Solar Panels to Charge Controllers

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

40°F to +185°F

Connector:

MC4
