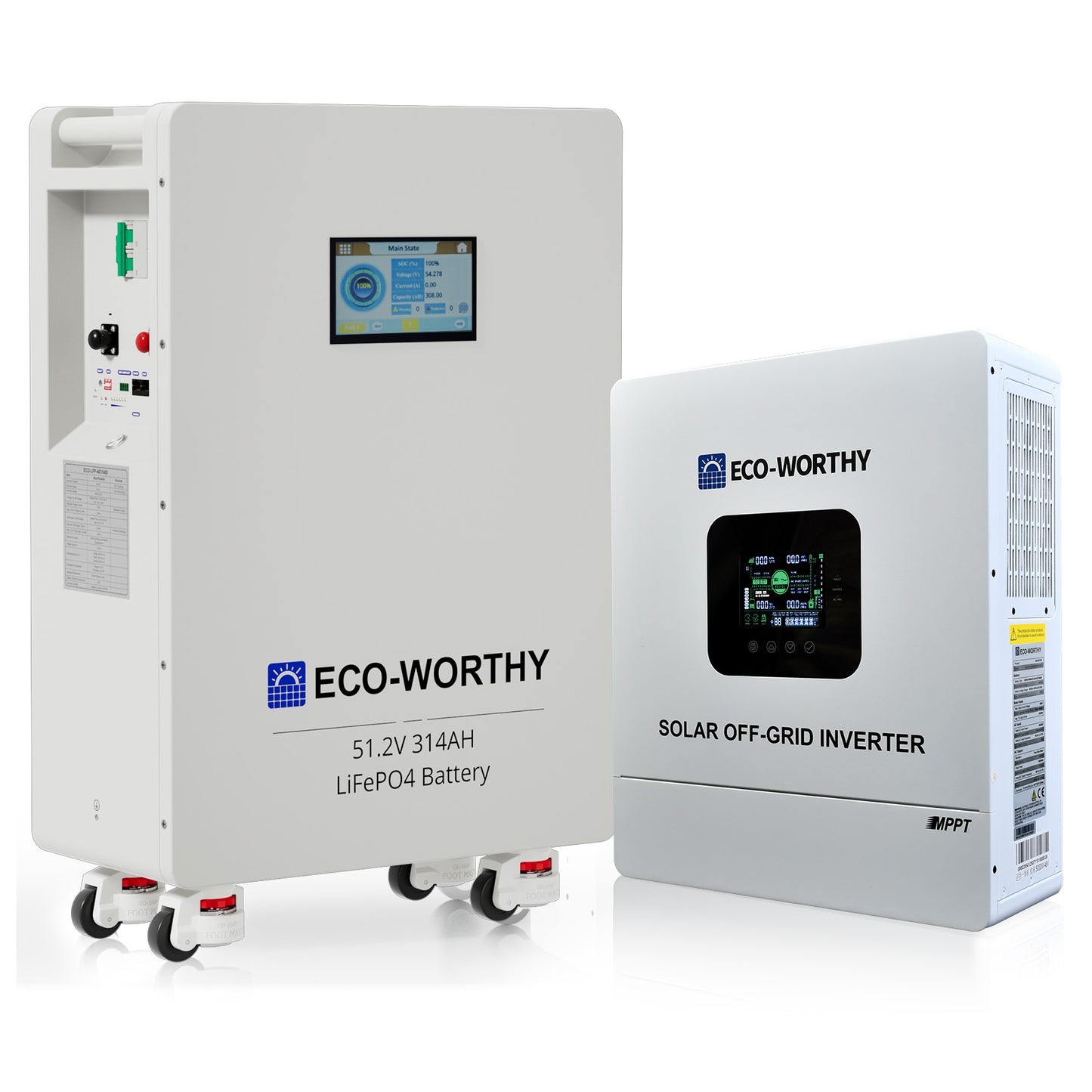

ECO-WORTHY 48V 314Ah Lithium Battery Home Backup Power 16.08KWh and 5kW 48V Off Grid Inverter

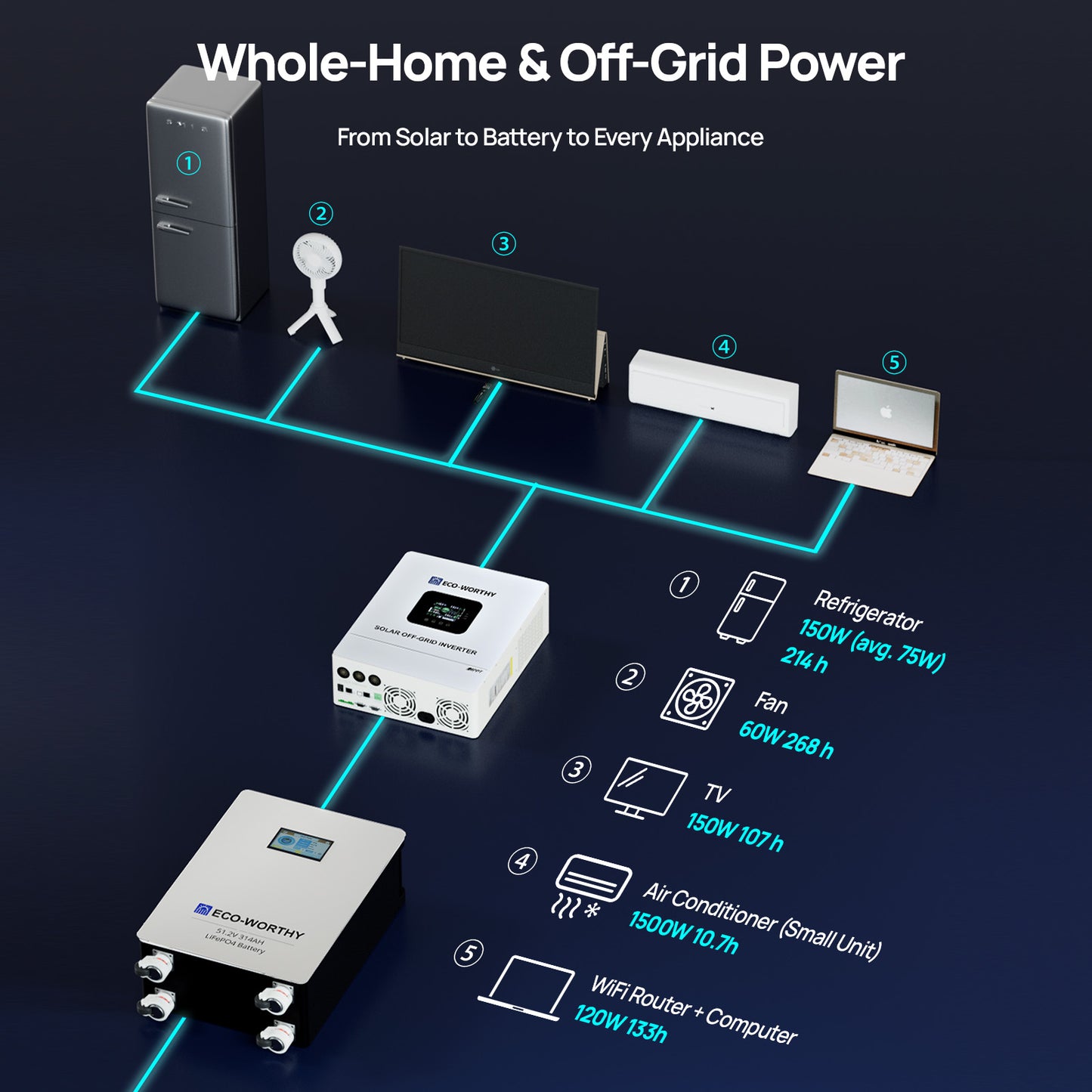

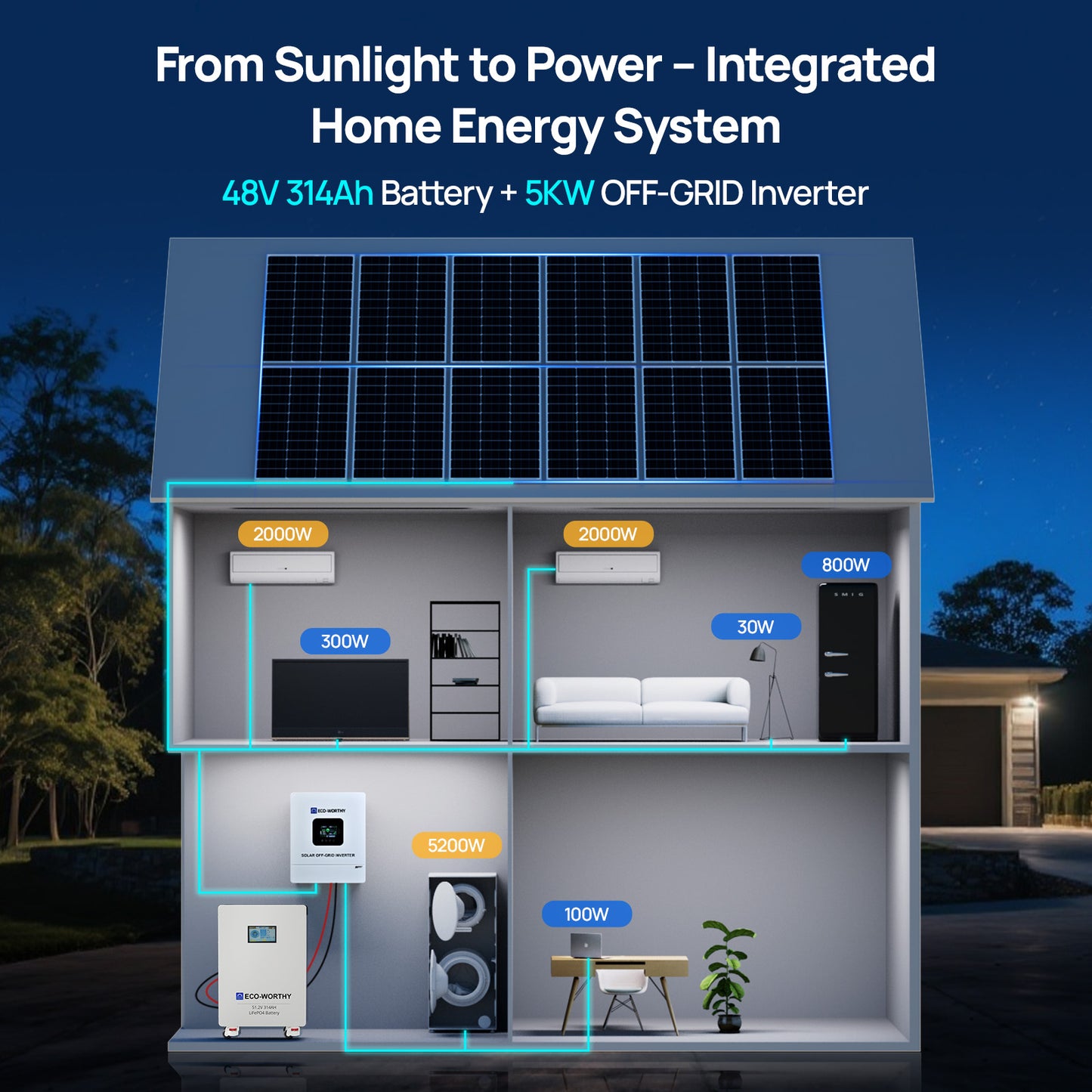

Upgrade your energy system with a 48V 314Ah LiFePO4 battery paired with a 5000W All in one inverter, delivering an efficient and stable 16.08kWh backup power solution. Ideal for home and small business emergency backup, providing long-lasting, safe, and reliable power to help you easily handle outages.

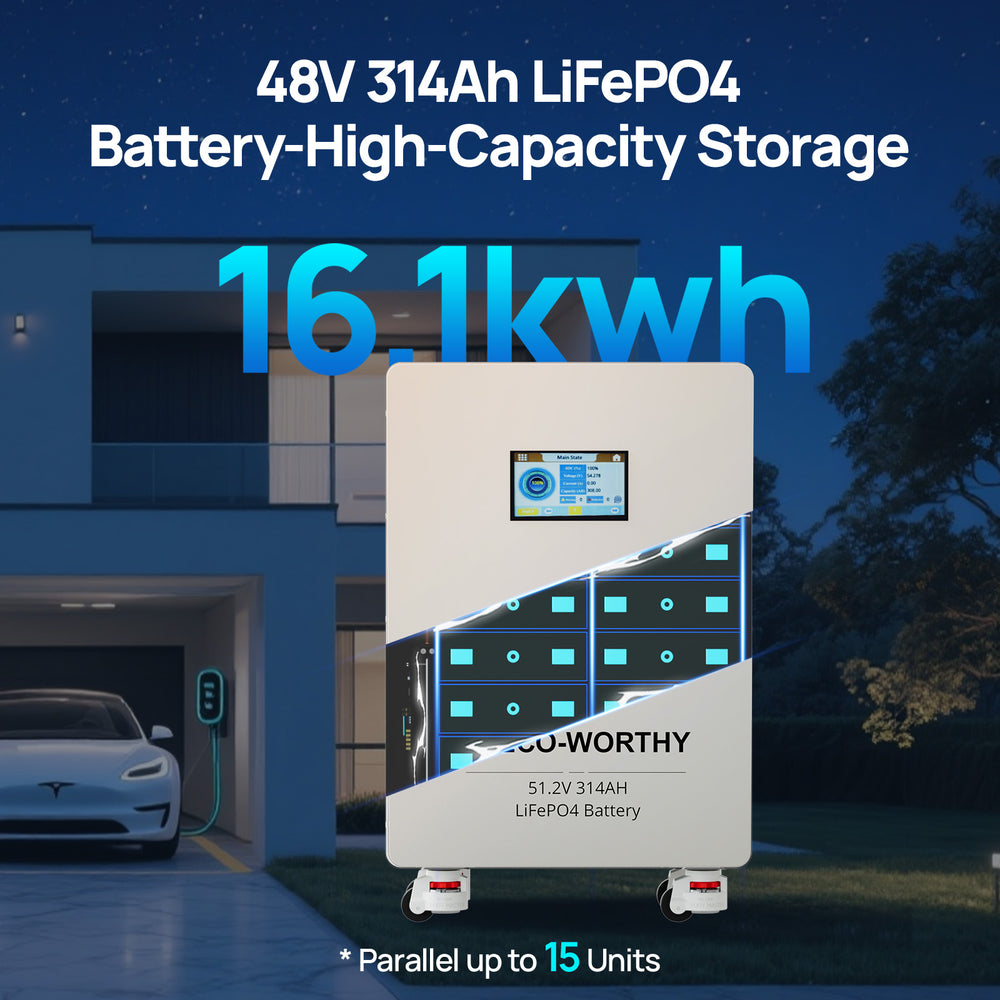

48V 314Ah Lithium Battery

Battery Capacity: 314Ah	Battery Power: 16.08kWh
Rated Voltage: 51.2V	Voltage Range: 40~58.4V
Maximum Charge/ Discharge Current: 200A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Battery Weight: 293.2lb/133kg	Battery Size:  32.56*20.47*9.92in/80.7*52*25.2cm

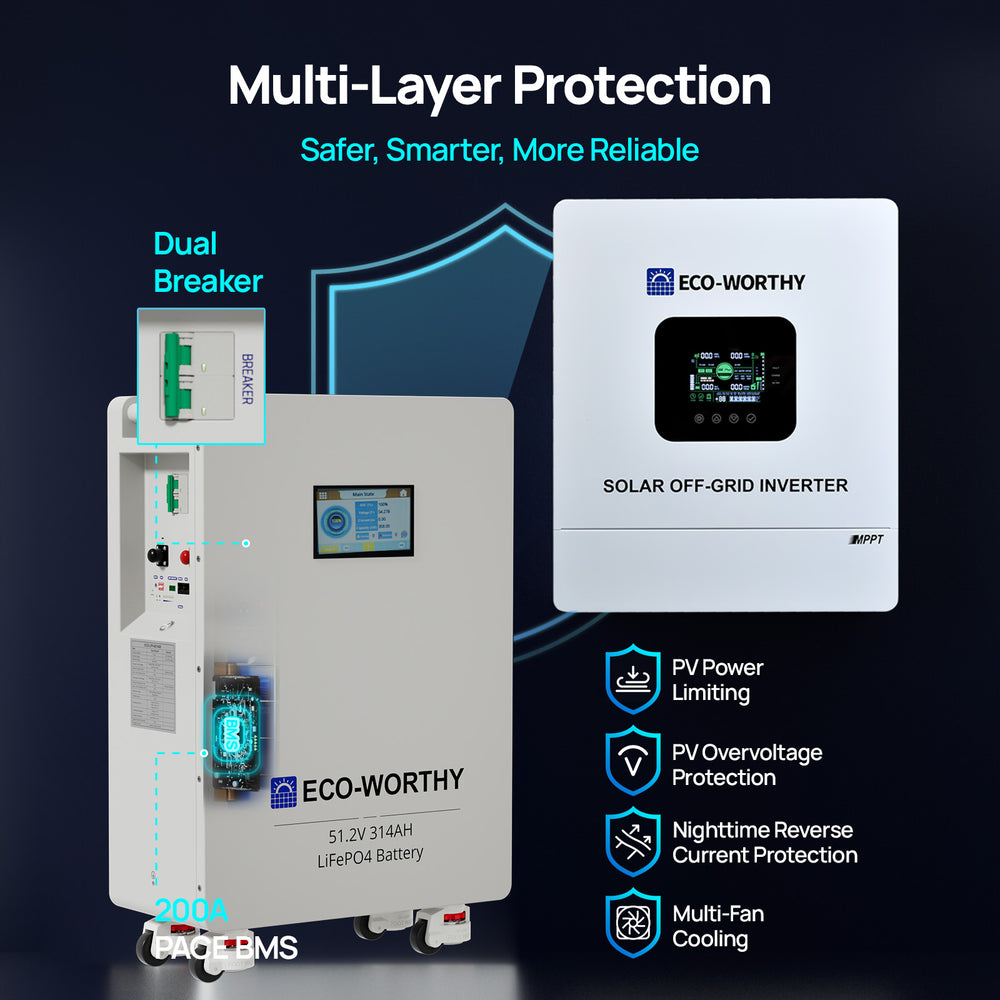

Circuit Breaker:2*125A(250A)	Max. parallel number:15pcs
BMS Brand：PACE BMS



5000W 48V Pure Sine Wave Power Inverter

Models: ECO3000W(SR)	AC Rated input voltage: 220/230Vac
AC Frequency: 50Hz/ 60Hz (Auto detection)	AC Overload/short circuit protection: 10ms (typical)
AC Maximum Efficiency: Available	AC Maximum bypass overload current: 30A
Output voltage waveform: Pure sine wave	Rated output power (W): 3000w
Rated output voltage (Vac): 230Vac	Output voltage error: ±5%
Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz	Efficiency: ＞92%
Size (L*W*D): 378mm*280mm*103mm	Weight (kg): 6.2

AC Input Mode
Rated Input Voltage: 220/230VAC	Input Voltage Range:  (170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
Frequency:  50Hz/ 60Hz (Auto detection)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: >92%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A	Conversion time (bypass：10ms (typical)
Invert Mode
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output Voltage: 230VAC	Peak Power: 10000W
Output frequency range : 50Hz ± 0.3Hz, 60Hz ± 0.3Hz	Maximum Efficiency: >92%
Rated battery i: 4HP	Rated battery input: 48v
AC Charging Mode
Battery Type: Lead acid or lithium battery	Max Charge Current: 60A
Charge Voltage Range: 40 ‒58Vdc	Short circuit protection: Circuit breaker and blown fuse
PV Charging Mode
Max Input Power: 5500W	PV Charging Current Range：0-100A(can be set)
Max PV Open Circuit Voltage: 500VDC	PV Operating Voltage Range: 120-500VDC
MPPT Voltage Range: 120-450VDC	Battery Voltage Range: 40-60VDC
Maximum PV input current: 22A	Charging Short Circuit Protection: Blown fuse
Max charger current(can be set):100A
Certified specifications
Certification: CE(IEC62109 - 1)/FCC/UKCA	EMC certification level: EN61000
Operating temperature range: -10°C to 55°C (14°F ~131°F)	Storage temperature range:  -25°C ~ 60°C (-13°F ~140°F )
Humidity range:  5% to 95%	Noise: ≤60dB

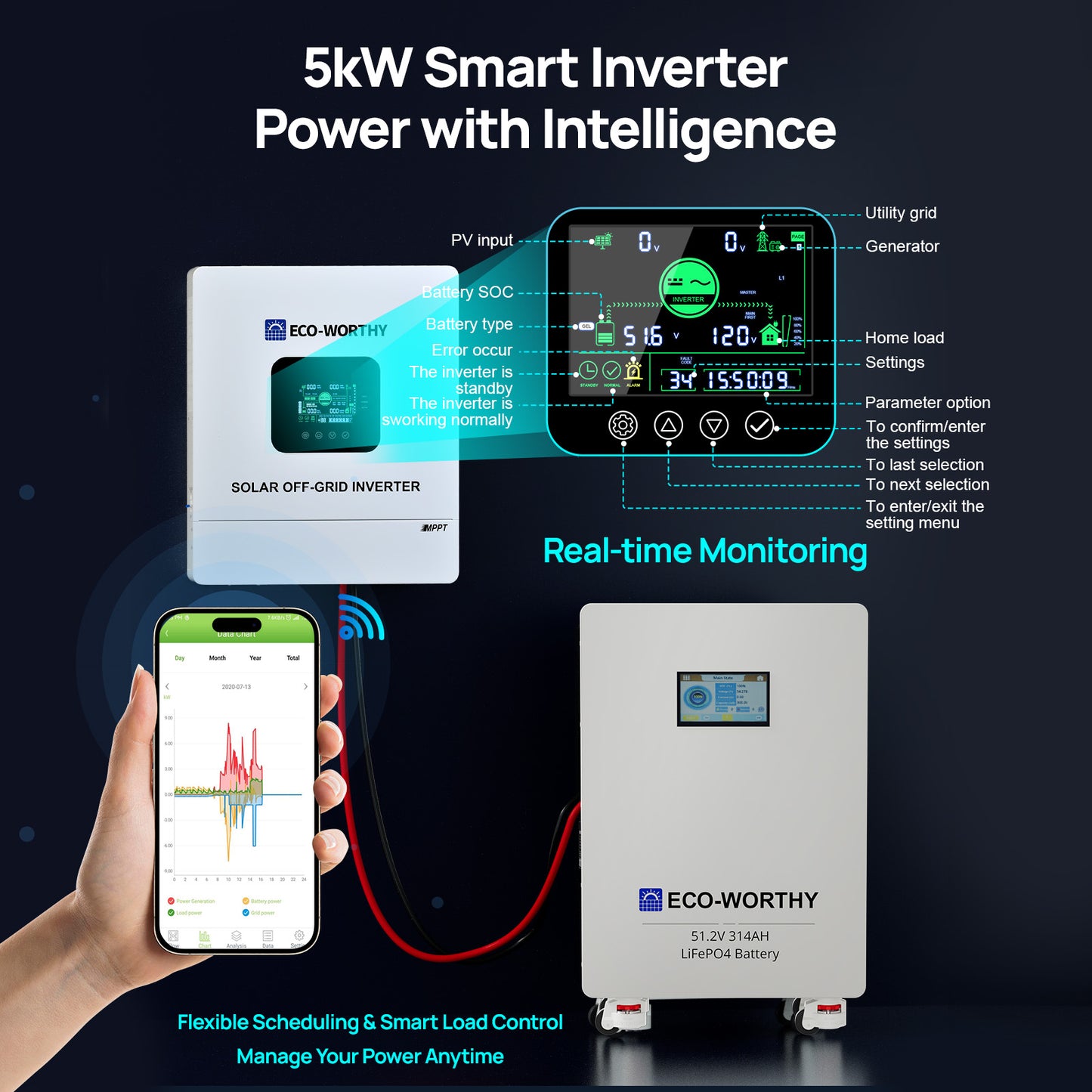

Heat dissipation:  Forced air cooling, variable speed of fan	Communication interface:  USB / RS485 (WiFi/GPRS) / Dry contact control
Dimension (L*W*D):  446.9*350*133mm (1.47*1.15*0.44ft)	Weight: 12kg (26.46lb)

Package included:

1 x 5kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Group Of Wall-mounted Bracket
1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
