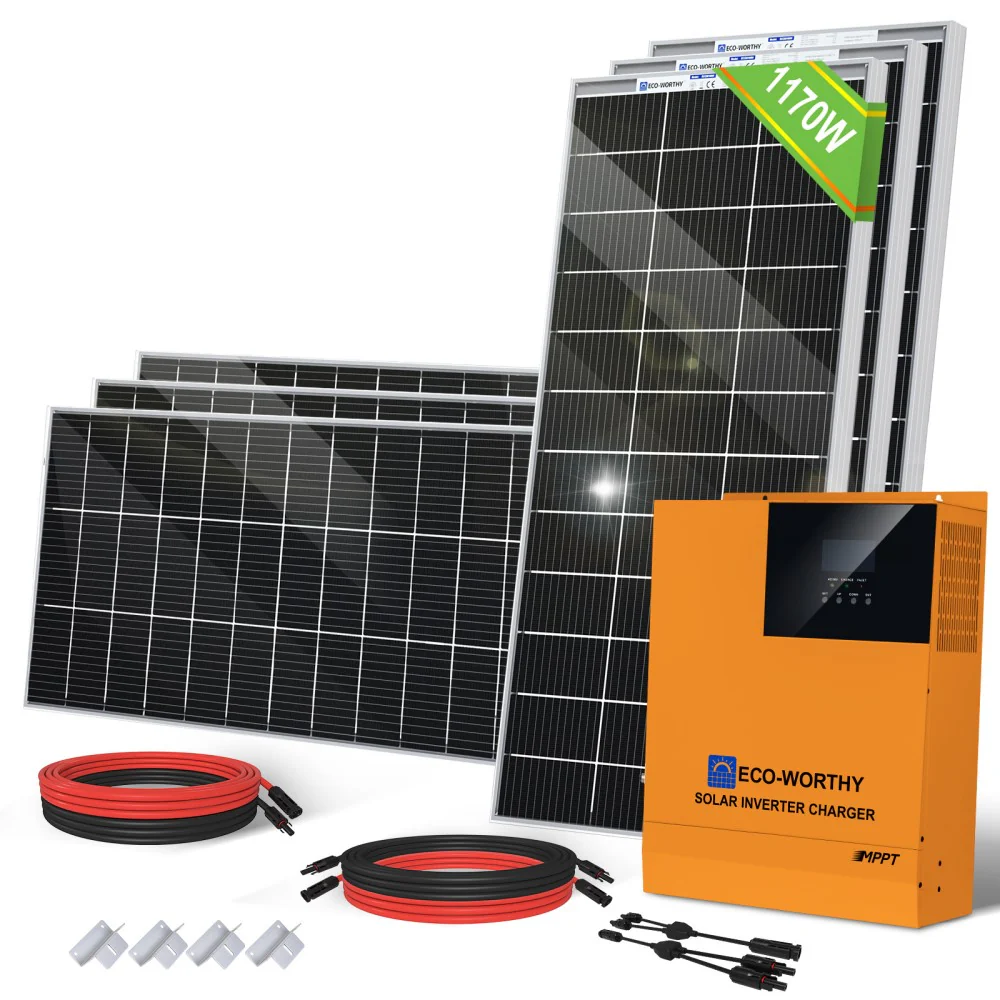

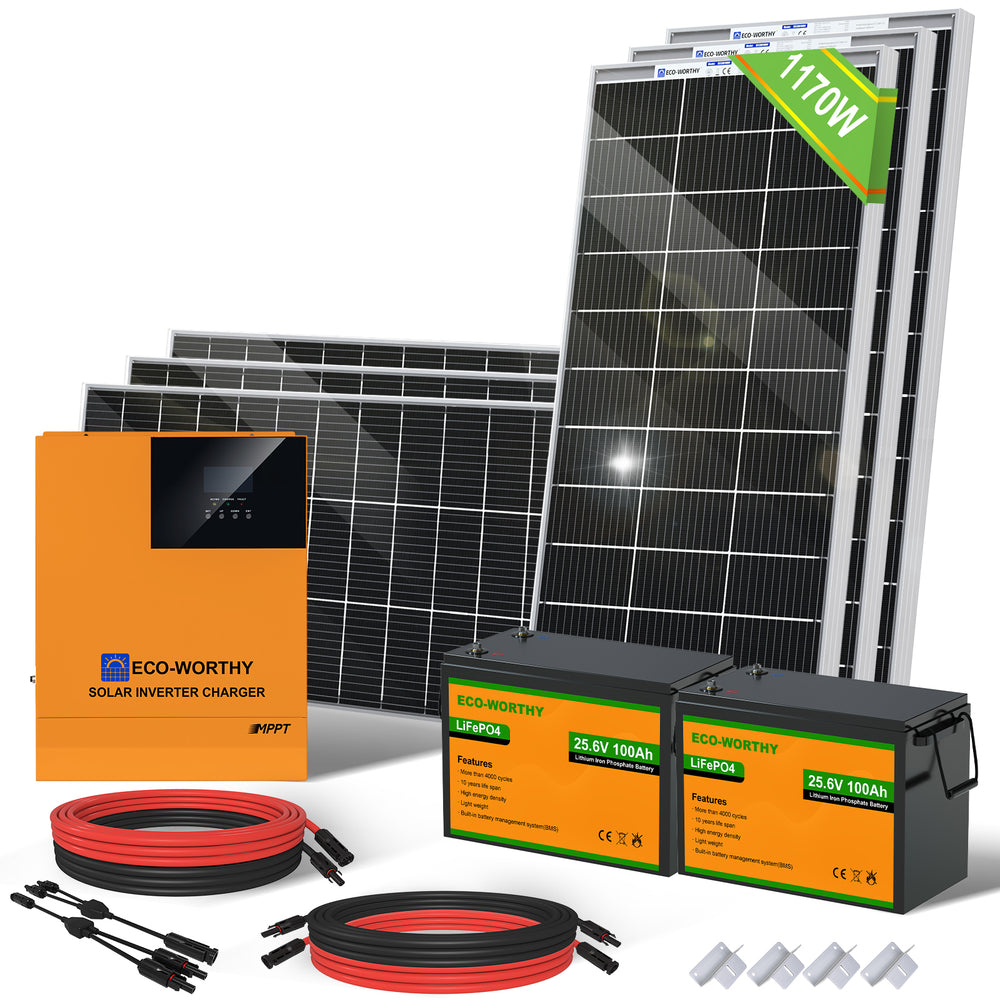

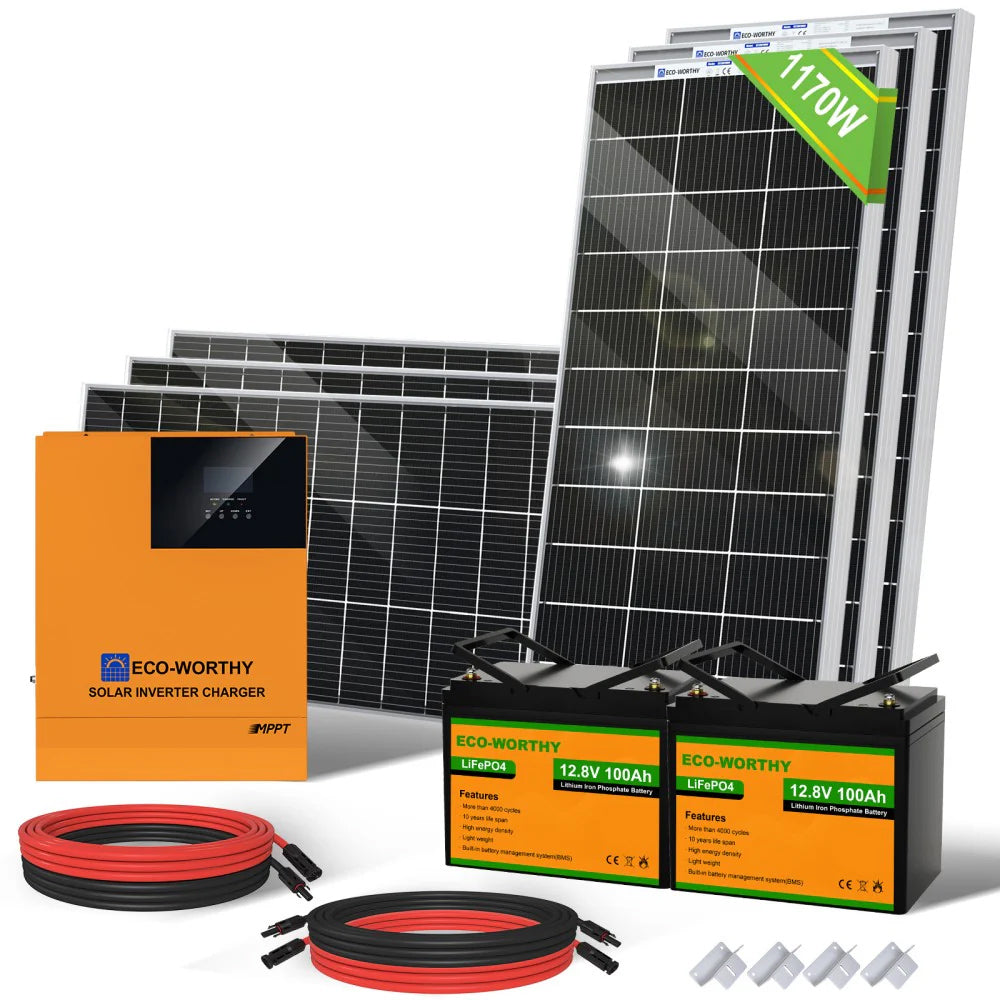

1170W 48V Complete MPPT Off Grid Solar Kit
Technical Specifications
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
51.2V
Voltage Range
40~58V
Maximum Charge/ Discharge Current
100A
Charge Temperature Range
0-55℃
Disharge Temperature Range
﹣20-55℃
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.55*17.13*5.63inch
Battery Weight
95 lbs
Cables
Each battery comes with a pair of battery parallel cables
Certification
IEC62619 | CEC
Models:
ECO3000W(SR)
AC Rated input voltage:
220/230Vac
AC Frequency:
50Hz/ 60Hz (Auto detection)
AC Overload/short circuit protection:
10ms (typical)
AC Maximum Efficiency:
Available
AC Maximum bypass overload current:
30A
Output voltage waveform:
Pure sine wave
Rated output power (W):
3300w
Rated output voltage (Vac):
230Vac
Output voltage error:
±5%5
Output frequency range (Hz):
0Hz ± 0.3Hz / 60Hz ± 0.3Hz
Efficiency:
>92%
Size (L*W*D):
378mm*280mm*103mm
Weight (kg):
6.2kg

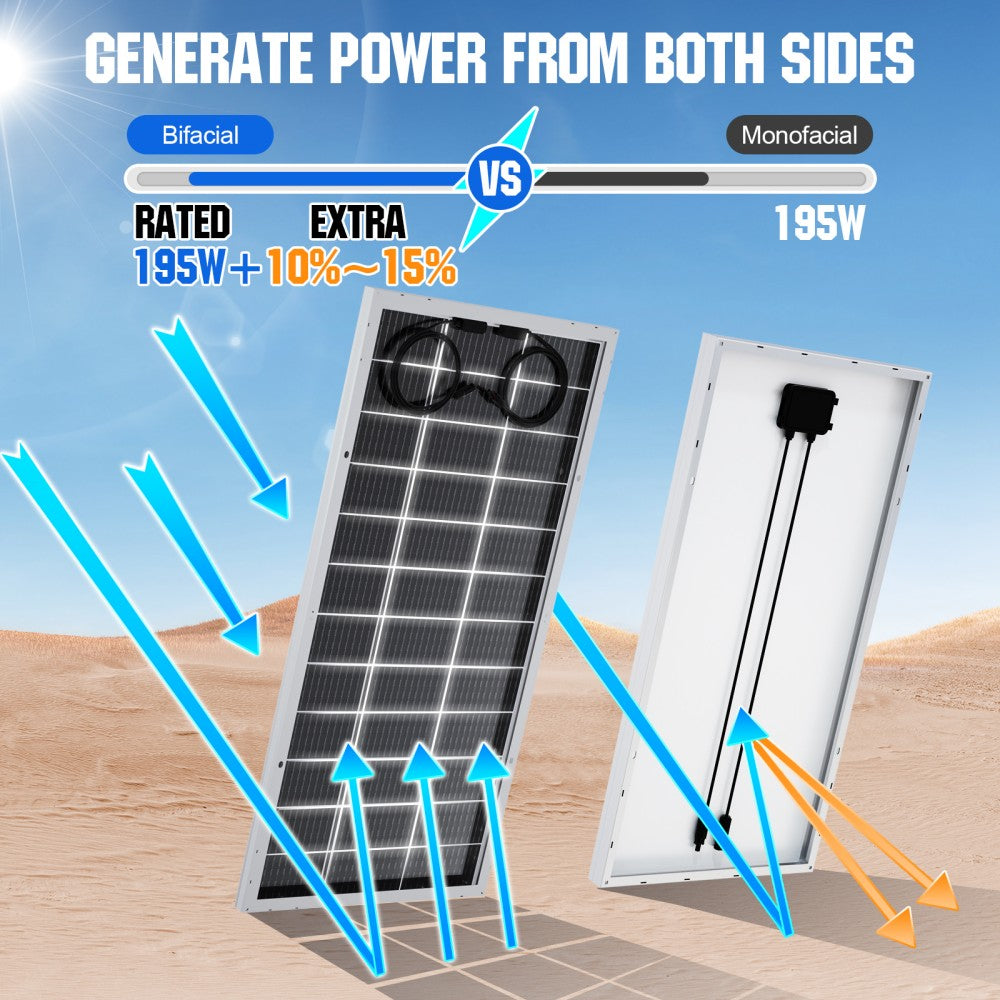

Rated Power:
195W
Solar Cell:
Monocrystalline
Maximum/Peak Voltage(Vmp):
19.8V
Open Circuit Voltage(Voc):
23.7V
Short circuit current:
10.5A
Maximum current:
9.85A
Output Tolerance:
±3%
Temperate coefficient of Isc:
(010+/-0.01)%/℃
Temperate coefficient of Voc:
-(0.38+/-0.01)%/℃
Temperature range:
-40℃~ +85℃
Frame:
Aluminum alloy frame
Weight:
20.48 lbs(9.29 kg)

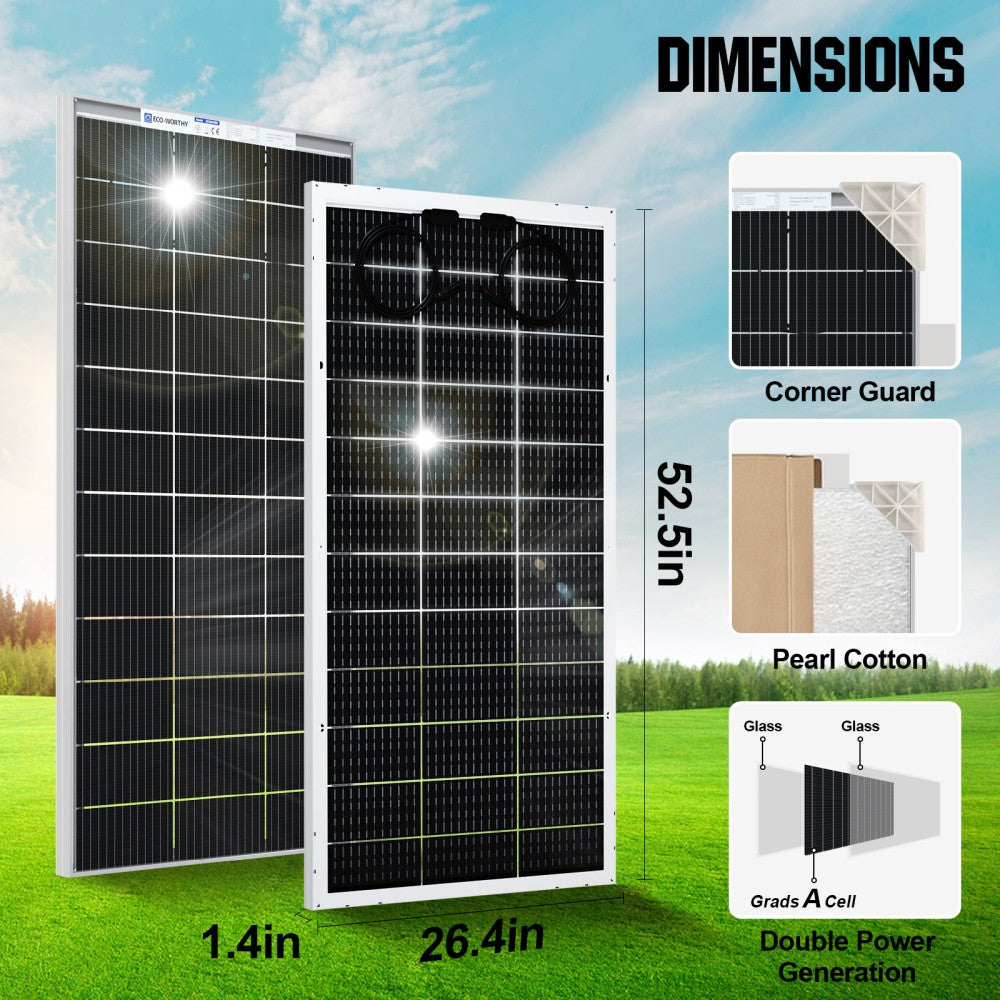

Size:
52.6x26.38x1.38in (1335*670*35mm)
Cable Type:
Connecting Solar Panels to Charge Controllers
Rating Voltage:
600/1000V
Length:
5 meters(16 ft)
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
40°F to +185°F
Connector:
MC4
Cable Type:
Connecting Solar Panels to Combiner Box
Rating Voltage:
600/1000V
Length:
5 meters(16 ft)
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
-40°F to +185°F
Connector:
MC4
Material:
Aluminum Alloy
Size of Screw and Nut:
M6
Weight:
0.85kg
Included in the Box
User manual
