If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 1170W 24V expandable Solar Kit is an ideal choice. This system could generate approximately 4kWh per day.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.

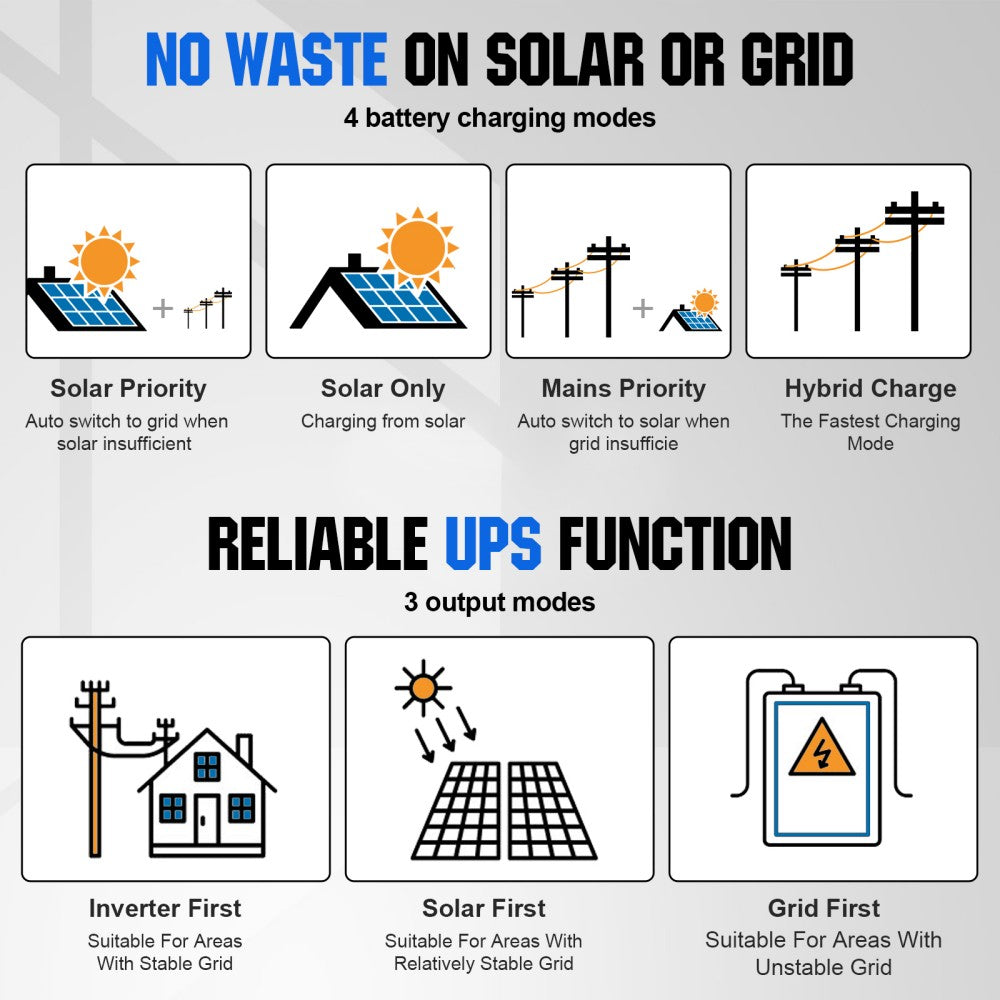

All in one inverter Integrated with 60A/24V MPPT solar charge controller, 3000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.

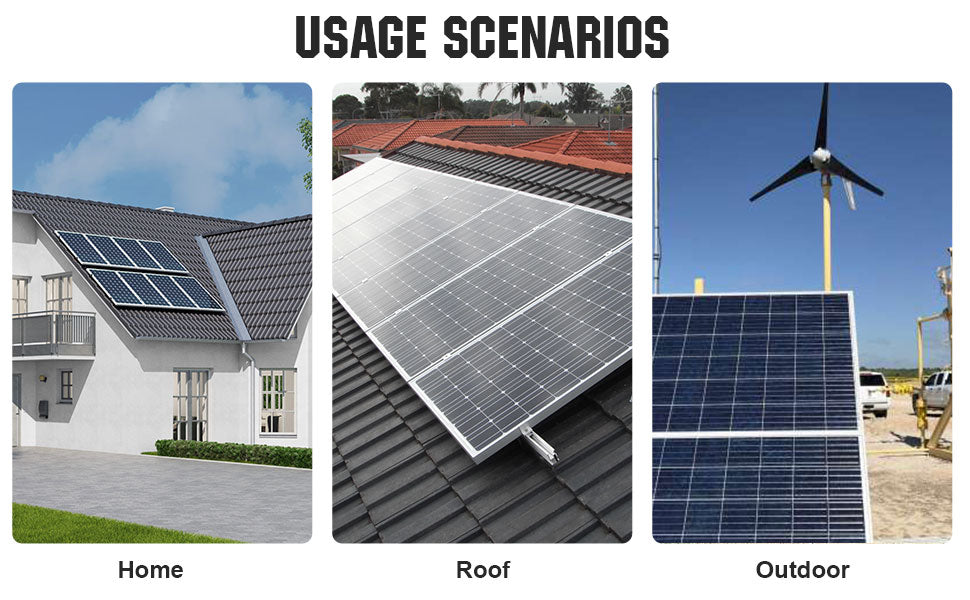

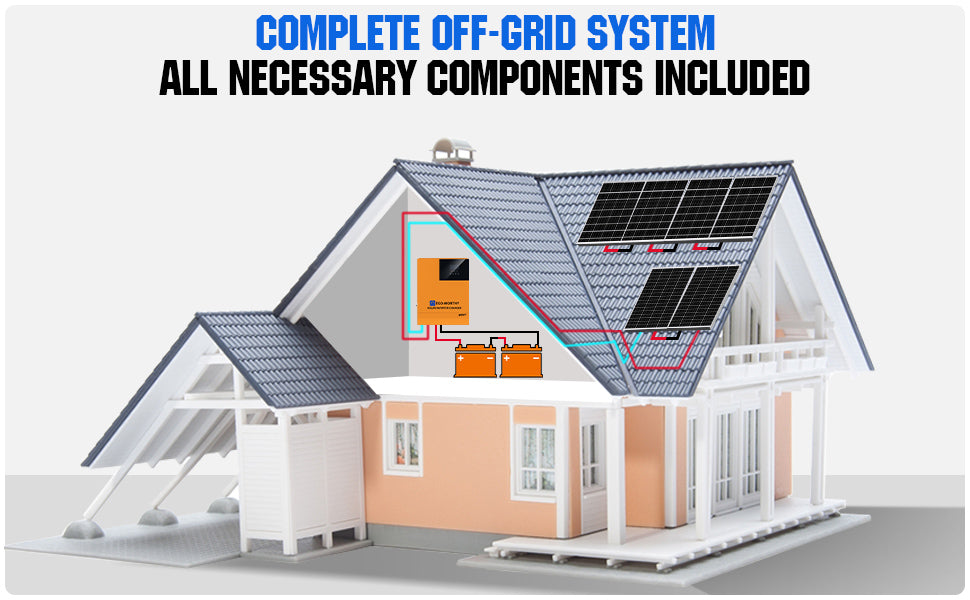

ECO-WORTHY 1170W 24V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small efficient refrigerator, stereo, computer, lights and TV. This size system needs conscious conservation of energy, but if you time your activities for daylight, you can also use a washing machine or even power tools. If you have any questions regarding this product, please contact us info@eco-worthy.com.

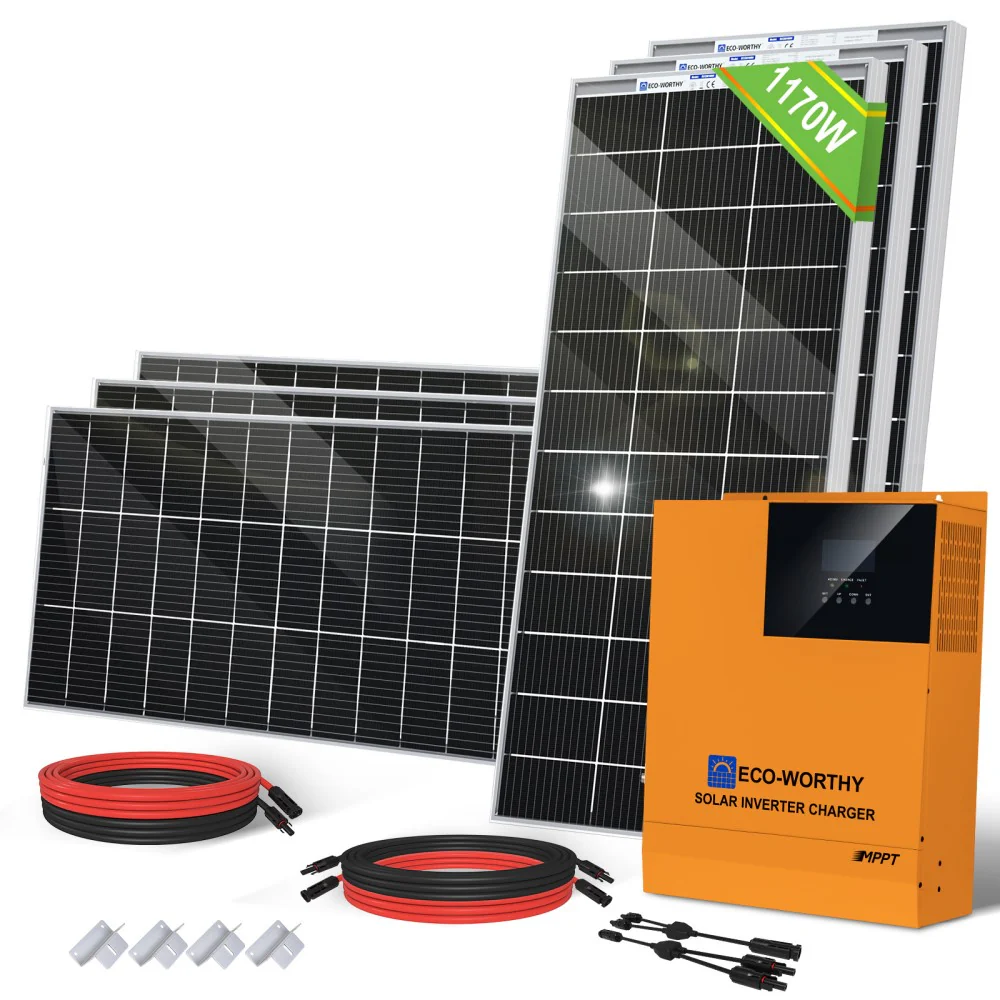

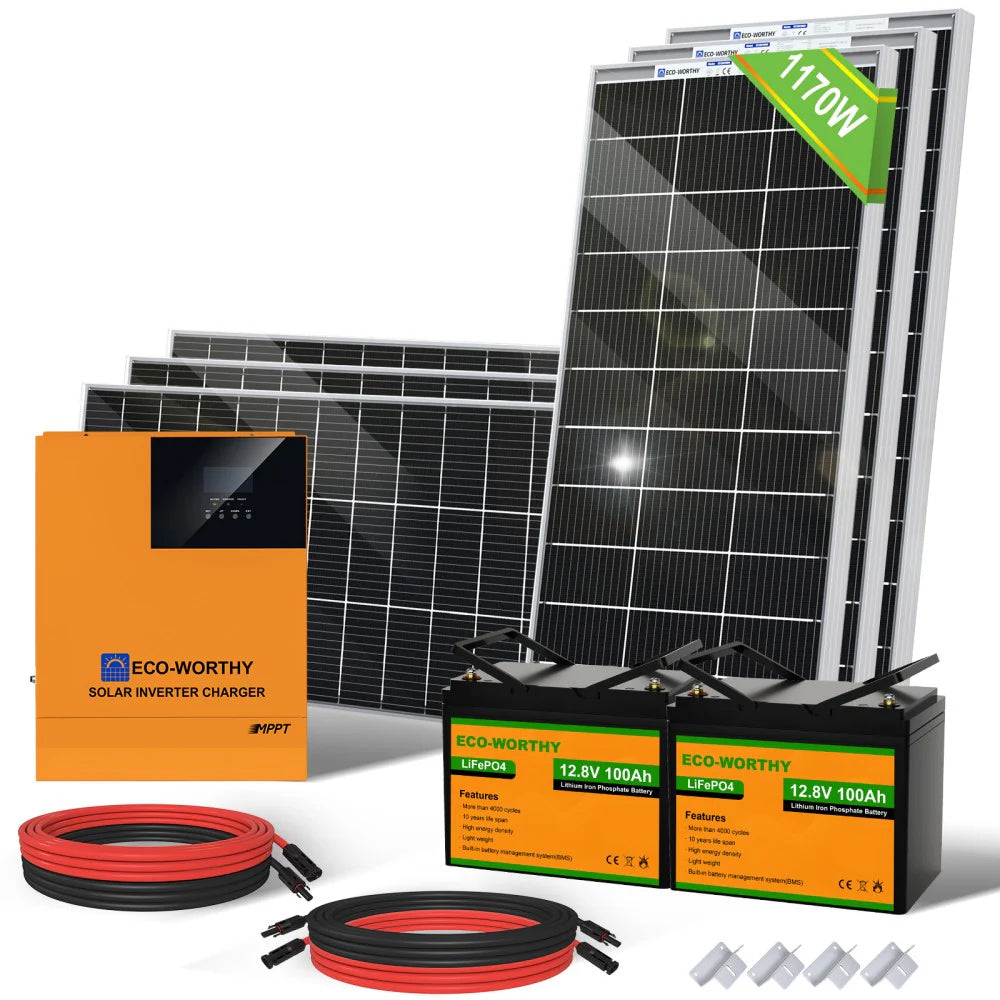

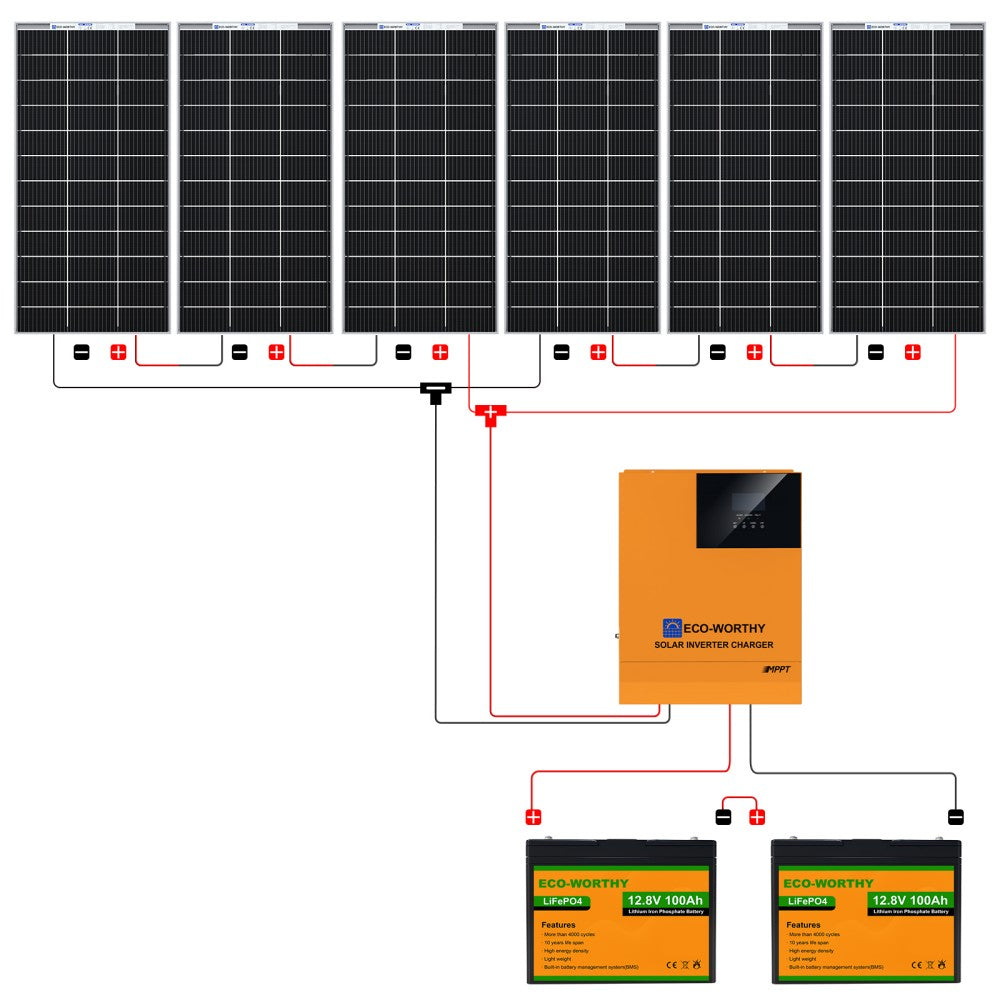

Package Includes
6x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(3000W 24V Inverter+60A MPPT Controller)
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
6x Z Mounting Bracket

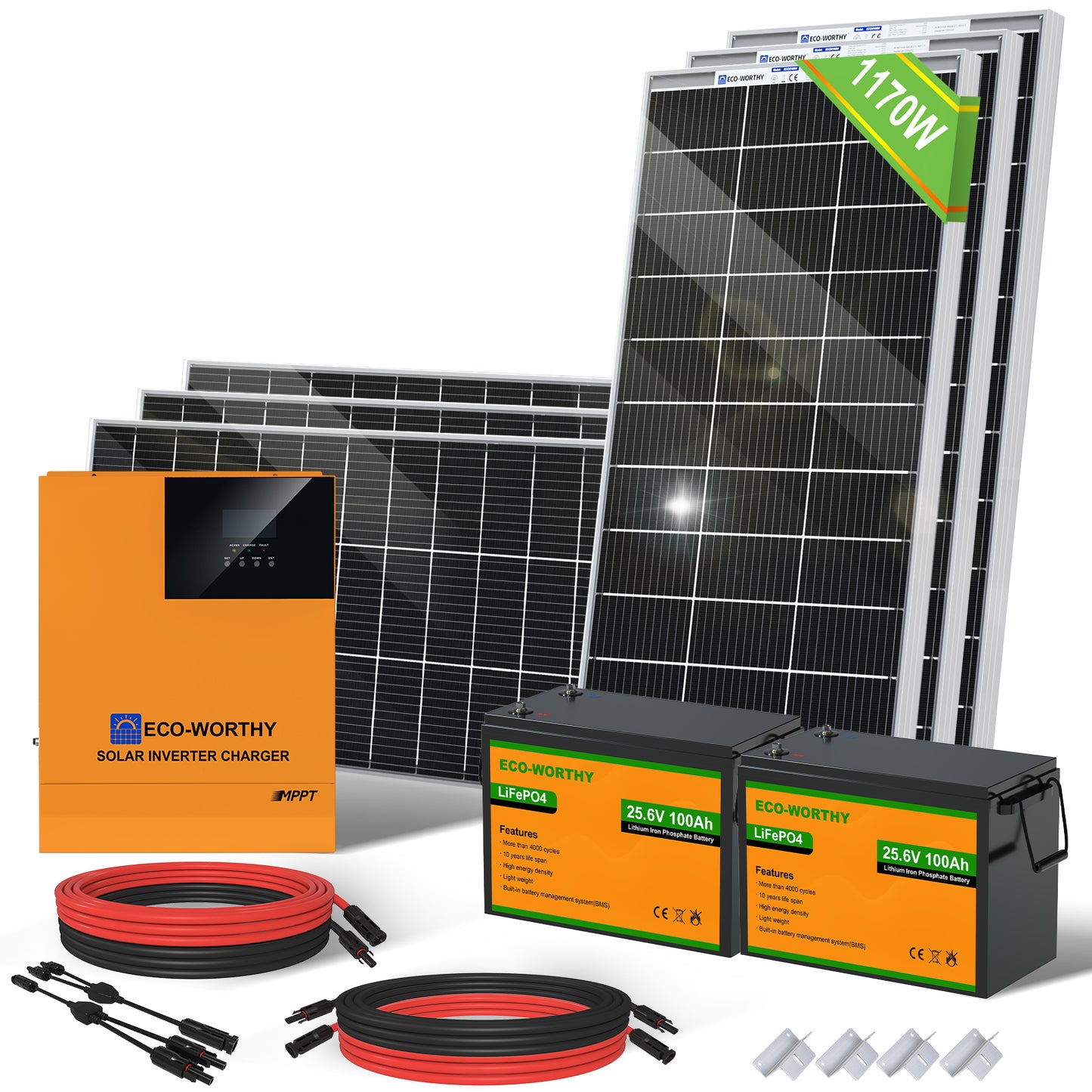

Battery Bank Options-
2.4kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
2x 100Ah 12V LiFePO4 Lithium Battery

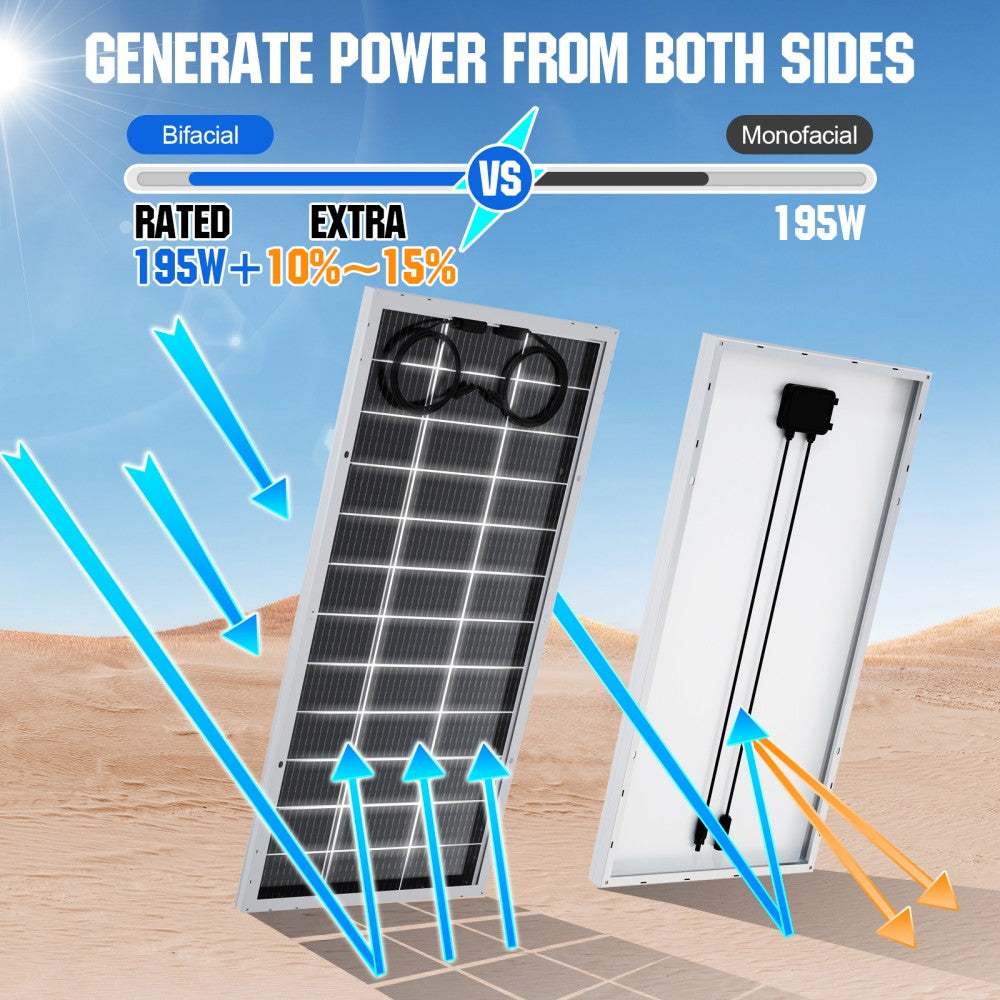

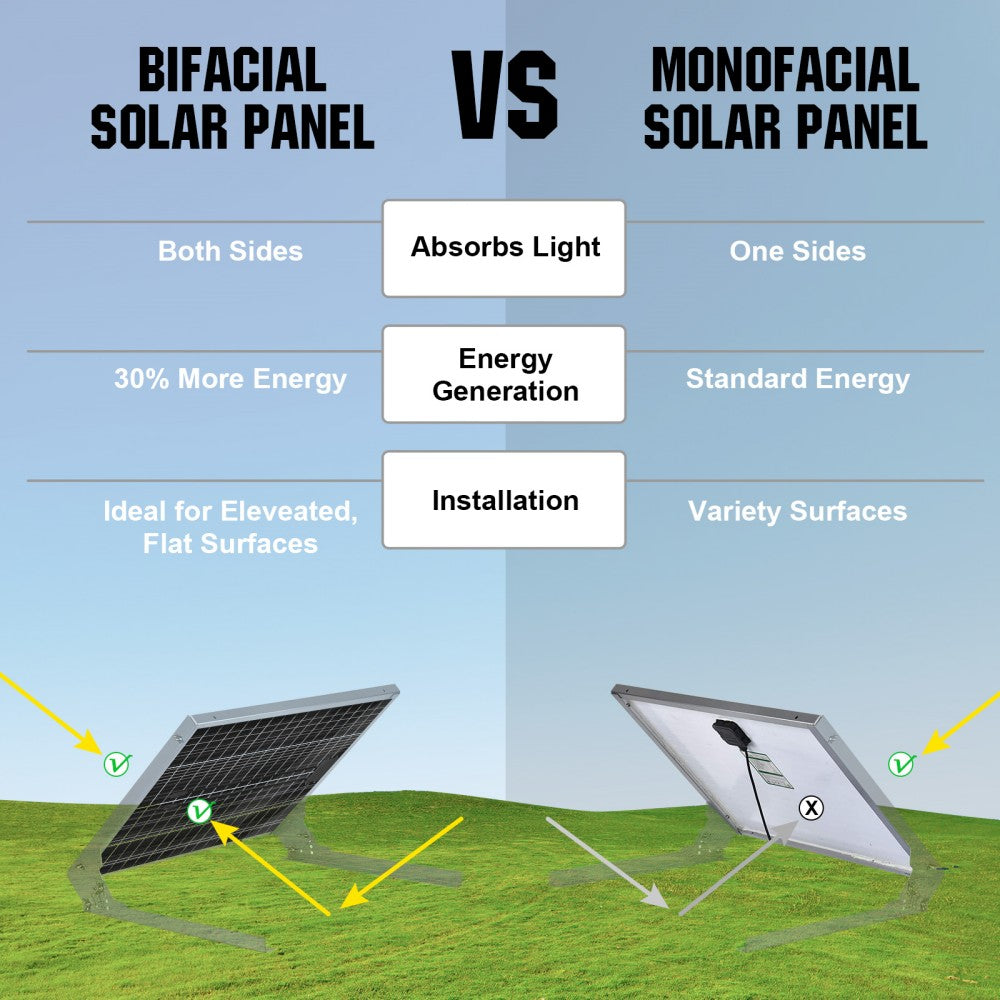

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A |
Maximum current: 9.85A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |

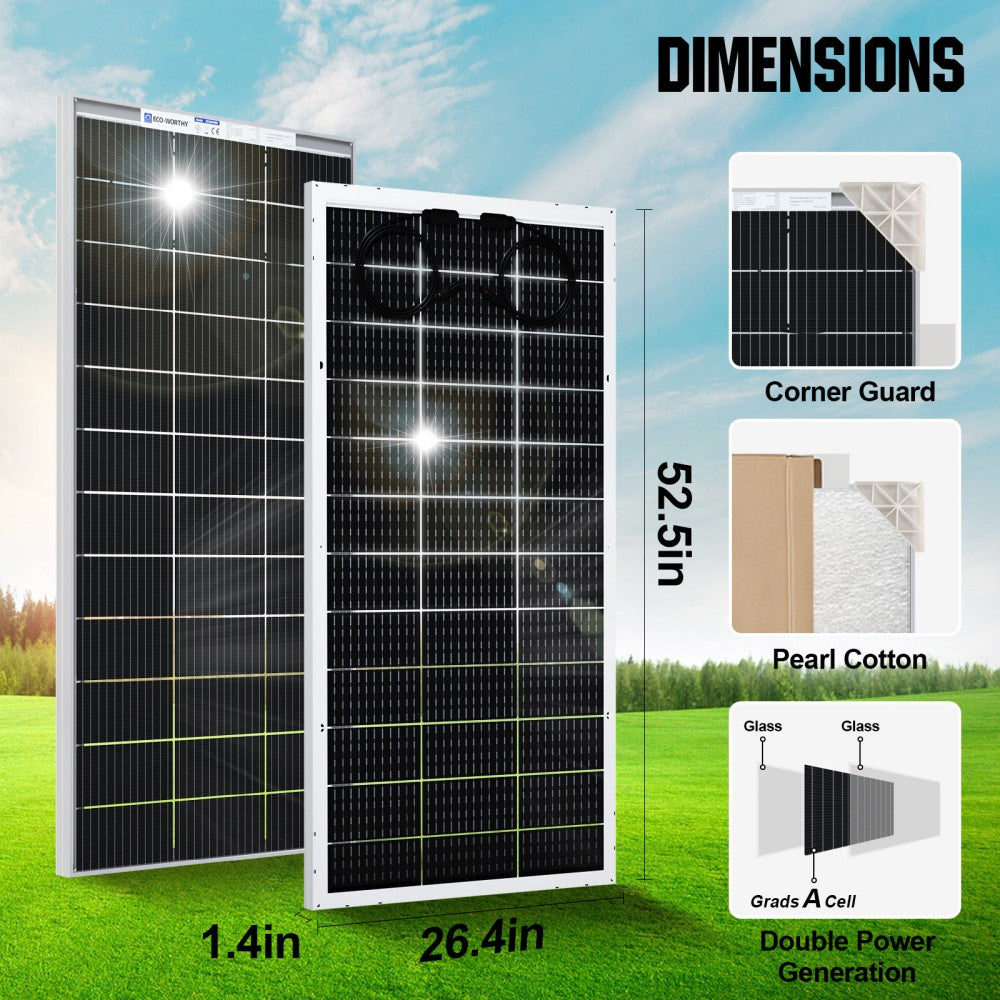

| Size: 52.6x26.38x1.38in (1335*670*35mm) |
|
All-in-one Inverter(3000W 24V Inverter+60A controller)
| Solar Charging Mode |
|
| Solar Charge Mode: MPPT |
PV Charging Rated current: 60A |
| Max Input Power: 1400W |
Rated Battery Voltage: 24V |
| Invert Mode |
|
| Output Waveform: Pure Sine Wave |
Rated Output Power: 3000W |
| Rated Battery Input Voltage: 24V |
Rated Output: 220VAC 50Hz/60Hz |
| Peak Power: 6000W |
|
| AC/Grid Charging Mode |
|
| Rated Input: (170VAC-280VAC)±2% 50Hz/60Hz(auto detect) |
|
100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100ah |
Battery Power: 1280Wh |
| Battery Voltage: 12.8V |
Maximum Charge/ Discharge Current: 100A/100A |
| Charge Temperature Range: 0-45℃ |
Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.6V |
Discharge Cut-Off Voltage: 10V |
| Screw size: M8 |
Battery Size: 260*168*209mm(10.2*6.6*8.23inch） |
| Battery Weight: 10.5kg(23.15lbs) |
|
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
