1170W 48V (6x Bifacial 195W) Complete MPPT Off Grid Solar Kit
SKU: UK-L02M195-L100AHCUBIXZMC5MNKEU3KW-6

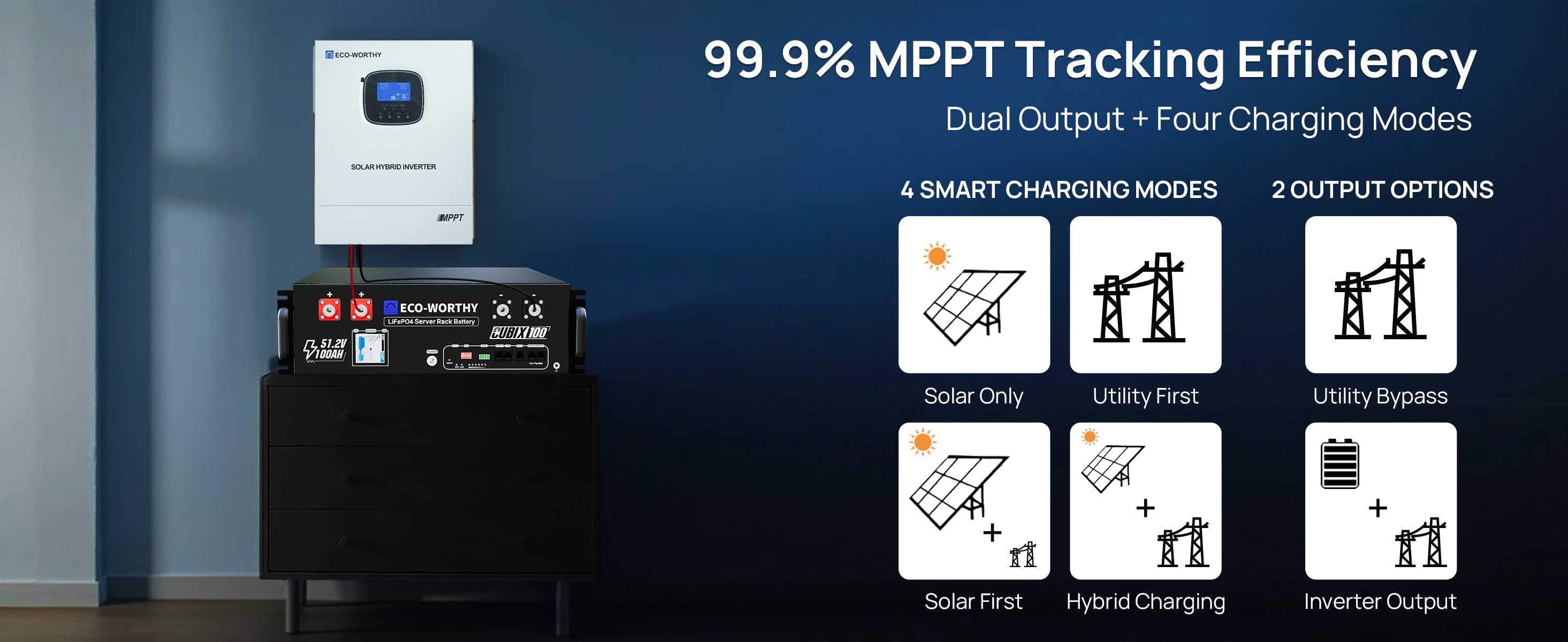

[Upgraded 48V 3000W Pure Sine Wave Hybrid Inverter] Eco-Worthy’s 3000W inverter delivers pure sine wave output from 48V DC to 220V/230V AC, with a peak power of 6000W. Equipped with advanced MPPT technology (99.9% efficiency) and wide MPPT voltage range, it ensures optimal solar charging. The inverter features dual digital closed-loop control and SPWM technology for clean, stable power—safe for sensitive electronics. Its energy-saving mode minimises standby losses, improving overall system performance.
[Smart Battery Monitoring & Wide Compatibility] The Cubix 100 48V 100Ah Server Rack Battery supports CAN and RS485 communication, ensuring compatibility with mainstream hybrid inverters. Monitor real-time battery status via a mobile app using Bluetooth or WiFi. Its compact 3U rack-mount design saves space and makes installation easier in home or commercial setups.
[Portable & Off-Grid Ready Design] Designed for off-grid cabins, RVs, garden offices or remote living. Easy-to-install components include MC4 extension cables and plug-and-play wiring—streamlining setup without specialist tools .
[Scalable & Expandable System Architecture] The modular design allows adding additional batteries or solar panels later, making it suitable as power needs grow over time. Ideal for backup, remote sites, or eco-living setups
Extra £100 OFF at checkout
Code:
Copy CodeCouldn't load pickup availability

ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 60A/24V MPPT solar charge controller, 3000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
ECO-WORTHY 1170W 24V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small efficient refrigerator, stereo, computer, lights and TV. This size system needs conscious conservation of energy, but if you time your activities for daylight, you can also use a washing machine or even power tools. If you have any questions regarding this product, please contact us serviceuk@eco-worthy.com.
Package Includes
6x Bifacial 195W Mono Solar Panel
1x 3000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG MC4-MC4 Extension Cable
6x Z Mounting Bracket
Battery Bank Options-
5.12kWh Lithium Battery Bank (optional)
with
1x 48V 100Ah LiFePO4 Lithium Battery

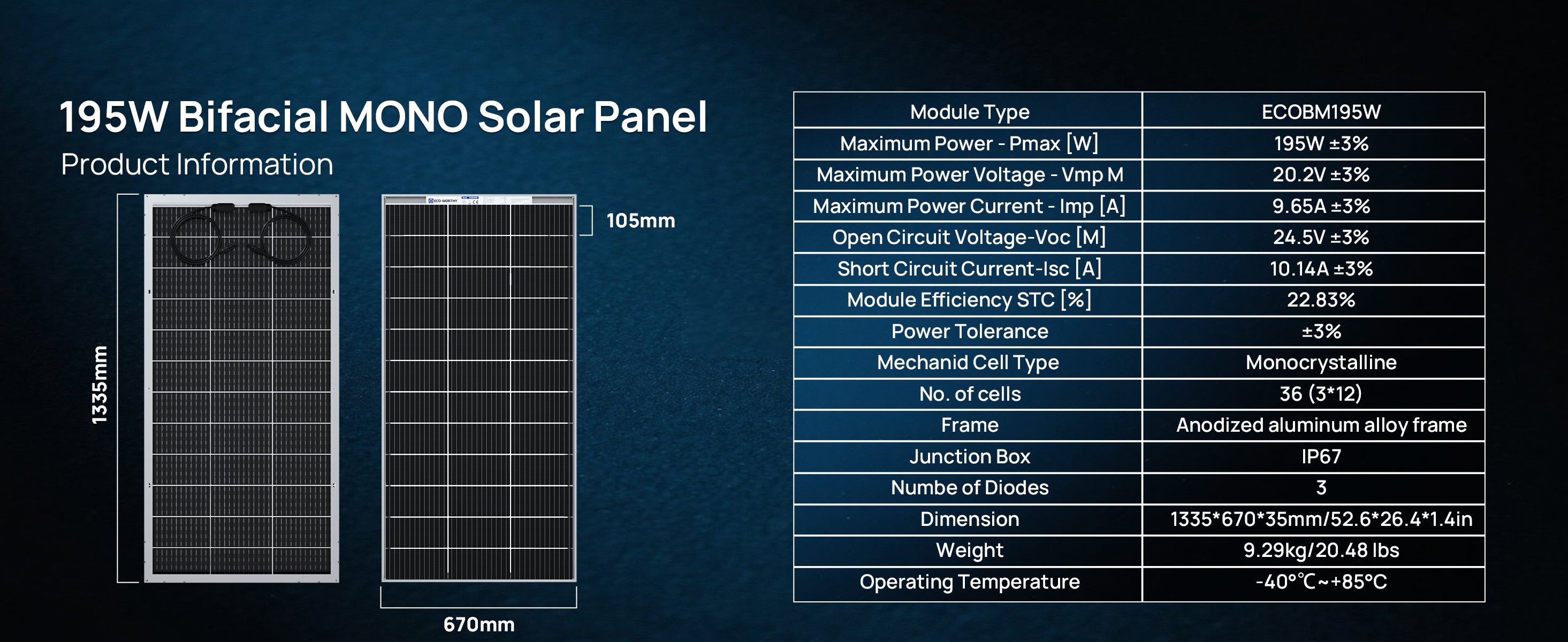

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |

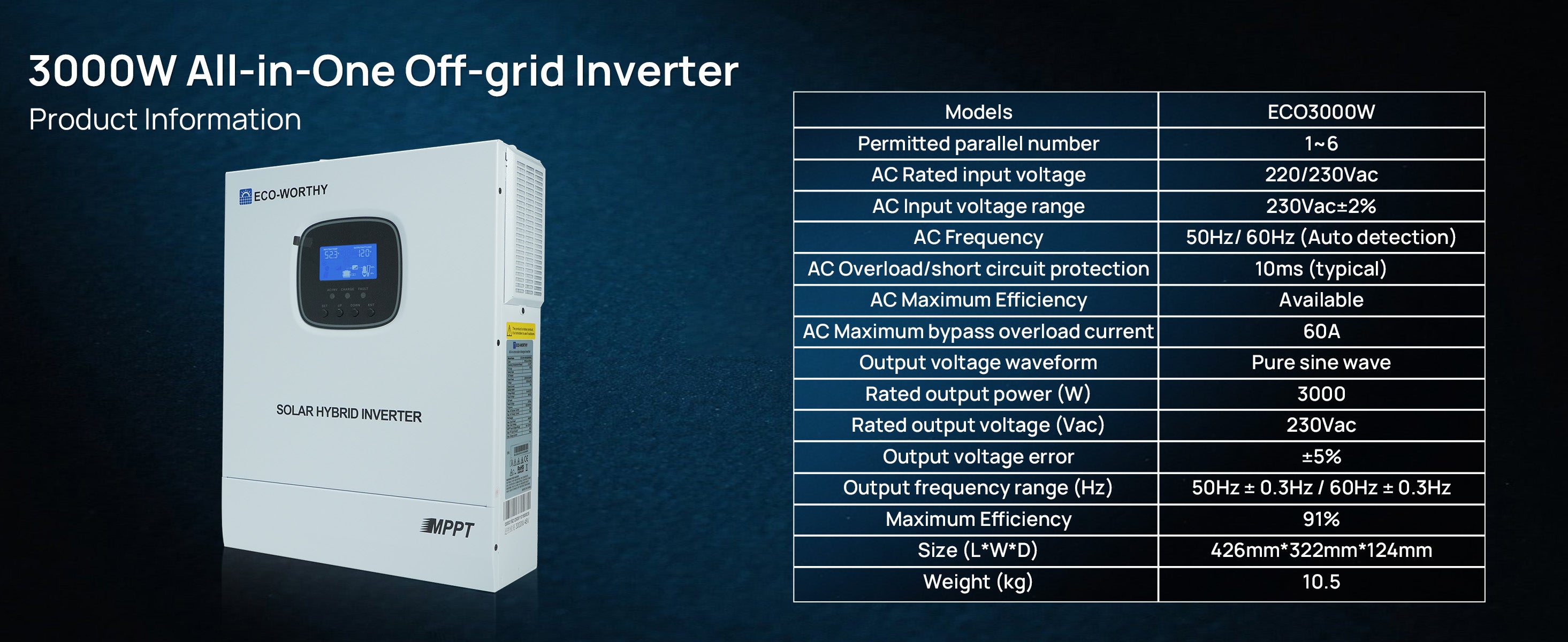

All-in-one Inverter(3000W 48V Inverter+60A controller)
| Models: ECO3000W(SR) | AC Rated input voltage: 220/230Vac |
| AC Frequency: 50Hz/ 60Hz (Auto detection) | AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3300w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: >92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |

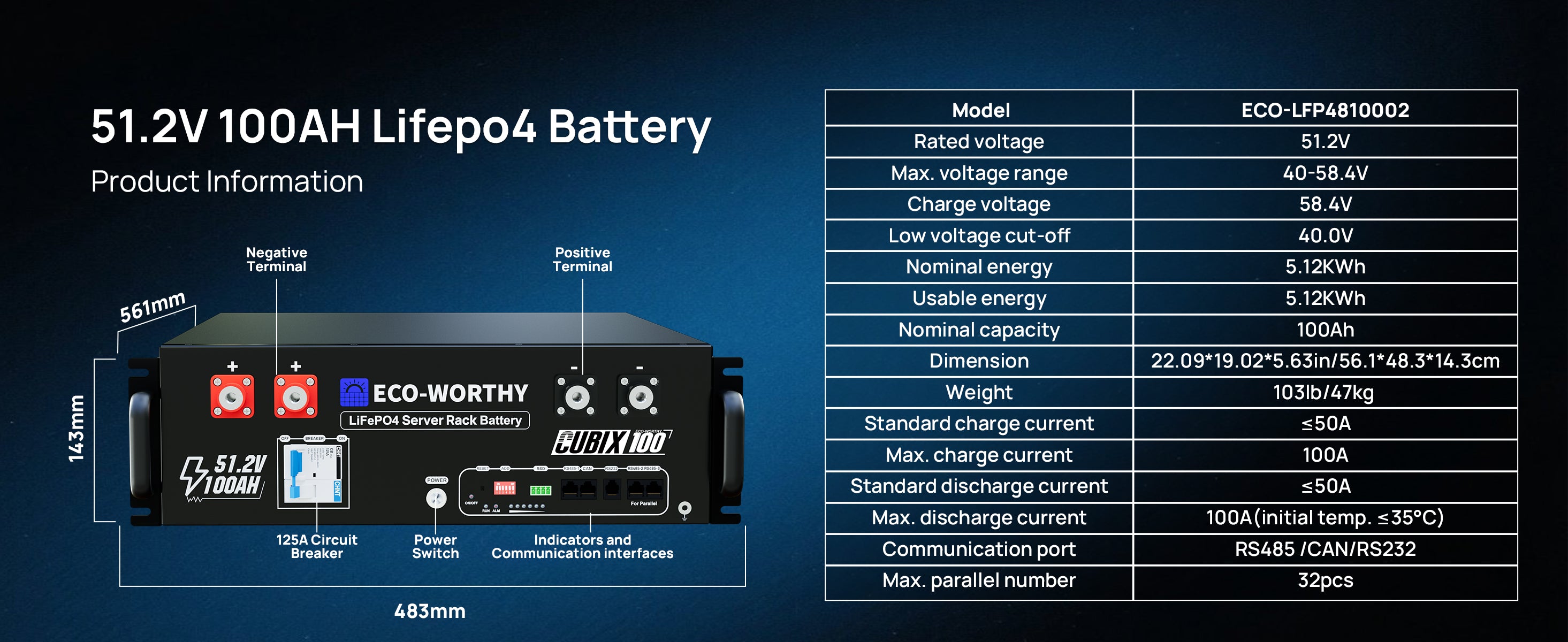

48v 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 99 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Test:IEC62619 |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 6 pieces of Z shape solar panel brackets | 12 pieces of stainless steel nuts and cap bolts |
Excellent service, installed the system over two days, seems to be working well, 24 v batteries needed parallel connection
Was unsure initially as to whether to buy this system. We have a conservatory that racks up the electric every time we put the heating on as, when the grandchildren come round, they have decided that is their playroom! We also have a small hot tub which runs up the meter. Therefore, when the special offer of £500 off voucher came up, that decided it!
Installation was quite easy as the panels were to be attached to the garage roof which slopes and faces west. I made a trellis to span the beams then attached the panels. Luckily all 6 panels fitted next to each other.
Inverter was straight forward as the instruction booklet was pretty concise.
I fitted a breaker on the PV side as a safety measure. Once everything was connected, switch on showed fault 09 overvoltage. I sent a message to Eco Worthy who resonded the next day and provided a brilliant techie hand drawn diagram to reconfigure the panels. Unfortunately I had to buy another set of leads to extend the feed and facilitate the new set up of 3 in series (x2) 2 Parallel, vice the in series of all 6 panels I connected initially. It was only when I looked at the original advert on Amazon that it showed the easy set up on there.I just hadn't scrolled down far enough This is something I think should be added to the instructions sent with the kit, as it was easy to miss.
The unit under load with the two fans going can be quite loud but I plan to box it in with adequate ventillation. power wise, it's early days to prove its worth but at the moment all our rechargeables are now located out in the conservatory and not costing anything. It also seems to be able to handle the hot tub heater when the sun is out.
The other ideal thing is, it will switch back to mains when the system runs low. I had to hunt the internet for the app to check performance on your phone, something else that wasn't explained.
It will take a long time to recoup the outlay of the system but if nothing else I know over time it's now helping to reduce my bills for heating,and all the electric tools I use in the garden, mowing, power washing, strimming etc. Plus I've added the Summer house to it so we have a WiFi extender and power for laptops or radio.
All the kit is of good quality and very happy so far. I will probably add two more batteries in the future if I see them on special offer!
I have the product here and all looks to be of a very good build quality. I havent had a chance to install it yet. The shame is the delivery. Parts of this came on 4 seperate days meaning 4 days waiting for deliveries and the interface used did not give clear indication of delivry dates for all parts of the package, I will report back once I have installed the item
Looking forward to the free electricity from the sun.
Ordering and delivery was so straight forward.
I am super happy with the quality of the kit and your outstanding support.
I will certainly buy again in the future.
Thank you an keep up the good work !
