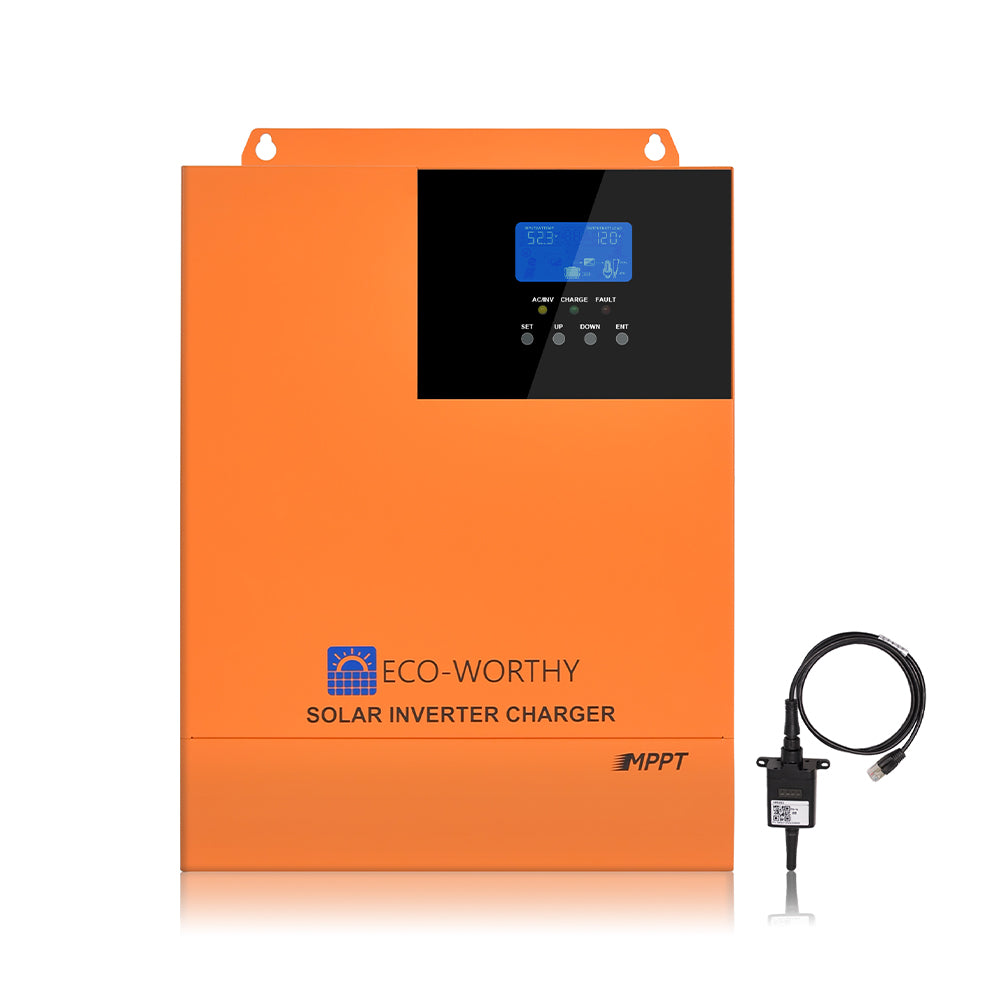

All-in-one Inverter Built in 3000W 24V Pure Sine Wave Power Inverter & 60A Controller for Off Grid System
SKU: L03SREU3KWYTJ-1

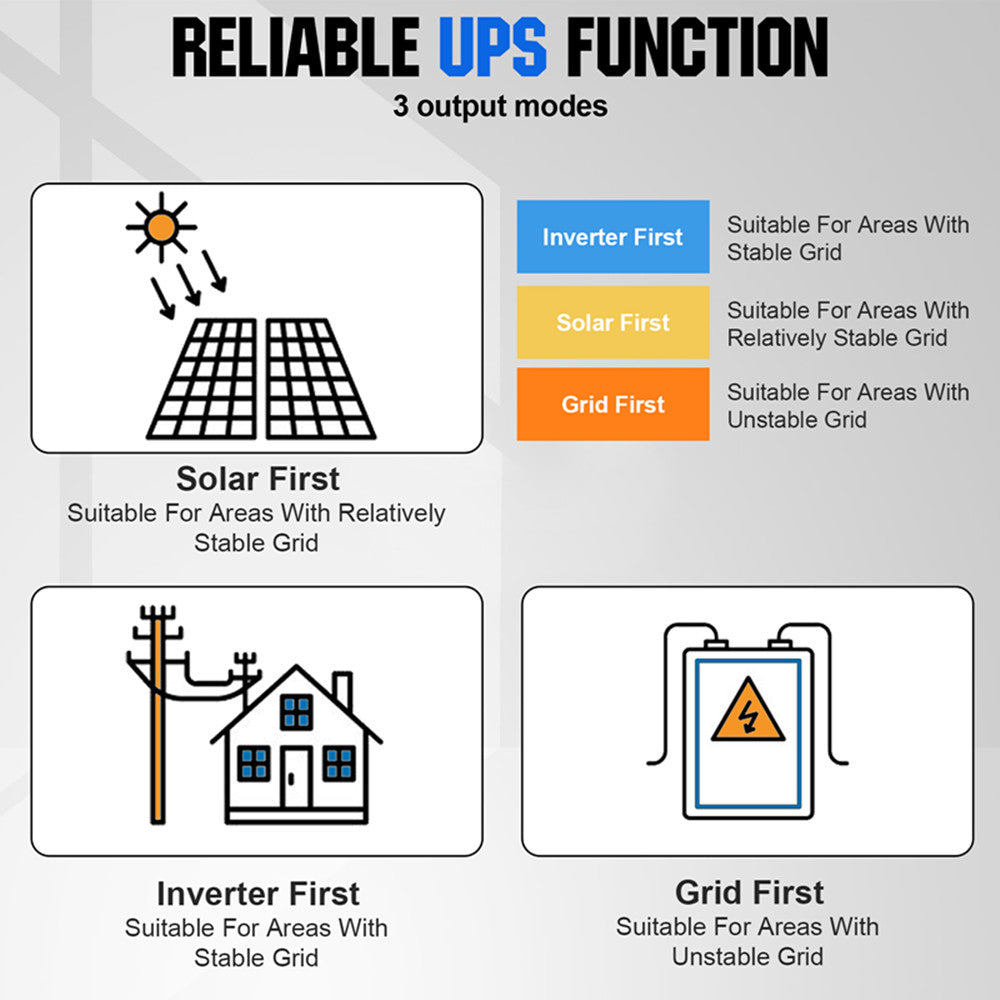

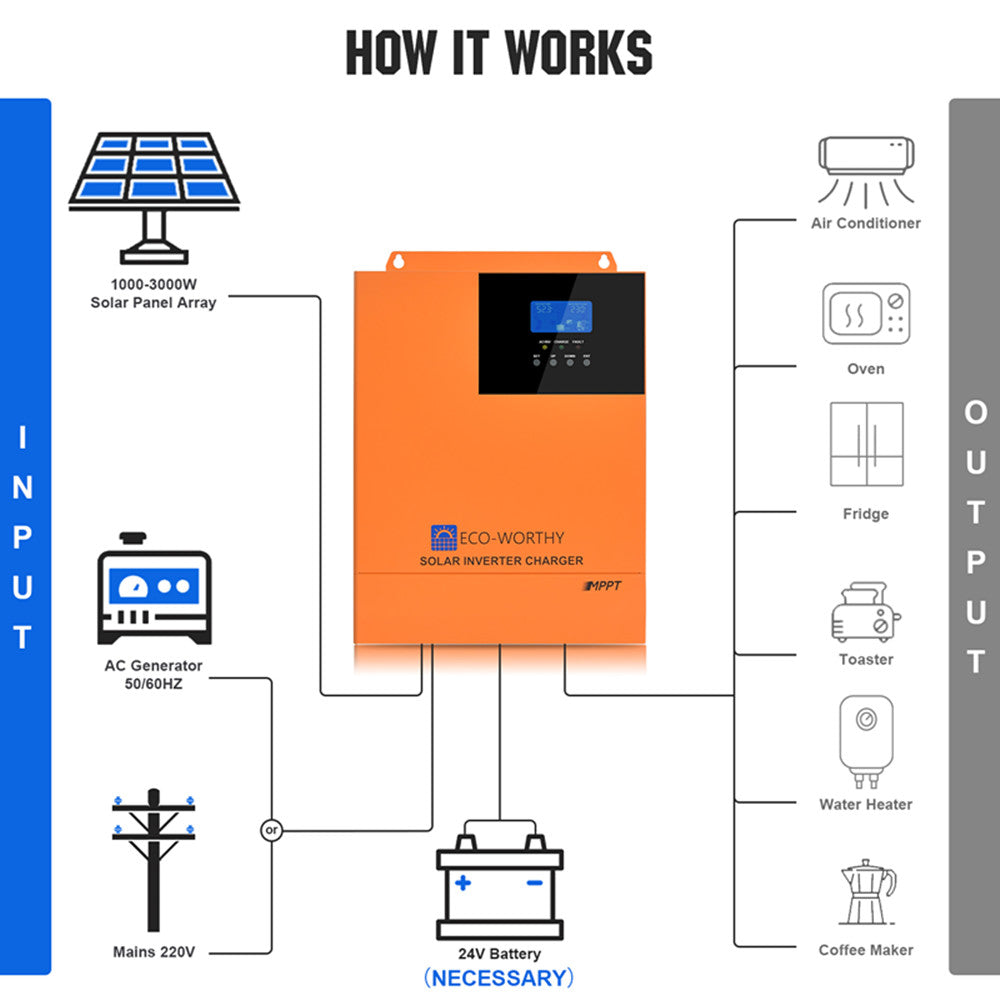

·Multiple Modes: Two output modes: mains bypass and inverter output; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

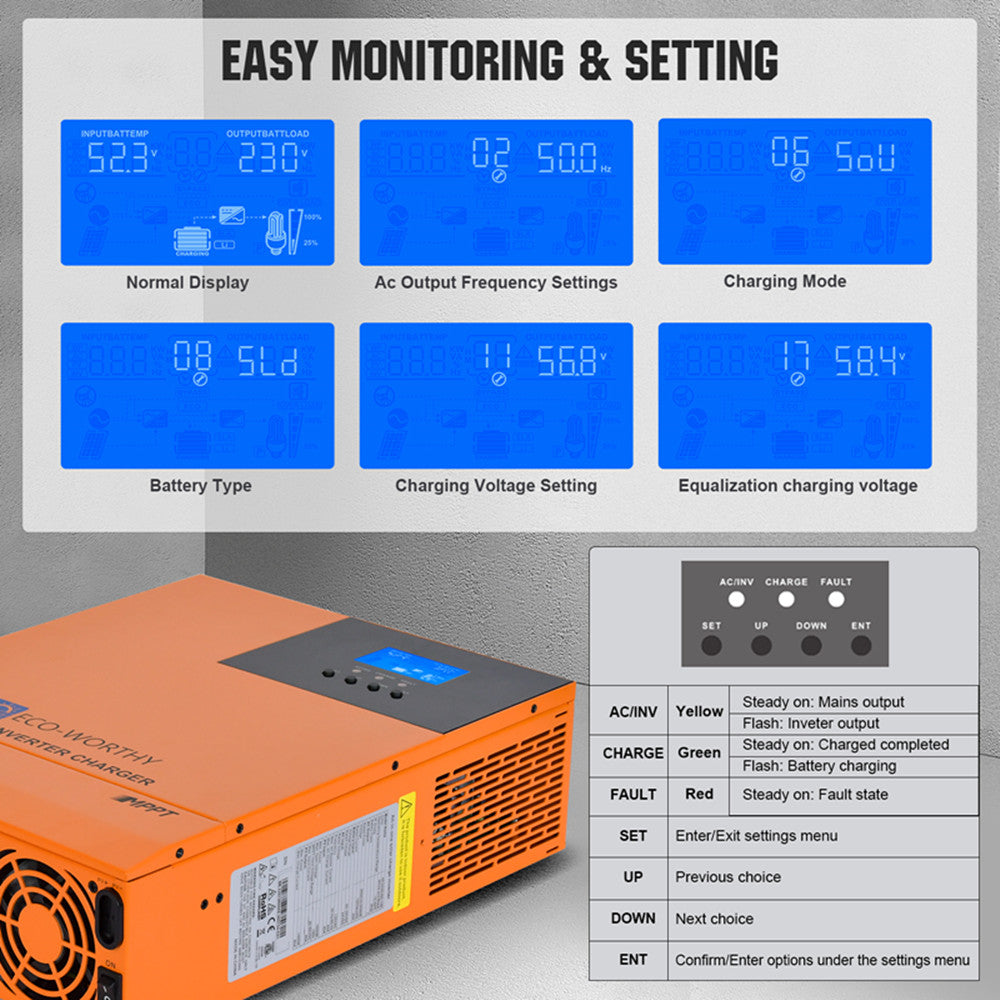

·Intelligence: Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status. ON/OFF rocker switch for AC output control. Power saving mode available to reduce no-load loss. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
·Support Multiple Batteries: Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
·Multiple Protection: 360 ° all-round protection with a number of protection functions: short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.
Code:
Copy CodeThe solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in realtime. Through a state of the art control algorithm, the AC-DC charging module realizes fully digital voltage and current double closed loop control, with high control precision in a small volume.

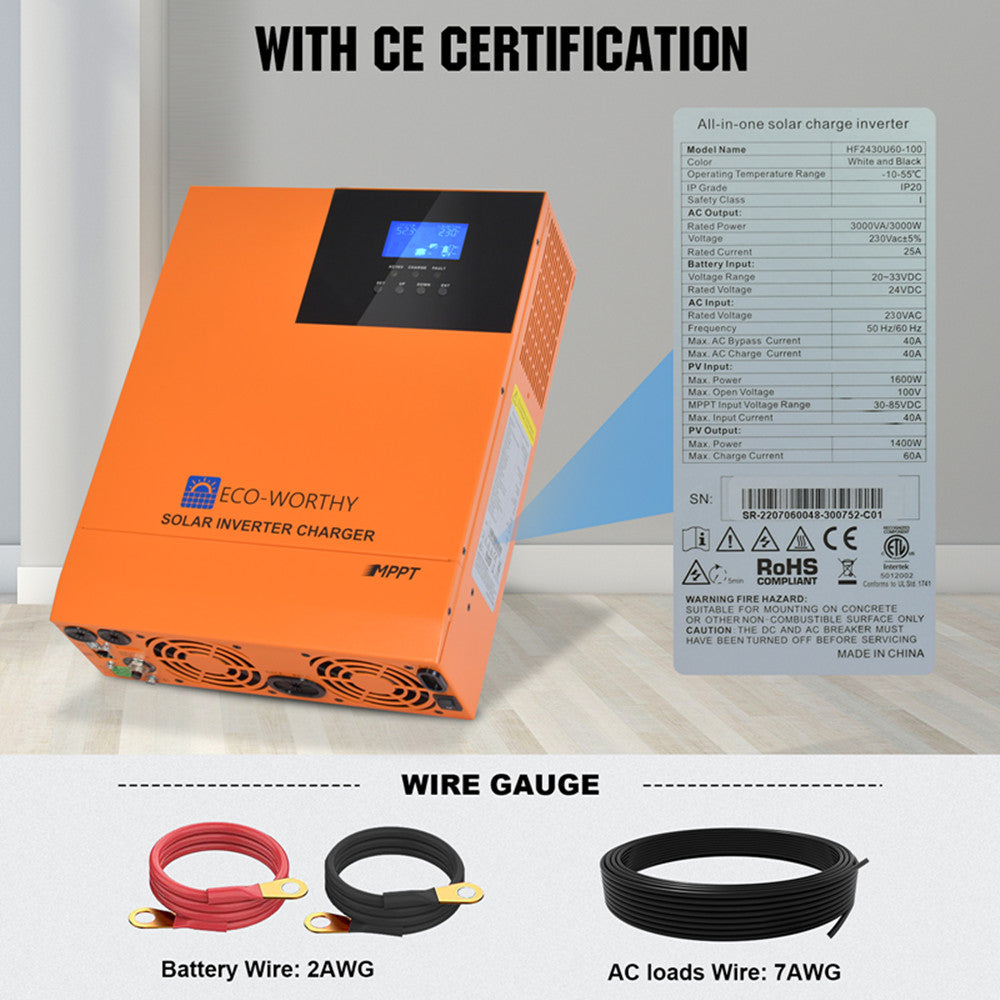

Rated Power: 3000W | Peak Power: 6000W |
Output Wave: Pure Sine Wave | Solar Input Voltage Range: 30Vdc~100Vdc |
Maximum PV Array Wattage: 1400W | Maximum Solar Charge Current: 60A |
Battery Voltage Range(BAT not included): 20Vdc-33Vdc | Battery Charge Type(BAT not included): MPPT |
AC Output Voltage: 230VAC ± 2.3V | AC Output Frequency: 50Hz ± 2.5Hz |
Charging short circuit protection: Blown fuse | Wiring protection: Reverse polarity protection |
Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.8 |
I have had two charger/inverters and a half dozen batteries in the last two years and the product and service has been excellent. Gets my seal of approval.
Running lighting,fridge and freezer also water pump in our park home
The unit is reasonably compact and the installation and configuration instructions quite comprehensive and well written, With so many parameter options, choosing the ideal settings can be a bit overwhelming although the default settings seem to do a reasonable job out of the box.
There is considerable flexibility in how the unit can be set up and should provide most with the best options for how they wish to use the unit within the limits of its capacity range. In this respect, for a small solar installation, it is quite a cost effective solution although costs can build up with all the necessary cables, breakers and the like.
On the down side, the orange case is somewhat incongruous and really needs to be mounted in an enclosure. This would also help with the rather intrusive fan noise.
My main disappointment, to date, is with the suggested data capture. This, as suggested feature, with the proposed apps is a complete lie. It simply doesn't work. Perhaps with other software and interface methods it might but Eco-Worthy's customer support seem as mystified in getting it to work as anyone from the user community.
In summary, a compact and flexible small solar solution which makes up for its lack of finesse through its modest price.
The kit is great and easy to install. As many have said the settings are hard to get right and I'm still working on them.
Setup to charge 2 x Power stations which support Sky Q and TV in the front room and a TV and mini sky q in another.
Tried to set the power saver setting but it doesn't seem to work. But early days.
Would like to understand the extra settings in the app to help assist the setup.
Works really well in my off-grid setup on a caravan.
Trouble is the WIFI box supplied requires an internet connection in order to view any data on a mobile. It is impossible to set it up using a hotspot on the same phone. That would at least be a work-around.
Also it would be useful to find a compatible Bluetooth box that would fit in the same port as the WIFI box as another way to display data wirelessly. Unfortunately there doesn't seem to be one.
Apart from that, works great as specified.
