Eco-Worthy 1560W 48V expandable Solar Kit is an ideal choice. This system could generate approximately up to 6.86kWh per day. it can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system.
Pictures
Videos
⚡ Early Prime Day Sale

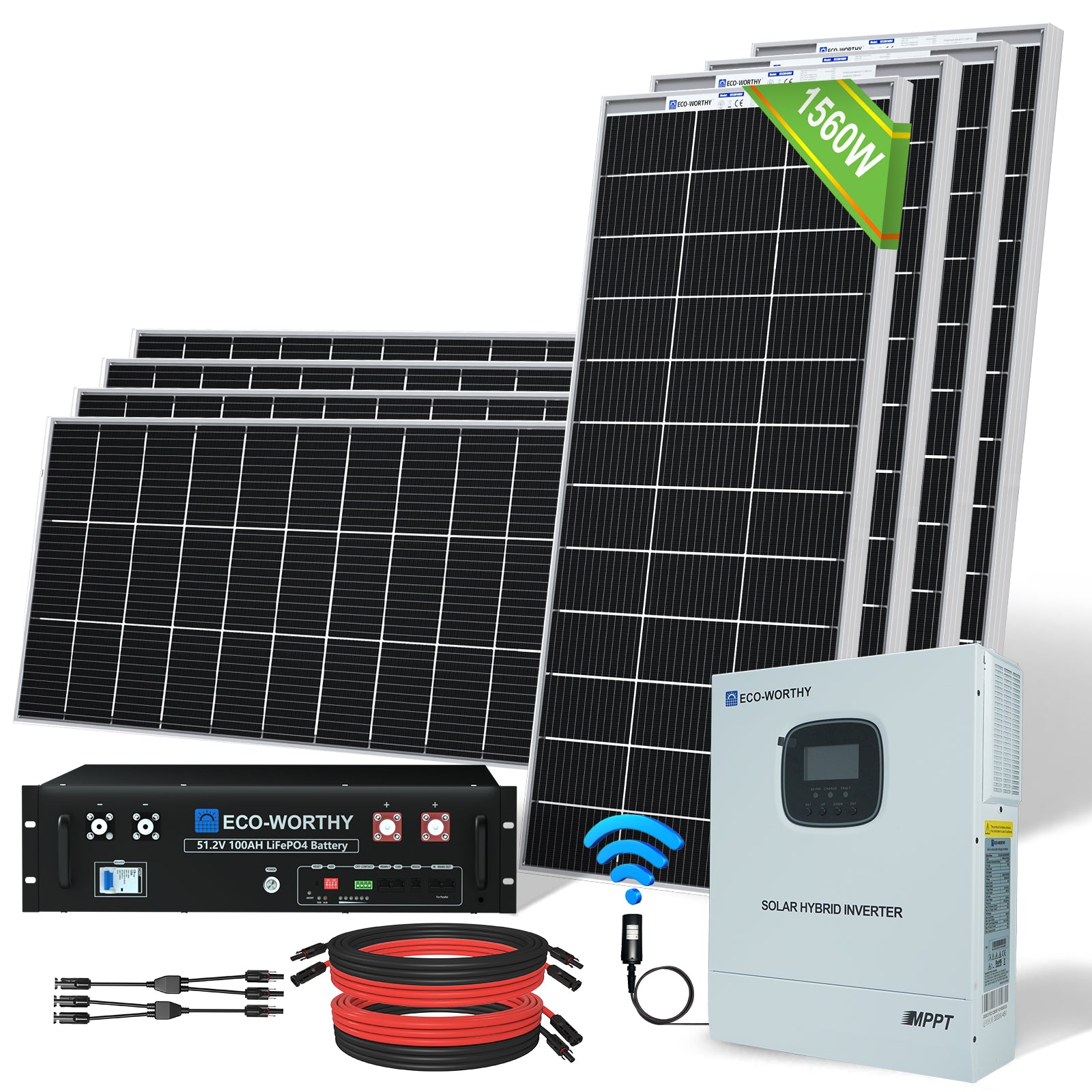

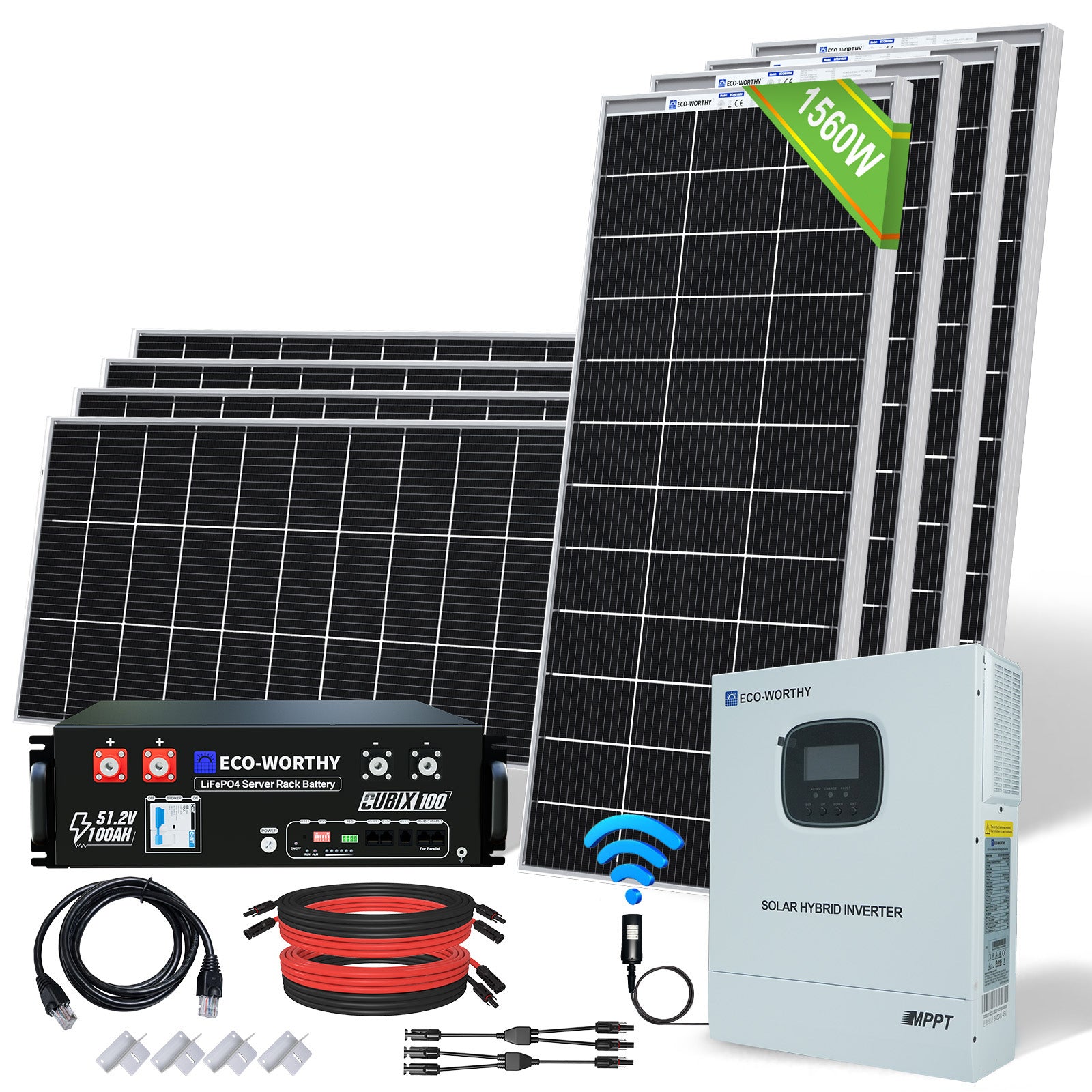

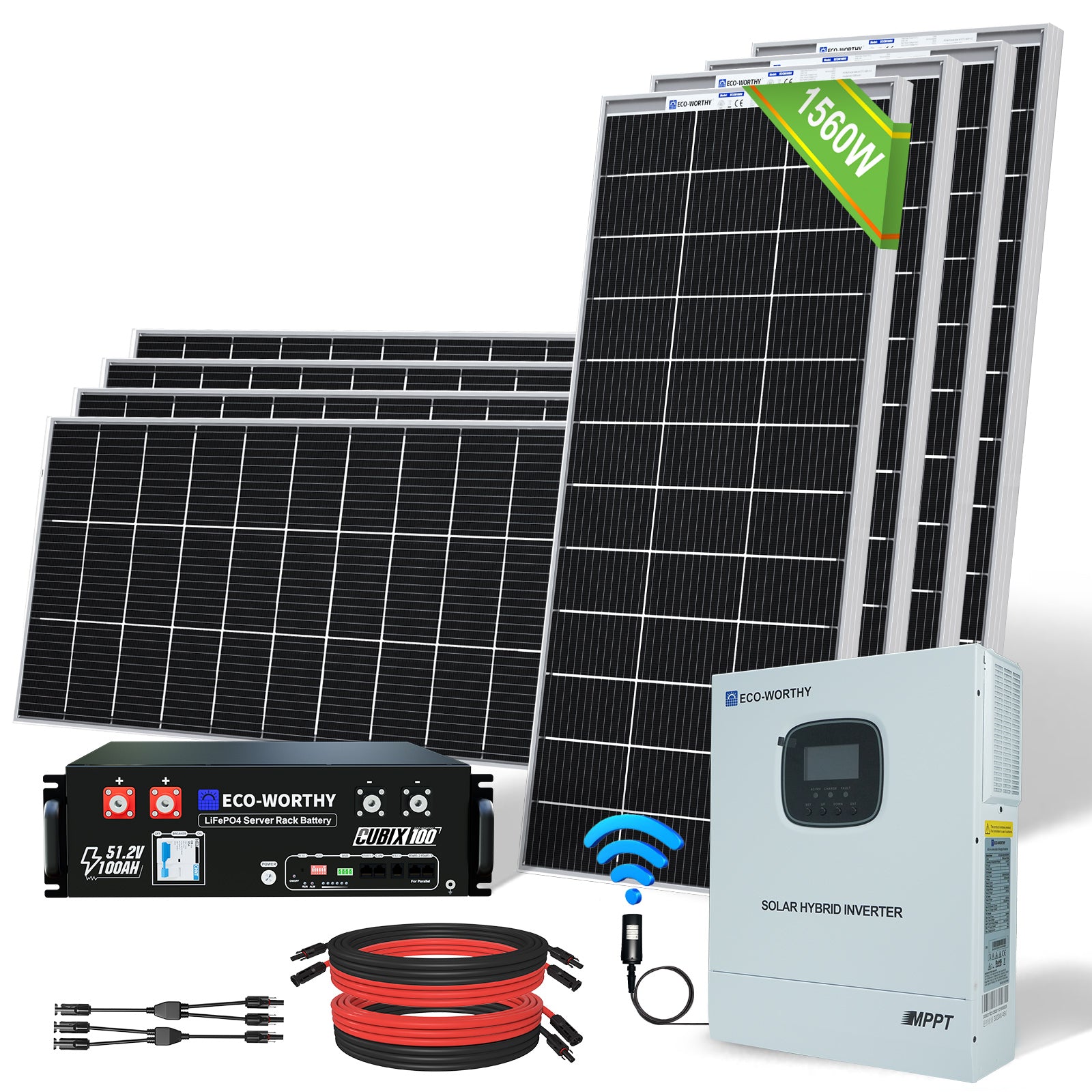

Eco-Worthy 1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Eco-Worthy 1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Regular price
£1,999.99
Sale price
£1,999.99
Regular price
£3,899.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:
SKU:UK-L02M195TM-SRNK3KWEUMWU3U1-8
Read More
Extra £100 OFF at checkout
Total Price
£1,999.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of £499.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

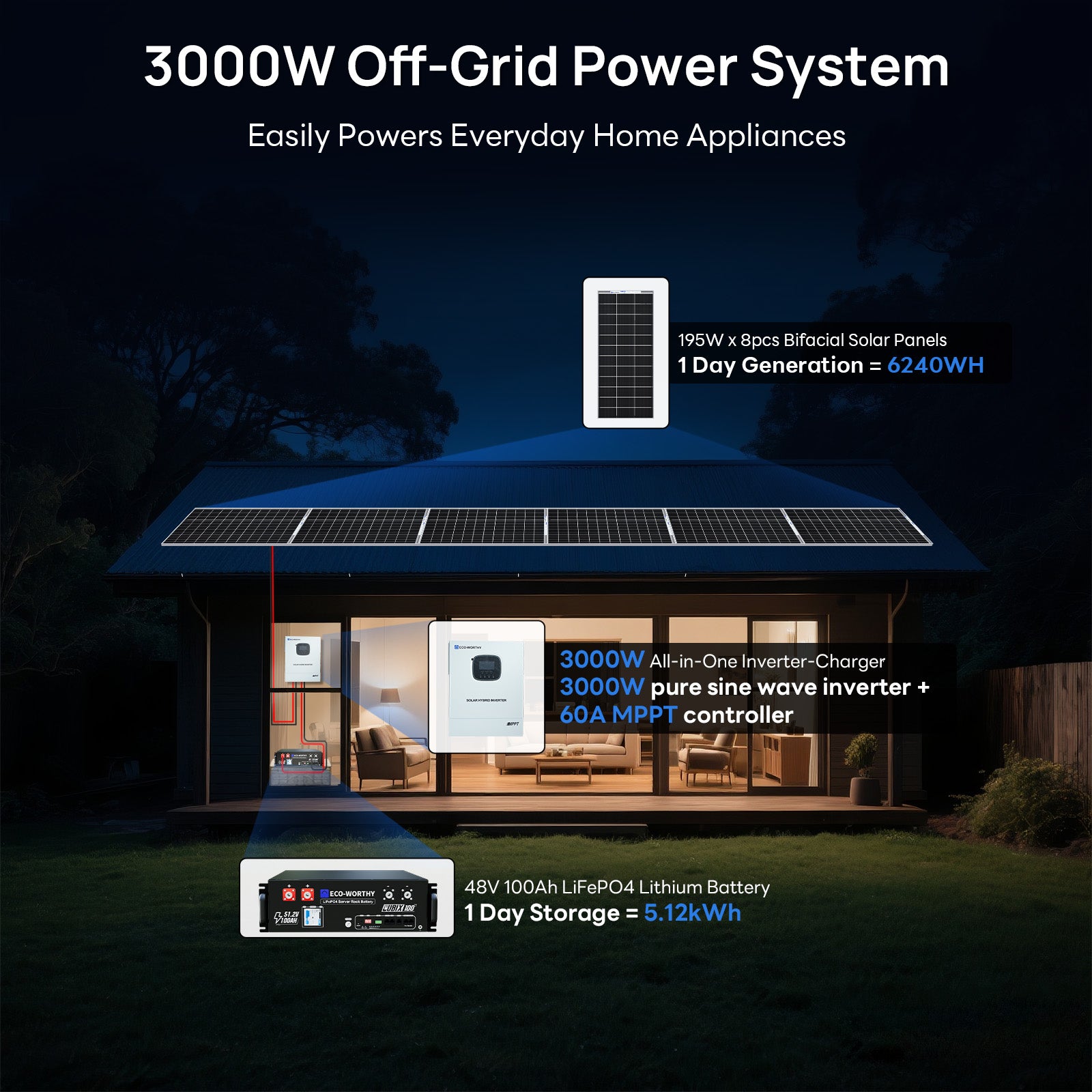

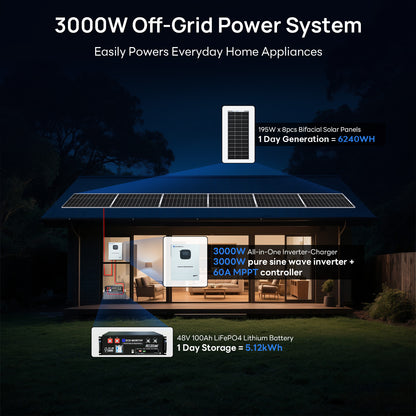

1560W 48V Complete MPPT Off Grid Solar Kit
Technical Specifications

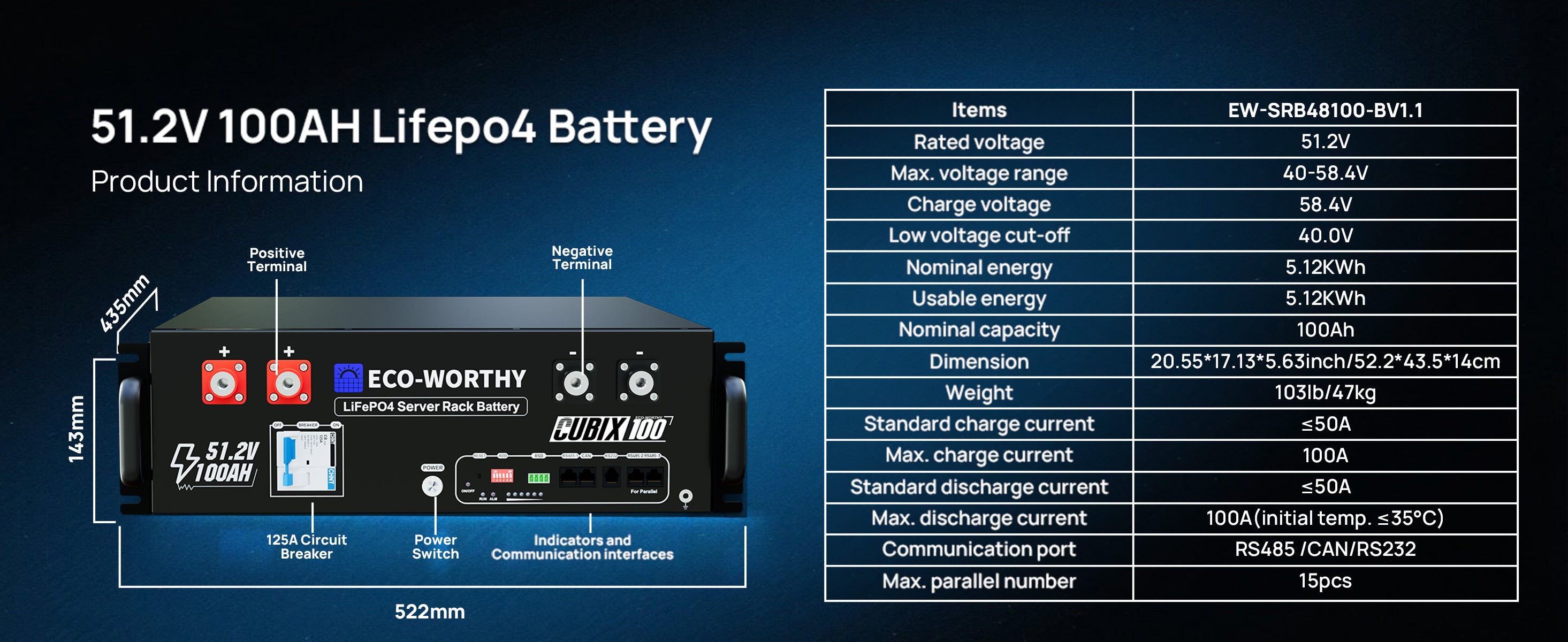

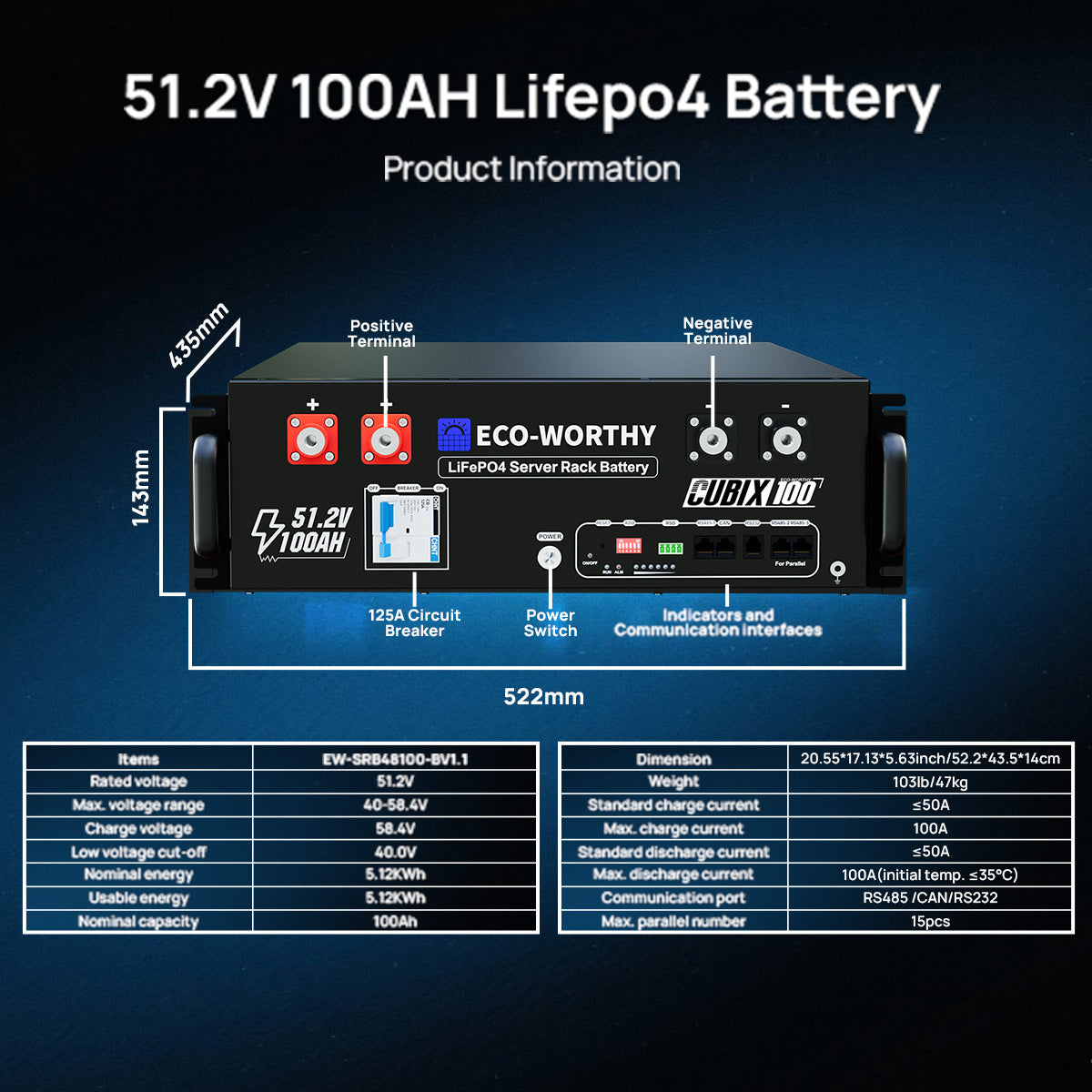

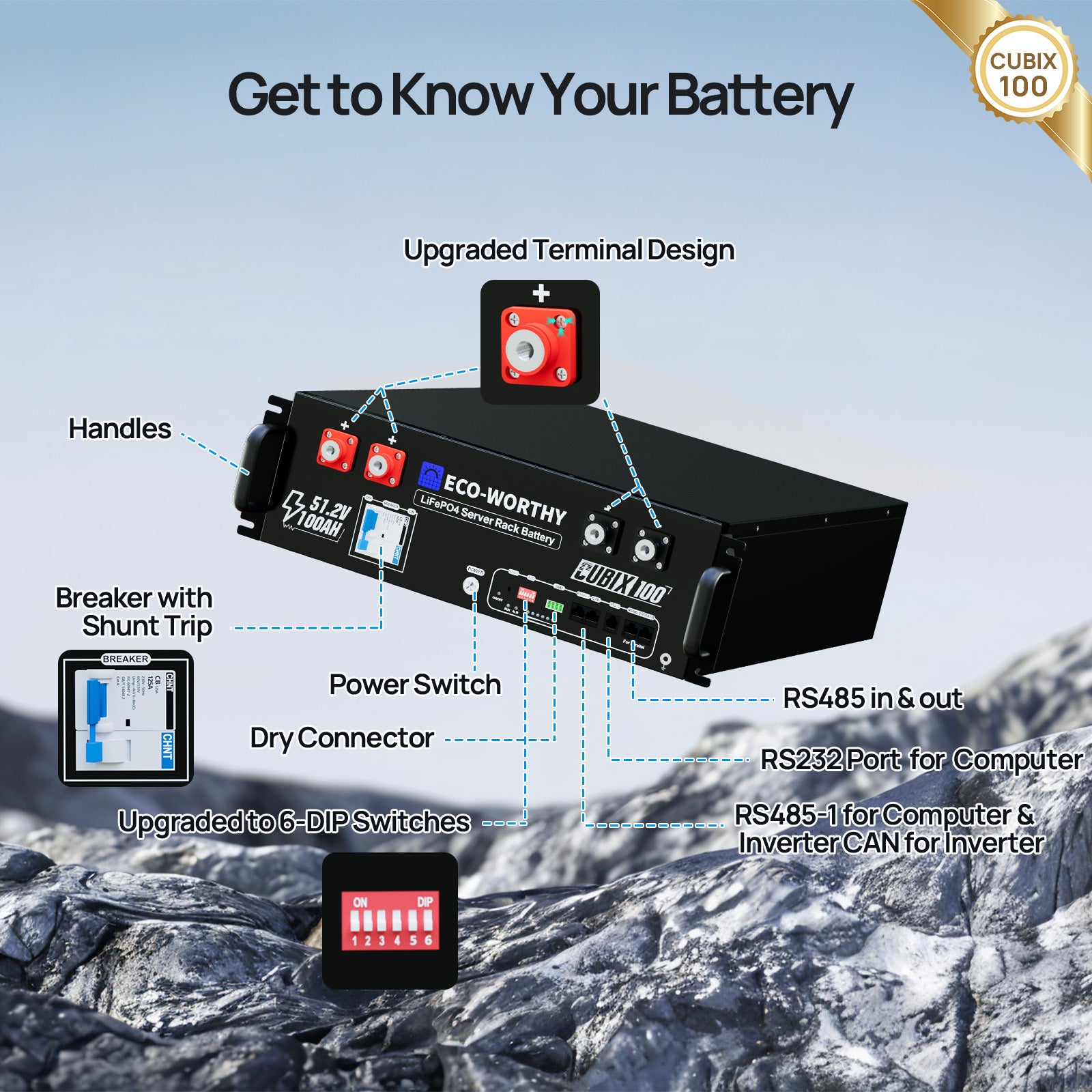

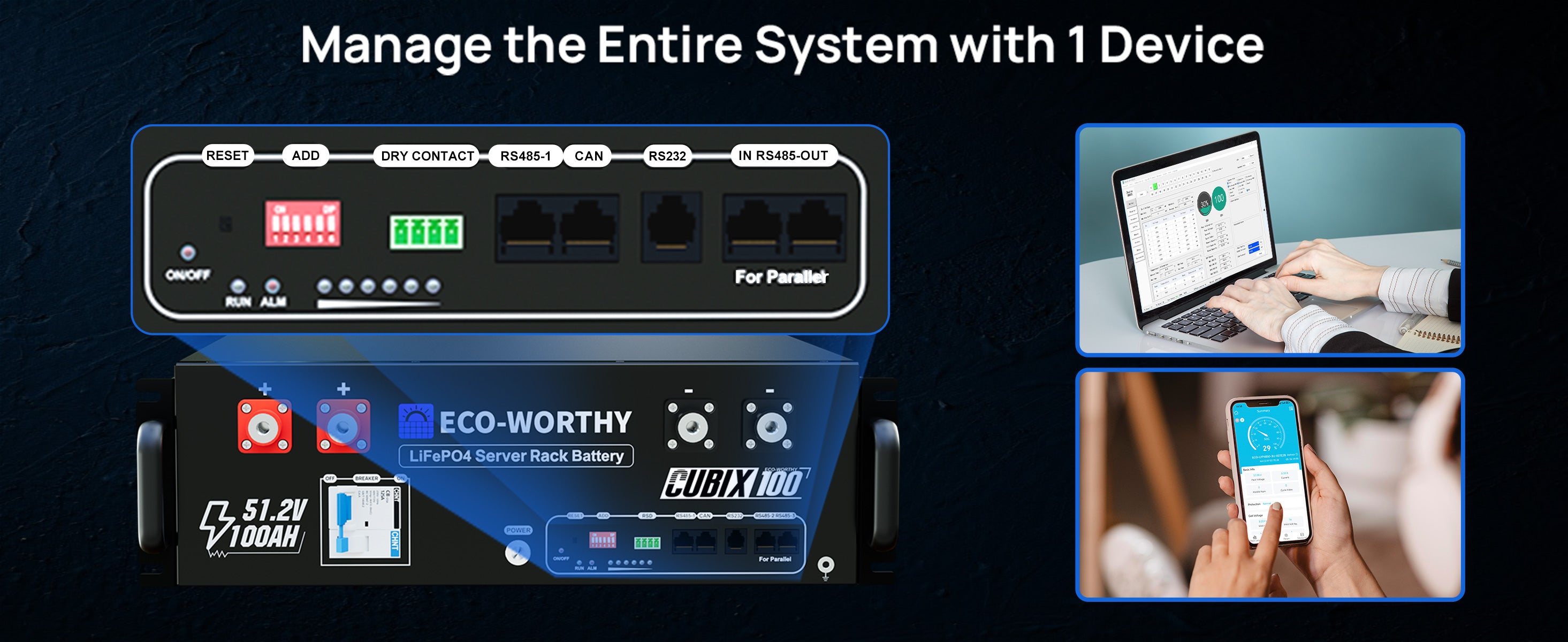

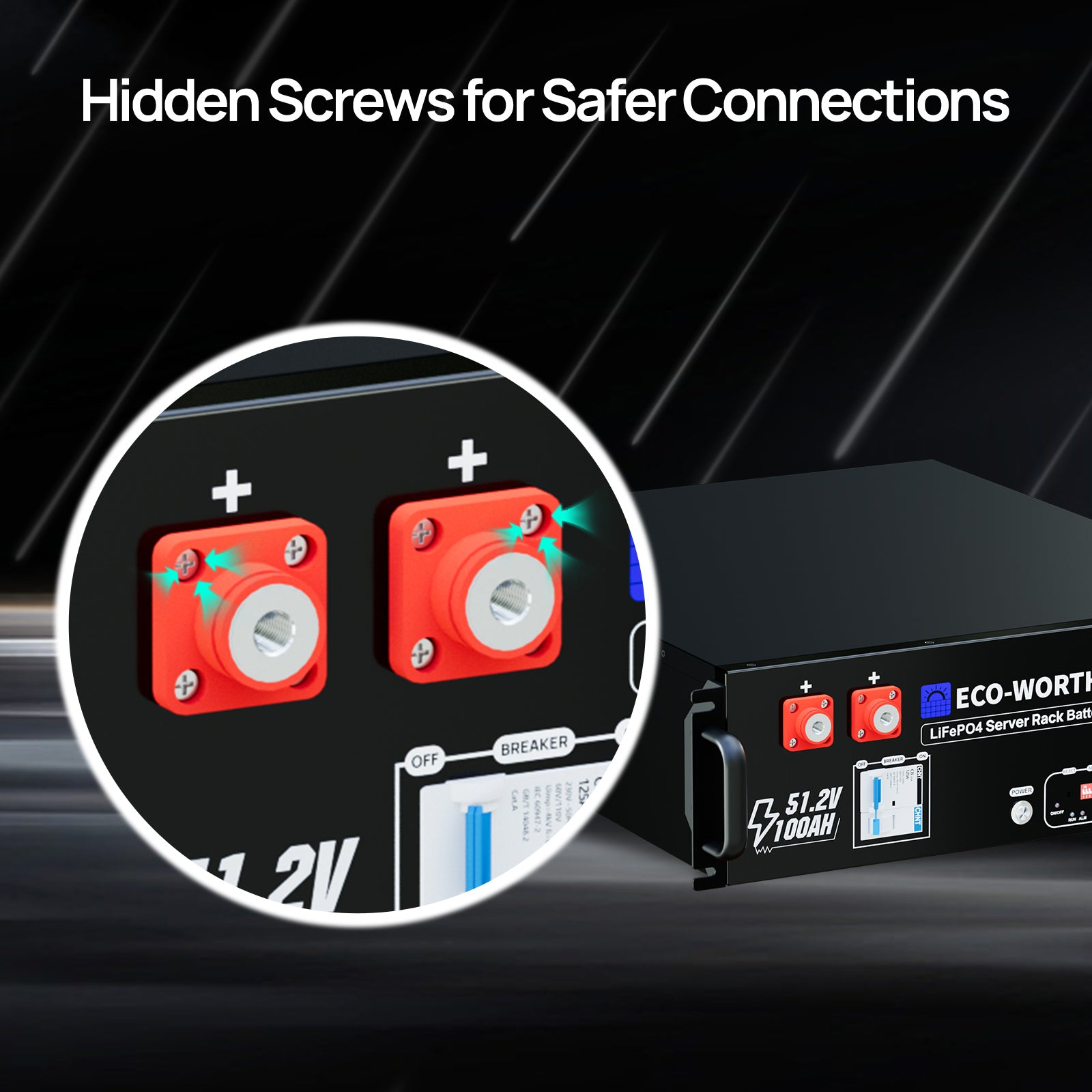

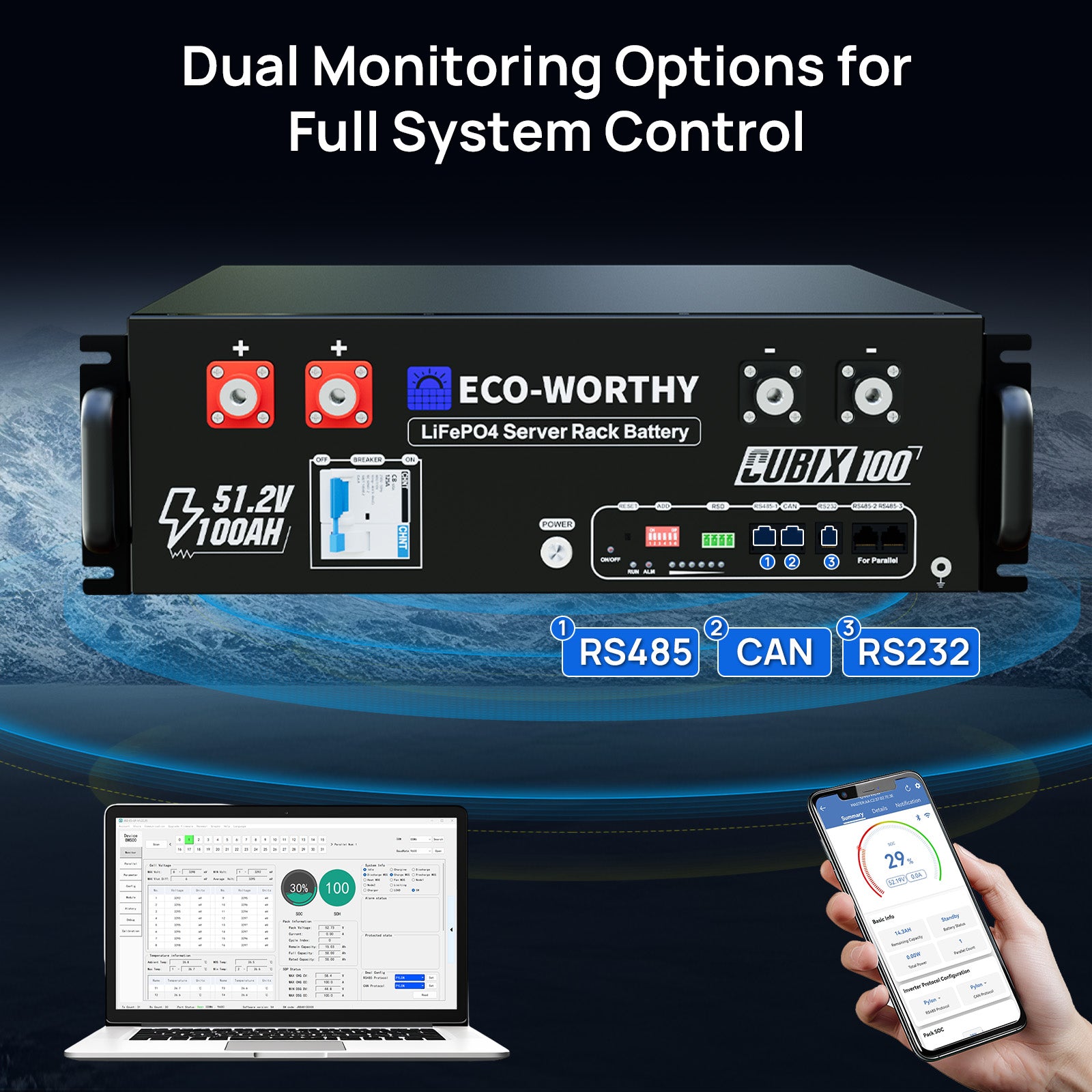

48V 100Ah Server Rack Battery

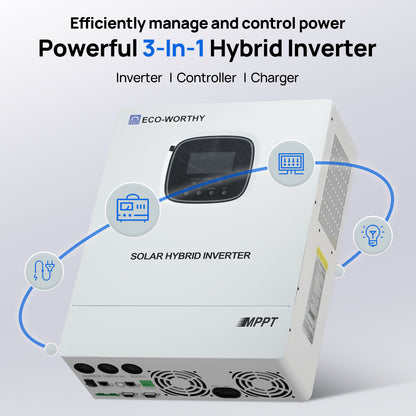

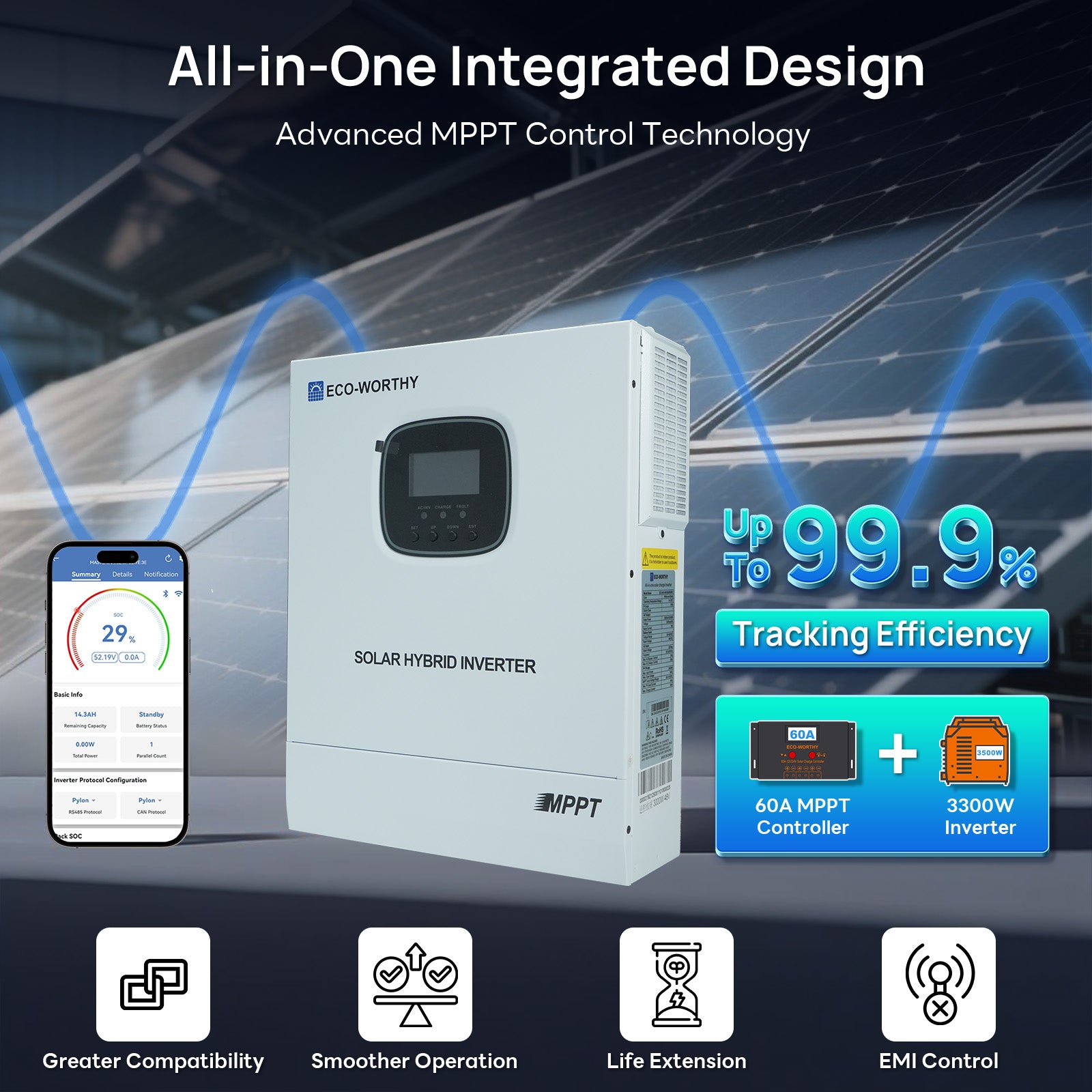

3000W 48V Pure Sine Wave Power Inverter

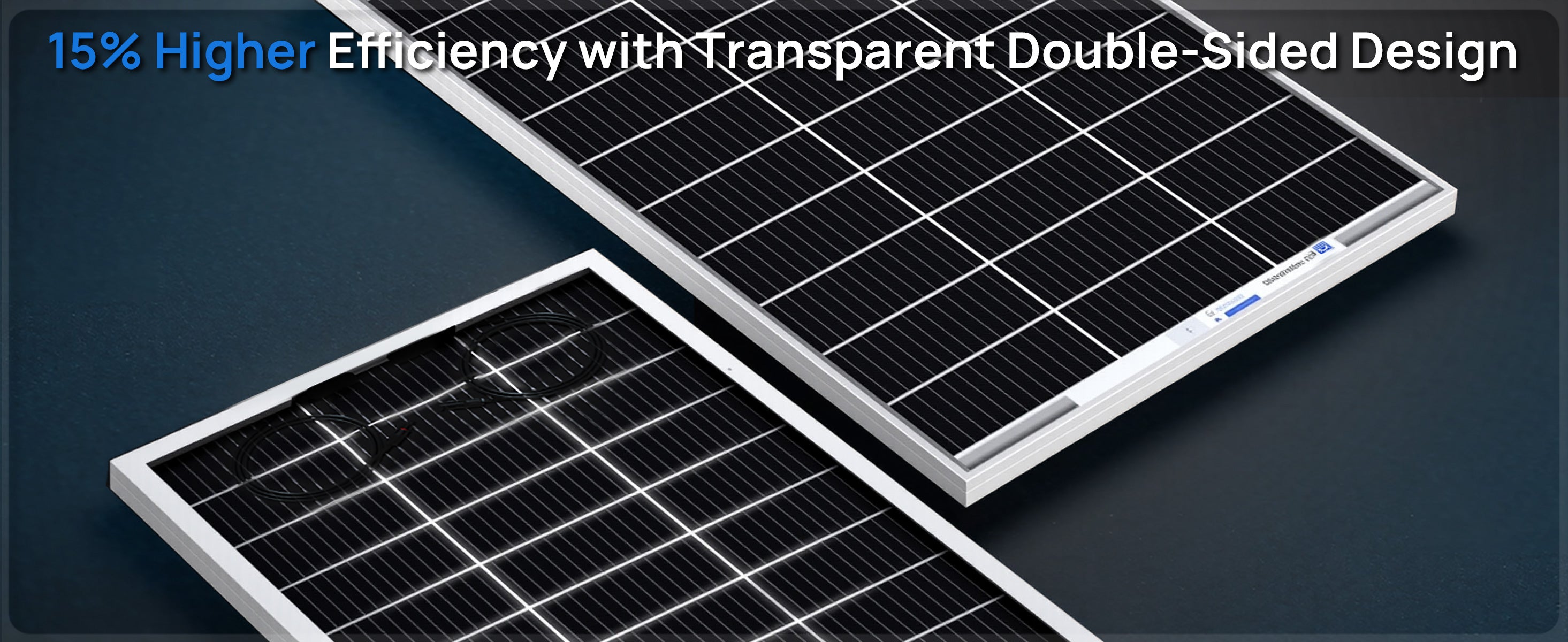

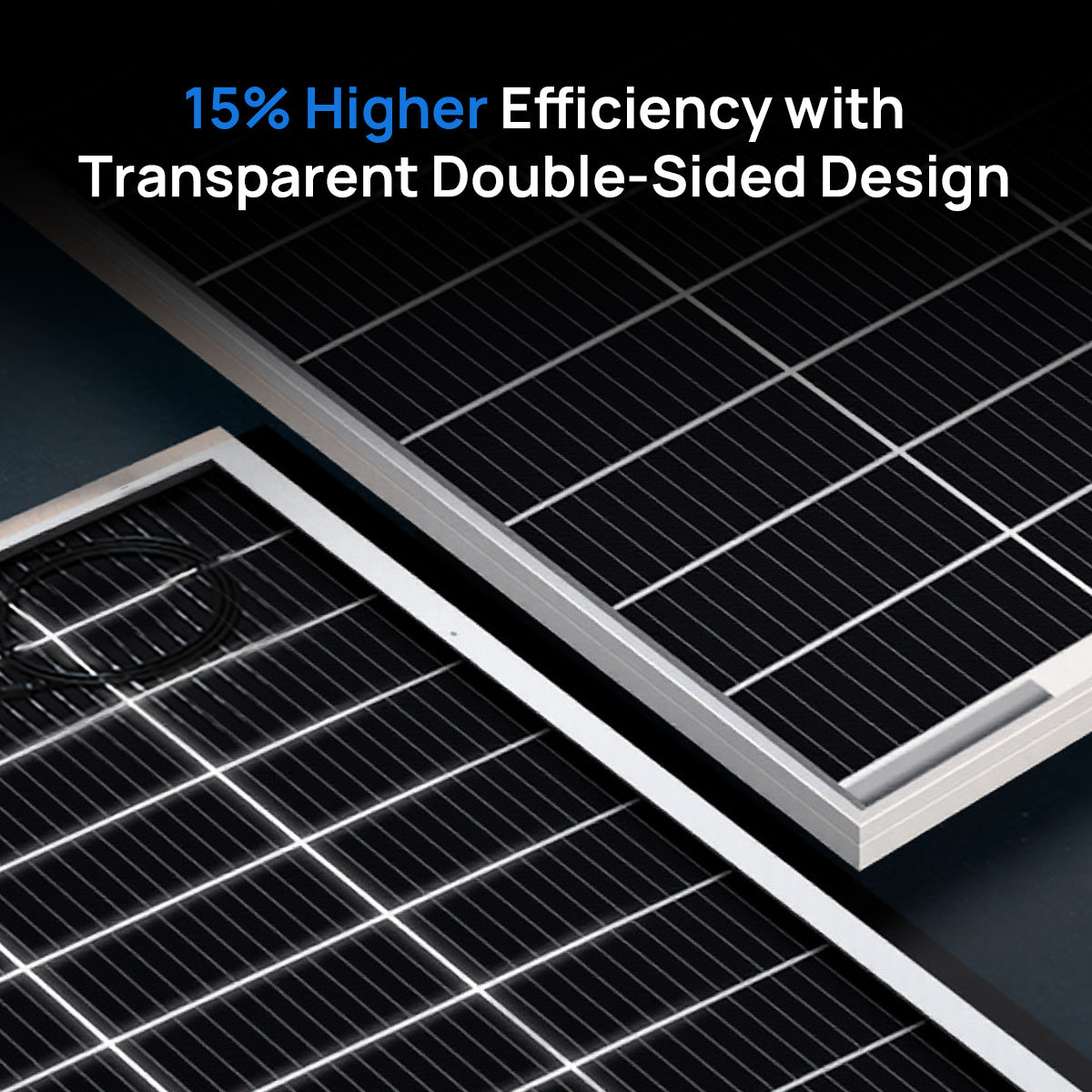

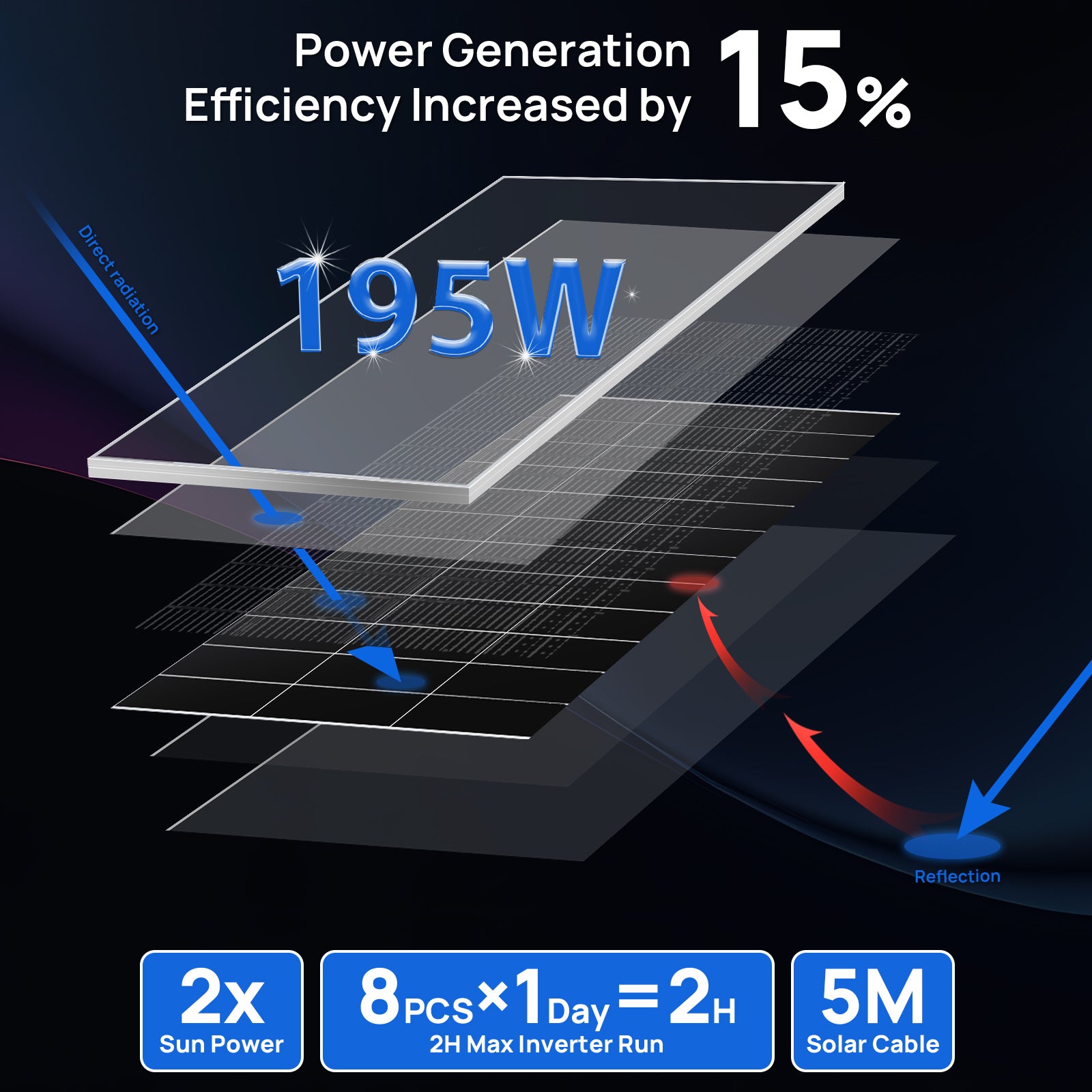

Bifacial 195W 12V Monocrystalline Solar Panel
Solar Extension Cables Wires with MC4-MC4
Y Parallel Branch Connectors MFF
Solar Extension Cables Wires with MC4
Z Style Solar Panel Mounting Brackets
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
51.2V
Voltage Range
40~58V
Maximum Charge/ Discharge Current
100A
Charge Temperature Range
0-55℃
Disharge Temperature Range
﹣20－55℃
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.55*17.13*5.63inch
Battery Weight
95 lbs
Cables
Each battery comes with a pair of battery parallel cables
Certification
IEC62619 | CEC

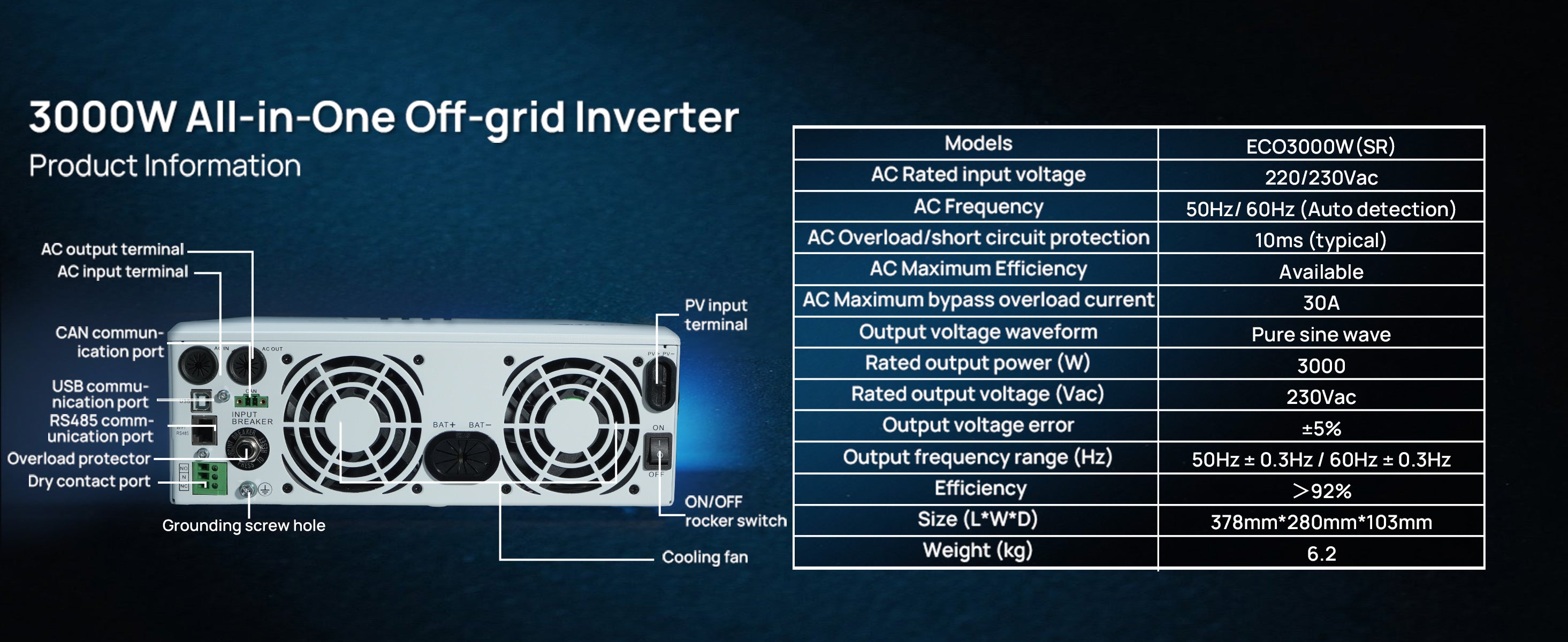

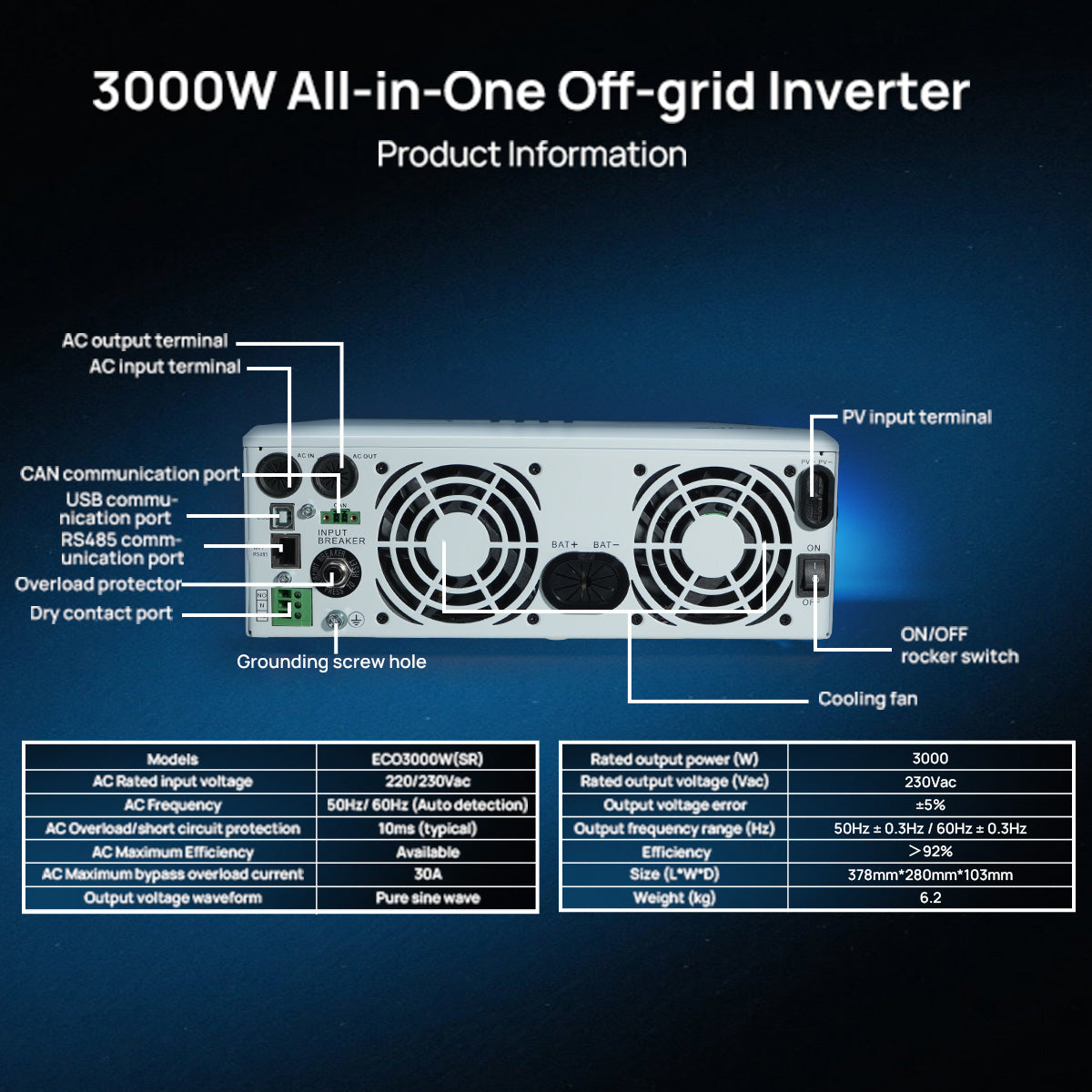

Models:
ECO3000W(SR)
AC Rated input voltage:
220/230Vac
AC Frequency:
50Hz/ 60Hz (Auto detection)
AC Overload/short circuit protection:
10ms (typical)
AC Maximum Efficiency:
Available
AC Maximum bypass overload current:
30A
Output voltage waveform:
Pure sine wave
Rated output power (W):
3300w
Rated output voltage (Vac):
230Vac
Output voltage error:
±5%5
Output frequency range (Hz):
0Hz ± 0.3Hz / 60Hz ± 0.3Hz
Efficiency:
＞92%
Size (L*W*D):
378mm*280mm*103mm
Weight (kg):
6.2kg
Rated Power:
195W
Solar Cell:
Monocrystalline
Maximum/Peak Voltage(Vmp):
19.8V
Open Circuit Voltage(Voc):
23.7V
Short circuit current:
10.5A
Maximum current:
9.85A
Output Tolerance:
±3%
Temperate coefficient of Isc:
(010+/-0.01)%/℃
Temperate coefficient of Voc:
-(0.38+/-0.01)%/℃
Temperature range:
－40℃～ +85℃
Frame:
Aluminum alloy frame
Weight:
20.48 lbs(9.29 kg)
Size:
52.6x26.38x1.38in (1335*670*35mm)
Cable Type:
Connecting Solar Panels to Combiner Box
Rating Voltage:
600/1000V
Length:
5 meters（16 ft）
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
-40°F to +185°F
Connector:
MC4
Model:
12AWG
Rated Current:
30A
Test Voltage:
6000V
Cable Type:
Connecting Solar Panels to Charge Controllers
Rating Voltage:
600/1000V
Length:
5 meters（16 ft）
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
40°F to +185°F
Connector:
MC4
Material:
Aluminum Alloy
Size of Screw and Nut:
M6
Weight:
0.85kg
Included in the Box
User manual
Eco-Worthy 48V 100Ah Server Rack Lithium Battery (cubix 100)- User Manual
DownloadEco-Worthy Cubix 100 Firmware.13.5.1-260225 (V3 compatible)
DownloadEco-Worthy 48V 3000W All in one Inverter - User Manual
DownloadEco-Worthy Bifacial 195W 12V Monocrystalline Solar Panel - User Manual
DownloadEco-Worthy Cubix 100 Software Manual Online-2026.3.17
DownloadEco-Worthy 48V(51.2V) 100Ah Server Rack Lithium Battery - IEC 62619
DownloadFrequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.
Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.
How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

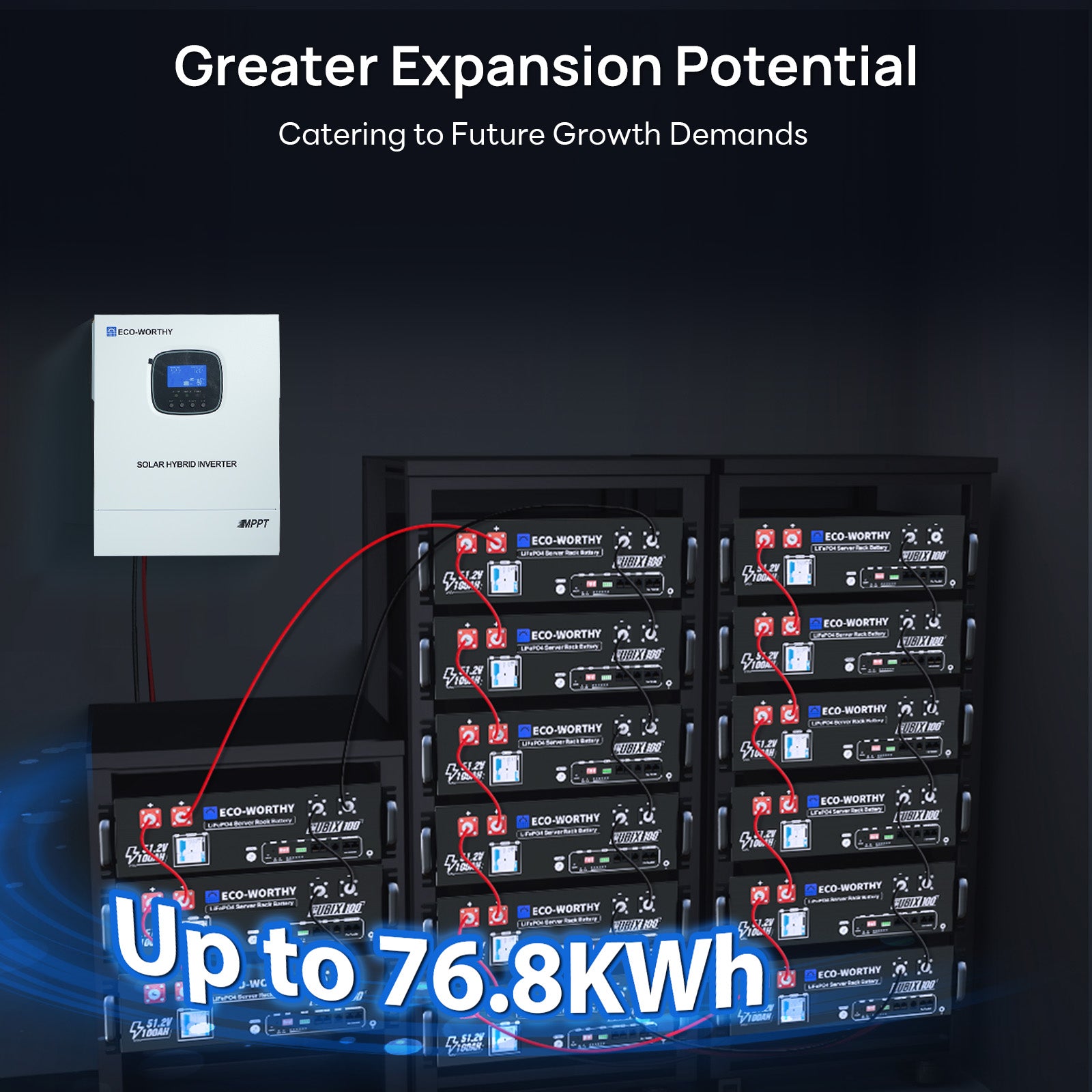

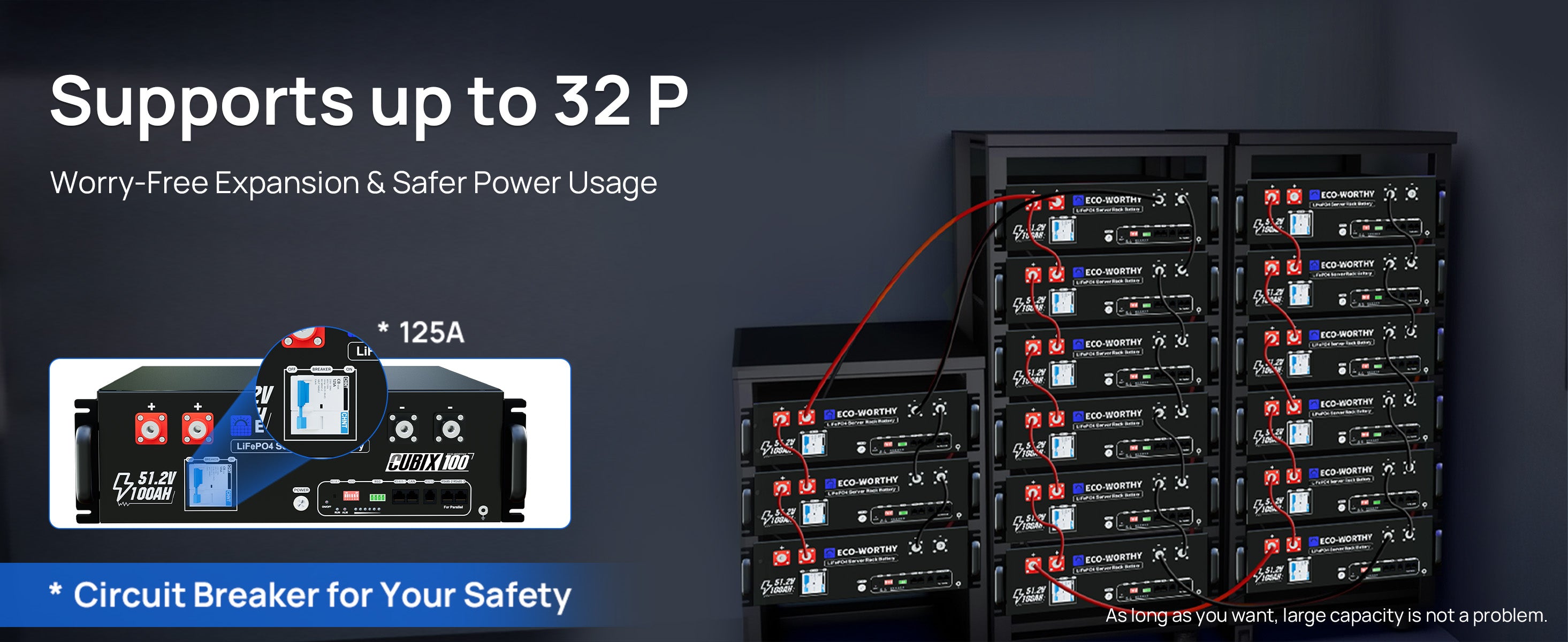

Can I expand the system later?
+

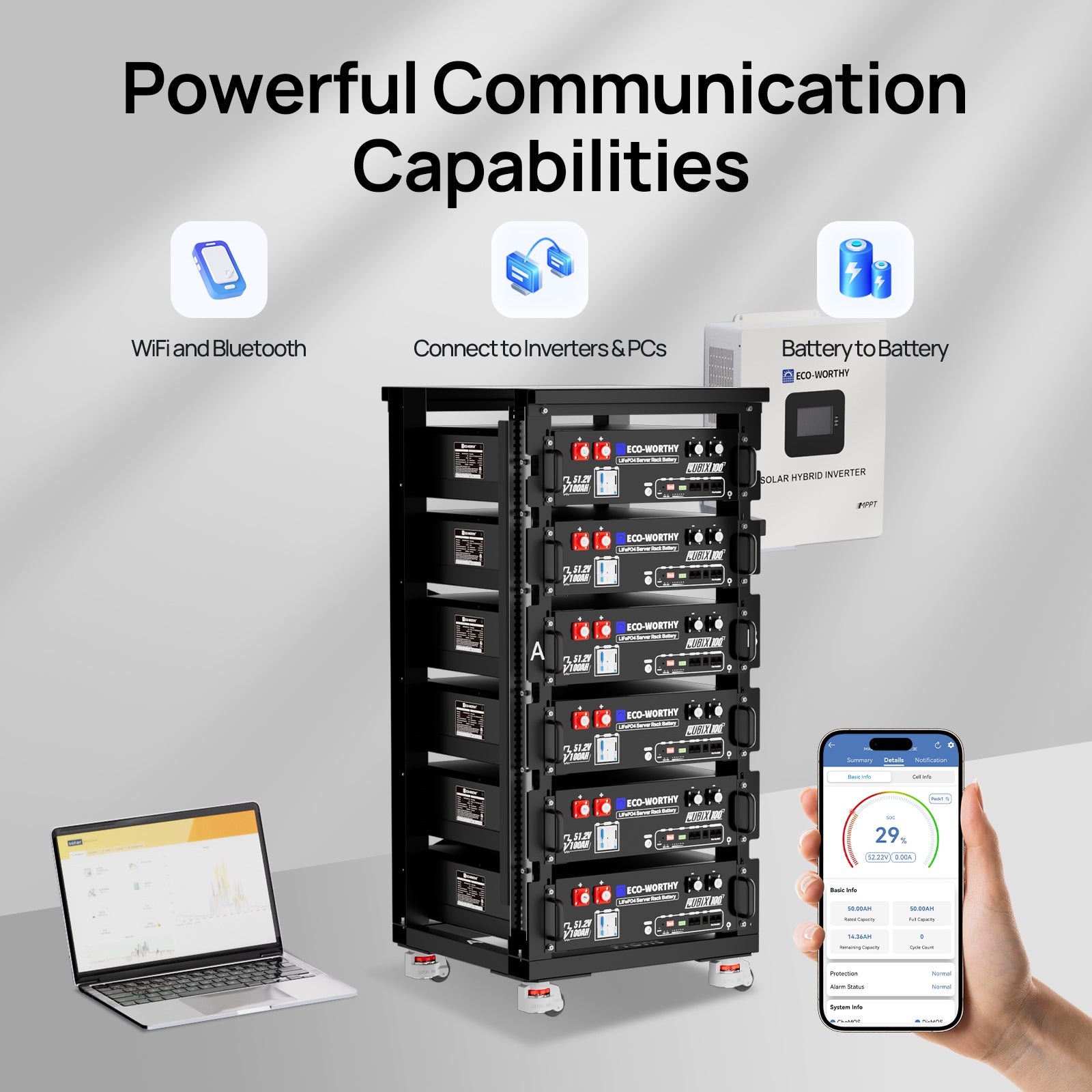

Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
