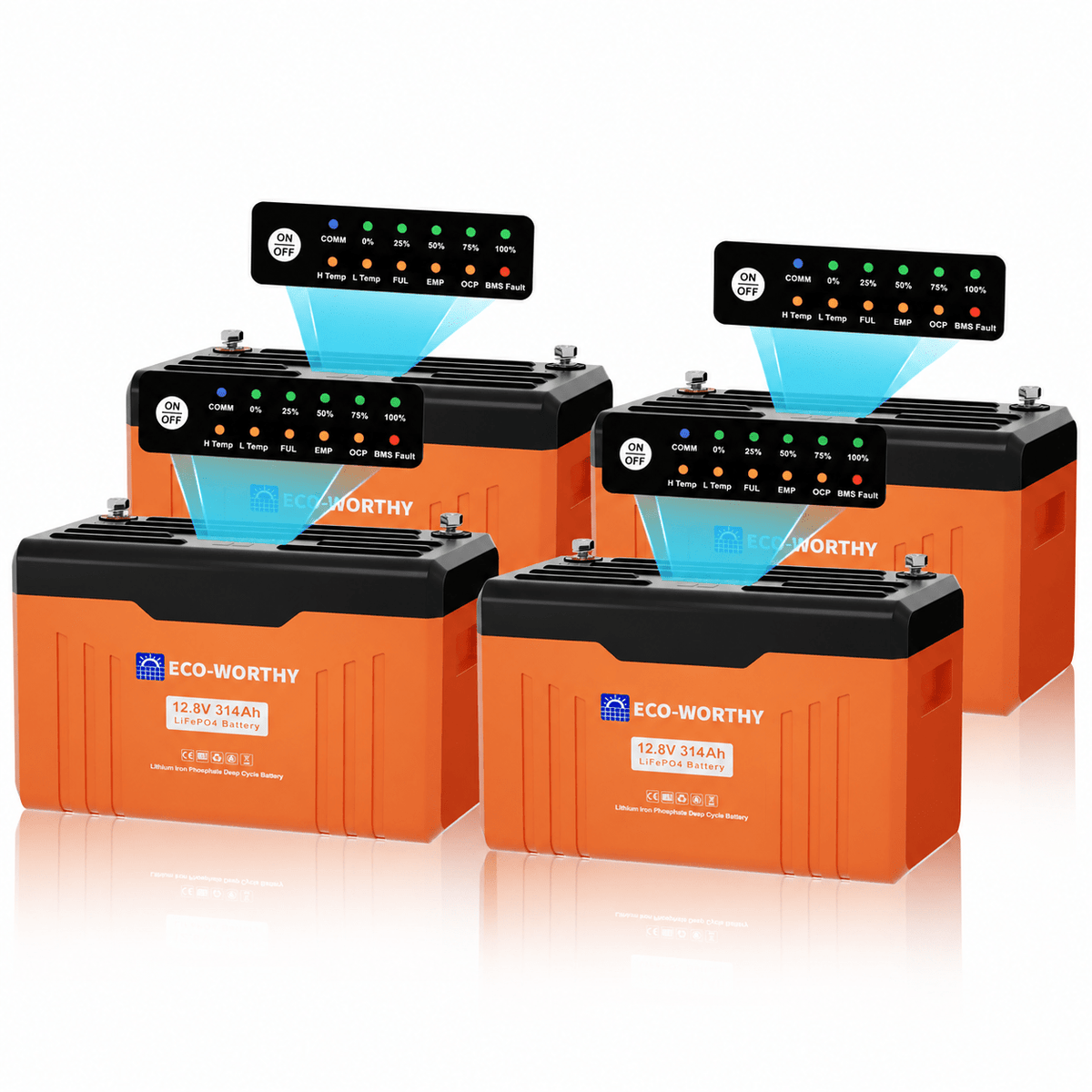

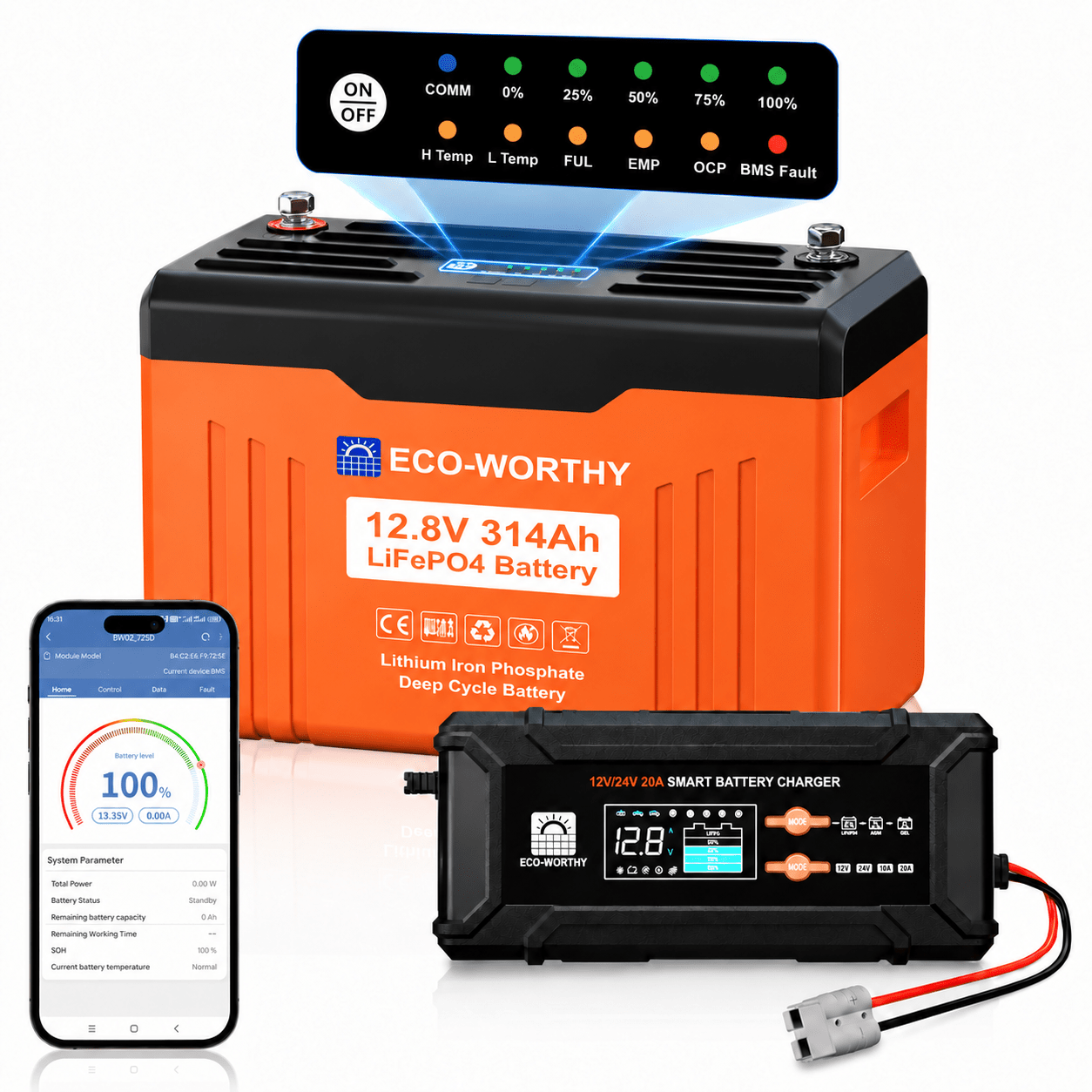

The ECO-WORTHY EnergyTrek 12V 314Ah LiFePO4 battery delivers 4,019Wh of reliable energy for caravans, motorhomes, boats and off-grid systems. Bluetooth monitoring, SOC LEDs and smart protection indicators make battery management simple and convenient.

Smart 4.02kWh Power for Caravans, Motorhomes and Off-Grid Living
Technical Specifications
12V 314AH Lifepo4 Lithium Battery
Battery Capacity:
314Ah
Battery Power:
4019Wh
Battery Voltage:
12.8V
Maximum Charge/ Discharge Current:
200A
Charge Temperature Range:
0-55℃
Discharge Temperature Range:
﹣20-55℃
Maximum Charge Voltage:
14.6V
Discharge Peak Current:
240A/10s
Screw size:
M8
Battery Size:
414*215*260mm(16.3*8.5*10.3inch)
Battery Weight:
27.4kg (60.5lbs)
Case Material:
ABS+PC
Supported Series Parallel Modes:
2P、3P、4P、2S、3S、4S、 2P2S、2P3S、2P4S、3P2S、4P2S
Standard Charge/Discharge Current:
157A/157A
Operation Voltage:
9.2-14.6V
Included in the Box
Frequently Asked Questions
Why LiFePO4 Battery Needs a Compression Fixture?
+
1.Prevents irreversible swelling caused by charge/discharge expansion.2.Reduces capacity decay by restricting swelling; 3.Maintains safety valve function for emergency pressure relief.
Why Choose a Flame-Retardant Enclosure?
+
Compared with an ordinary ABS enclosure, our flame-retardant enclosure provides enhanced fire protection: 1.Flammability: Ordinary ABS ignites easily and softens above 80°C, while our flame-retardant enclosure is difficult to ignite and requires sustained flame exposure. 2.Fire Spread: Ordinary ABS allows flames to spread rapidly, whereas our enclosure self-extinguishes within 30 seconds after the flame source is removed. 3.Safety Hazard: Ordinary ABS can produce thick, toxic smoke when burning. Our flame-retardant enclosure produces less smoke with extremely low toxicity, helping reduce fire-related safety risks.
