100W 200W 12V (1/2x100W) Off Grid Solar Kit

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 100W 200W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 0.4kWh 0.8kWh per day.
ECO-WORTHY 100 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.

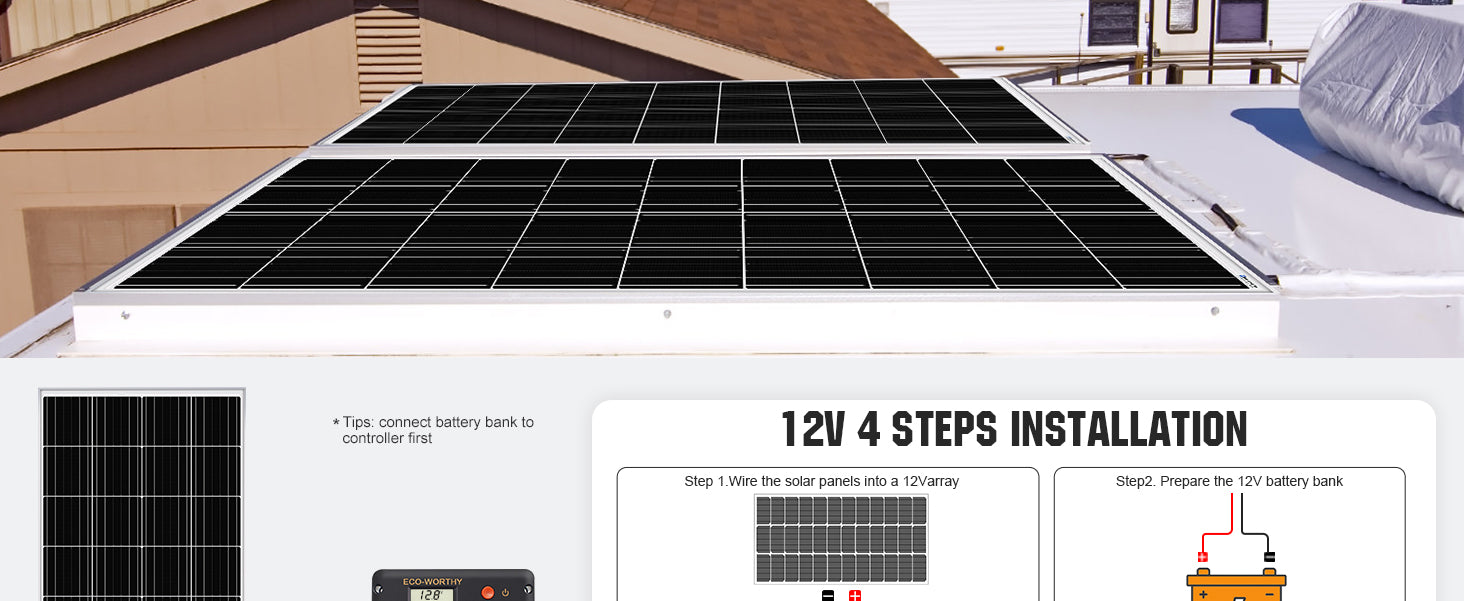

ECO-WORTHY 100W 200W 12V Solar Kit can be used for several different purposes, including boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

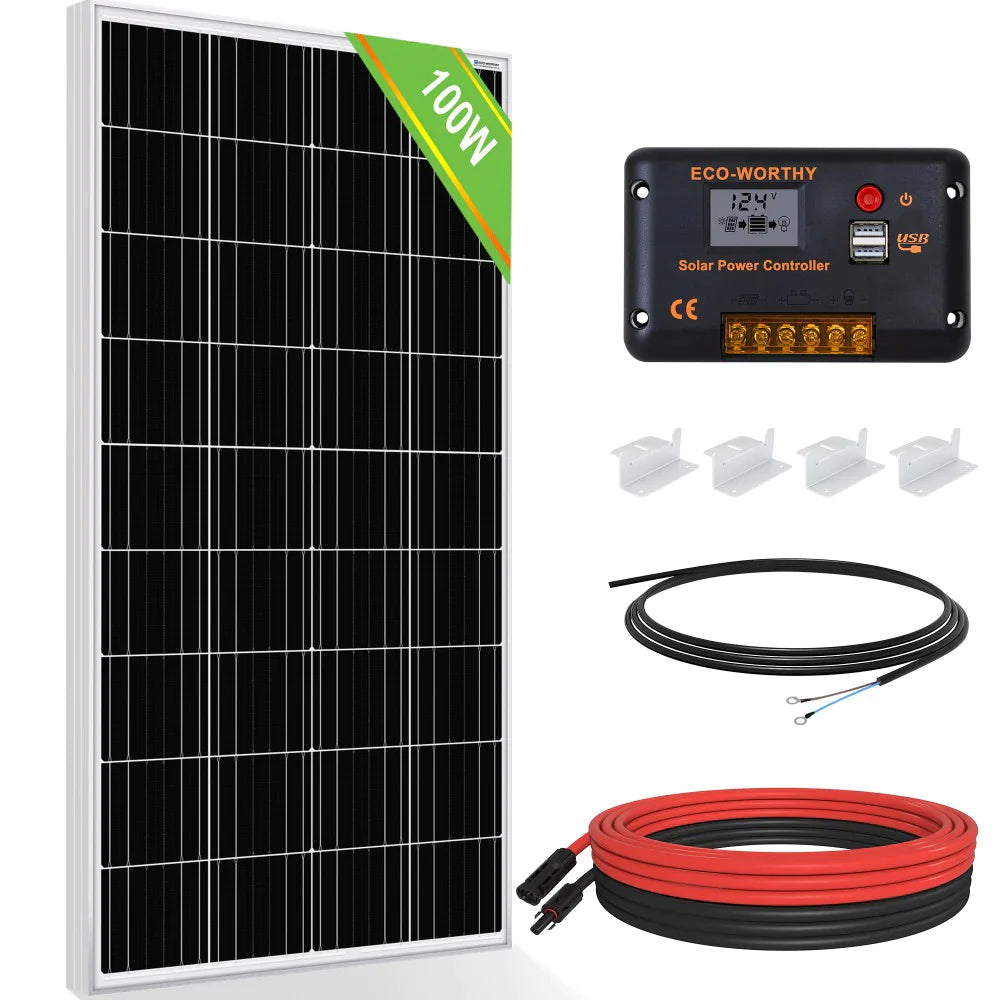

100W (1-Panel) 12V Solar Kit
1x 100W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Z Mounting Bracket
1x 1.5M Tray Cable

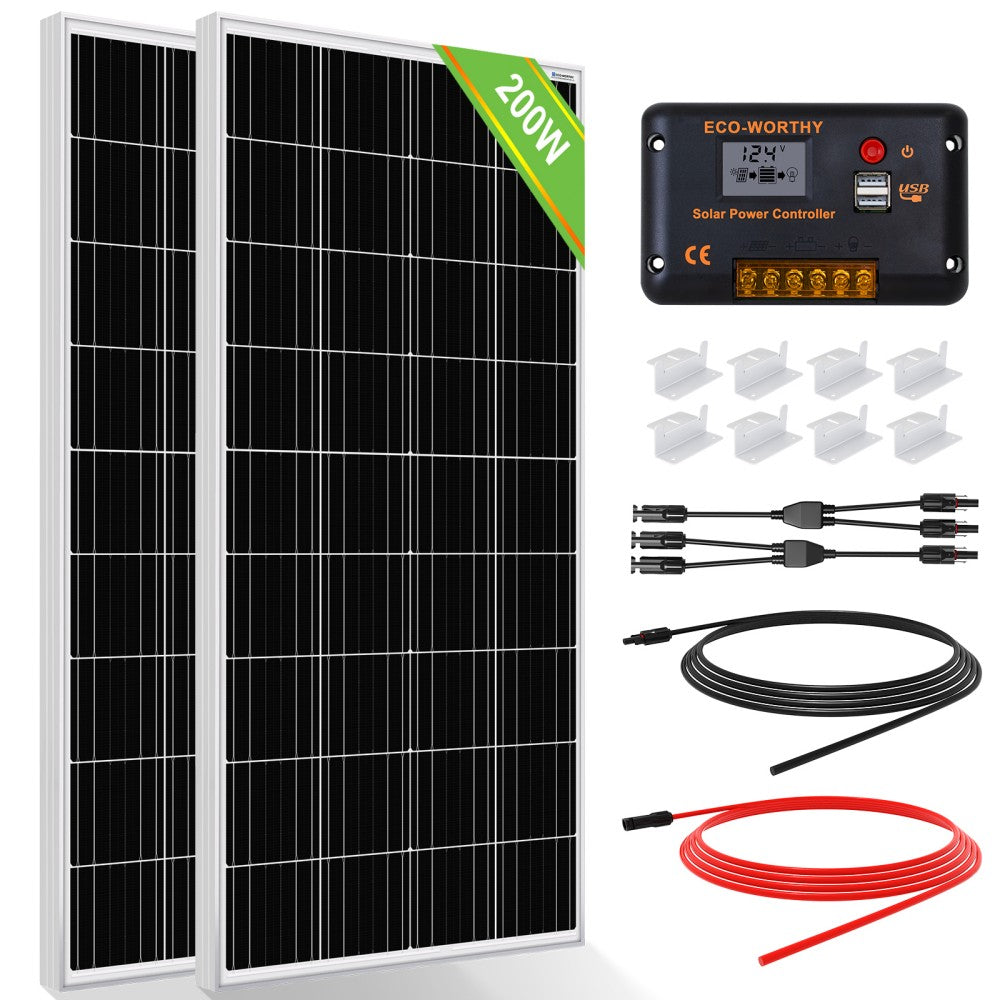

200W (2-Panel) 12V Solar Kit
2x 100W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable

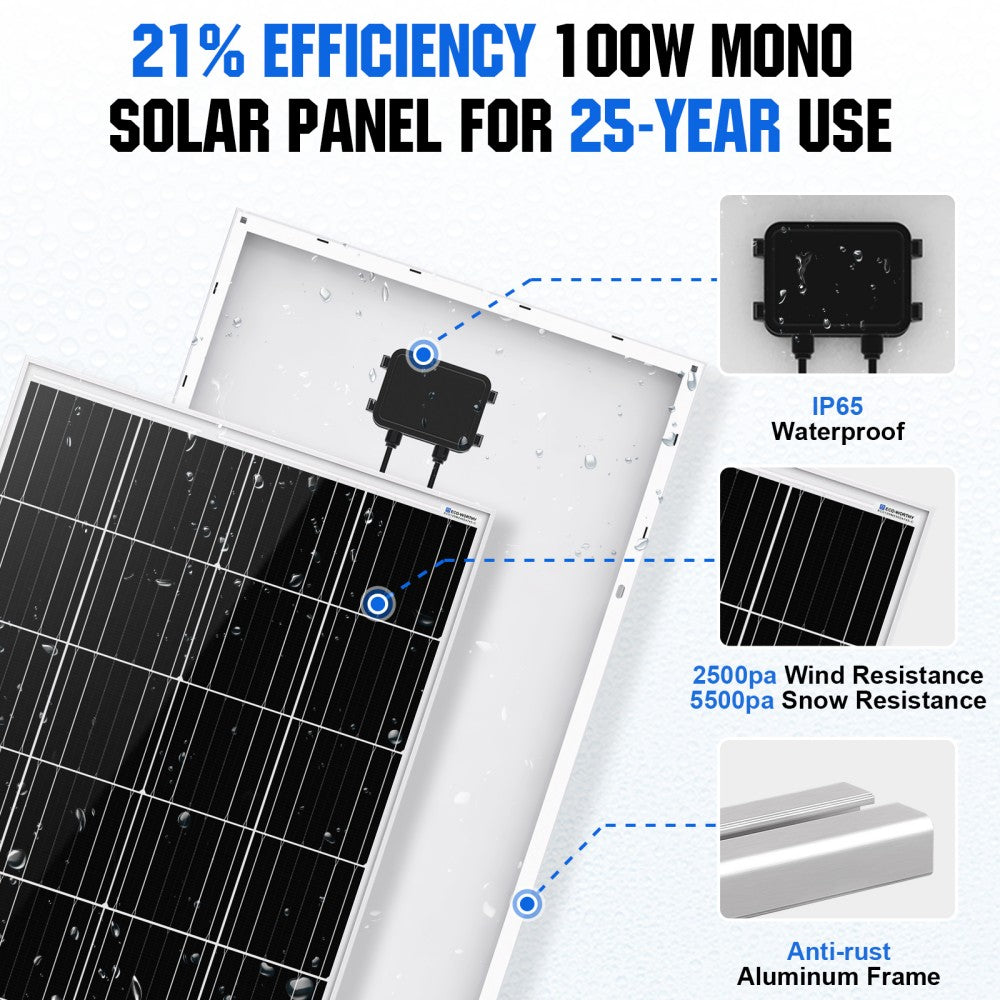

100W Monocrystalline Solar Panel

Rated Power: 100W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 18V	Open Circuit Voltage(Voc): 21.6 V
Short circuit current: 6.11A	Maximum current: 5.55A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Weight: 13.14 lbs(5.96 kg)
Size: 1010mm*460mm*35mm

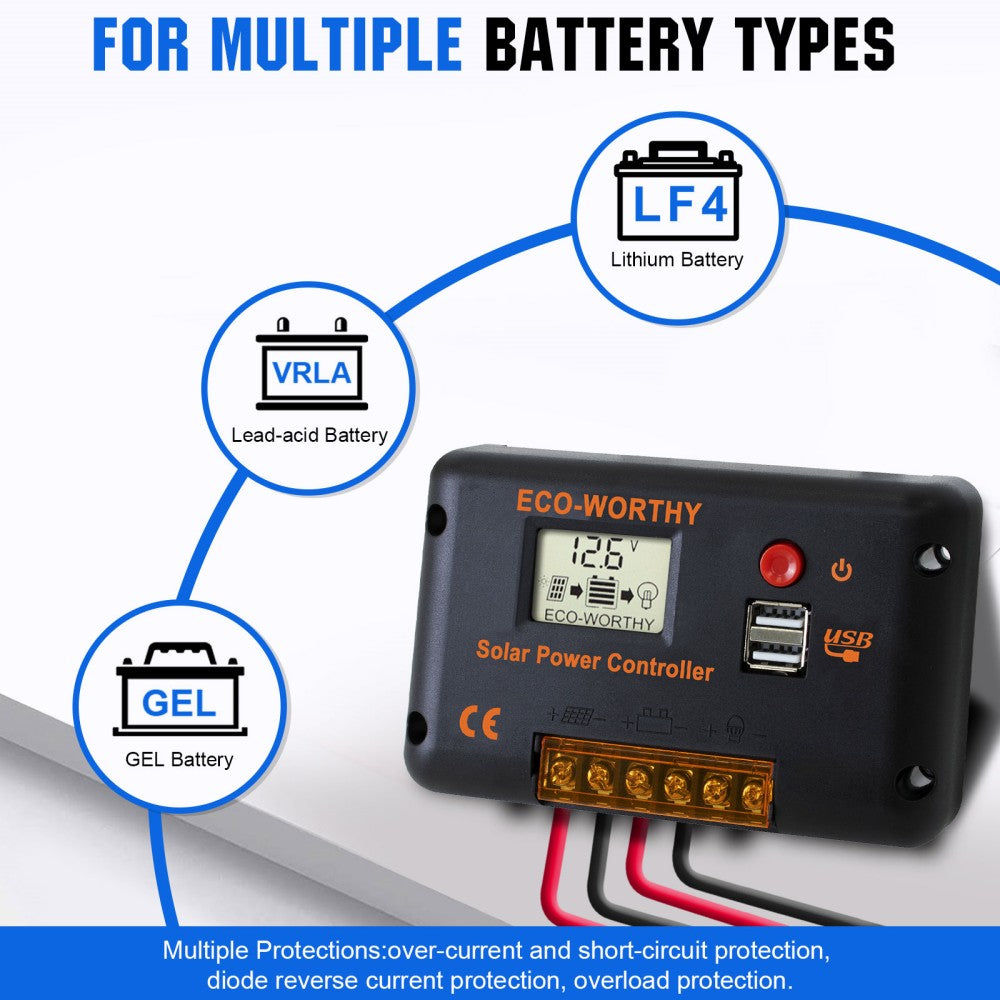

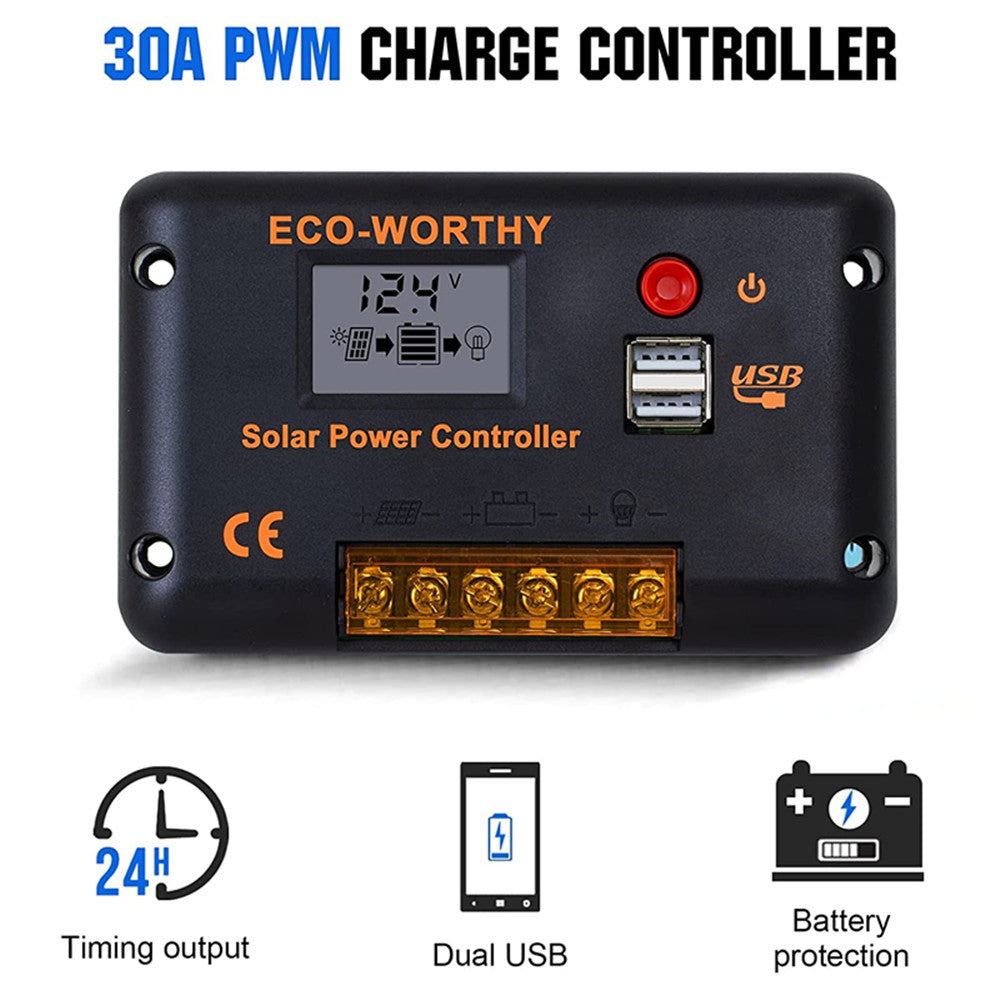

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
