If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 120W 240W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 0.48kWh 0.96kWh per day.
ECO-WORTHY 120 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
The Motorhome Mounting Brackets are perfect for bonding to the roof of cars or houeses without drilling.
ECO-WORTHY 120W 240W 12V Solar Kit can be used for several different purposes, including boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Package Includes

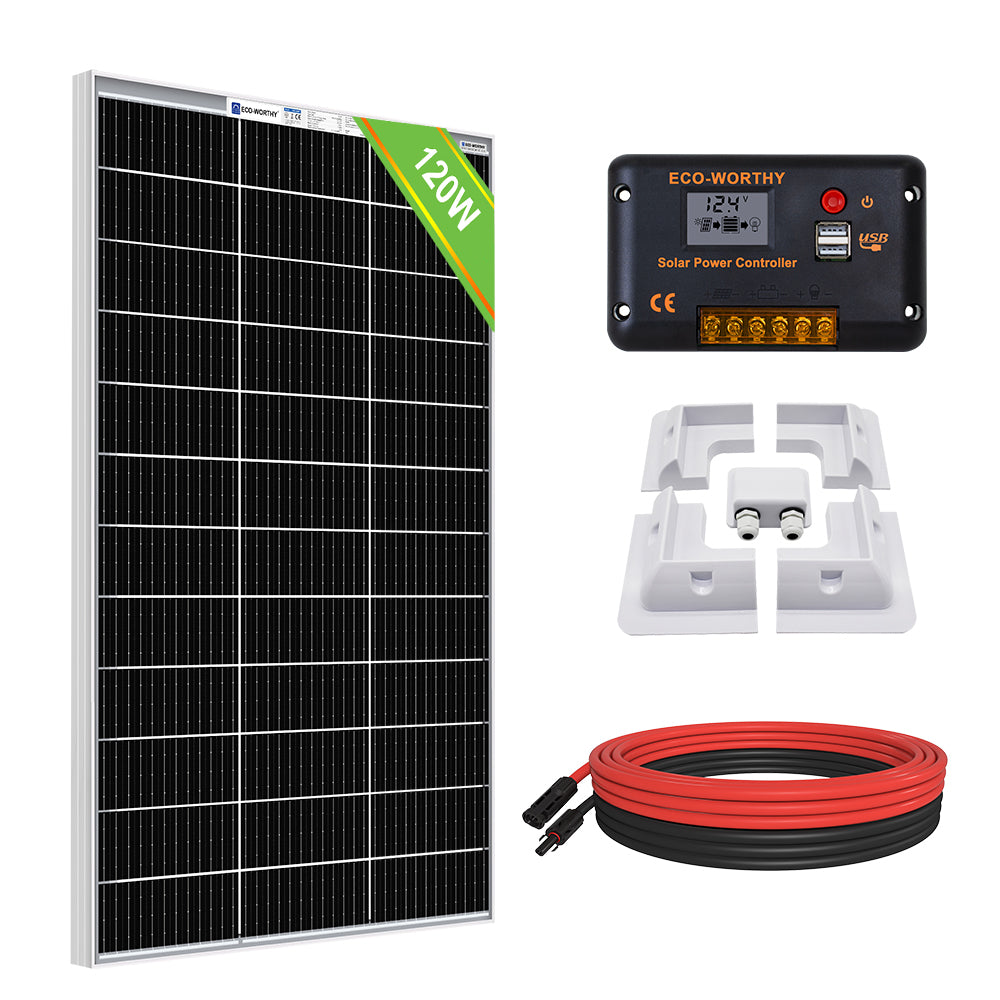

120W (1-Panel) 12V Solar Kit
1x
Bifacial 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Motorhome Mounting Brackets Kit

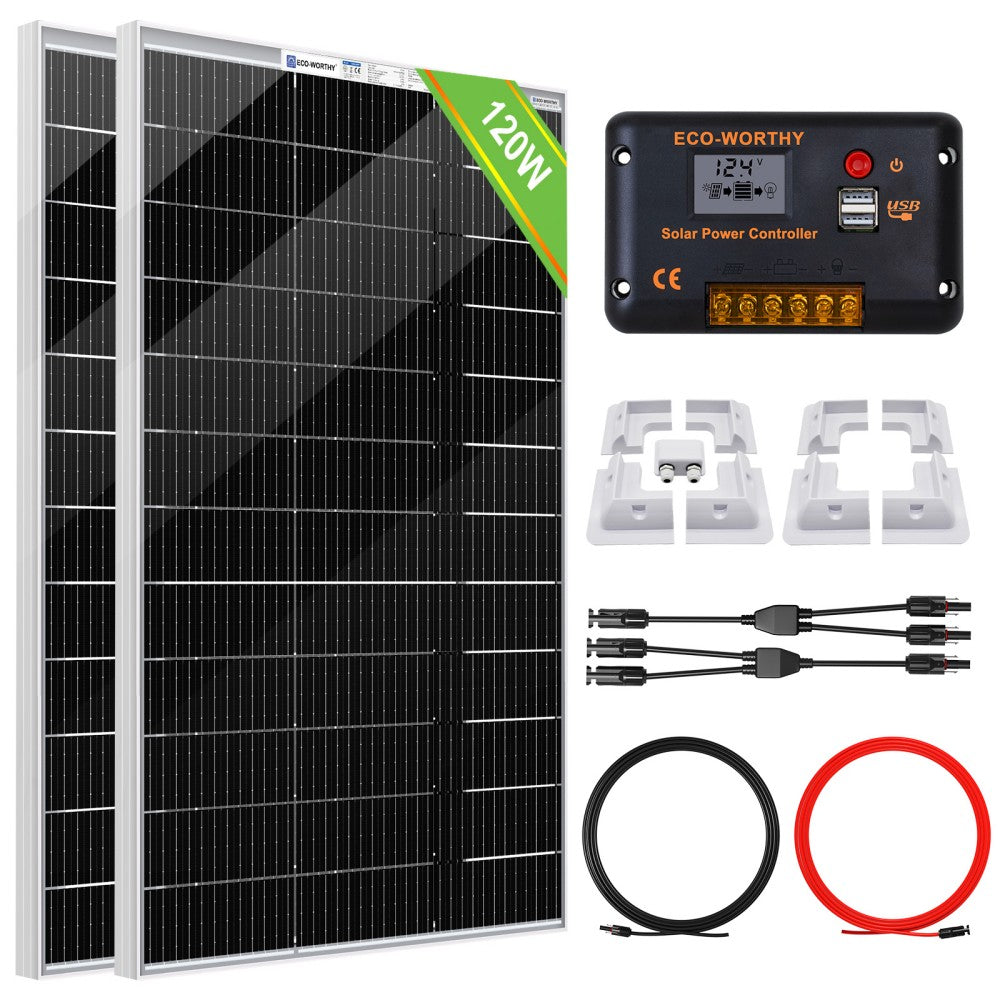

240W (2-Panel) 12V Solar Kit
2x
Bifacial 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Motorhome Mounting Brackets Kit
1x Y MC4 Connector

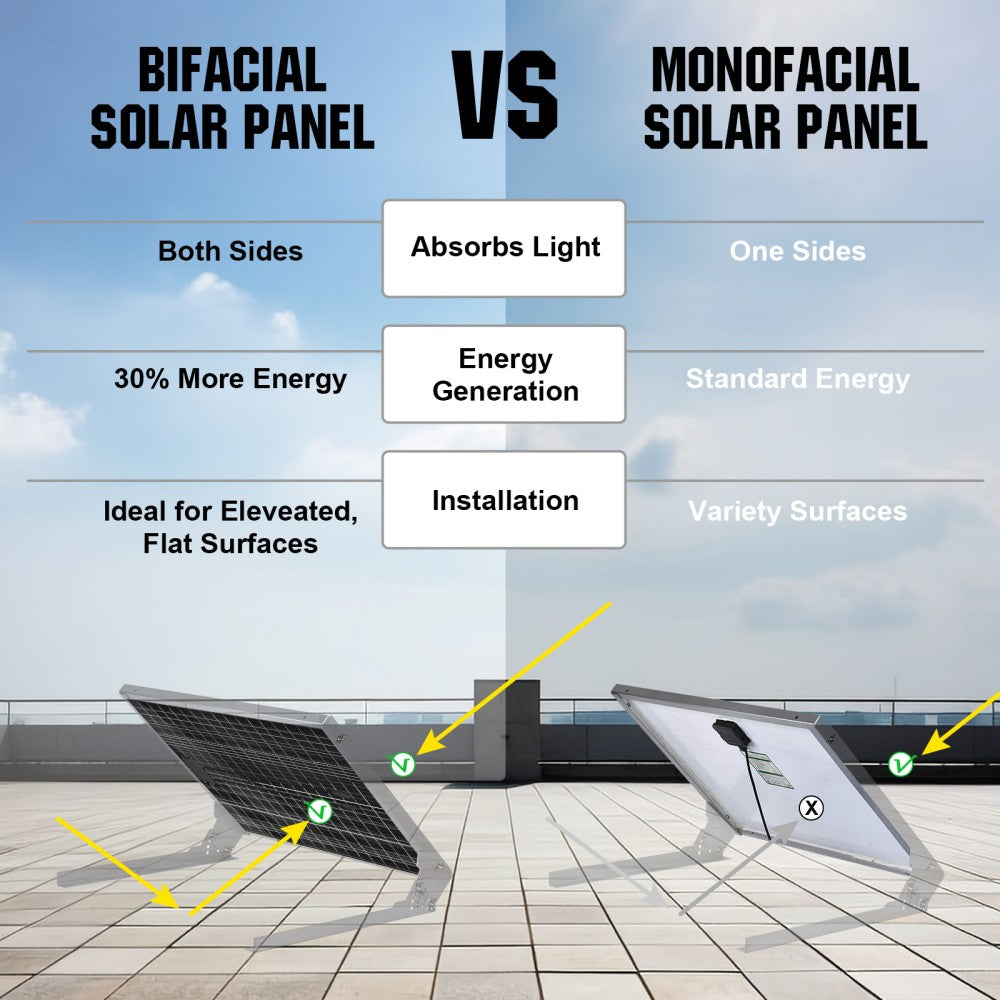

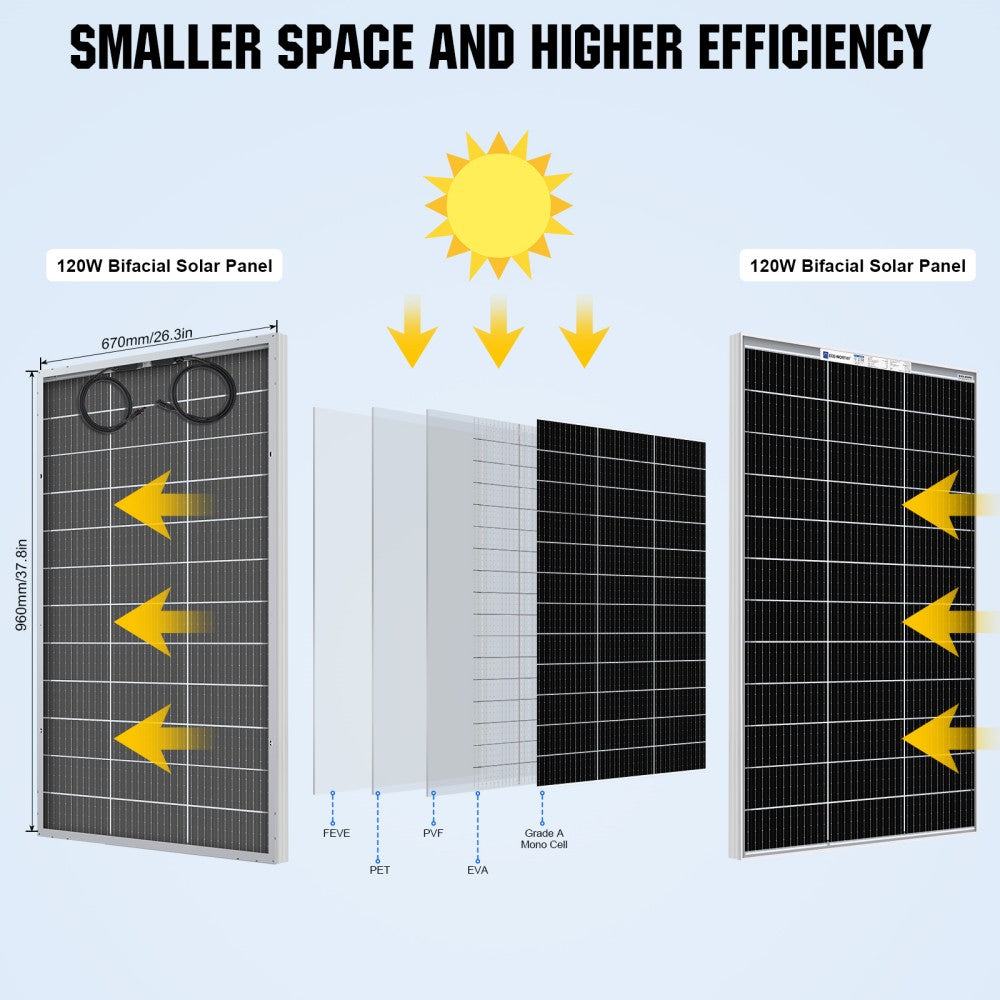

Bifacial 120W Monocrystalline Solar Panel
| Rated Power: 120W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V |
Open Circuit Voltage(Voc): 24.5V |
| Short circuit current: 5.94A |
Maximum current: 6.24A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 15.43 lbs(7.0 kg) |
| Size: 37.8x26.3x1.4in (960*670*35mm) |
|

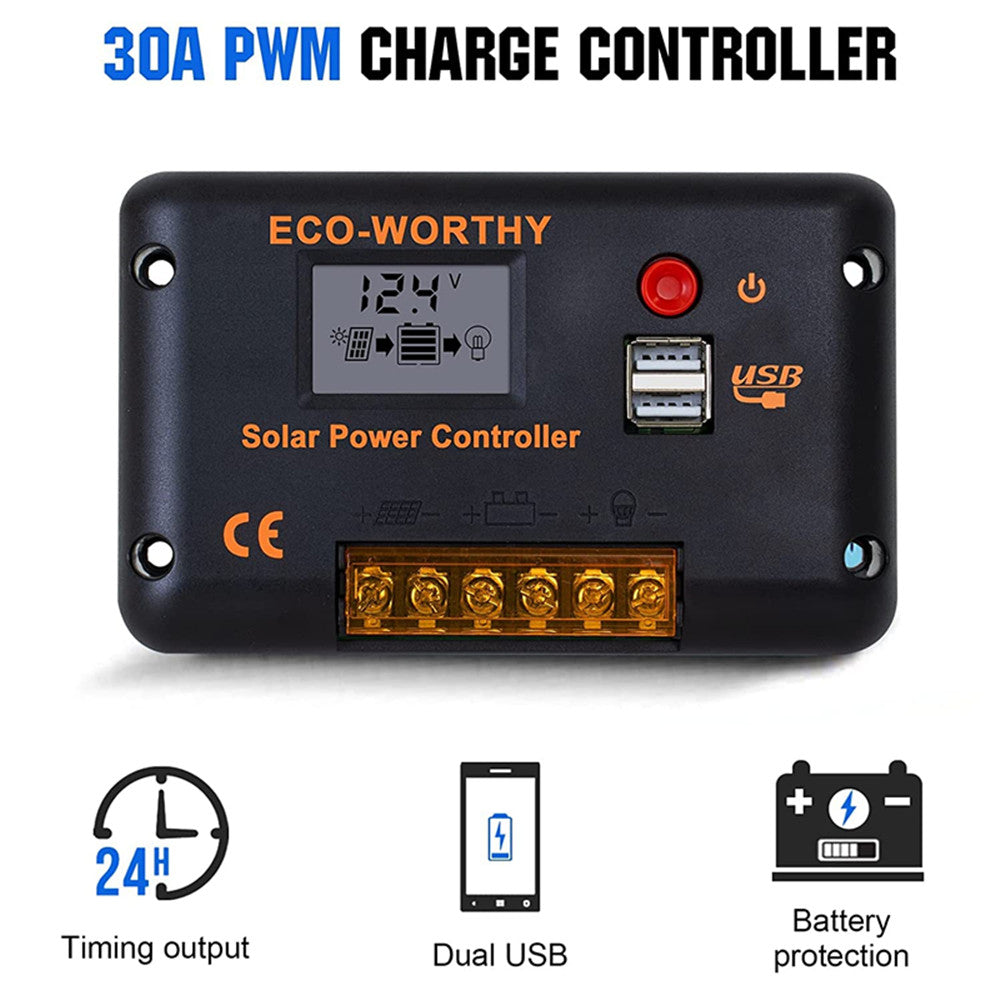

30A PWM Solar Charge Controller
| Battery voltage: 12V/24V |
Charging mode: PWM |
| Max Charge current: 30A |
Discharge current: 30A |
| Max.PV Open-Circuit Voltage: <50V |
USB Output: 5V/2A |
| Working Temperature: -20℃~60℃ |
Weight: 150g |
| Size: 138*82*30mm |
|

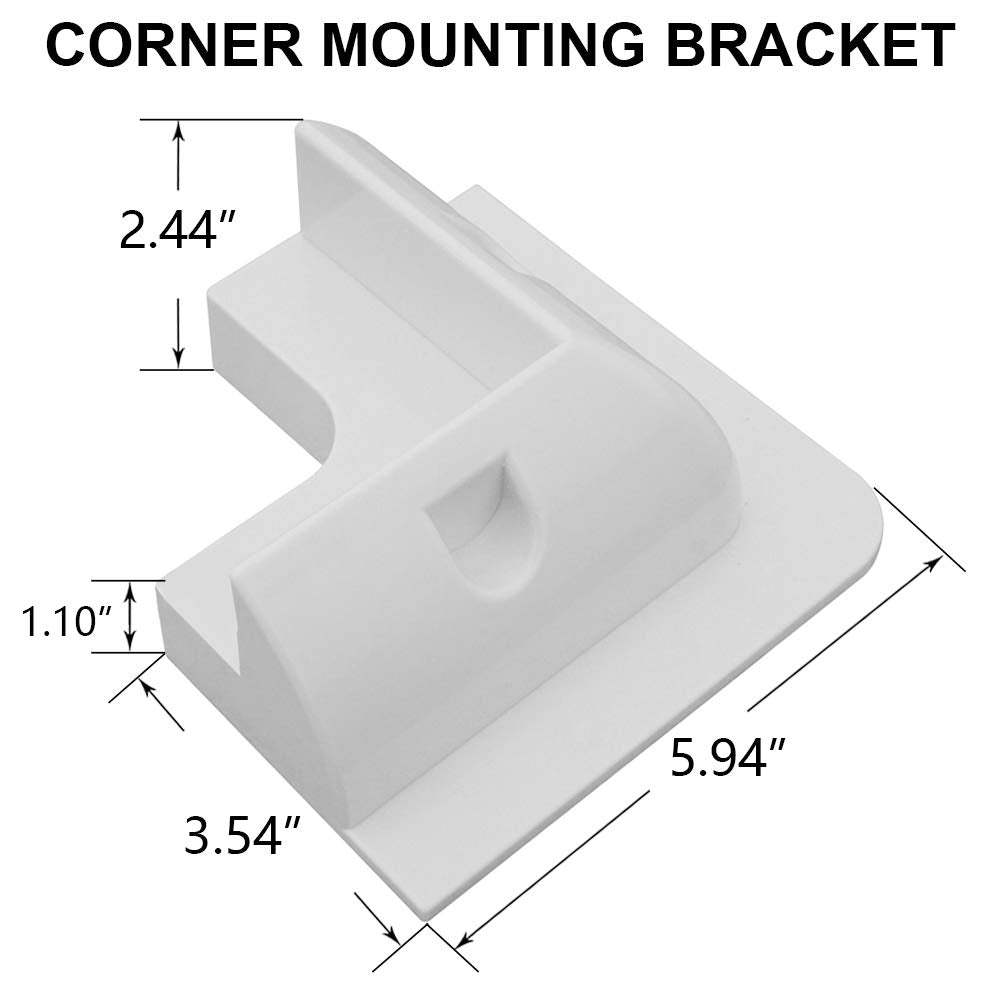

Corner Mounting Brackets
| Ideal for bonding to roof, no need for drilling. |
Ideal for motorhomes, campervans, caravans, lorries, buses, boats and yachts. |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |

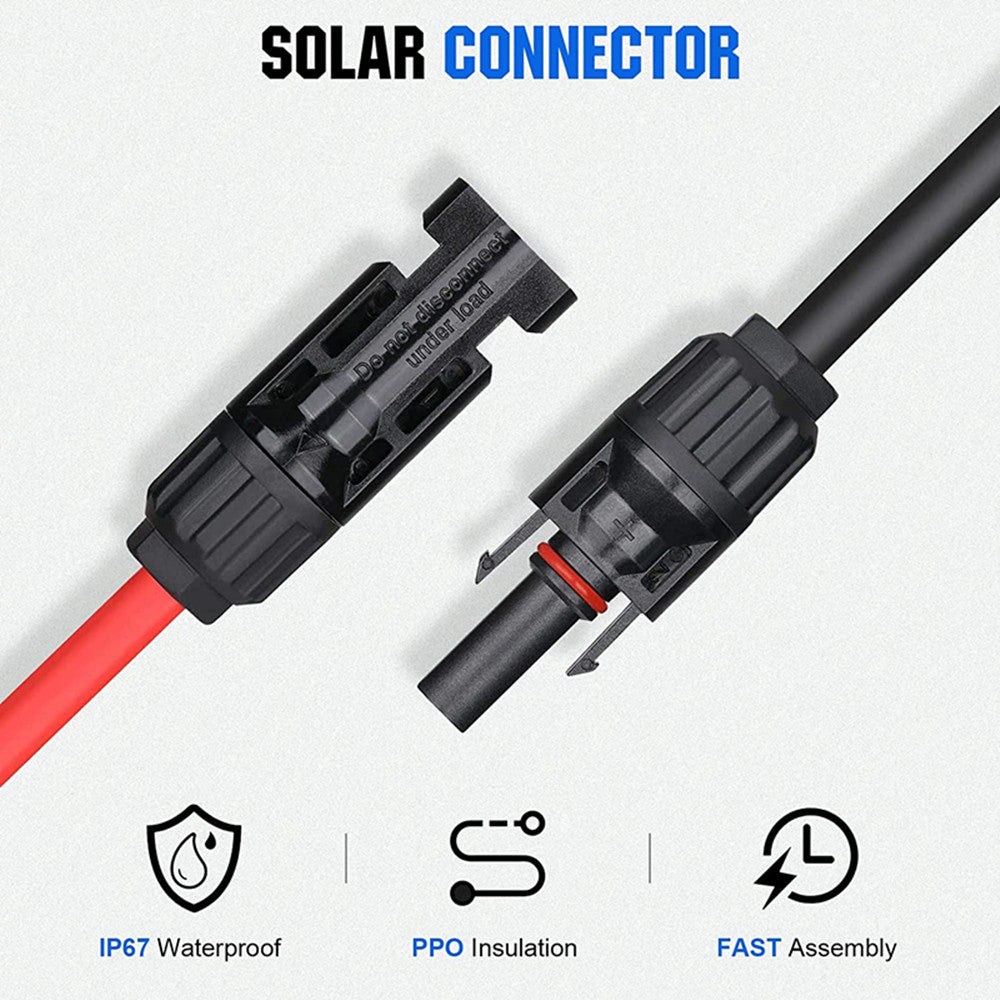

Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
