120W 240W 12V (1/2x120W) Complete Off Grid Solar Kit

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 120W 240W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 0.48kWh 0.96kWh per day.
ECO-WORTHY 120 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
600W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 120W 240W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

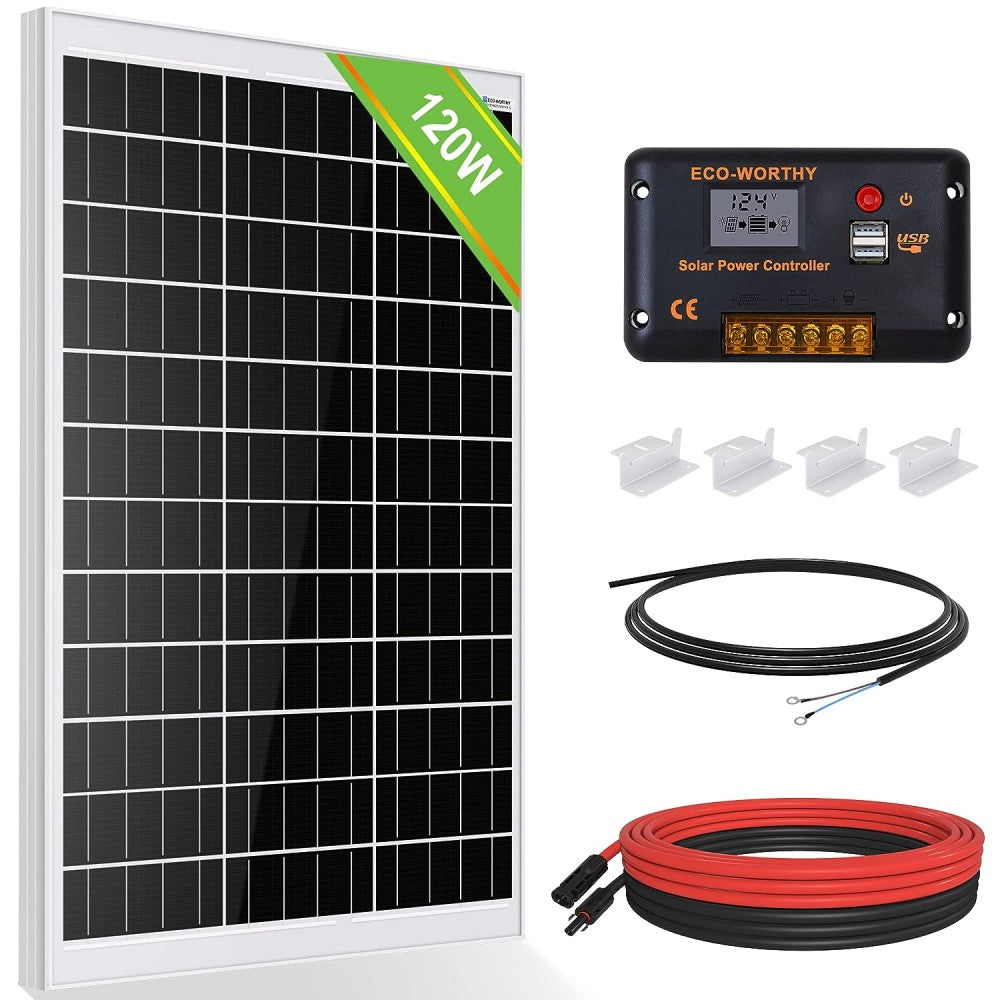

120W (1-Panel) 12V Solar Kit
1x 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Z Mounting Bracket
Inverter & Battery Options-

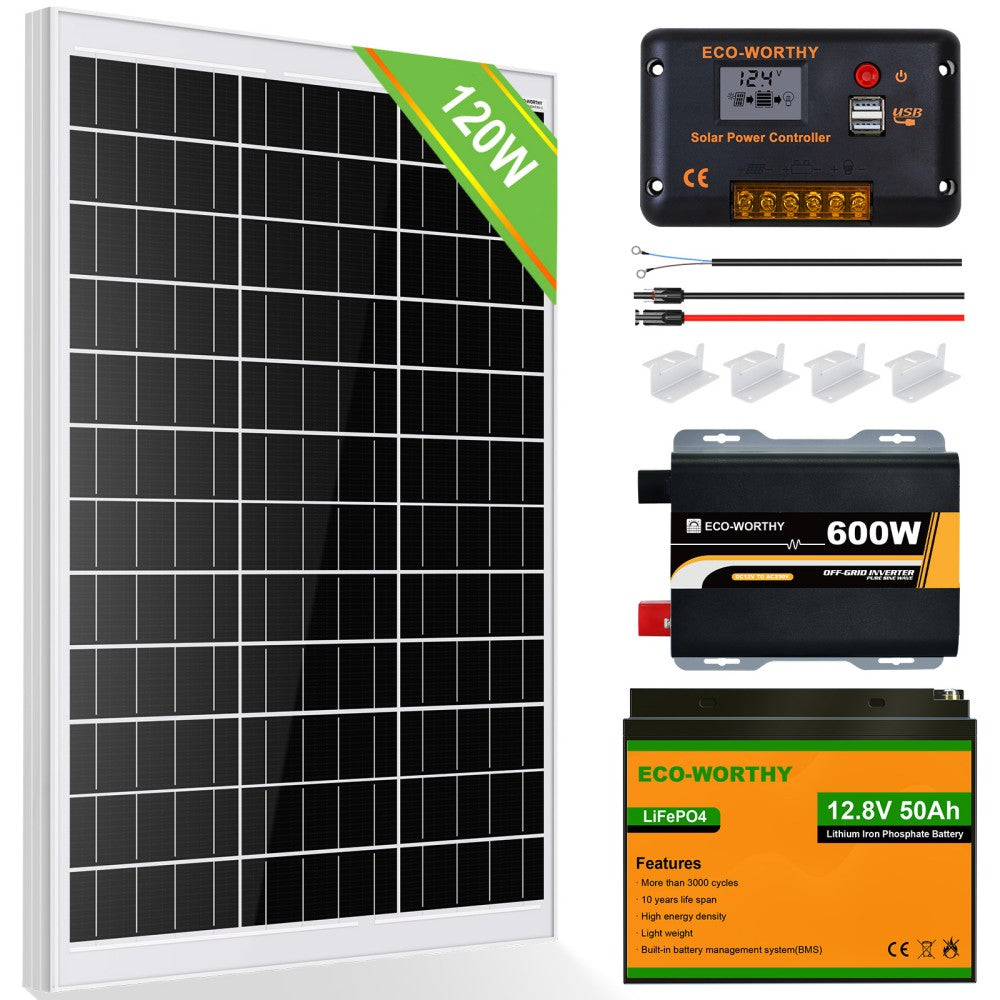

Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

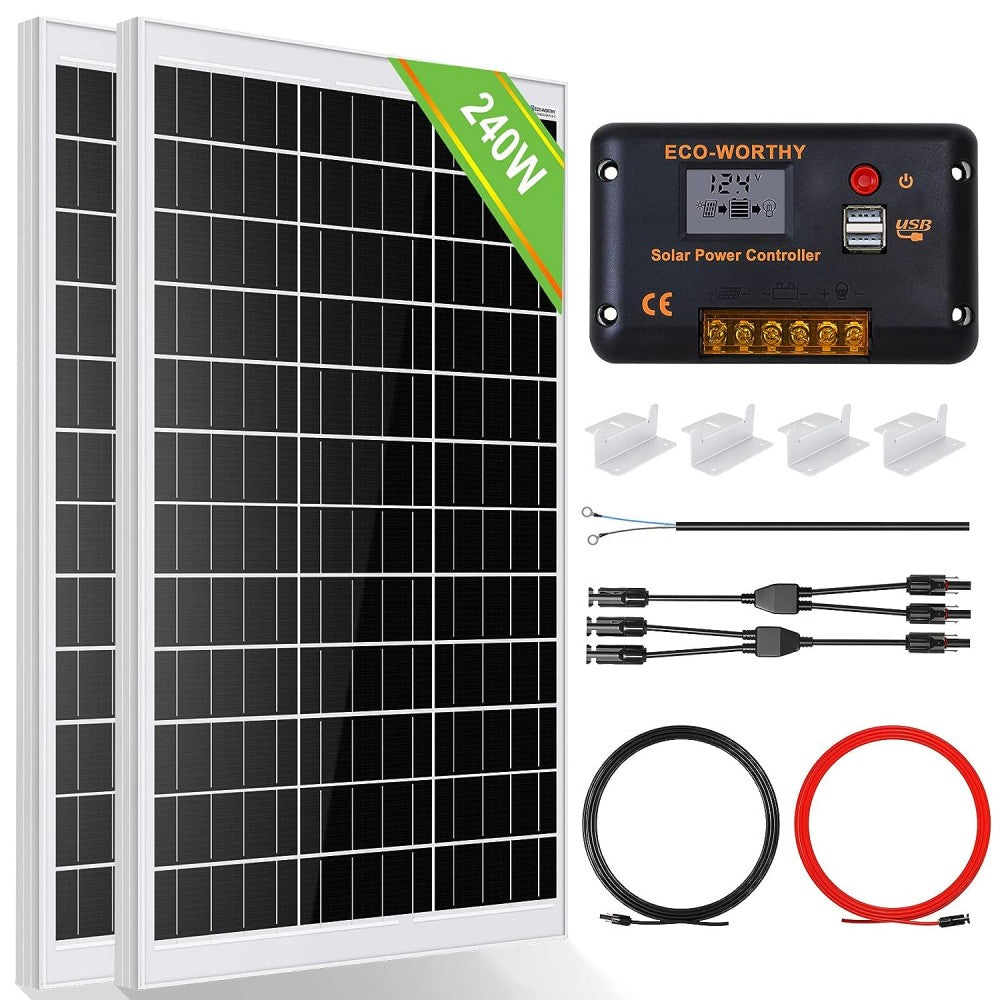

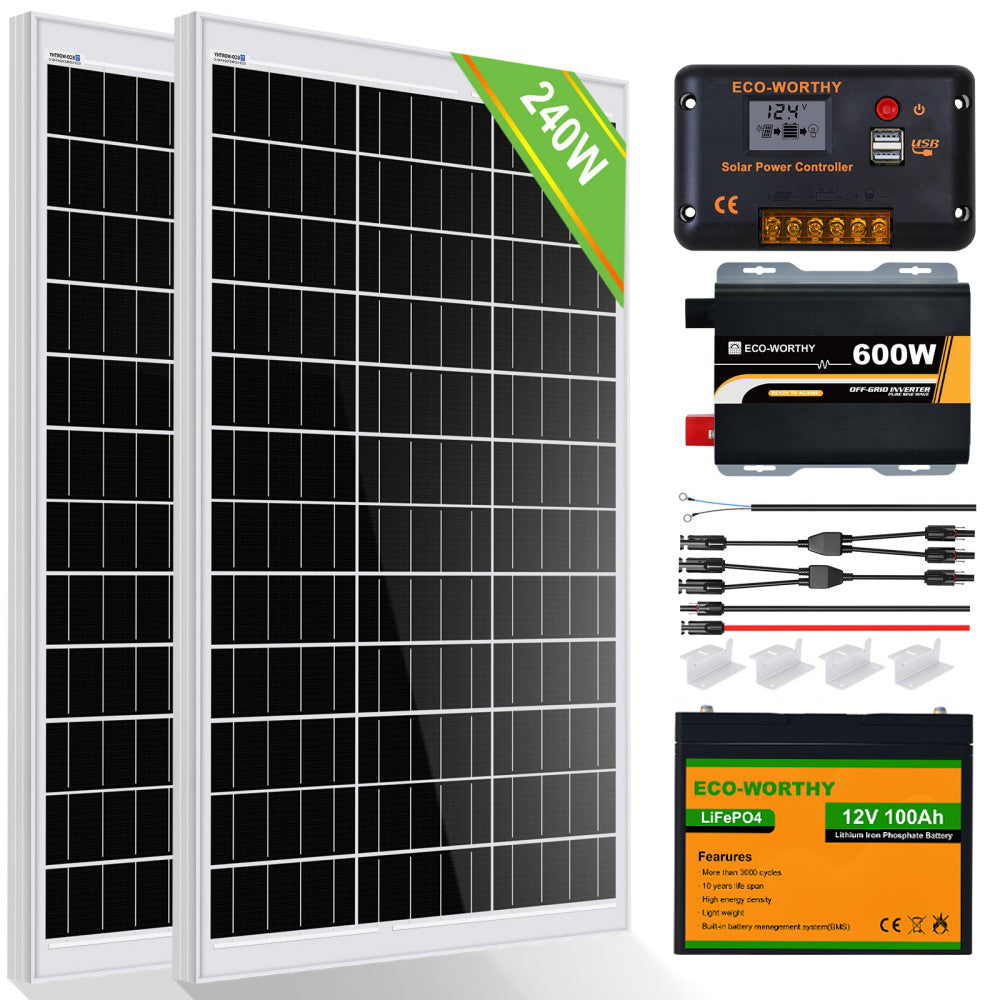

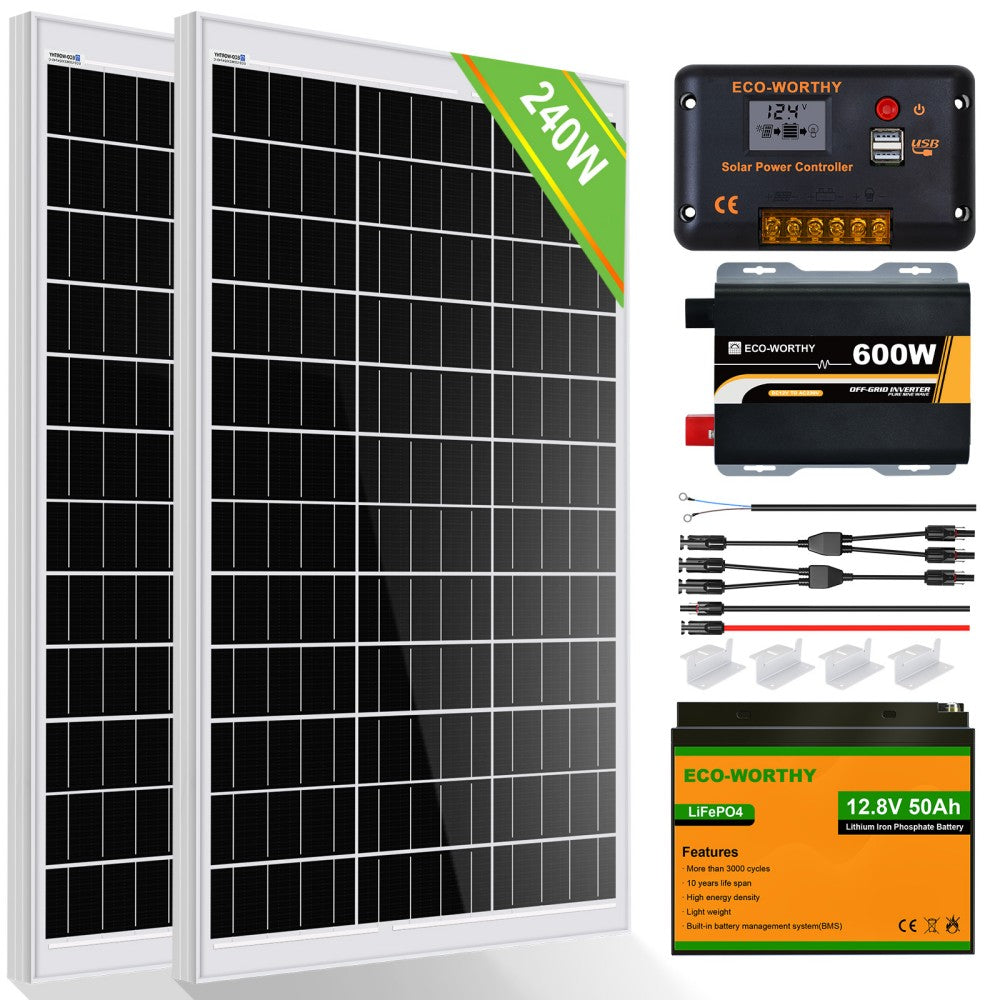

240W (2-Panel) 12V Solar Kit
2x 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
Inverter & Battery Options-
Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

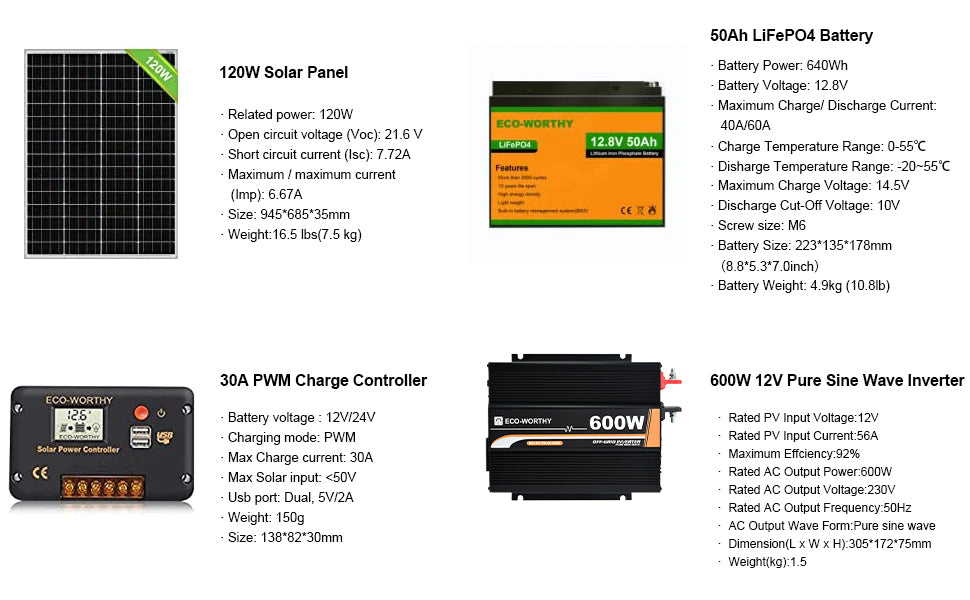

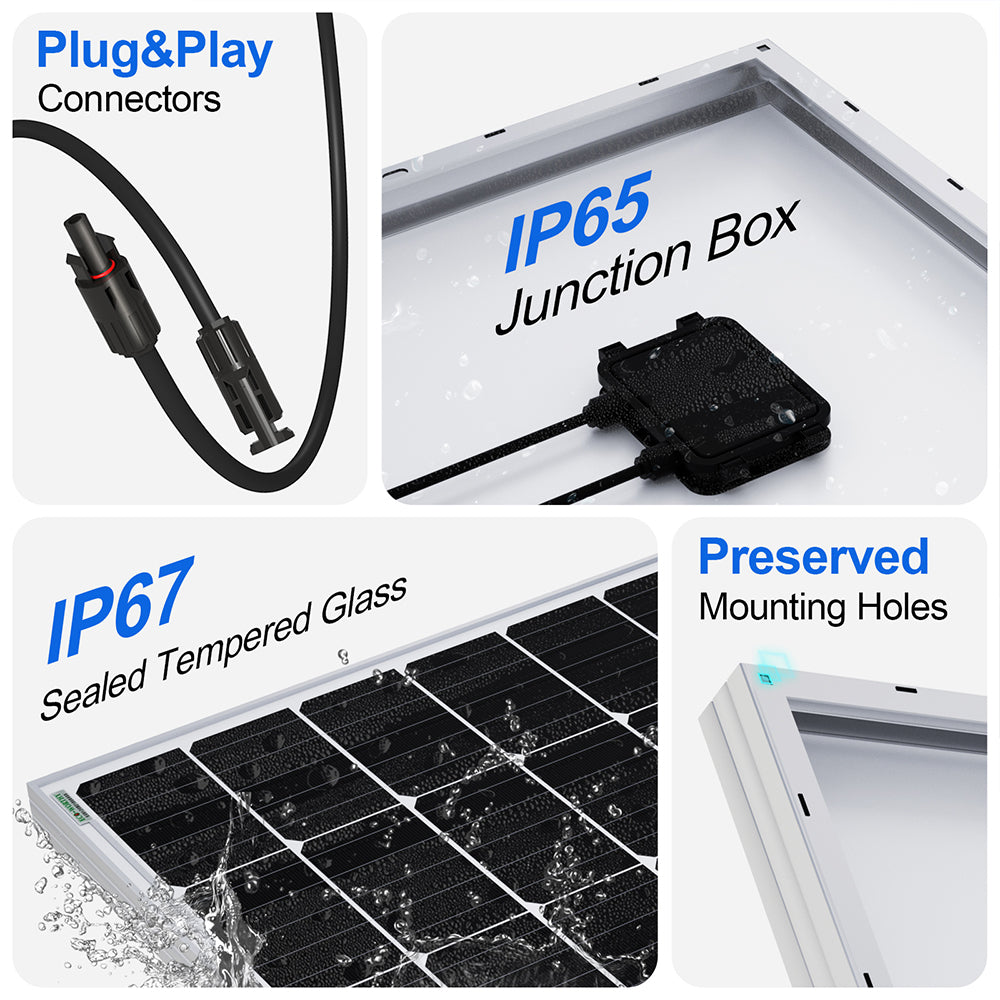

120W Monocrystalline Solar Panel

Rated Power: 120W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 6.24A	Maximum current: 5.94A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Size: 37.8" x 26.3" x 1.4"
Weight: 15.43 lbs(7.0 kg)

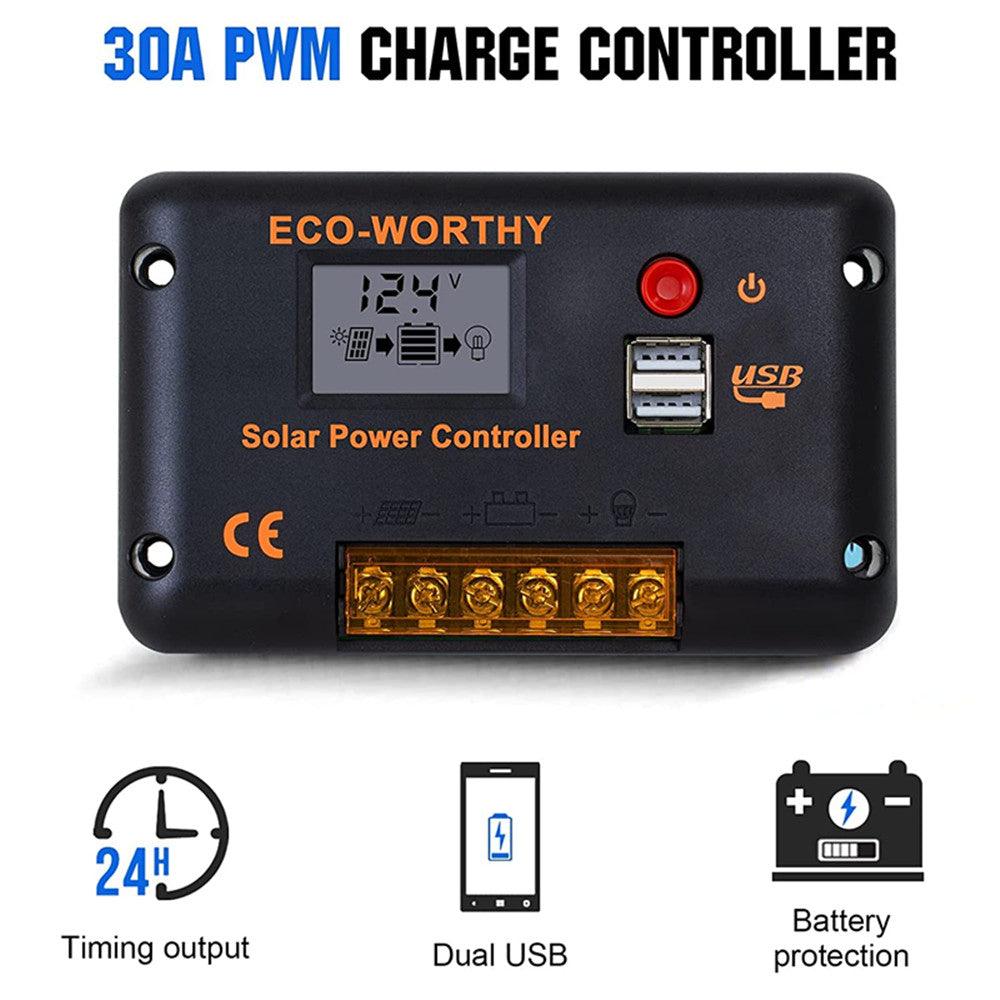

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

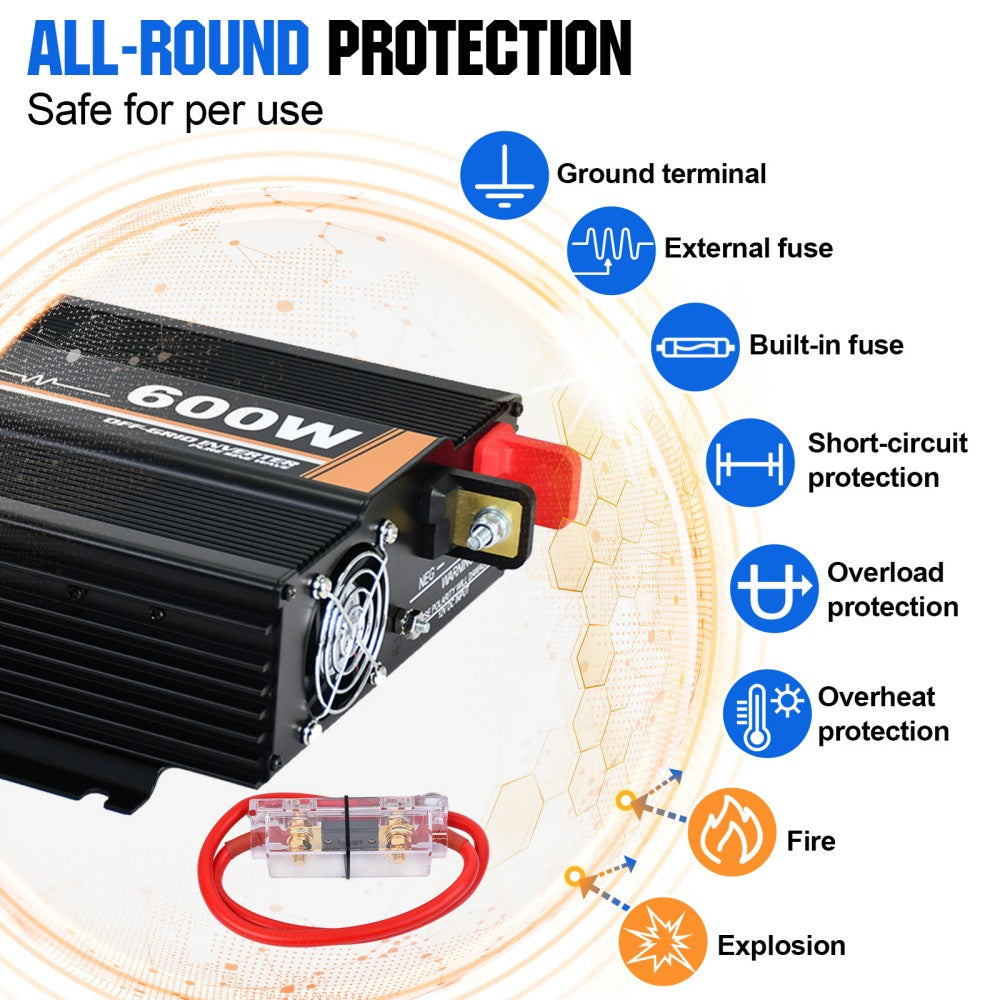

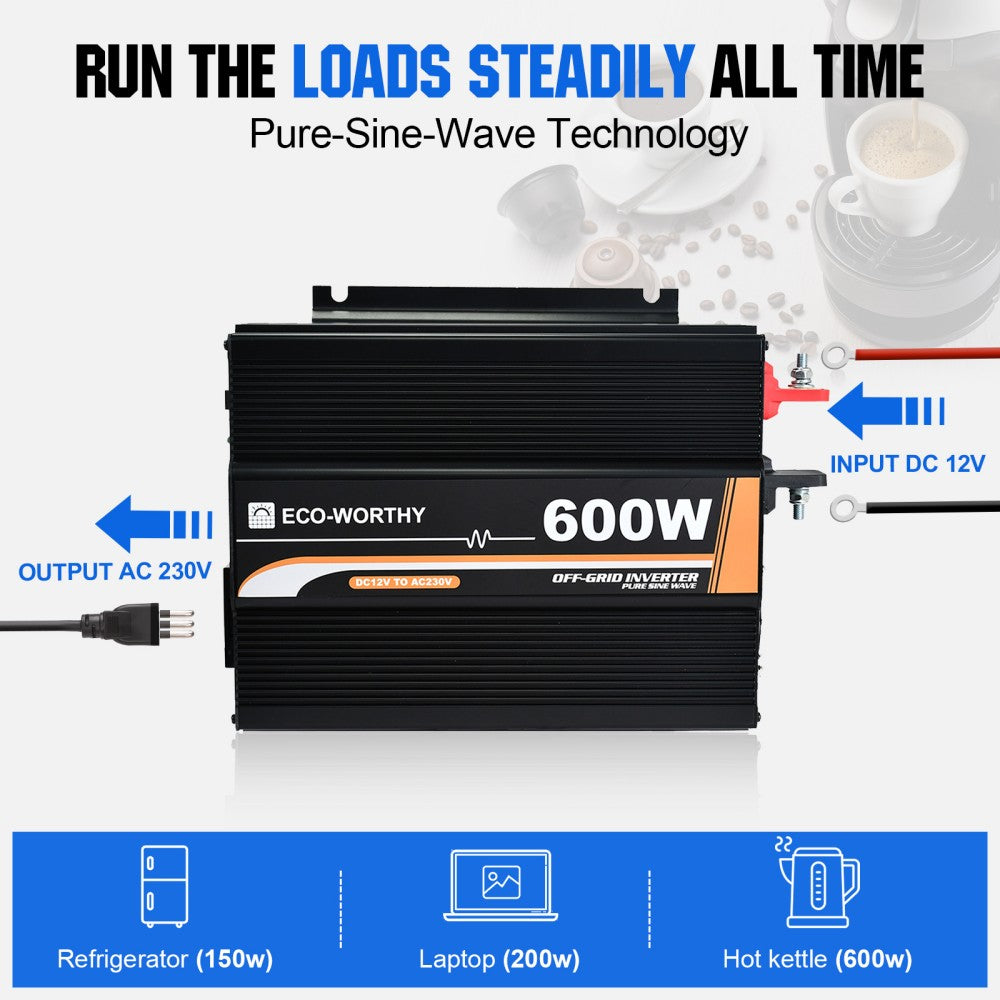

600W 12V Off Grid Inverter

Battery Input Voltage: 12V	Rated Power: 600W
Peak Power: 1200W	Output Waveform: Pure Sine Wave
Output Voltage: 220Vac	USB Output: 5V 1.2A
Extension Cable: 6mm²,9AWG,1 meter	Output Frequency: 50HZ ± 0.3HZ
AC Output Sockets: 1	Temperature: -20℃-40℃

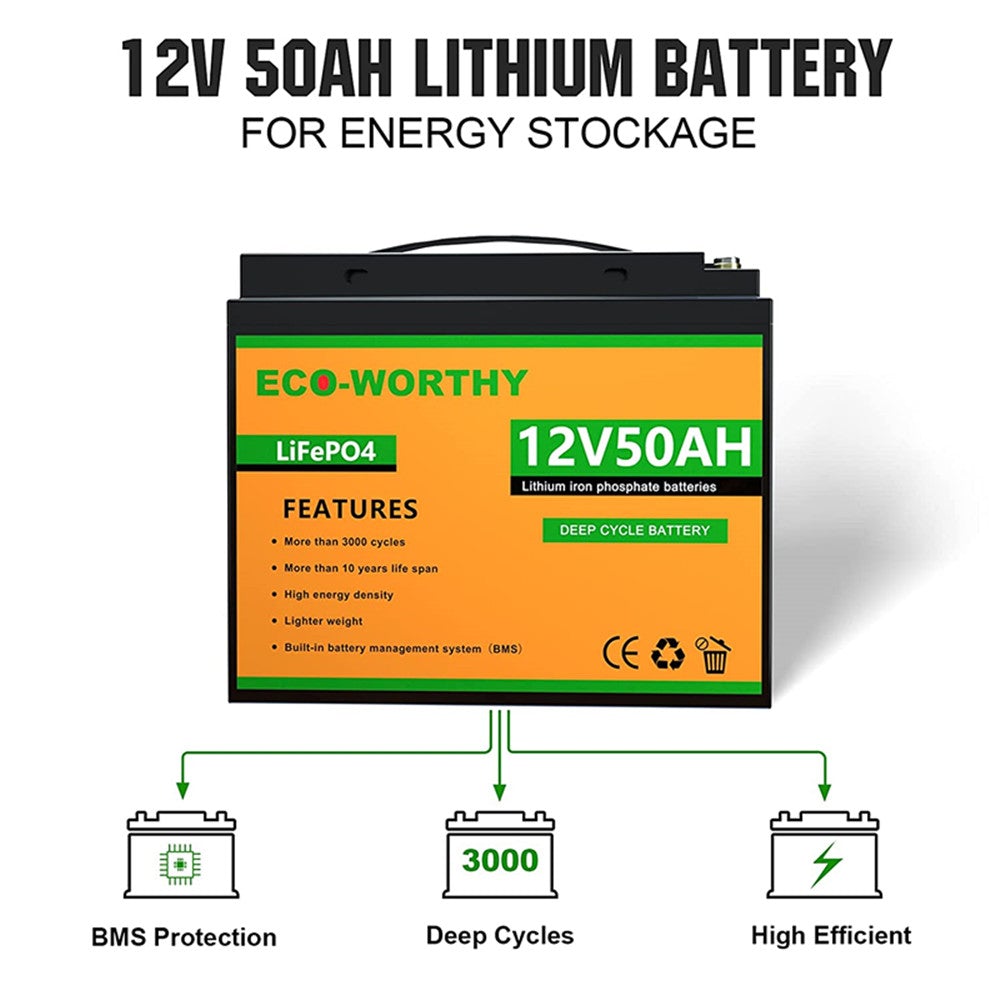

50Ah LiFePO4 Lithium Battery

Battery Capacity: 50ah	Battery Power: 640Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 50A/50A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M6	Battery Size: 223*135*185mm（8.8*5.3*7.3inch）
Battery Weight: 4.82kg（10.62lb）

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1280Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 100A/100A
Charge Temperature Range: 0-55℃	Discharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.6V	Operation Voltage: 10-14.6V
Screw size: M8	Battery Size: 260*168*209mm(10.2*6.6*8.23inch）
Battery Weight:10.5kg(23.15lbs)

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
