Eco-Worthy 120W 240W 12V (1/2x120W) Complete Off Grid Solar Panel Kit

Name: Eco-Worthy 120W 240W 12V (1/2x120W) Complete Off Grid Solar Panel Kit
Brand: eco-worthy-uk
Price: 409.99 GBP
Availability: InStock
Rating: 4.78 (27 reviews)

£409.99

£409.99 ~~£564.69~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L02M120N-CWZIEU600L50-1

[Output Power 1kWh per day] The 240W solar power system maximum generates 1kWh per day under 4 hours full sunshine, ideal for home, shed,cabin,RV or energy backpack and provide enough power for air condition, TV, refrigerator, coffee maker,microwave and other AC 220V devices

[High Capacity Lithium Battery Pack] Equipped with 640Wh of 50Ah lithium battery,which have higher discharging efficiency and more than 4000 times deep cycles than lead acid batteries. Besides built-in BMS(battery management system)

[Durable Solar Panels] The monocrystalline solar panel is compactly designed with the size of 960*670*35mm. The aluminum frame and tempered glass panel is perfect for outdoor use, allowing the panels to last for decades. The IP66 waterproof panel can also withstand high winds (2400Pa) and snow loads (5400Pa)

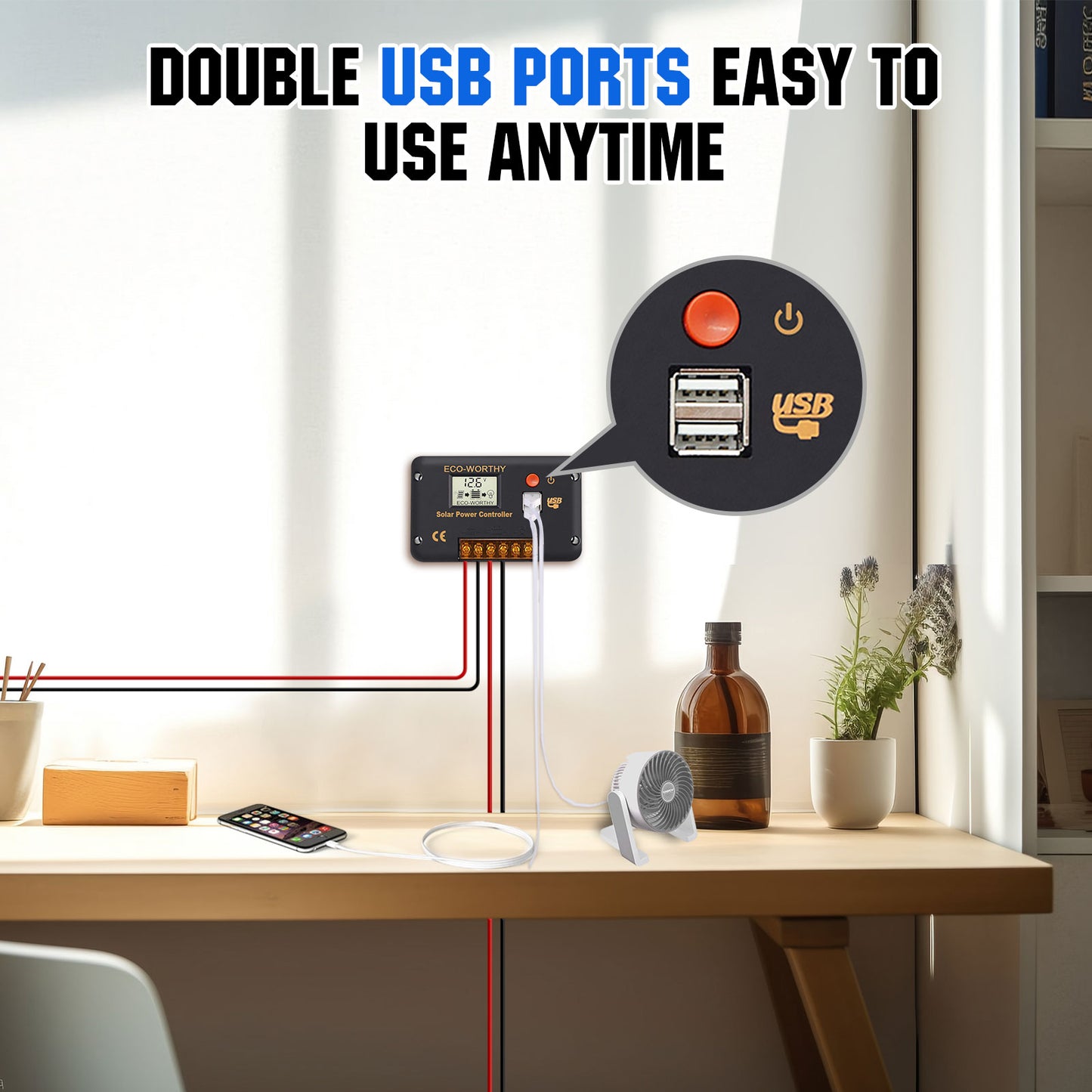

[30A 12V/24V PWM Charge Controller] The solar controller has short-circuit protection, open-circuit protection, reverse protection, and over-load protection. The intelligent charge regulator is compatible with lead-acid, gel and lithium phosphate battery. With dual USB outputs and each port maximum 5V 2A, this controller can directly charge mobile phones

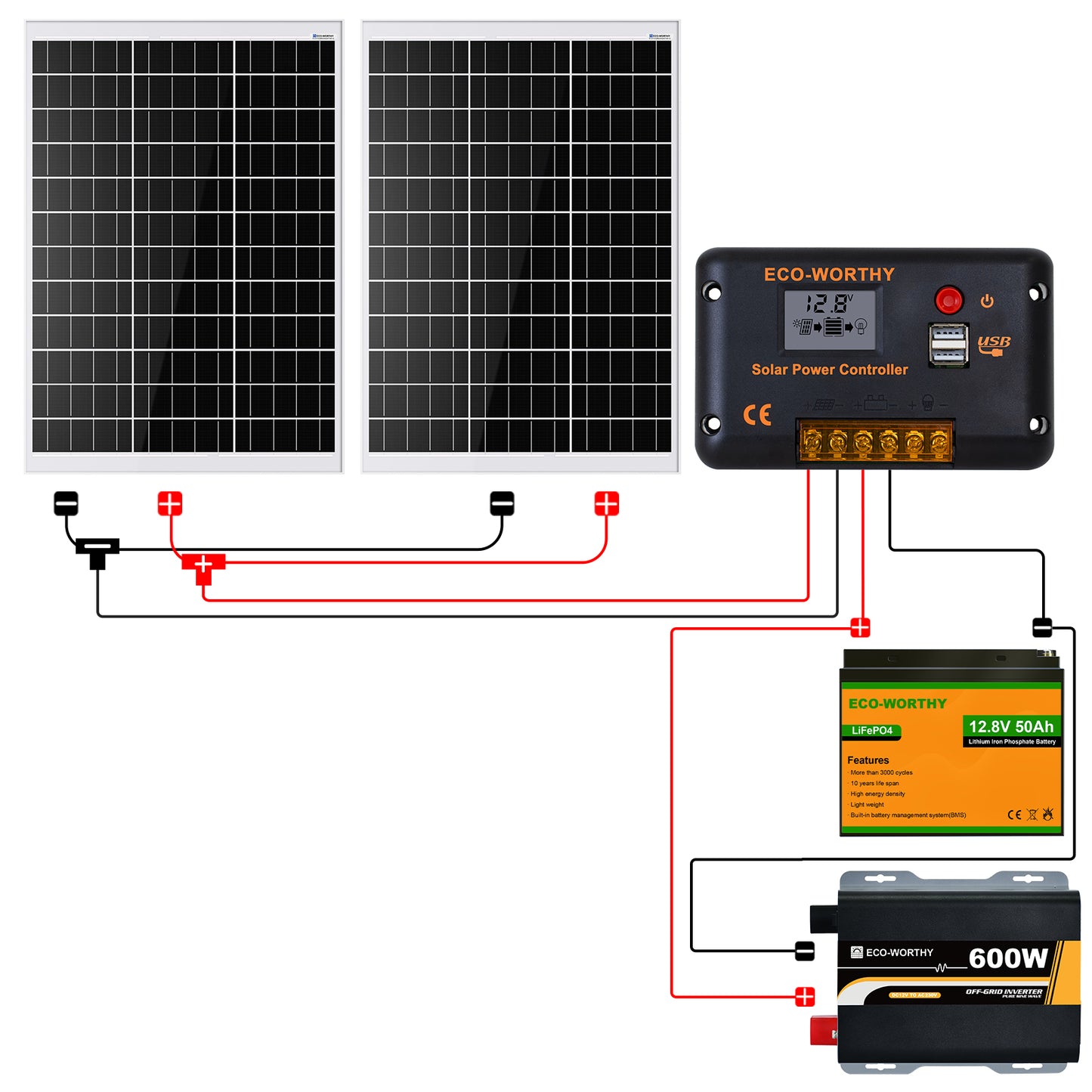

[A Solution to Rising Electricity Bills] This system includes 2pcs 120W solar panels, 1pcs 50Ah LiFePO4 battery, 1pc 600W solar inverter, 1pc 30A solar controller and several cables needed. This system can be an option for alleviating the rising electricity bills, for this one-time investment will bring at lease 25-year enery abundance

Extra 10% Off

SOLAR10

Copy

Using the coupon code for 240W kit, Get extra 10% OFF

Solar Kits 120W (1-Panel) 12V Solar Kit 240W (2-Panel) 12V Solar Kit

Inverter & Battery Options Complete Lithium Kit None Complete Kit Pro

Quantity

Total price

£409.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £102.49 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£119.99 £158.81

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

120W 240W 12V (1/2x120W) Complete Off Grid Solar Kit

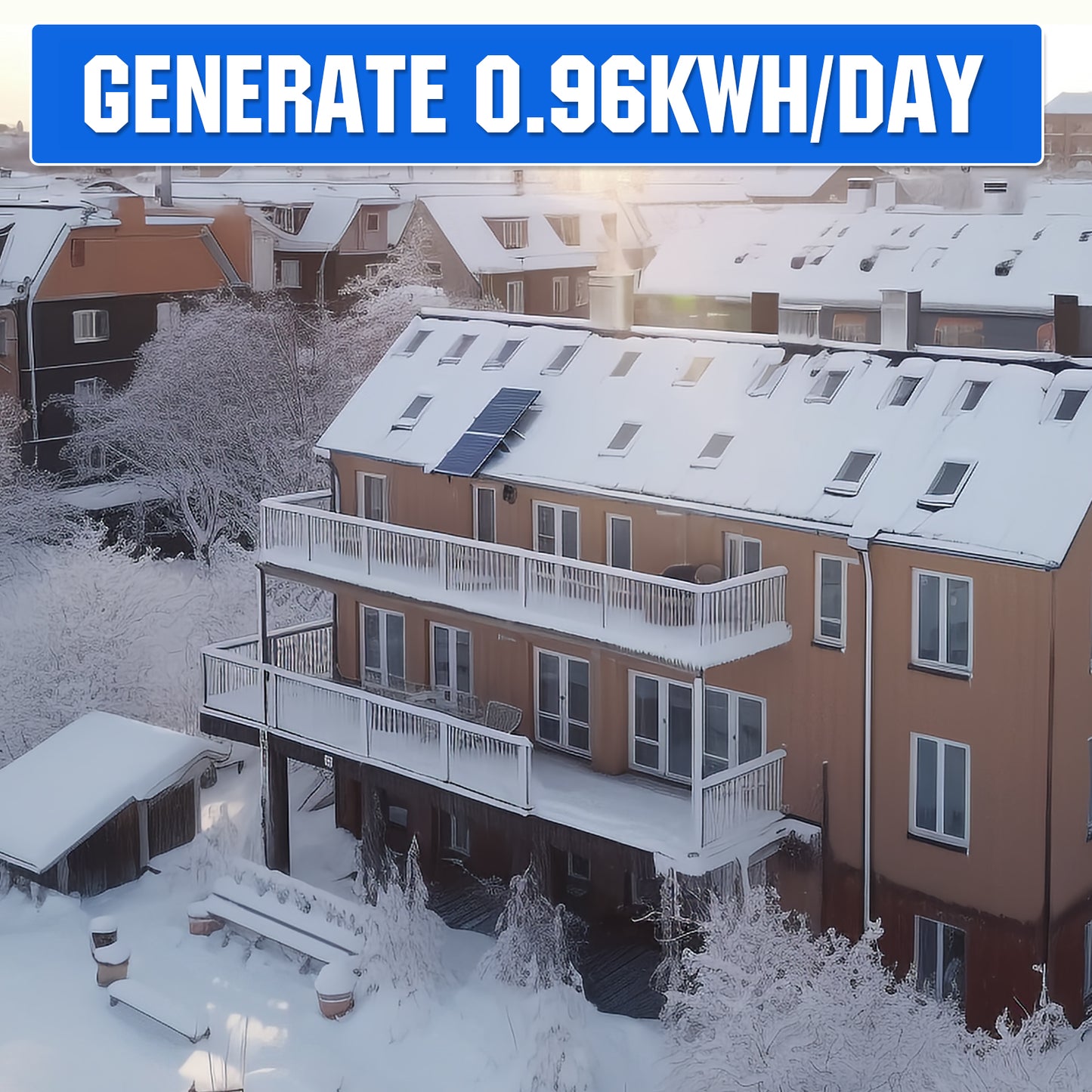

Eco-Worthy 120W 240W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 0.48kWh 0.96kWh per day. It can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV.

Technical Specifications

LiFePO4 12V 100Ah Lithium Battery

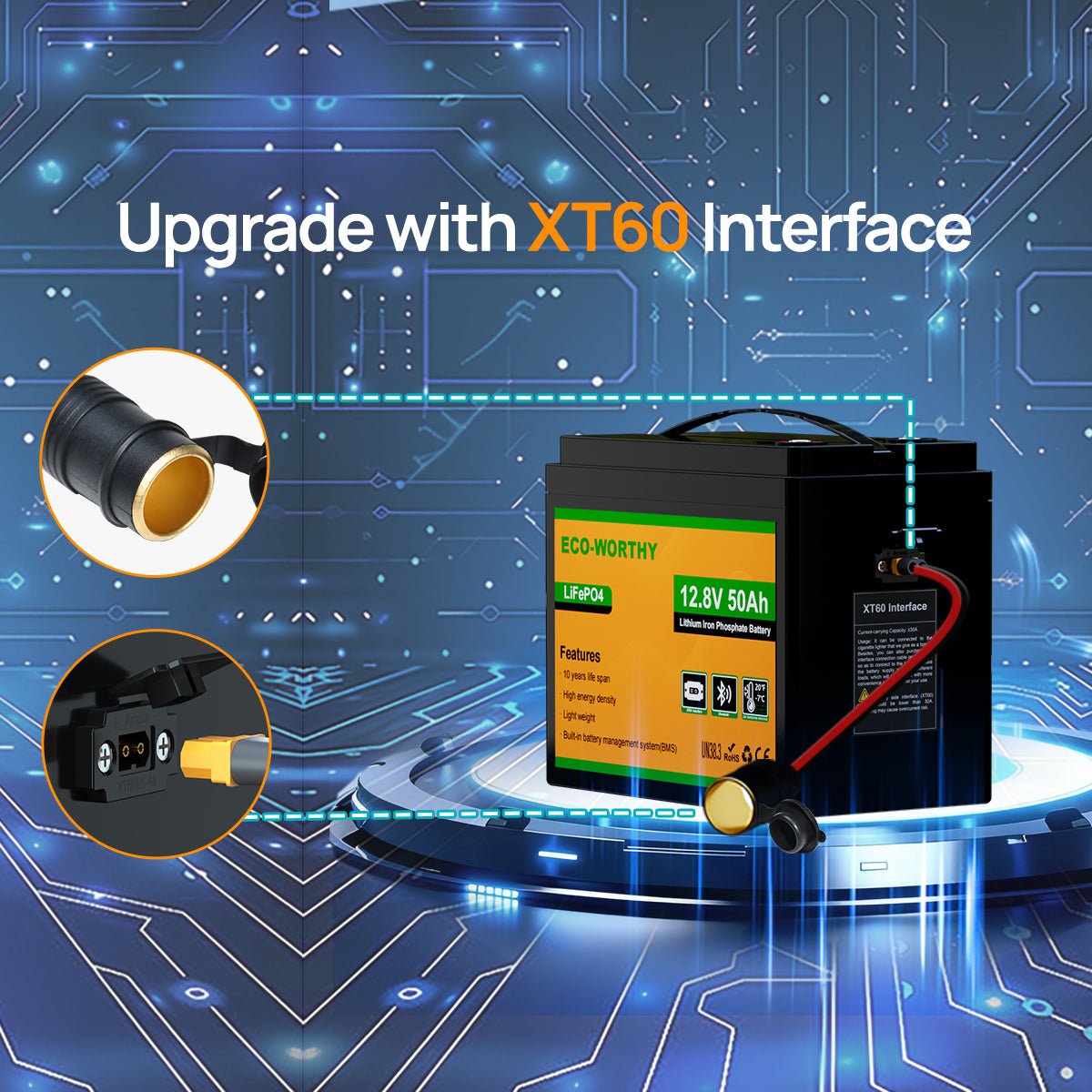

12V 50Ah LiFePO4 Lithium Battery XT60

Bifacial 120W 12V Monocrystalline Solar Panel

600W Off Grid Pure Sine Wave Inverter

30A PWM LCD Display Solar Charge Controller

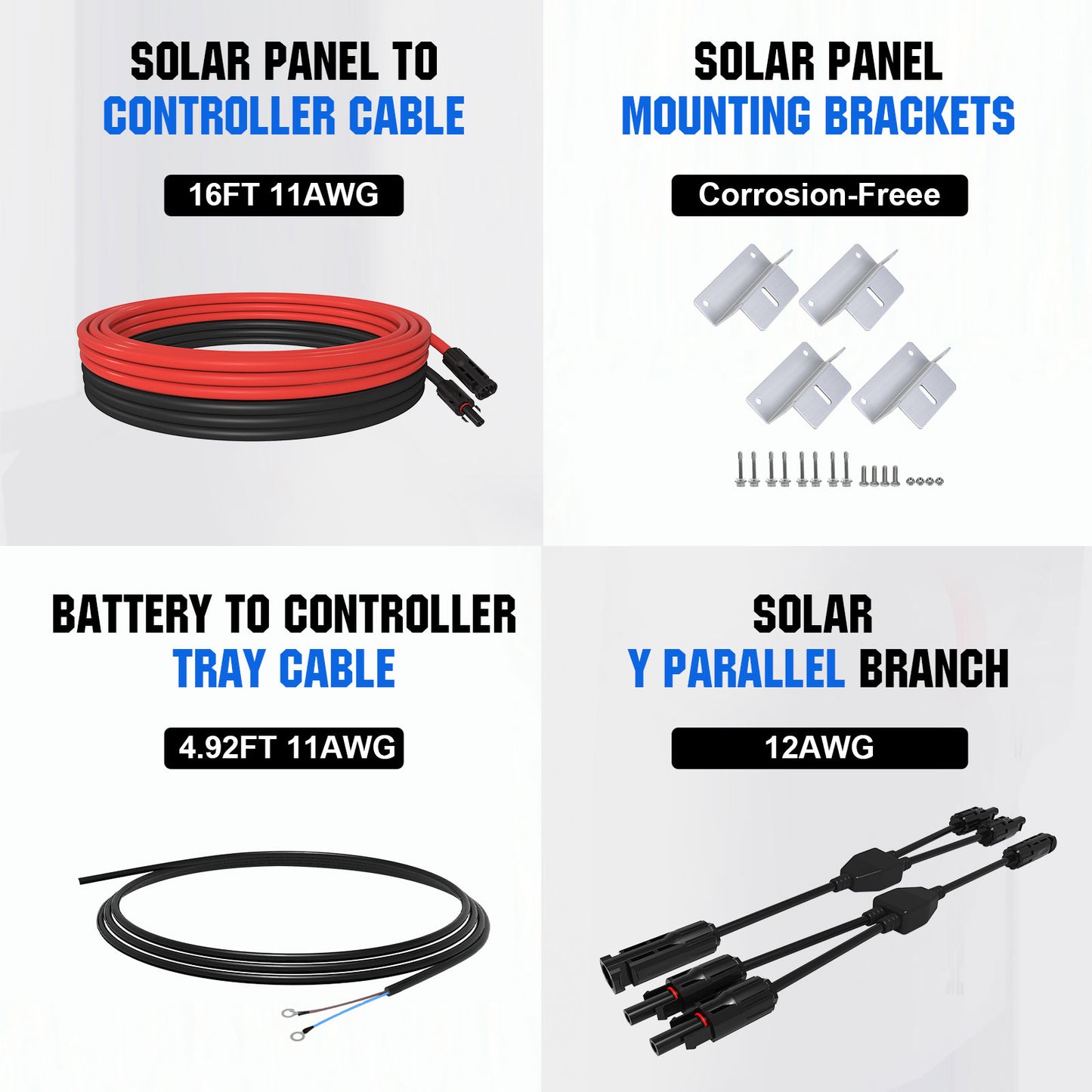

Z Style Solar Panel Mounting Brackets

Solar Extension Cables Wires with MC4

Y Parallel Branch Connectors MFF

Battery Capacity:

100Ah

Battery Power:

1280Wh

Battery Voltage:

12.8V

Maximum Charge/ Discharge Current:

100A/100A

Charge Temperature Range:

0-45℃

Discharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

14.6V

Discharge Cut-Off Voltage:

10V

Screw size:

Battery Size:

260*168*214mm（10.2*6.6*8.4inch）

Battery Weight:

10.5 kg

Battery Capacity:

50Ah

Battery Power:

640Wh

Battery Voltage:

12.8V

Maximum Charge/ Discharge Current:

50A/50A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

14.6V

Discharge Cut-Off Voltage:

10V

Screw size:

Battery Size:

232*135*181mm（9.1*5.3*7.1inch）

Battery Weight:

5.74kg（12.65lbs）

Rated Power:

120W

Solar Cell:

Monocrystalline

Maximum/Peak Voltage(Vmp):

20.2V

Open Circuit Voltage(Voc):

24.5V

Short circuit current:

5.94A

Maximum current:

6.24A

Output Tolerance:

-(0.38+/-0.01)%/℃

Temperate coefficient of Isc:

－40℃～ +85℃

Temperate coefficient of Voc:

Aluminum alloy frame

Temperature range:

15.43 lbs(7.0 kg)

Frame:

37.8x26.3x1.4in (960*670*35mm)

Weight:

Size:

Battery Input Voltage:

12V

Rated Power:

600W

Peak Power:

1200W

Output Waveform:

Pure Sine Wave

Output Voltage:

230Vac

USB Output:

5V 1.2A

Extension Cable:

6mm²,9AWG,1 meter

Output Frequency:

50HZ ± 0.3HZ

AC Output Sockets:

Temperature:

-20℃-40℃

Battery voltage:

12V/24V

Charging mode:

PWM

Max Charge current:

30A

Discharge current:

30A

Max.PV Open-Circuit Voltage:

<50V

USB Output:

5V/2A

Working Temperature:

-20℃~60℃

Weight:

150g

Size:

138*85*30mm

Material:

Aluminum Alloy

Size of Screw and Nut:

Weight:

0.85kg

Cable Type:

Connecting Solar Panels to Charge Controllers

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

Normal Cross Sectional Area of the Conductor (mm2):

Waterproof:

IP 65 Protection

Temperature:

40°F to +185°F

Connector:

MC4

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Included in the Box

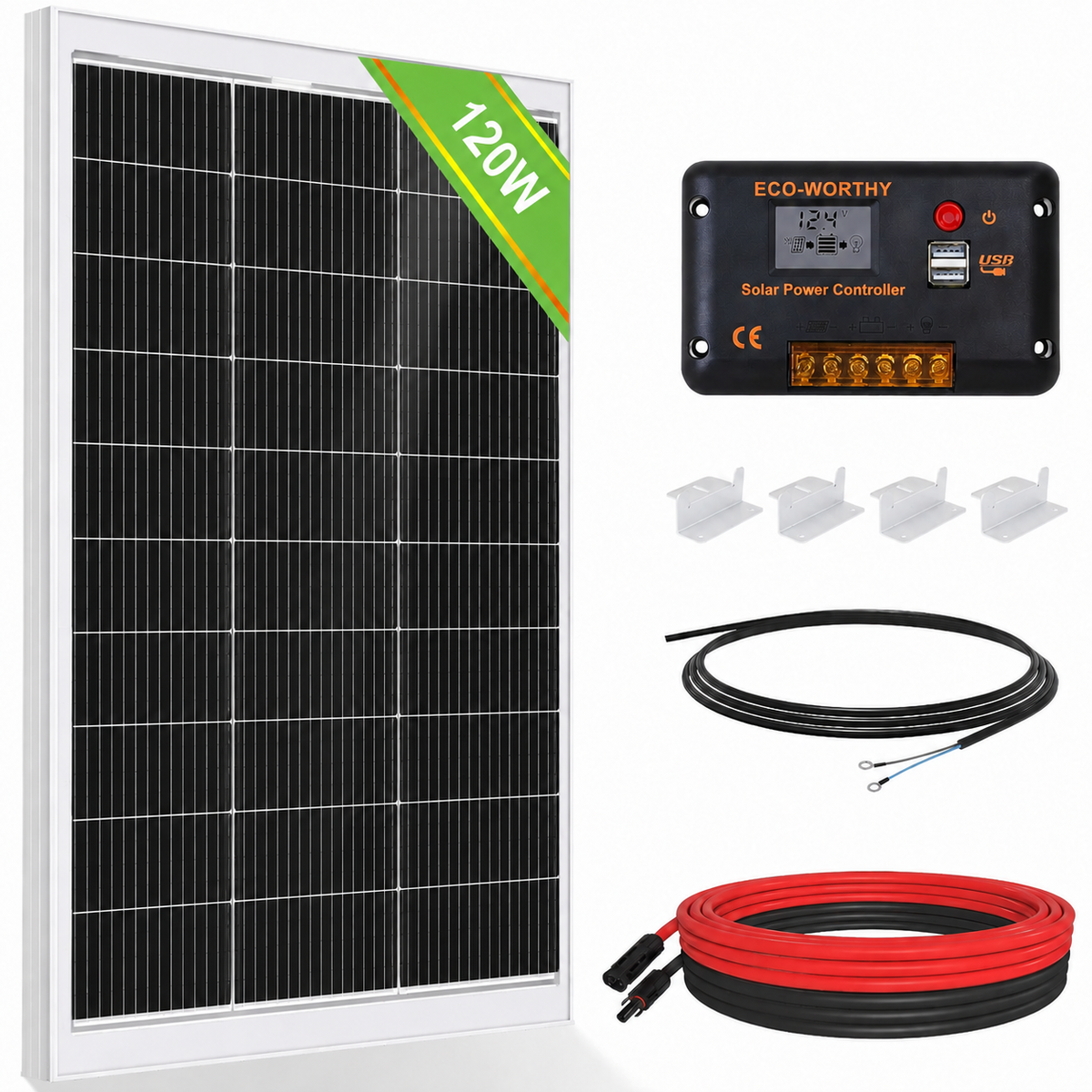

1x120W Mono Solar Panel
1x30A PWM Solar Controller
1x5M 12AWG Extension Cable with MC4
1xZ Mounting Bracket

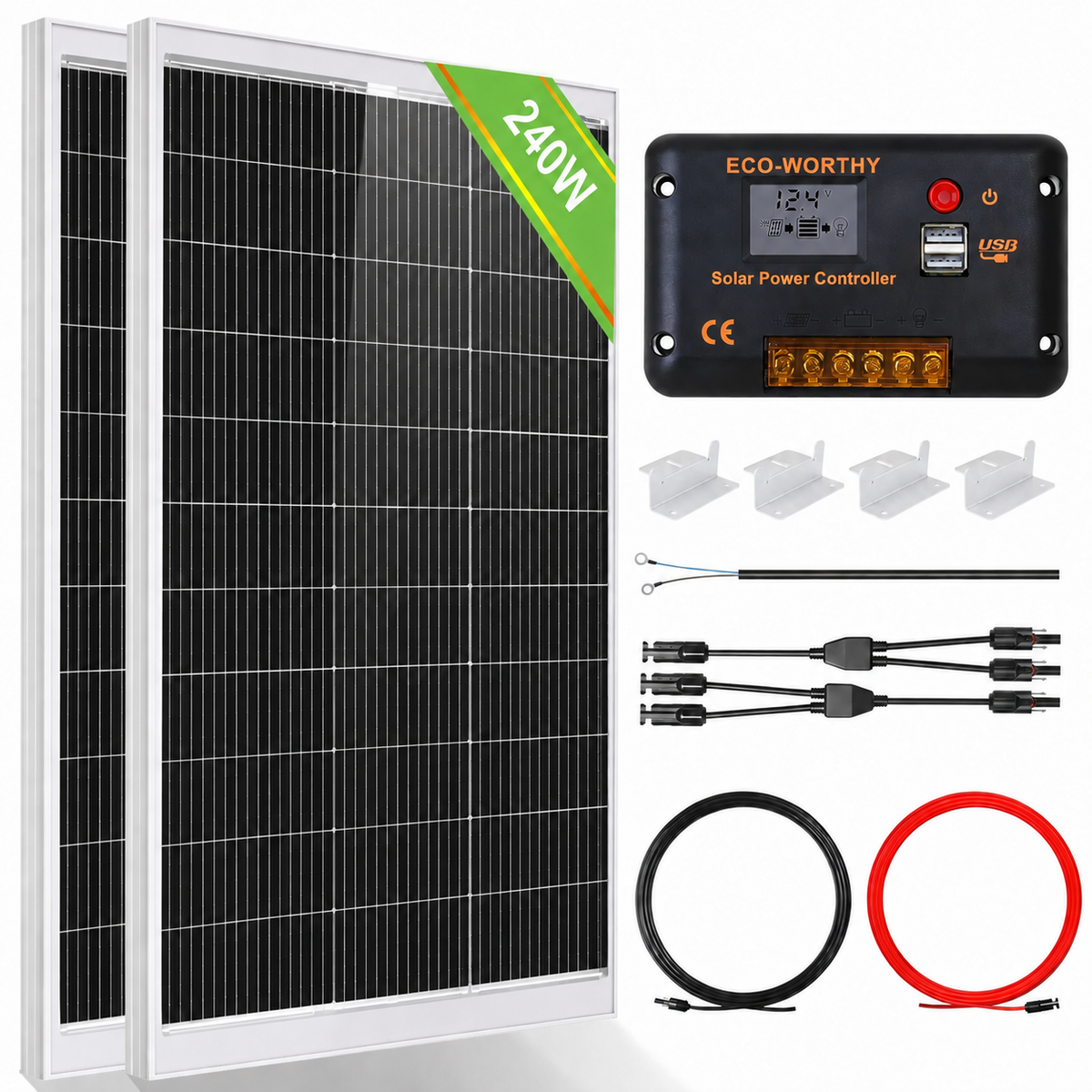

2x120W Mono Solar Panel
1x30A PWM Solar Controller
1x5M 12AWG Extension Cable with MC4
2xZ Mounting Bracket
1xY MC4 Connector

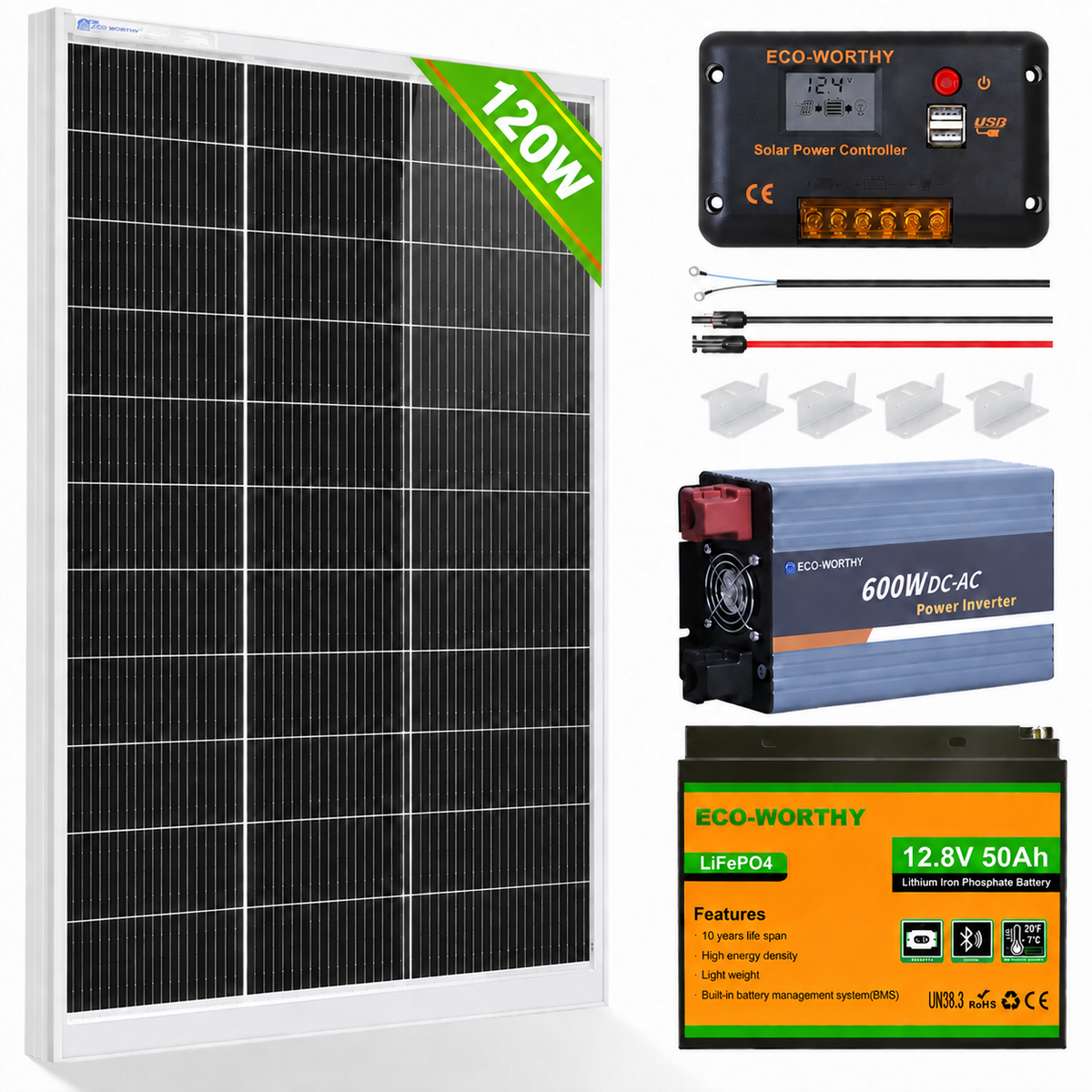

1x120W Mono Solar Panel
1x30A PWM Solar Controller
1x5M 12AWG Extension Cable with MC4
1xZ Mounting Bracket
1x1.5M Tray Cable
1x600W 12V-220V Pure Sine Wave Inverter
1x50Ah 12V LiFePO4 Lithium Battery

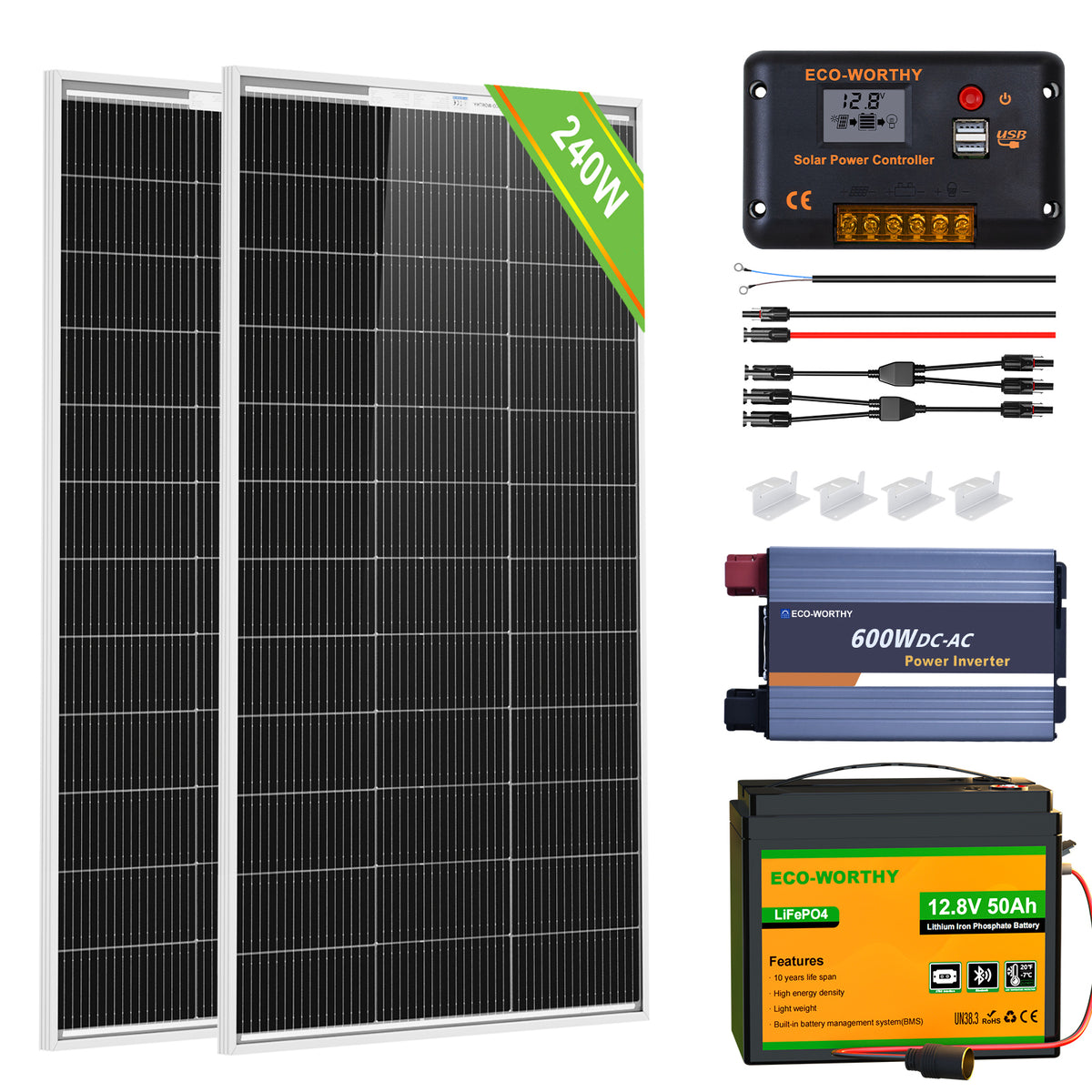

2x120W Mono Solar Panel
1x30A PWM Solar Controller
1x5M 12AWG Extension Cable with MC4
2xZ Mounting Bracket
1xY MC4 Connector
1x1.5M Tray Cable
1x600W 12V-220V Pure Sine Wave Inverter
1x12V 50Ah LiFePO4 Lithium Battery

2x 120W Mono Solar Panel
1x30A PWM Solar Controller
1x5M 12AWG Extension Cable with MC4
2xZ Mounting Bracket
1xY MC4 Connector
1x1.5M Tray Cable
1x600W 12V-220V Pure Sine Wave Inverter
1x12V 100Ah LiFePO4 Lithium Battery

User manual

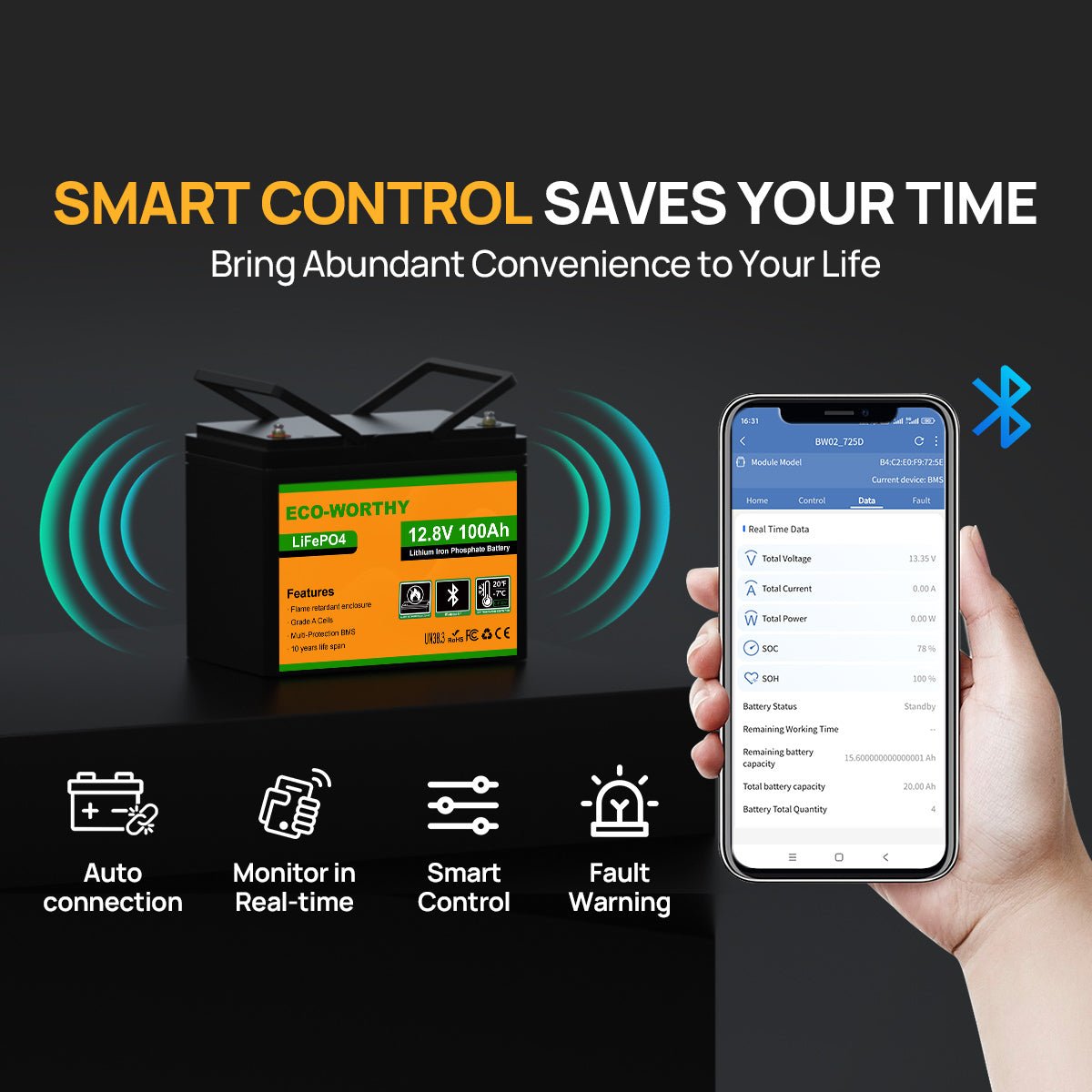

Eco-Worthy Bluetooth APP - User Manual

Download

Eco-Worthy 12V 100Ah LiFePO4 Lithium Battery with Bluetooth - User Manual

Download

Eco-Worthy 12V 50Ah LiFePO4 Lithium Battery - User Manual

Download

Eco-Worthy Bifacial 120W 12V Monocrystalline Solar Panel - User Manual

Download

Eco-Worthy 600W Off Grid Pure Sine Wave Inverter 12V to 230V- User Manual

Download

Eco-Worthy 12V/24V 30A PWM Solar Charge Controller - User Manual

Download

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
