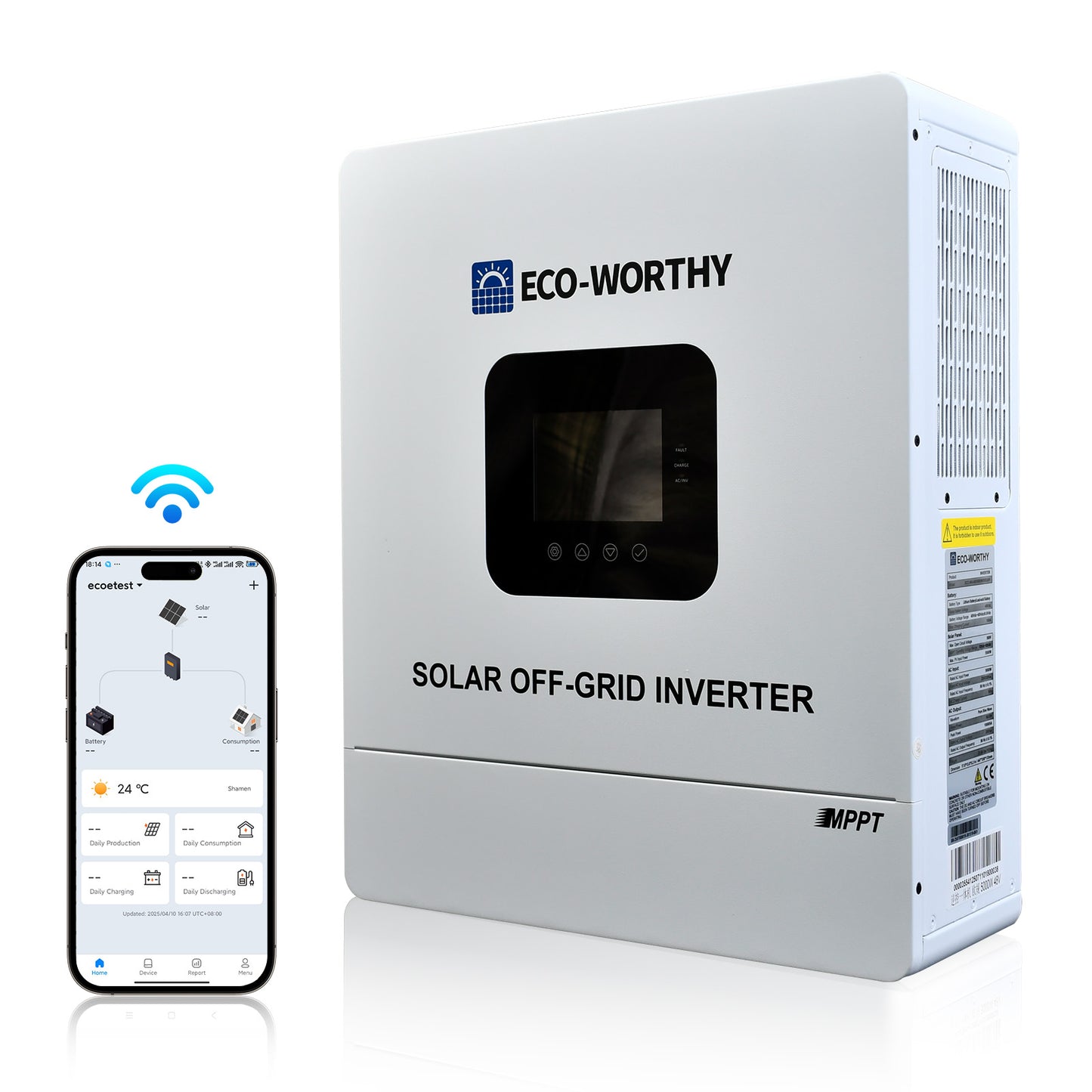

48V 5000W Solar All-in-one Inverter MPPT Controller & Pure Sine Wave for Off-Grid & Backup

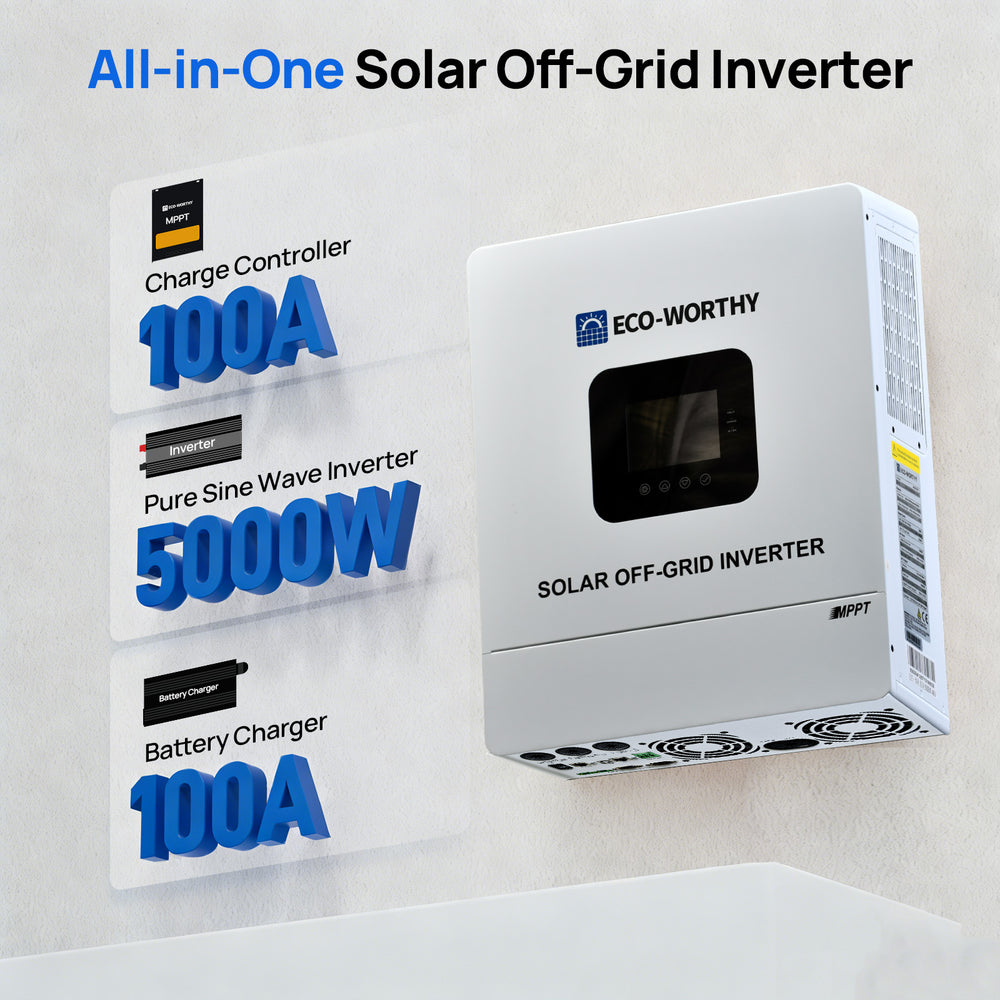

The Eco Worthy 48V 5000W solar inverter is an all-in-one off-grid power solution with pure sine wave output and a built-in 100A MPPT solar charge controller. It delivers 5000W rated power and 10000W peak power, with ≤10ms mains bypass switching. Supporting high-voltage PV input up to 500VDC and 48V lithium or lead-acid batteries, it ensures efficient, stable and reliable energy management for home and backup solar systems.

AC Input Mode
Rated Input Voltage: 220/230VAC	Input Voltage Range:  (170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
Frequency:  50Hz/ 60Hz (Auto detection)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: >92%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A	Conversion time (bypass：10ms (typical)

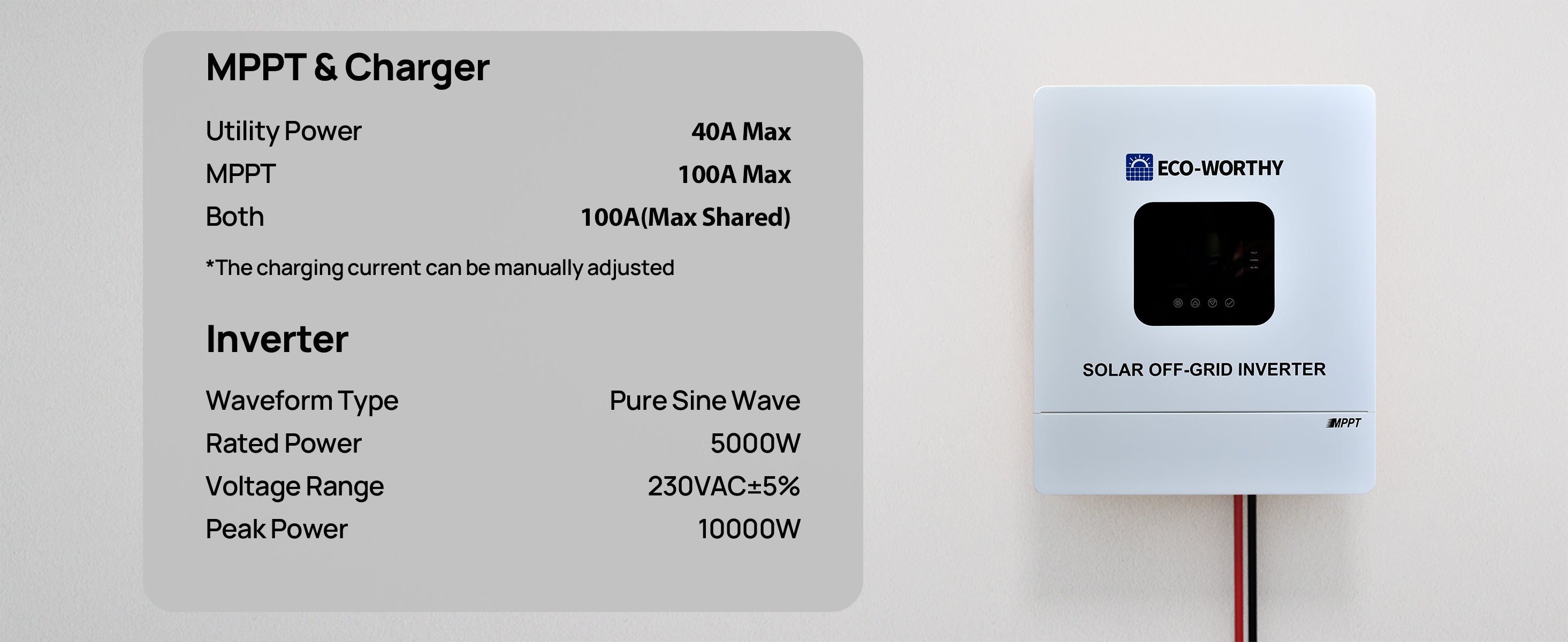

Invert Mode
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output Voltage: 230VAC	Peak Power: 10000W
Output frequency range : 50Hz ± 0.3Hz, 60Hz ± 0.3Hz	Maximum Efficiency: >92%
Rated battery i: 4HP	Rated battery input: 48v
AC Charging Mode

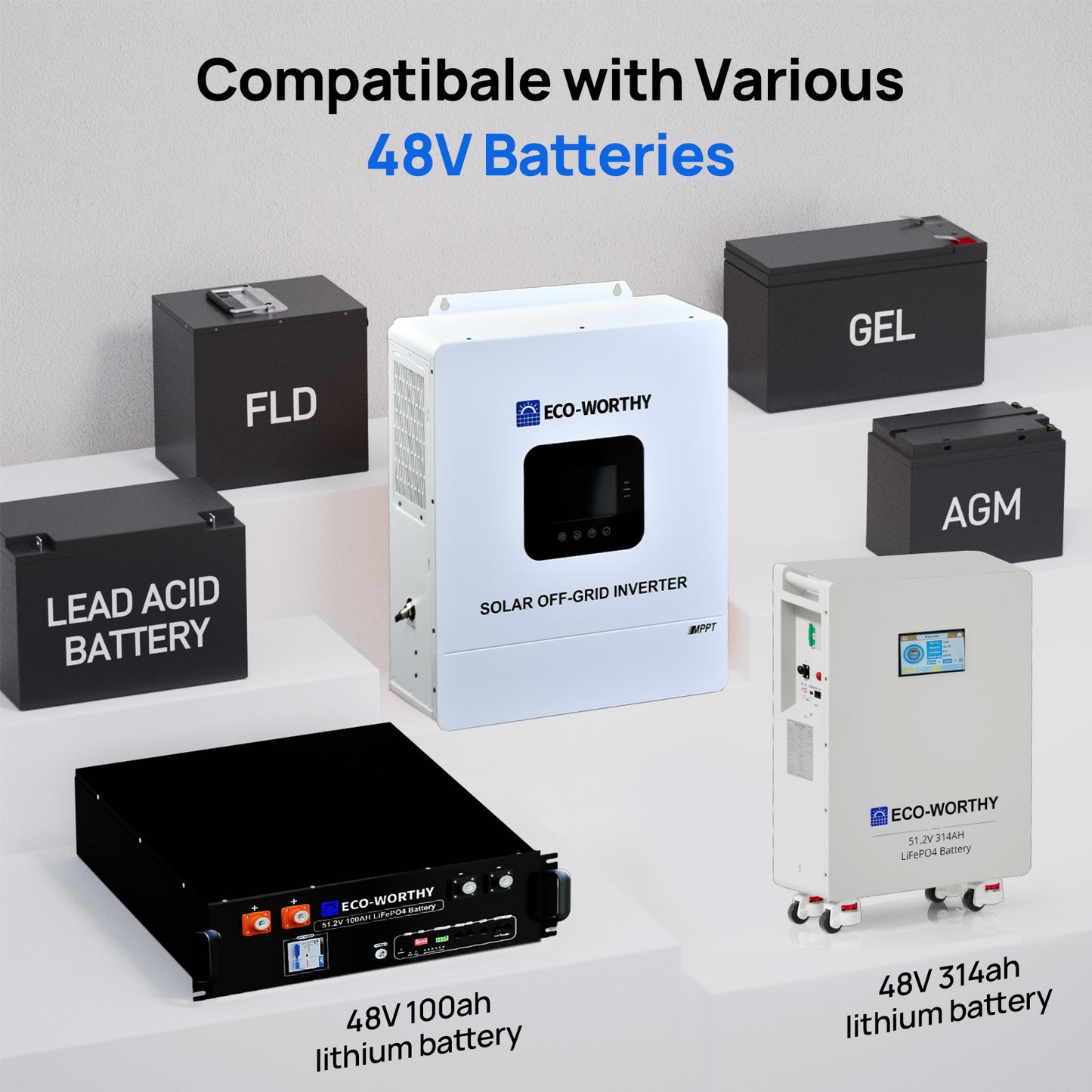

Battery Type: Lead acid or lithium battery	Max Charge Current: 60A
Charge Voltage Range: 40 ‒58Vdc	Short circuit protection: Circuit breaker and blown fuse
PV Charging Mode
Max Input Power: 5500W	PV Charging Current Range：0-100A(can be set)
Max PV Open Circuit Voltage: 500VDC	PV Operating Voltage Range: 120-500VDC
MPPT Voltage Range: 120-450VDC	Battery Voltage Range: 40-60VDC
Maximum PV input current: 22A	Charging Short Circuit Protection: Blown fuse
Max charger current(can be set):100A
Certified specifications
Weight: 12kg (26.46lb)	EMC certification level: EN61000
Operating temperature range: -10°C to 55°C (14°F ~131°F)	Storage temperature range:  -25°C ~ 60°C (-13°F ~140°F )
Humidity range:  5% to 95%	Noise: ≤60dB

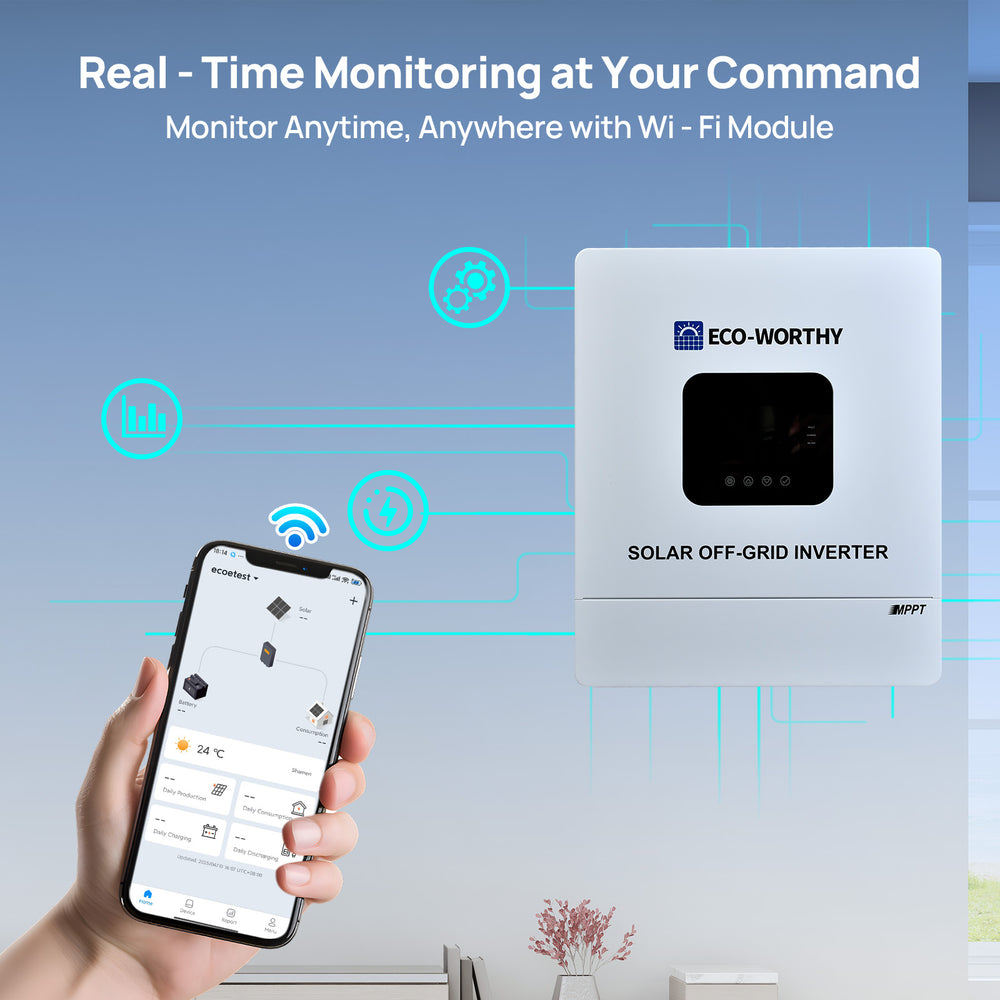

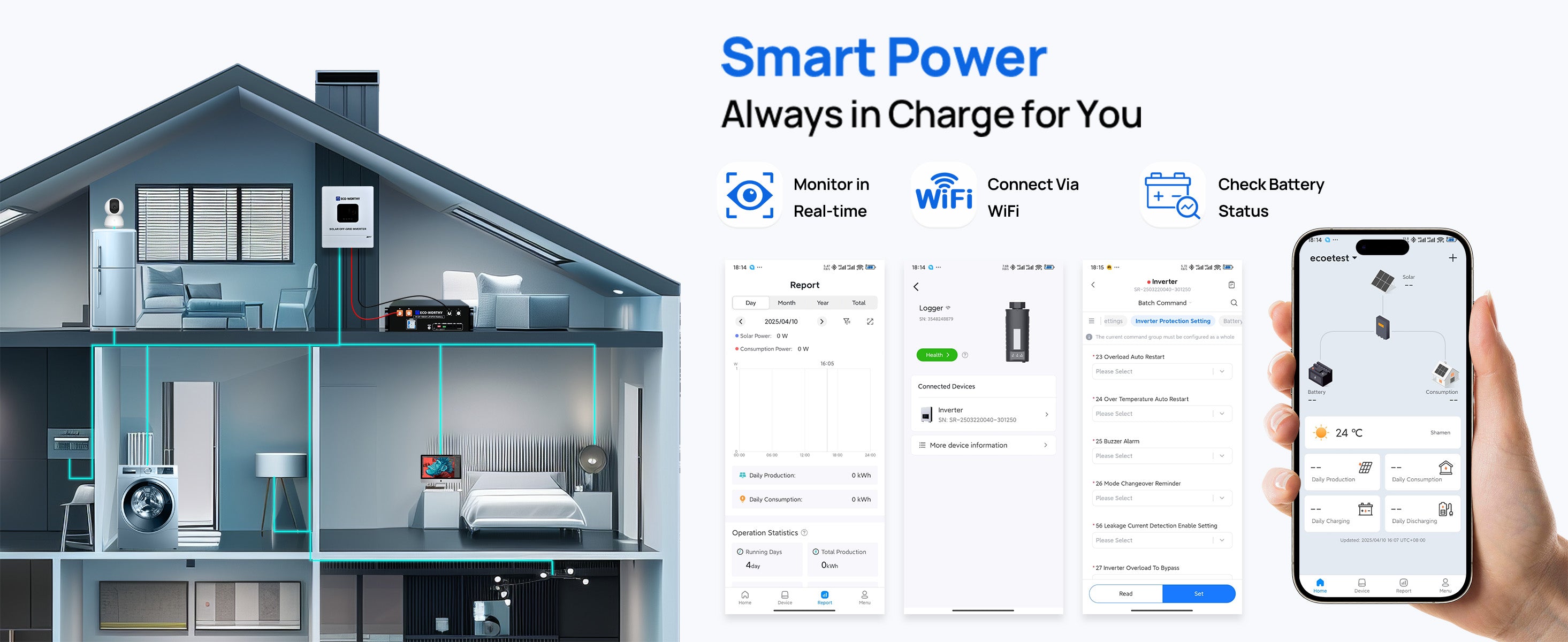

Heat dissipation:  Forced air cooling, variable speed of fan	Communication interface:  USB / RS485 (WiFi/GPRS) / Dry contact control
Dimension (L*W*D):  446.9*350*133mm (1.47*1.15*0.44ft)
