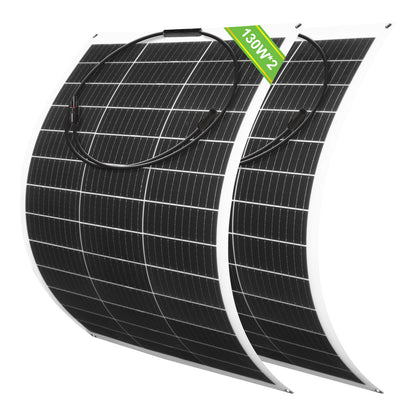

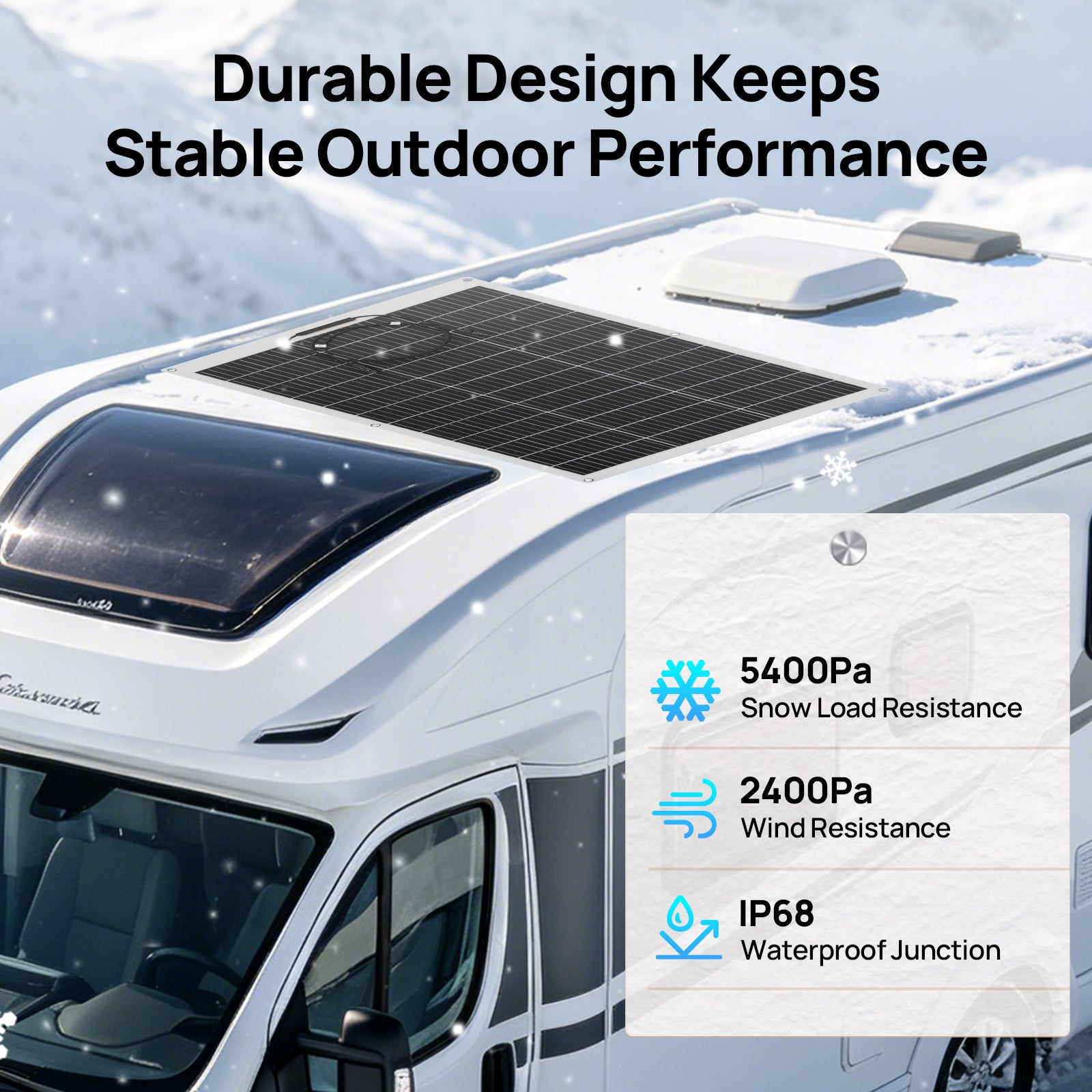

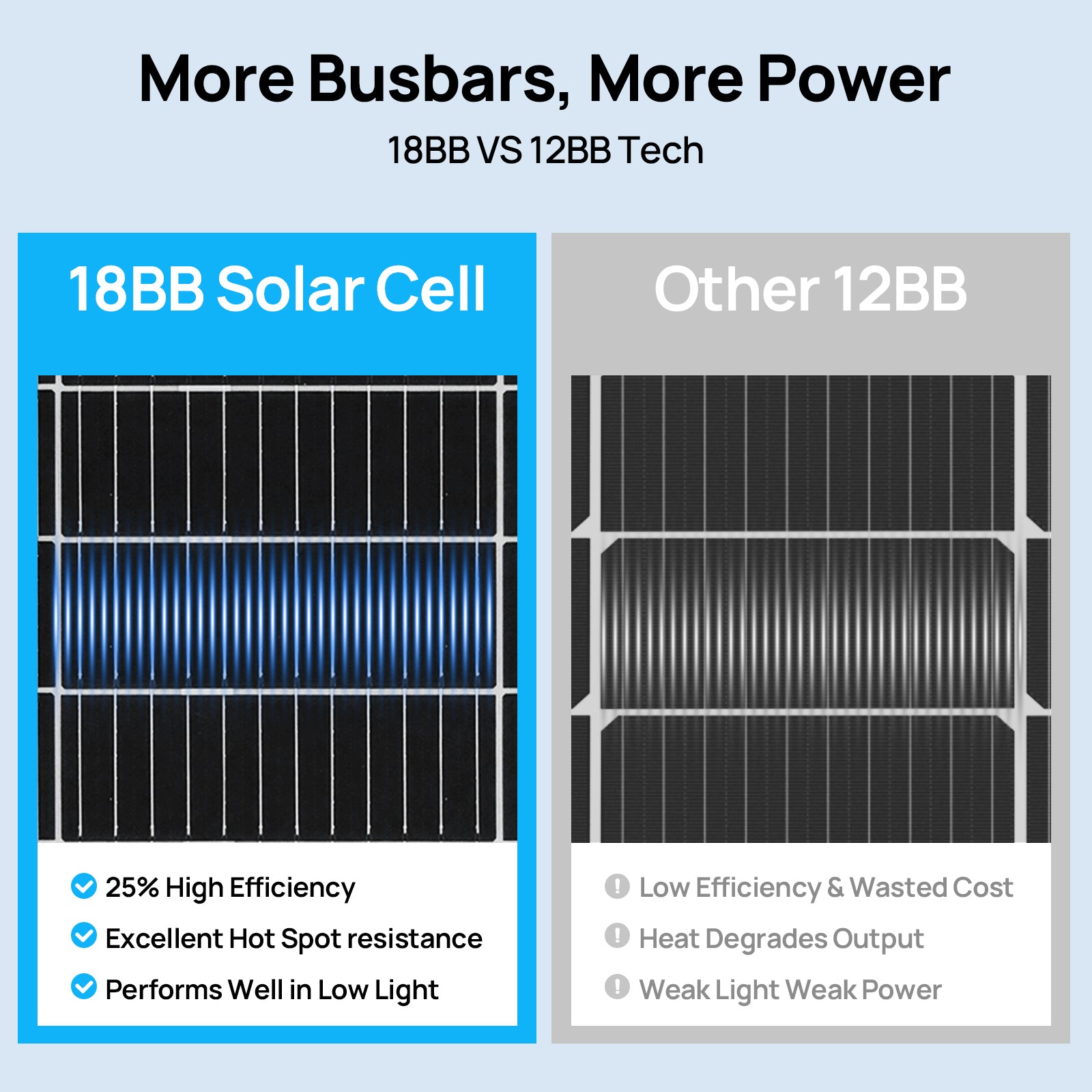

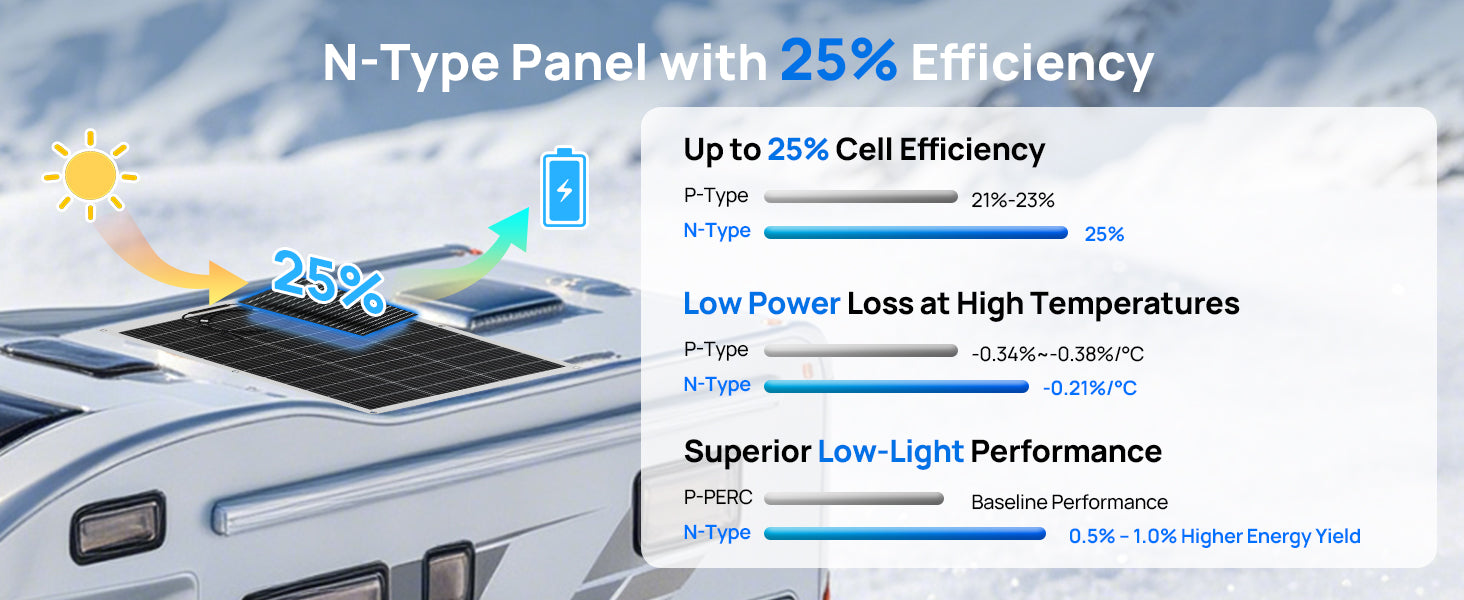

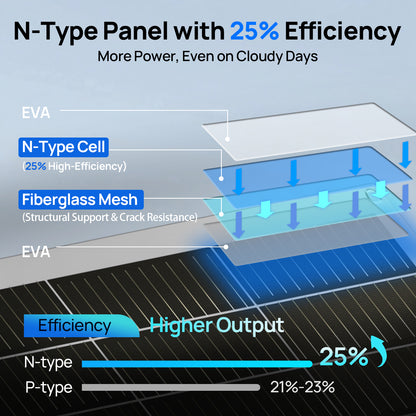

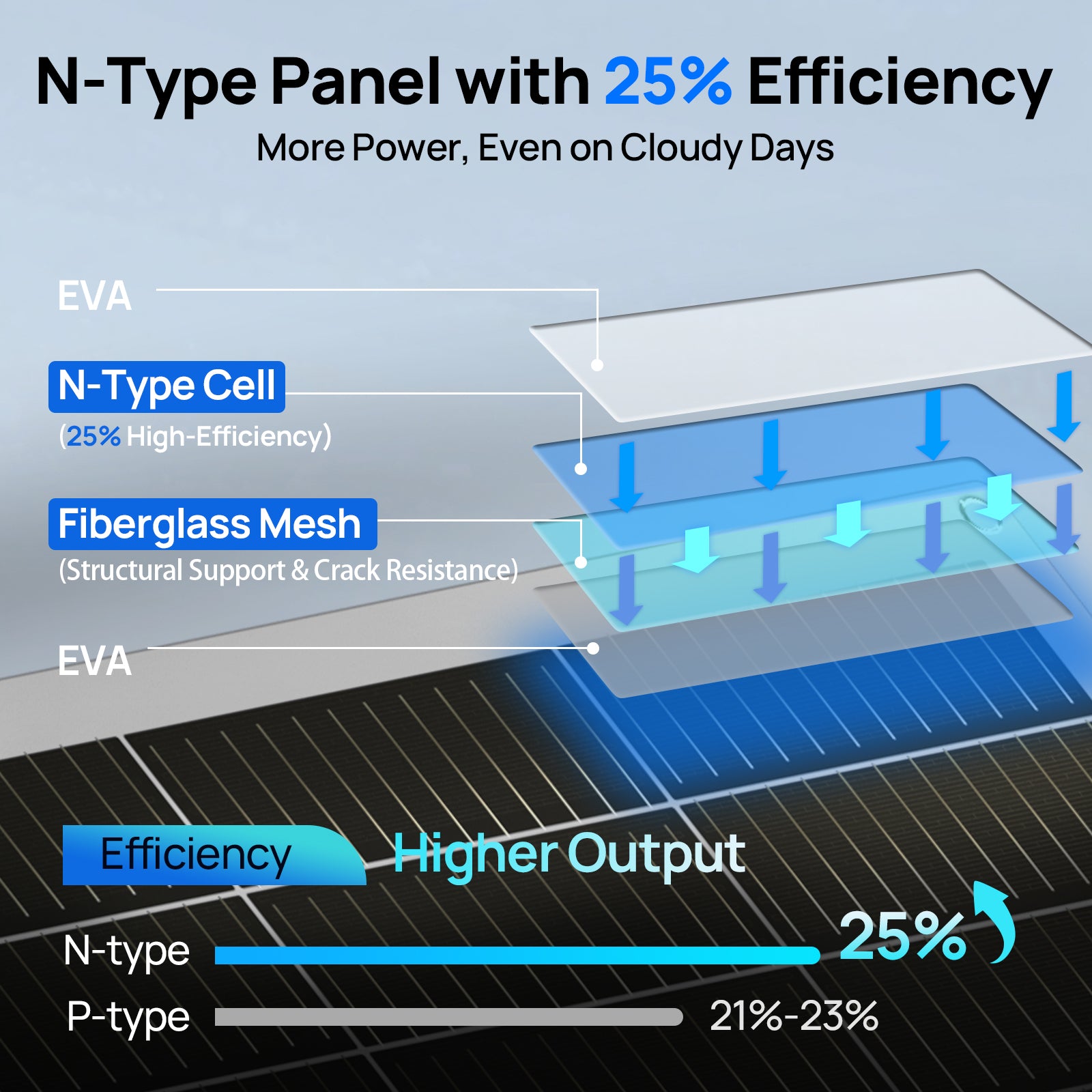

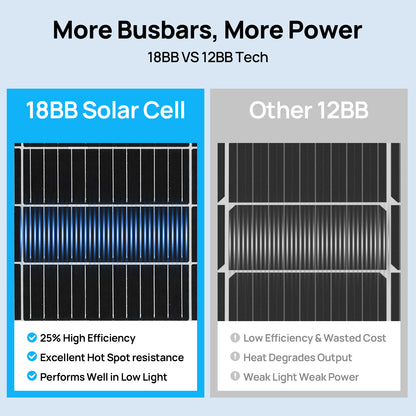

Upgraded 130W N-Type Flexible Solar Panel – Now featuring advanced N-TYPE solar cells with 25% cell efficiency, upgraded 18BB busbar technology, and a reinforced fibreglass mesh structure for improved durability and structural support. At only 2.5mm thick and approximately 2.0kg, this lightweight flexible solar panel is ideal for caravans, campervans, balconies, boats and other installations where weight and flexibility matter. With an IP67 waterproof rating, it is designed for reliable outdoor solar charging.
🌴Summer Sale
ECO-WORTHY 130W 12V Flexible Solar Panel | N-Type 18BB
ECO-WORTHY 130W 12V Flexible Solar Panel | N-Type 18BB
Regular price
£79.99
Sale price
£79.99
Regular price
£99.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:
SKU:UK-L02AM130W18V-1
Read more
💥Buy More Save More💥
Buy 2 Extra 3% OFF
Buy 4 Extra 5% OFF
Buy 6 Extra 10% OFF at checkout
Buy 2 Extra 3% OFF
Buy 4 Extra 5% OFF
Buy 6 Extra 10% OFF at checkout
Total price
£79.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of £19.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Upgraded 130W N-Type Flexible Solar Panel
Technical Specifications
130W 12V Flexible Mono Solar Panel
Rated Power:
130W
Solar Cell:
Monocrystalline
Maximum/Peak Voltage(Vmp):
21.10V
Open Circuit Voltage(Voc):
24.50V
Short circuit current:
6.50A
Maximum current:
6.16A
Output Tolerance:
±3%
Temperate coefficient of Isc:
(010+/-0.01)%/℃
Temperate coefficient of Voc:
(0.38+/-0.01)%/℃
Temperature range:
－40℃～ +85℃
Length of extension cable:
90cm（2.95ft）
Size of extension cable:
4mm²（11AWG）/MC4 Connector
Weight:
4.40 lbs(2.0 kg)
Size:
960x690x2.5 mm (37.8 x 27.16"x 0.1 in)
Included in the Box
User manual
Eco-Worthy 130W 12V Flexible Mono Solar Panel-User Manual
DownloadFrequently Asked Questions
How do you test lithium battery performance?
+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.
What’s the relationship between lithium battery voltage and SOC?
+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.
How to activate a protected lithium battery?
+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.
Solar Panel Performance Testing Method
+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
