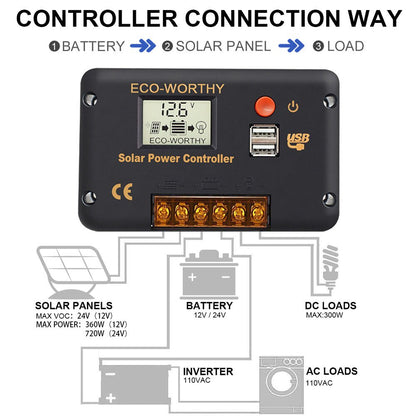

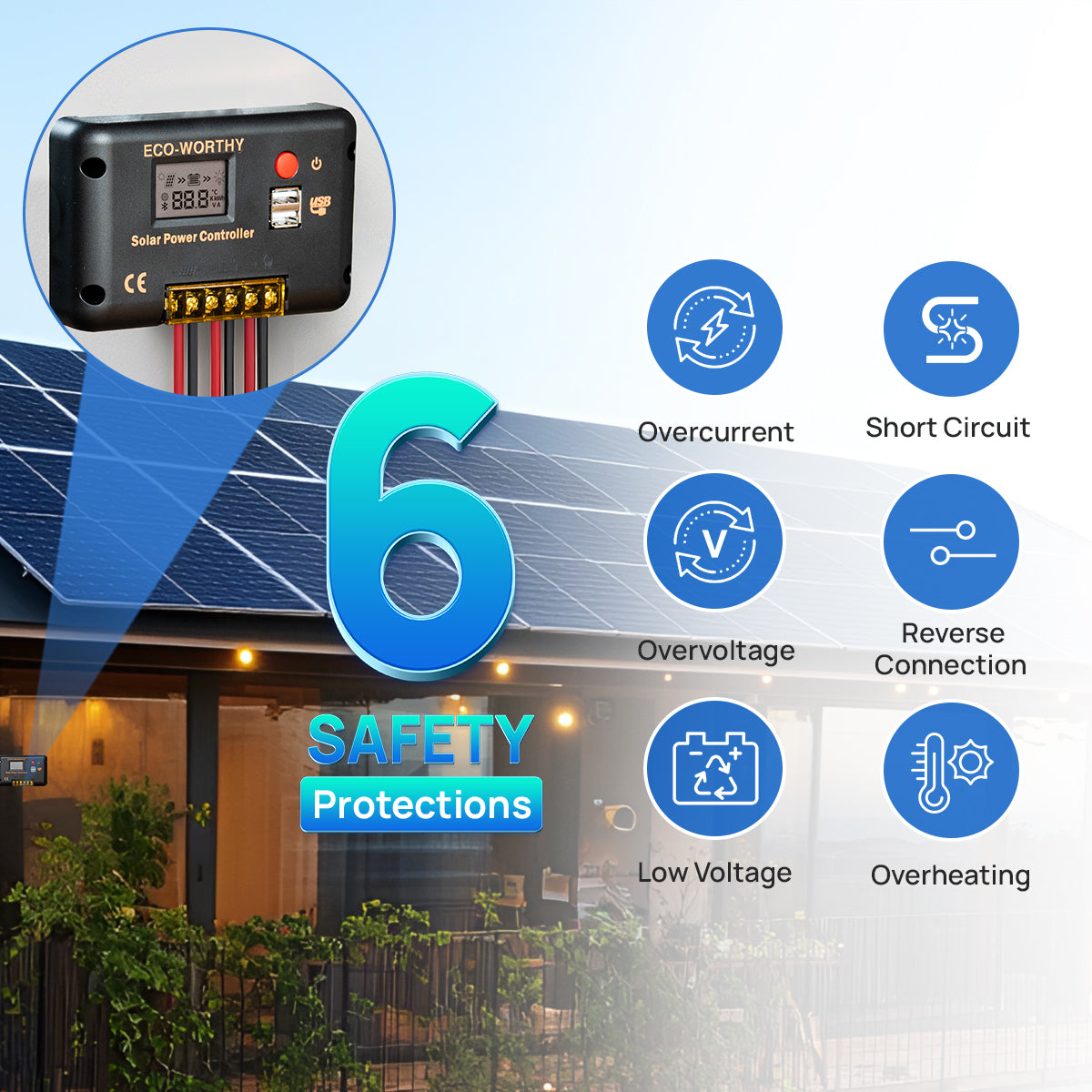

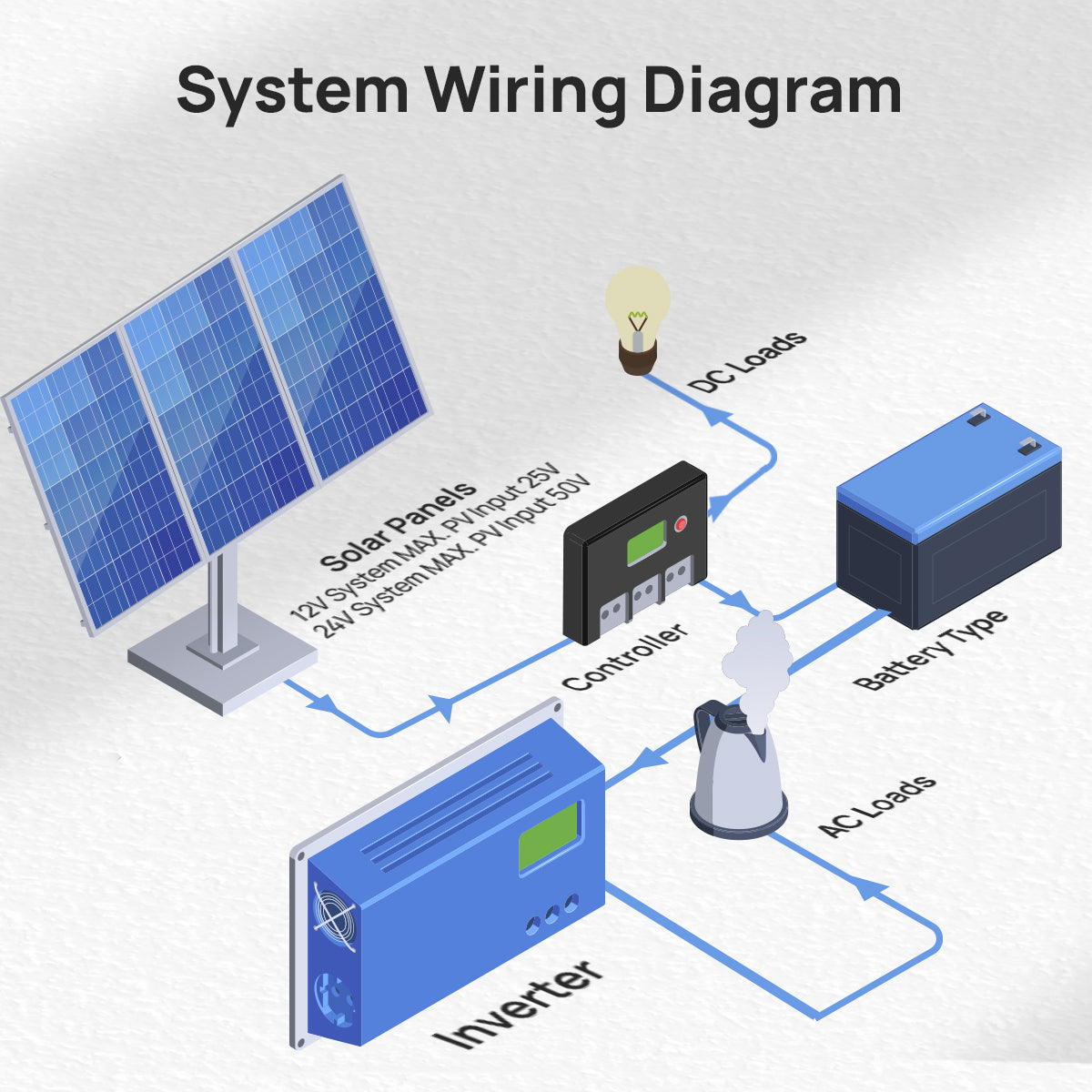

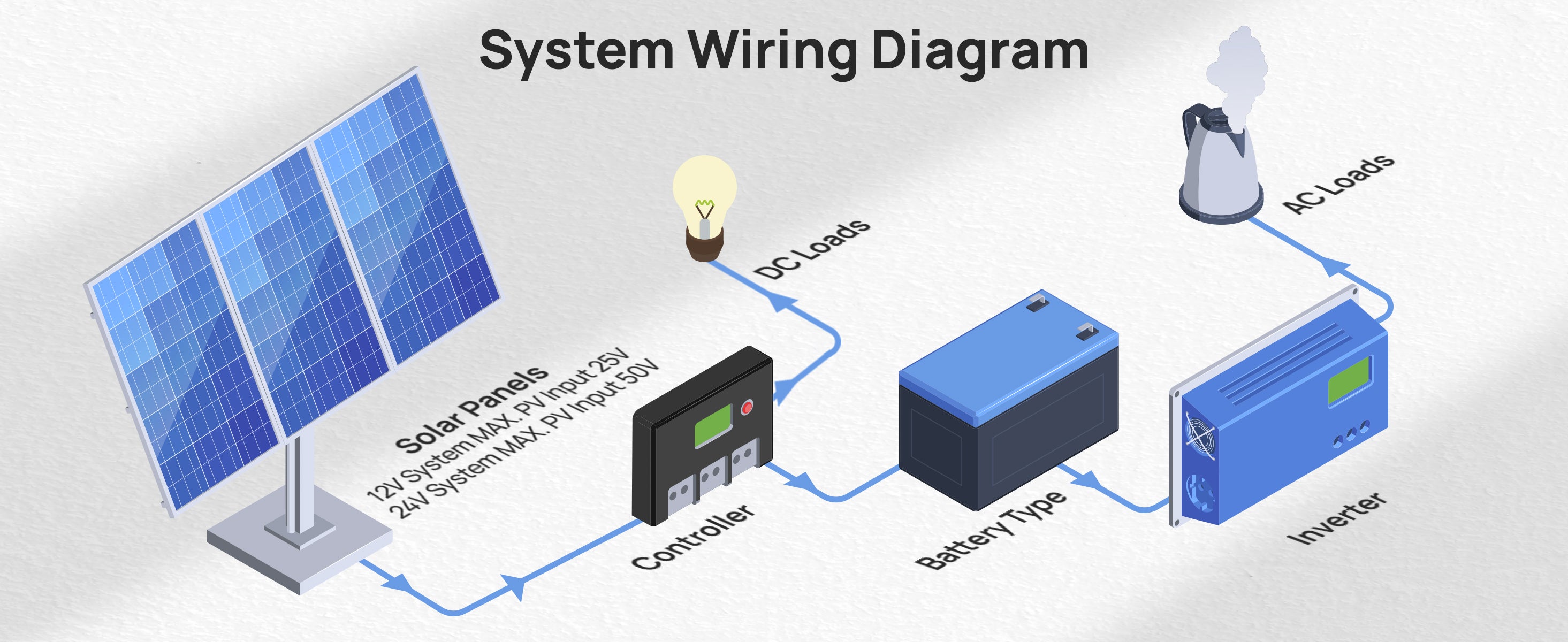

Eco-Wotthy 30A PWM LCD Display Solar Charge Controller can automatically manage the working of solar panel and battery in the solar system. Easy to set up and operate. Suitable for charging the DC lamp and phone, etc. It’s convenient to open and close the load by the switch. Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection. Connect the battery first and then connect the solar panel finally connect the load. The reverse order applies when disassemble.
Pictures

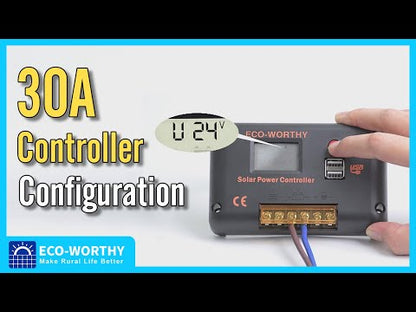

Videos
🌴Summer Sale

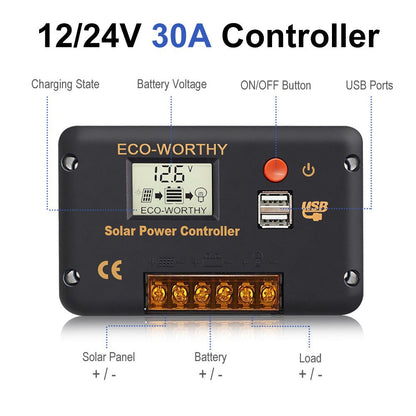

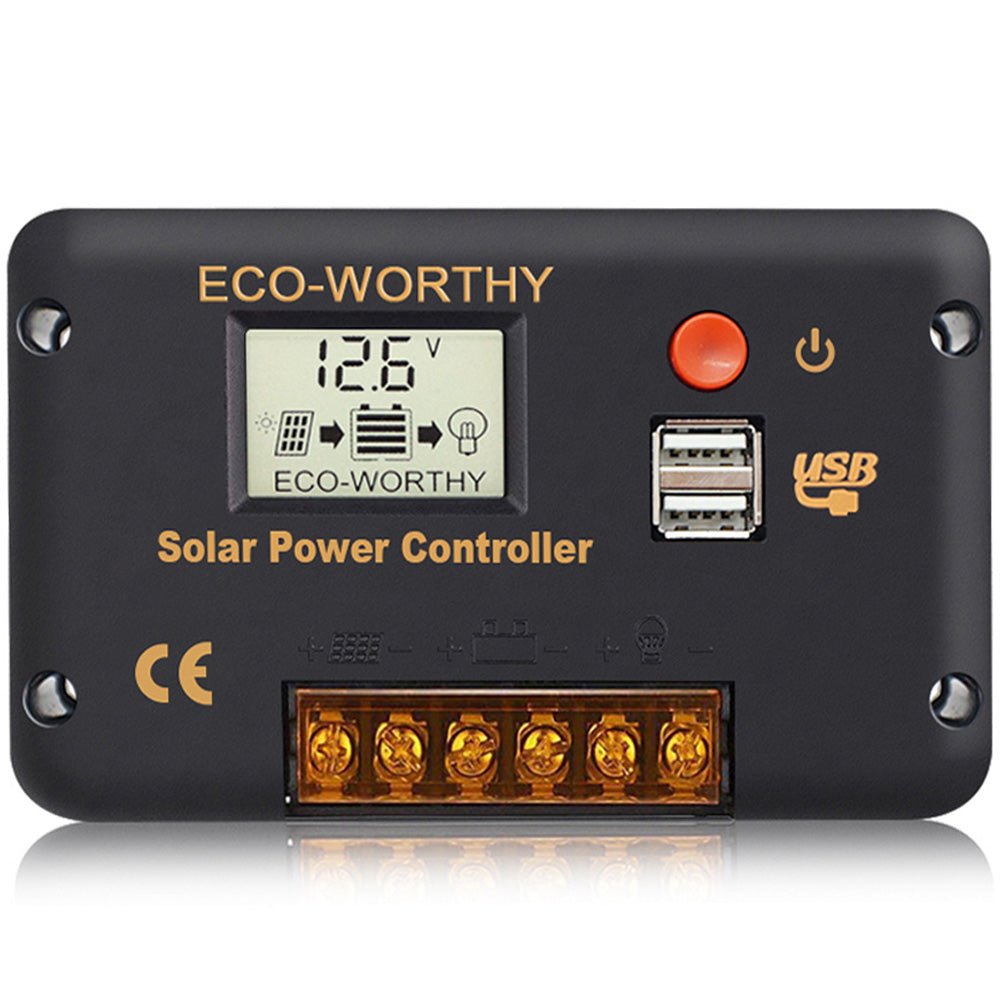

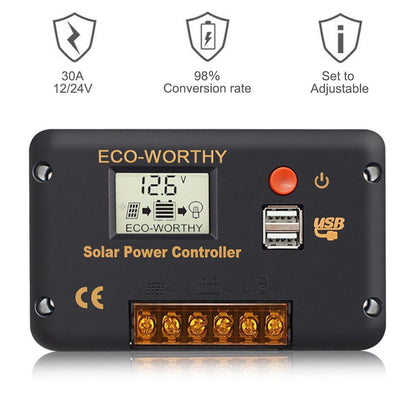

Eco-Worthy 30A PWM LCD Display Solar Charge Controller Regulator with USB Port 12V/24V Autoswitch
Eco-Worthy 30A PWM LCD Display Solar Charge Controller Regulator with USB Port 12V/24V Autoswitch
Regular price
£30.99
Sale price
£30.99
Regular price
£49.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:
SKU:UK-L030302030002-1
Read more
Total price
£30.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of £7.74 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
30A PWM LCD Display Solar Charge Controller

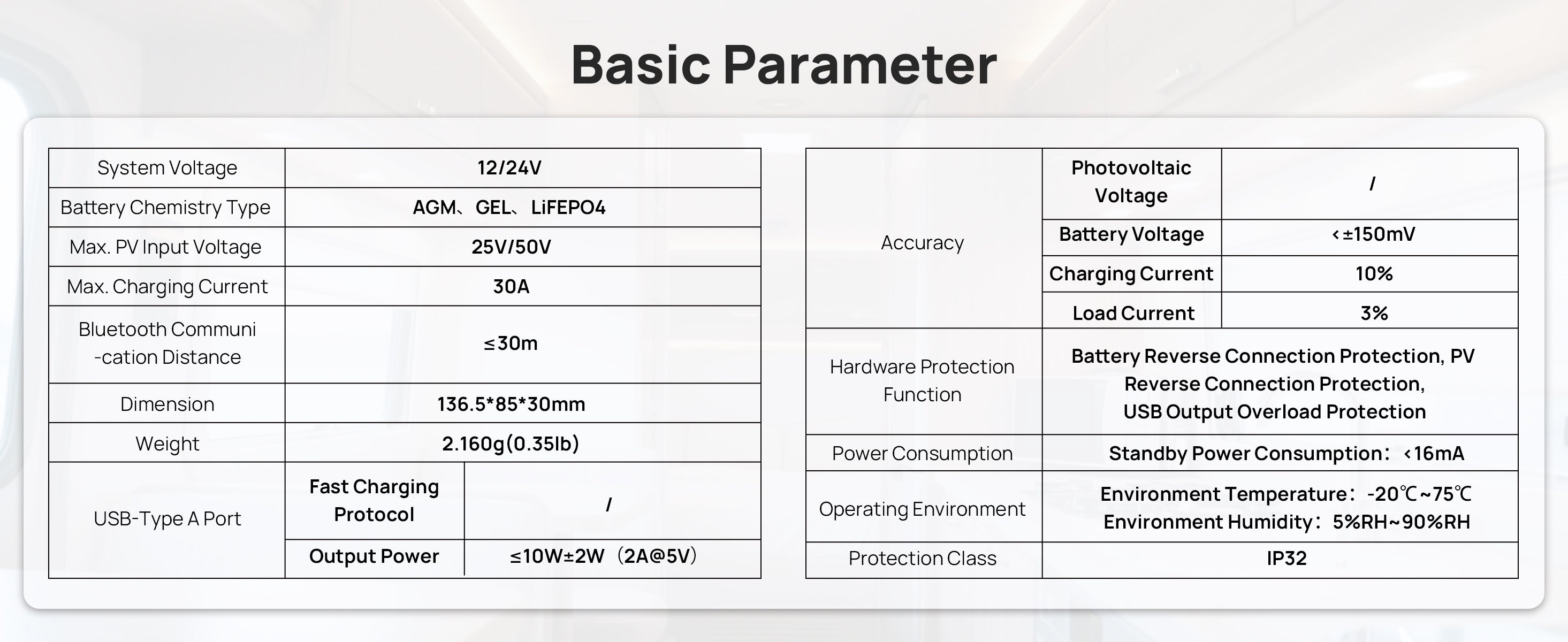

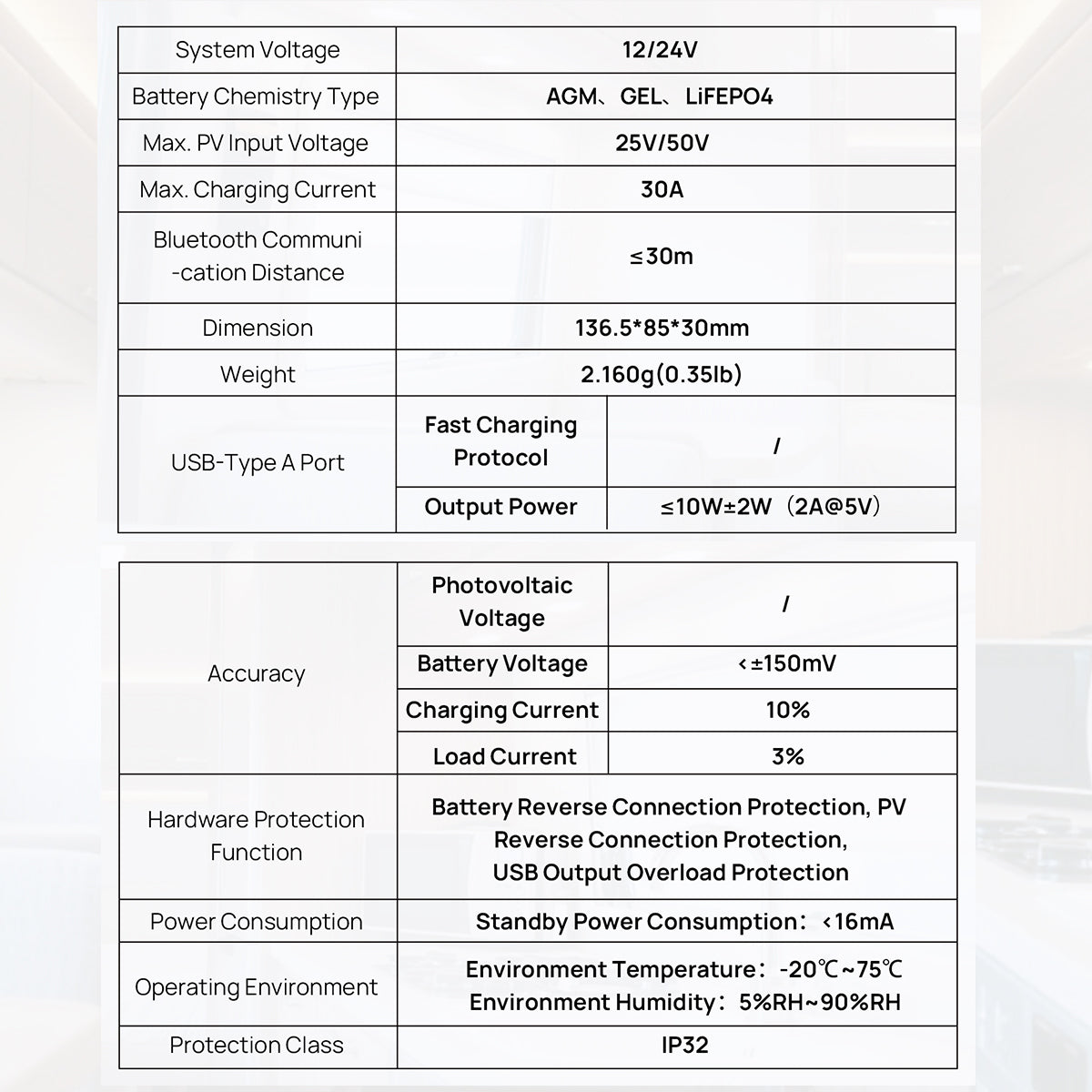

Technical Specifications
30A PWM LCD Display Solar Charge Controller
Battery voltage:
12V/24V
Charging mode:
PWM
Max Charge current:
30A
Discharge current:
30A
Max.PV Open-Circuit Voltage:
<50V

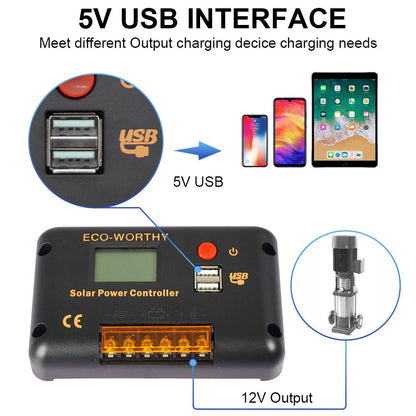

USB Output:
5V/2A
Working Temperature:
-20℃~60℃
Weight:
150g

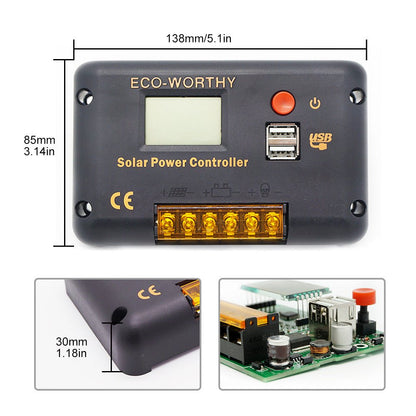

Size:
138*85*30mm
Included in the Box
User manual
Eco-Worthy 12V/24V 30A PWM Solar Charge Controller - User Manual
DownloadFrequently Asked Questions
How do you test lithium battery performance?
+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.
What’s the relationship between lithium battery voltage and SOC?
+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.
How to activate a protected lithium battery?
+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.
Solar Panel Performance Testing Method
+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.
