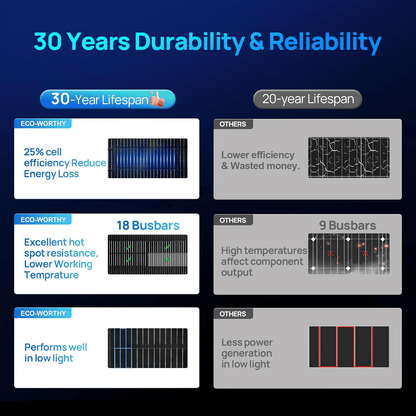

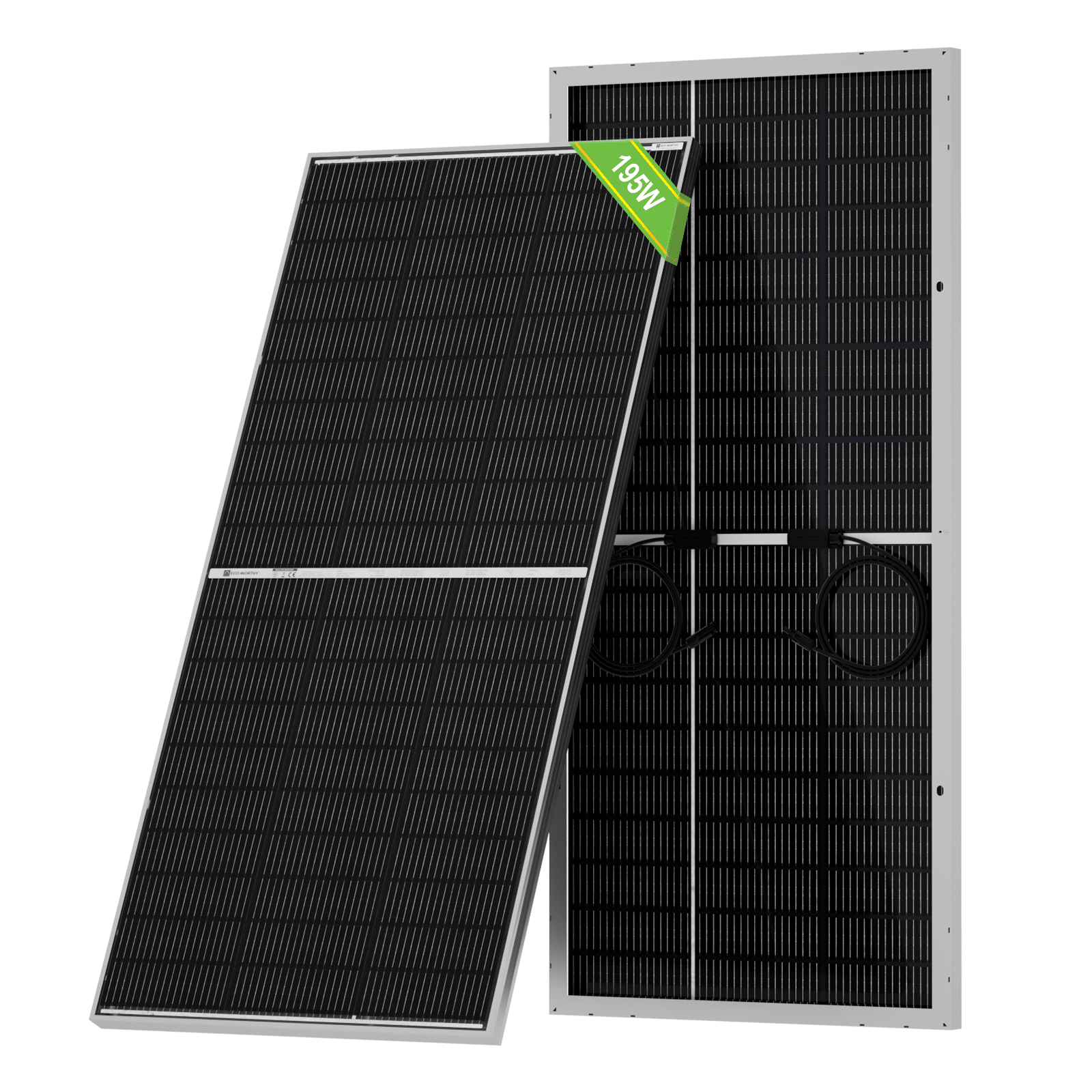

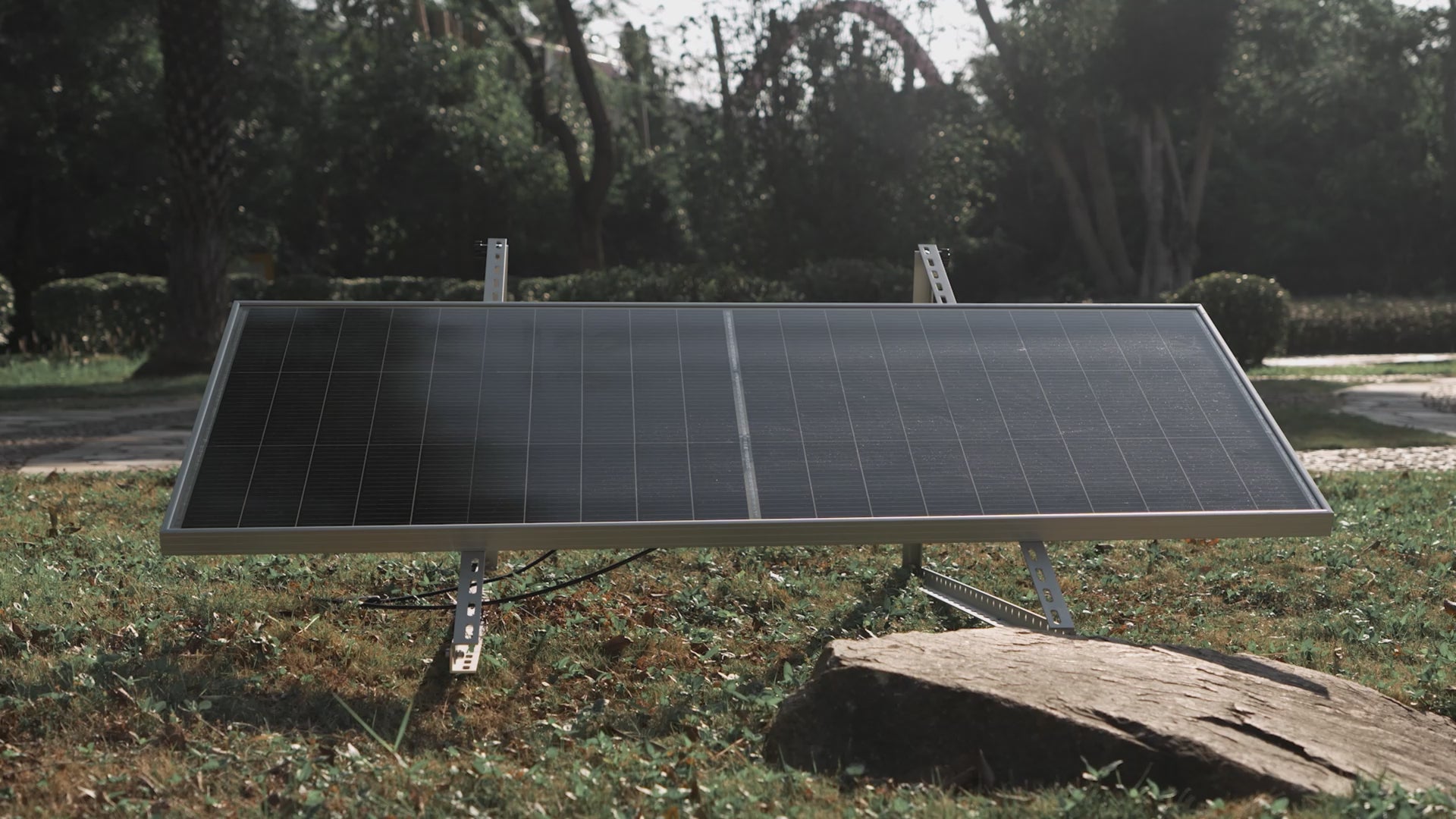

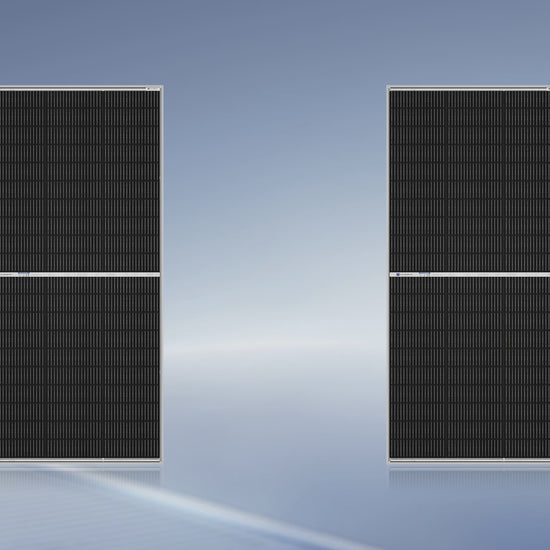

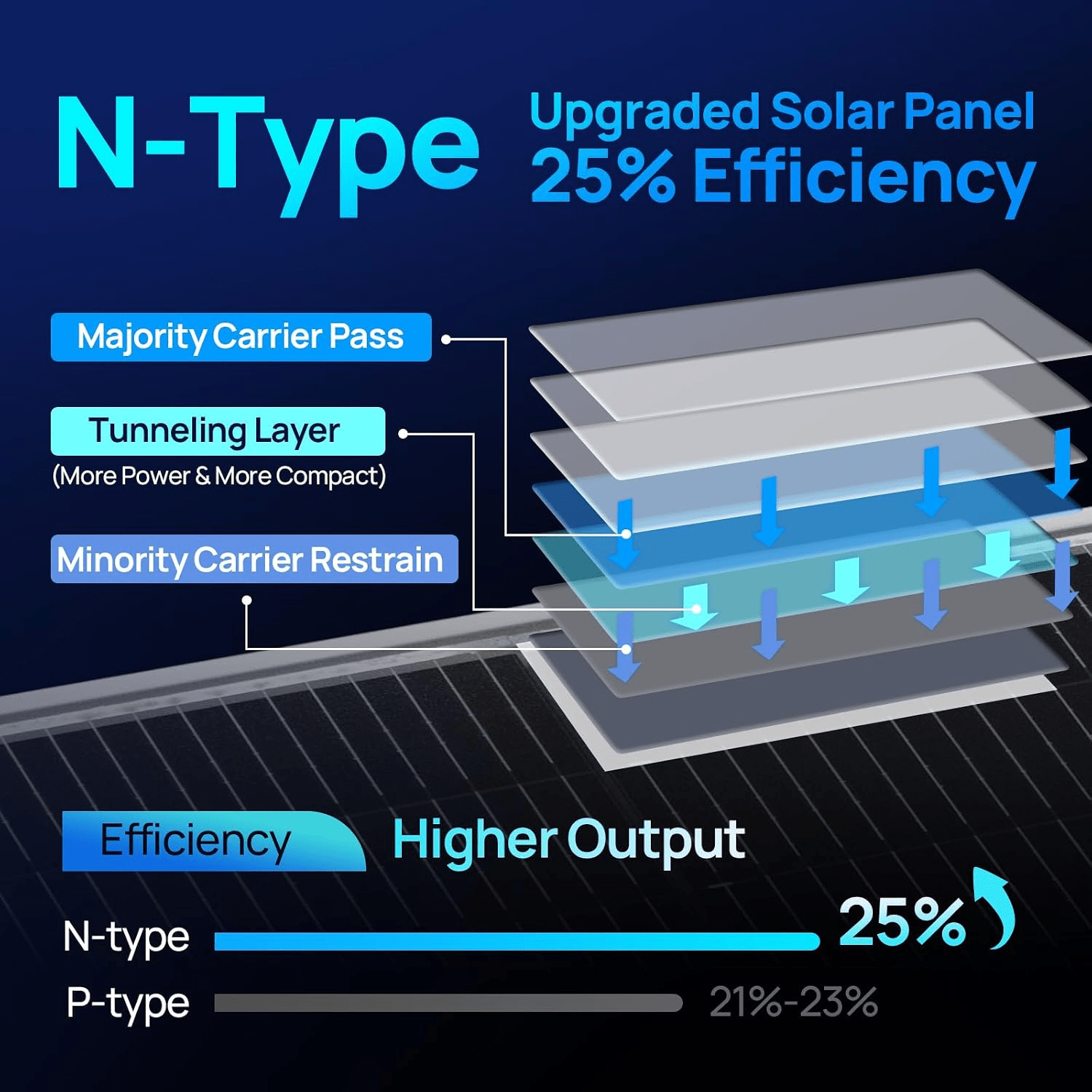

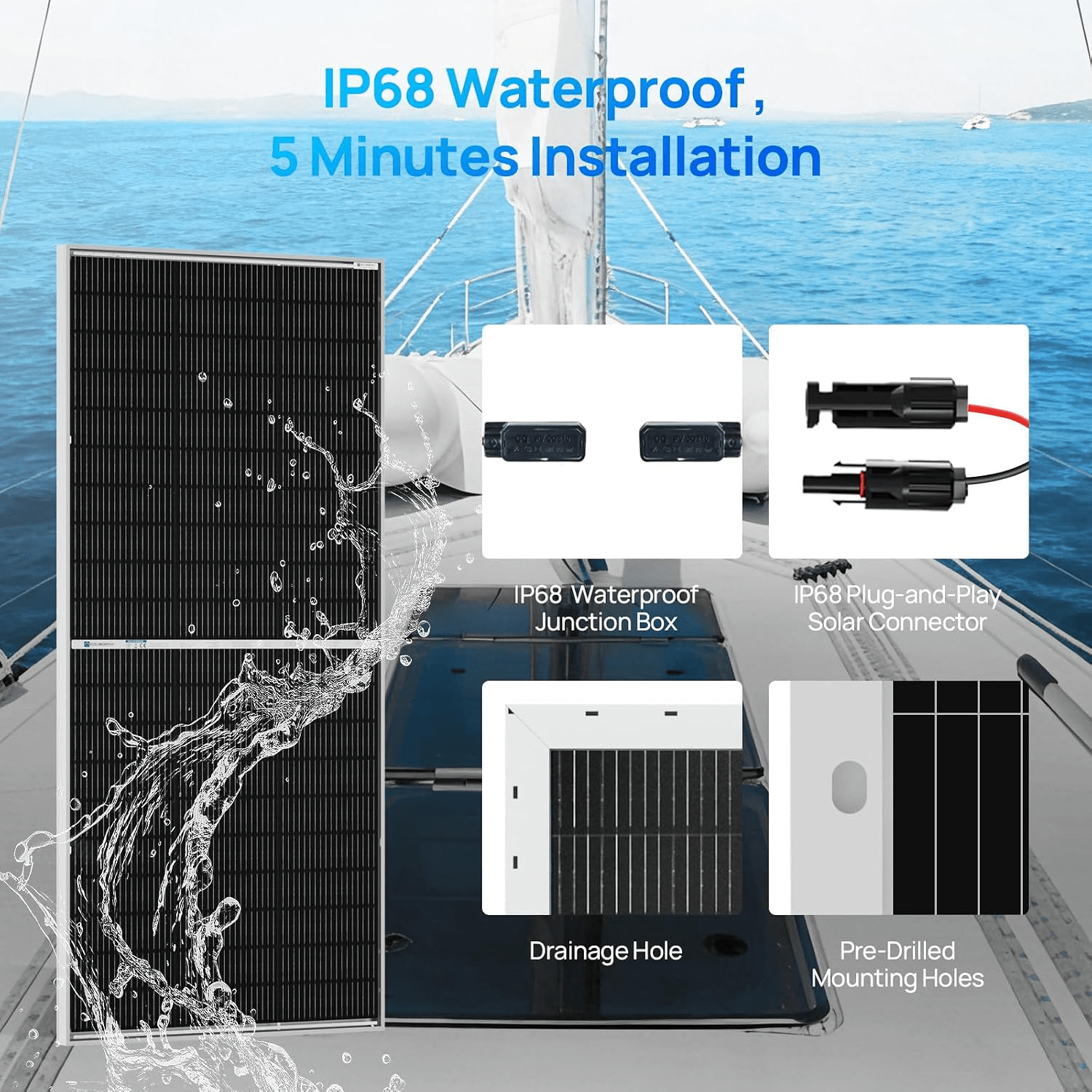

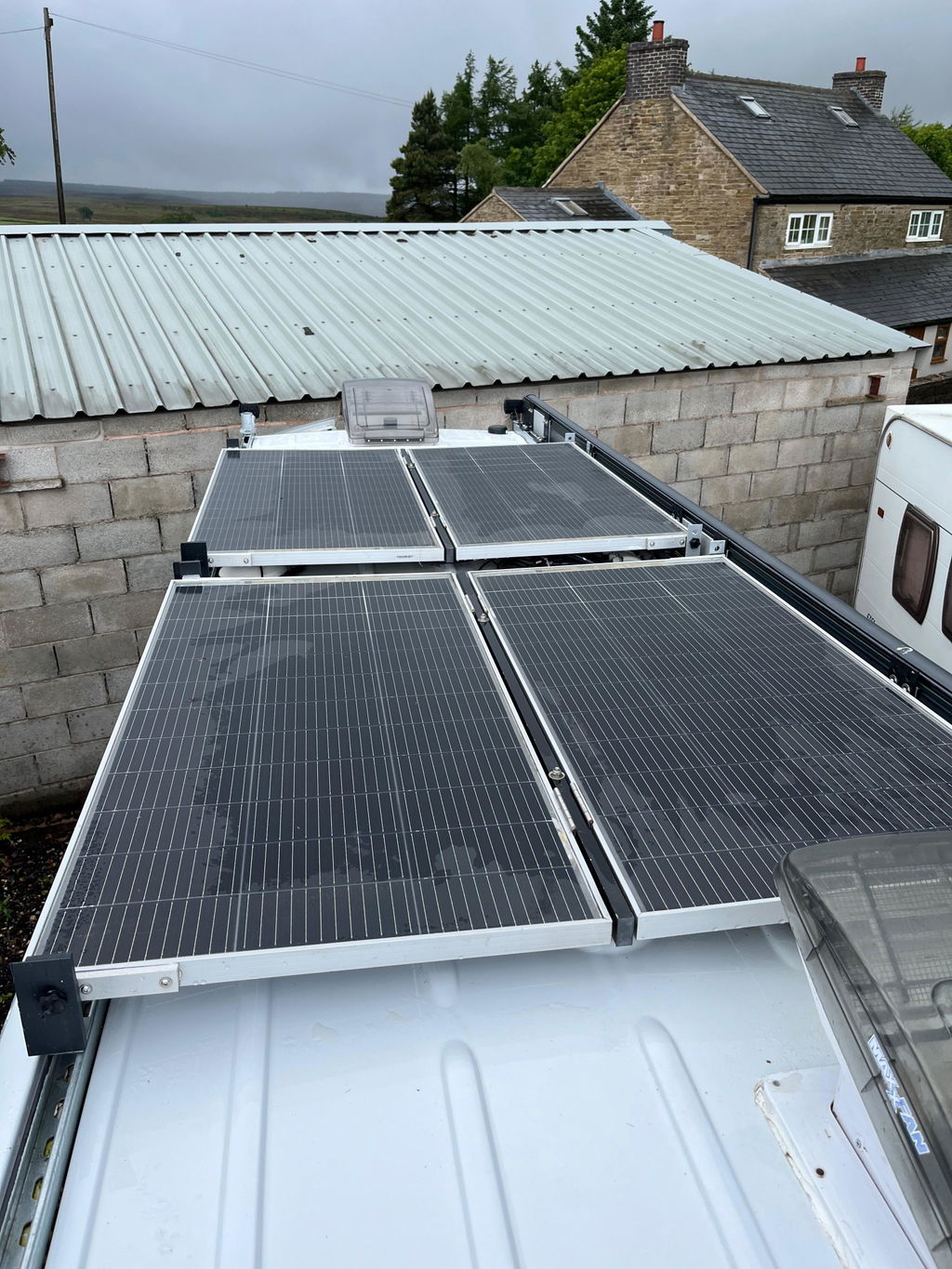

ECO-WORTHY 195W N-Type 18BB Bifacial Solar Panel combines high-efficiency N-Type solar cells with advanced 18BB technology for reliable solar generation. Featuring up to 25% cell conversion efficiency and bifacial power generation, it can capture sunlight from both sides to increase overall energy yield. Built with tempered glass, a corrosion-resistant aluminium frame and IP68 protection, it is ideal for motorhomes, caravans, campervans, boats, sheds, cabins, home solar and off-grid systems.
Pictures
Videos
🌴Summer Sale

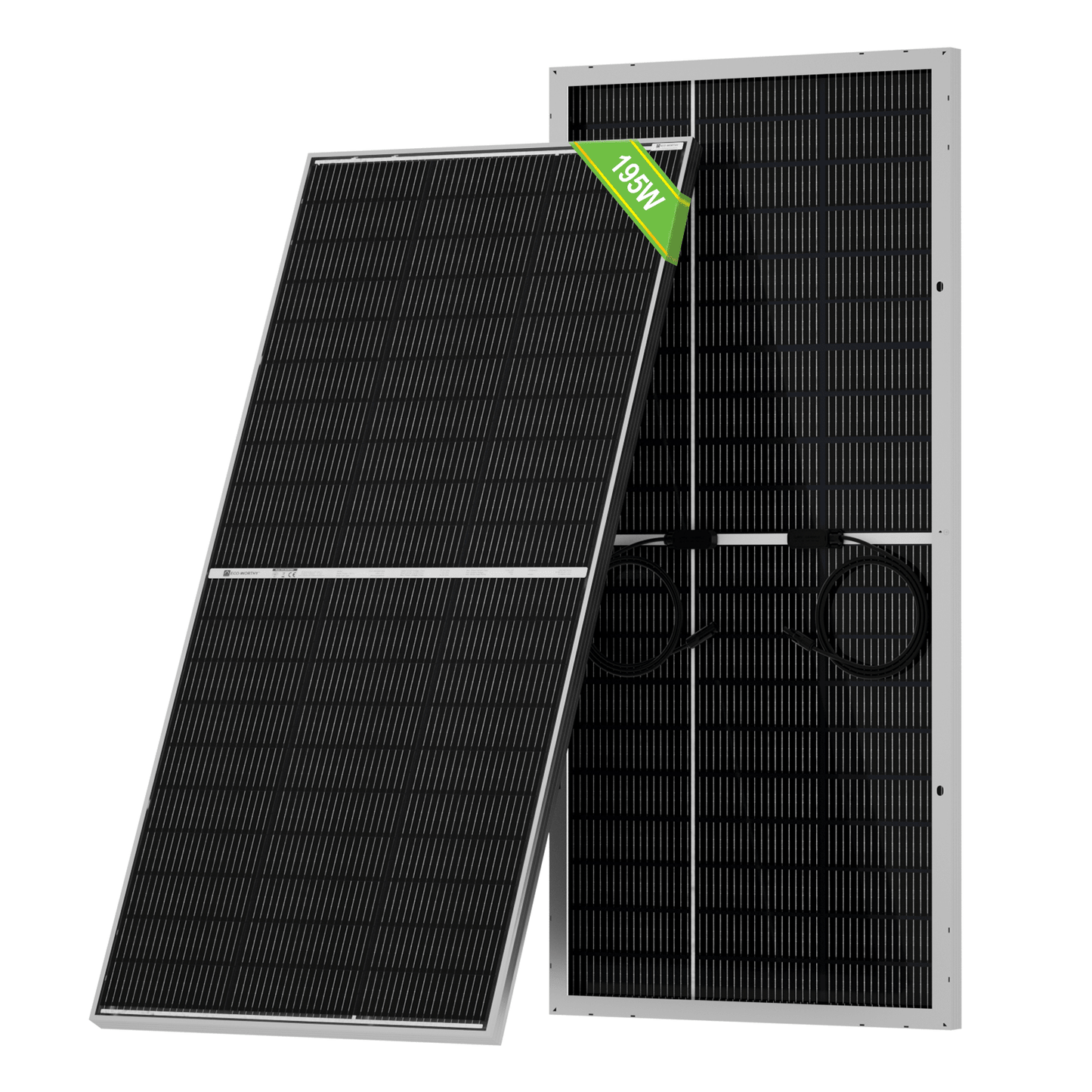

ECO-WORTHY 195W N-Type 18BB Bifacial Solar Panel with 25% High Conversion Efficiency
ECO-WORTHY 195W N-Type 18BB Bifacial Solar Panel with 25% High Conversion Efficiency
Regular price
£99.99
Sale price
£99.99
Regular price
£129.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:
SKU:UK-L02M195TM-1
Read more
Buy More Save More,
Buy 2 Extra 3% OFF
Buy 4 Extra 5% OFF
Buy 6 Extra 10% OFF at checkout
Buy 2 Extra 3% OFF
Buy 4 Extra 5% OFF
Buy 6 Extra 10% OFF at checkout
Total price
£99.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of £24.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
for Caravan Motorhome Off Grid
Technical Specifications
Bifacial 195W 12V Monocrystalline Solar Panel
Rated Power:
195W
Solar Cell:
Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp):
20.2V
Open Circuit Voltage(Voc):
21.2V±3%
Short circuit current:
11.60A±3%
Maximum current:
9.65A
Connector Type:
MC4
Module Efficiency STC[%]
19.60%
Temperate coefficient of Voc:
-(0.38+/-0.01)%/℃
Temperature range:
－40℃～ +80℃
Frame:
Aluminum alloy frame
Weight:
20.2lbs
Size:
58.86x26.18x1.18in
Included in the Box
User manual
ECO WORTHY 195W N Type 18BB Bifacial Solar Panel User Manual
DownloadFrequently Asked Questions
How do you test lithium battery performance?
+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.
What’s the relationship between lithium battery voltage and SOC?
+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.
How to activate a protected lithium battery?
+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.
Solar Panel Performance Testing Method
+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
