ECO-WORTHY 16kWh Hybrid Energy Storage System with 6kW Single Phase Hybrid Inverter

Name: ECO-WORTHY 16kWh Hybrid Energy Storage System with 6kW Single Phase Hybrid Inverter
Brand: eco-worthy-uk
SKU: UK-L13L314AHJC-NKEU6KW-1
Price: 4699.98 GBP
Availability: InStock

£4,699.98

£4,699.98 ~~£3,999.99~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L13L314AHJC-NKEU6KW-1

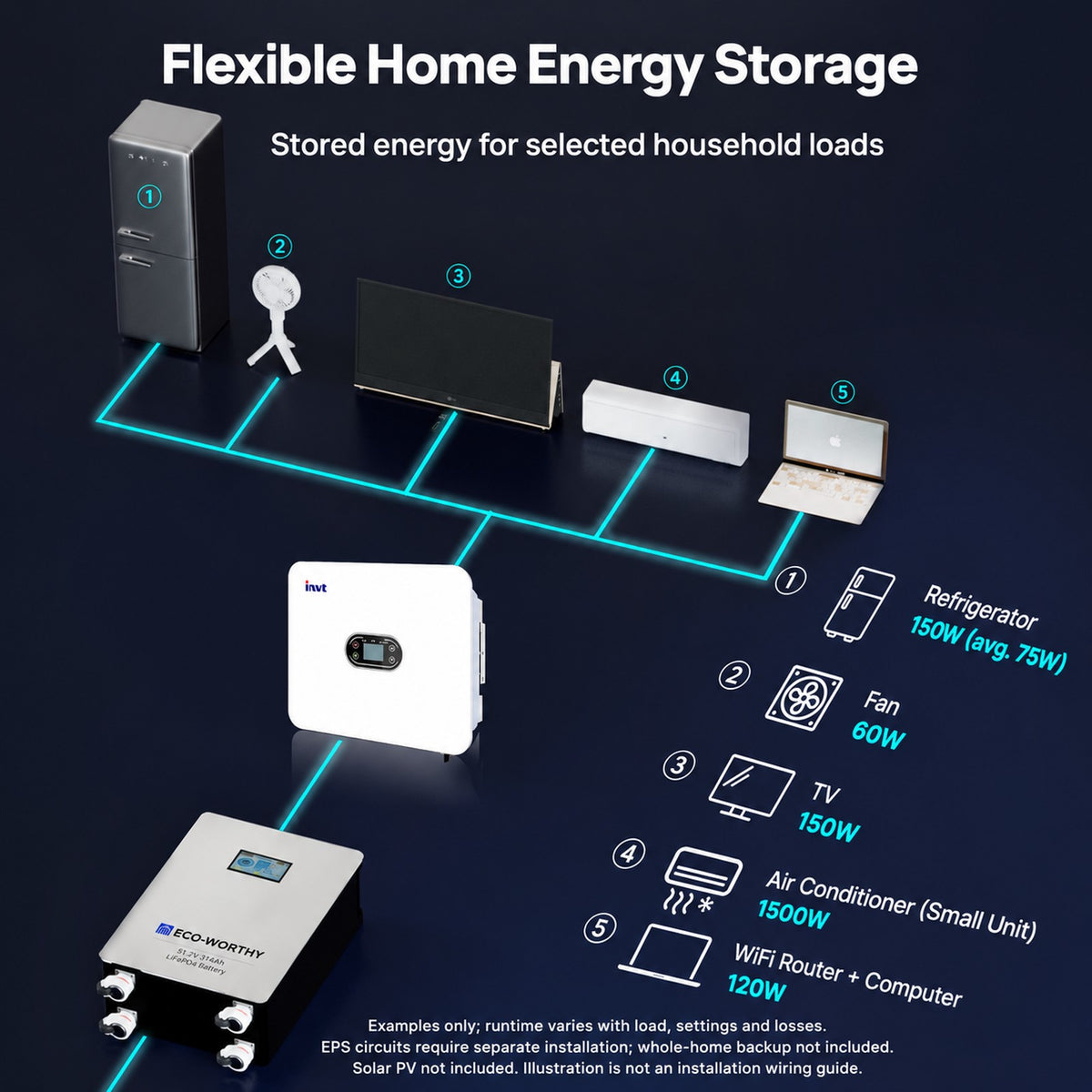

[16.08kWh Battery Capacity for Flexible Home Energy Use]: Featuring a 51.2V 314Ah LiFePO4 battery and a 6kW single-phase hybrid inverter, this system helps you store electricity for use when you need it. Actual usable energy and operating time depend on system settings, conversion losses, operating conditions and connected loads.

[Make Better Use of Off-Peak Electricity]: Charge your battery using lower-cost off-peak electricity and use stored energy during more expensive periods. Actual savings depend on your electricity tariff, household usage, system settings and energy losses. Savings and payback periods are not guaranteed.

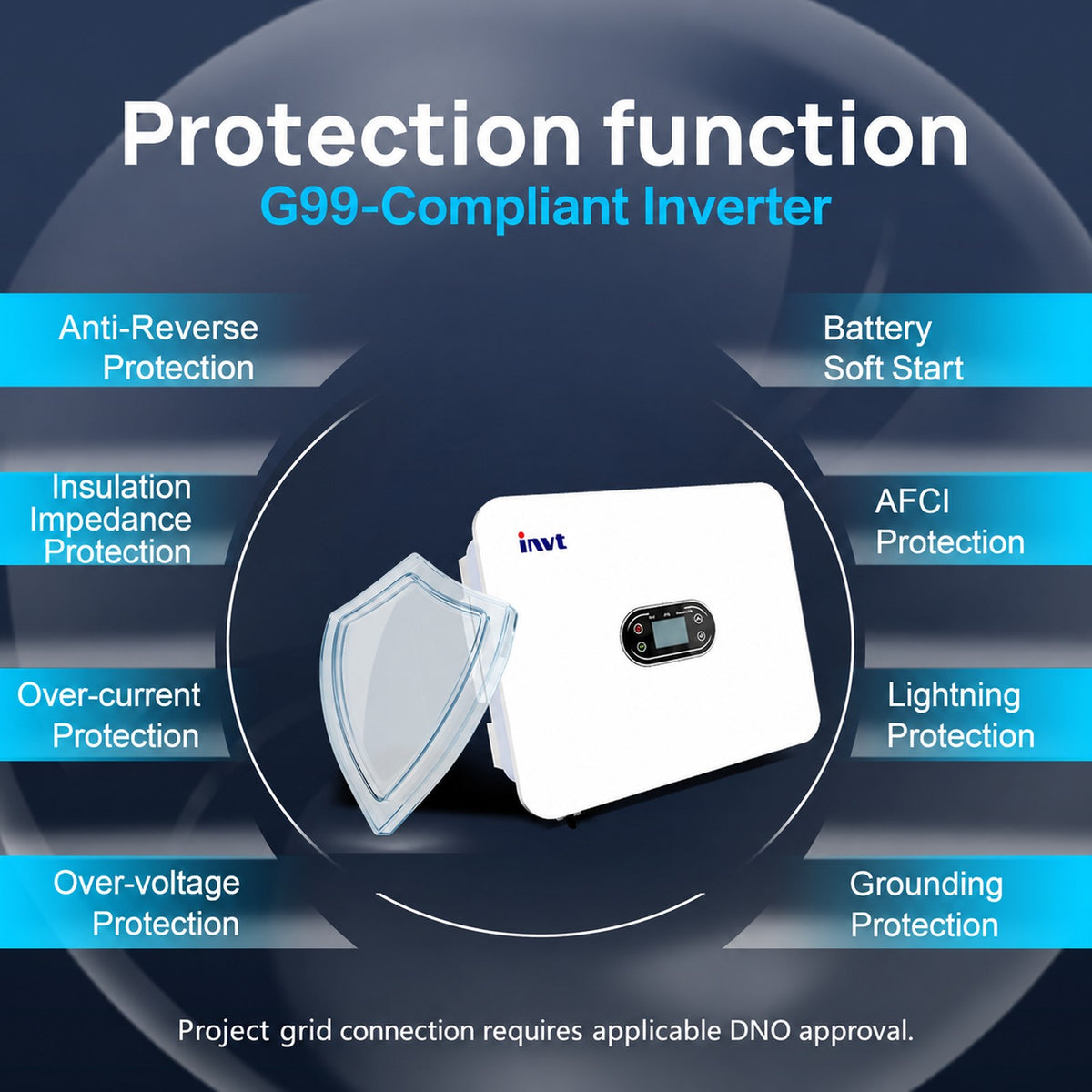

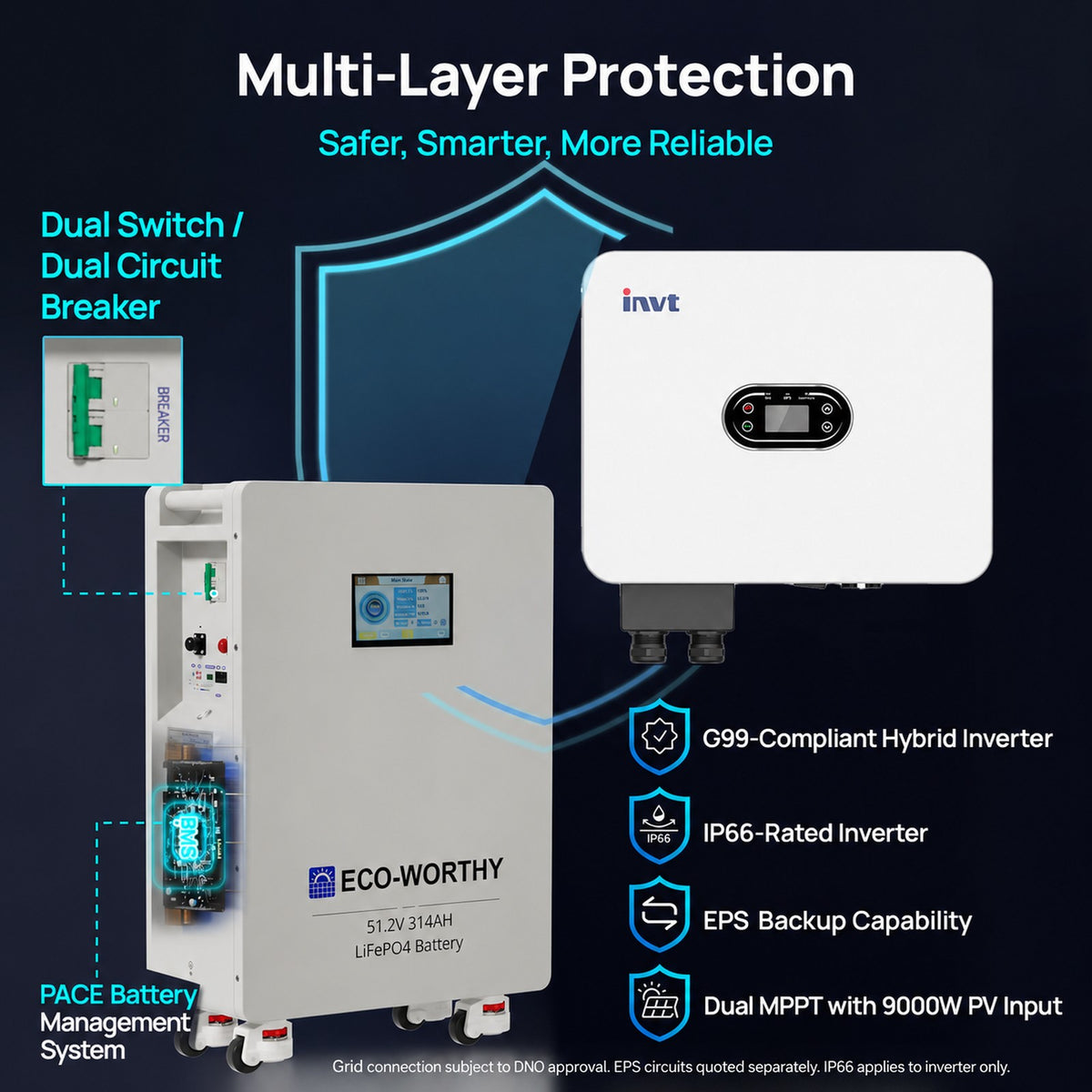

[G99-Compliant Inverter & IEC 62619-Certified Battery]: Combines a G99-compliant hybrid inverter with an IEC 62619-certified LiFePO4 battery. Grid connection and export operation are subject to applicable DNO approval, permitted export capacity, installation requirements and correct system configuration.

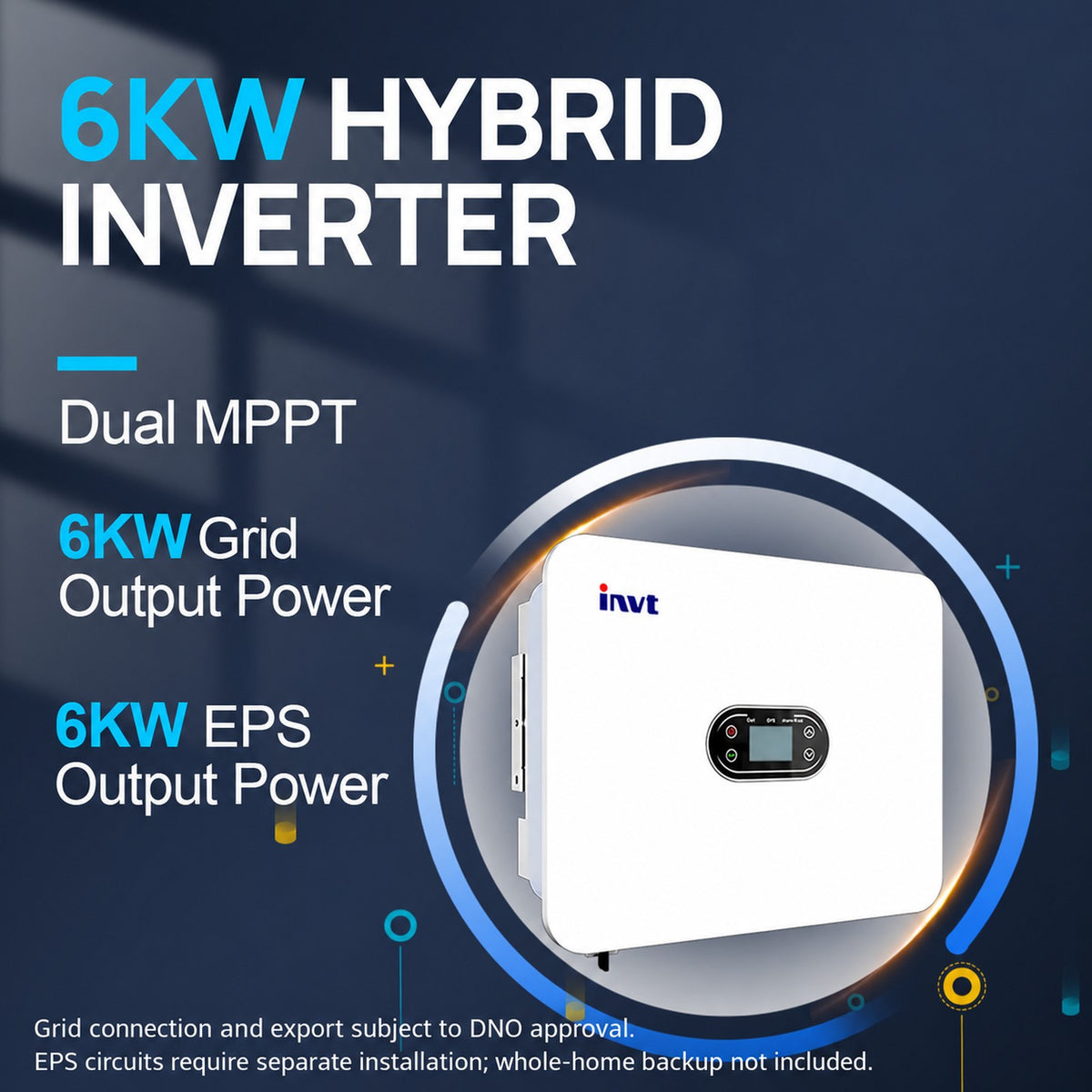

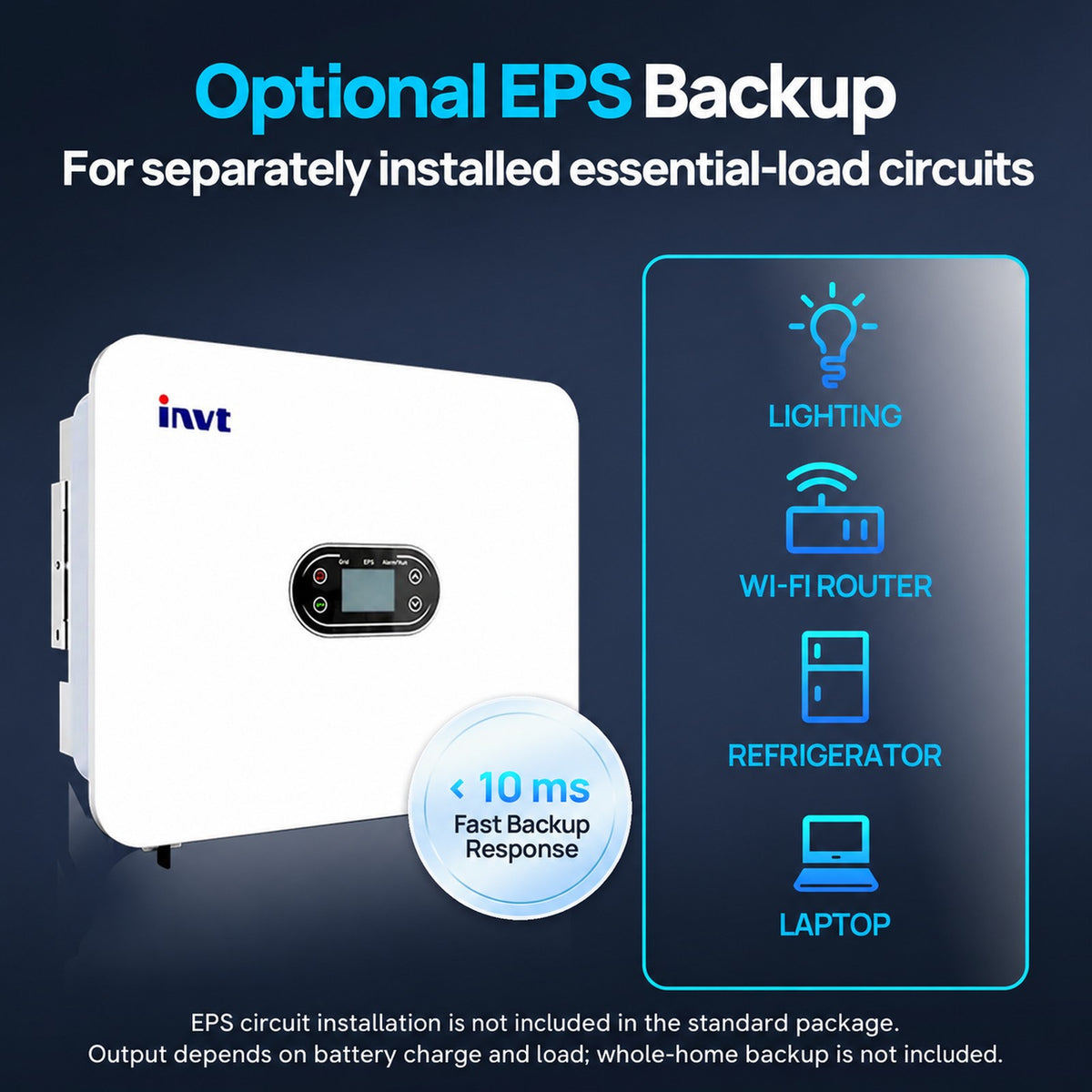

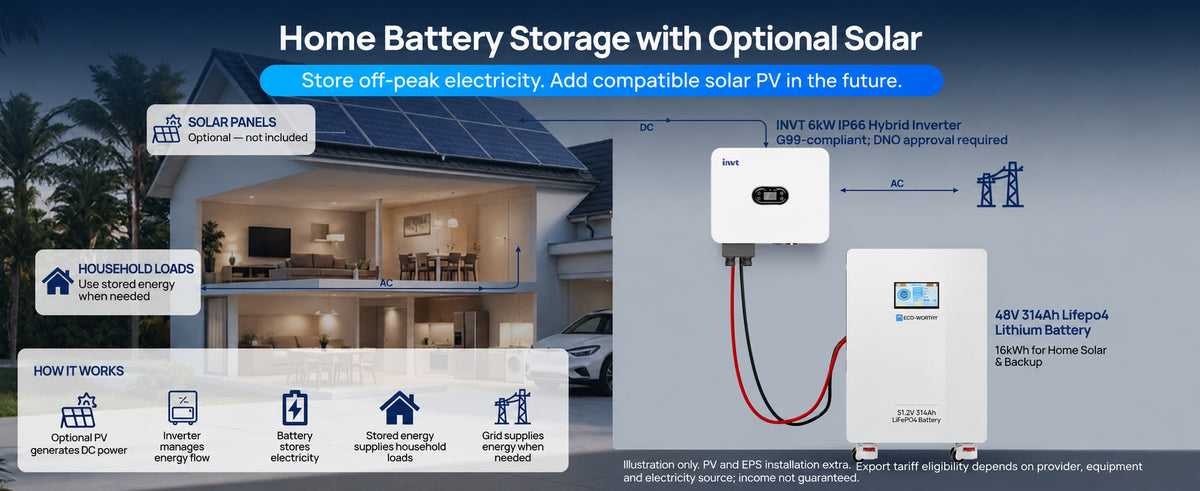

[Solar-Ready Design & Optional EPS Backup]: The hybrid inverter supports future solar PV integration, subject to system design and compatibility. The inverter features IP66-rated protection and supports EPS backup functionality when connected to suitable backup circuits. Solar PV installation and EPS / backup circuit installation are not included in the standard installation package. The inverter’s IP66 rating does not apply to the battery.

[Professional Installation from £1,000]: Standard installation is carried out by an MCS-certified installer arranged through our UK installation team. The service includes essential wiring within the agreed scope, applicable DNO application or notification, commissioning and system testing. Additional work is assessed and quoted separately before proceeding.

[5-Year Product Warranty]: This system is backed by a 5-year product warranty, subject to the applicable warranty terms. Contact our UK service team for assistance with product enquiries and installation arrangements.

Free Home Installation Consultation

Limited Time Only £1000 Full Installation & Grid Connection Registration View More →

Installation Scope

Includes standard grid-connected installation of the battery and hybrid inverter only.
Outdoor battery installation requires a custom waterproof enclosure, estimated at an additional £400–£600.
Installed by an MCS-certified installer. An MCS installation certificate is not guaranteed; any certificate requirements must be confirmed in writing before installation payment.
EPS / whole-home backup installation is not included and must be discussed separately if required.

Style System Only System + Installation Included

Quantity

Total price

£4,699.98

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £1,174.99 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£4,699.98

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

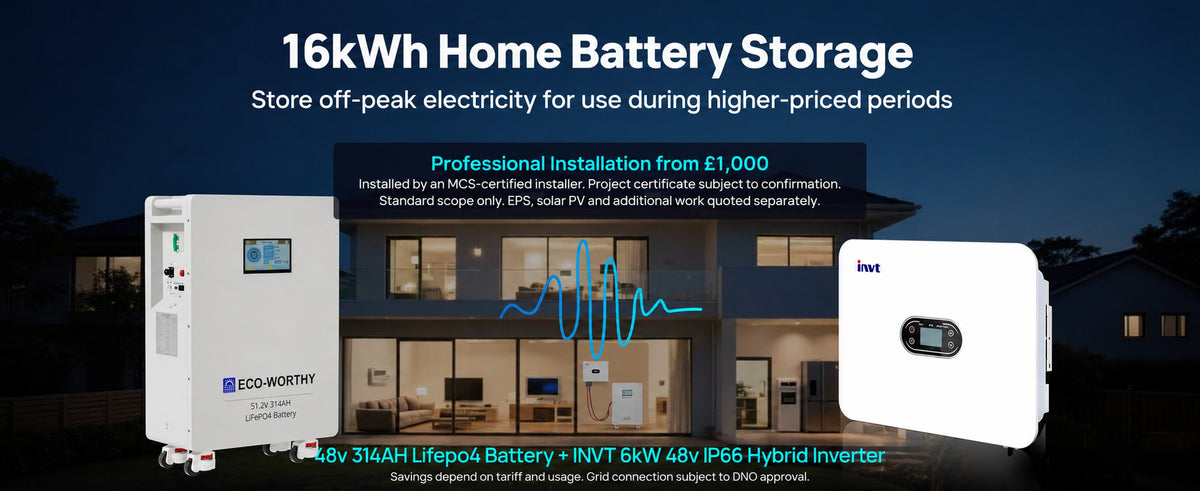

16kWh Home Battery Storage System for UK Homes

Power your home with a reliable 16kWh energy storage solution featuring a G99-compliant hybrid inverter and IEC 62619-certified 48V 314Ah LiFePO4 battery. With IP66 weatherproof protection, 10ms EPS backup switching, and optional professional installation support, it provides a safer and more convenient way to store solar energy, reduce peak-time grid usage, and keep essential appliances powered during outages.

Buying mainly to earn from exports? Contact us before ordering installation. Before collecting the installation fee, we will review your plans with you. Your chosen export tariff provider must confirm in writing that it accepts the equipment, setup and electricity source, including grid-charged electricity where applicable; its certification, metering and integration requirements must also be checked. Installation does not guarantee SEG or other export tariff acceptance, payment rates or export income.

Technical Specifications

48V 314Ah Lifepo4 Lithium Battery

INVT 6kW IP66 Hybrid Inverter With G99 Certified

Battery Capacity:

314Ah

Battery Power:

16.08kWh

Rated Voltage:

51.2V

Voltage Range:

40~58.4V

Maximum Charge/ Discharge Current:

150A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

58.4V

Battery Weight:

293.2lb/133kg

Battery Size:

32.56*20.47*9.92in/80.7*52*25.2cm

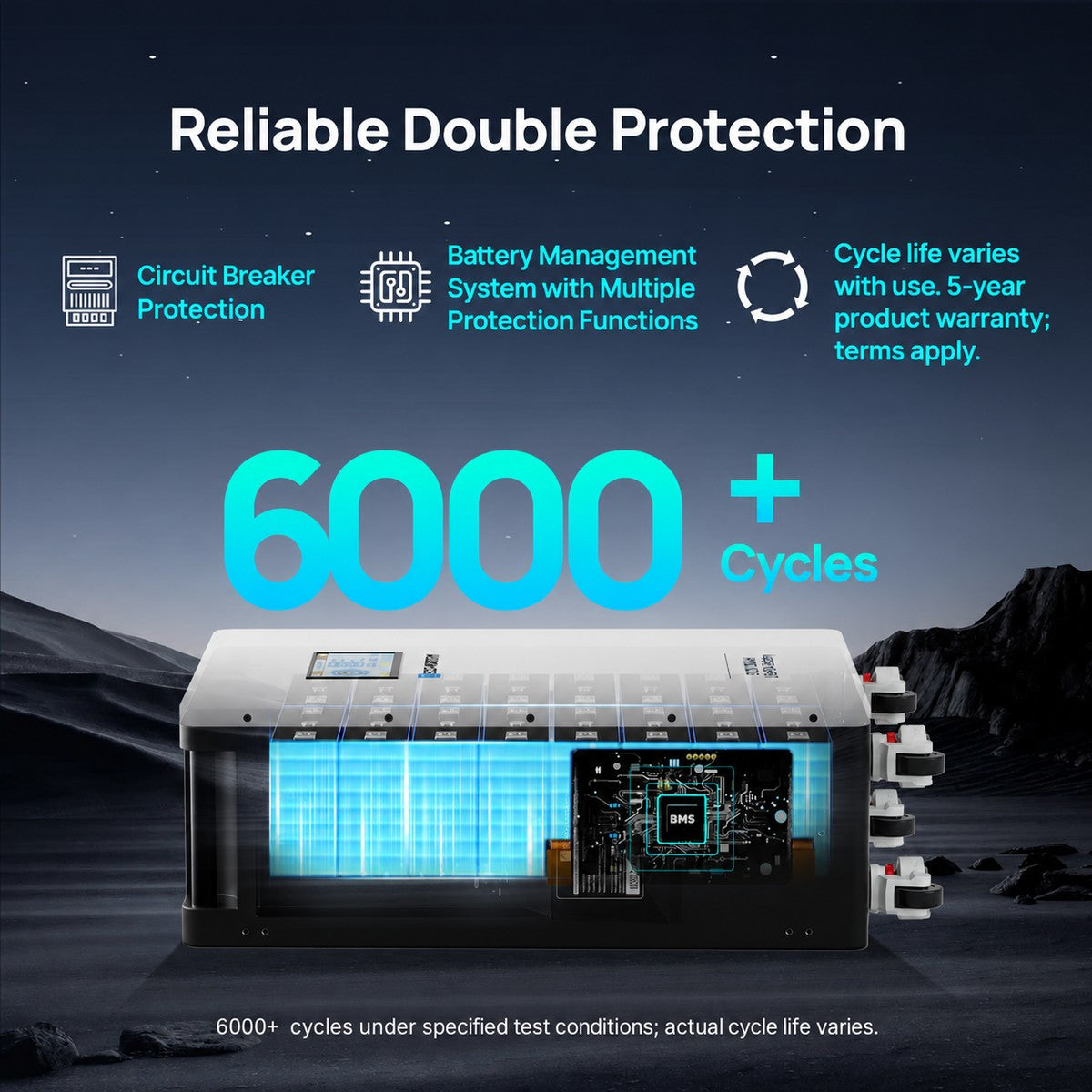

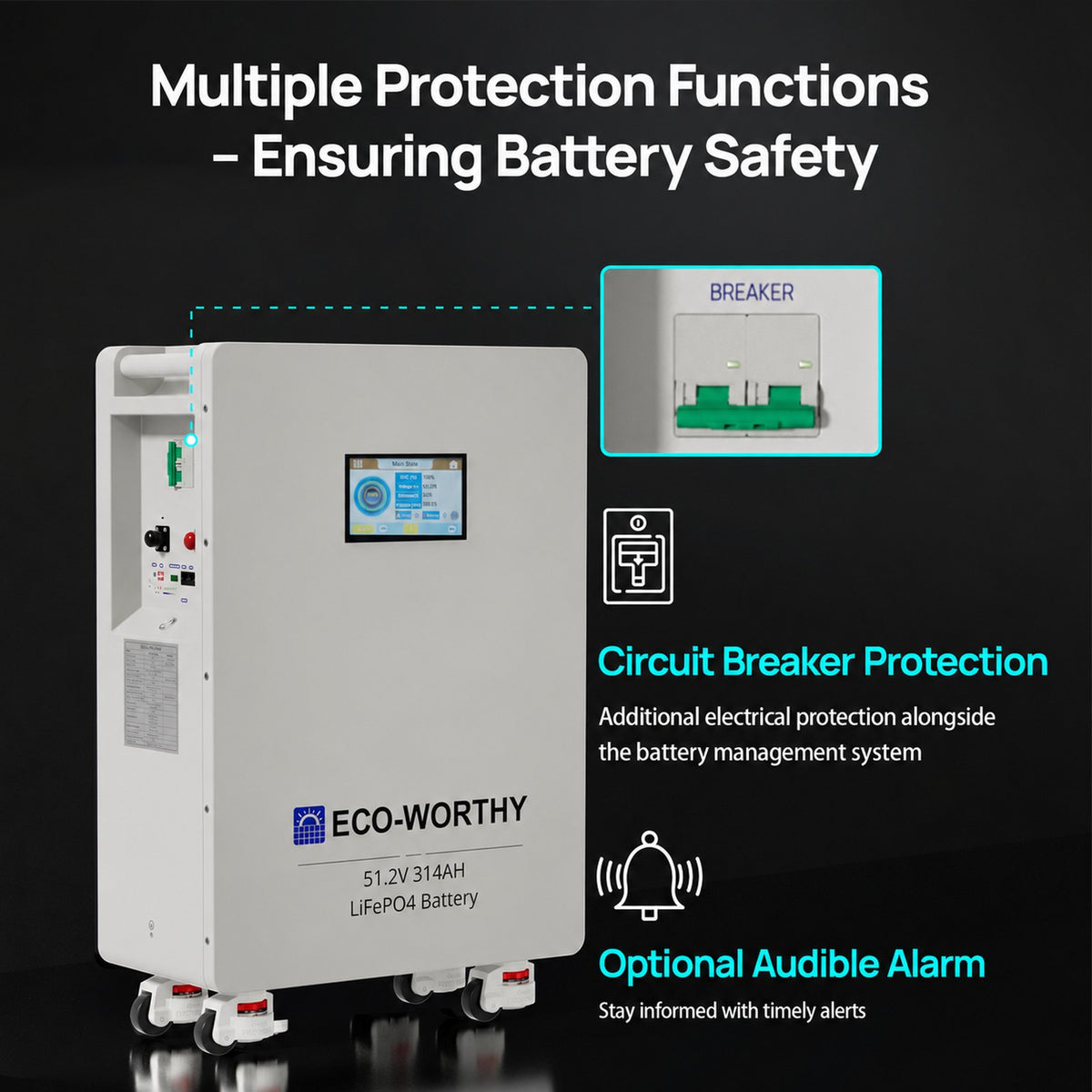

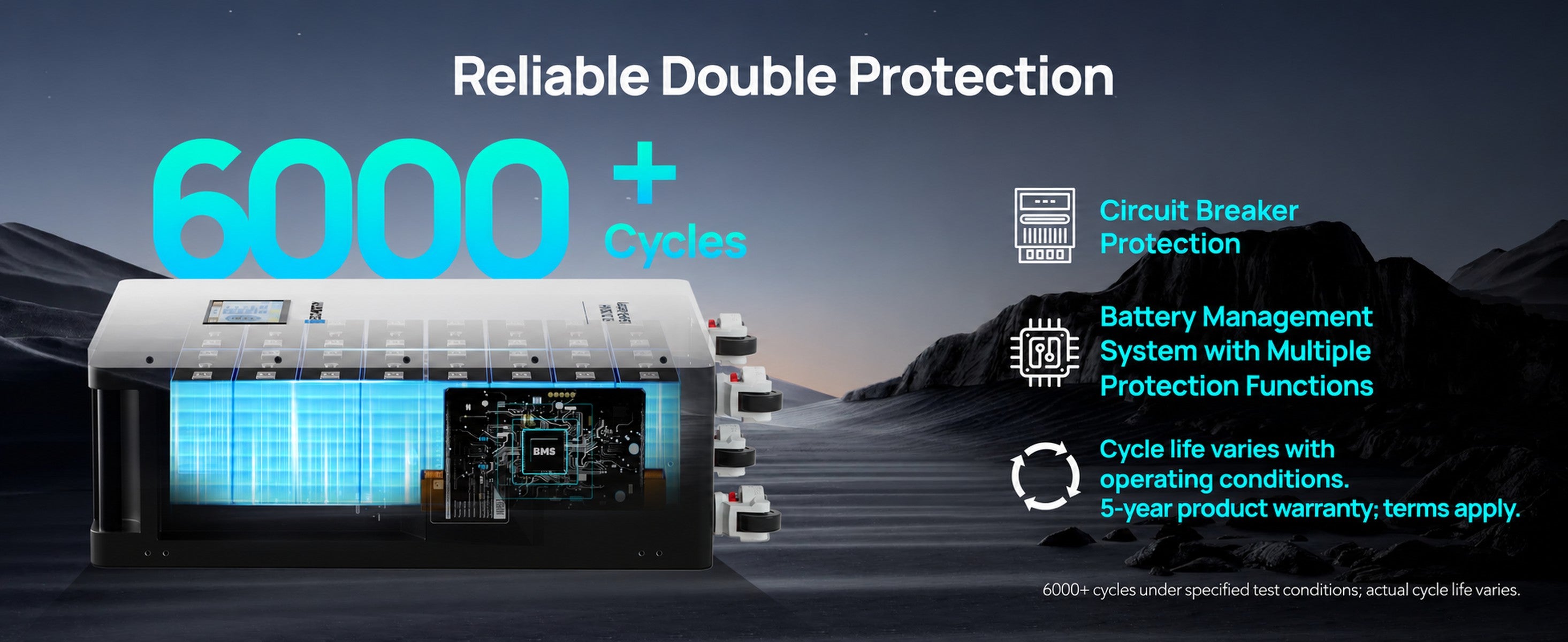

Circuit Breaker:

2*125A(250A)

Max. parallel number:

15pcs

BMS Brand:

PACE BMS

Battery type

Lithium battery or lead-acid battery

Battery voltage (V)

40-60

Max. Battery charge current (A)

100

BMS communication protocol

CAN

Maximum input power (W)

9000W

Maximum input voltage (V)

600

Solar start-up voltage (V)

100

Solar MPPT voltage range (V)

100-550

MPPT channels

Max. solar input current (A)

Max. solar input short-circuit current (A)

Rated AC output power (VA)

6000

Max. AC output power (VA)

6000

Max. AC output current (A)

Rated AC output voltage (V)

230

Rated AC output frequency (Hz)

THD(@rated power)

＜3%

EPS switching time (ms)

＜10

Max. efficiency

＞97.5%

European efficiency

＞97.2%

Standby power (W)

＜10

Ingress protection

IP66

Dimension

490*395*200

Weight

21.35Kg

Included in the Box

1x48V 314Ah LiFePO4 Lithium Battery
1x6000W Hybrid Inverter
Accessories

1x48V 314Ah LiFePO4 Lithium Battery
1x6000W Hybrid Inverter
Including £1,000 Installation Fee
Accessories

User manual

Eco-Worthy INVT 6kW IP66 Hybrid Inverter With G99 Certified

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter-User Manual

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter Host Computer User Guide

Download

ECO-WORTHY INVT_6KW_G99_certification_CN-PV-230141_Security

Download

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
