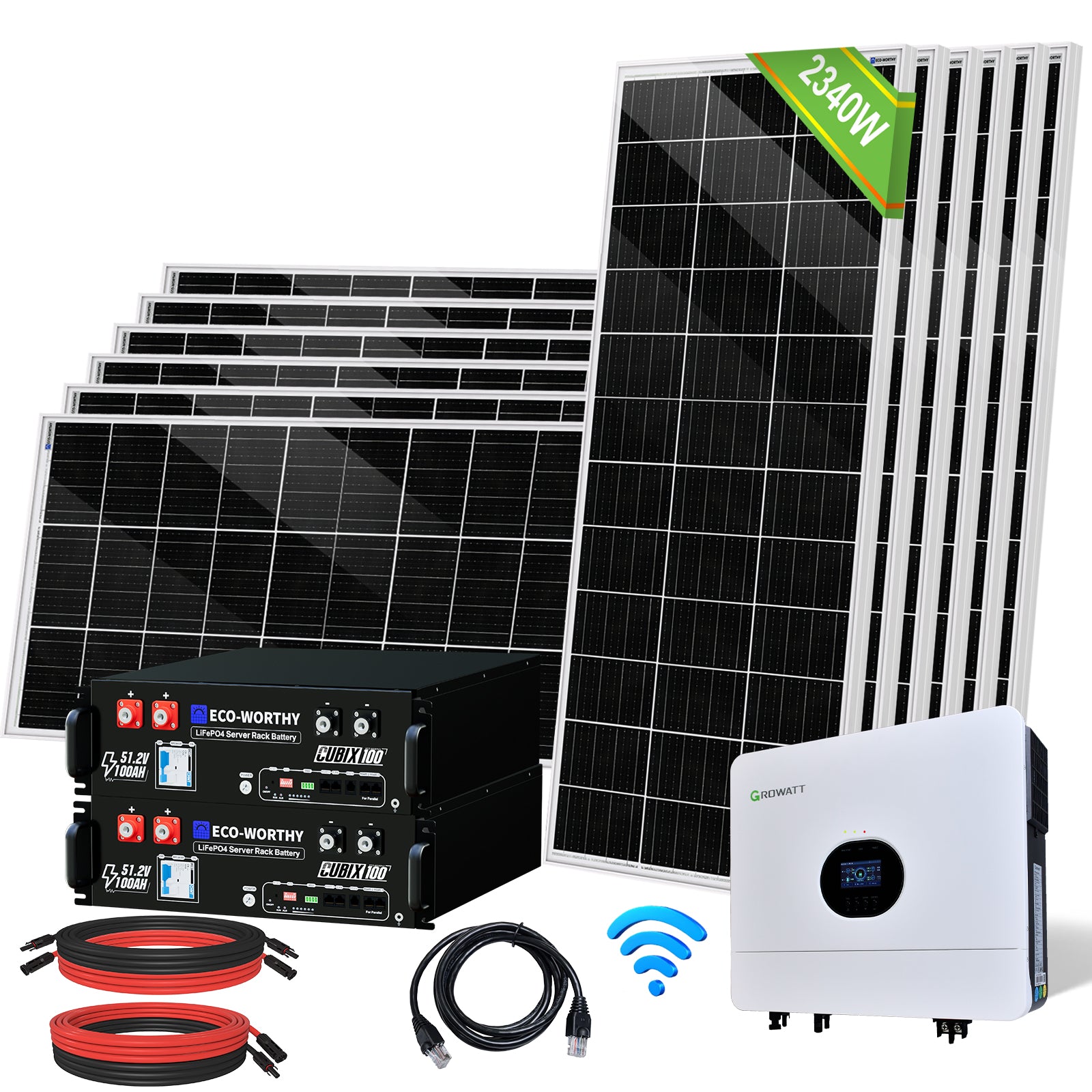

ECO-WORTHY 48V 2340W (12x Bifacial 195W) Complete Off Grid Solar Panel Kit

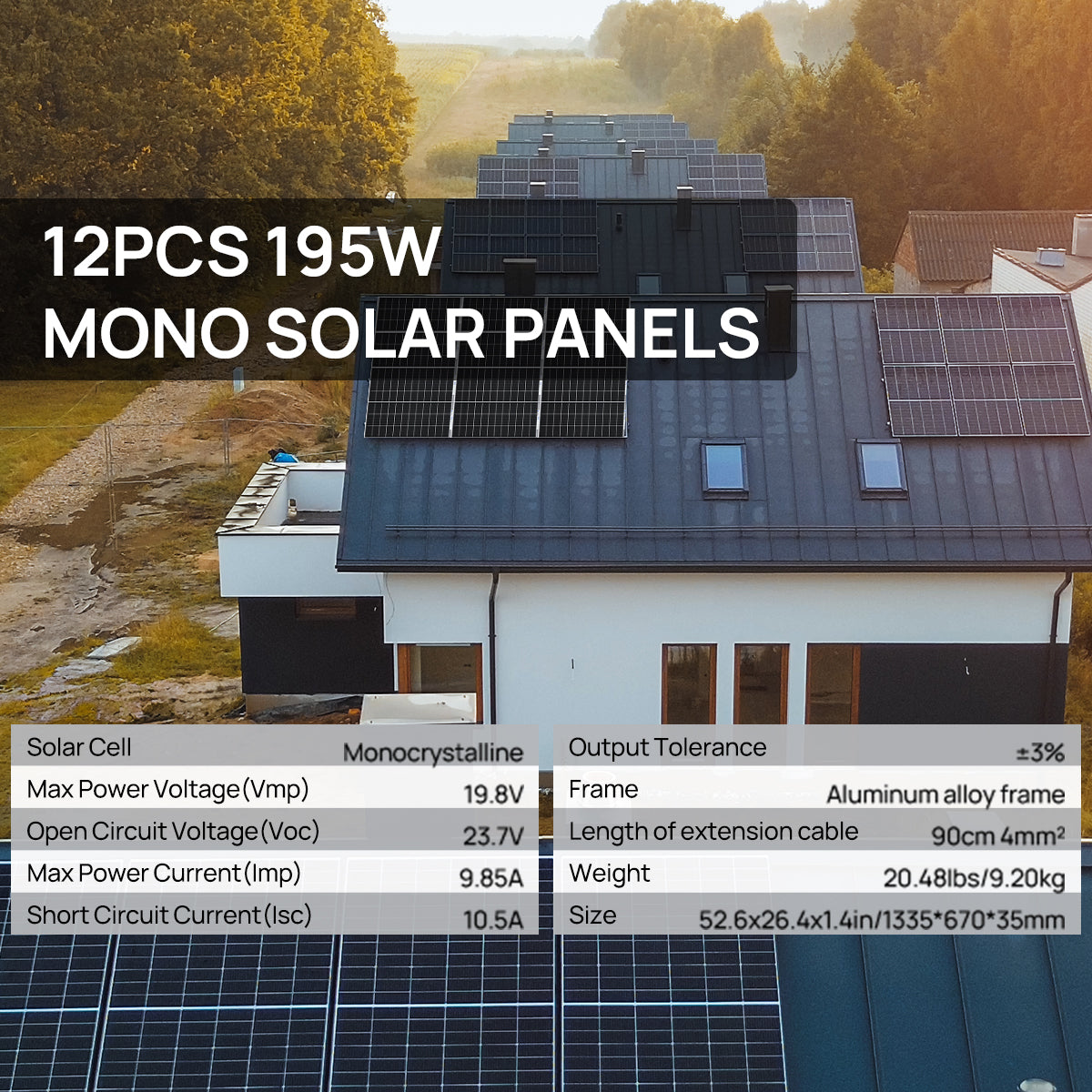

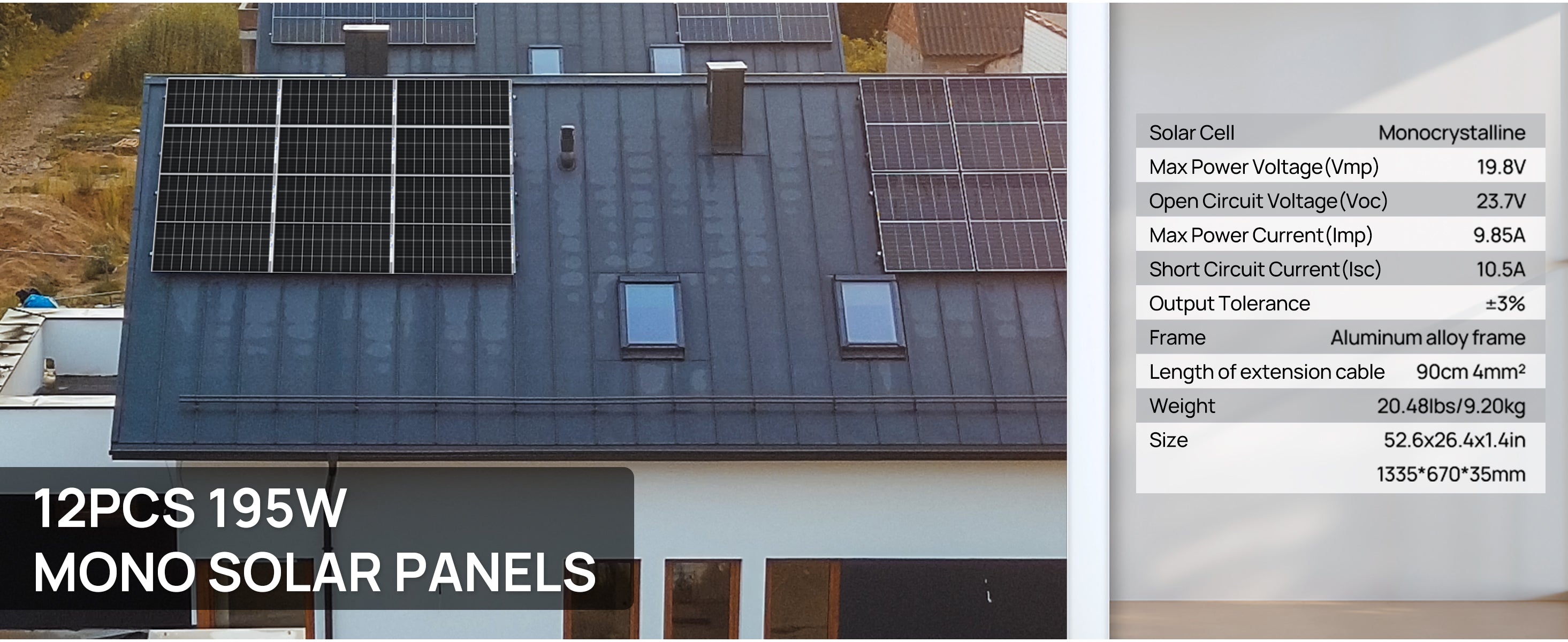

Rated Power:

195W

Solar Cell:

Monocrystalline

Maximum/Peak Voltage(Vmp):

19.8V

Open Circuit Voltage(Voc):

23.7V

Short circuit current:

10.5A

Maximum current:

9.85A

Output Tolerance:

±3%

Temperate coefficient of Isc:

(010+/-0.01)%/℃

Temperate coefficient of Voc:

-(0.38+/-0.01)%/℃

Temperature range:

－40℃～ +85℃

Frame:

Aluminum alloy frame

Weight:

20.48 lbs(9.29 kg)

Size:

52.6x26.38x1.38in (1335*670*35mm)

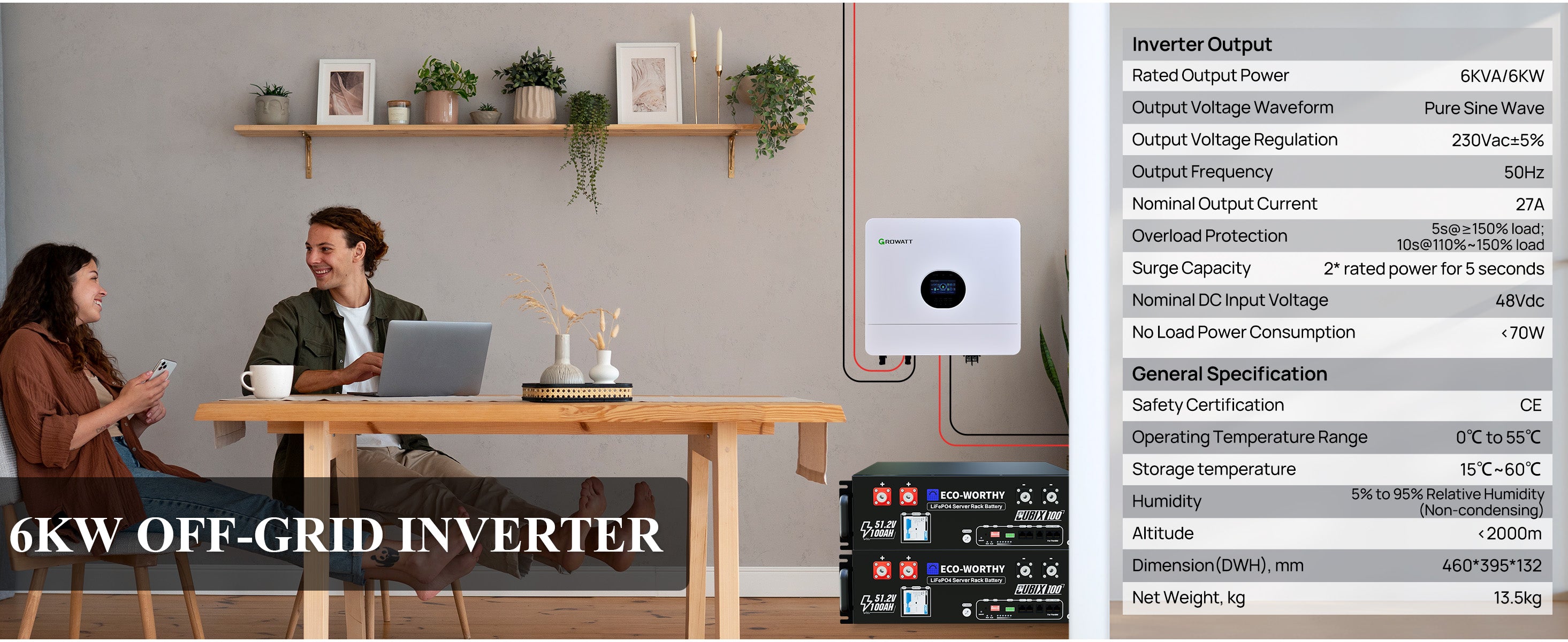

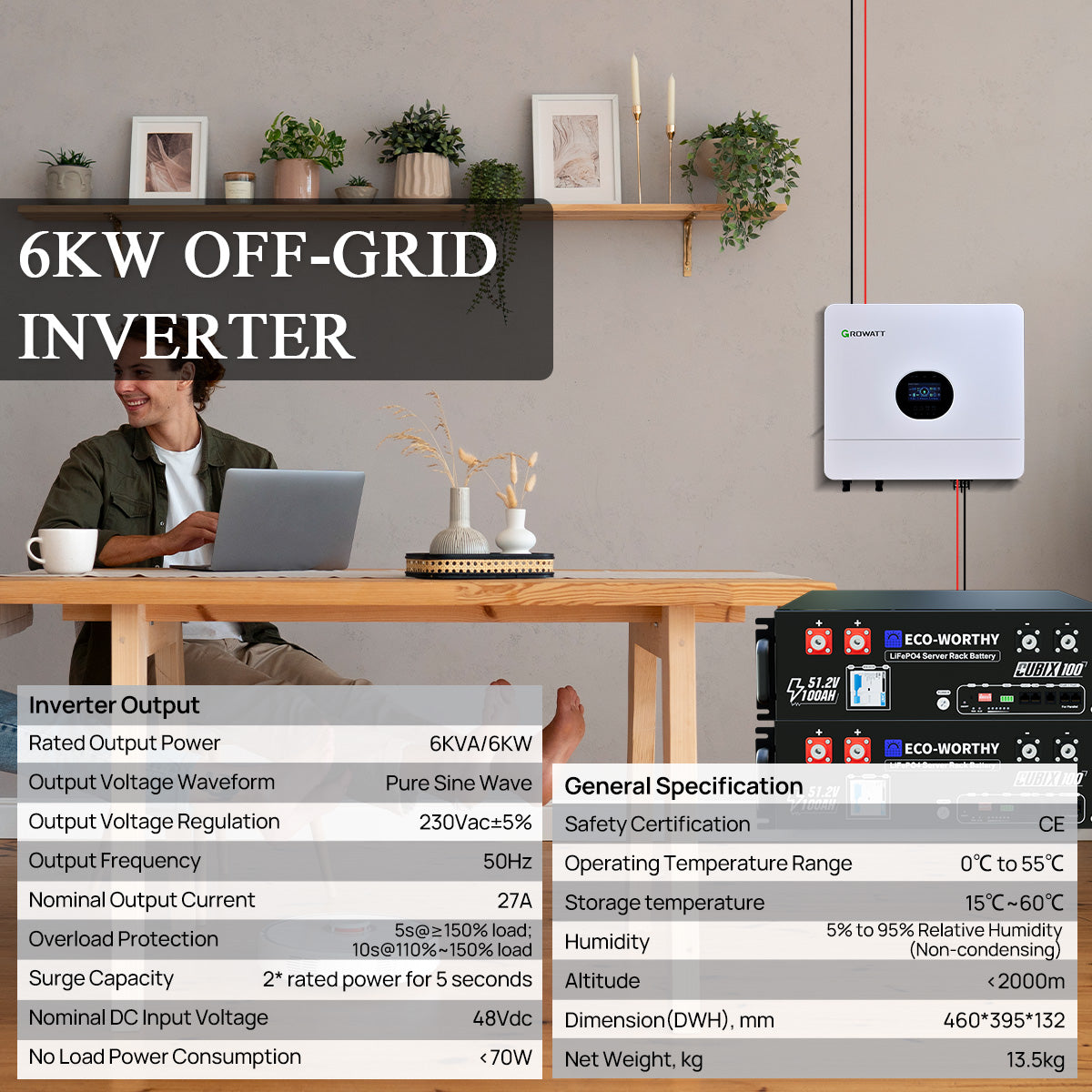

Rated pover:

6000VA/6000W

Parallel capability:

Yes,6 units maximwm

AC voltage regulationl (battery mode):

230VAC+5% @5060Hz

Surge power:

12000VA

Efficiency (peak):

93%

Waveform:

Pure sine wawe

Transfer time:

10ms typical, 20mns Max

Maximum PV array power:

8000W

MPPT range @ operating voltage:

120VDC~450VDC

Number of independent MPP trackers/strings per MPp tracker:

2/1

Max.input current per MPP tracker:

16A

Maximum Py array opencircuit voltage:

500VDC

Maximum solar charge current:

100A

Charge current:

80A

AC input voltage:

230VAC

Selectable voltage range:

170-280 VAC (For personal computers);90-280 VAC (For home appliances)

Frequency range:

50Hz/60Hz (Auto sensing)

Protection degree:

IP20

Dimension (W/H/D)：

460/395/132mm

Net weight:

13.5kg

Operating environment

0C- 55°C

Humidity:

5% to 95% Relative humidity (Non-condensing)

Altitude:

<2000m

Storage temperature:

-15°C-60°C

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Cable Type:

Connecting Solar Panels to Combiner Box

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

-40°F to +185°F

Connector:

MC4

Cable Type:

Connecting Solar Panels to Charge Controllers

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

40°F to +185°F

Connector:

MC4

Material:

Aluminum Alloy

Size of Screw and Nut:

M6

Weight:

0.85kg
