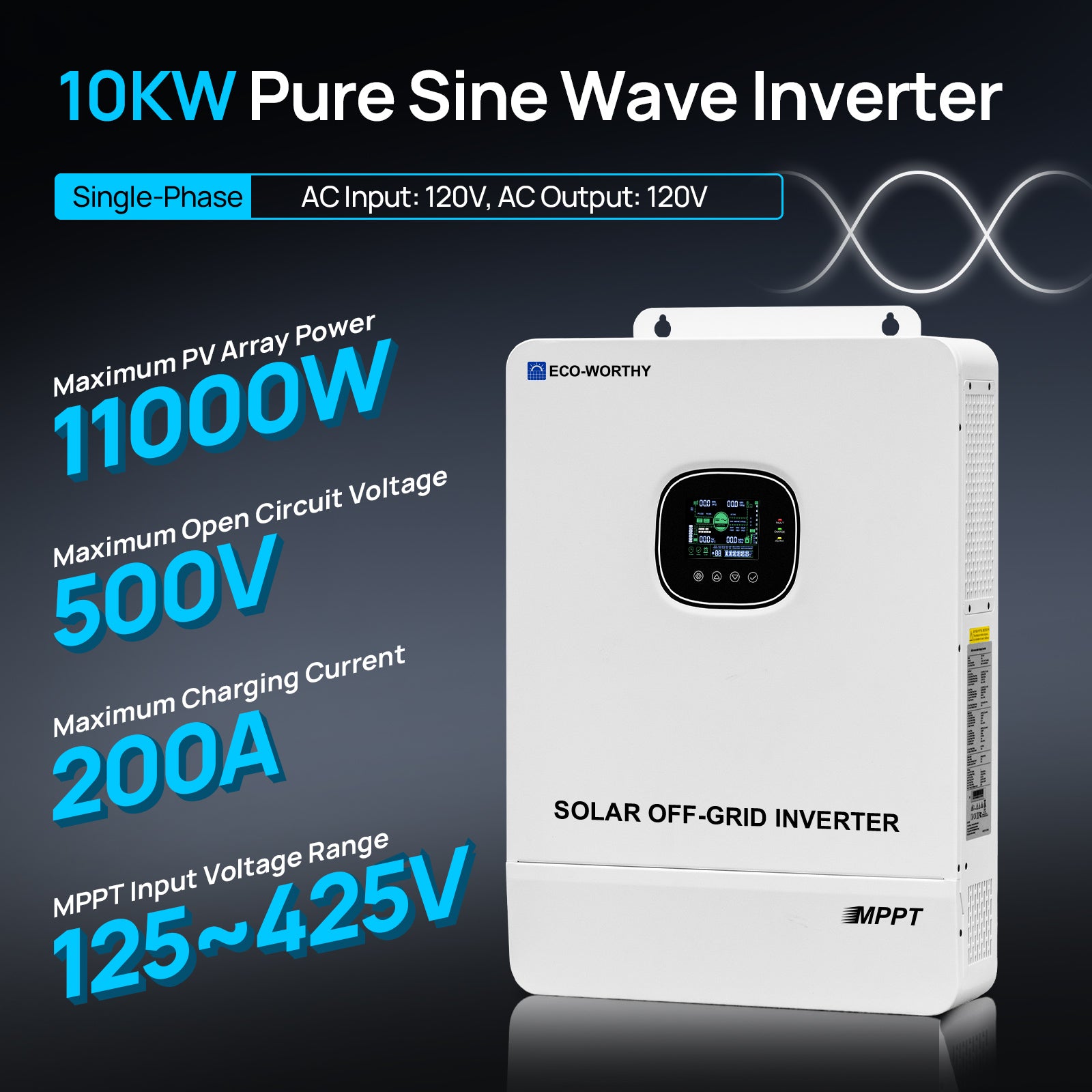

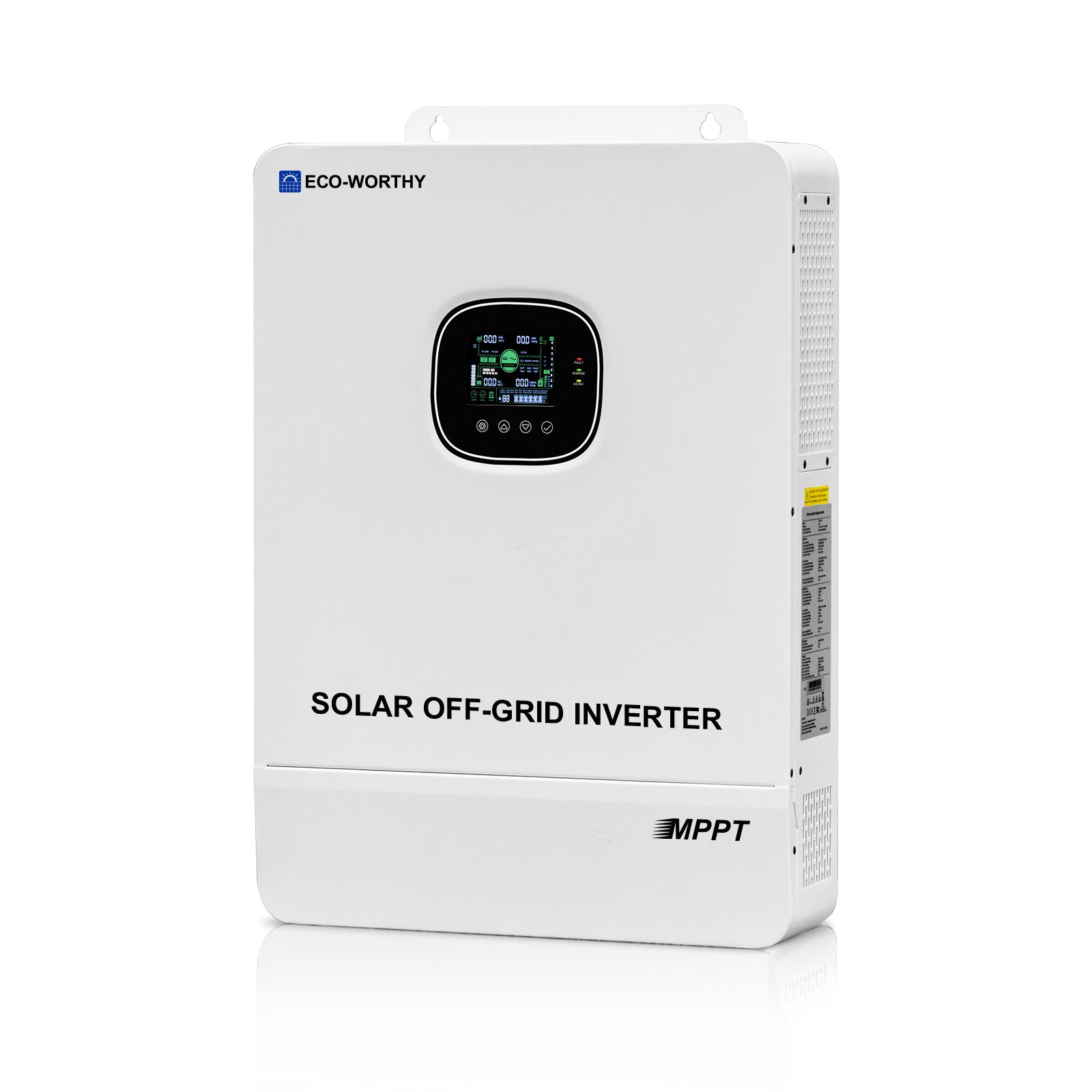

Eco-Worthy 10000W Solar Off-grid AIO Inverter 48Vdc to 230Vac 11000W@500V PV Input
No reviews
Eco-Worthy 10000W Solar Off-grid AIO Inverter 48Vdc to 230Vac 11000W@500V PV Input
Regular price
£1,269.99
Sale price
£1,269.99
Regular price
£1,569.99
Unit price
/
per
Tax included.
Free Shipping
SKU: UK-L03NKEU10KW-1

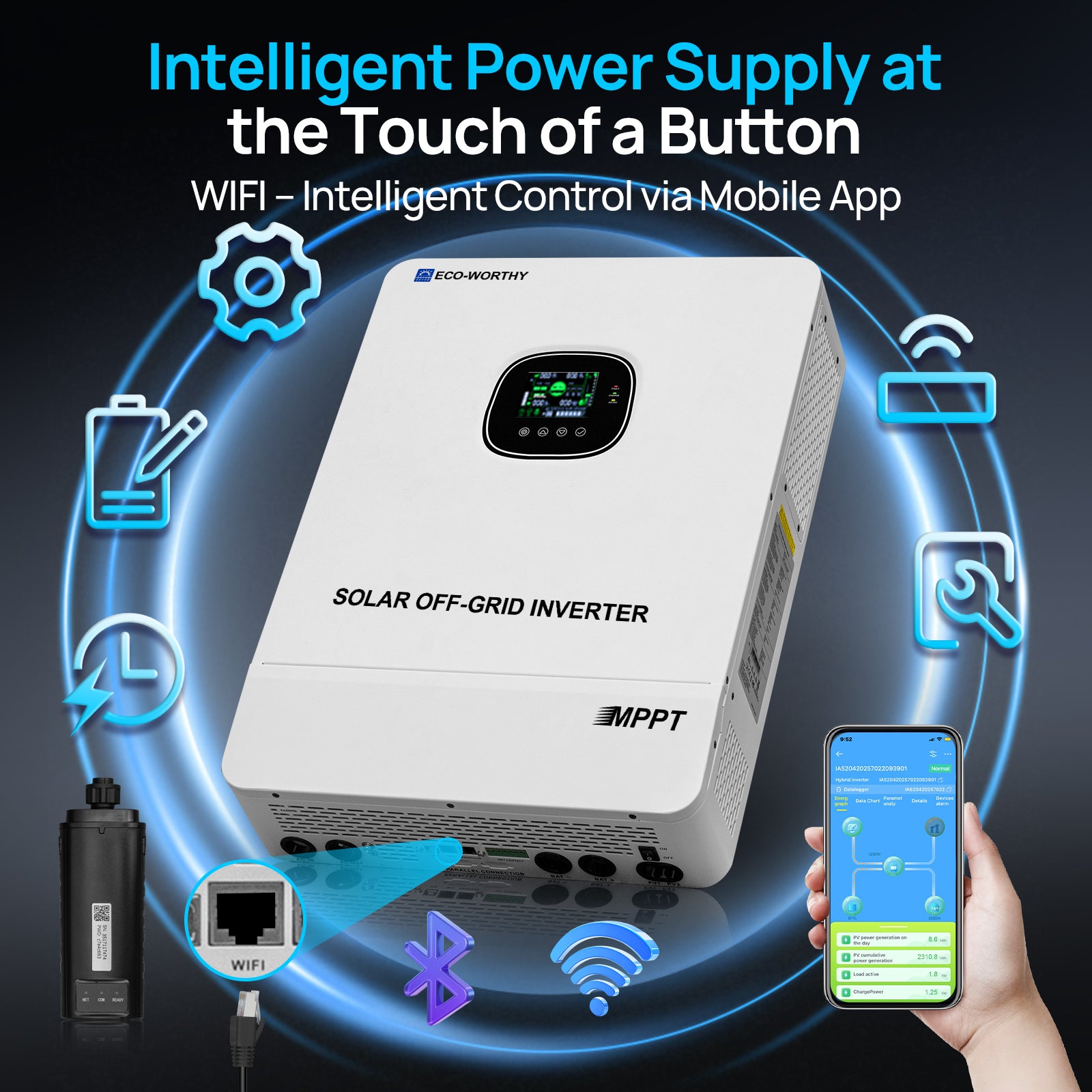

[Smart Control & High Compatibility]: Connect via Bluetooth or WiFi for convenient system management. Compatible with ECO-WORTHY 48V batteries and most LiFePO4 batteries on the market for both charging and communication.

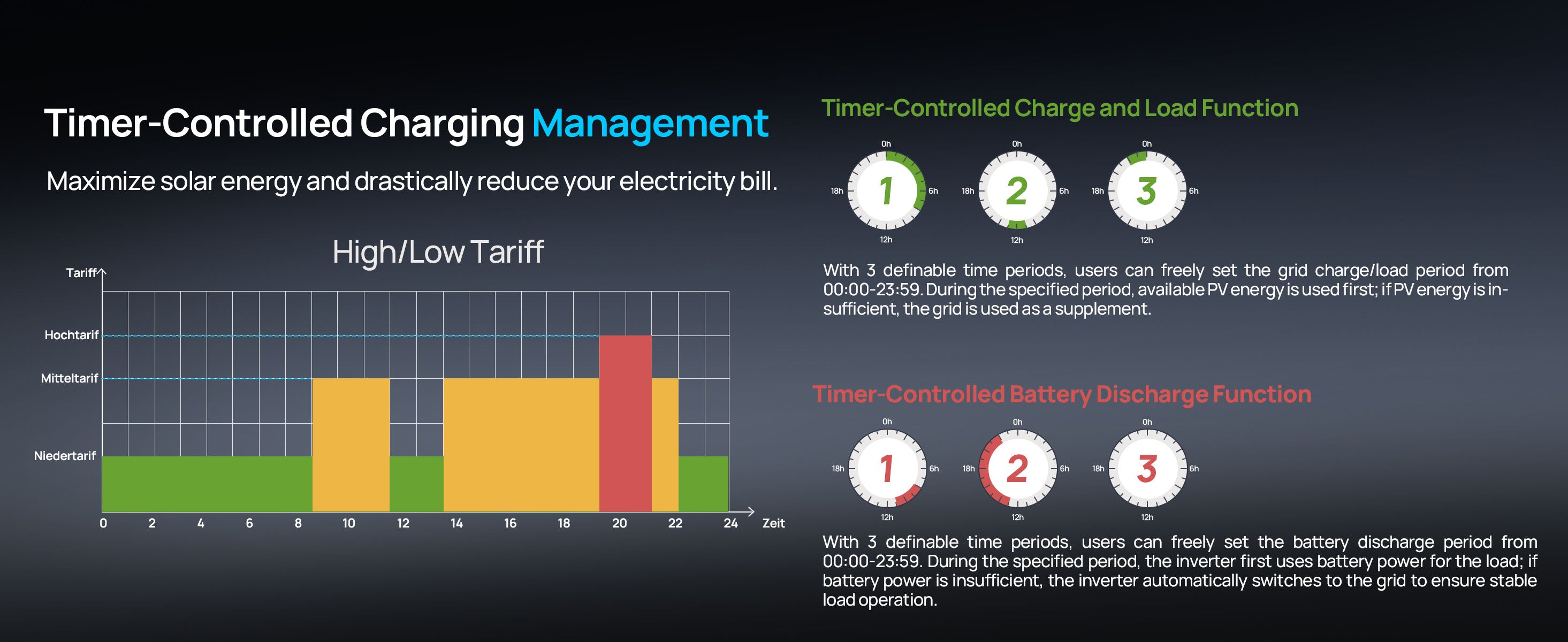

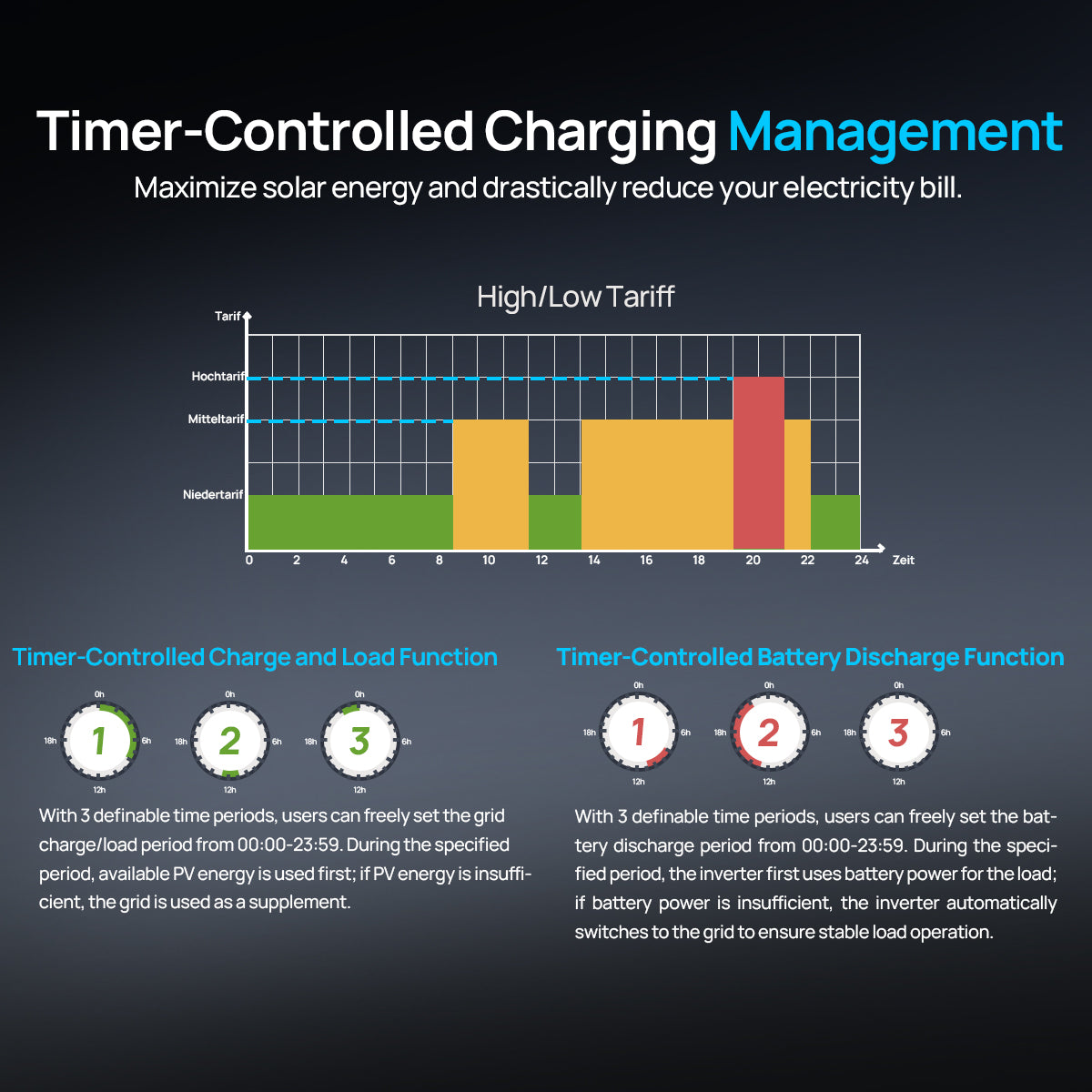

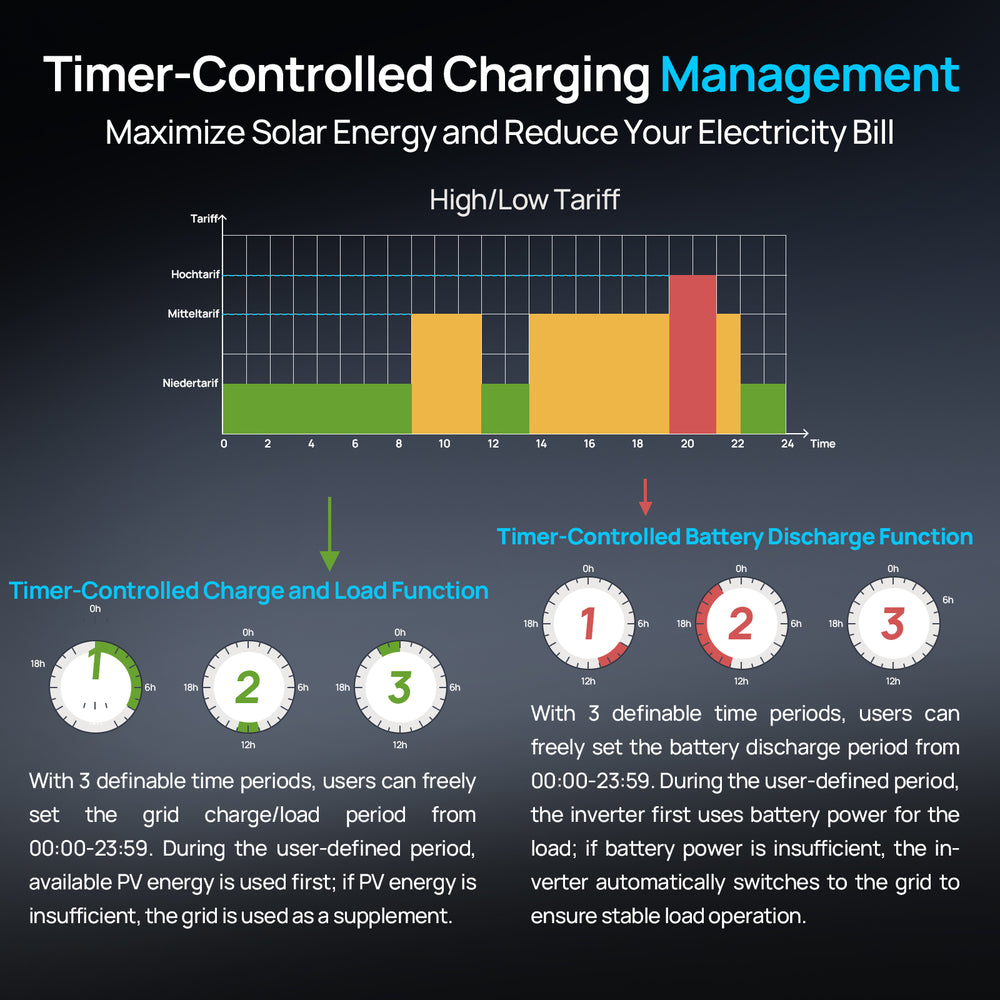

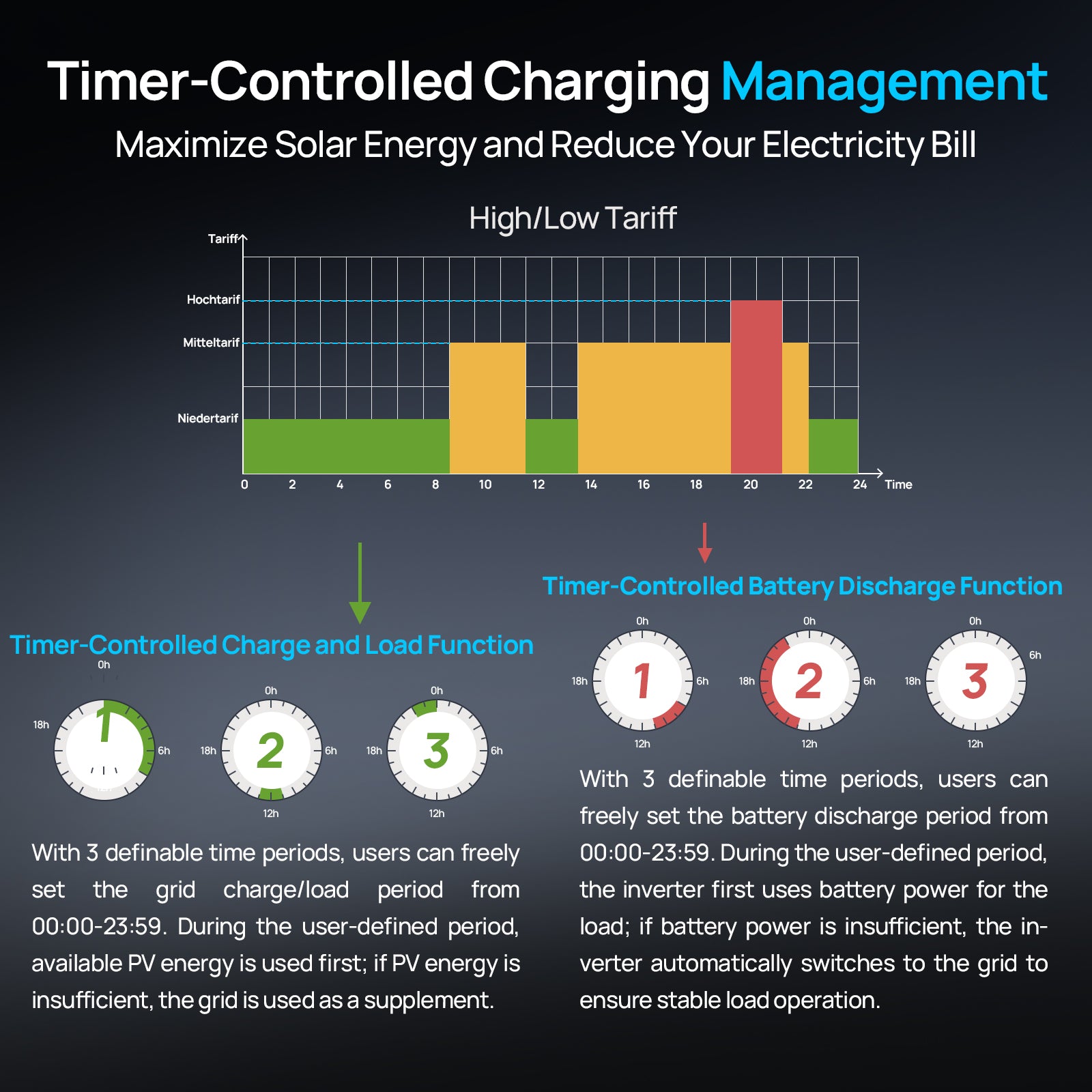

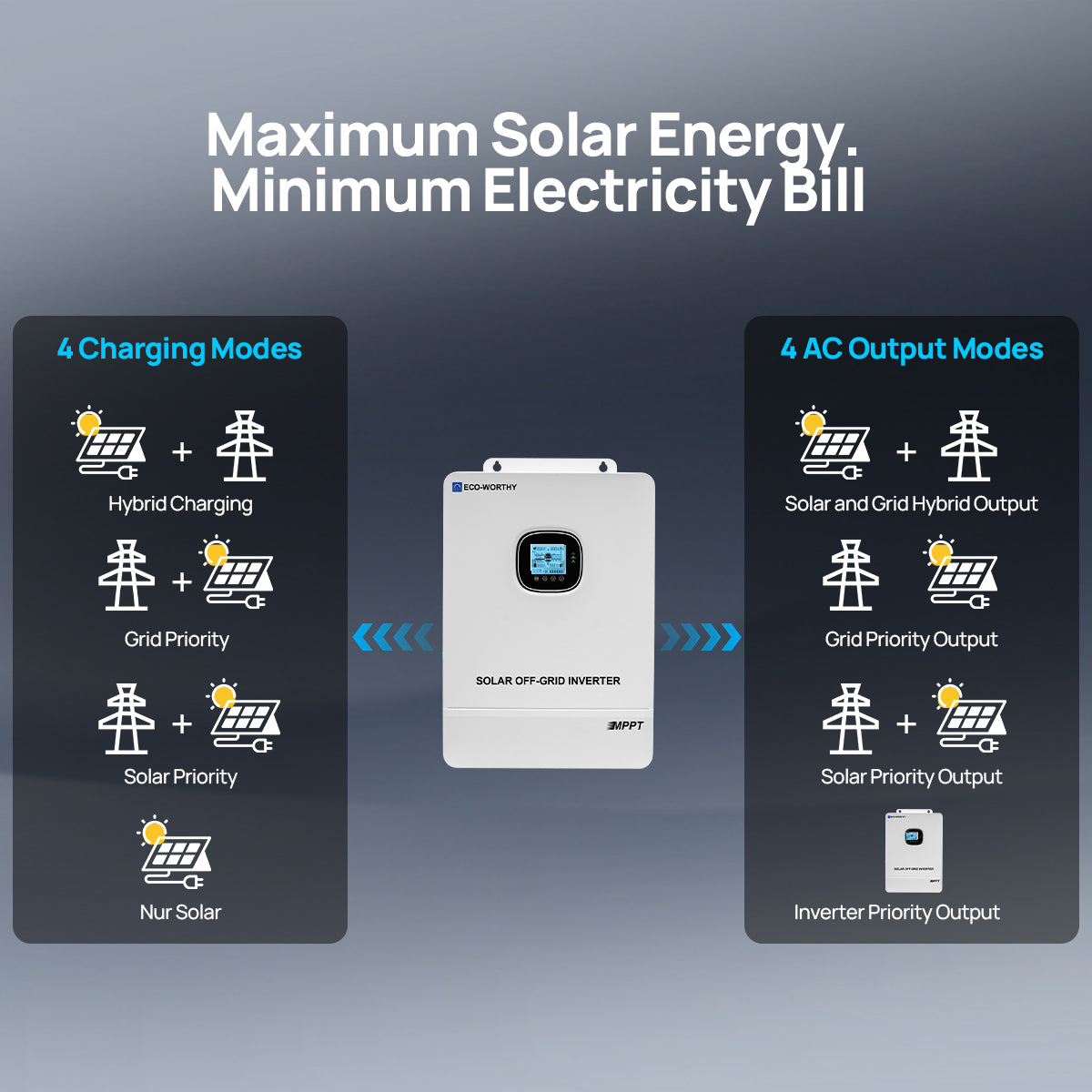

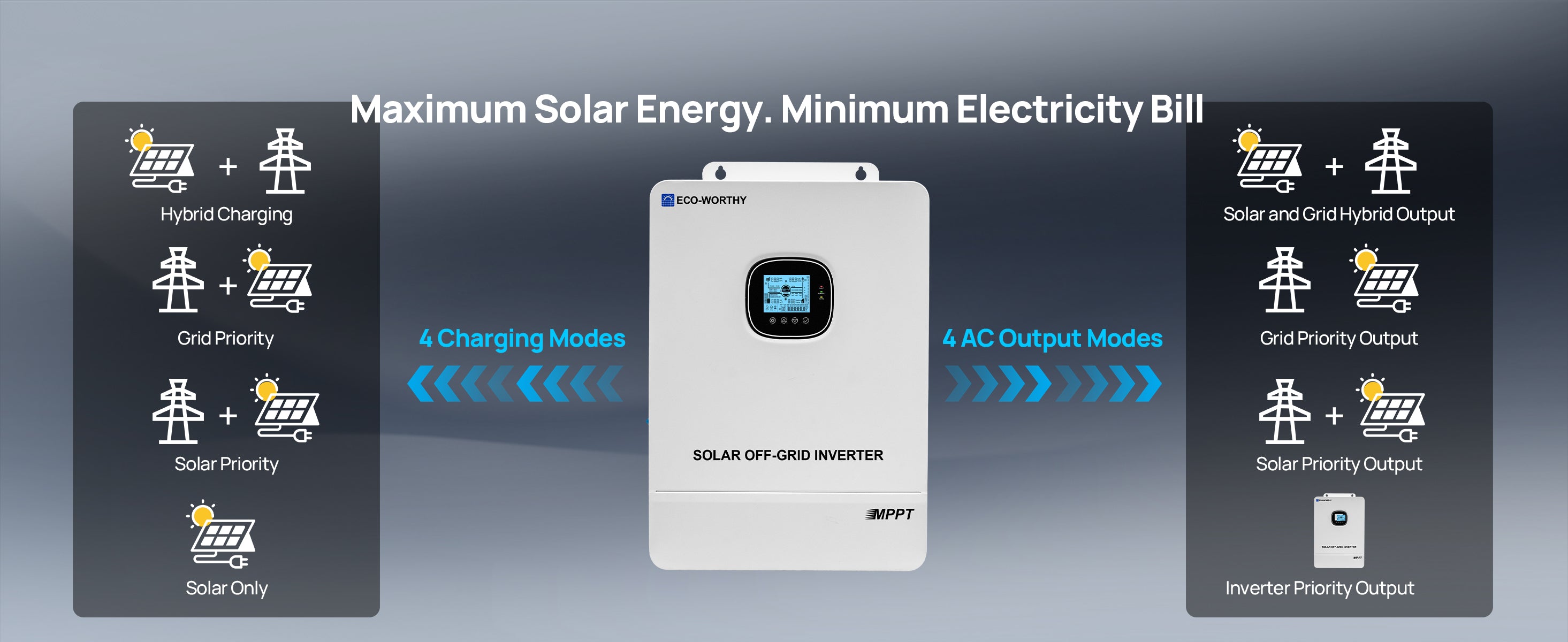

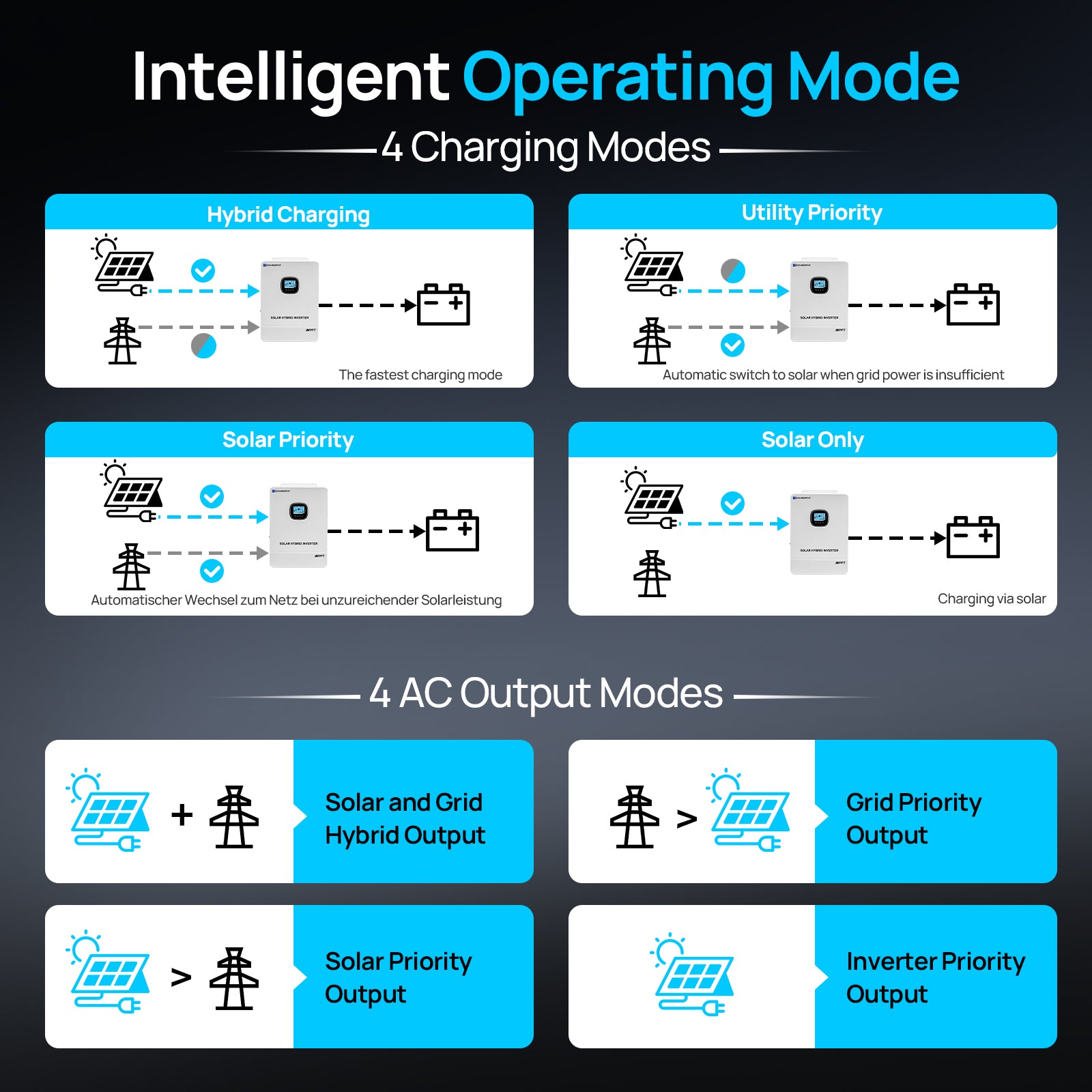

[Segmented Charging/Discharging]: Offers 3 output modes and 4 charging modes with time-based scheduling to optimize energy usage and save grid costs.

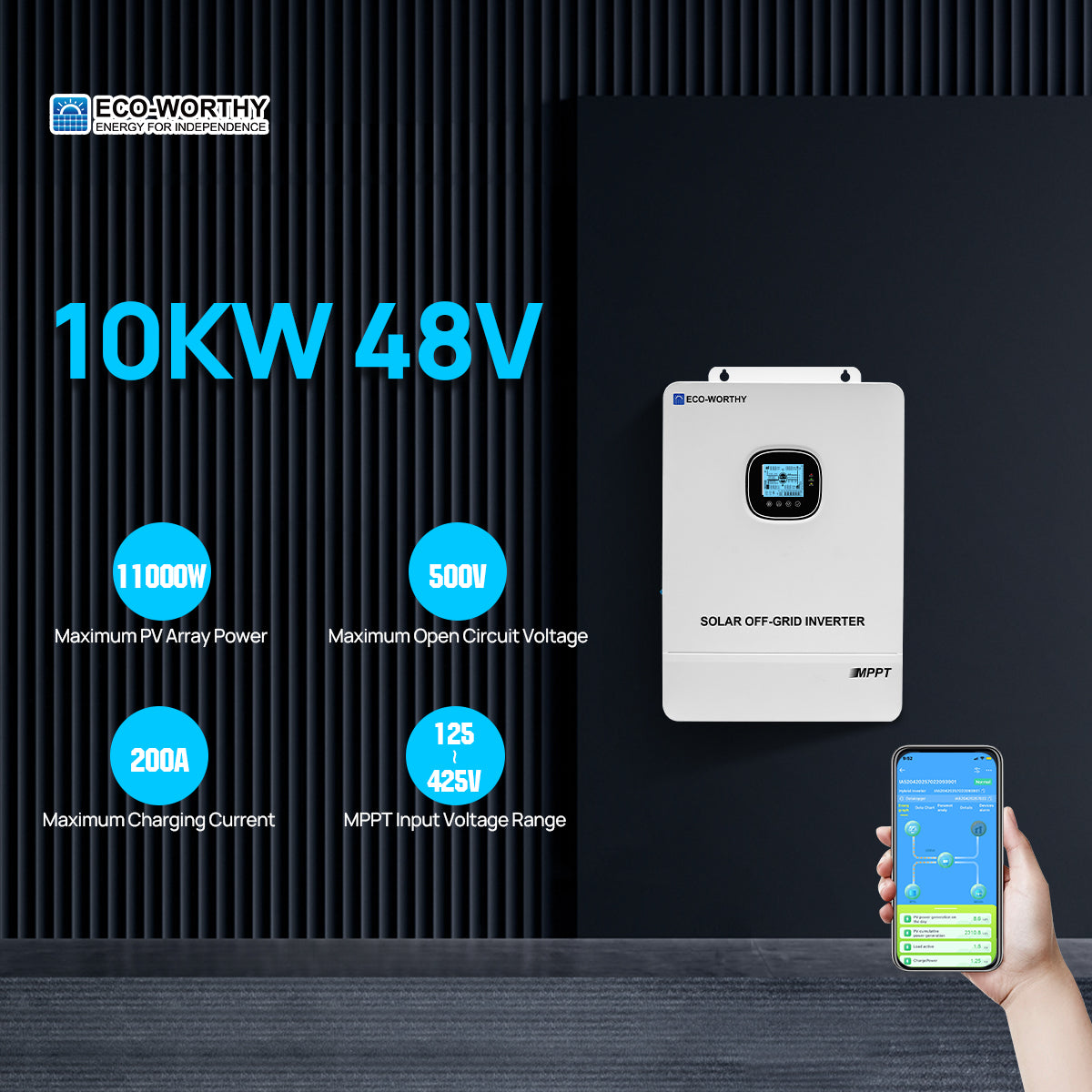

[Technical Specifications]:Dual‑channel MPPT, max. 5500 W PV input per channel, 120–500 V DC input range, 80 A MPPT charging current, 5000 W rated output power, 10000 W peak power.
[Battery-Free Running]: Operates without battery power input, using PV DC current to keep loads running continuously—ideal for flexible solar setups.

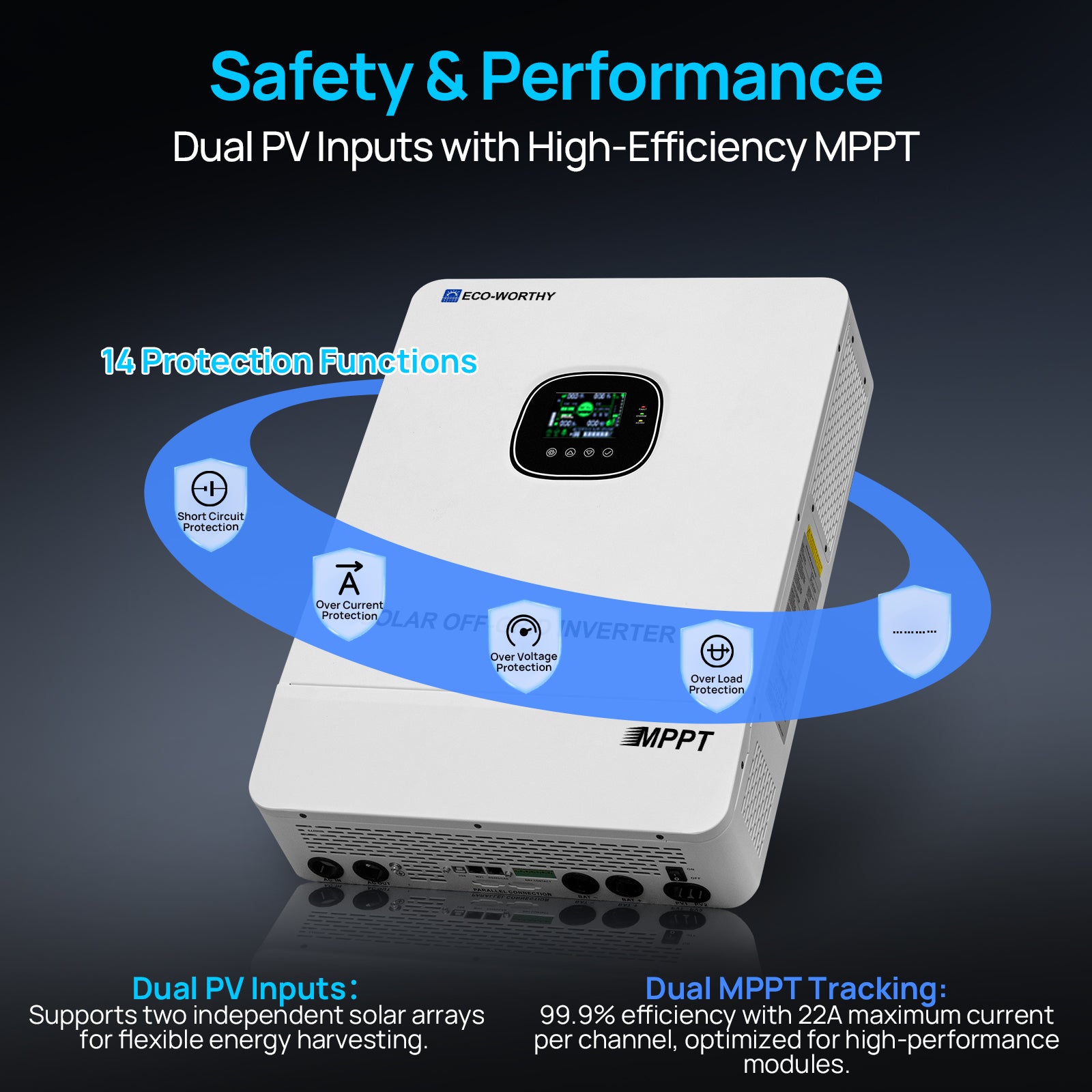

[Easy & Safe Use]: LCD display for real-time monitoring, plus intelligent protections including PV input limiting, over-voltage protection, and multiple cooling fans.
[Segmented Charging/Discharging]: Offers 3 output modes and 4 charging modes with time-based scheduling to optimize energy usage and save grid costs.
[Technical Specifications]:Dual‑channel MPPT, max. 5500 W PV input per channel, 120–500 V DC input range, 80 A MPPT charging current, 5000 W rated output power, 10000 W peak power.
[Battery-Free Running]: Operates without battery power input, using PV DC current to keep loads running continuously—ideal for flexible solar setups.
[Easy & Safe Use]: LCD display for real-time monitoring, plus intelligent protections including PV input limiting, over-voltage protection, and multiple cooling fans.
Code:
Copy CodeCouldn't load pickup availability

Regular price
£1,269.99
Sale price
£1,269.99
Regular price
£1,569.99
Unit price
/
per
The ECO-WORTHY 10kW All-in-One Solar Inverter combines powerful 10,000W output, dual 5500W MPPT solar inputs, Bluetooth & WiFi monitoring, battery-free operation, and smart time-of-use energy management. Designed for home energy storage, off-grid living, and solar backup systems, it works seamlessly with ECO-WORTHY and most 48V LiFePO4 batteries for maximum flexibility and efficiency.

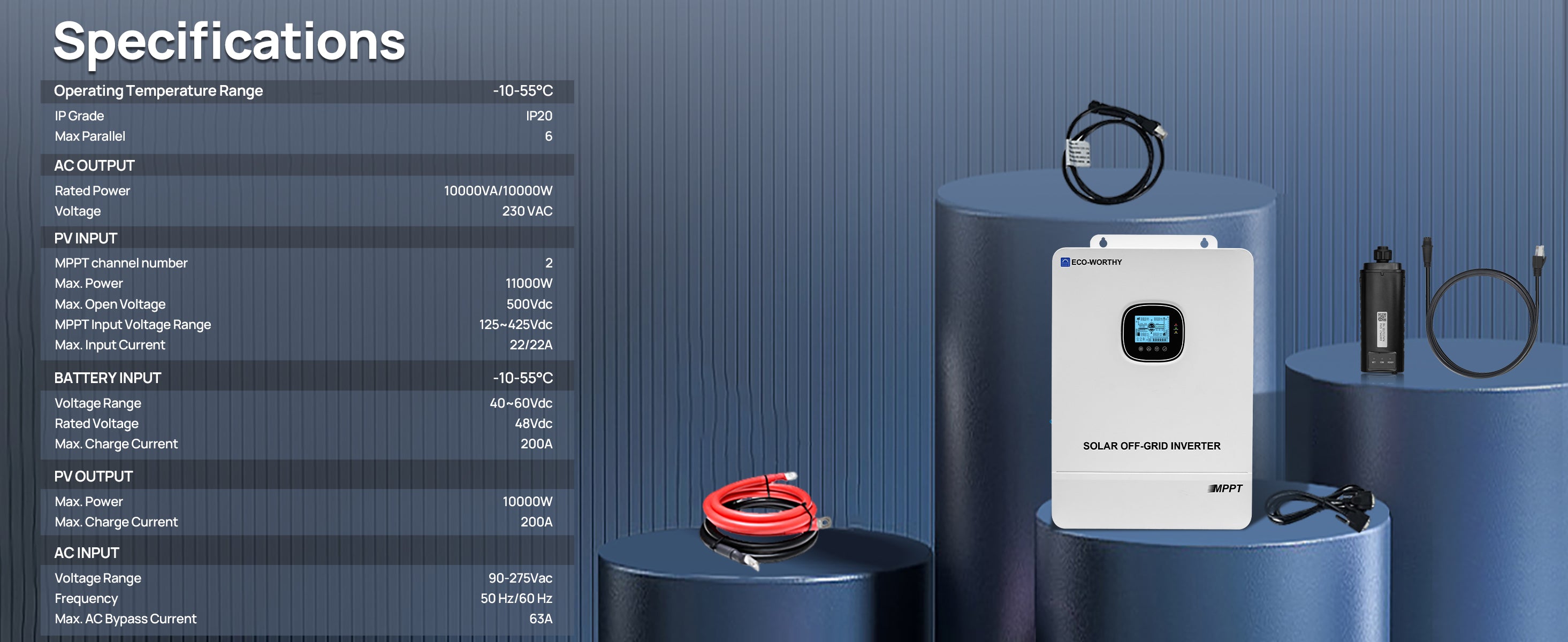

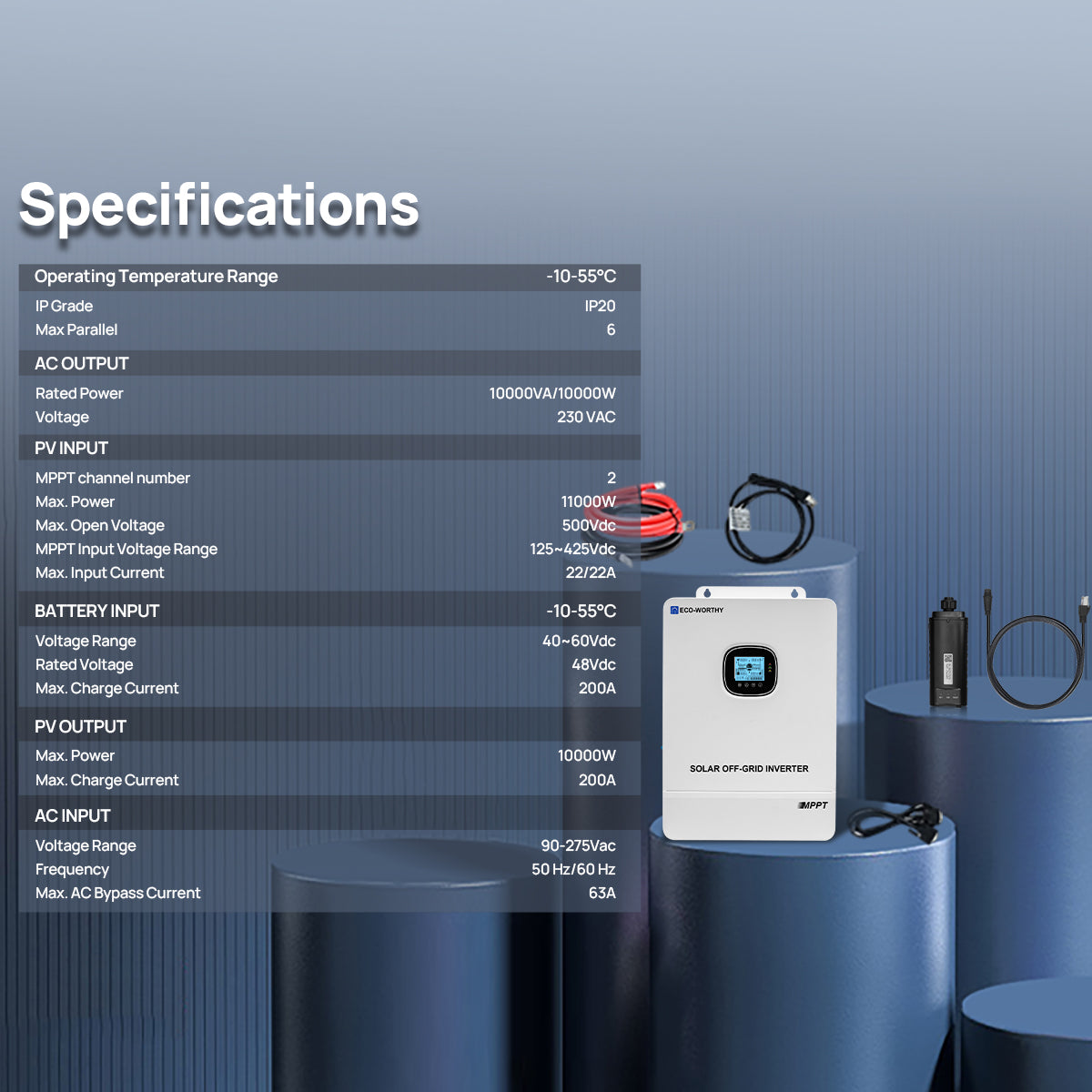

10000W Solar Off-grid AIO Inverter | 48Vdc to 230Vac | 11000W@500V PV Input
| Model | Specifications | Adjustable |
|
Inverter Output |
||
| Rated Output Power | 10000 W | |
| Max. Peak Power | 20000 W | |

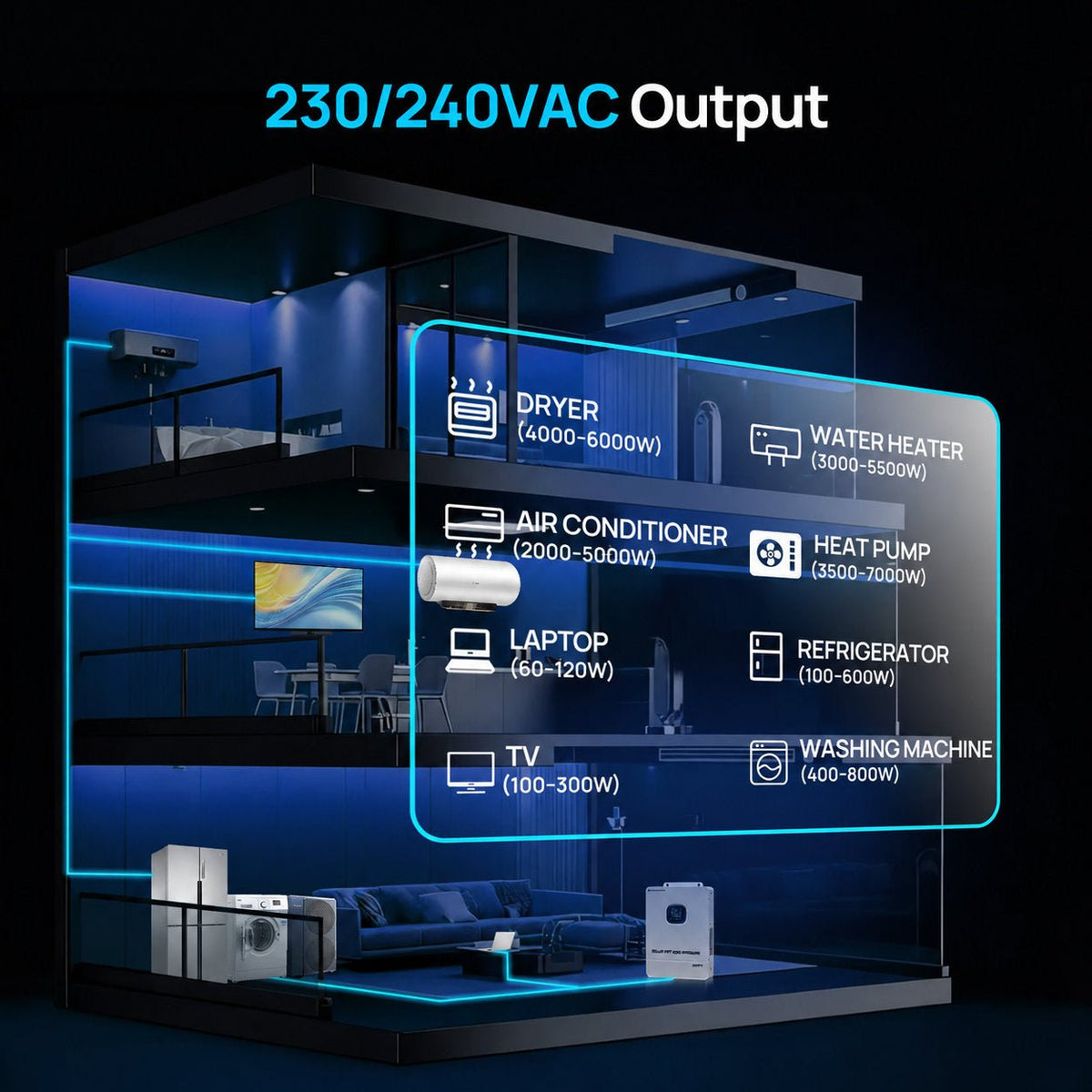

| Rated Output Voltage | 230Vac (Single Phase) | Y |
| Load Capacity of Motors | 6HP | |
| Rated AC Frequency | 50/60Hz | Y |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms (Typical) | |

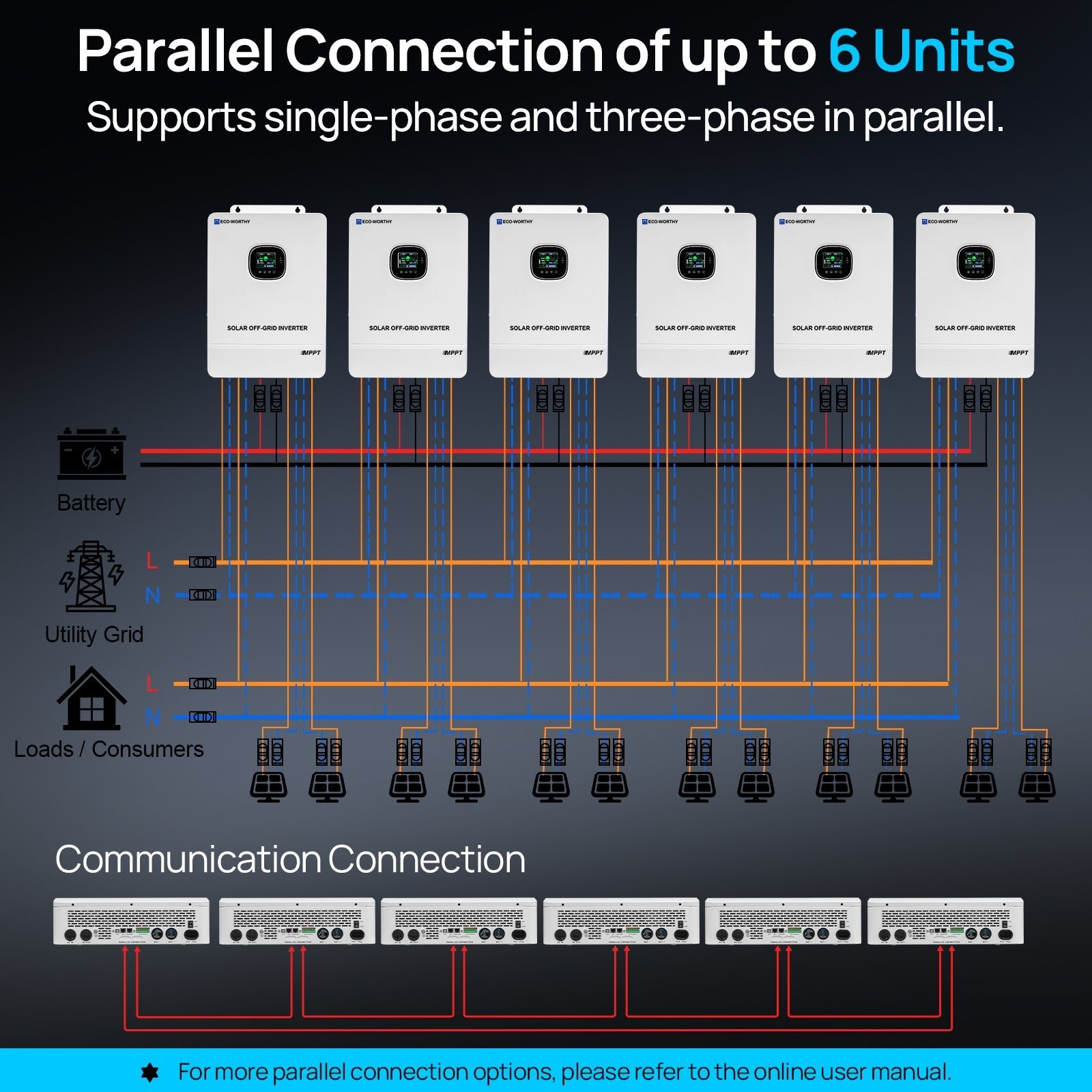

| Parallel Capacity | 1-6 Units | |
| Overload Protection | After overload protection is triggered, the inverter will restart after 3 minutes. Five consecutive overloads will shut down the output until the inverter is restarted. (102% < Load < 110%) ± 10%: Fault and output shutdown after 5 minutes; (110% < Load < 125%) ± 10%: Fault and output shutdown after 10 seconds. Load > 125% ± 10%: Fault alarm and output shutdown after 5 seconds. |
|
| Battery | ||

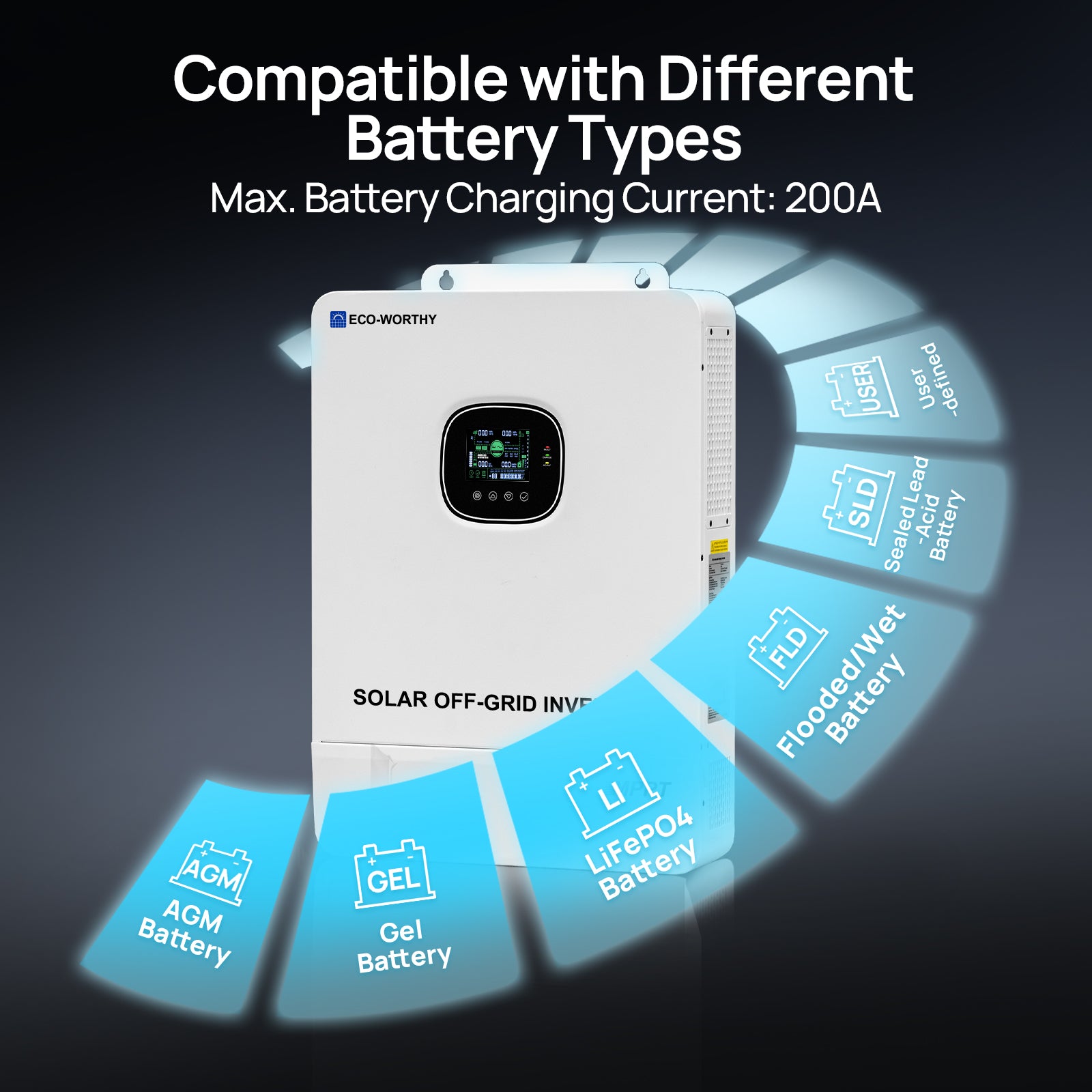

| Battery Type | Li-ion / Lead-Acid / User Defined | Y |
| Rated Battery Voltage | 48 Vdc | Y |
| Voltage Range | 40 to 60 Vdc | Y |
| Max. Grid/Generator Charging Current | 150A |
|
|
Max. Hybrid Charging Current |
200A | Y |
|
PV Input |
||
|
Number of MPPT Trackers |
2 | |
|
Max. PV Array Power |
5500W+5500W | |
|
Max. Input Current |
22A+22A | |
|
Max. Voltage of Open |
500Vdc/500Vdc | |
|
MPPT Voltage Range |
125 to 425 Vdc | |
|
Grid / Generator Input |
||
|
Input Voltage Range |
90-275Vac | |
|
Frequency Range |
50/60Hz | |
|
Bypass Overload Current |
63A | |
|
|
||
|
MPPT Tracking Efficiency |
99.9% | |
|
Max. Battery Inverter Efficiency |
92% | |
|
General |
||
|
Dimensions |
620x445x130mm | |
|
Weight |
27kg | |
|
Protection Degree |
Protection Degree IP20, Indoor Only |
|
|
Operating Temperature |
Range -10~55℃, >45℃ derated |
|
|
Noise |
<60dB | |
|
Cooling Method |
Internal Fan | |
|
COMMUNICATION |
||
|
Embedded Interfaces |
RS485 / CAN / USB / Dry contact | Y |
|
External Modules |
Wi-Fi / GPRS | Y |
