ECO-WORTHY 100W 200W 12V (1/2x Bifacial 100W) N-Type Solar Panel Kit with RV Mounting Brackets

ECO-WORTHY 100W 200W 12V (1/2x Bifacial 100W) N-Type Solar Panel Kit with RV Mounting Brackets

£129.99
£129.99 £199.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:

UK-L02M120N-CWT2-1

[Wide Application]: Generate 0.8kWh per day under 4 hours full sunlight, which can fully charge a 12V 50Ah battery. Perfect for campervan, caravan, cabin, trailer,shed.

[Excellent Performance]: Corrosion-resistant aluminum frame, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa). IP68 rated junction box and 25% high cell efficiency

[Easy Installation]: Pre-drilled holes and Plug&Play cables on the back allow for fast mounting, the kit can be connected in series（24V）or in parallel（12V）as you need

[Multiple Protection]: 30A solar charge controller has build-in short-circuit protection, open-circuit protection, and over-load protection, which ensures safety. And it supports 3 types of batteries: lithium batteries, lead acid batteries and gel batteries.

Read more

Extra 10% OFF

SOLAR10

Copy
Using the coupon code, Get extra 10% Off at checkout
Solar Kits

Total price

£129.99
Sold out

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £32.49 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
£129.99 £199.99
Learn More
Sold out
Feature
Included in the box
Reviews
FAQs
200W 12V Off Grid Solar Kit with RV Mounting Brackets

Eco-Worthy 100W 200W 12V Solar Kit expandable Solar Kit is an ideal choice. This system could generate approximately 0.4kWh 0.8kWh per day. It can be used for several different purposes, including boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy.

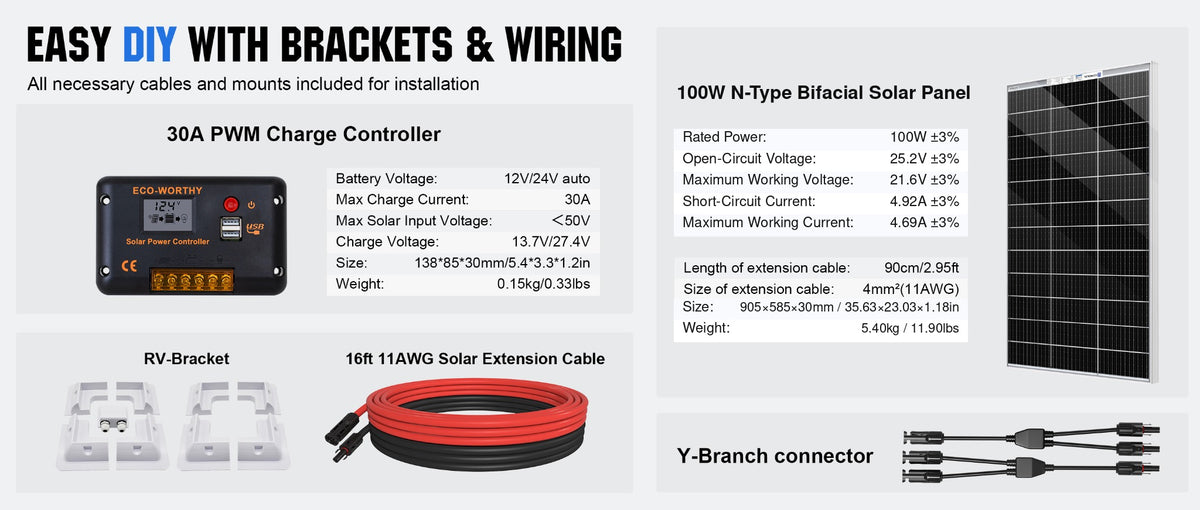

Technical Specifications

100W 18V N-Type Bifacial Solar Panel
30A PWM LCD Display Solar Charge Controller
Solar Extension Cables Wires with MC4
White Color Solar Panel Mounting Brackets
Y Parallel Branch Connectors MFF

Model:

ECO-SM-BM100W

Rated Power (*STC):

100W ±3%

Solar Cell Type:

Monocrystalline

Open-Circuit Voltage (Voc):

25.2V ±3%

Short-Circuit Current (Isc):

4.92A ±3%

Max. Power Voltage (Vmp):

21.6V ±3%

Max. Power Current (Imp):

4.69A ±3%

Max. System Voltage:

1000V

Max. Series Fuse Rating:

10A

Dimension:

905 × 585 × 30mm / 35.63 × 23.03 × 1.18in

Weight:

5.40kg / 11.90lbs

Battery voltage:

12V/24V

Charging mode:

PWM

Max Charge current:

30A

Discharge current:

30A

Max.PV Open-Circuit Voltage:

<50V

USB Output:

5V/2A

Working Temperature:

-20℃~60℃

Weight:

150g

Size:

138*85*30mm

Cable Type:

Connecting Solar Panels to Charge Controllers

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

40°F to +185°F

Connector:

MC4

Material:

plastic

Color:

white

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Included in the Box

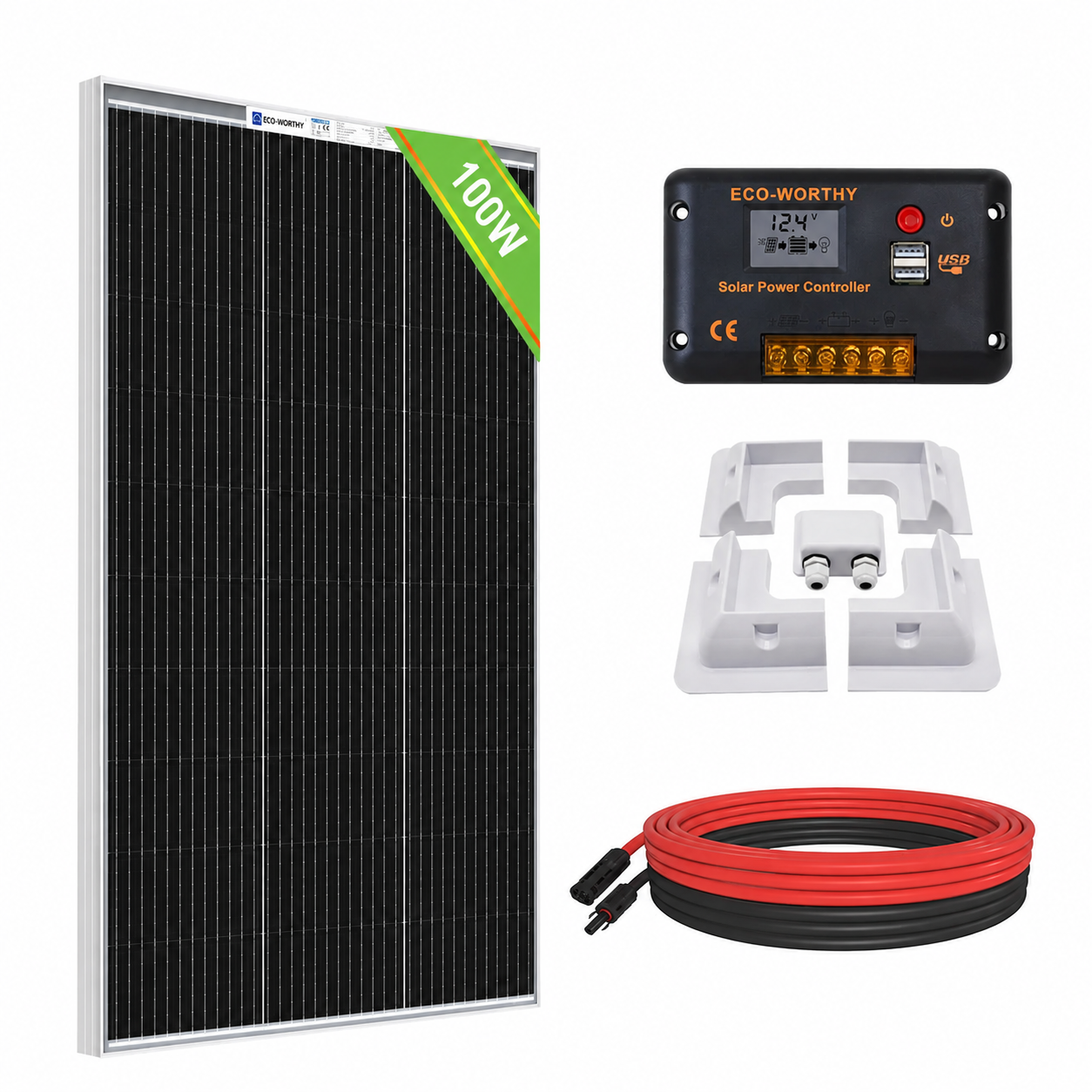

box image
  1. 1x Bifacial 100W Mono Solar Panel
  2. 1x 30A PWM Solar Controller
  3. 1x 5M 12AWG Extension Cable with MC4
  4. 1x Motorhome Mounting Brackets Kit

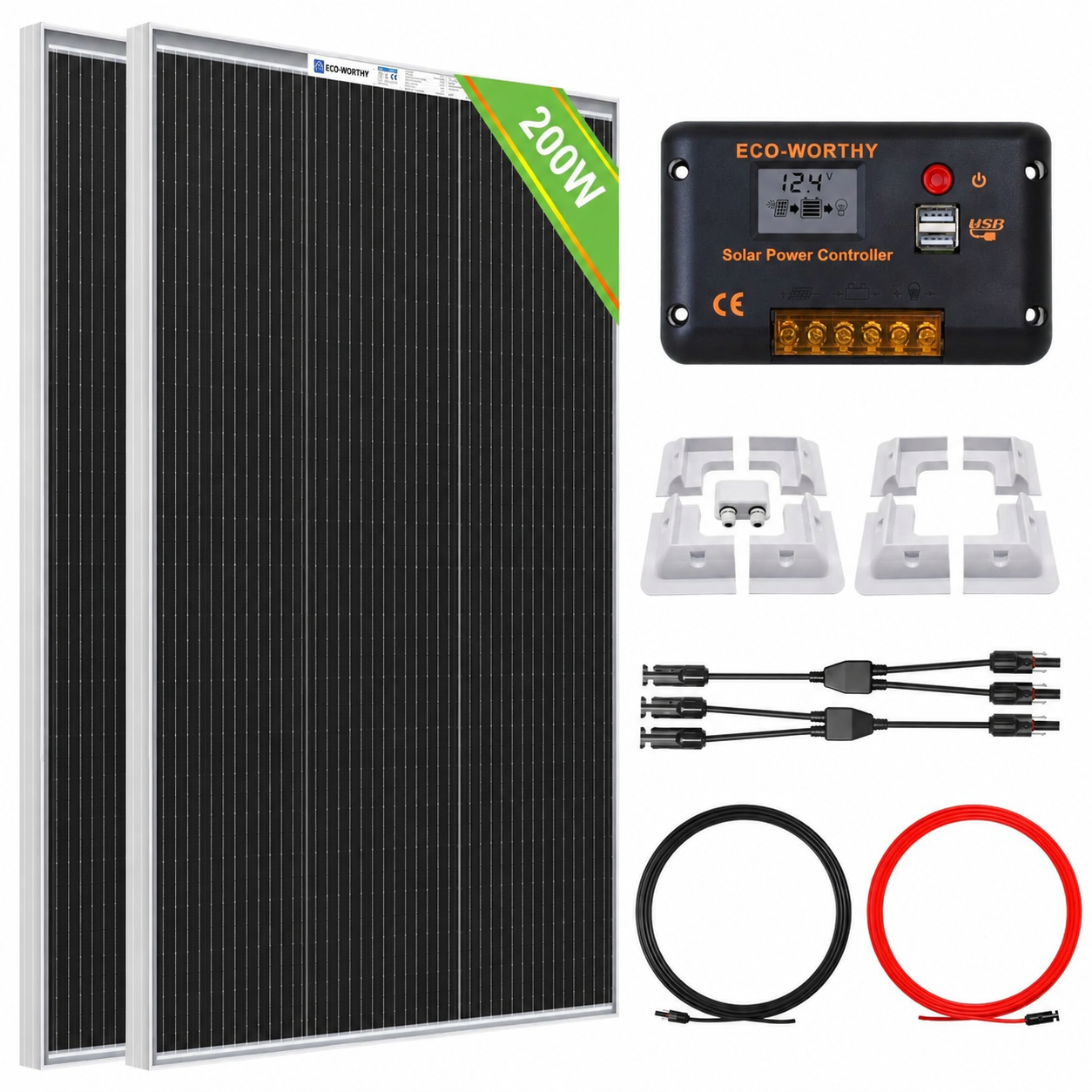

box image
  1. 2x Bifacial 100W Mono Solar Panel
  2. 1x 30A PWM Solar Controller
  3. 1x 5M 12AWG Extension Cable with MC4
  4. 2x Motorhome Mounting Brackets Kit
  5. 1x Y MC4 Connector

User manual

ECO WORTHY 100W N Type Bifacial Solar Panel User Manual

Download

Eco-Worthy 12V/24V 30A PWM Solar Charge Controller - User Manual

Download

Frequently Asked Questions

How do you test lithium battery performance?

+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.
