Eco-Worthy 16KWh Home Backup Solar Power Bundle With 48V 314Ah LiFePO4 Lithium Battery and 6KW 48V AIO Off Grid Inverter

Eco-Worthy 16KWh Home Backup Solar Power Bundle With 48V 314Ah LiFePO4 Lithium Battery and 6KW 48V AIO Off Grid Inverter

£2,339.98
£2,339.98 £3,599.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:

UK-L03L314AHJC-NKEU6KW-1

[6kW Complete Home Energy System] This all-in-one system combines a 6000W hybrid inverter with a 16.08kWh LiFePO4 battery to deliver reliable, high-performance home energy. Supporting 120V/240V split-phase output, it easily powers essential and heavy-duty appliances—perfect for home backup, off-grid setups, or reducing reliance on the grid.

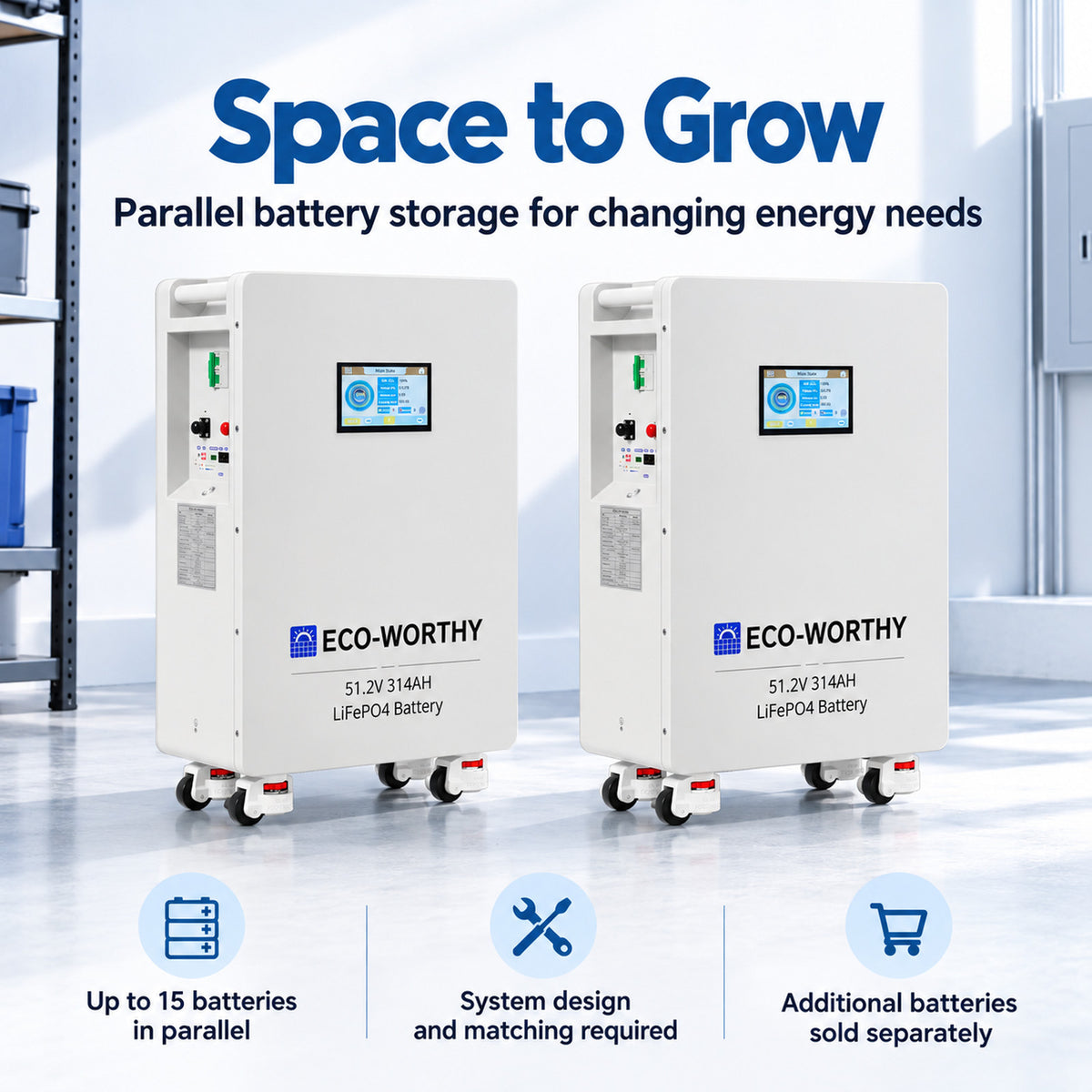

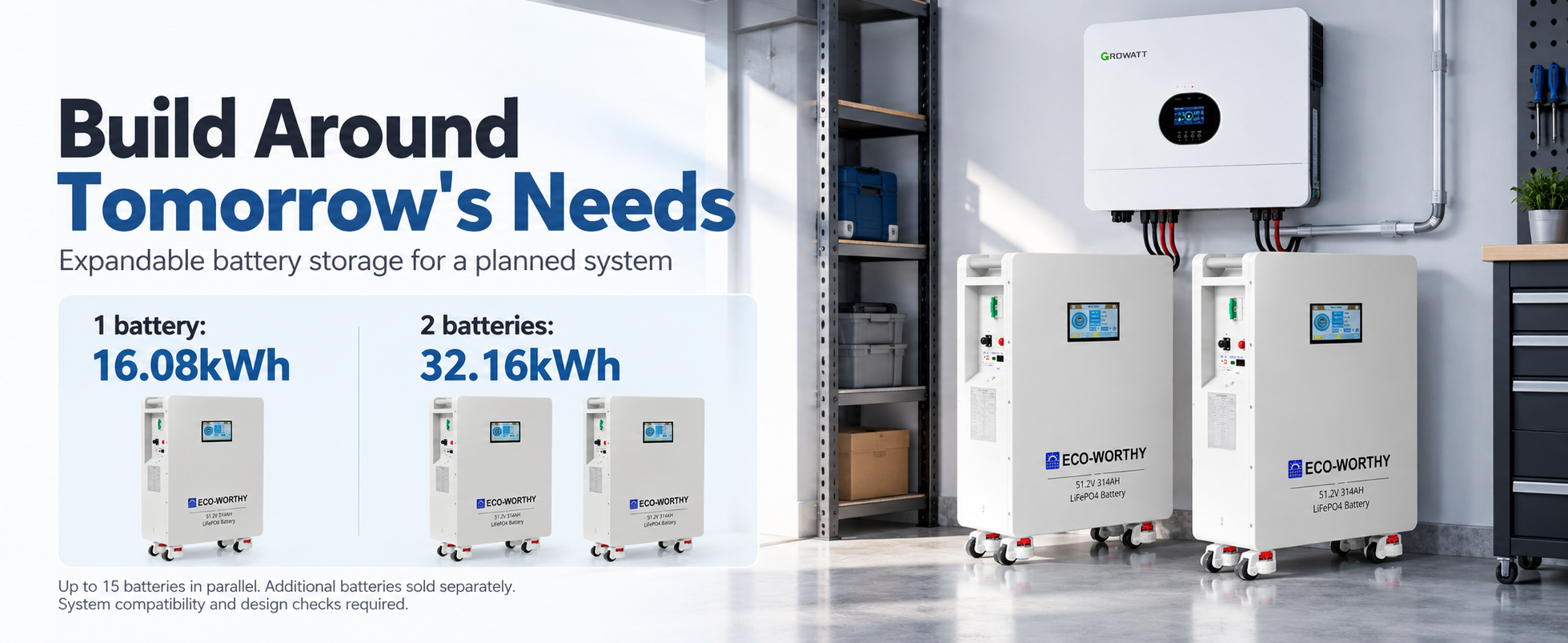

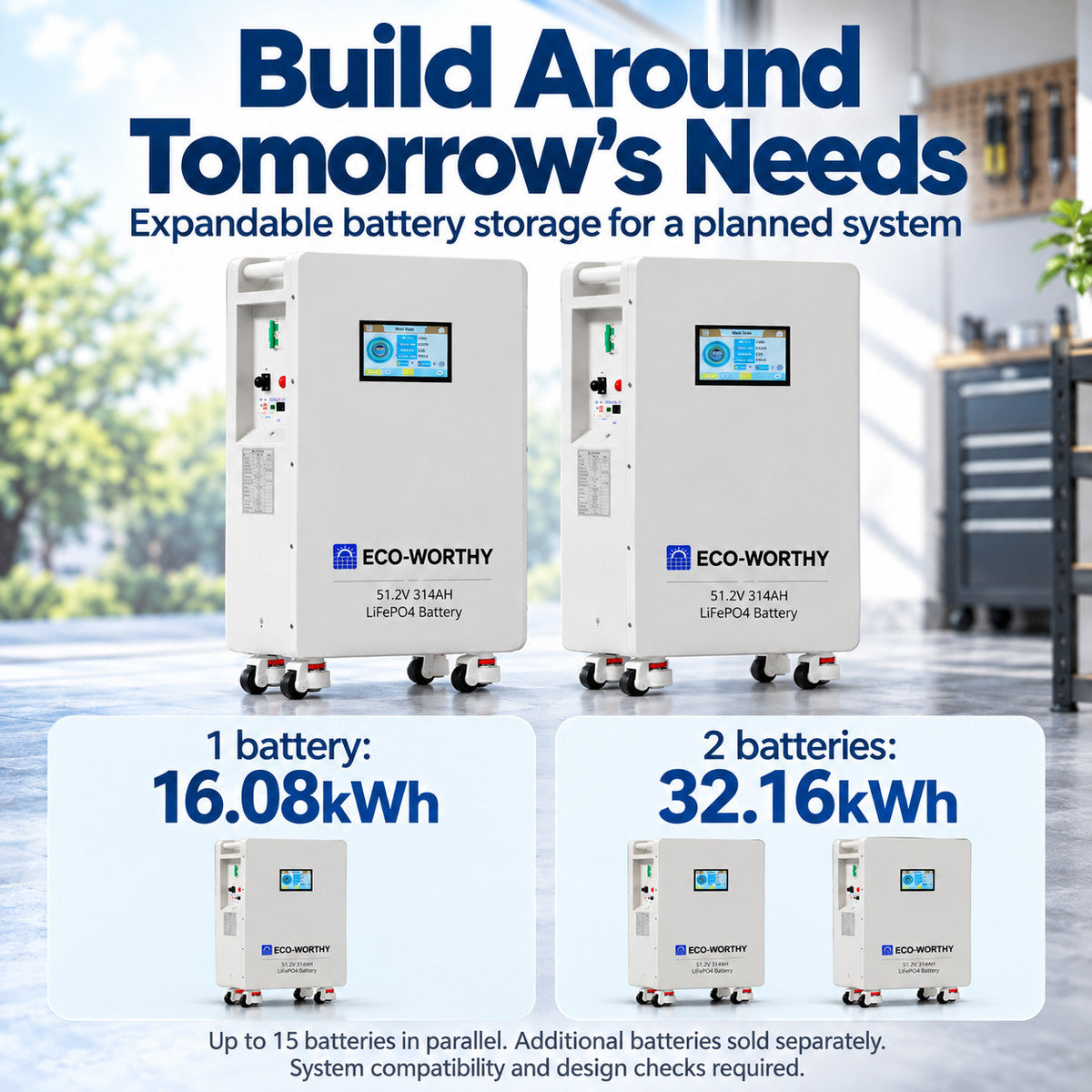

[16.08kWh Battery, Expandable to 241kWh] Built with premium 314Ah Grade-A LiFePO4 cells, each battery stores 16.08kWh of usable energy. The system supports up to 15 batteries in parallel, allowing you to scale from daily backup to full home energy independence with massive storage capacity.

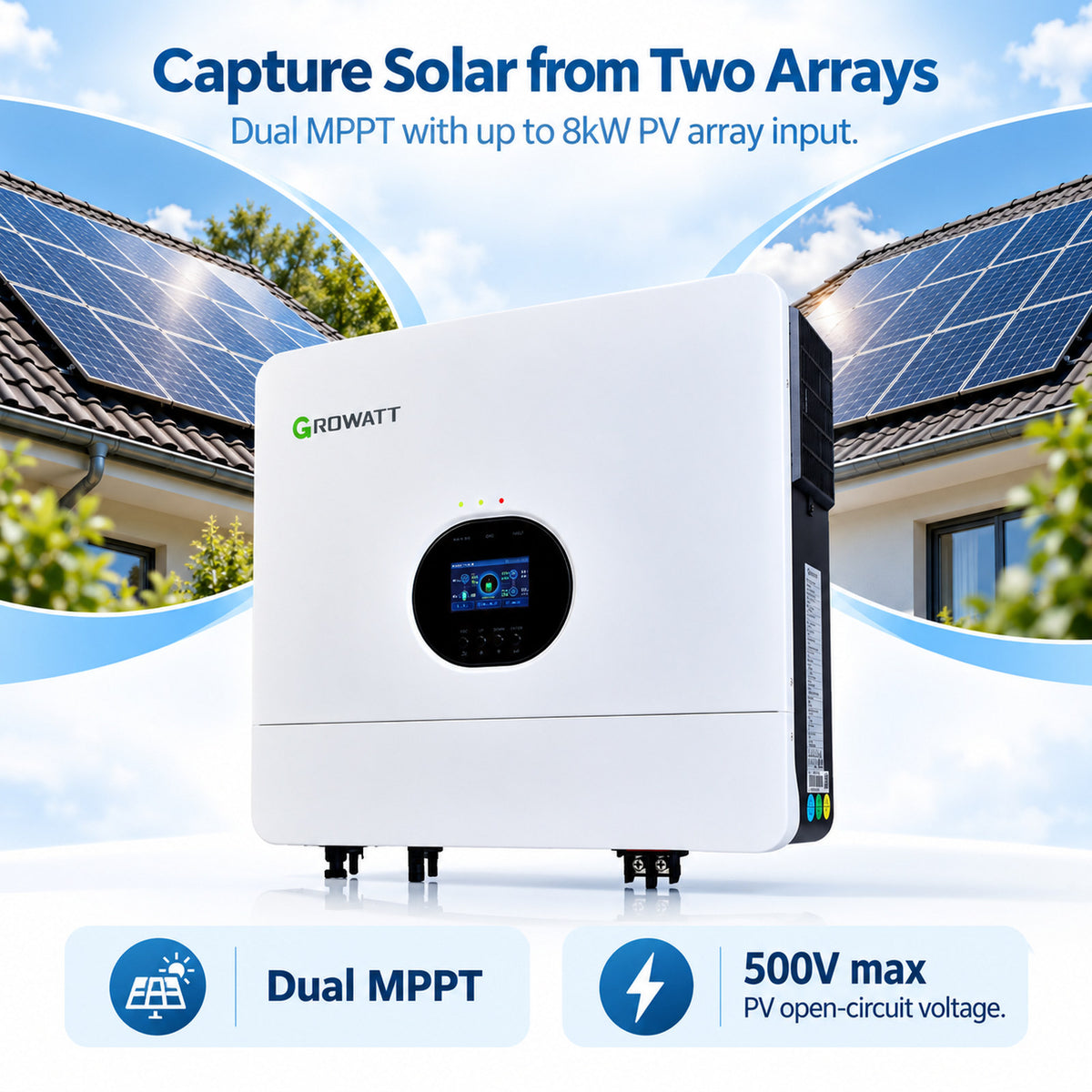

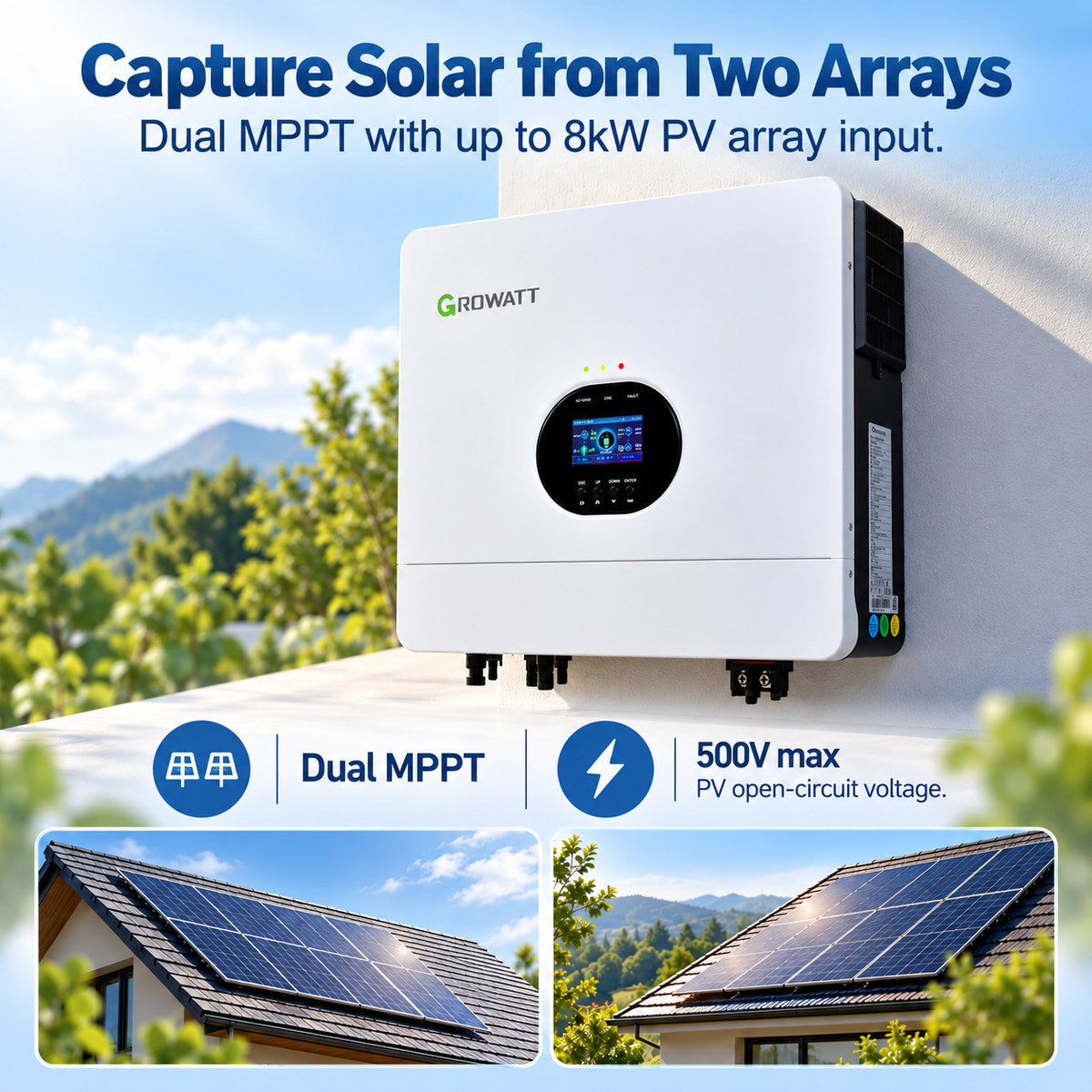

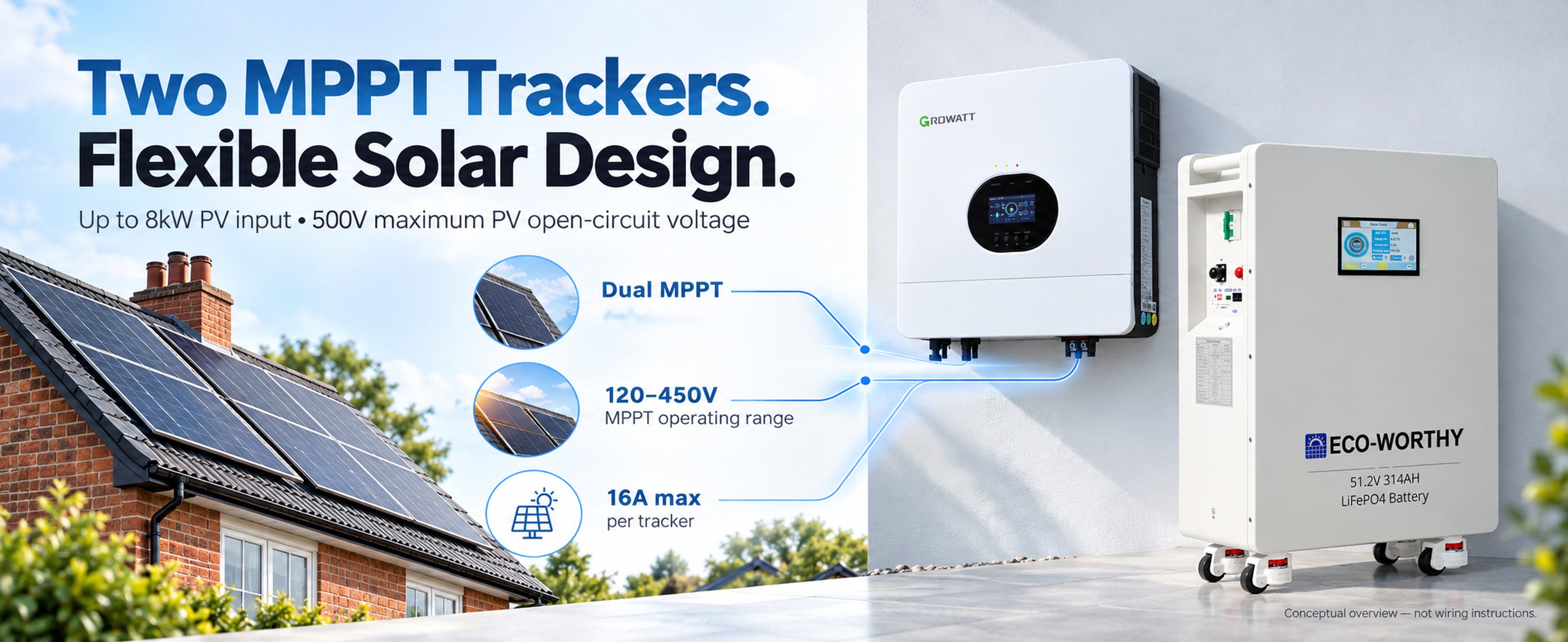

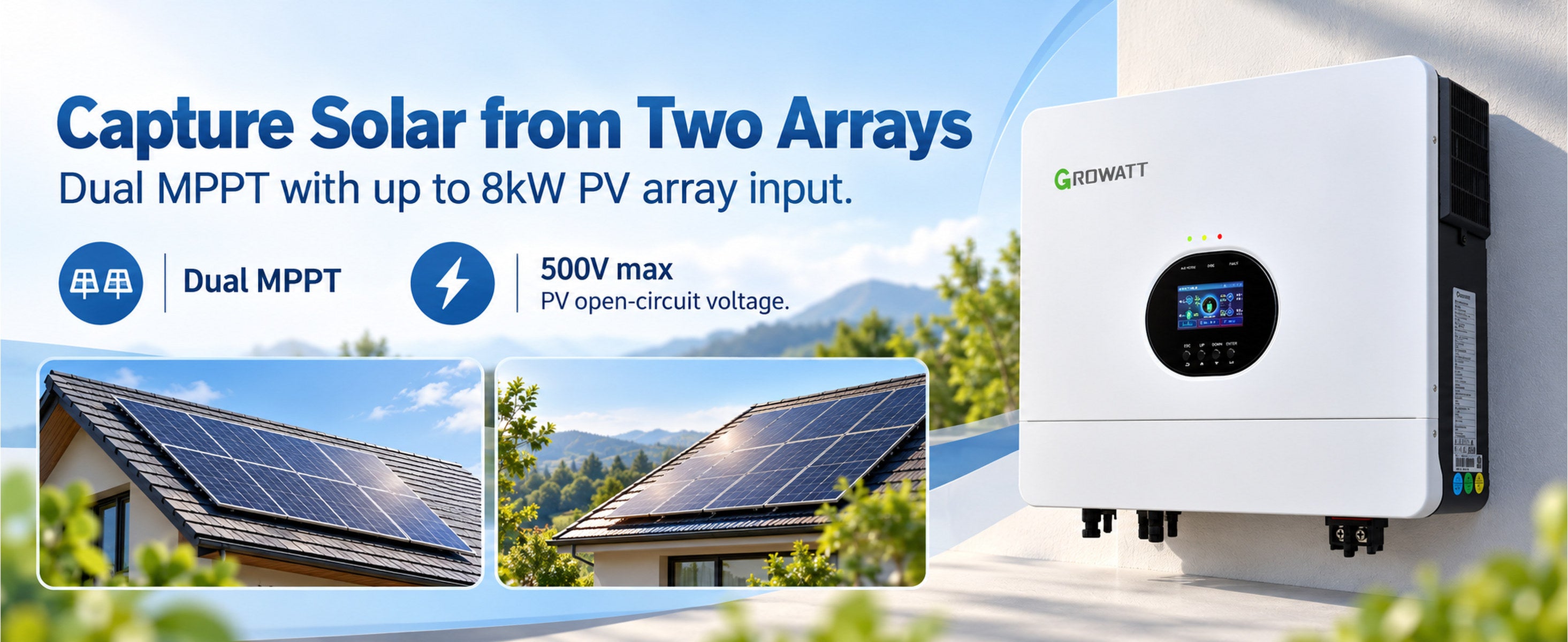

[6000W Hybrid Inverter with Dual MPPT] Featuring dual MPPT trackers with up to 99.9% efficiency, the inverter maximizes solar energy generation throughout the day. It supports high-voltage PV input and multiple working modes (off-grid, hybrid, backup), ensuring flexibility for different energy needs and installation setups.

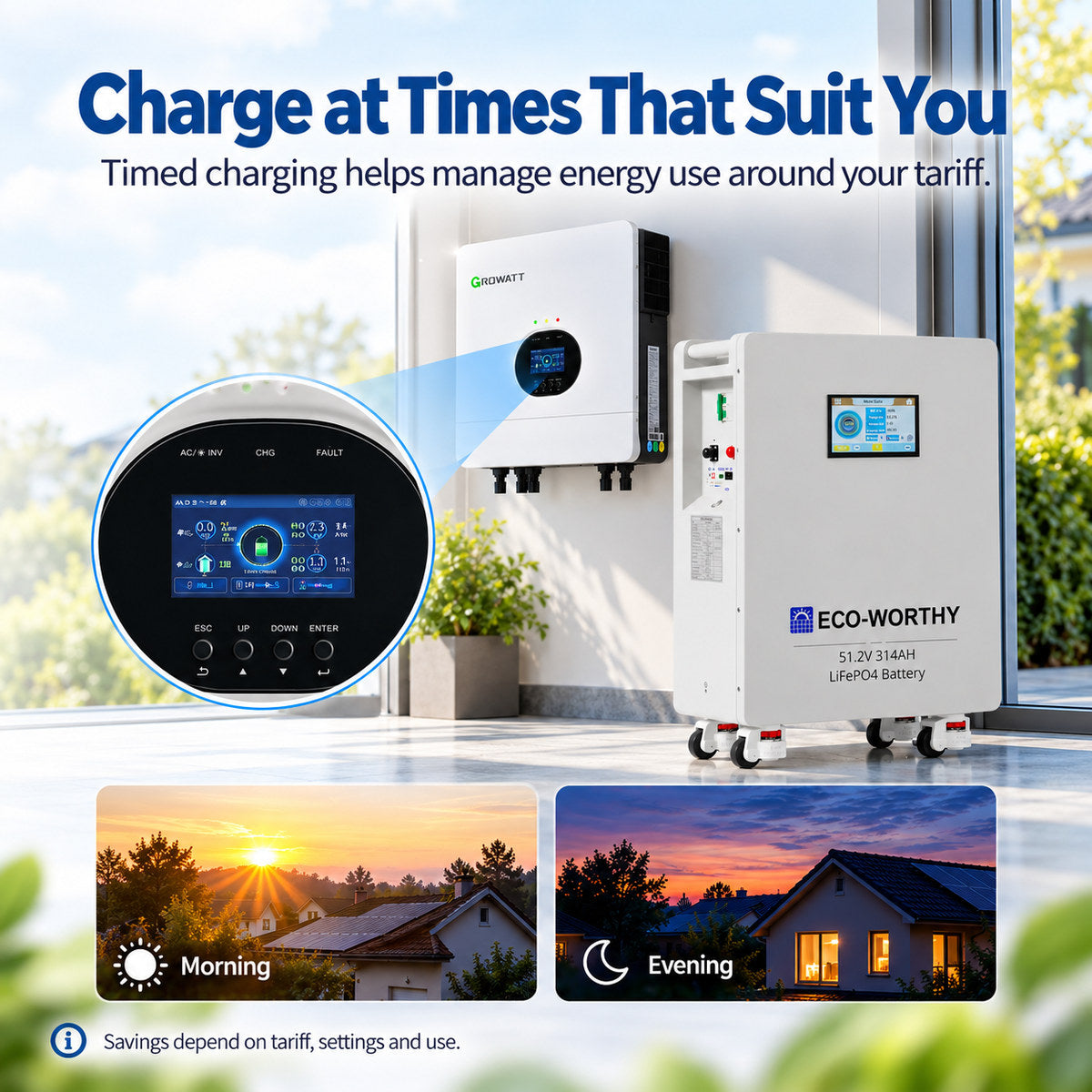

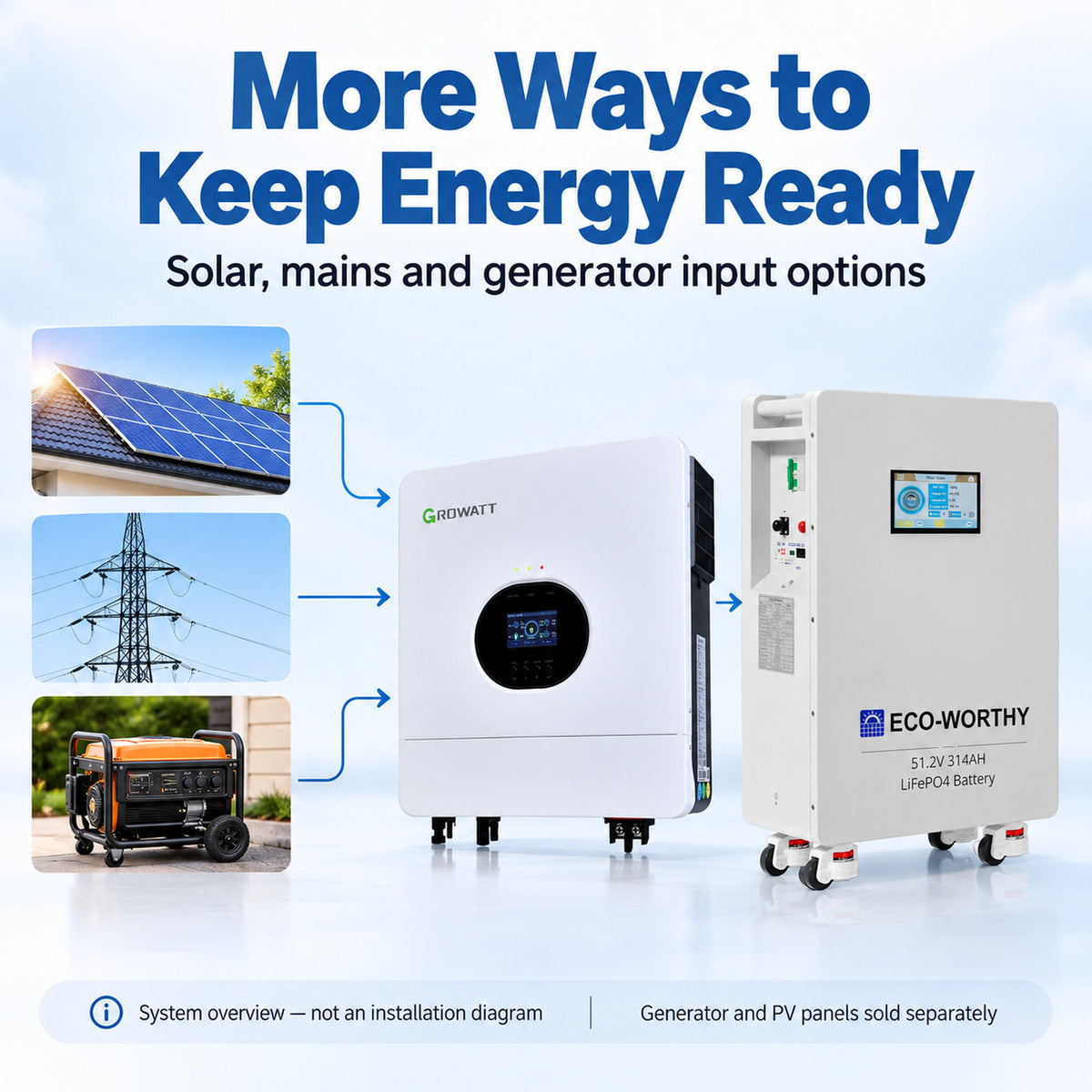

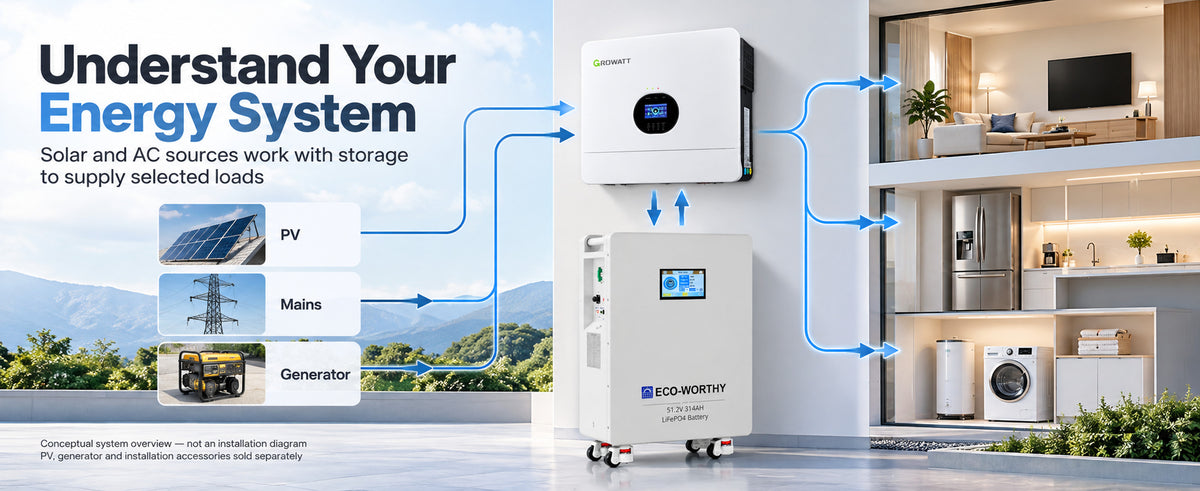

[Smart Energy Control & Multi Charging] Supports solar (PV), grid (AC), and generator charging. With intelligent Time-of-Use settings, the system automatically prioritizes solar during the day and low-cost electricity at night—helping you reduce energy bills and increase self-consumption efficiency.

[UPS Backup & 10+ Year Lifespan] With ≤10ms UPS automatic switching, power interruptions are virtually unnoticeable, keeping your home running smoothly during outages. The LiFePO4 battery delivers over 10,000 cycles with ≥80% capacity retention, ensuring a reliable lifespan of more than 10 years.

Read more
💥 Offer ends soon:💥 Extra £200 OFF
Style

Total price

£2,339.98
Sold out

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £584.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
£2,339.98 £3,599.99
Learn More
Sold out
Feature
Included in the box
Reviews
FAQs

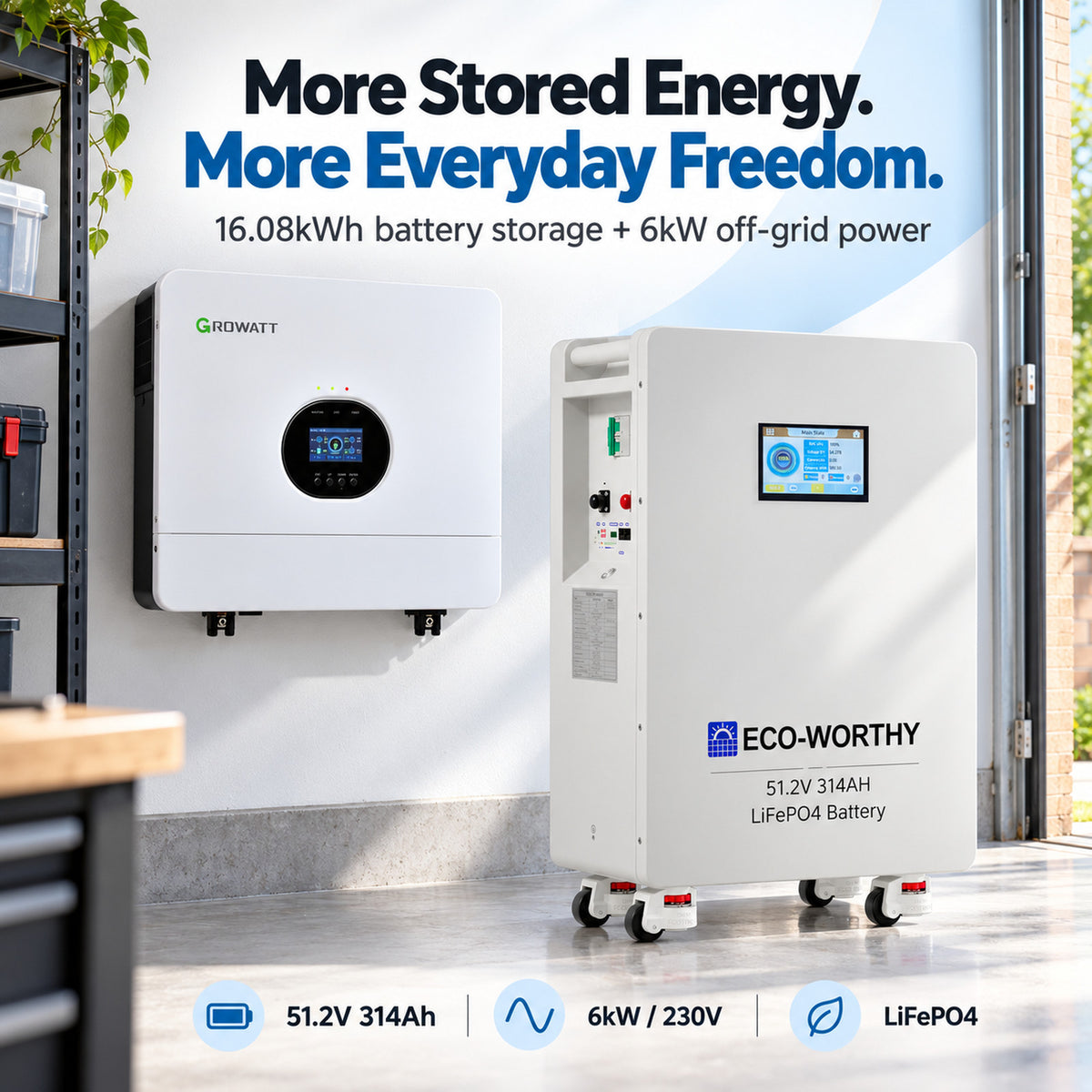

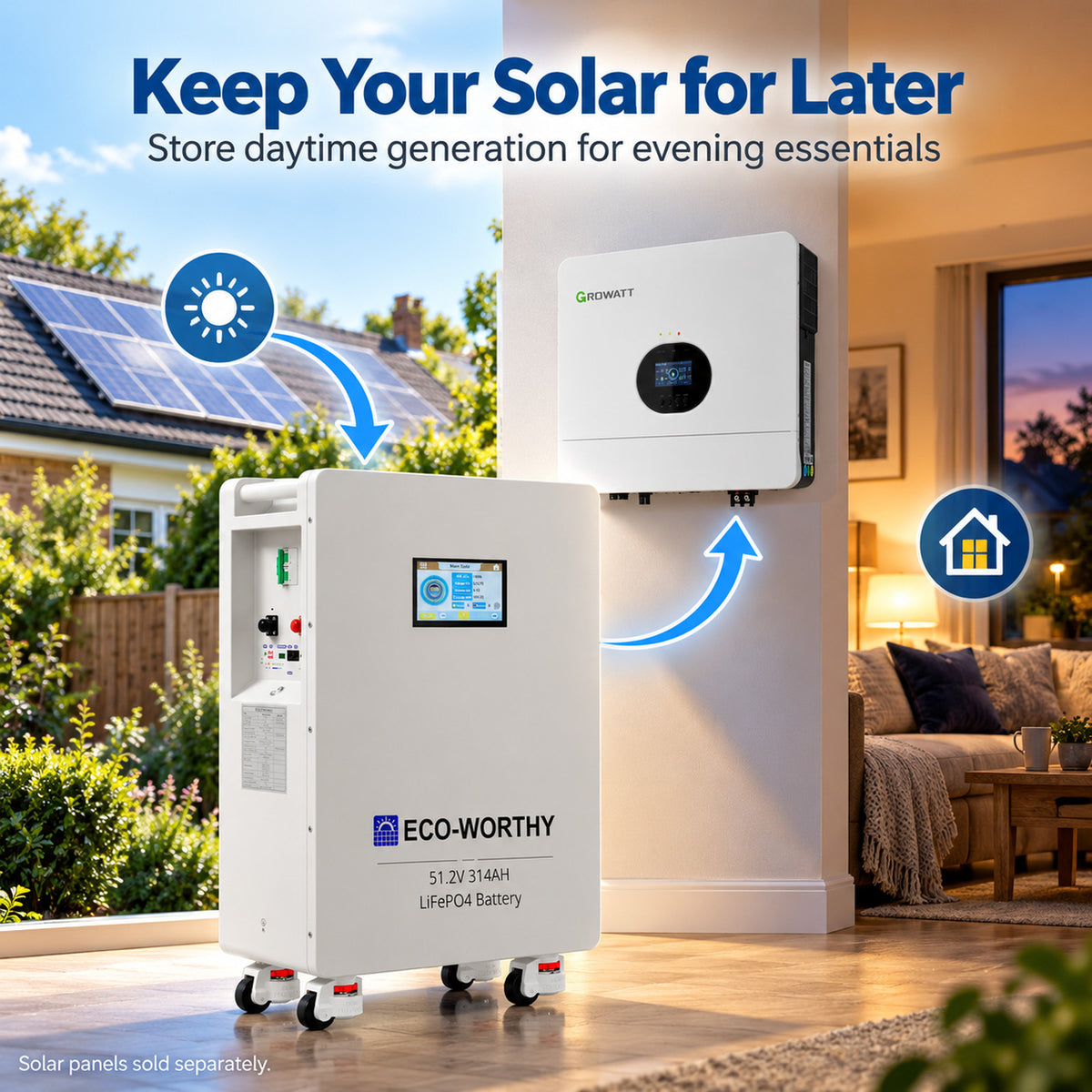

16KWh Home Backup Solar Power Bundle

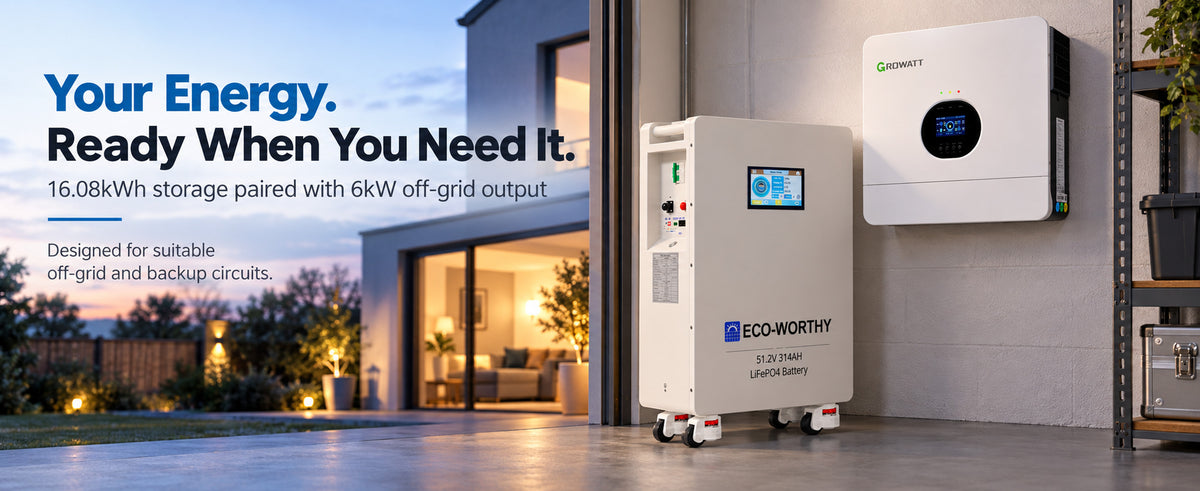

Upgrade your energy system with a 48V 314Ah LiFePO4 battery paired with a 6000W All in one inverter, delivering an efficient and stable 16.08kWh backup power solution. Ideal for home and small business emergency backup, providing long-lasting, safe, and reliable power to help you easily handle outages.

Technical Specifications

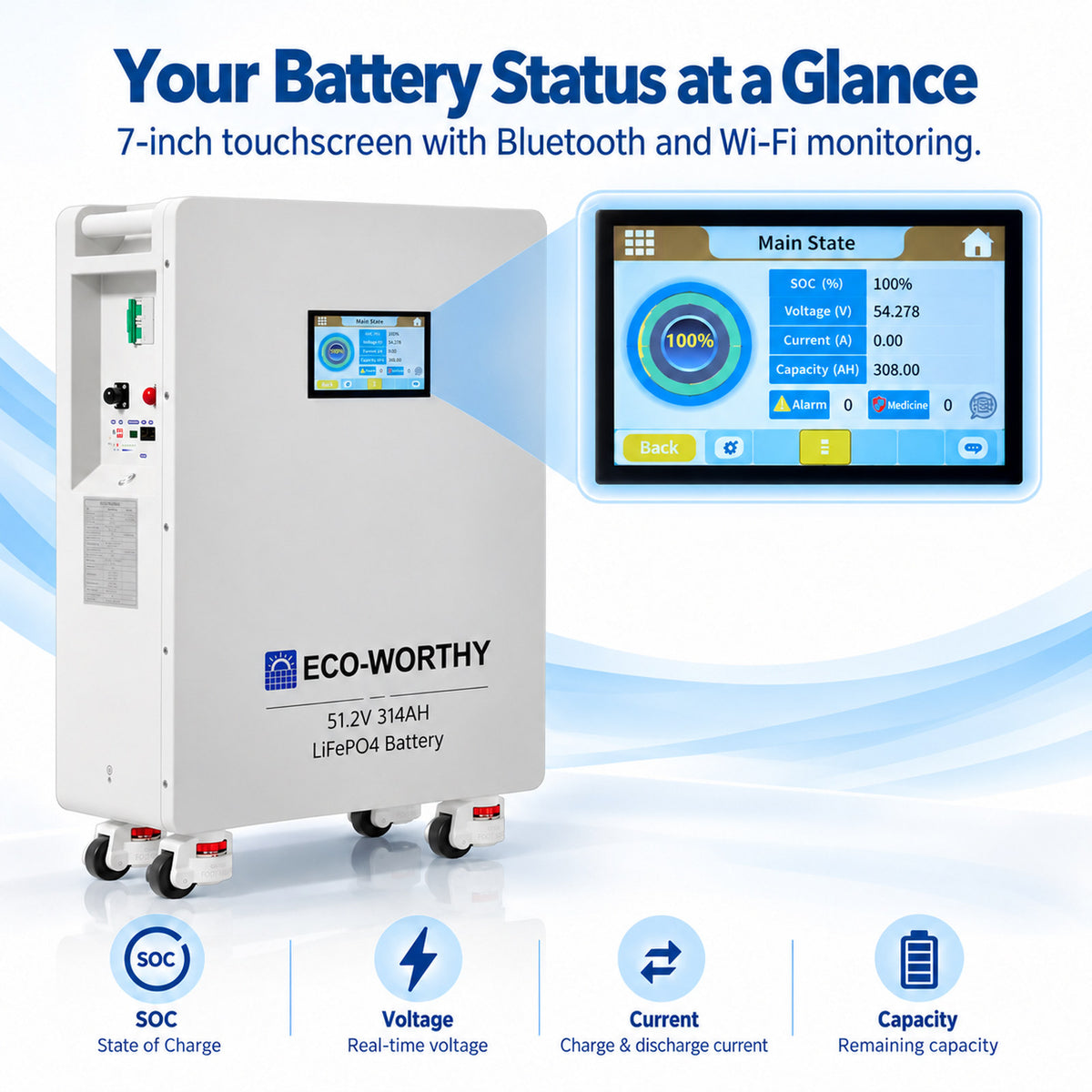

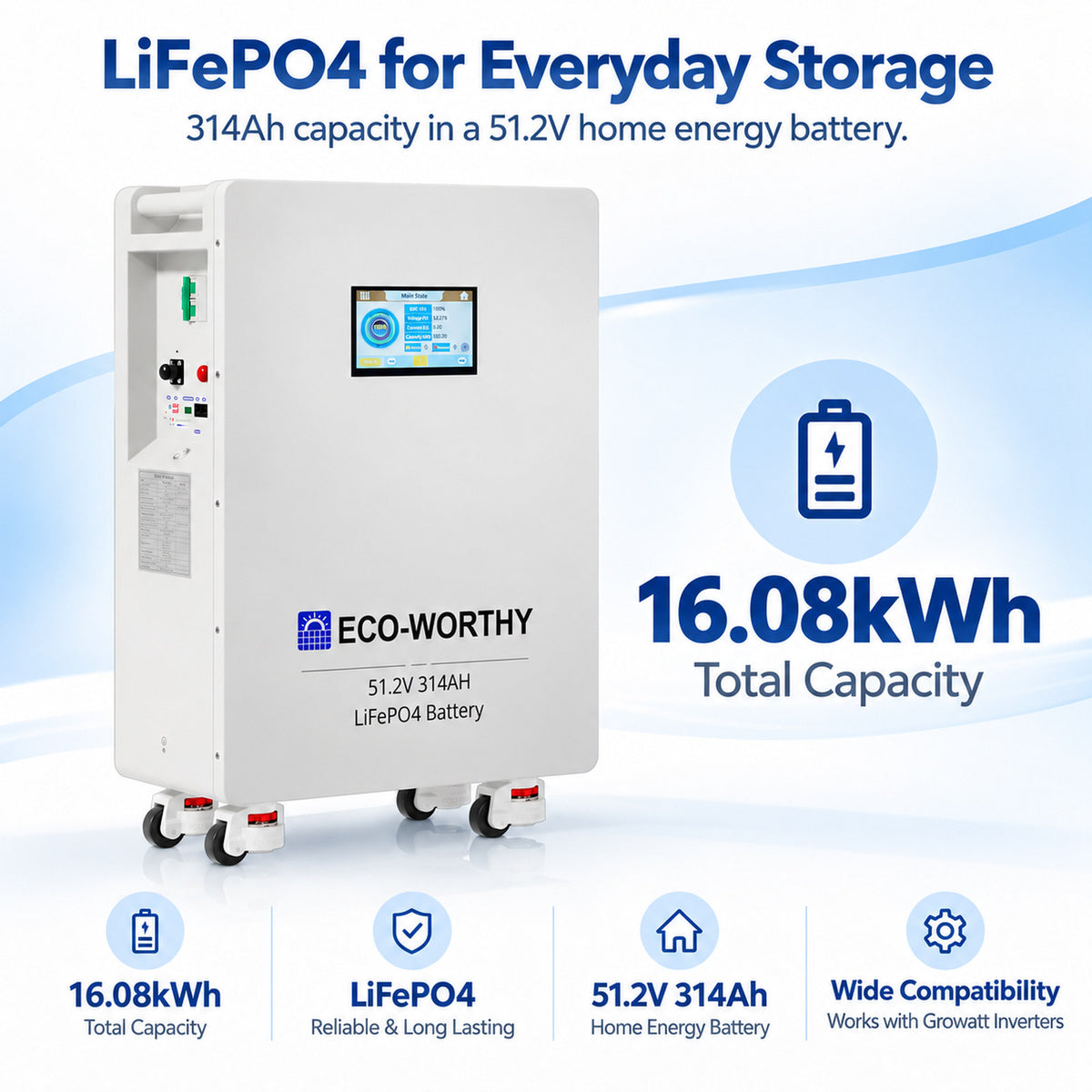

48V 314Ah Lifepo4 Lithium Battery

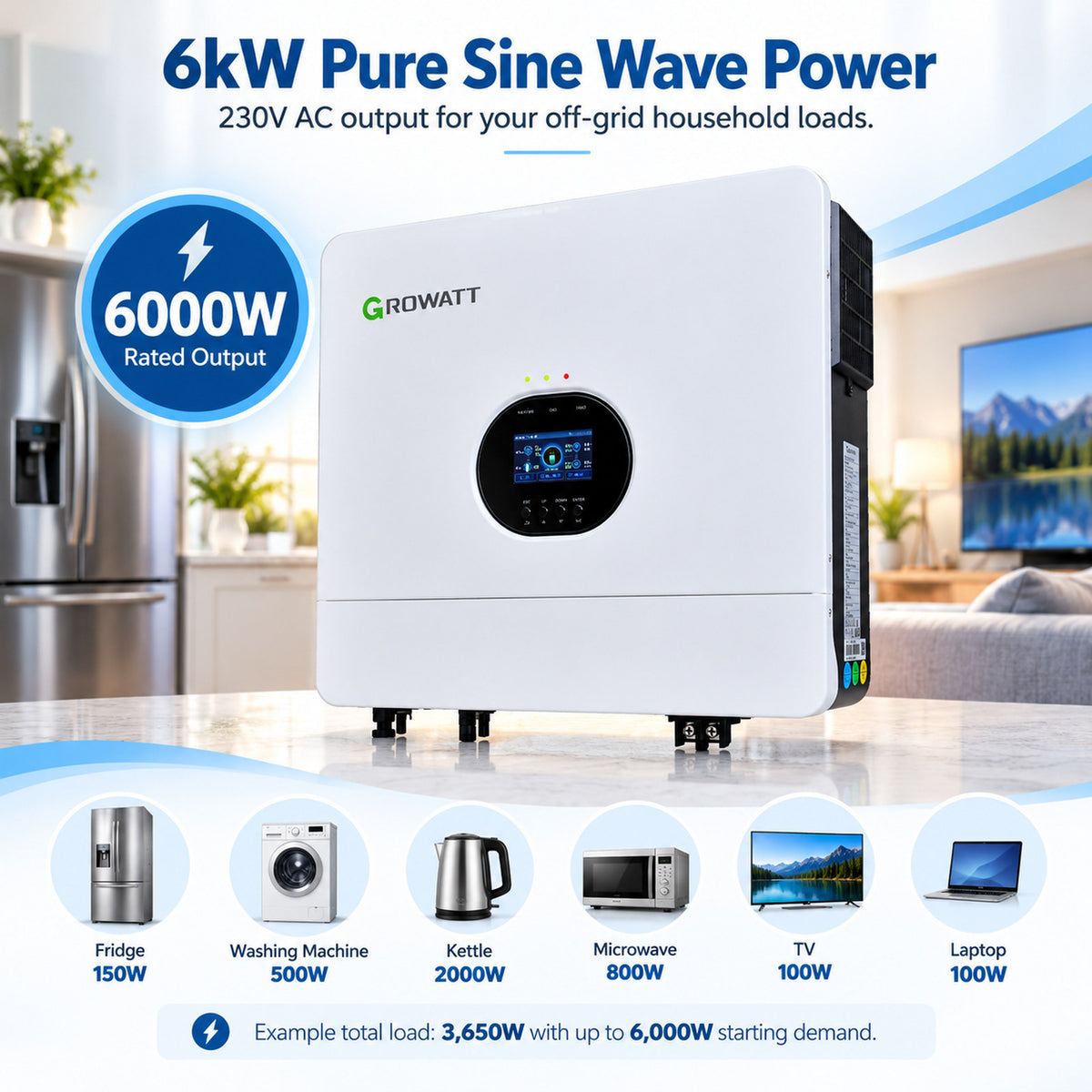

6000W 48V All-in-one Inverter

Battery Capacity:

314Ah

Battery Power:

16.08kWh

Rated Voltage:

51.2V

Voltage Range:

40~58.4V

Maximum Charge/ Discharge Current:

150A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

58.4V

Battery Weight:

293.2lb/133kg

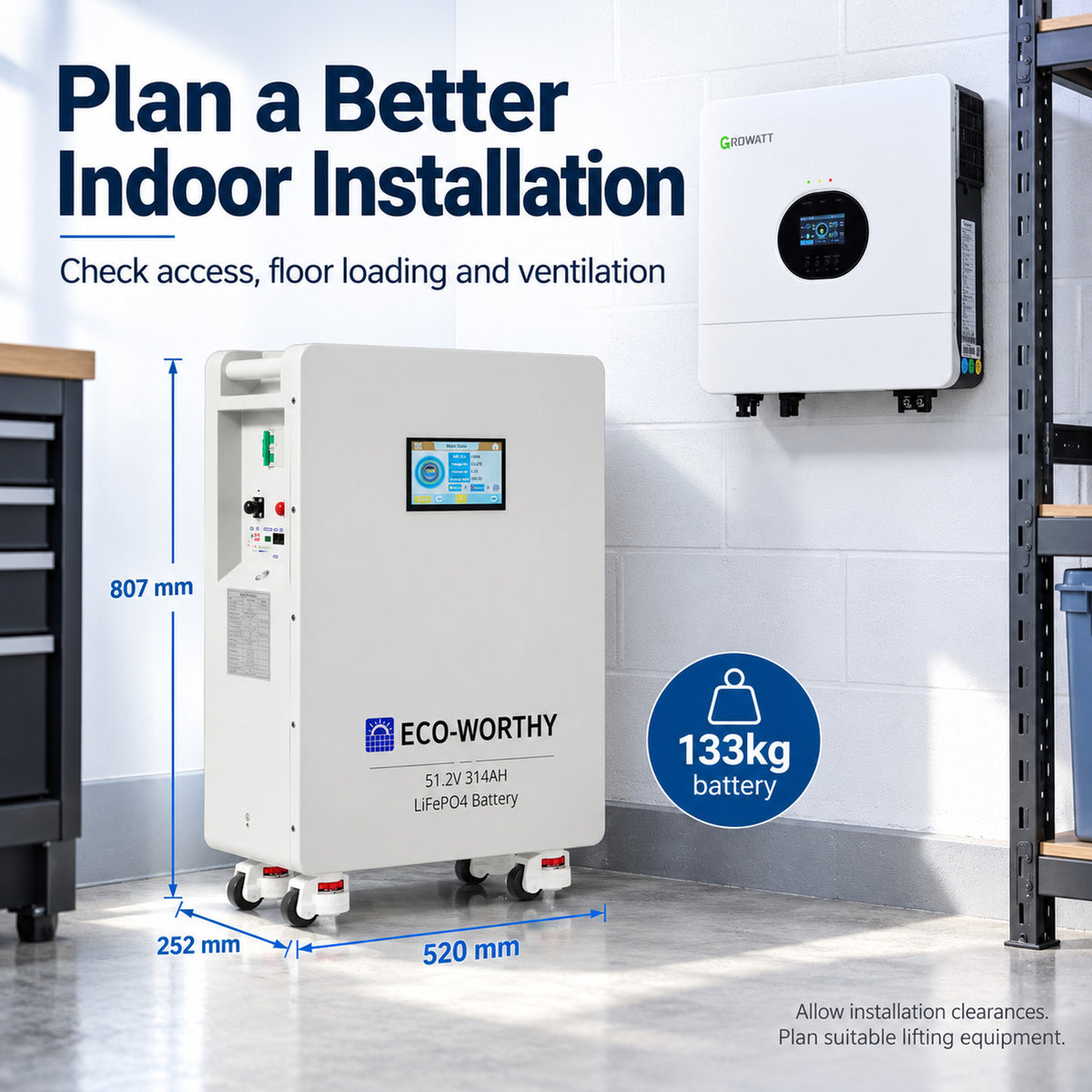

Battery Size:

32.56*20.47*9.92in/80.7*52*25.2cm

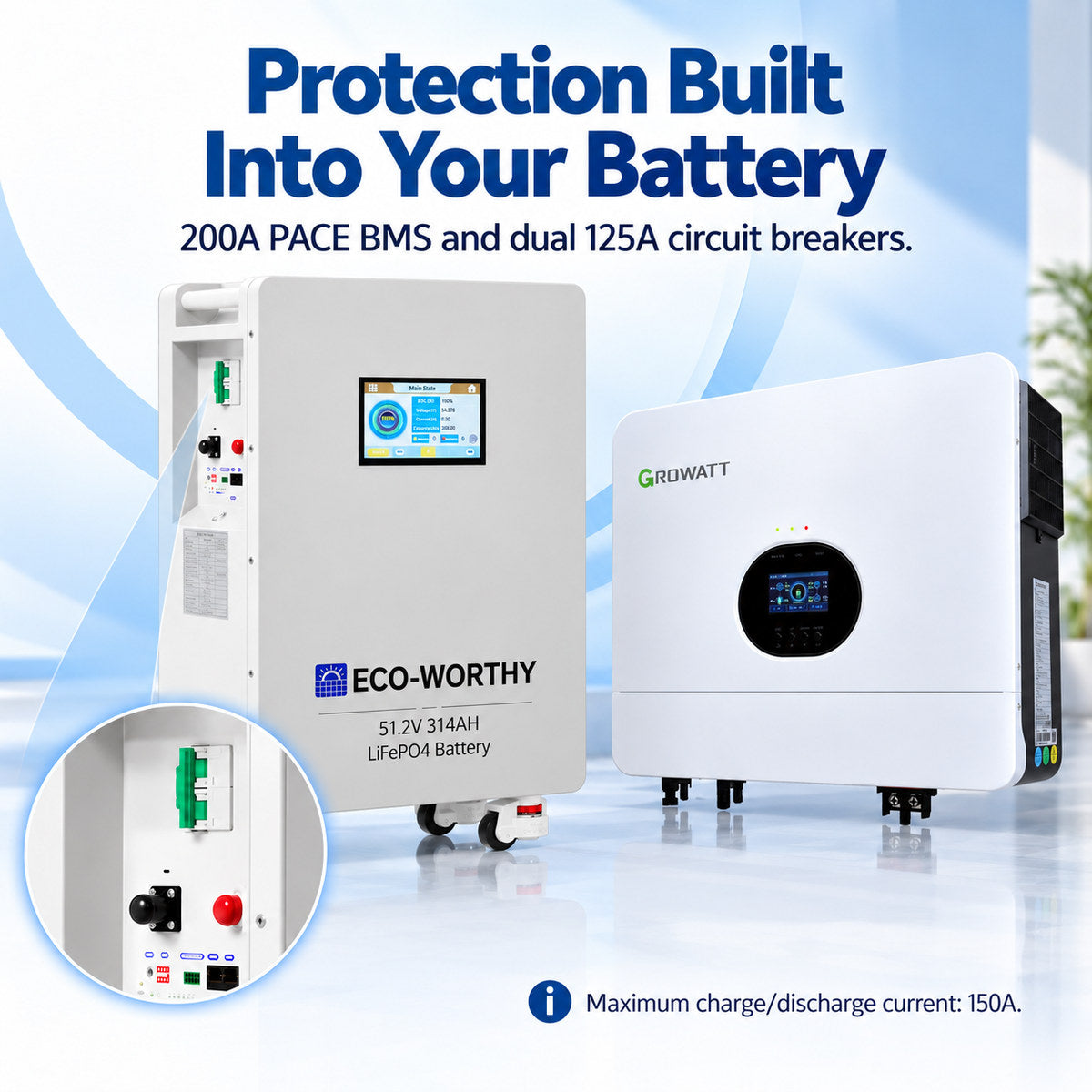

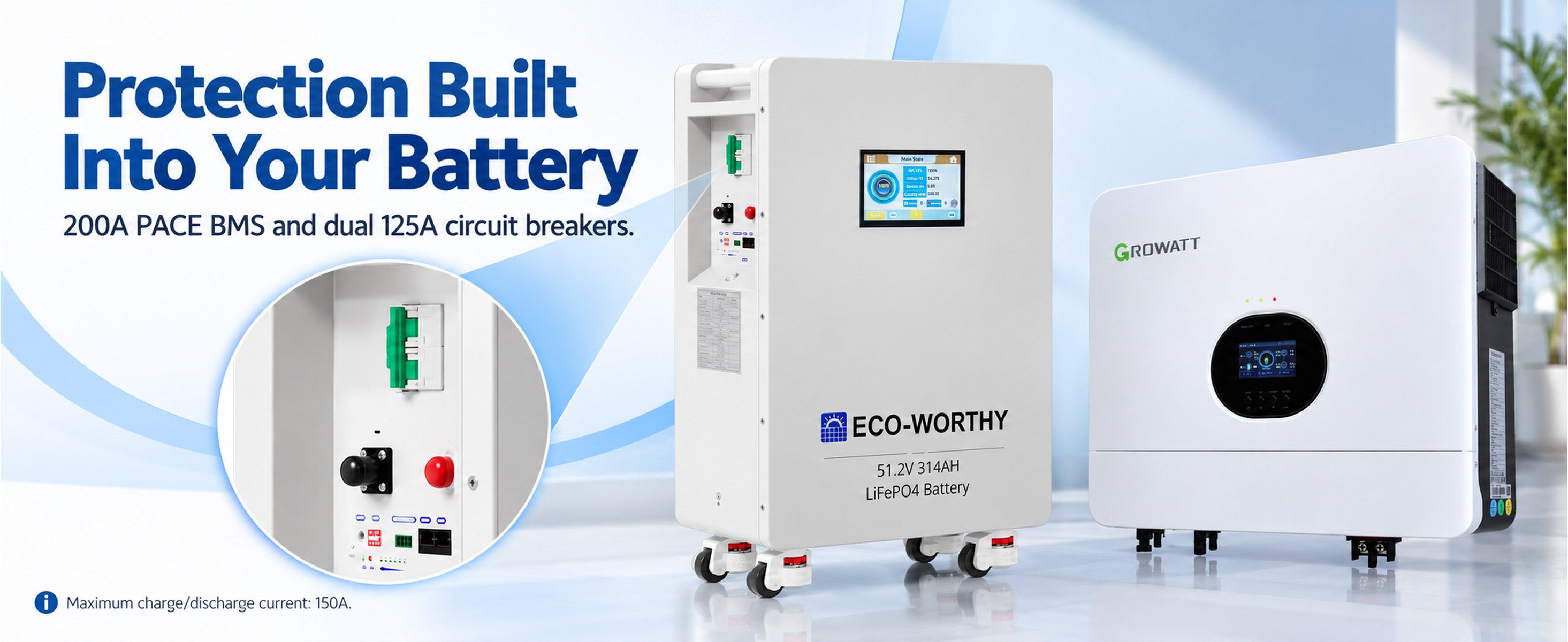

Circuit Breaker:

2*125A(250A)

Max. parallel number:

15pcs

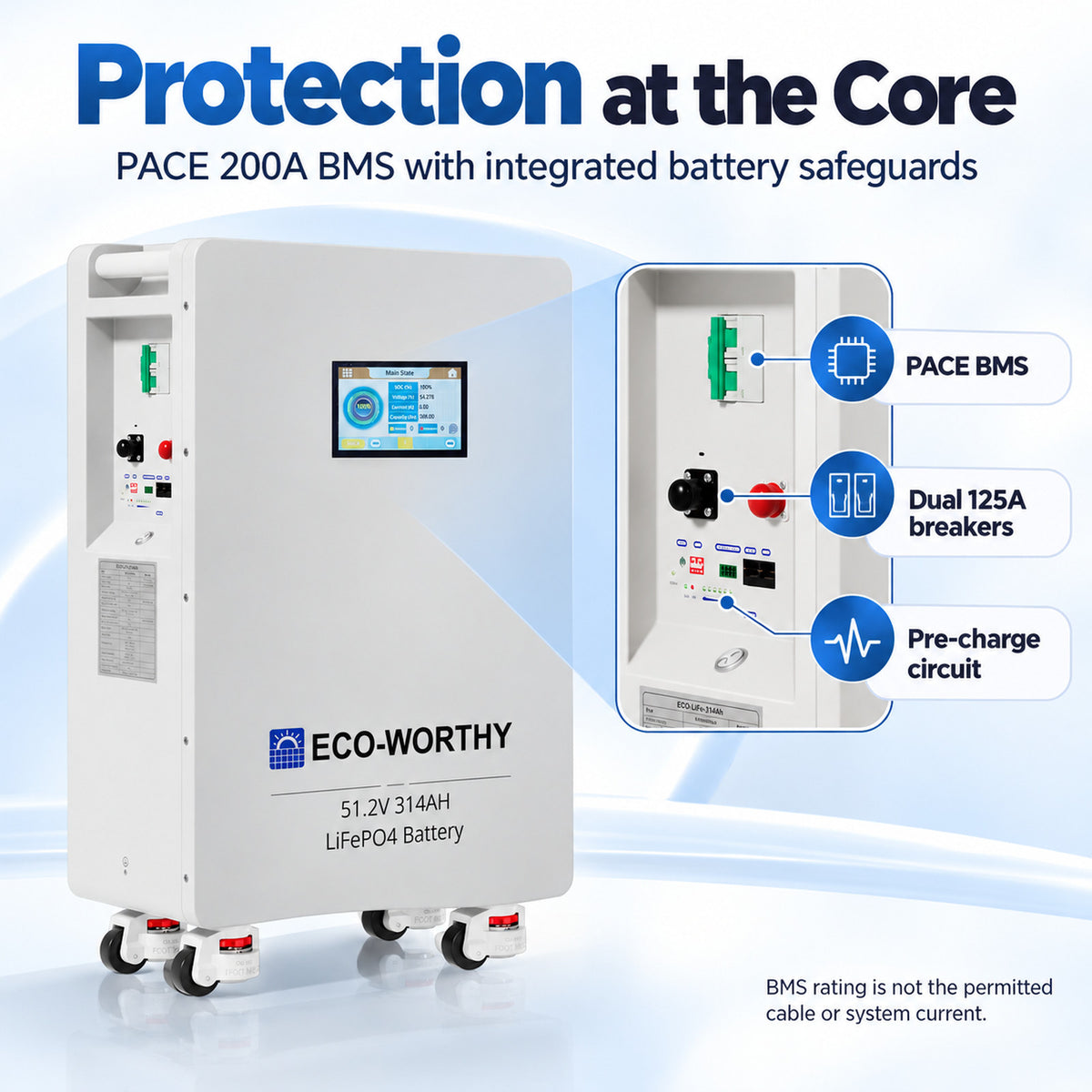

BMS Brand:

PACE BMS

Rated pover:

6000VA/6000W

Parallel capability:

Yes,6 units maximwm

AC voltage regulationl (battery mode):

230VAC+5% @5060Hz

Surge power:

12000VA

Efficiency (peak):

93%

Waveform:

Pure sine wawe

Transfer time:

10ms typical, 20mns Max

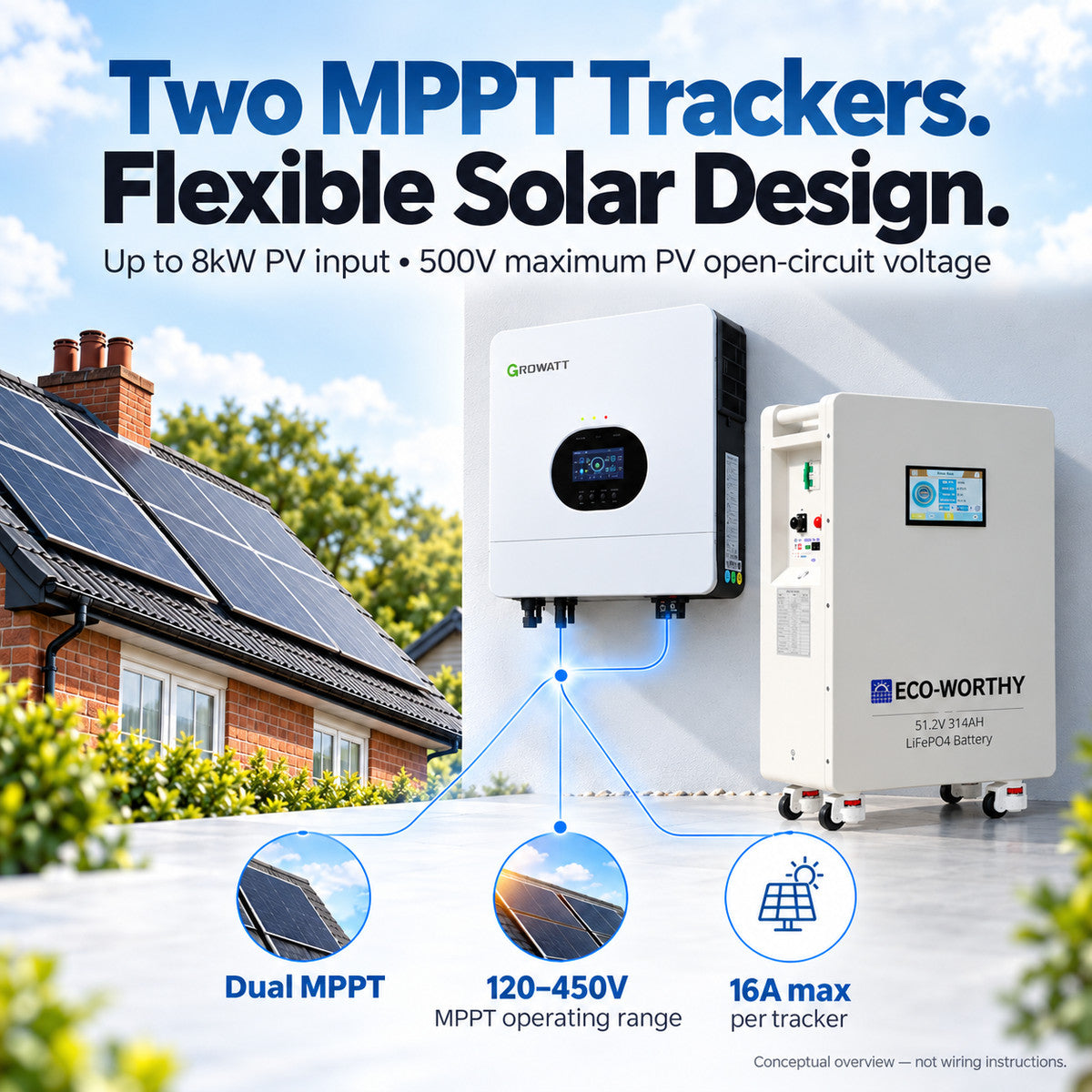

Maximum PV array power:

8000W

MPPT range @ operating voltage:

120VDC~450VDC

Number of independent MPP trackers/strings per MPp tracker:

2/1

Max.input current per MPP tracker:

16A

Maximum Py array opencircuit voltage:

500VDC

Maximum solar charge current:

100A

Charge current:

80A

AC input voltage:

230VAC

Selectable voltage range:

170-280 VAC (For personal computers);90-280 VAC (For home appliances)

Frequency range:

50Hz/60Hz (Auto sensing)

Protection degree:

IP20

Dimension (W/H/D)：

460/395/132mm

Net weight:

13.5kg

Operating environment

0C- 55°C

Humidity:

5% to 95% Relative humidity (Non-condensing)

Altitude:

<2000m

Storage temperature:

-15°C-60°C

Included in the Box
box image

1.1 x 6kW 48V All-in-one Inverter
2.1 x 51.2v 314ah battery
3.1 x 51.2v 314ah battery manual
4.1 x Battery to Inverter communication cable(1500mm)
5.1 Group Of Wall-mounted Bracket
6.1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)

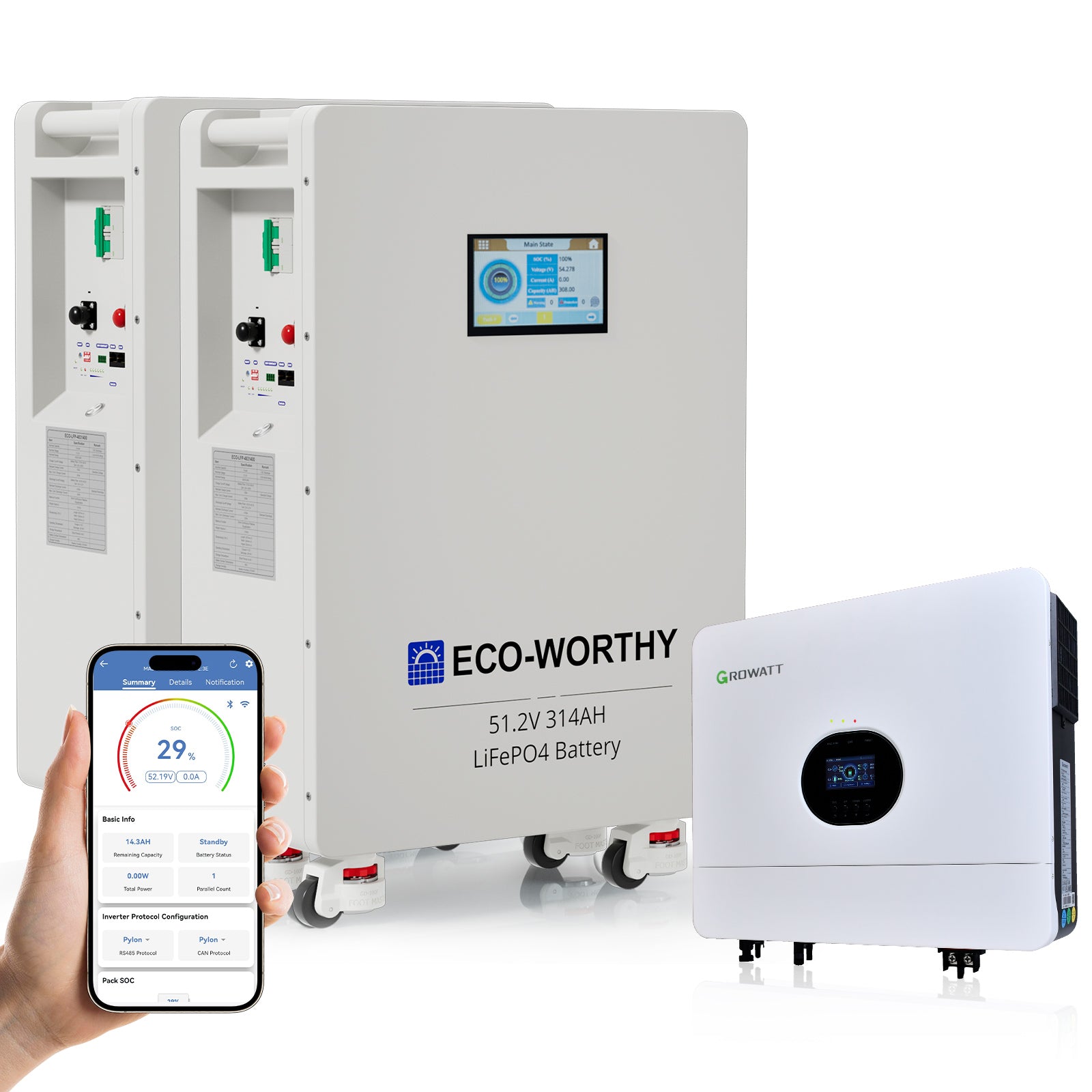

box image

1.1 x 6kW 48V All-in-one Inverter
2.2 x 51.2v 314ah battery
3.1 x 51.2v 314ah battery manual
4.1 x Battery to Inverter communication cable(1500mm)
5.1 Group Of Wall-mounted Bracket
6.1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)

User manual

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter-User Manual

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter Host Computer User Guide

Download

Eco-Worthy SPF 6000 ES Plus 48V 6000W Off-Grid AIO Inverter - User Manual

Download

Eco-Worthy SPF 6000 ES Plus 48V 6000W Off-Grid AIO Inverter - CE LVD

Download

Eco-Worthy SPF 6000 ES Plus 48V 6000W Off-Grid AIO Inverter - Datasheet

Download

Frequently Asked Questions

How do you test lithium battery performance?

+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
