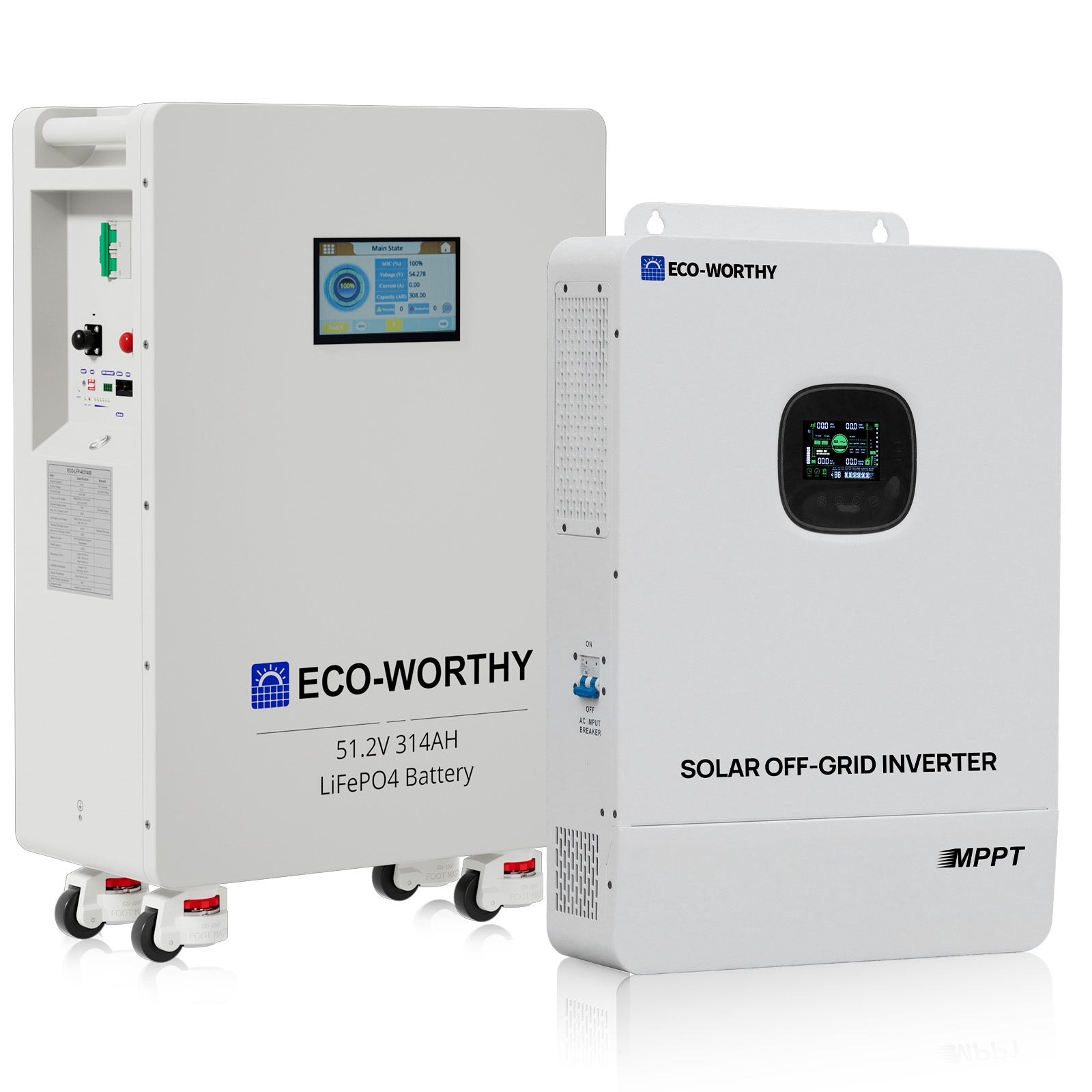

ECO-WORTHY 16KWh Home Backup Power Bundle With 48V 314Ah LiFePO4 Lithium Battery and 10kW 48V AIO Off Grid Inverter

ECO-WORTHY 16KWh Home Backup Power Bundle With 48V 314Ah LiFePO4 Lithium Battery and 10kW 48V AIO Off Grid Inverter

£2,769.98
£2,769.98 £3,599.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:

UK-L03L314AHJC-NKEU10KW-1

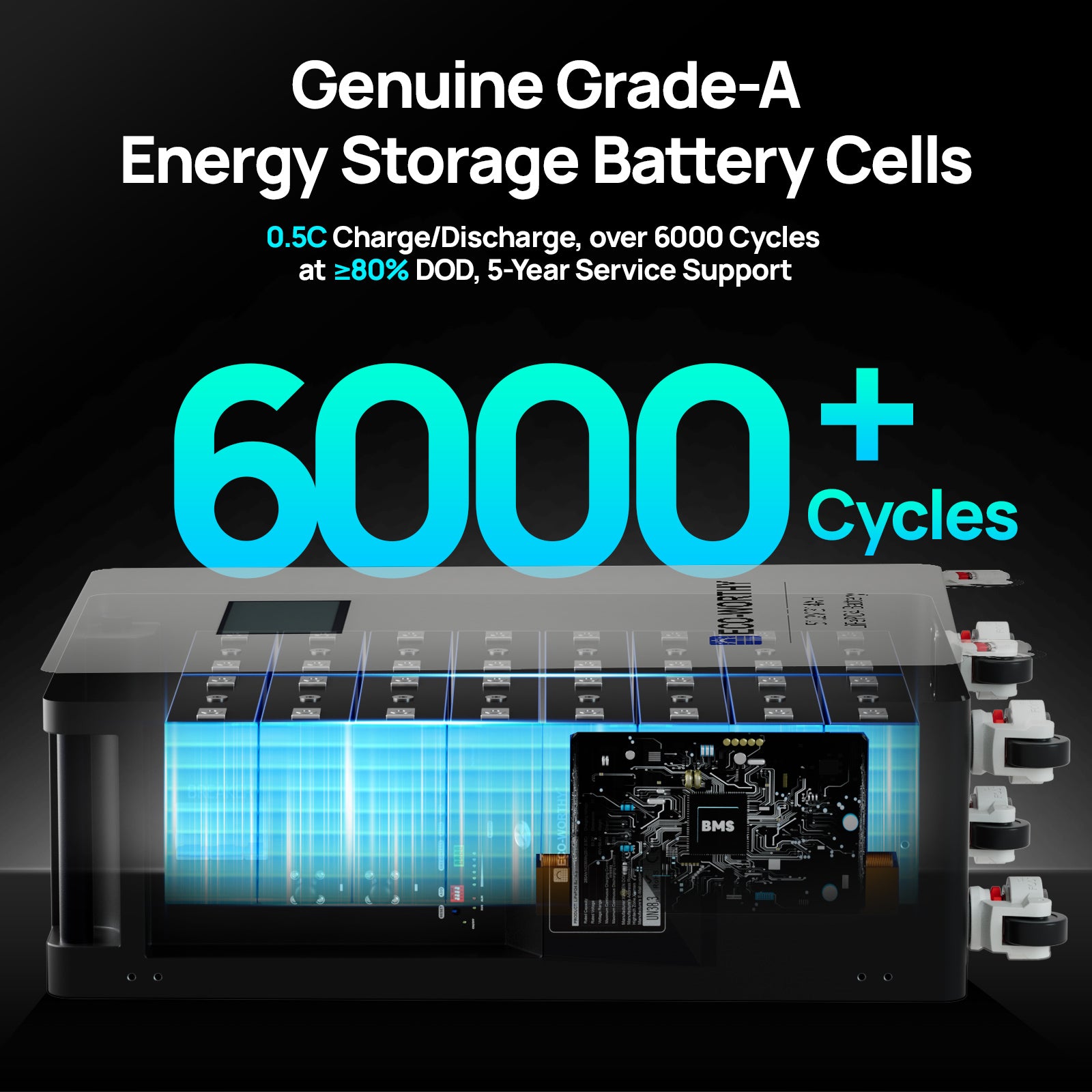

[Premium-grade cells]: Powered by high-quality LiFePO4 cells, the battery delivers 16.1kWh of usable energy with up to 96% depth of discharge. Designed for over 6000 cycles at 80% capacity retention, it is ideal for long-lasting backup power in homes, vacation cabins, and workshops.

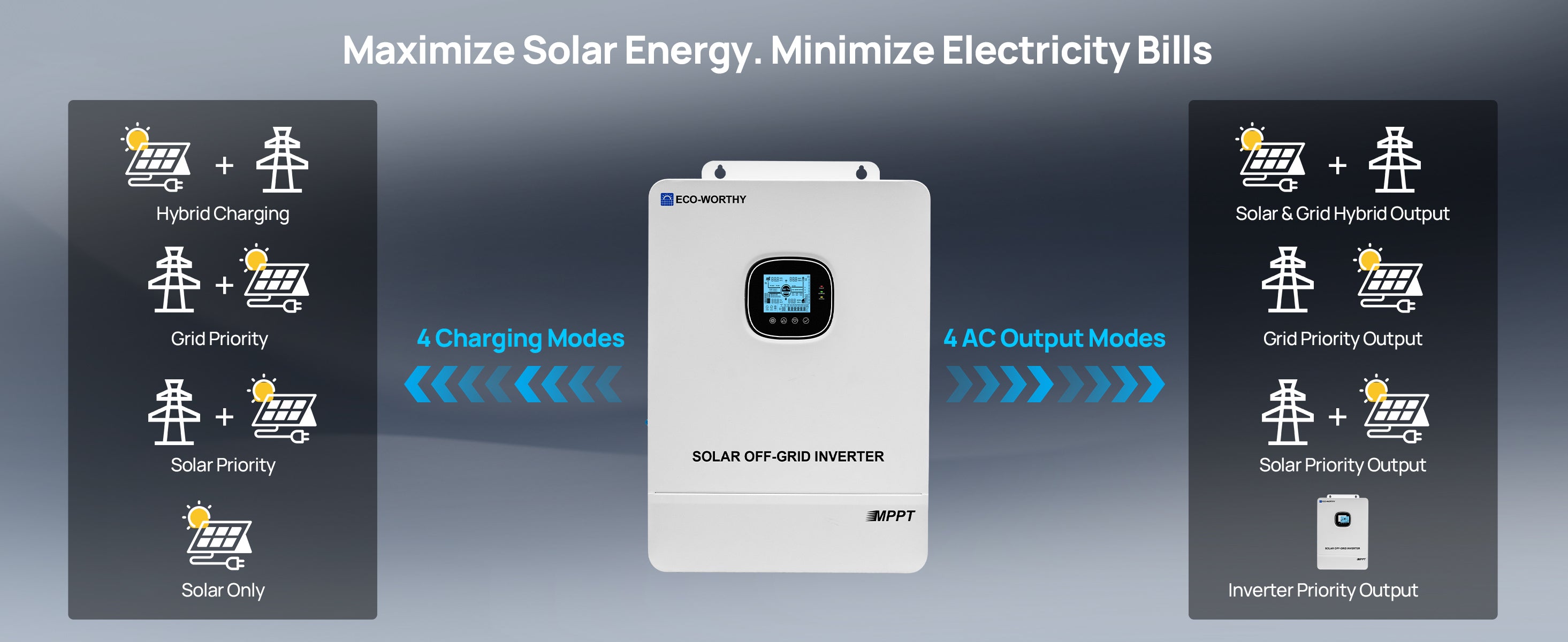

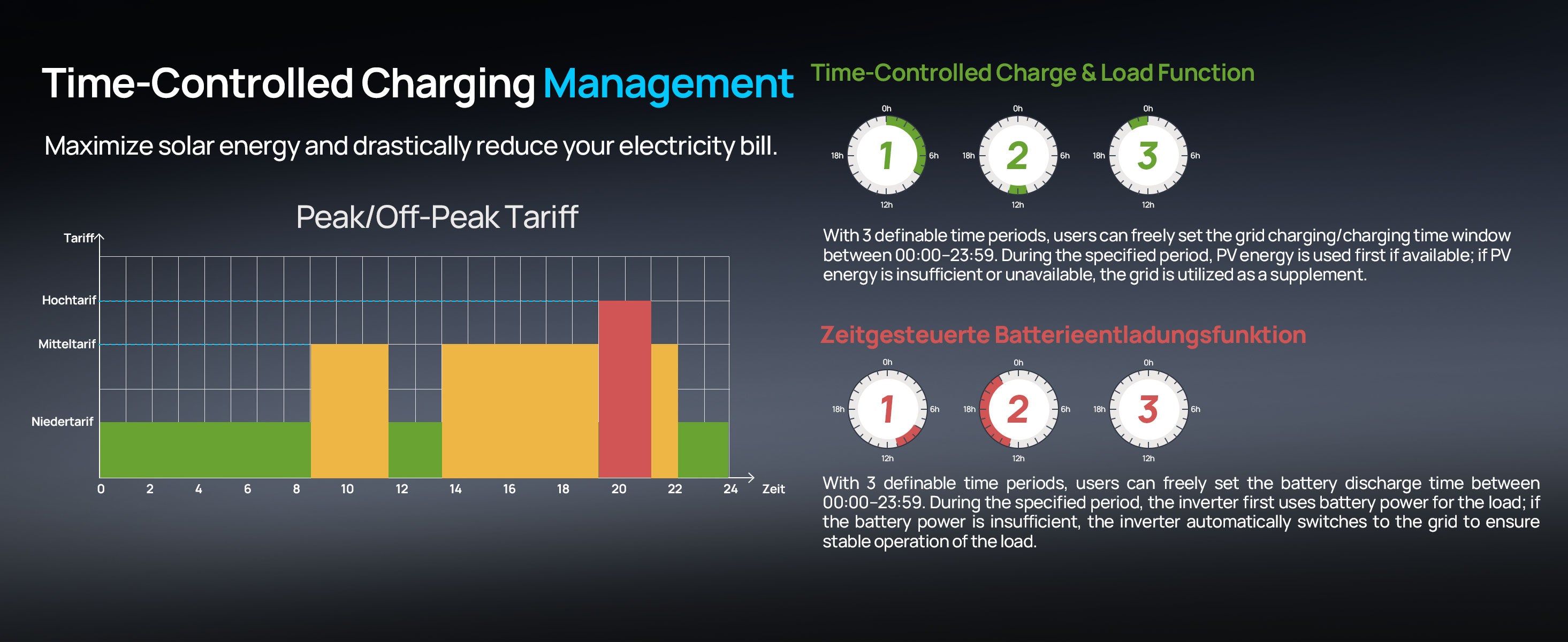

[Segmented Charging/Discharging]: Offers 3 output modes and 4 charging modes with time-based scheduling to optimize energy usage and save grid costs.

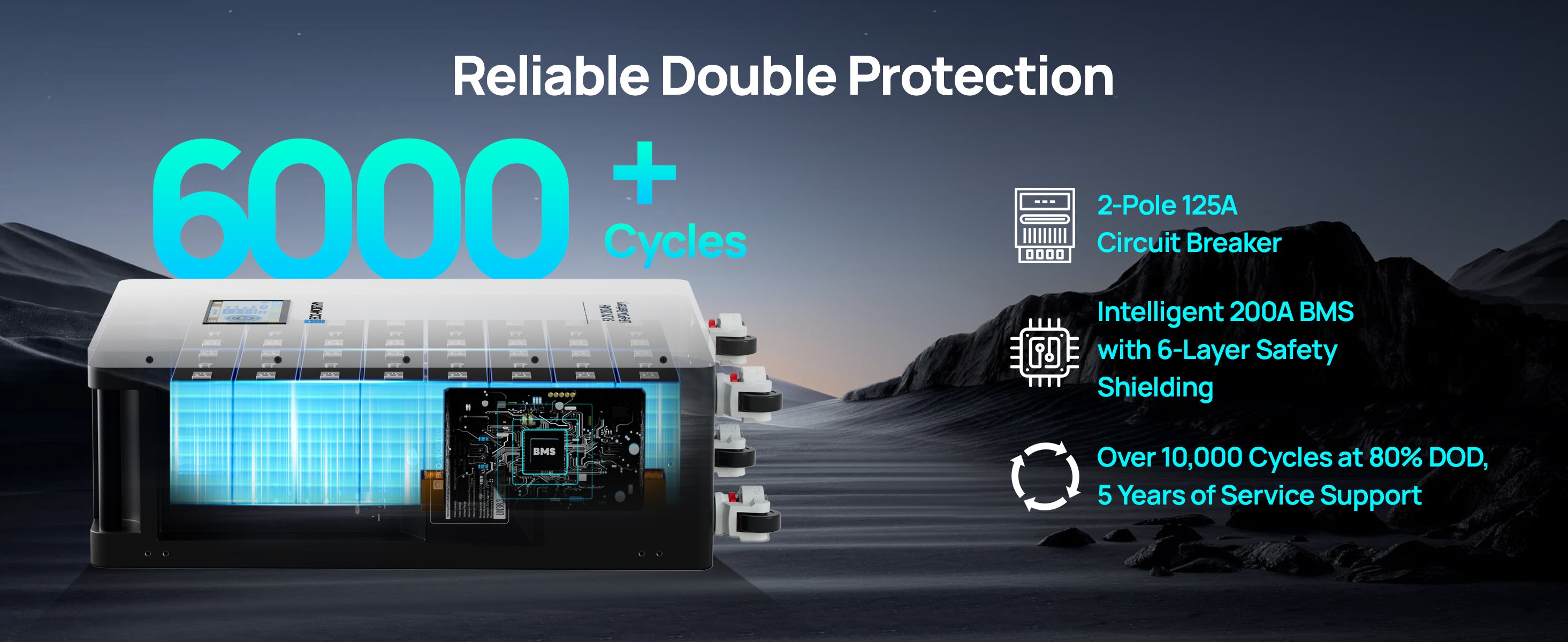

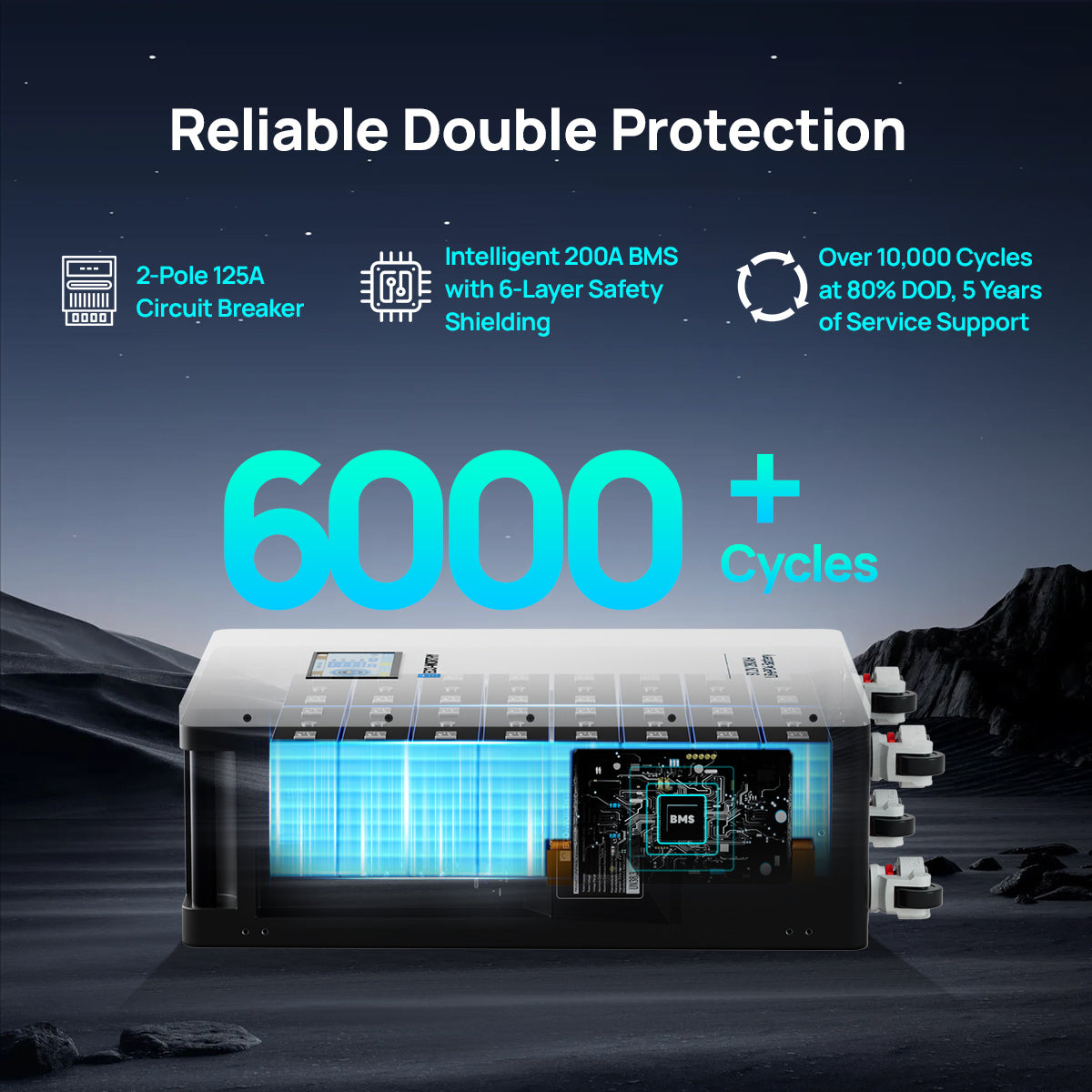

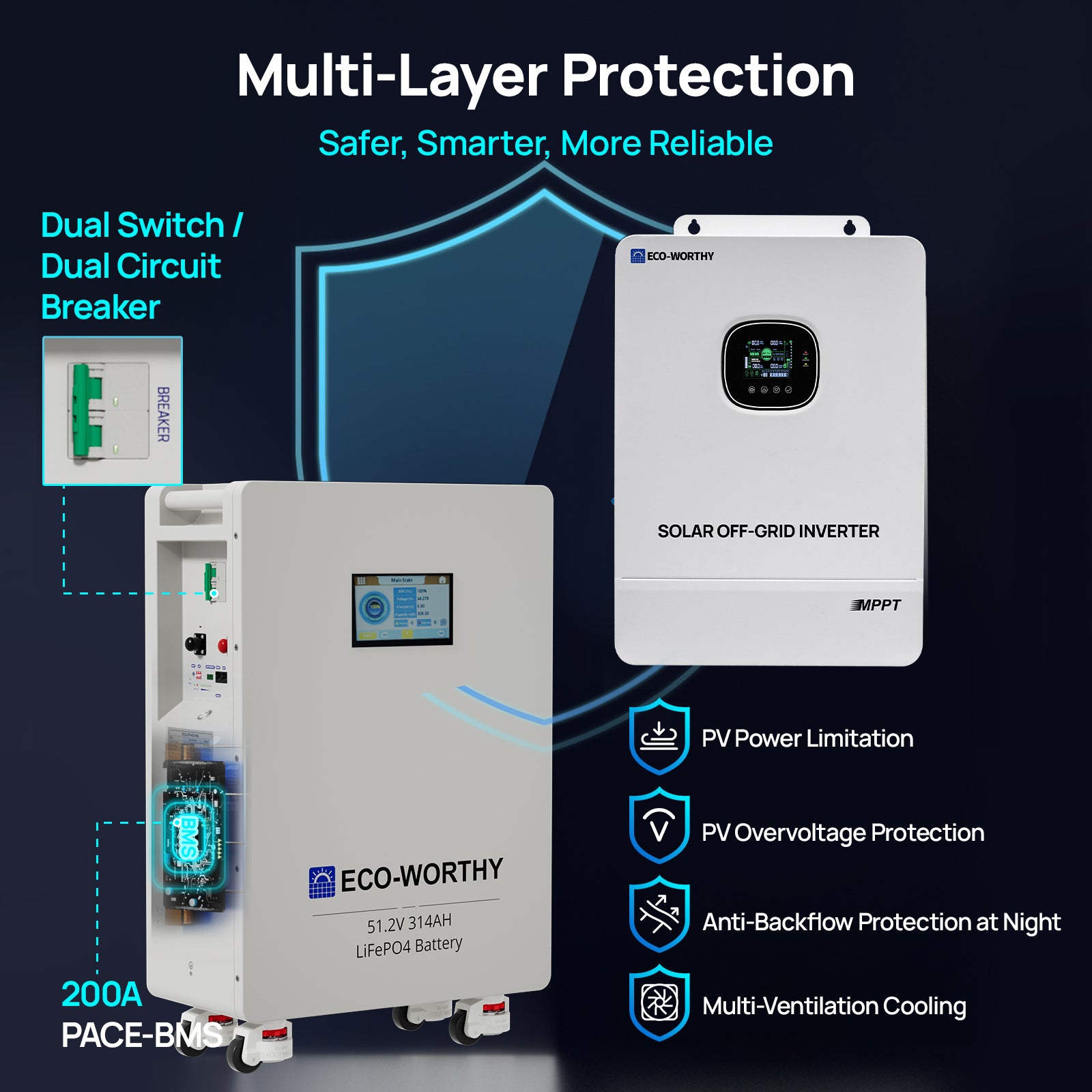

[Professional Safety Architecture]: Equipped with a 200A BMS, featuring 6-layer safety protection and dual circuit breakers (battery), along with advanced over-voltage, short-circuit, and over-current protection (inverter).

[Powerful Inverter Performance]: Max 5500W PV input, 120–500V DC range, 80A MPPT charging current, 5000W rated output, and 10000W peak power.

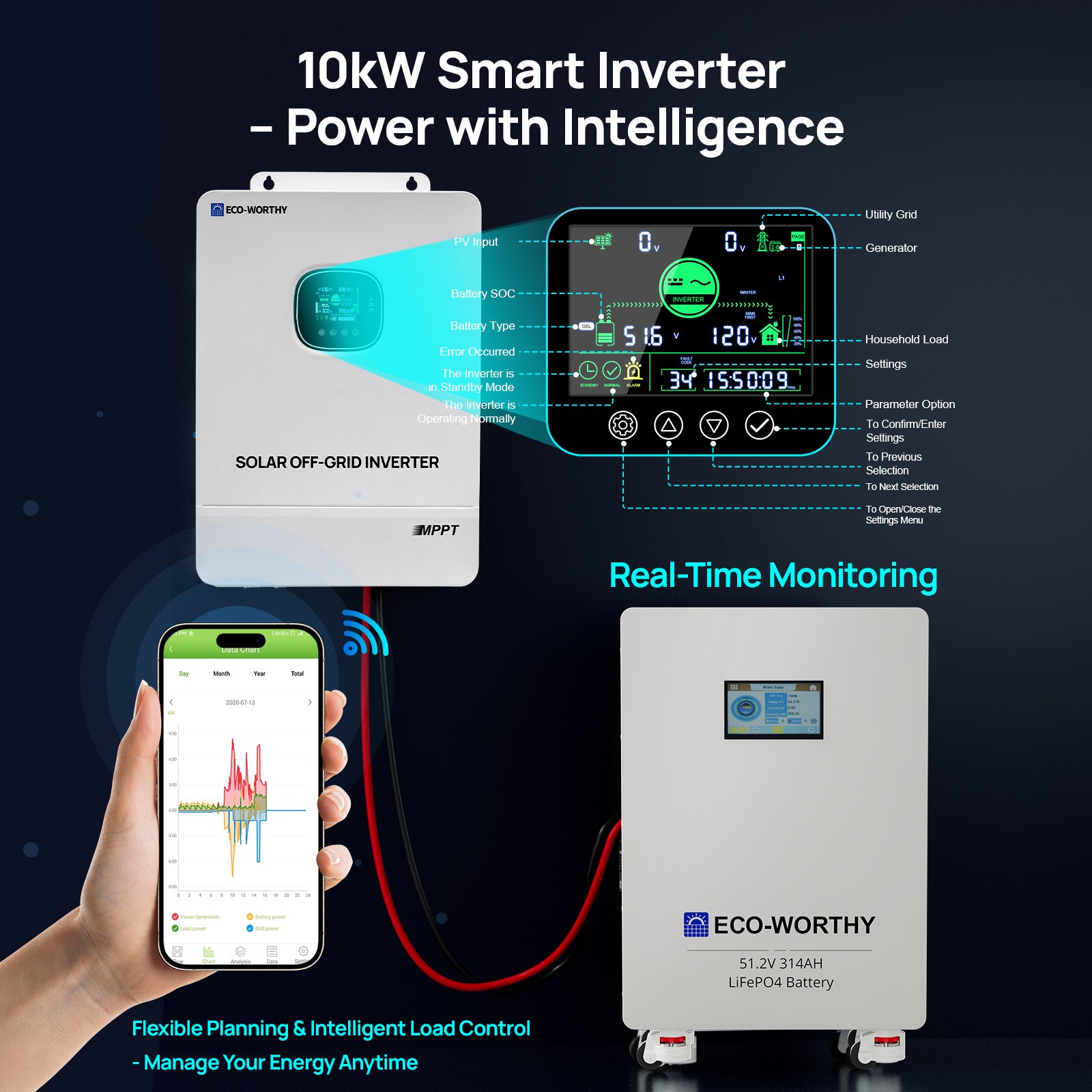

[Remote Smart Power Management]: Supports RS485, CAN, WLAN, CT, and DRMS communication for real-time app monitoring, smart power control, battery management, and smart home/PLC integration.

Read more
Style

Total price

£2,769.98
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £692.49 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
£2,769.98 £3,599.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

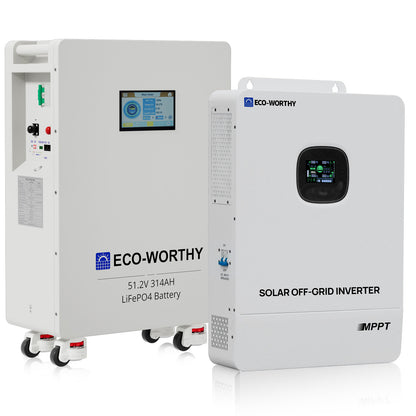

ECO-WORTHY Home Backup Power: 16.08kWh Battery + 10kW Inverter

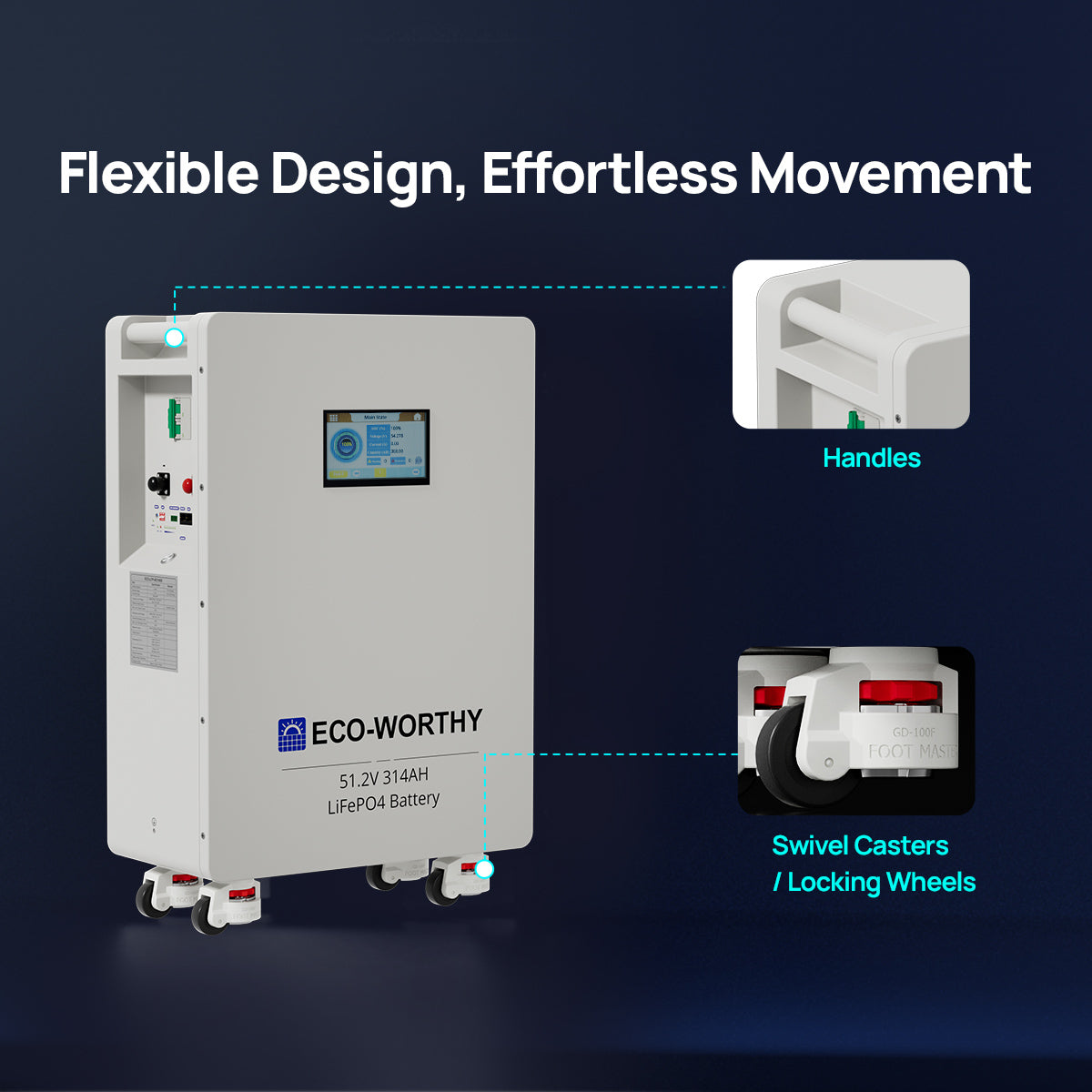

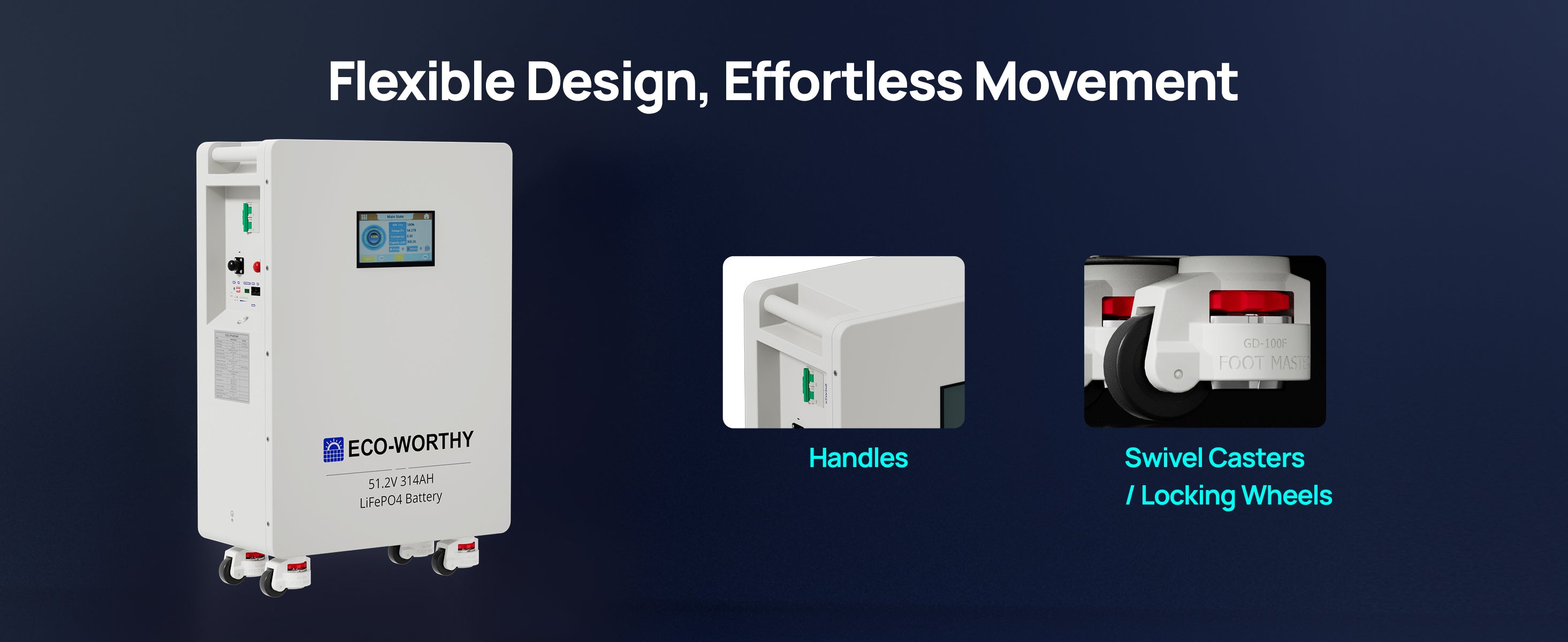

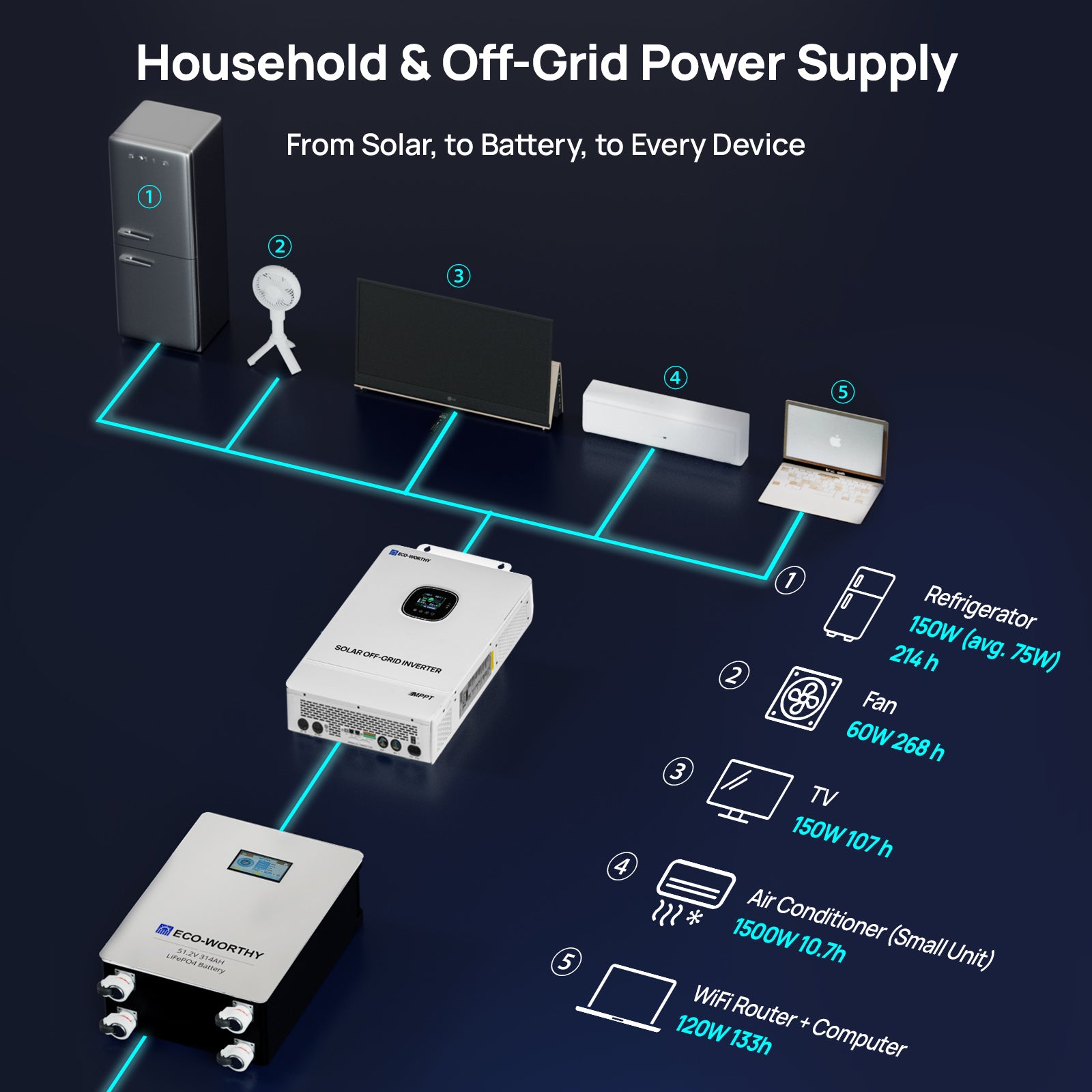

Achieve total energy independence with this high-capacity solar storage system. The 51.2V 314Ah LiFePO4 battery (expandable to 15 units) pairs with a powerful 10kW off-grid inverter, supporting 120V/230V output for whole-home backup. With 10,000+ cycles, advanced BMS protection, and mobile cart design, it offers a durable, scalable, and safe power solution for off-grid living or emergency readiness.

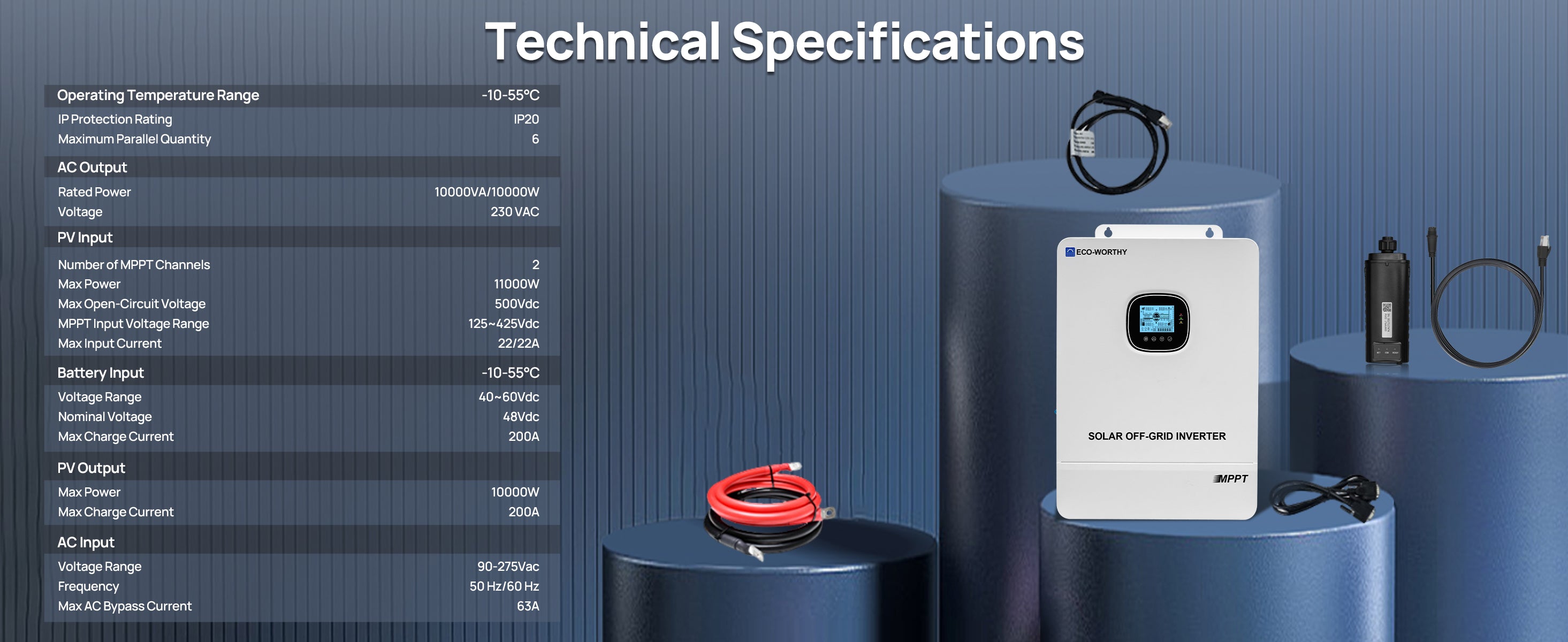

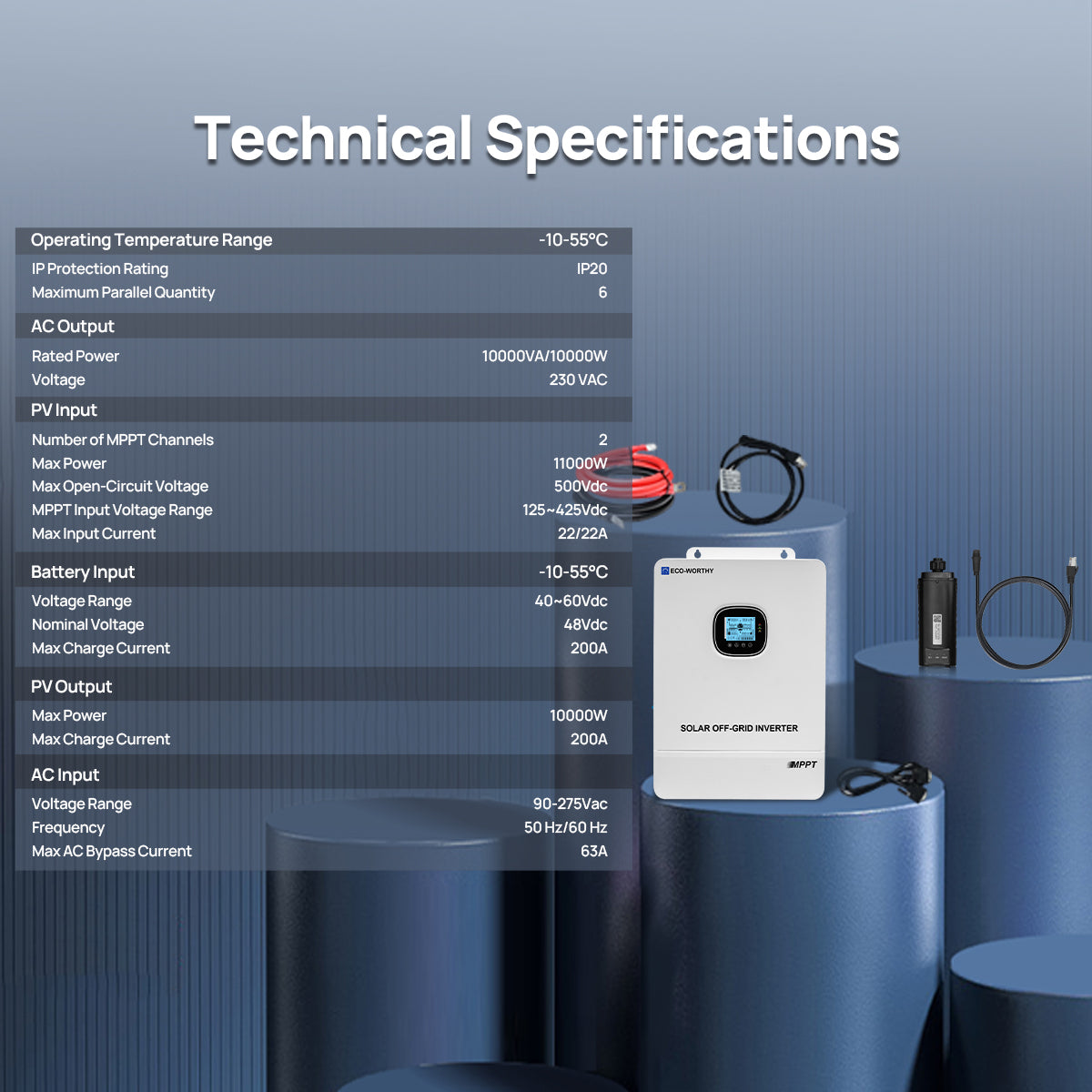

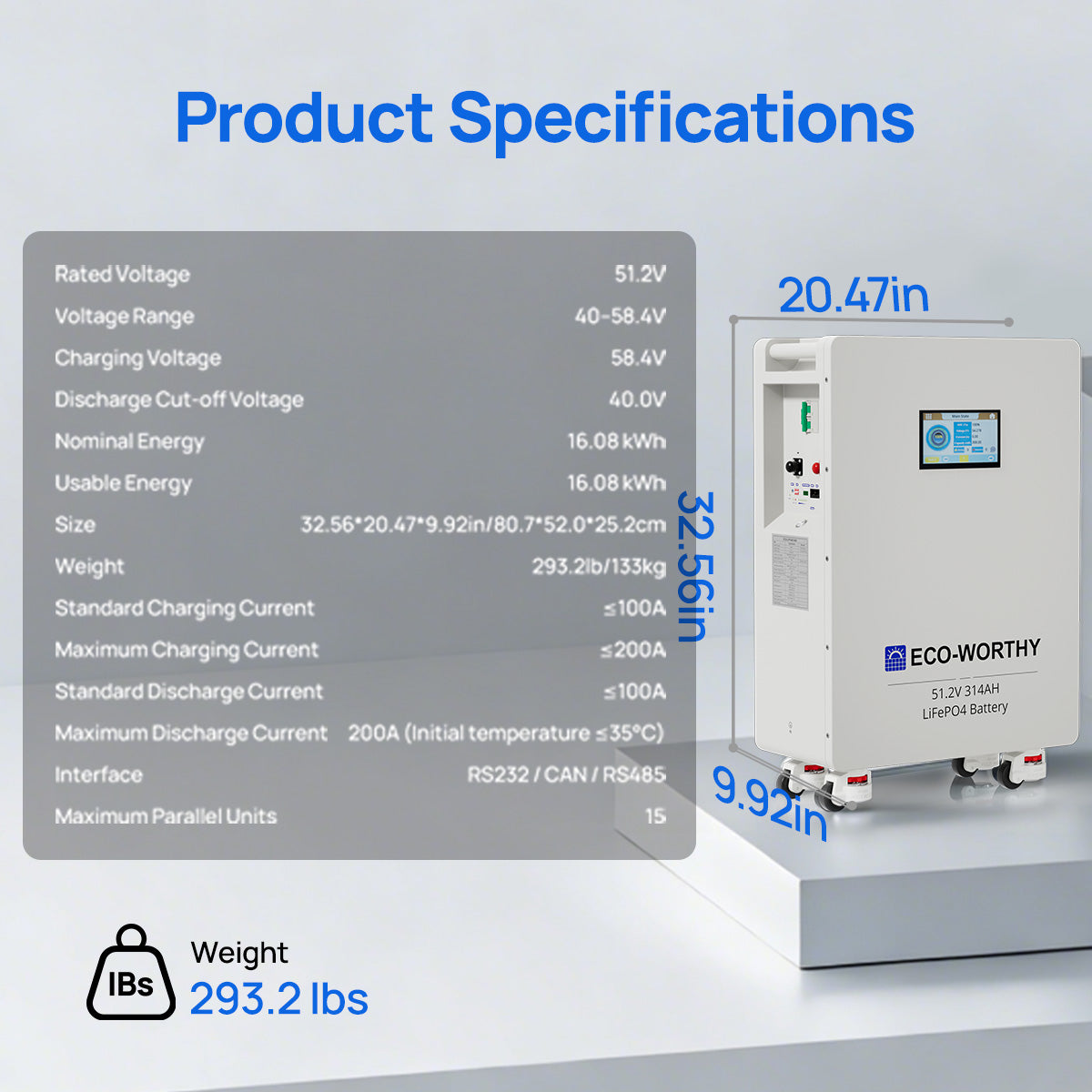

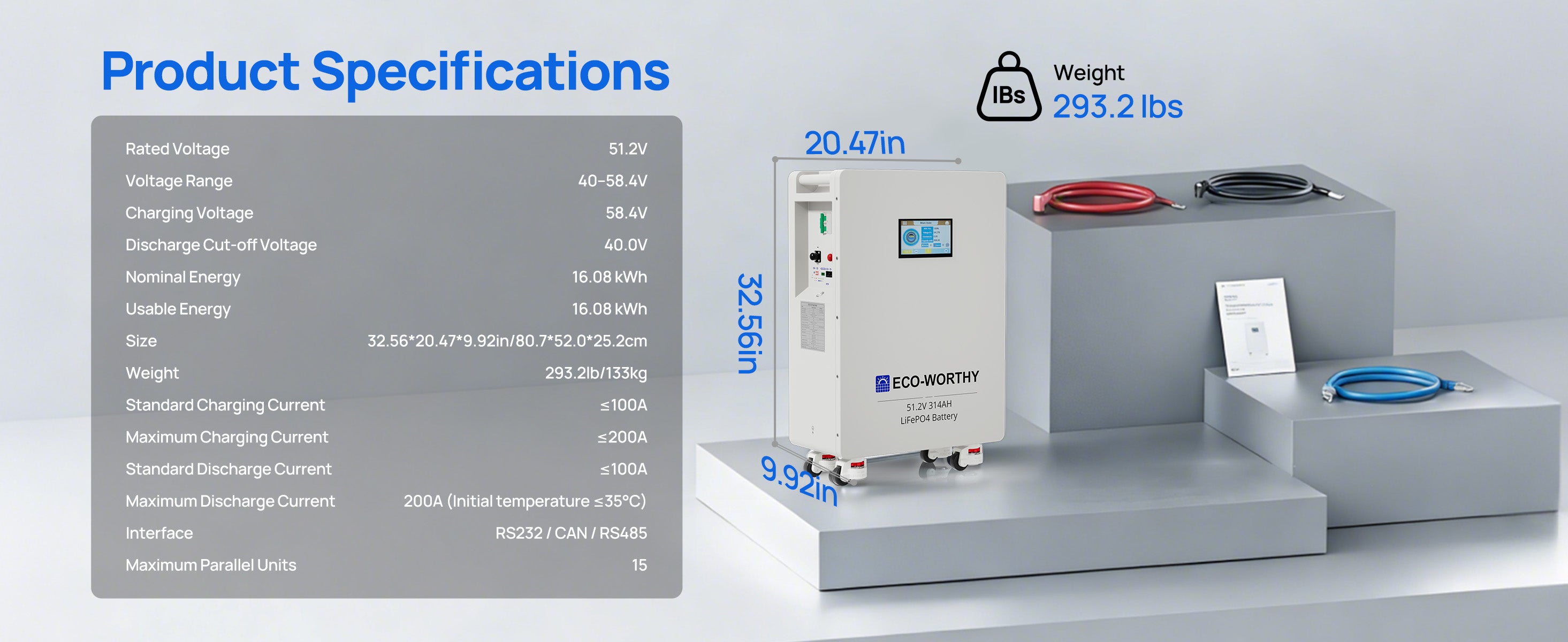

Technical Specifications

48V 314Ah Lifepo4 Lithium Battery
10000W Solar Off-grid AIO Inverter

Battery Capacity:

314Ah

Battery Power:

16.08kWh

Rated Voltage:

51.2V

Voltage Range:

40~58.4V

Maximum Charge/ Discharge Current:

150A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

58.4V

Battery Weight:

293.2lb/133kg

Battery Size:

32.56*20.47*9.92in/80.7*52*25.2cm

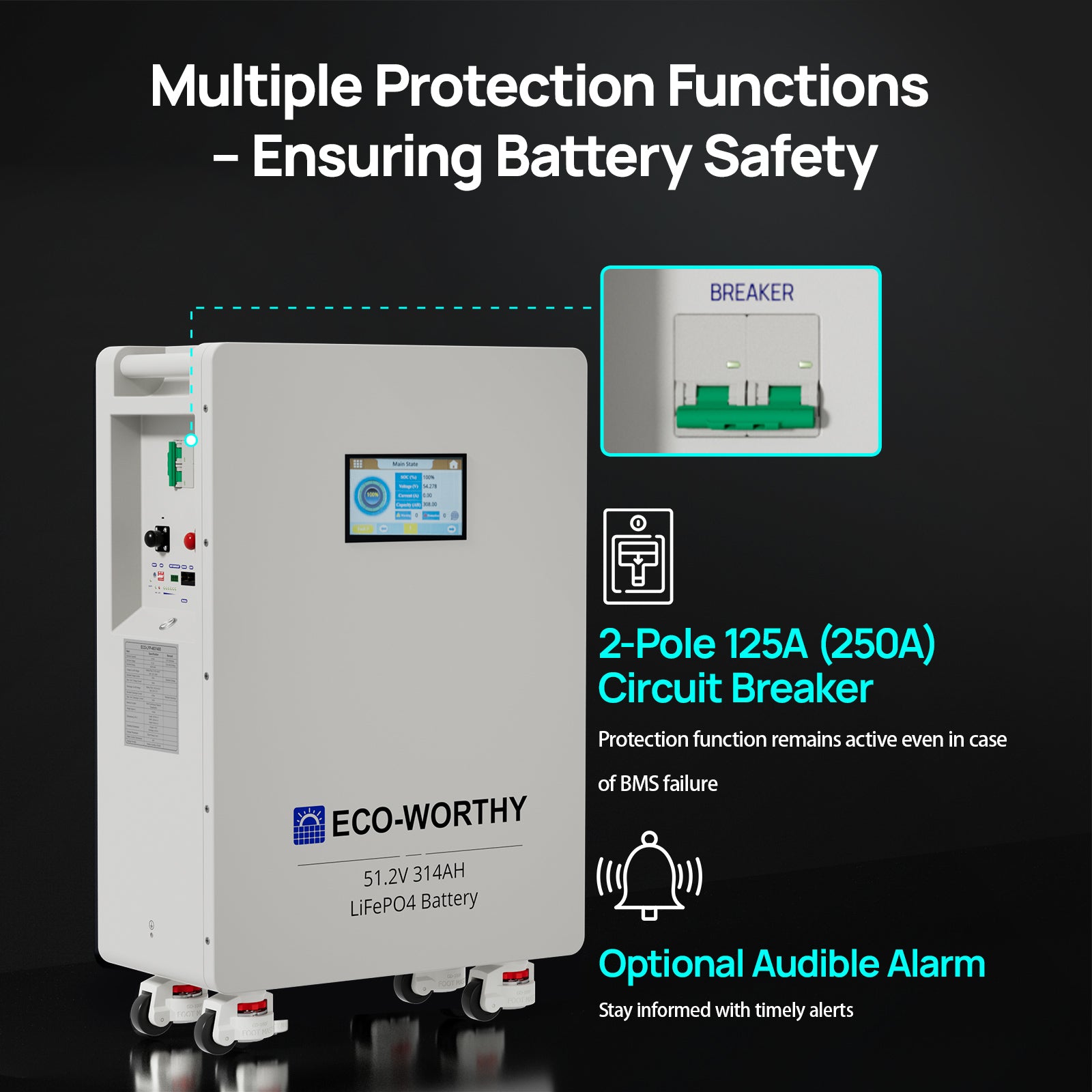

Circuit Breaker:

2*125A(250A)

Max. parallel number:

15pcs

BMS Brand:

PACE BMS

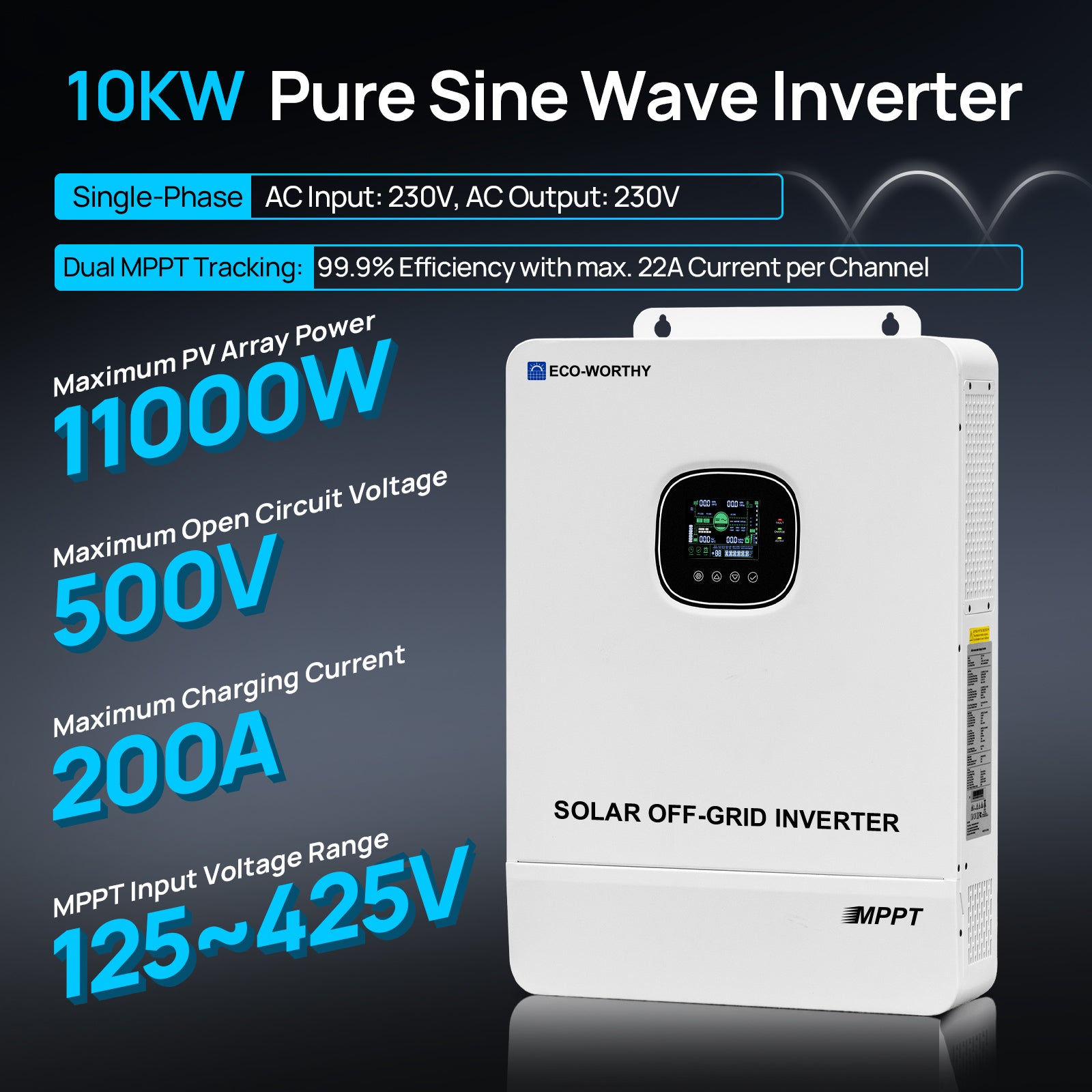

Rated Output Power:

10000 W

Max. Peak Power:

20000 W

Rated Output Voltage:

230Vac (Single Phase)

Load Capacity of Motors:

6HP

Rated AC Frequency:

50/60Hz

Waveform :

Pure Sine Wave

Switch Time:

10ms (Typical)

Parallel Capacity:

1-6 Units

Overload Protection:

After overload protection is triggered, the inverter will restart after 3 minutes. Five consecutive overloads will shut down the output until the inverter is restarted. (102% < Load < 110%) ± 10%: Fault and output shutdown after 5 minutes; (110% < Load < 125%) ± 10%: Fault and output shutdown after 10 seconds. Load > 125% ± 10%: Fault alarm and output shutdown after 5 seconds.

Battery Type:

Li-ion / Lead-Acid / User Defined

Rated Battery Voltage:

48 Vdc

Voltage Range:

40 to 60 Vdc

Max. Grid/Generator Charging Current:

150A

Max. Hybrid Charging Current:

200A

Number of MPPT Trackers:

2

Max. PV Array Power:

5500W+5500W

Max. Input Current:

22A+22A

Max. Voltage of Open Circuit:

500Vdc/500Vdc

MPPT Voltage Range:

125 to 425 Vdc

Input Voltage Range:

90-275Vac

Frequency Range:

50/60Hz

Bypass Overload Current:

63A

MPPT Tracking Efficiency:

99.9%

Max. Battery Inverter Efficiency:

92%

Dimensions:

620x445x130mm

Weight:

27kg

Protection Degree:

Protection Degree IP20, Indoor Only

Operating Temperature Range:

Range -10~55℃, >45℃ derated

Noise:

<60dB

Cooling Method:

Internal Fan

Embedded Interfaces:

RS485 / CAN / USB / Dry contact

External Modules (Optional):

Wi-Fi / GPRS

Included in the Box
box image
  1. 1x48V 314Ah LiFePO4 Lithium Battery
  2. 1x10000W Solar Off-grid AIO Inverter
  3. Accessories

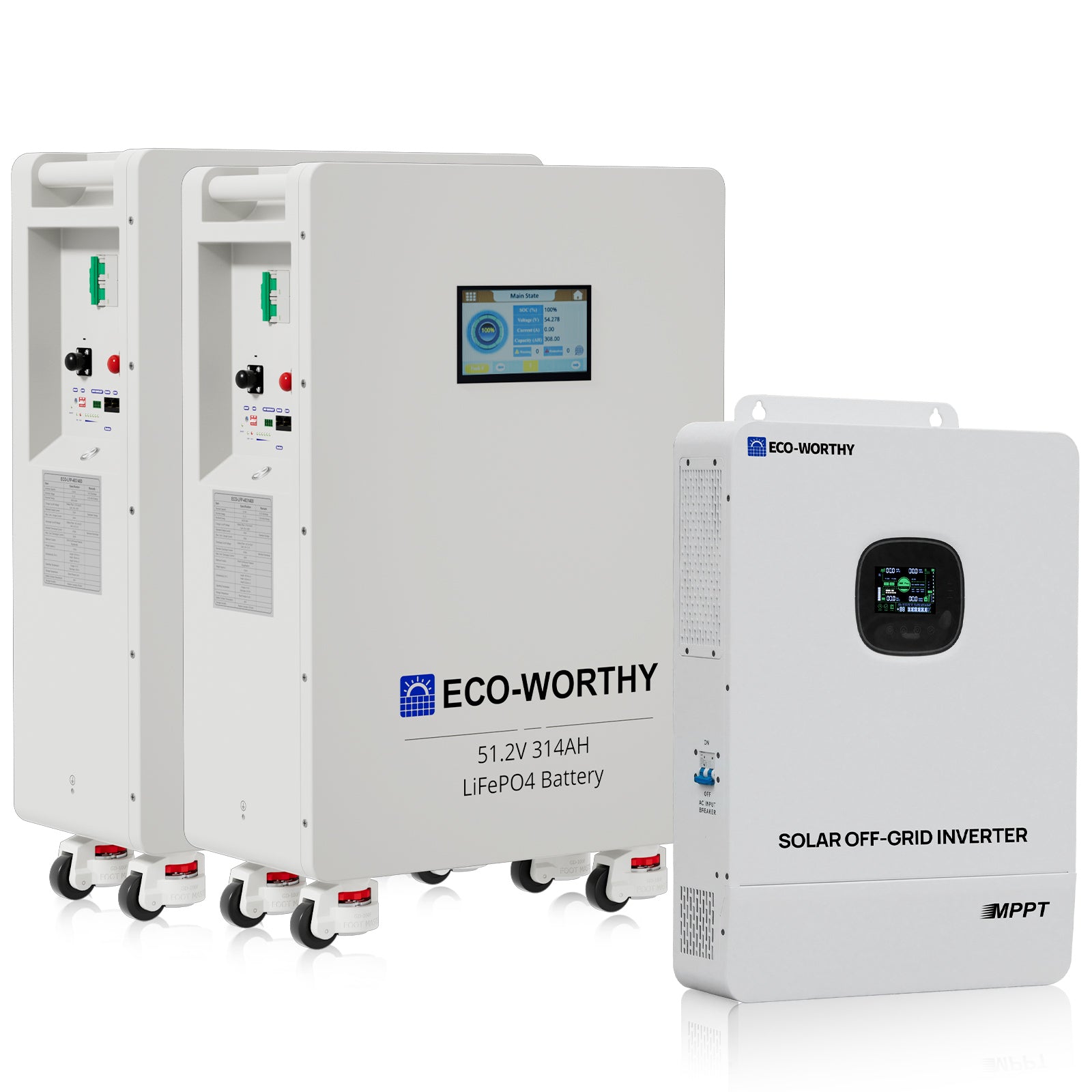

box image
  1. 2x48V 314Ah LiFePO4 Lithium Battery
  2. 1x10000W Solar Off-grid AIO Inverter
  3. Accessories
User manual

Eco-Worthy 10000W Inverter User Manual English and German

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter-User Manual

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter Host Computer User Guide

Download

Frequently Asked Questions

How do you test lithium battery performance?

+
When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

+
①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

+
A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

+
Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
