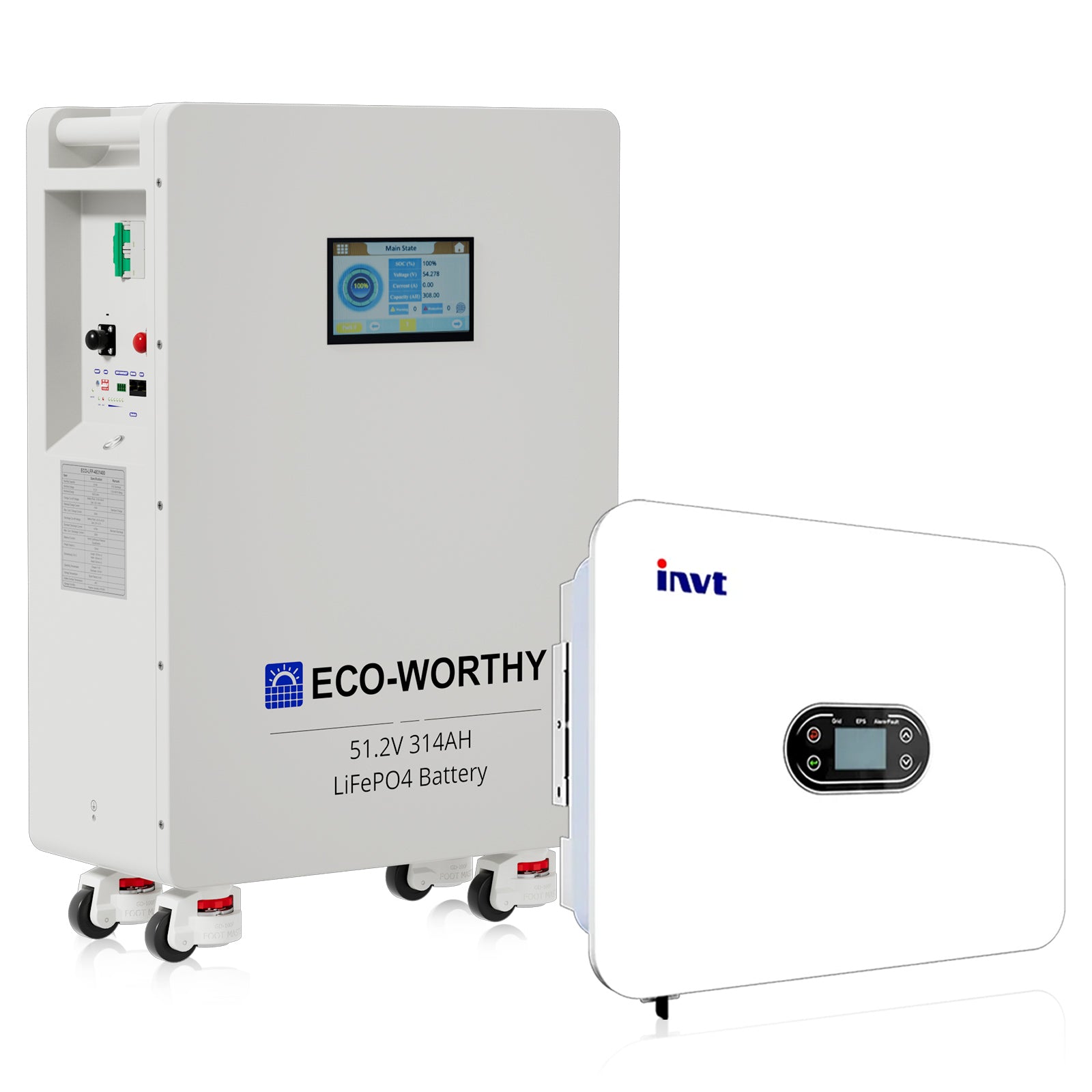

ECO-WORTHY 16kWh Hybrid Energy Storage System with 6kW Single Phase Hybrid Inverter

Name: ECO-WORTHY 16kWh Hybrid Energy Storage System with 6kW Single Phase Hybrid Inverter
Brand: eco-worthy-uk
SKU: UK-L13L314AHJC-NKEU6KW-1
Price: 3699.98 GBP
Availability: InStock

£3,699.98

£3,699.98 ~~£3,399.99~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L13L314AHJC-NKEU6KW-1

[G99-Compliant Inverter & IEC 62619-Certified Battery]: G99-compliant inverter for UK grid connection and MCS-compliant installation, paired with an IEC 62619-certified 48V 314Ah battery.

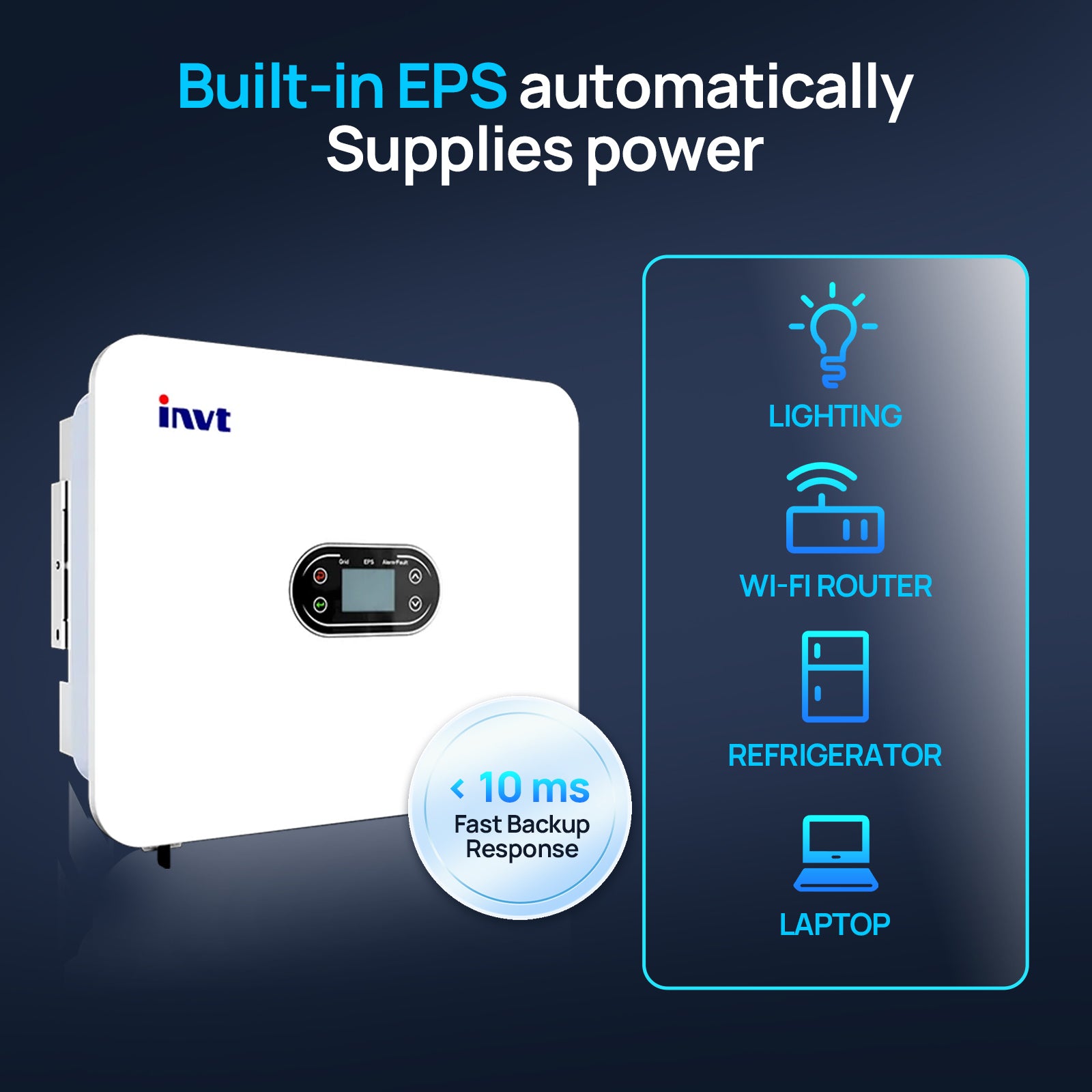

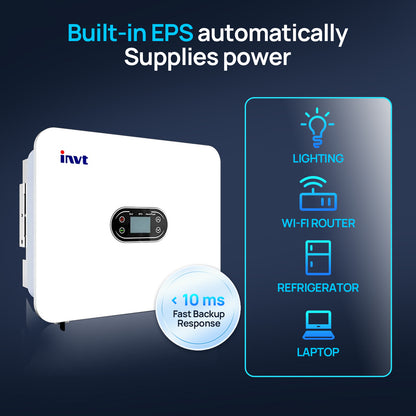

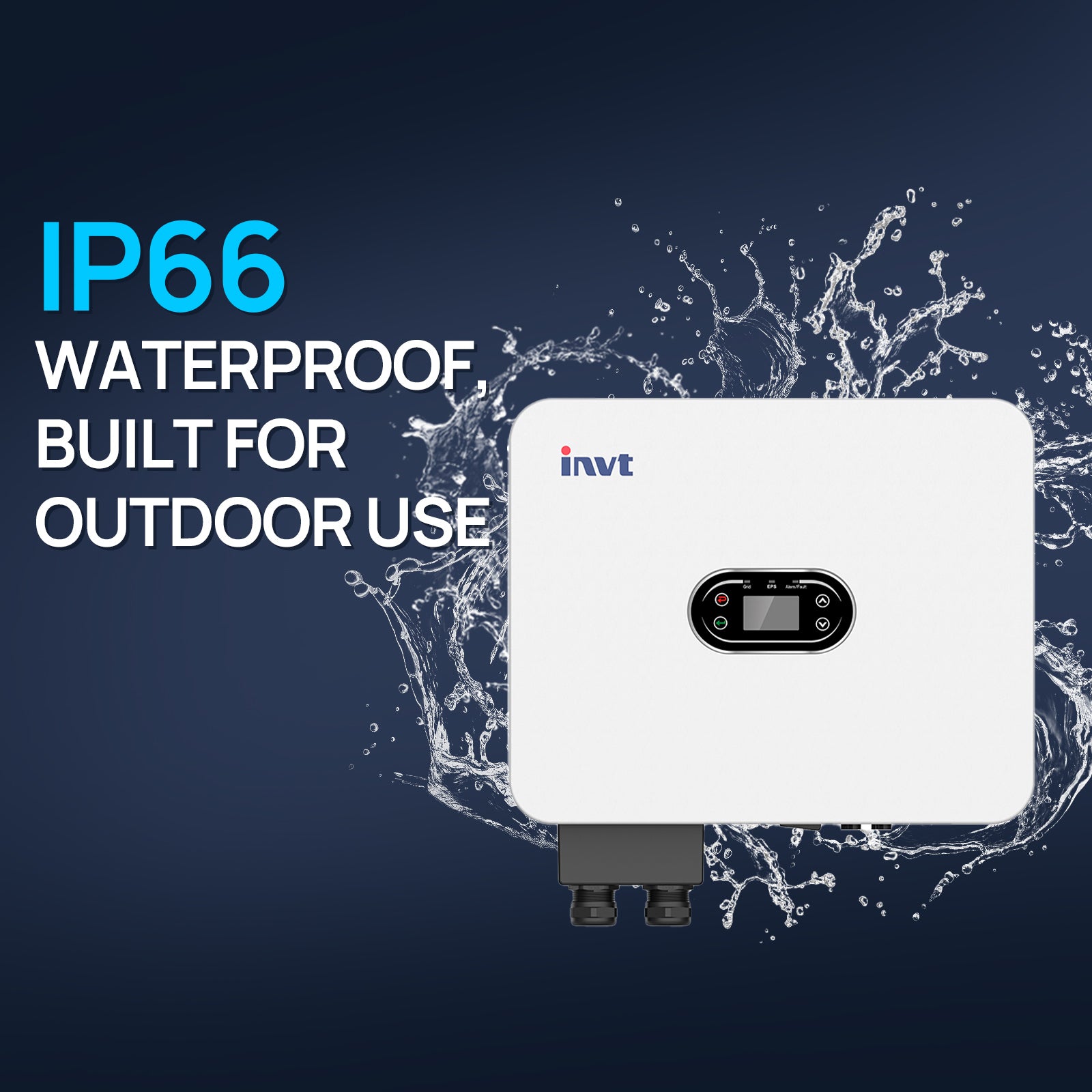

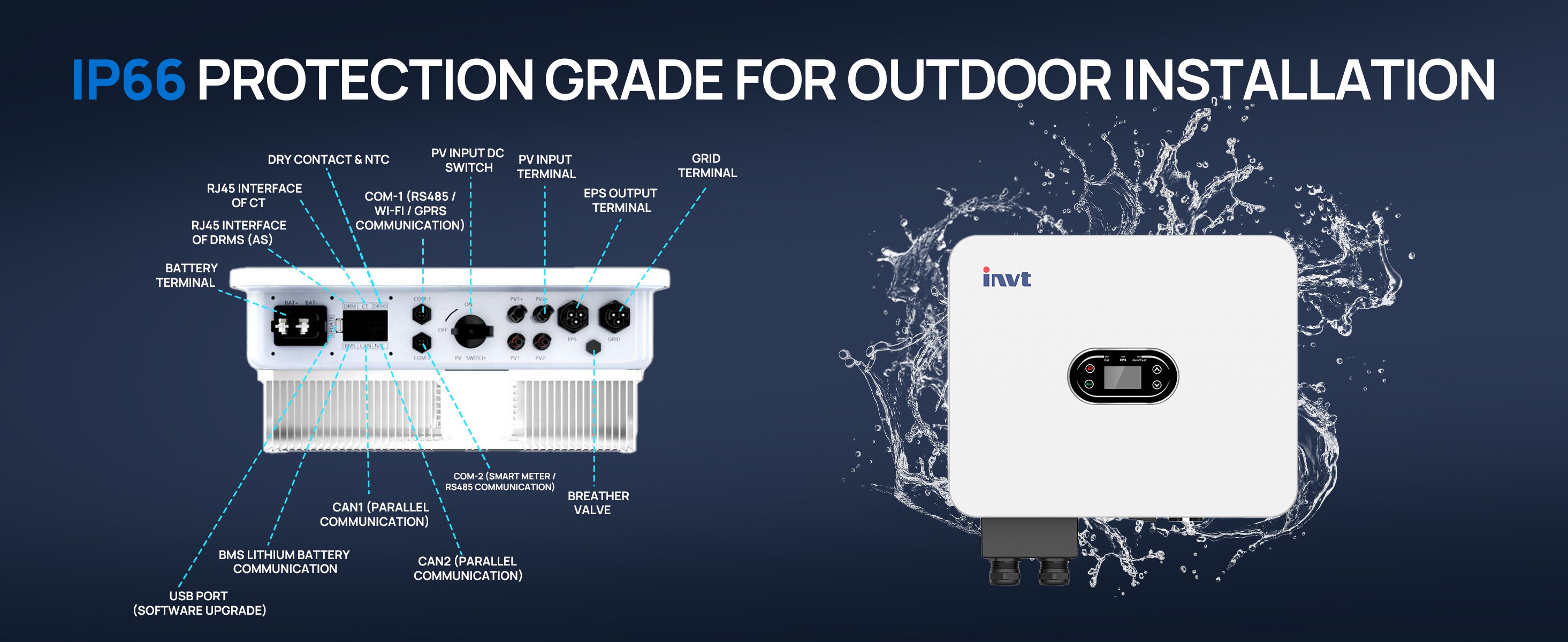

[IP66 Weatherproof Inveter with 10ms EPS Backup Switching]: IP66-rated protection against dust and water, with 10ms EPS backup switching to keep essential appliances running during power outages.

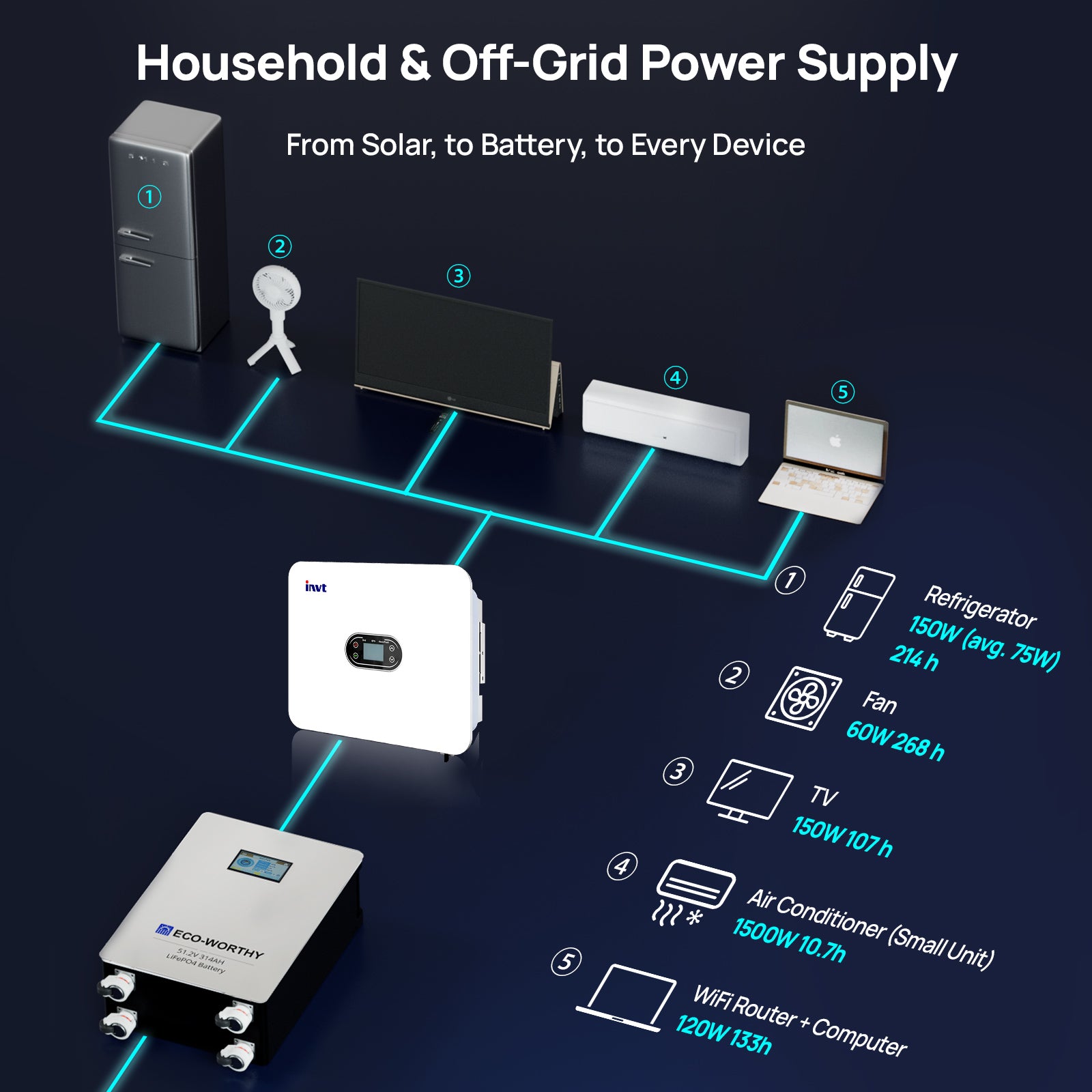

[Daily Energy for a Typical UK Home]: With 16 kWh of usable energy, this battery can power a typical UK household for roughly a full day — covering lighting, fridge, entertainment, and small appliances during peak tariff periods. 👉 Helps reduce reliance on expensive grid electricity when prices spike.

[Lower Upfront Cost, Faster Payback]: An solution combining the system and professional installation, eliminating the installation challenges of DIY solutions. With an overall cost expected to be several thousand pounds lower than comparable turnkey systems.

[Professional Installation Support Available]: Just £1000 During the Promotion. Contact our customer support team for a free consultation and on-site survey registration.

[5-Year Warranty for Added Peace of Mind]: Backed by a 5-year warranty, giving you long-term protection and greater confidence in your home energy storage investment.

Free Home Installation Consultation

Limited Time Only £1000 Full Installation & Grid Connection Registration View More →

Style System Only System + Installation Included

Quantity

Total price

£3,699.98

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £924.99 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£3,699.98

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

16kWh Home Battery Storage System for UK Homes

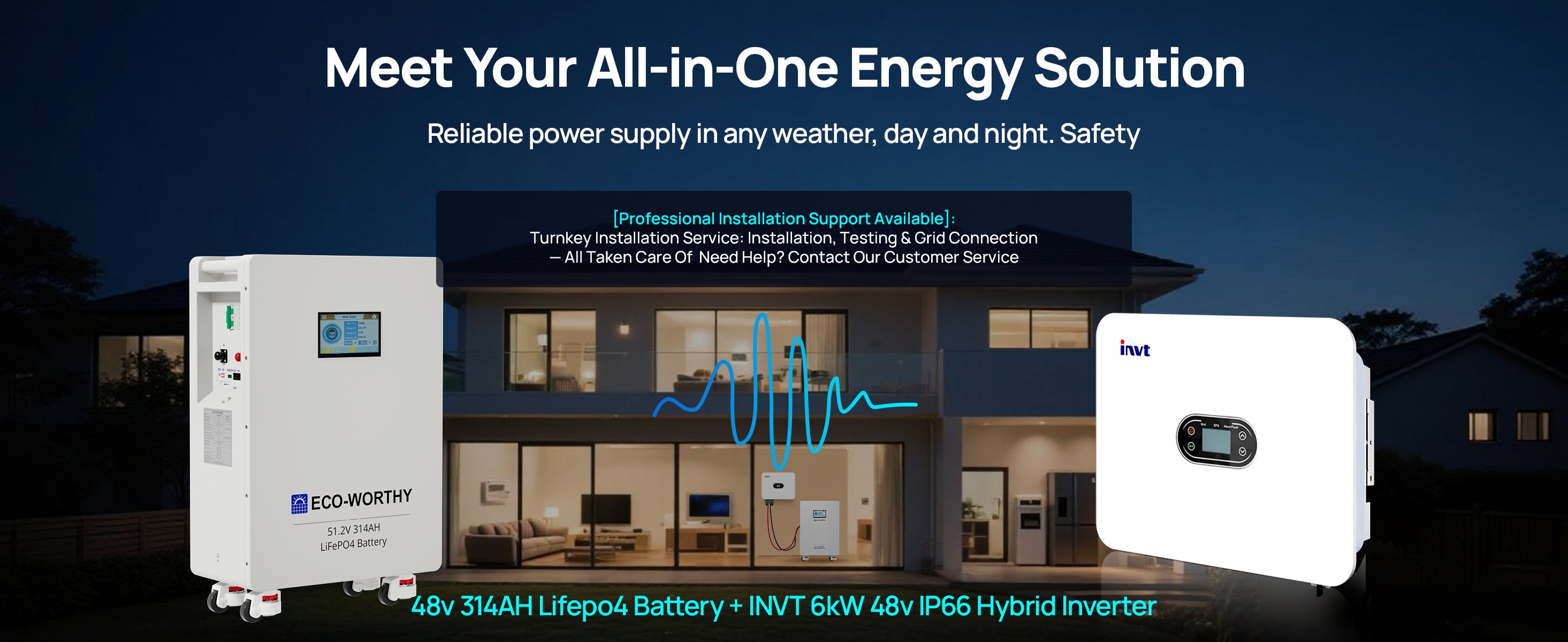

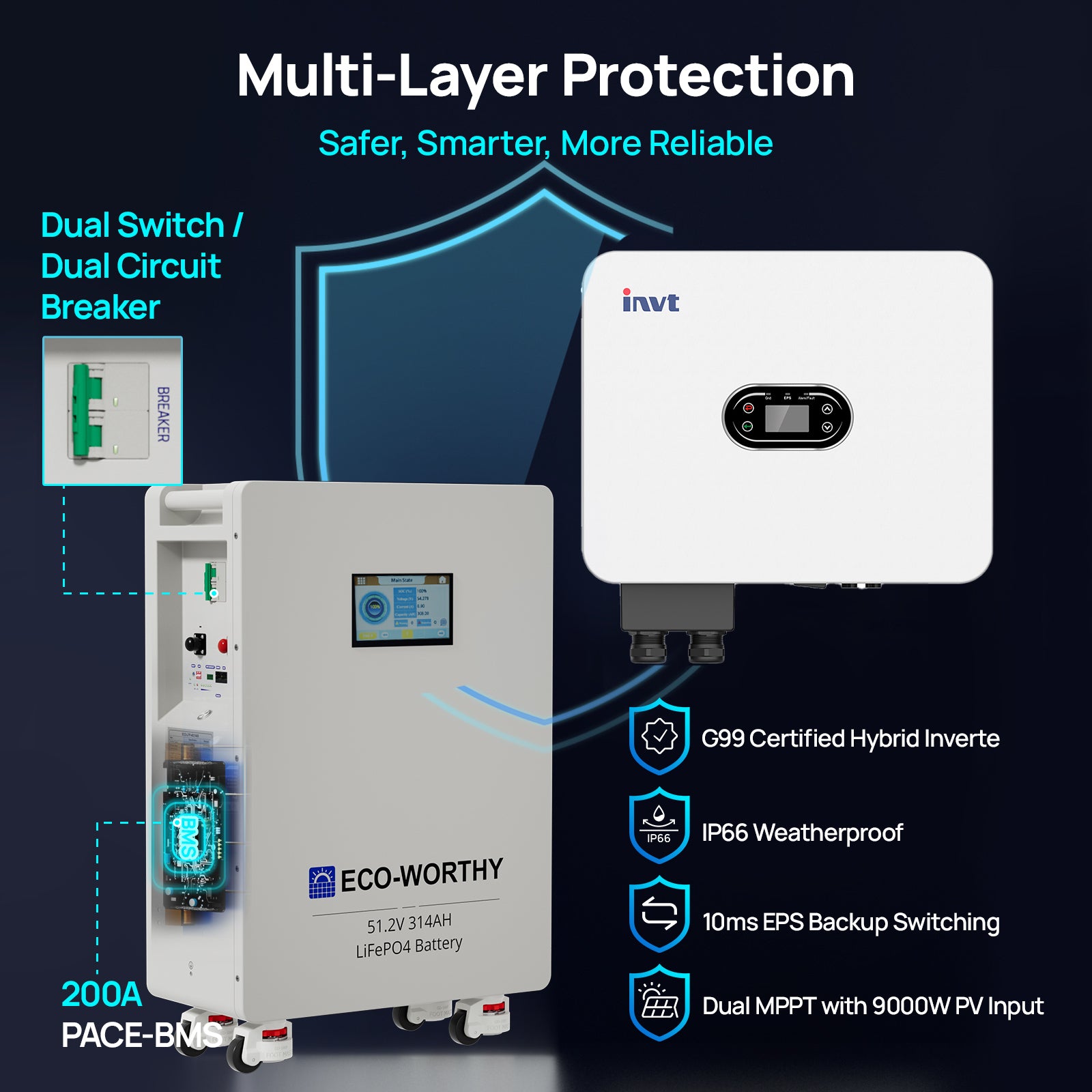

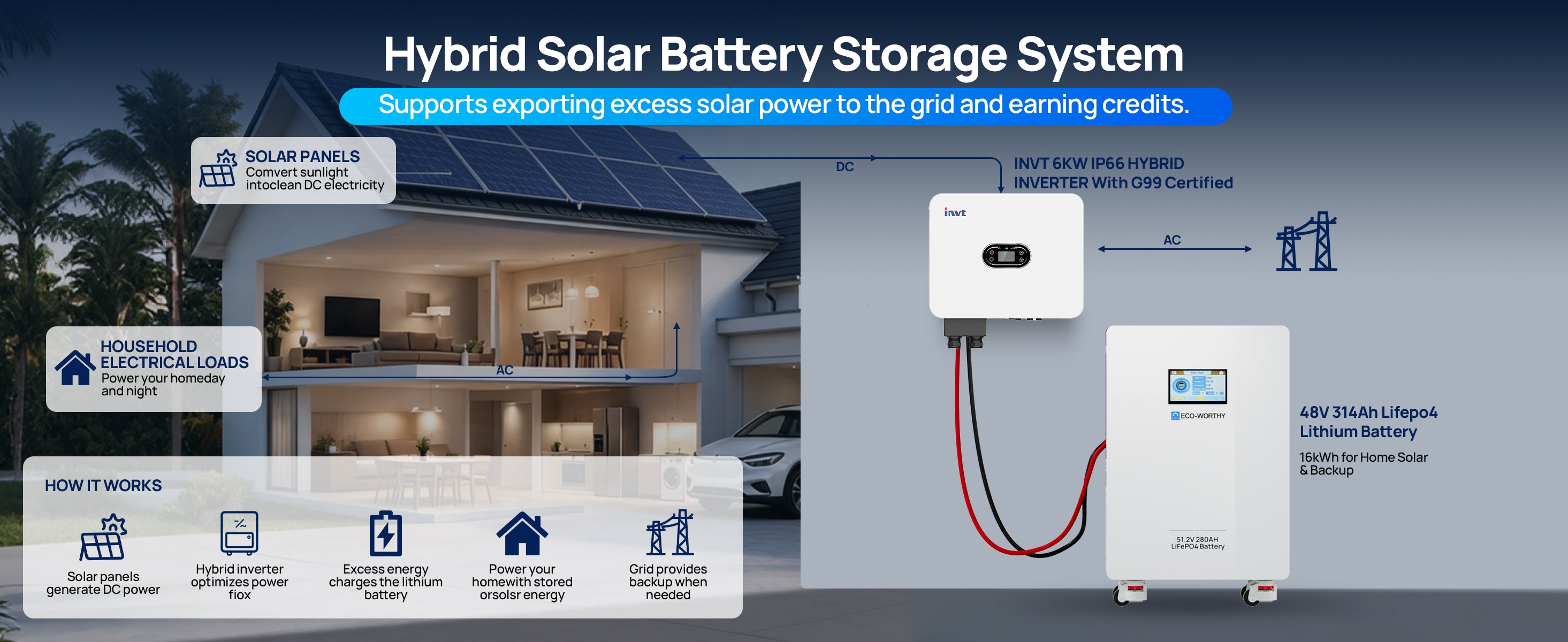

Power your home with a reliable 16kWh energy storage solution featuring a G99-compliant hybrid inverter and IEC 62619-certified 48V 314Ah LiFePO4 battery. With IP66 weatherproof protection, 10ms EPS backup switching, and optional professional installation support, it provides a safer and more convenient way to store solar energy, reduce peak-time grid usage, and keep essential appliances powered during outages.

Technical Specifications

48V 314Ah Lifepo4 Lithium Battery

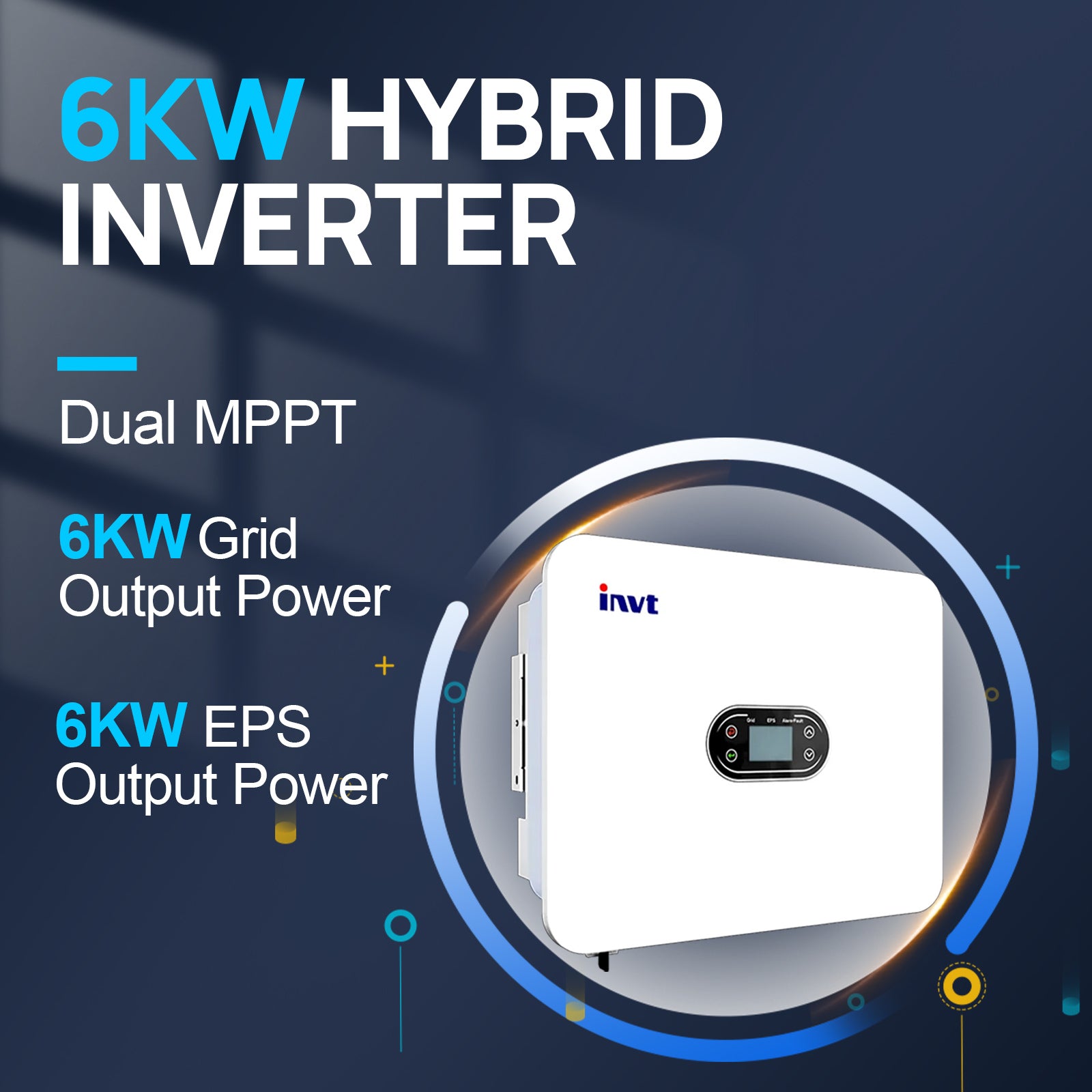

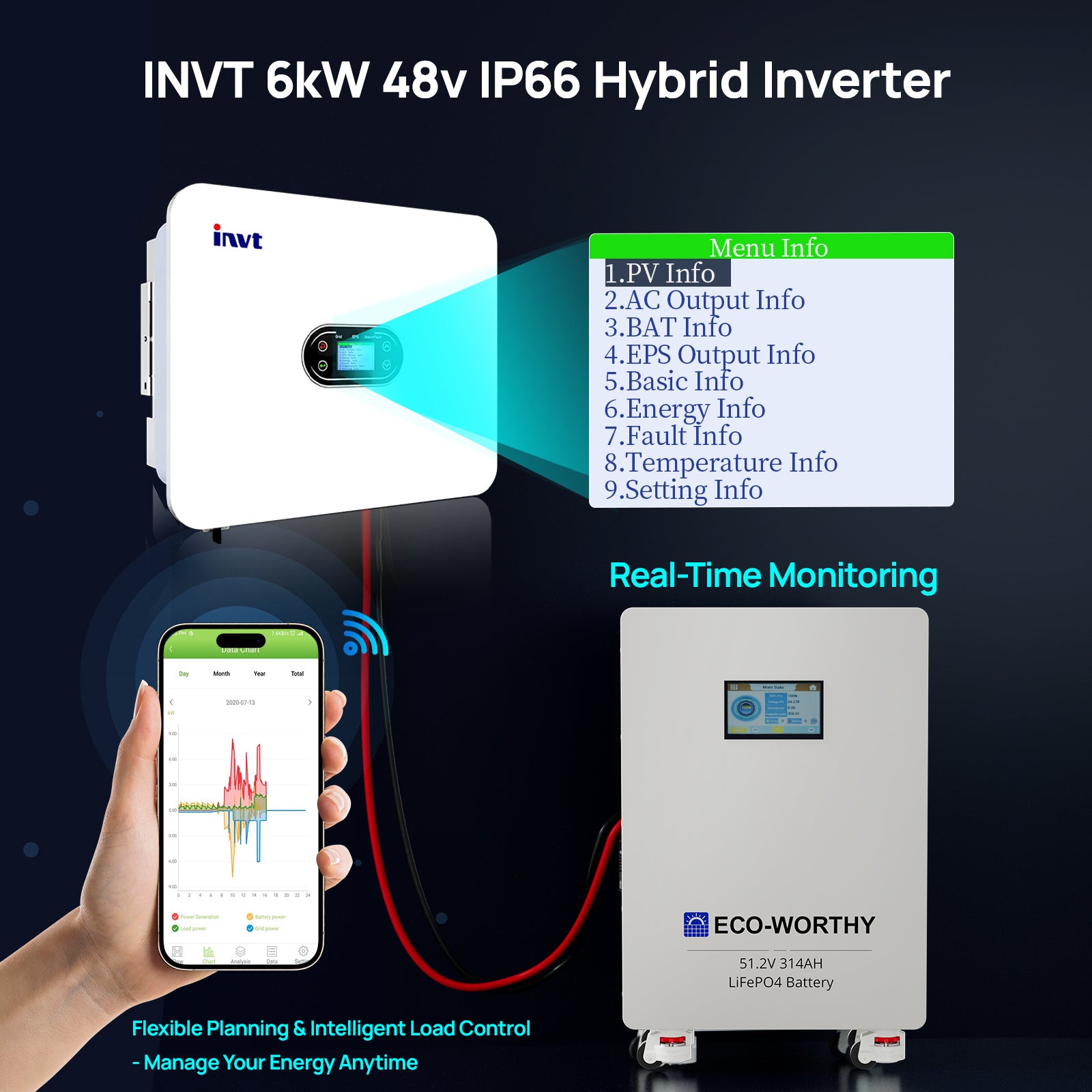

INVT 6kW IP66 Hybrid Inverter With G99 Certified

Battery Capacity:

314Ah

Battery Power:

16.08kWh

Rated Voltage:

51.2V

Voltage Range:

40~58.4V

Maximum Charge/ Discharge Current:

150A

Charge Temperature Range:

0-55℃

Disharge Temperature Range:

﹣20－55℃

Maximum Charge Voltage:

58.4V

Battery Weight:

293.2lb/133kg

Battery Size:

32.56*20.47*9.92in/80.7*52*25.2cm

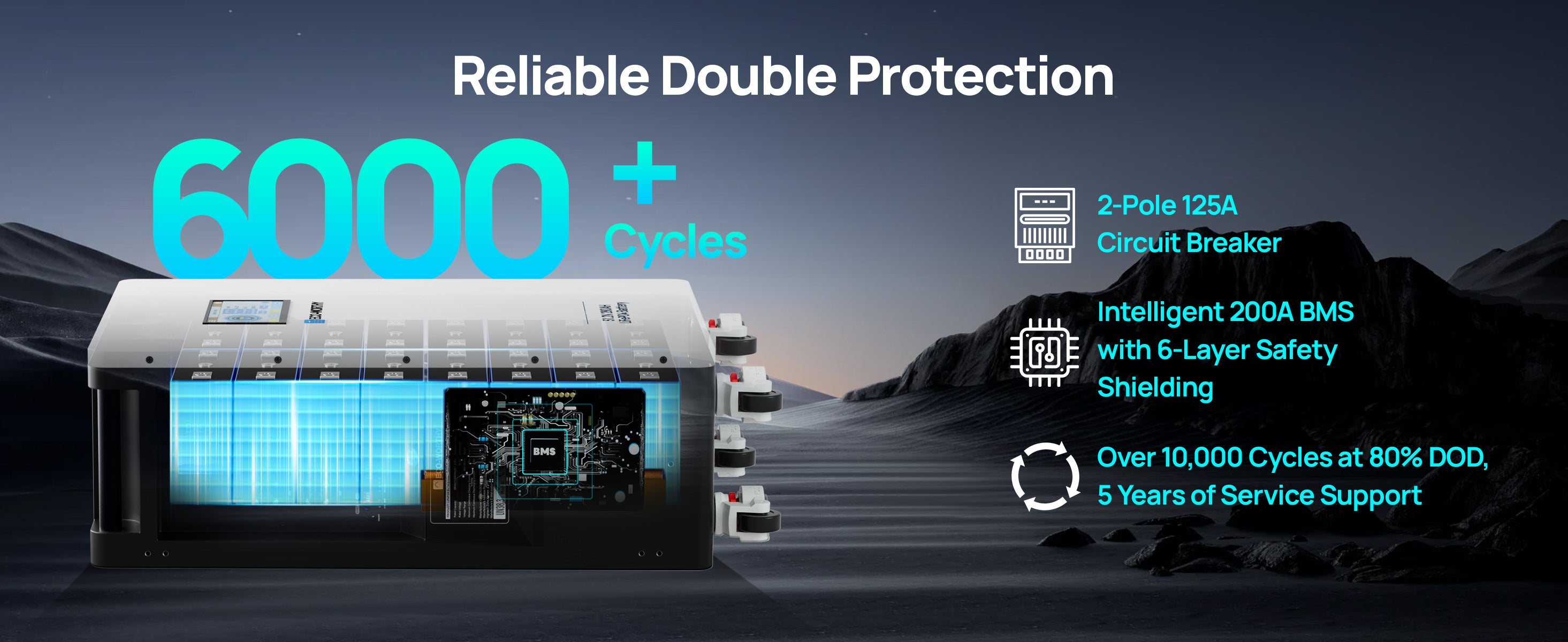

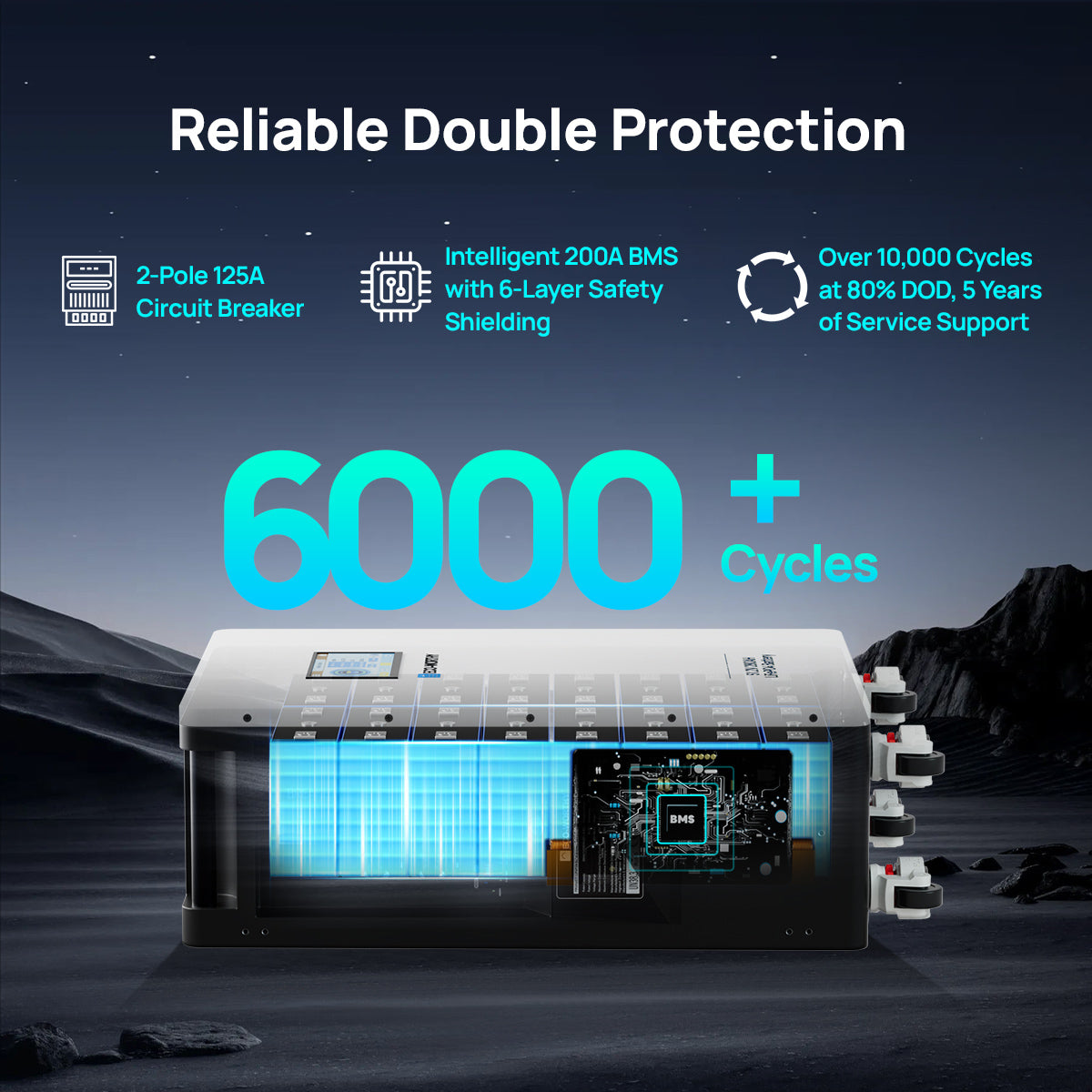

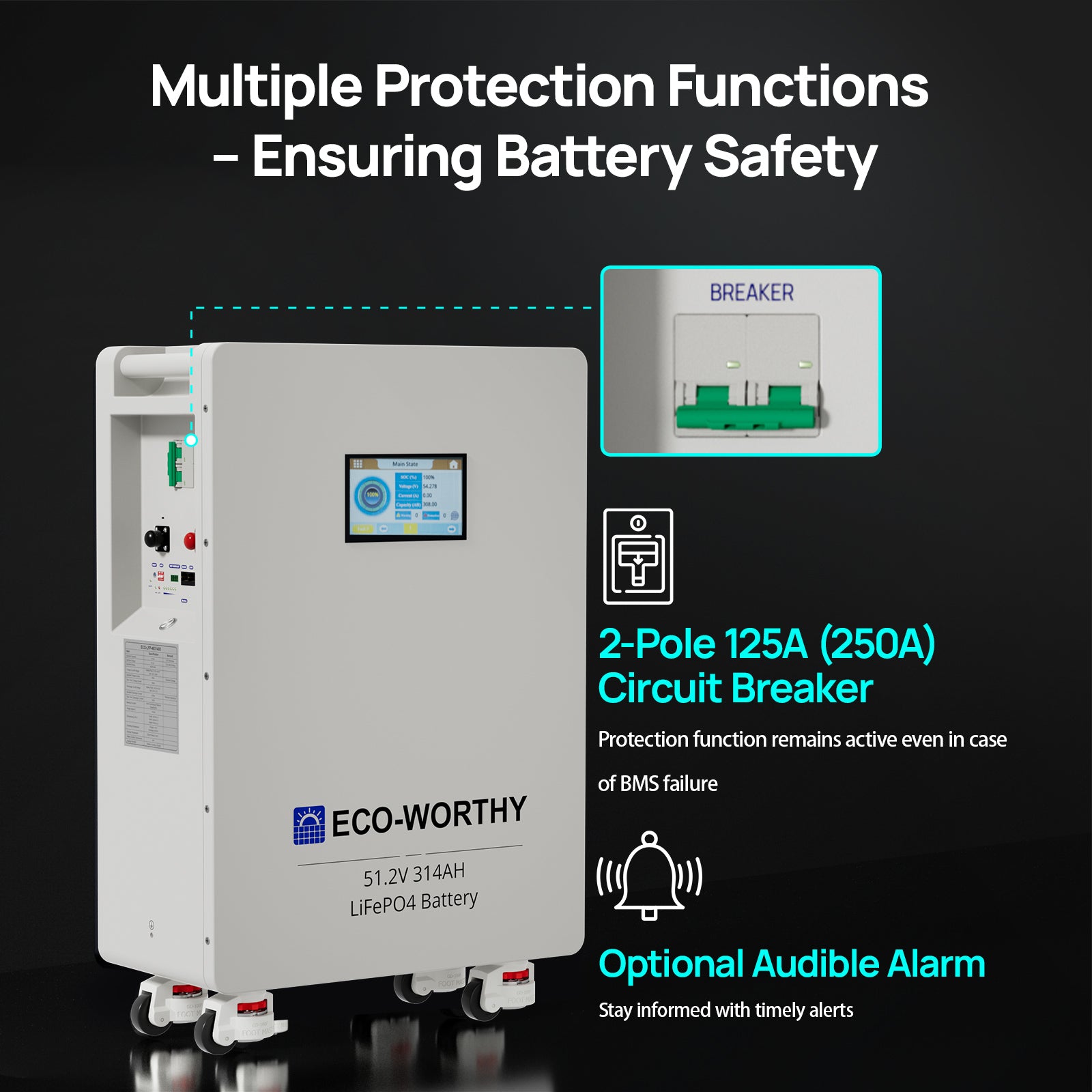

Circuit Breaker:

2*125A(250A)

Max. parallel number:

15pcs

BMS Brand:

PACE BMS

Battery type

Lithium battery or lead-acid battery

Battery voltage (V)

40-60

Max. Battery charge current (A)

100

BMS communication protocol

CAN

Maximum input power (W)

9000W

Maximum input voltage (V)

600

Solar start-up voltage (V)

100

Solar MPPT voltage range (V)

100-550

MPPT channels

Max. solar input current (A)

Max. solar input short-circuit current (A)

Rated AC output power (VA)

6000

Max. AC output power (VA)

6000

Max. AC output current (A)

Rated AC output voltage (V)

230

Rated AC output frequency (Hz)

THD(@rated power)

＜3%

EPS switching time (ms)

＜10

Max. efficiency

＞97.5%

European efficiency

＞97.2%

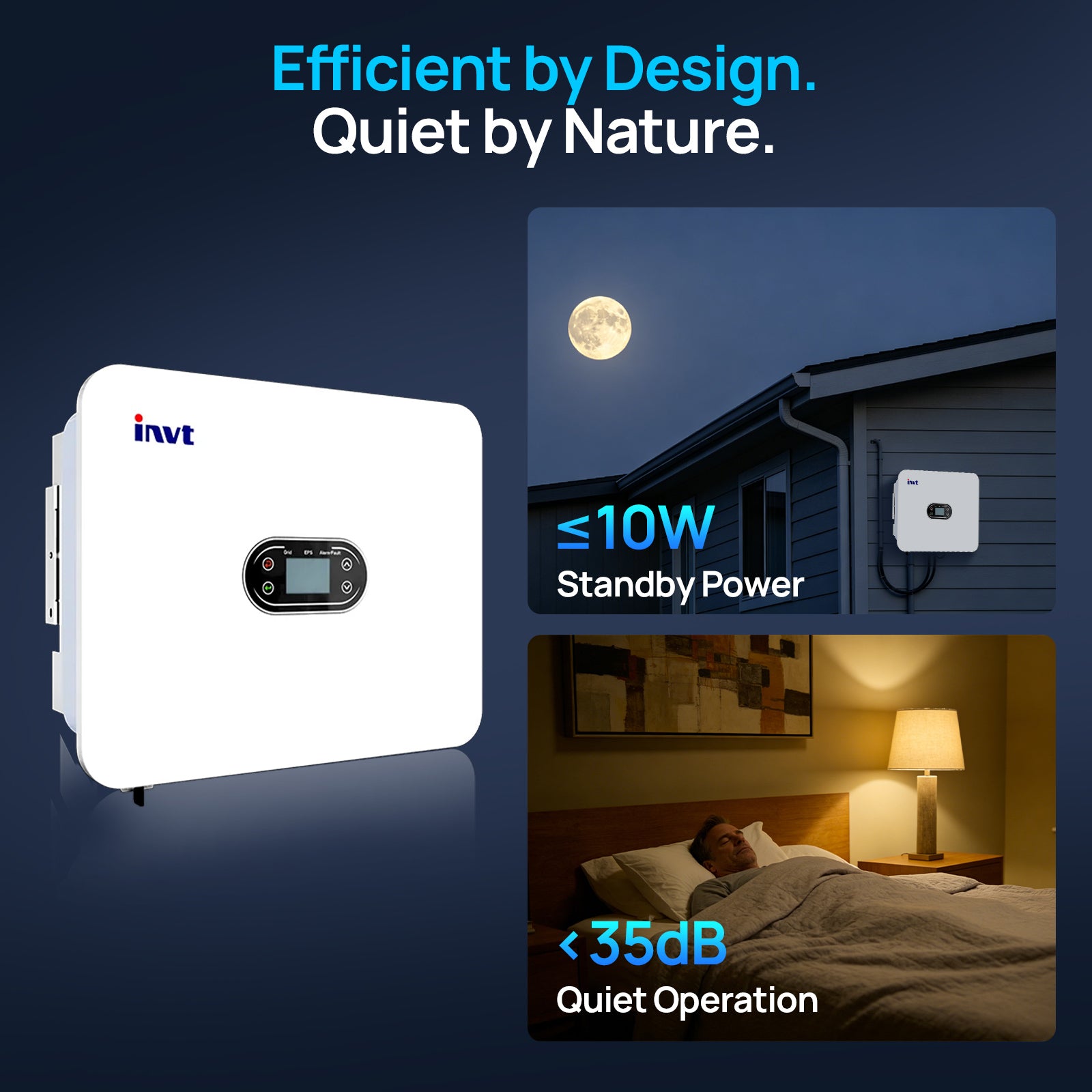

Standby power (W)

＜10

Ingress protection

IP66

Dimension

490*395*200

Weight

21.35Kg

Included in the Box

1x48V 314Ah LiFePO4 Lithium Battery
1x6000W Hybrid Inverter
Accessories

1x48V 314Ah LiFePO4 Lithium Battery
1x6000W Hybrid Inverter
Including £1,000 Installation Fee
Accessories

User manual

Eco-Worthy INVT 6kW IP66 Hybrid Inverter With G99 Certified

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter-User Manual

Download

Eco-Worthy Home Backup Power 16.08KWh 51.2V 314Ah Batter Host Computer User Guide

Download

ECO-WORTHY INVT_6KW_G99_certification_CN-PV-230141_Security

Download

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
