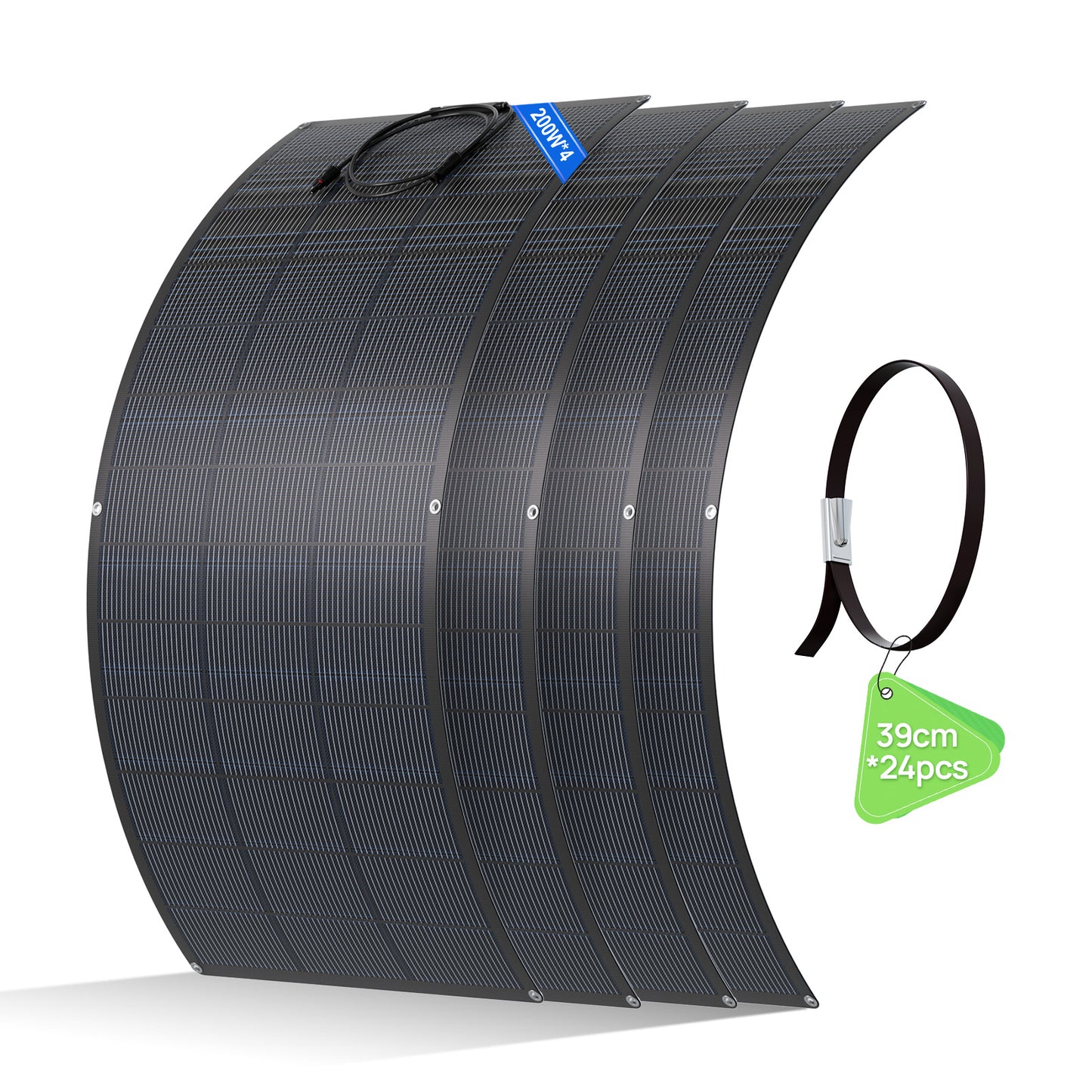

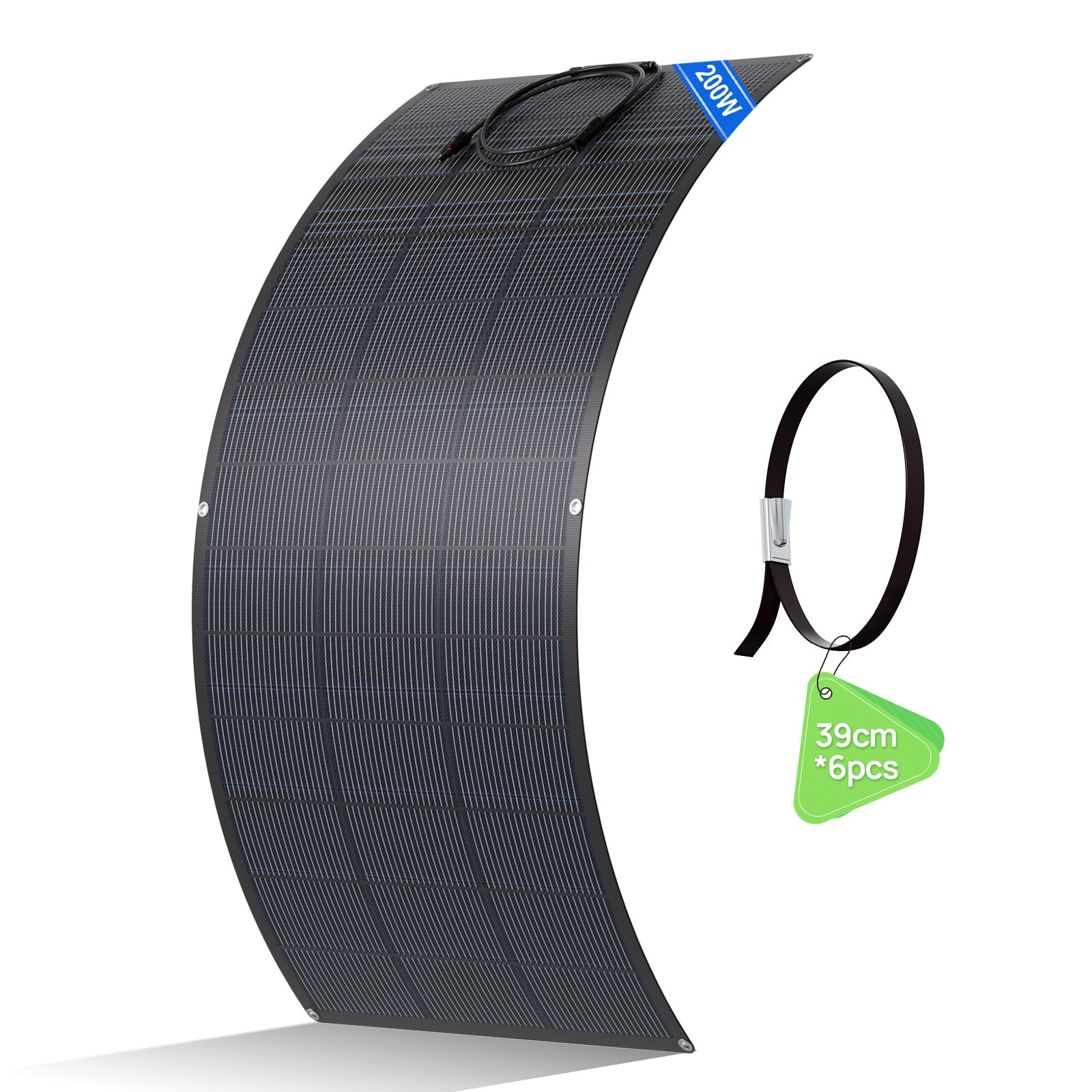

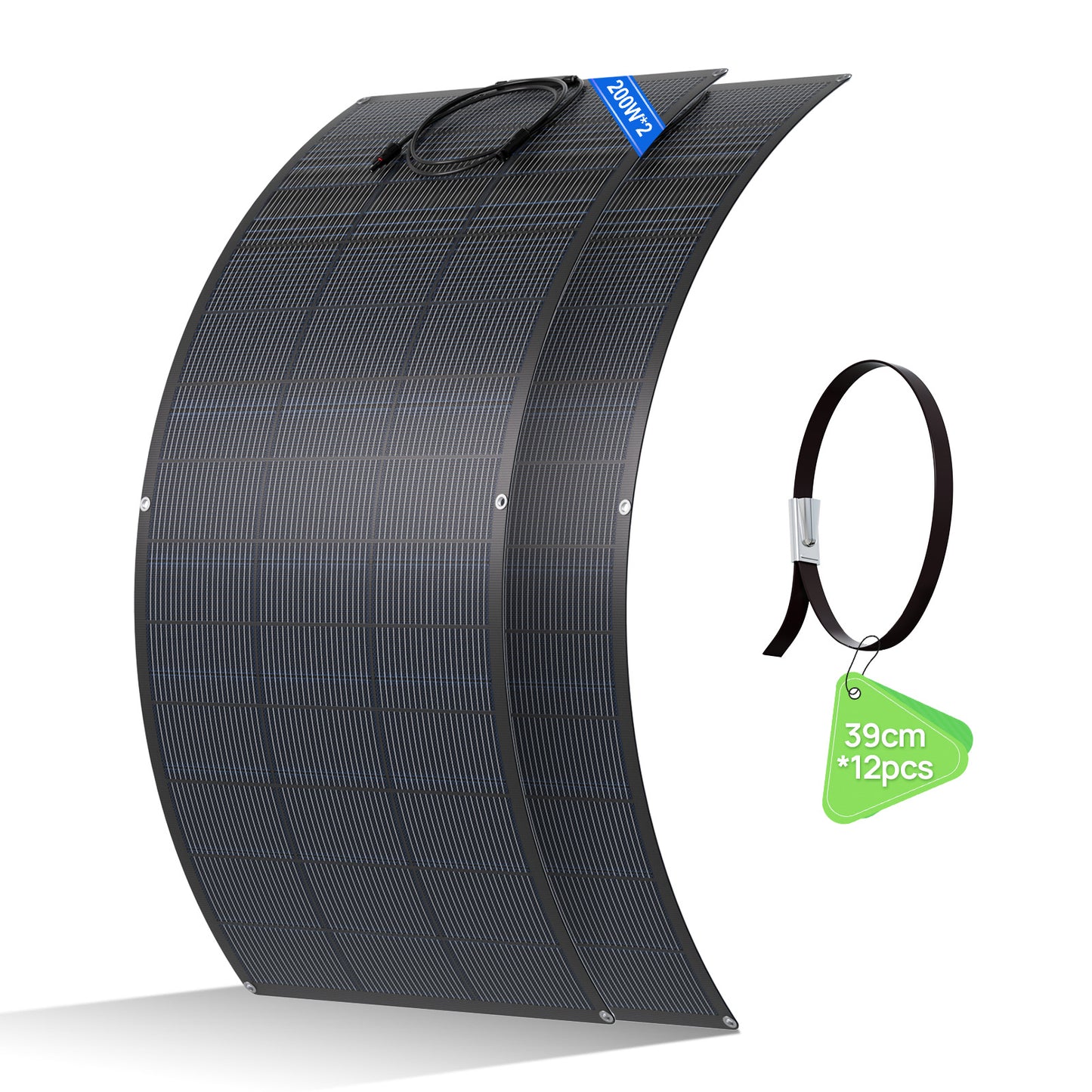

200W 24V Flexible Mono Solar Panel

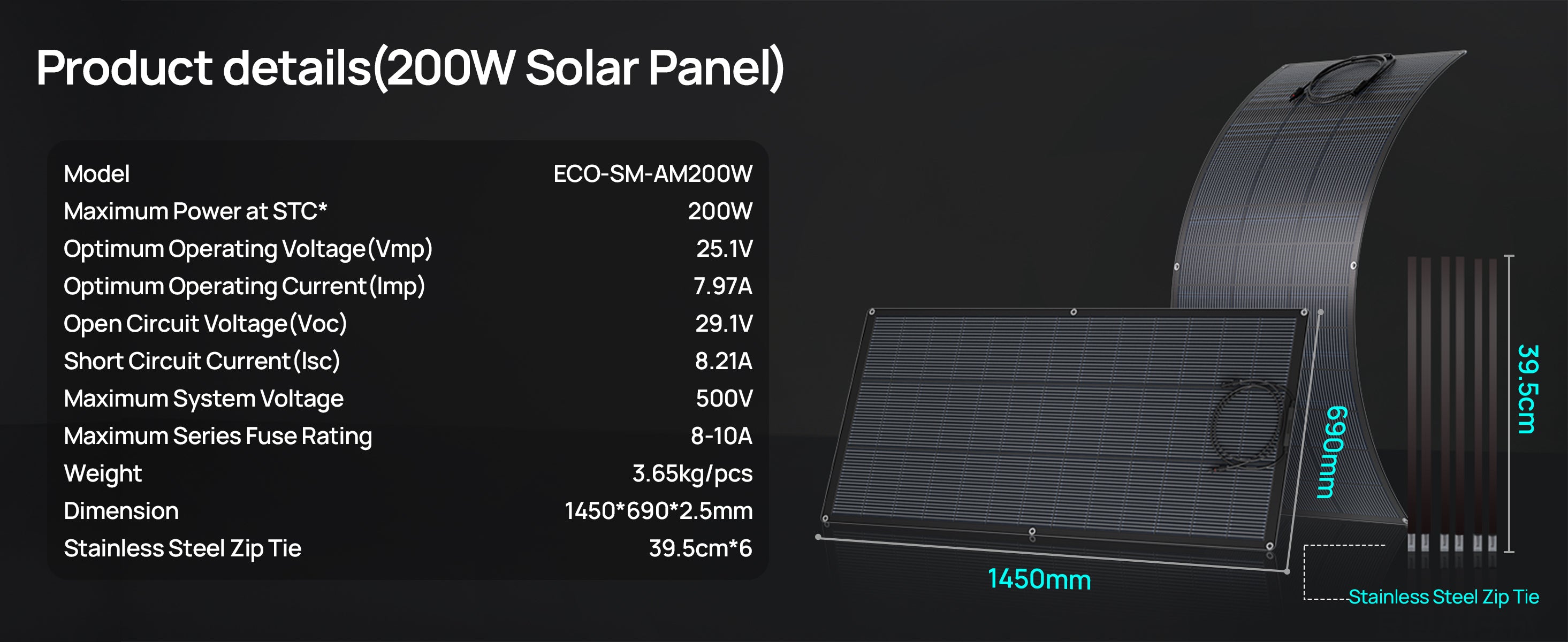

Technical Specifications
Model:
ECO-SM-AM200W
Maximum Power at STC*:
25.1V
Optimum Operating Voltage(Vmp):
7.97A
Optimum Operating Current(Imp):
29.1V
Open Circuit Voltage(Voc):
8.21A
Short Circuit Current(Isc):
20%
Module Efficiency:
500V
Maximum System Voltage:
8~10A
Maximum Series Fuse Rating:
±3%
Power tolerance:

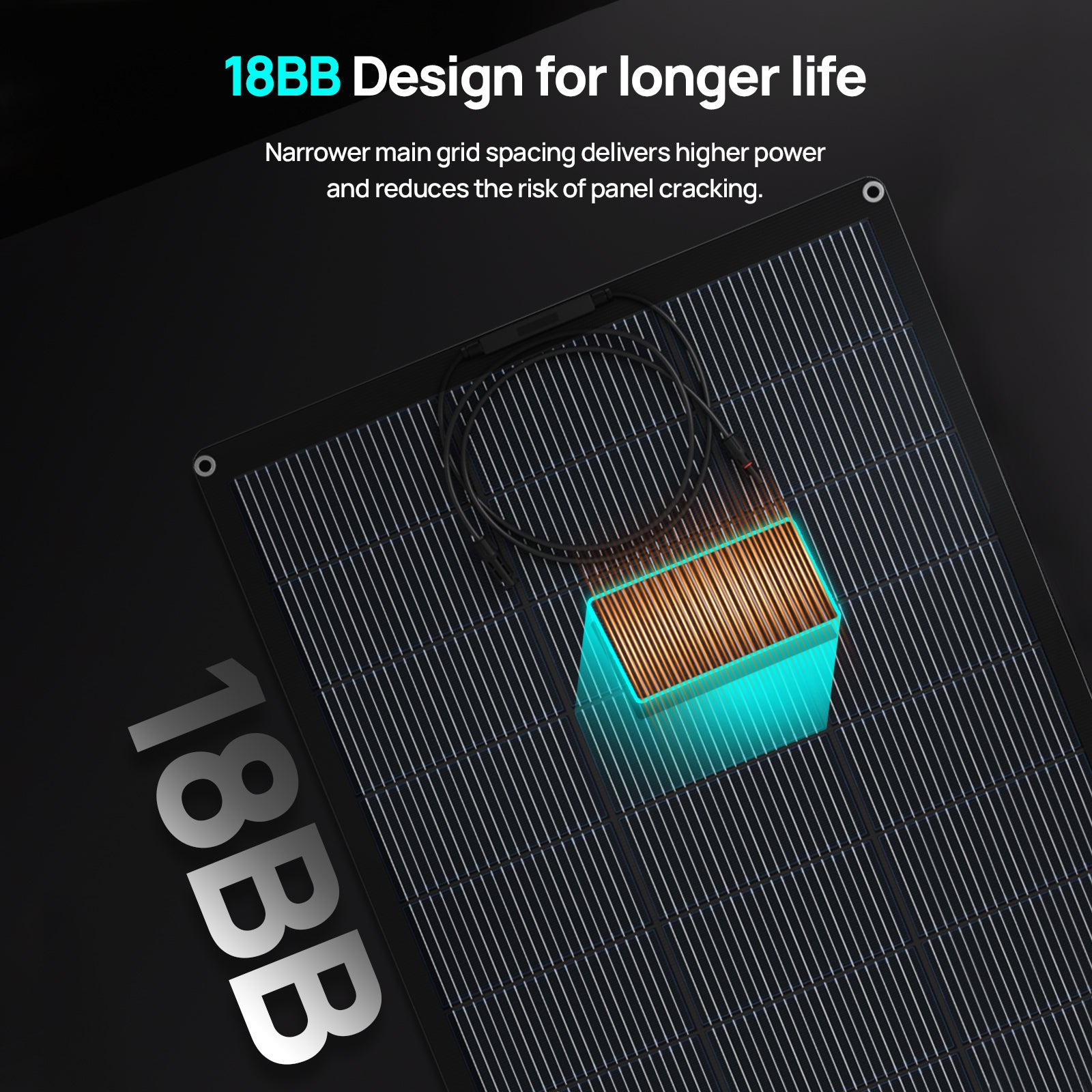

Solar Cell Type:
Monocrystalline
Number of Cells:
39(3*13)

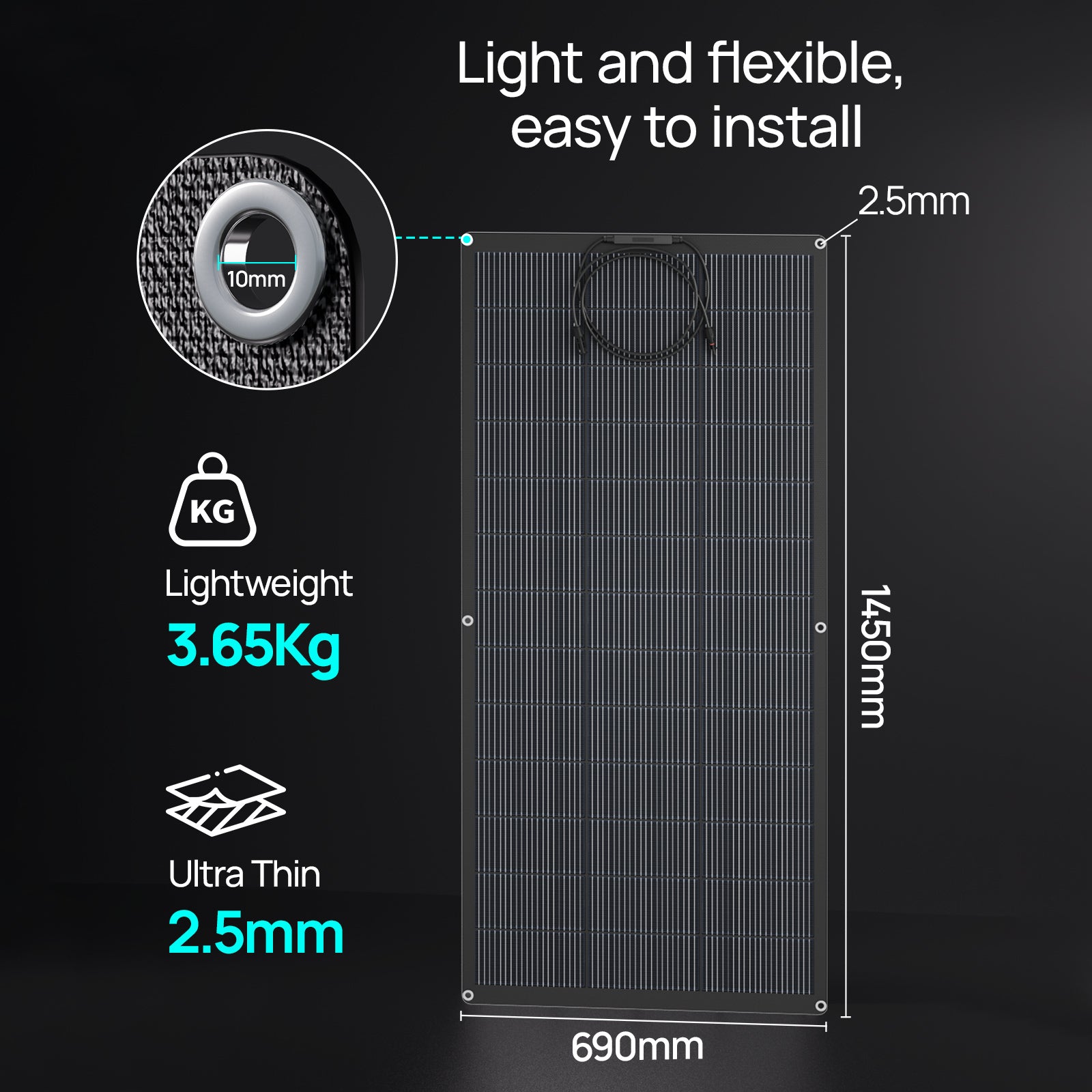

Dimension:
57.08×27.59×0.09 in(1450 x 700 x 2.5mm)
Weight:
8.157 lbs (3.7kg)

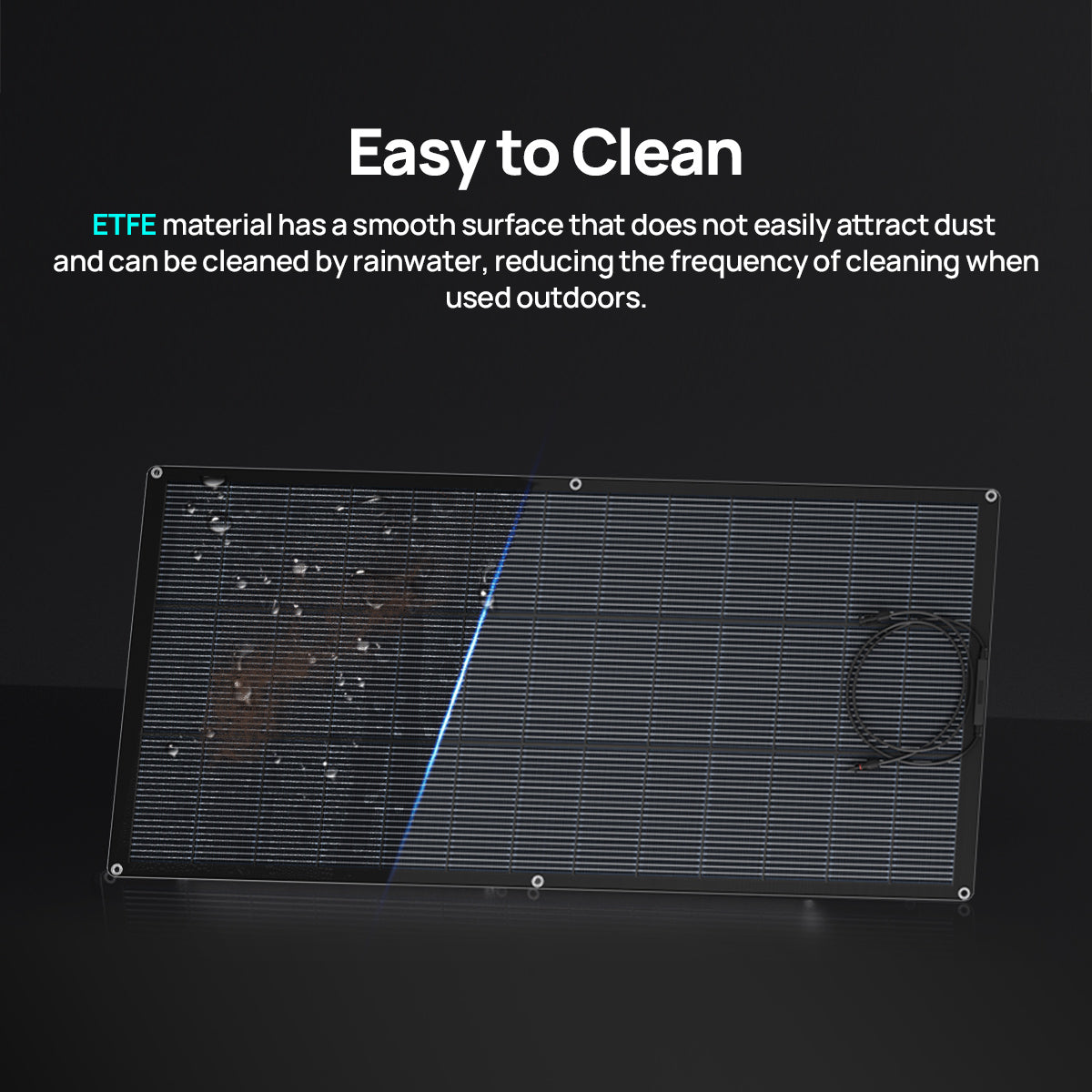

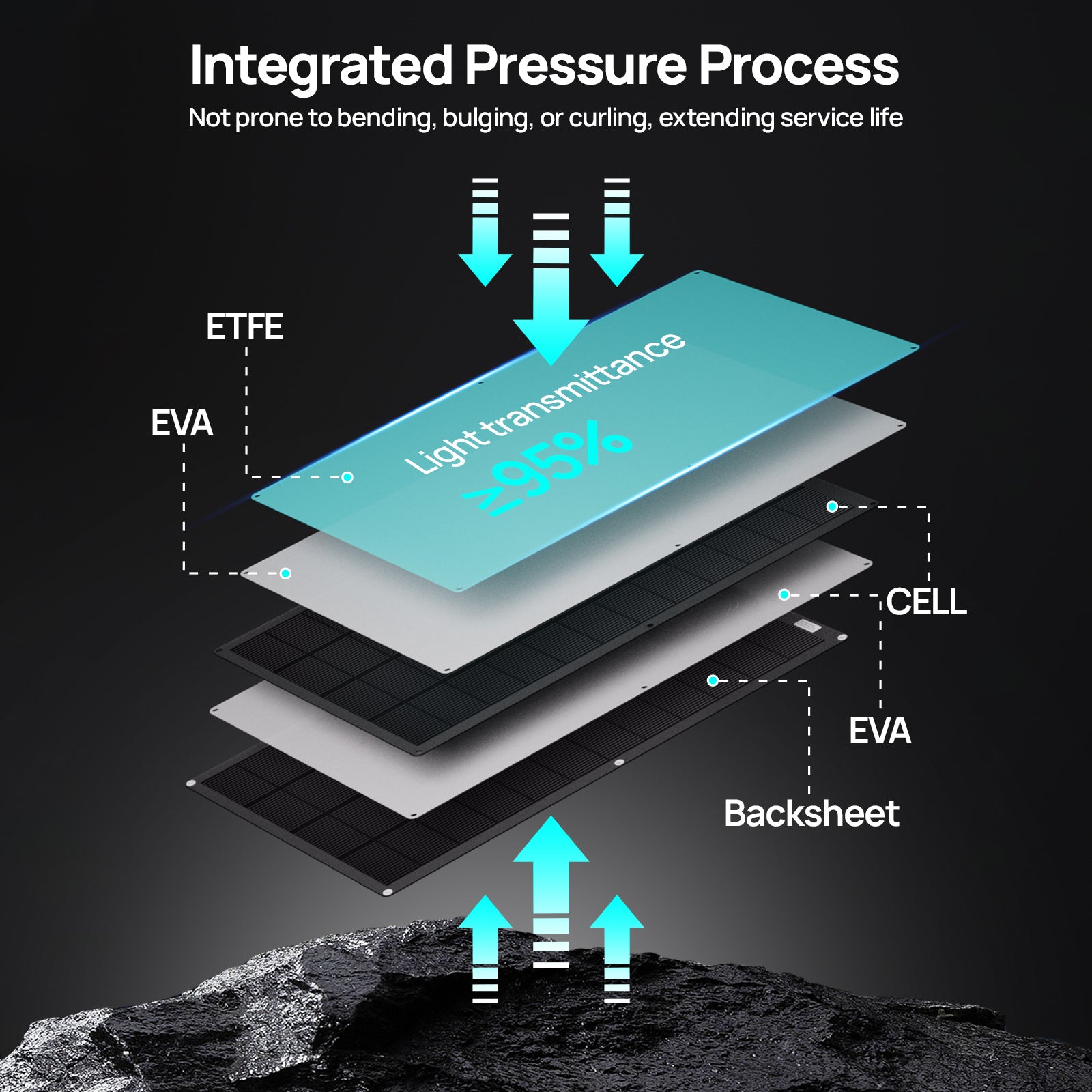

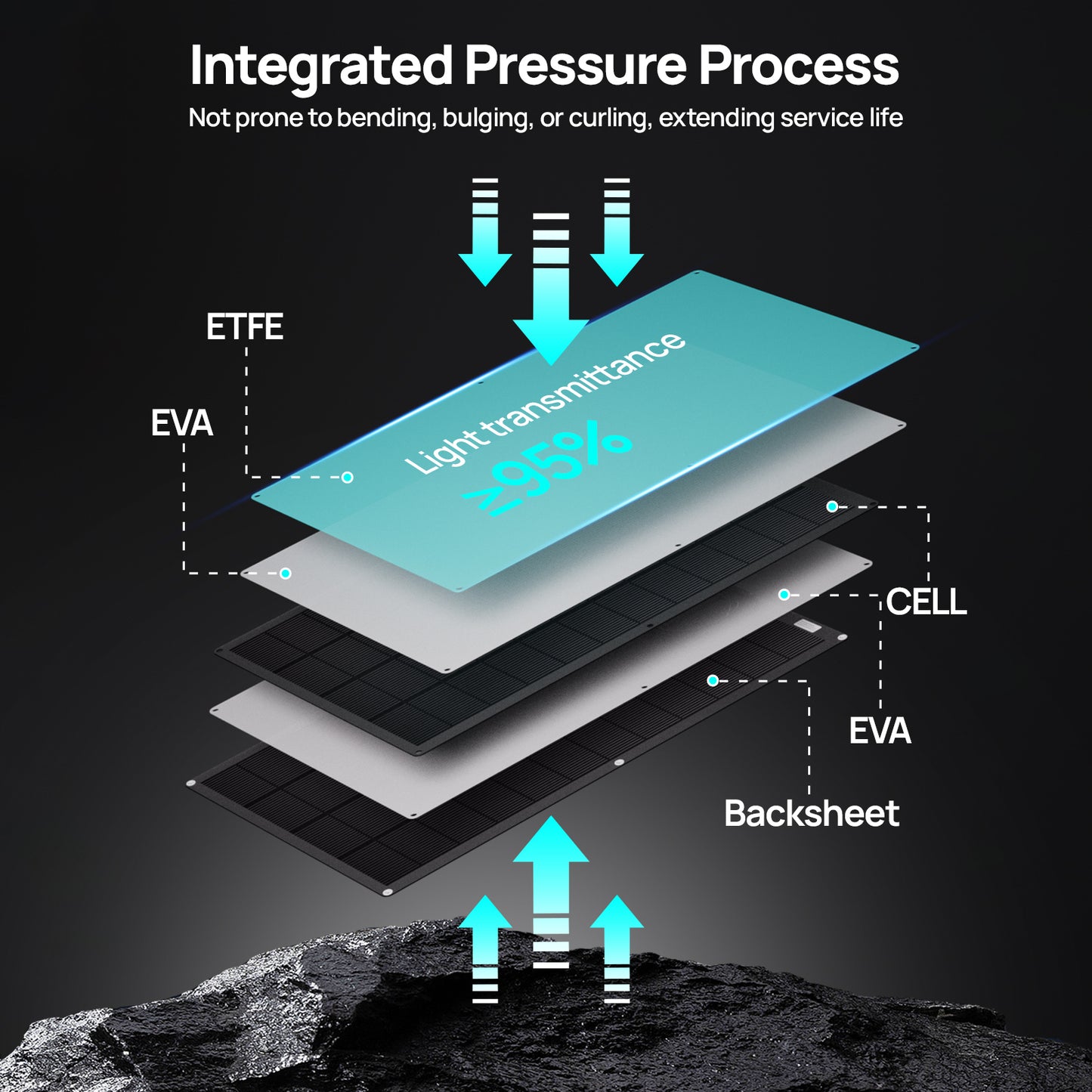

Material:
ETFE
Connector:
2.9ft Extension Cable With MC4 Connector
Operating Temp. Range:
-40℃~+85℃
Nominal Operating Cell Temperature(NOCT):
25℃
Temperature Coefficient of Pmax:
(0.4W+/-0.05)/℃
Temperature Coefficient of Voc:
(0.33V)/℃
Temperature Coefficient of Isc:
0.065A+/-0.015%℃
Rated Current:
30A
Maximum Voltage:
1000V
Maximum AWG Size Range:
10AWG~14AWG
Temperature Range:
-40℃~+85℃
IP Rating:
IP67
IP Rating:
IP68
Diode Type:
Blocking Bypass Diodes
Diode Type:
12AWG(2.9ft)
Included in the Box
User manual
ECO-WORTHY 200W Flexible Solar Panel user Manual
Download
