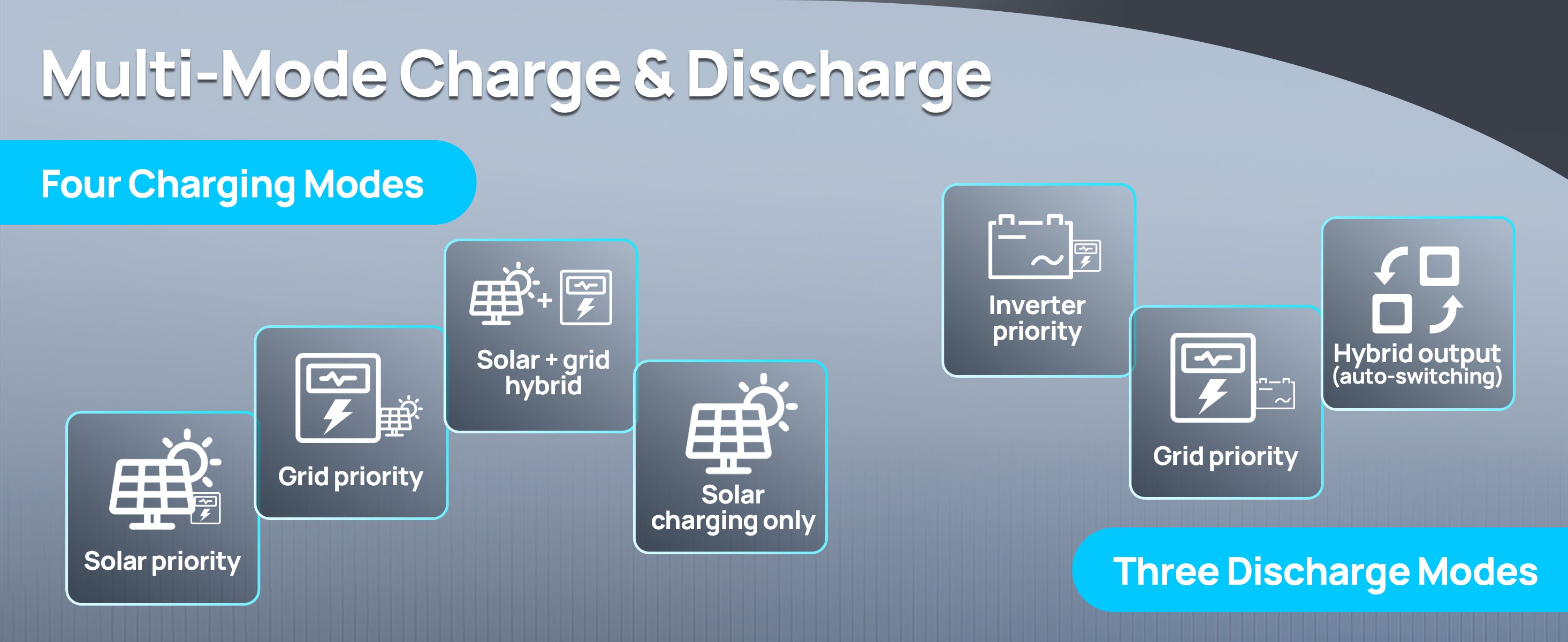

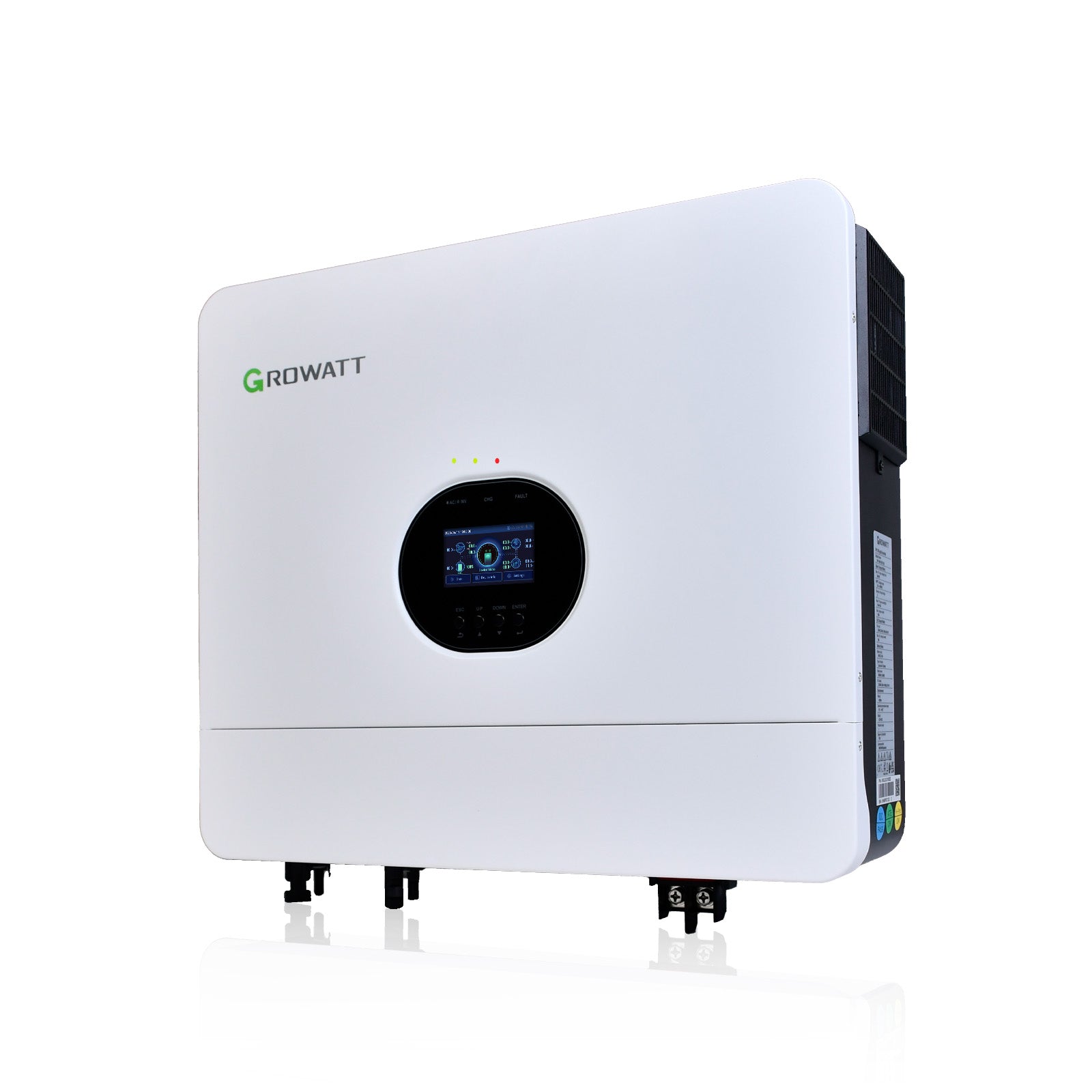

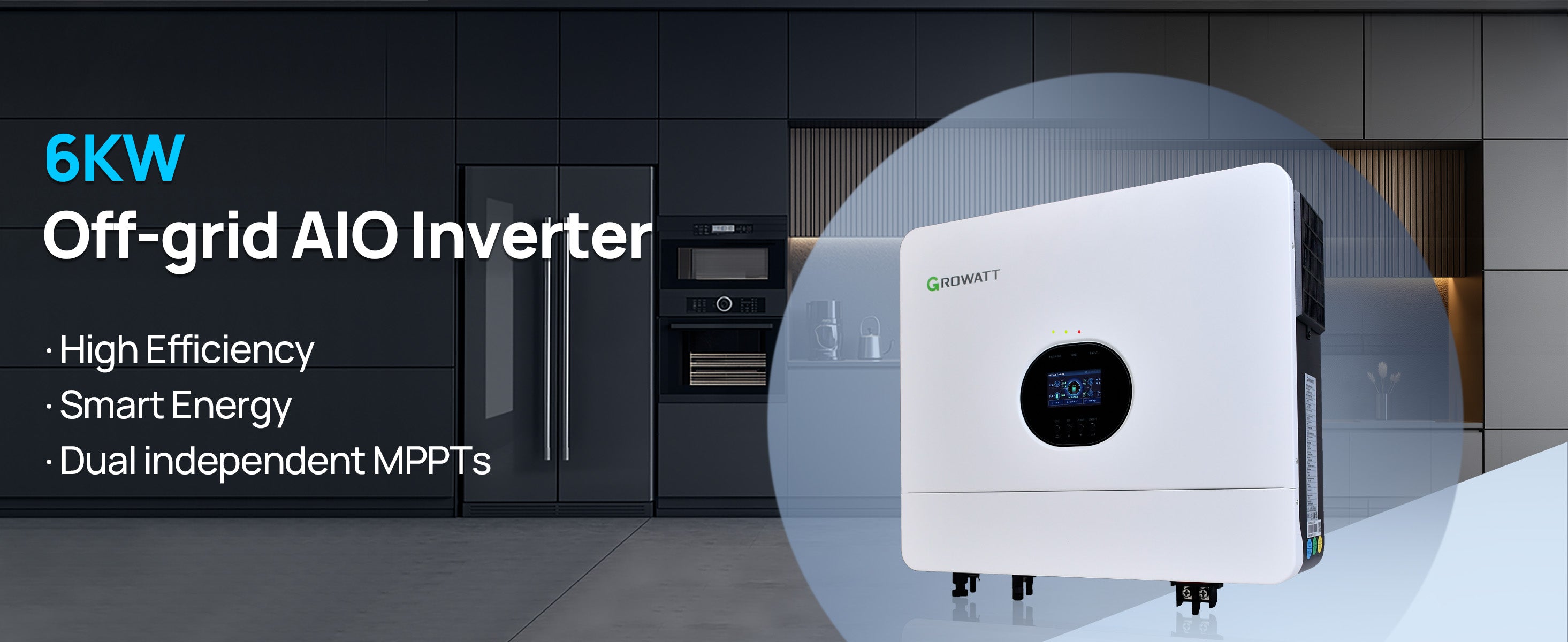

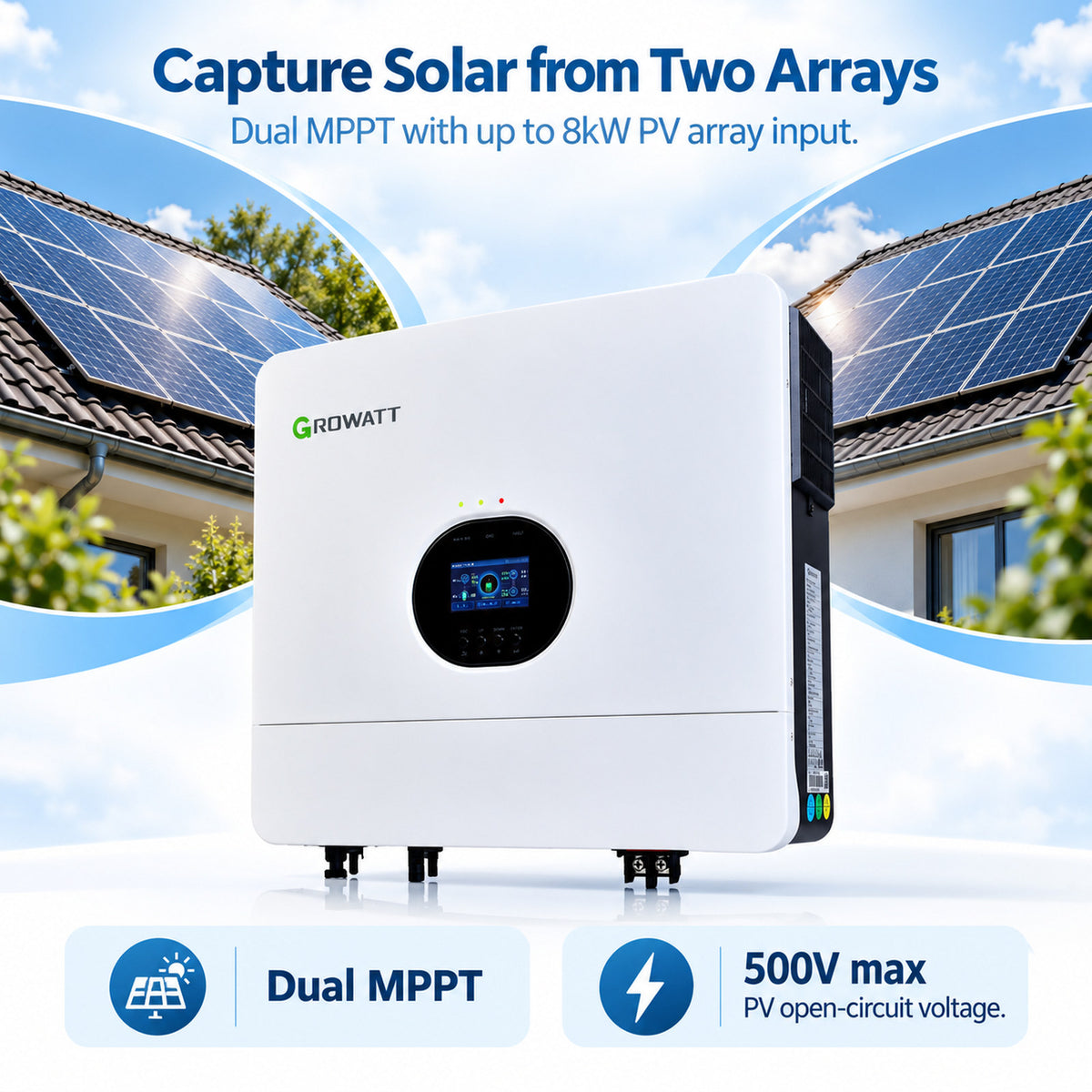

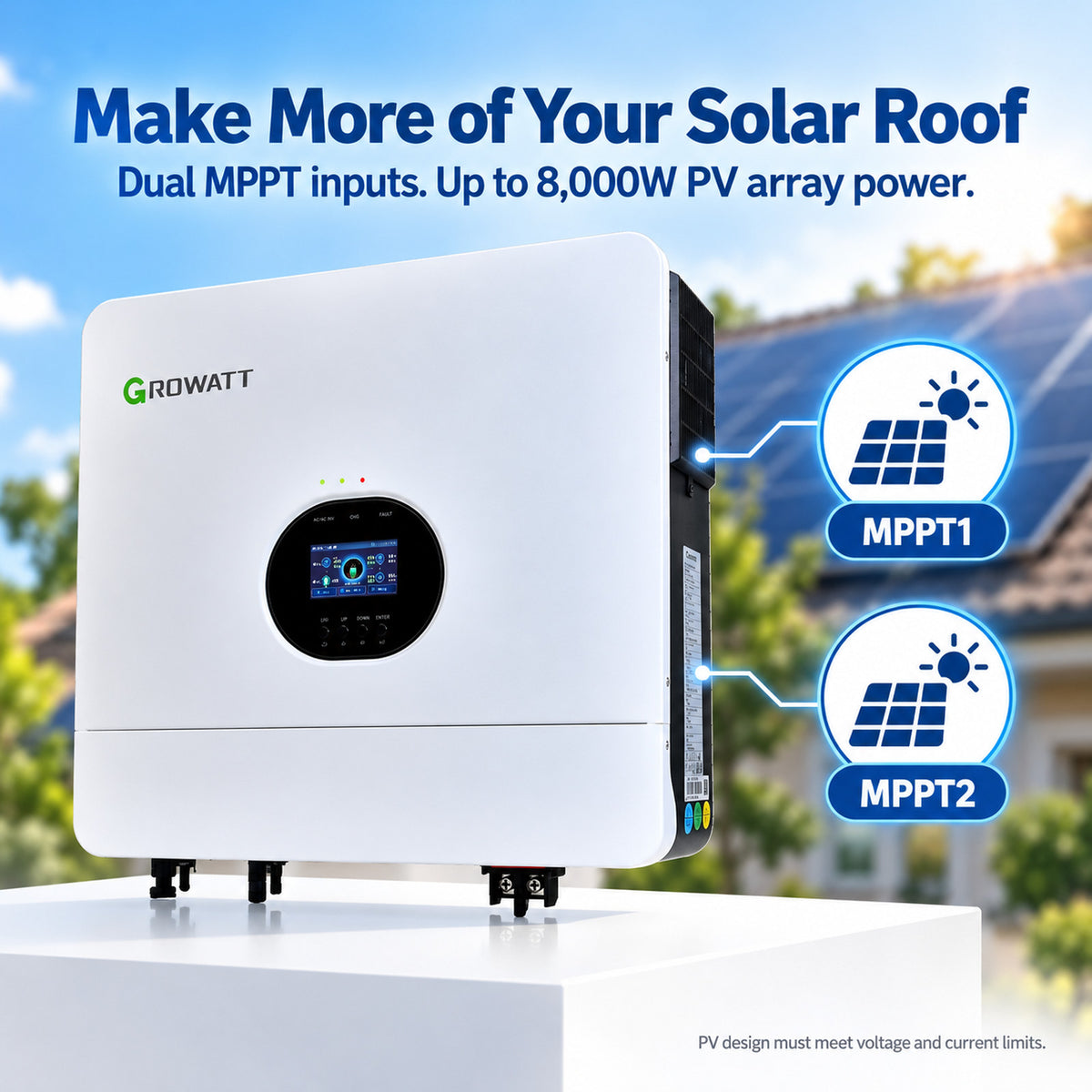

Growatt SPF 6000 ES Plus is a powerful hybrid solar inverter featuring plug-and-play PV terminals, dual MPPT trackers and up to 500V DC solar input. With flexible solar or grid priority control, dual AC outputs for smart load management and a dust-proof design, it is ideal for home backup, off-grid and solar energy systems.

with Dual MPPT & 500V PV Input

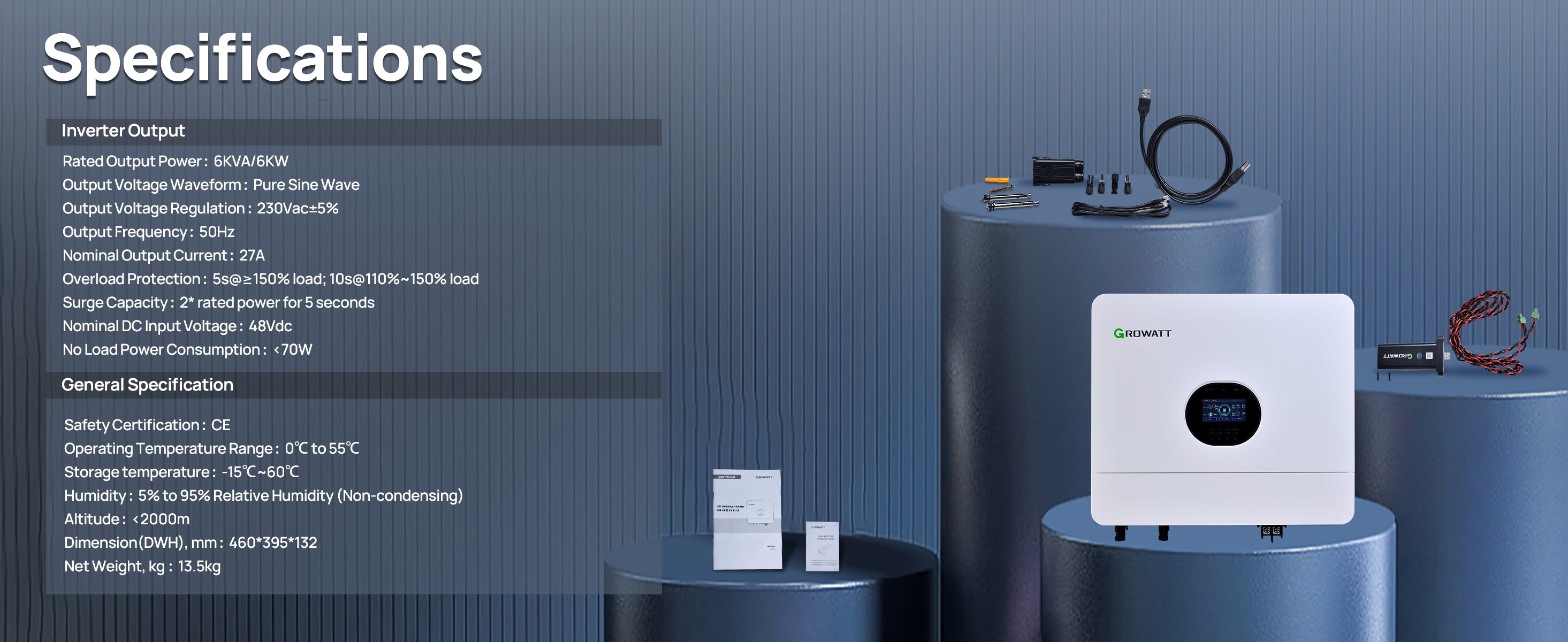

Technical Specifications
Inverter output
Solar Charge
AC Charging Mode
Physica
Operating environment

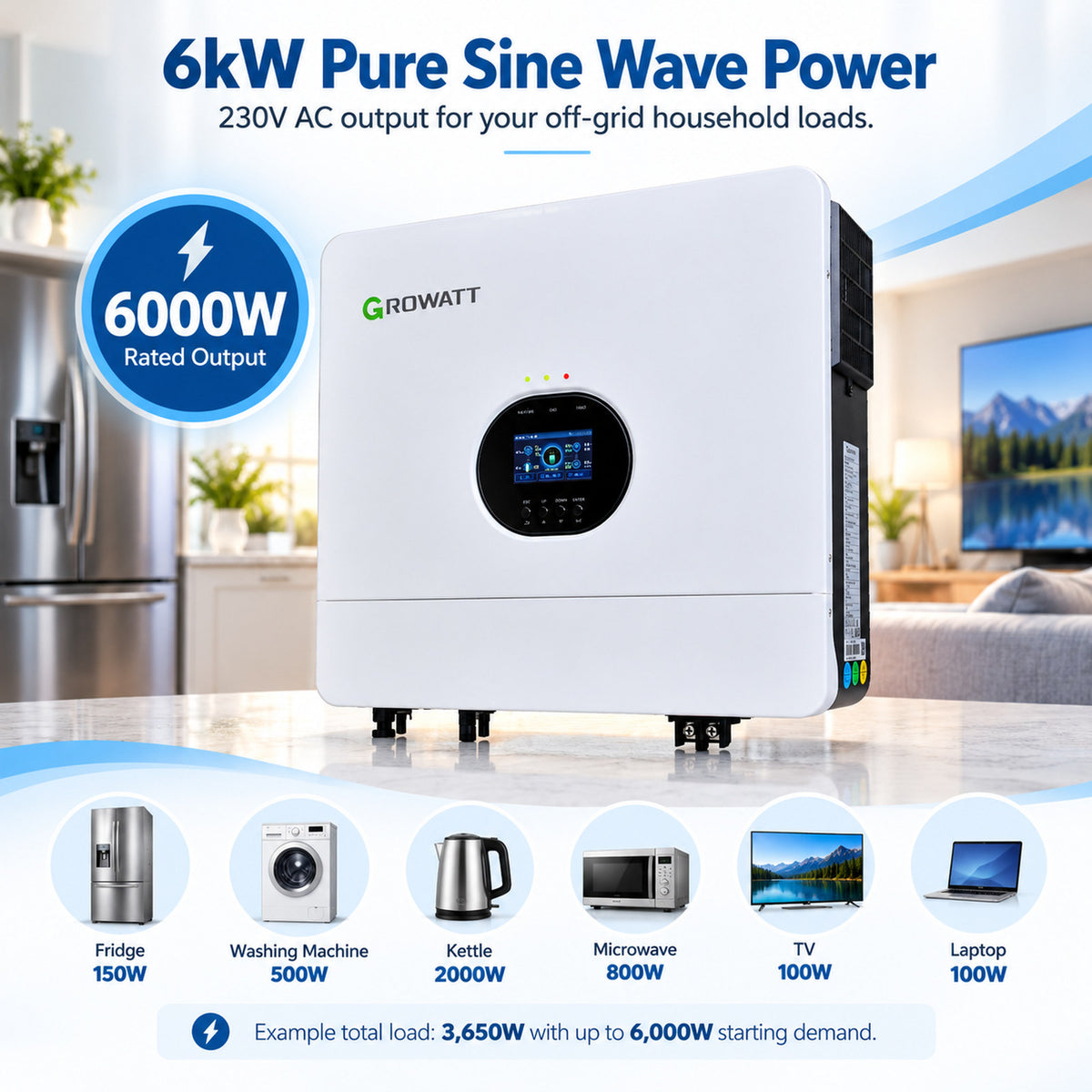

Rated pover:
6000VA/6000W

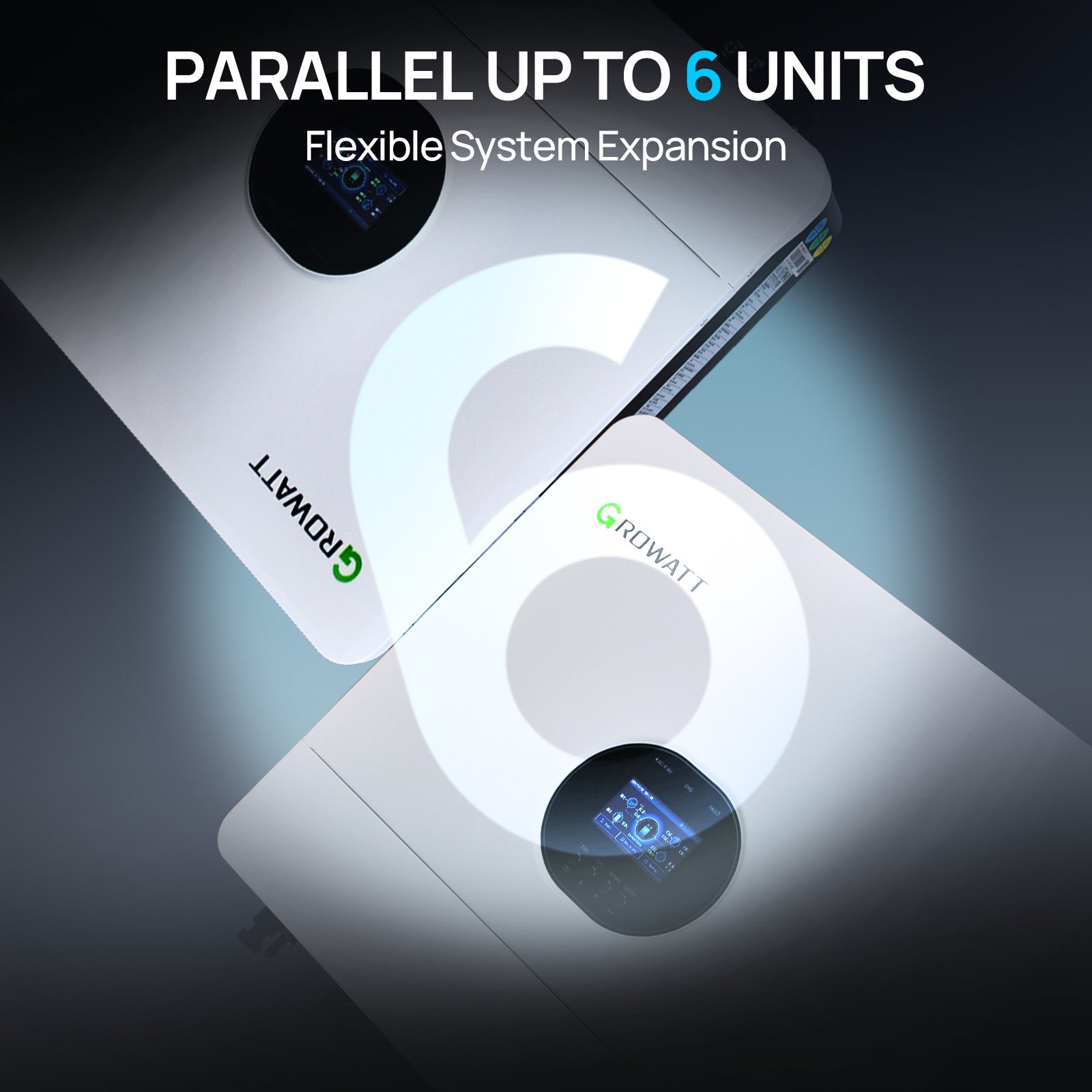

Parallel capability:
Yes,6 units maximwm
AC voltage regulationl (battery mode):
230VAC+5% @5060Hz
Surge power:
Pure sine wawe
Efficiency (peak):
93%

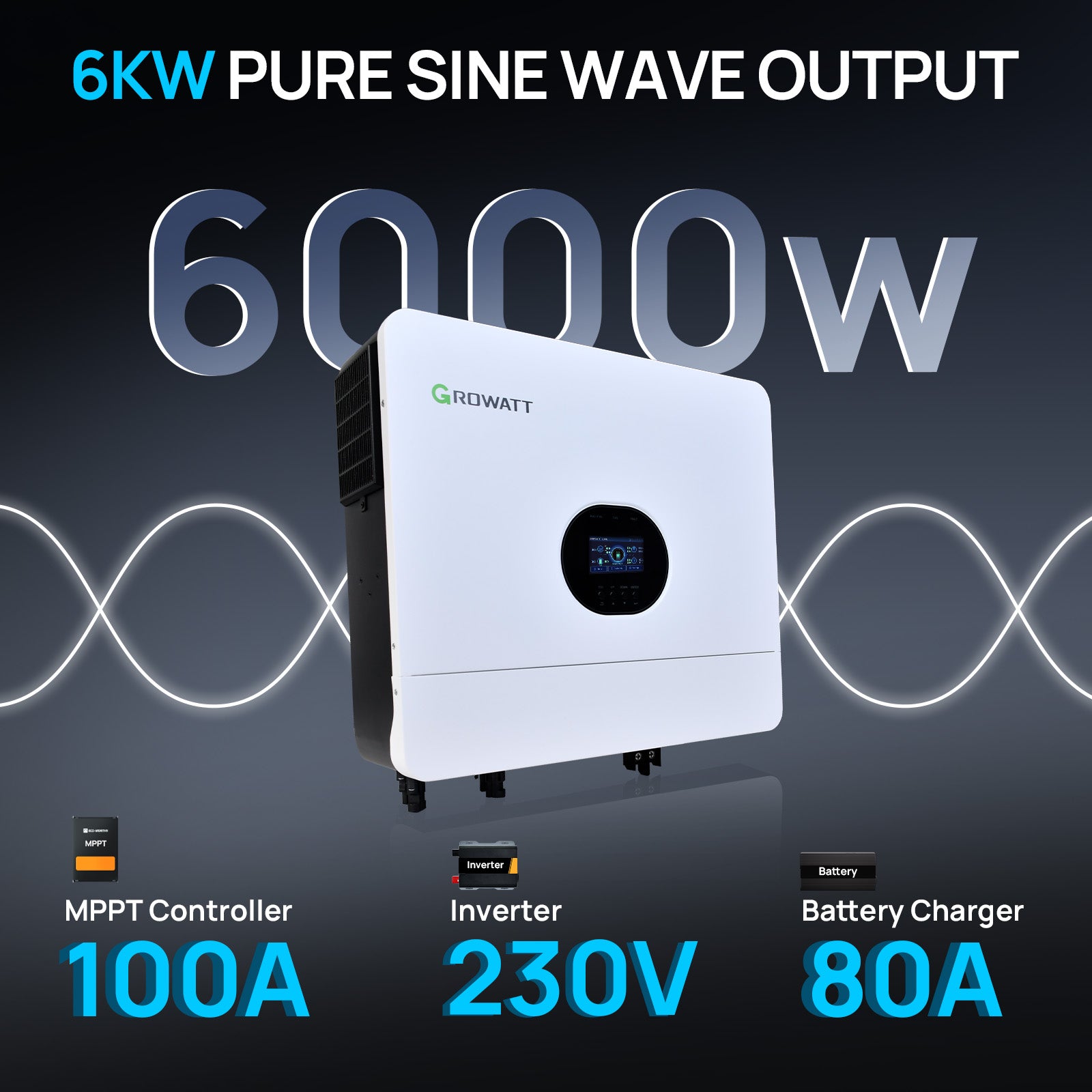

Waveform:
Pure sine wawe
Transfer time:
10ms typical, 20mns Max

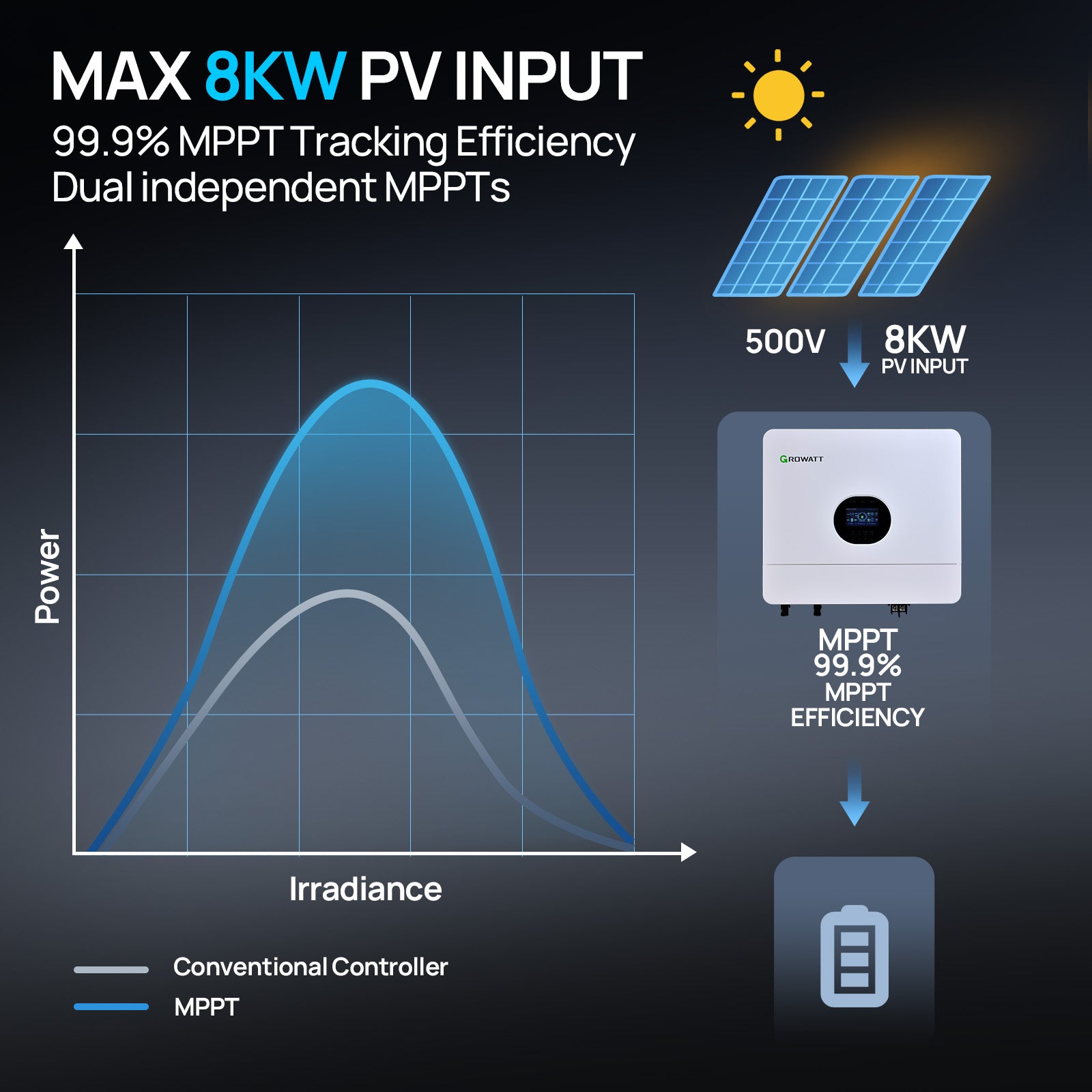

Maximum PV array power:
8000W
MPPT range @ operating voltage:
120VDC~450VDC
Number of independent MPP trackers/strings per MPp tracker:
2/1
Max.input current per MPP tracker:
16A
Maximum Py array opencircuit voltage:
500VDC
Maximum solar charge current:
100A
Charge current:
80A
AC input voltage:
230VAC
Selectable voltage range:
170-280 VAC (For personal computers);90-280 VAC (For home appliances)
Frequency range:
50Hz/60Hz (Auto sensing)
Protection degree: IP20
IP20
Dimension (W/H/D):
460/395/132mm
Net weight:
13.5kg
Humidity:
5% to 95% Relative humidity (Non-condensing)
Altitude:
<2000m
Operating temperature:
0C- 55°C
Storage temperature:
-15°C-60°C
