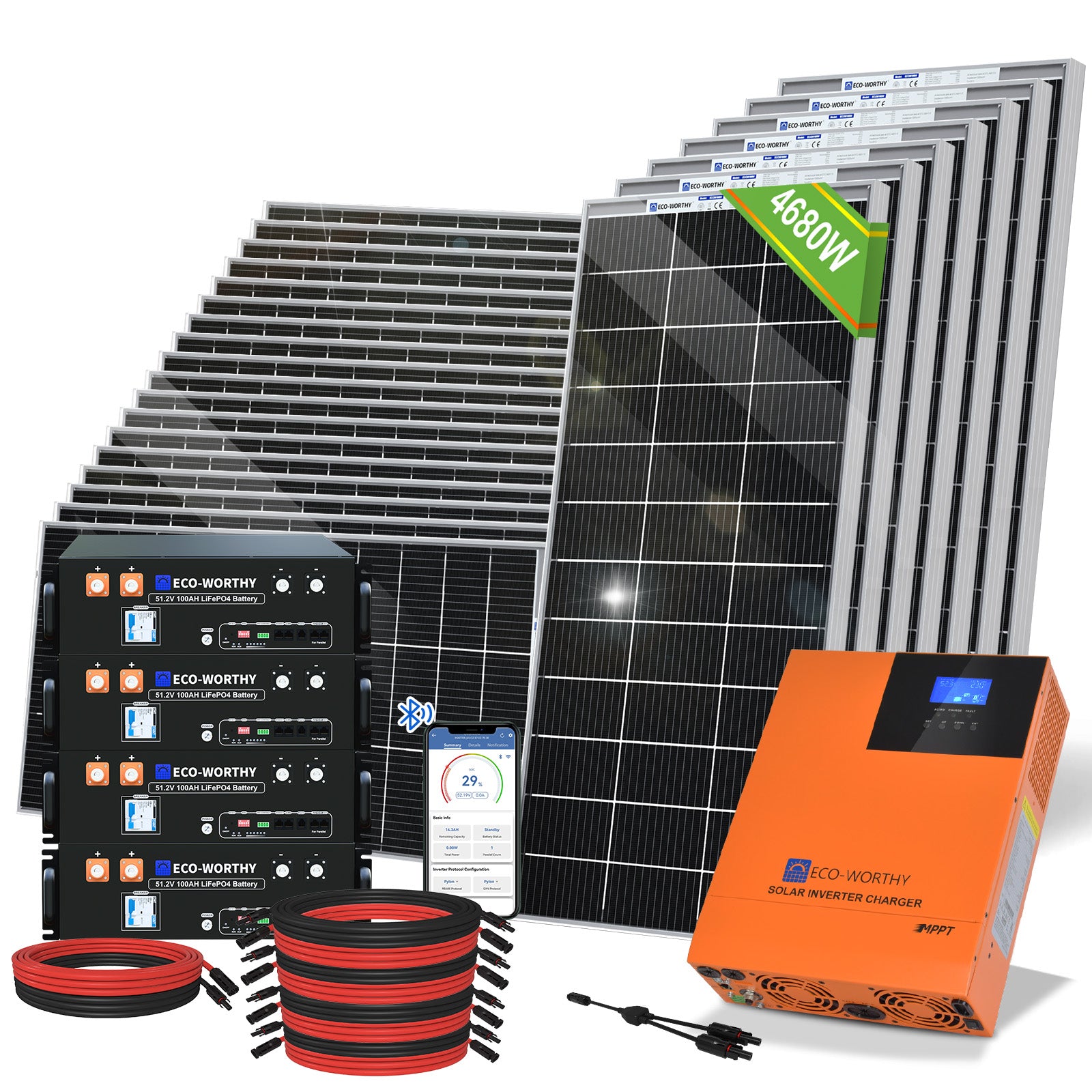

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 4680W 48V expandable MPPT Solar Kit is an ideal choice.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.

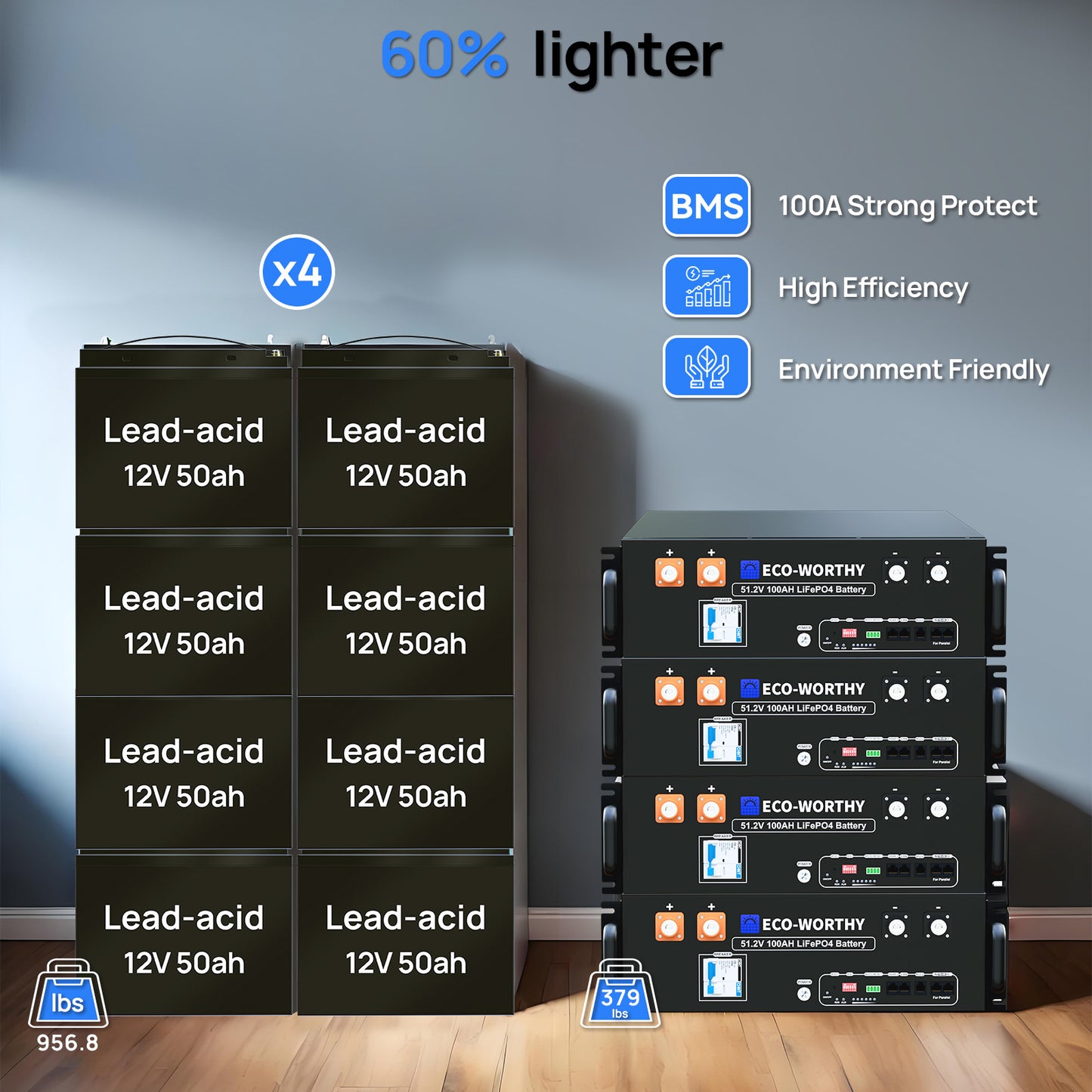

ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.

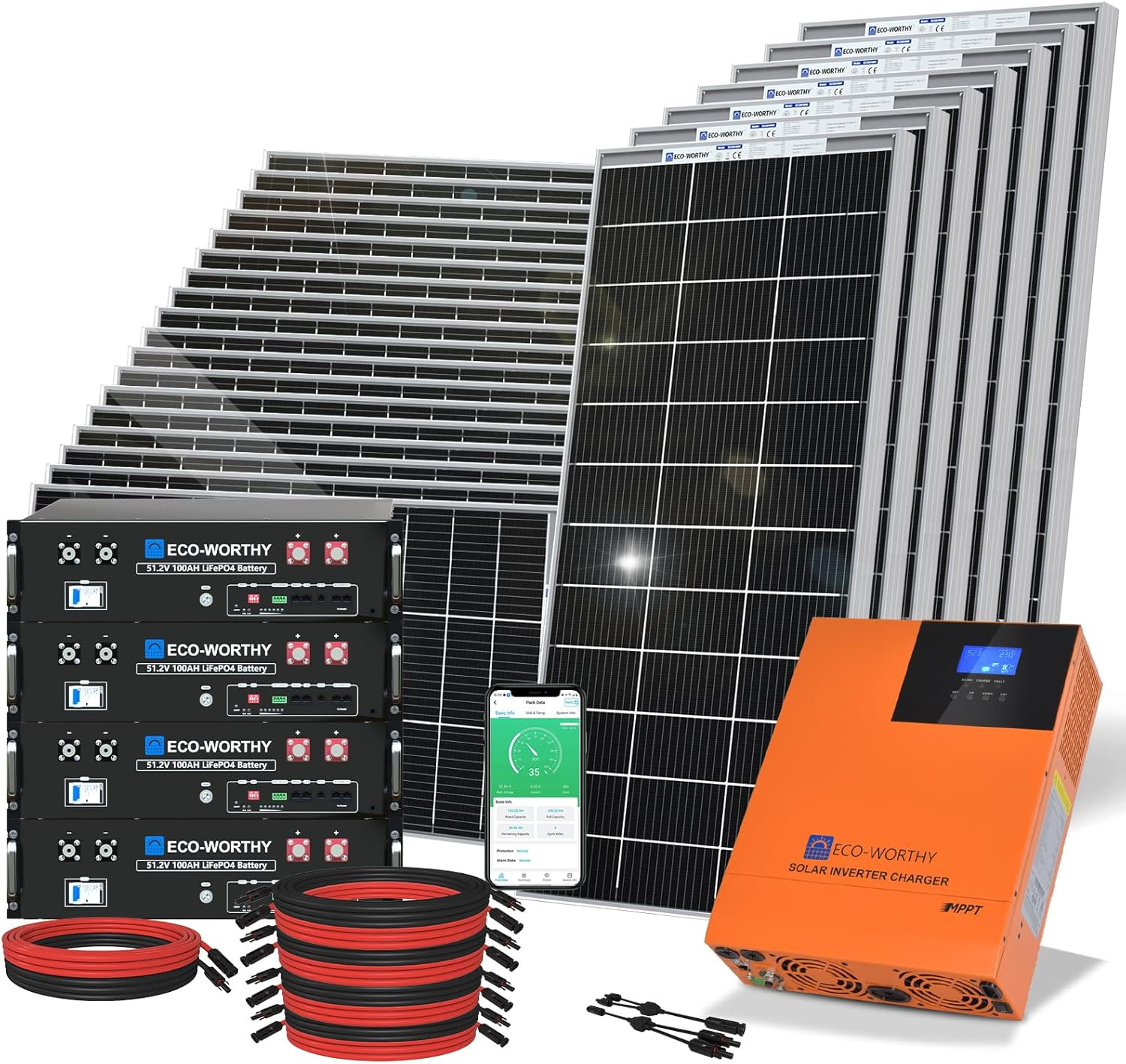

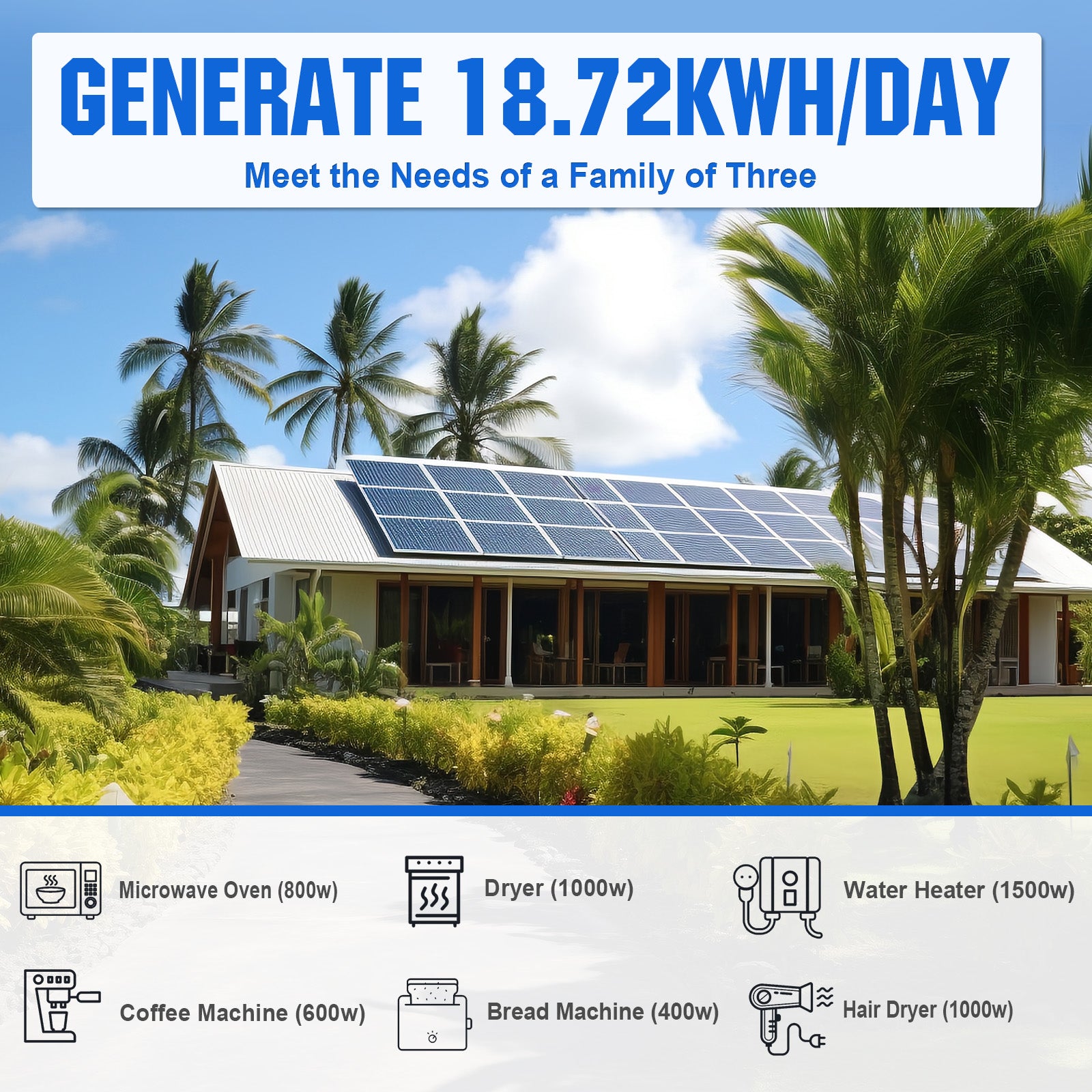

ECO-WORTHY 4680W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us serviceuk@eco-worthy.com.

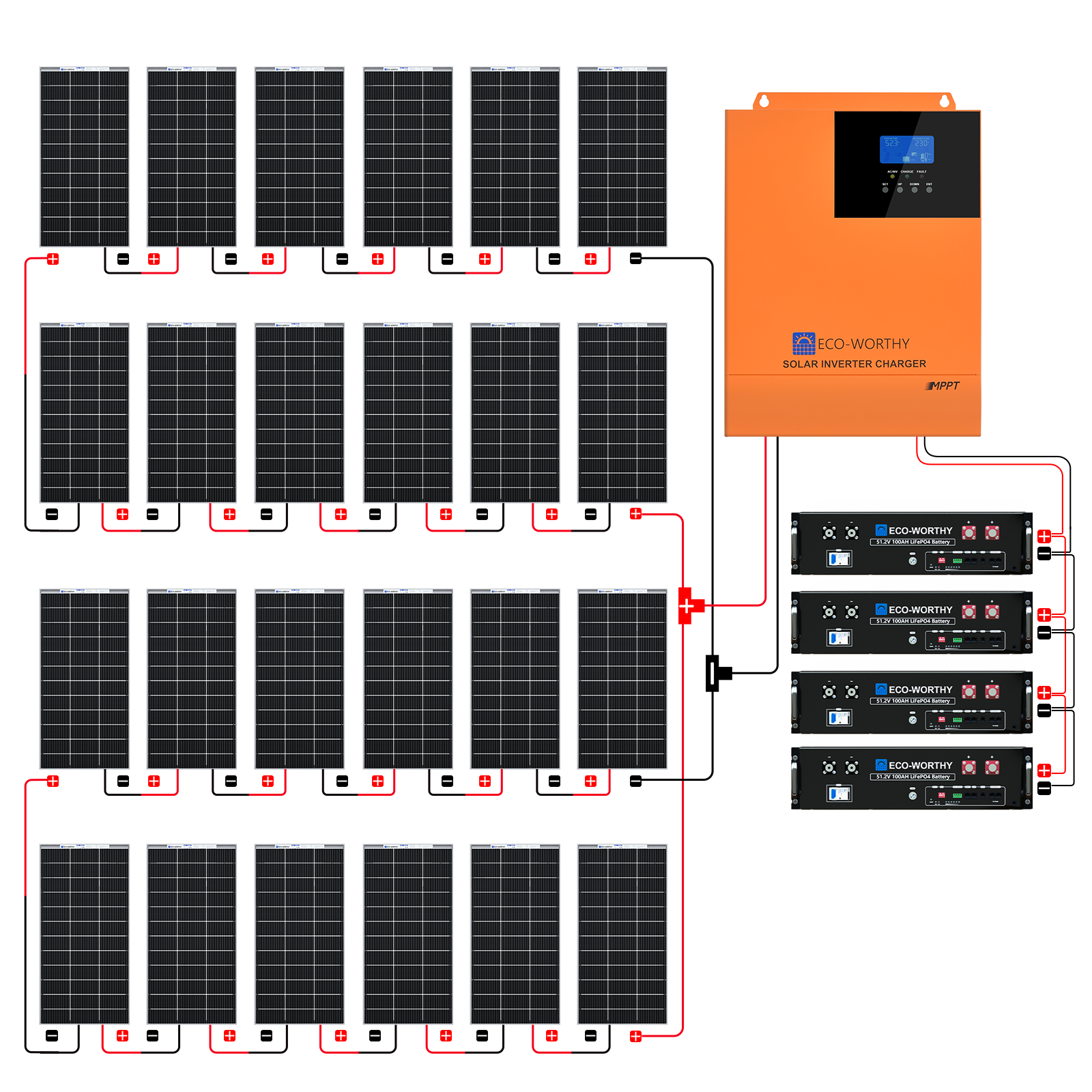

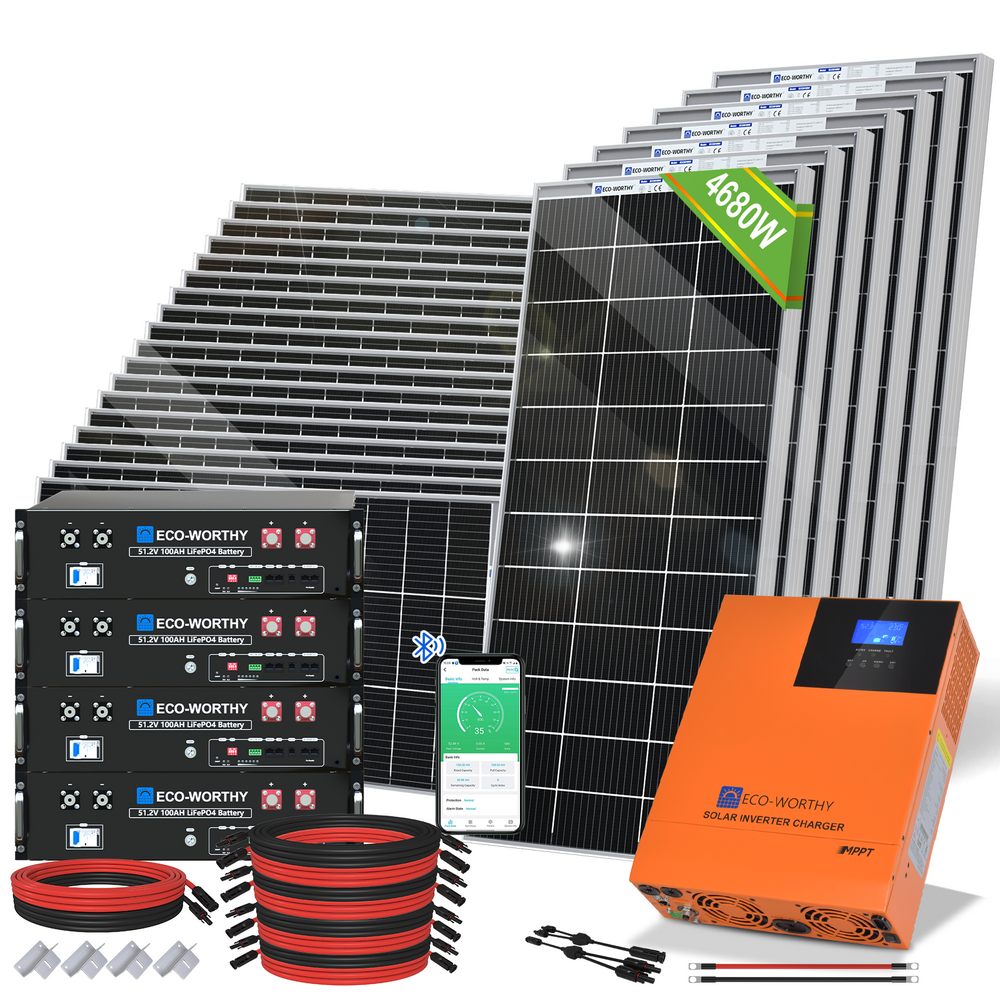

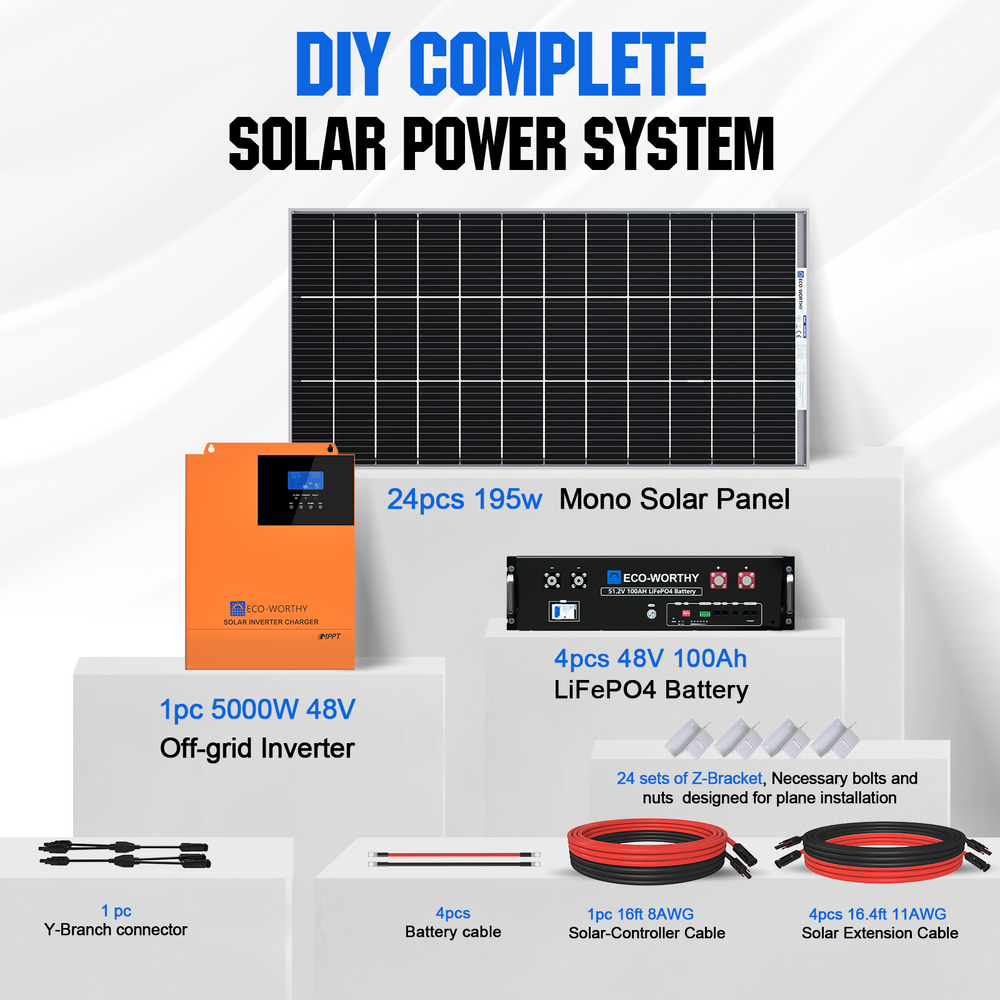

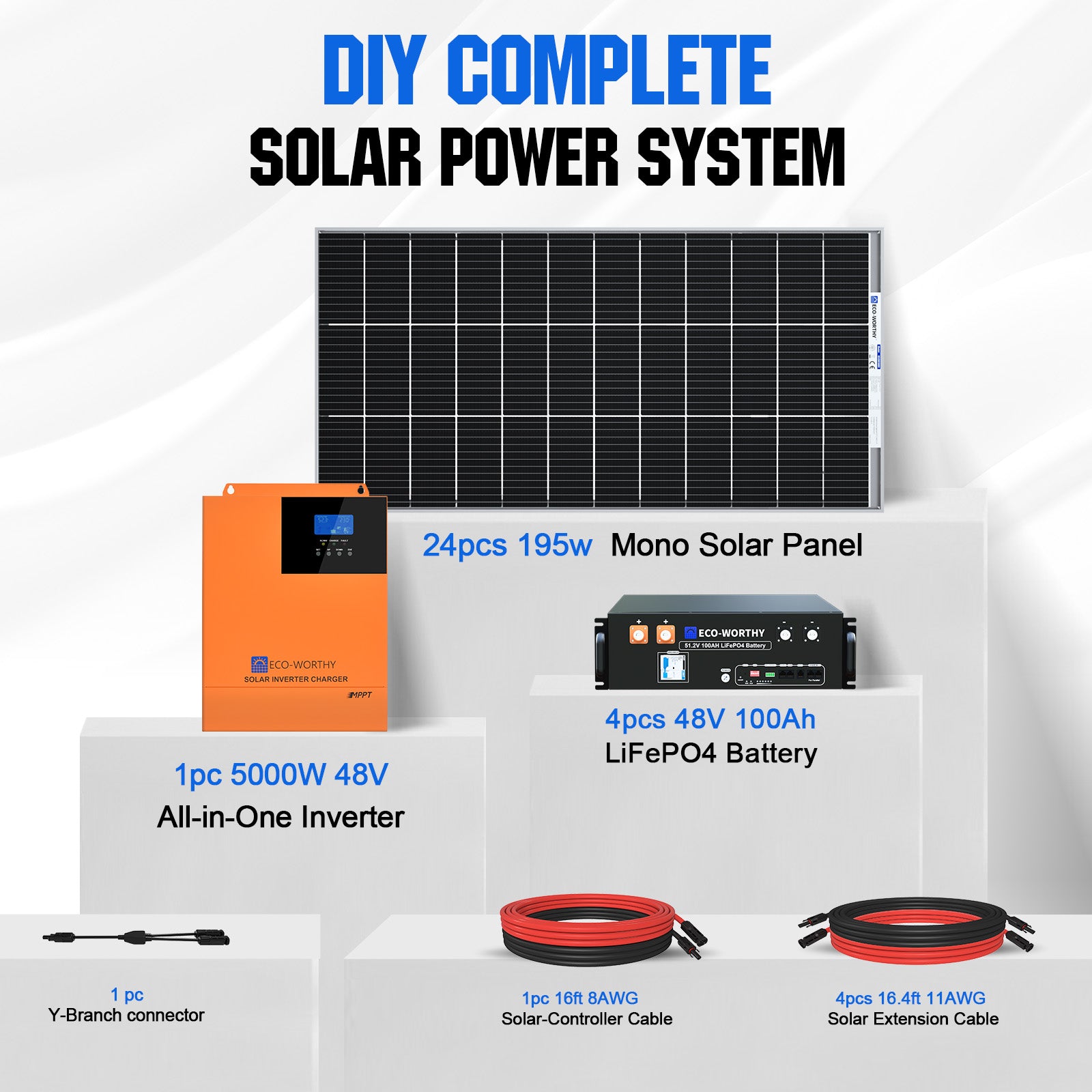

Package Includes

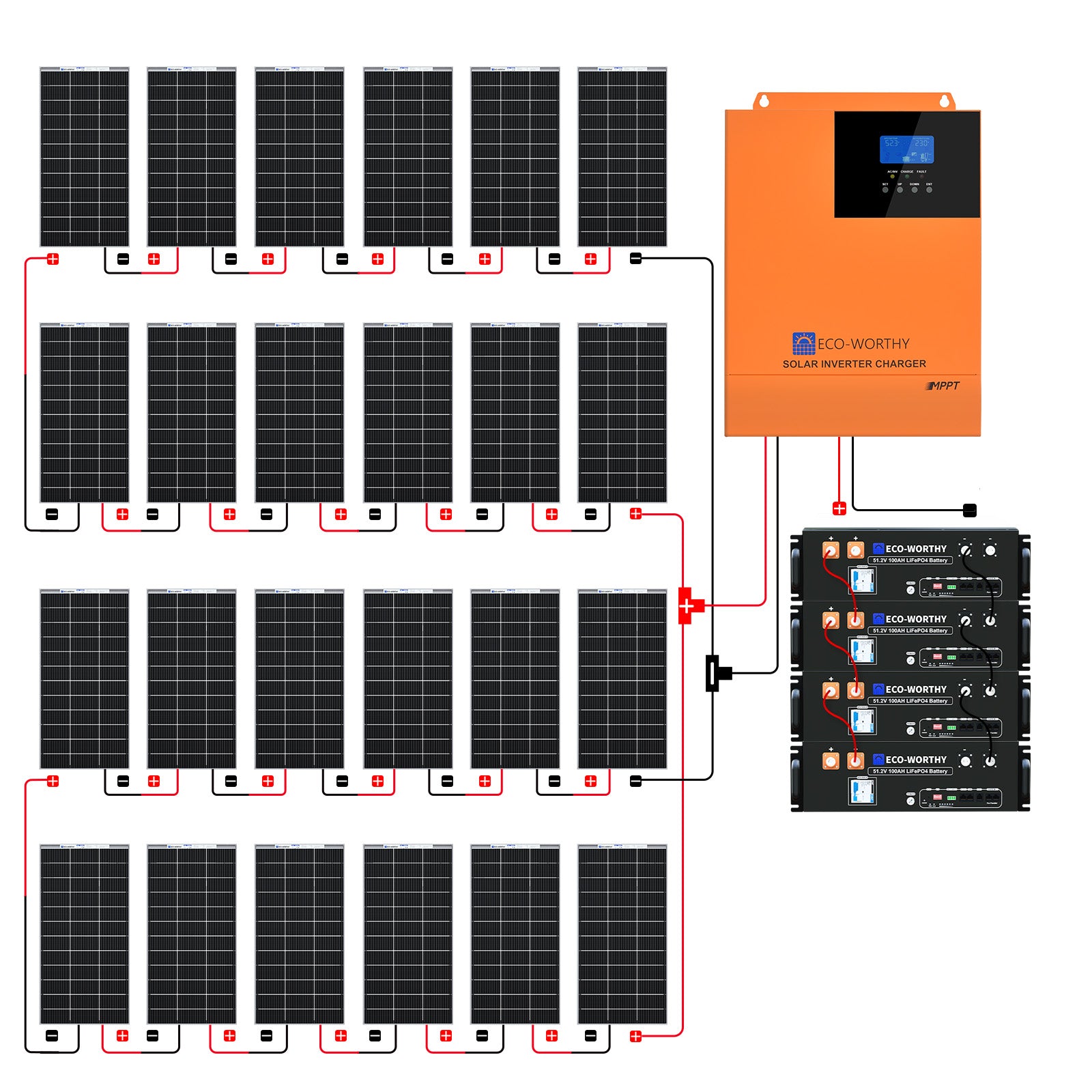

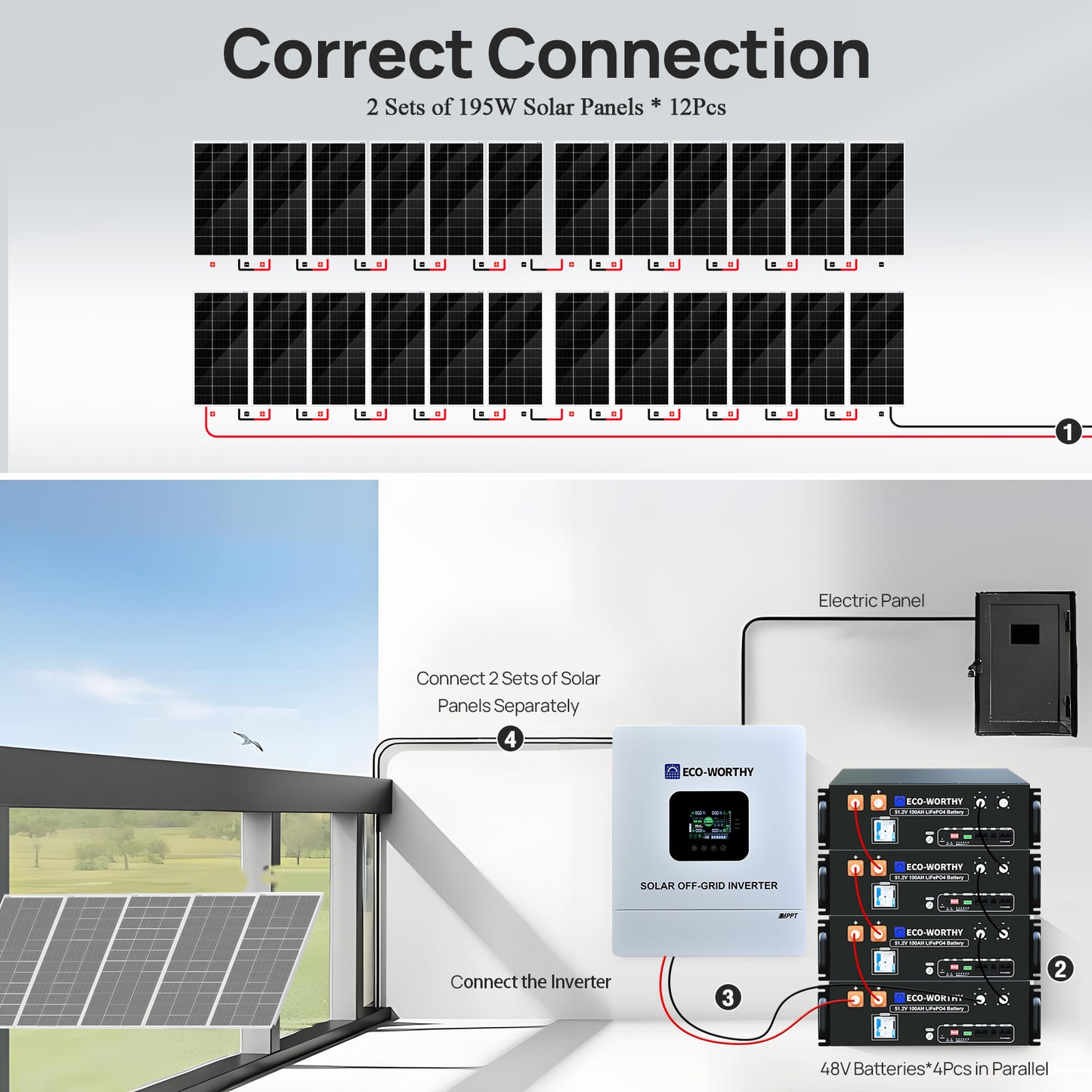

24x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 5M 12AWG Extension Cable with MC4
4x 5M 12AWG Extension Cable with MC4-MC4
1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair
Battery Bank Options-

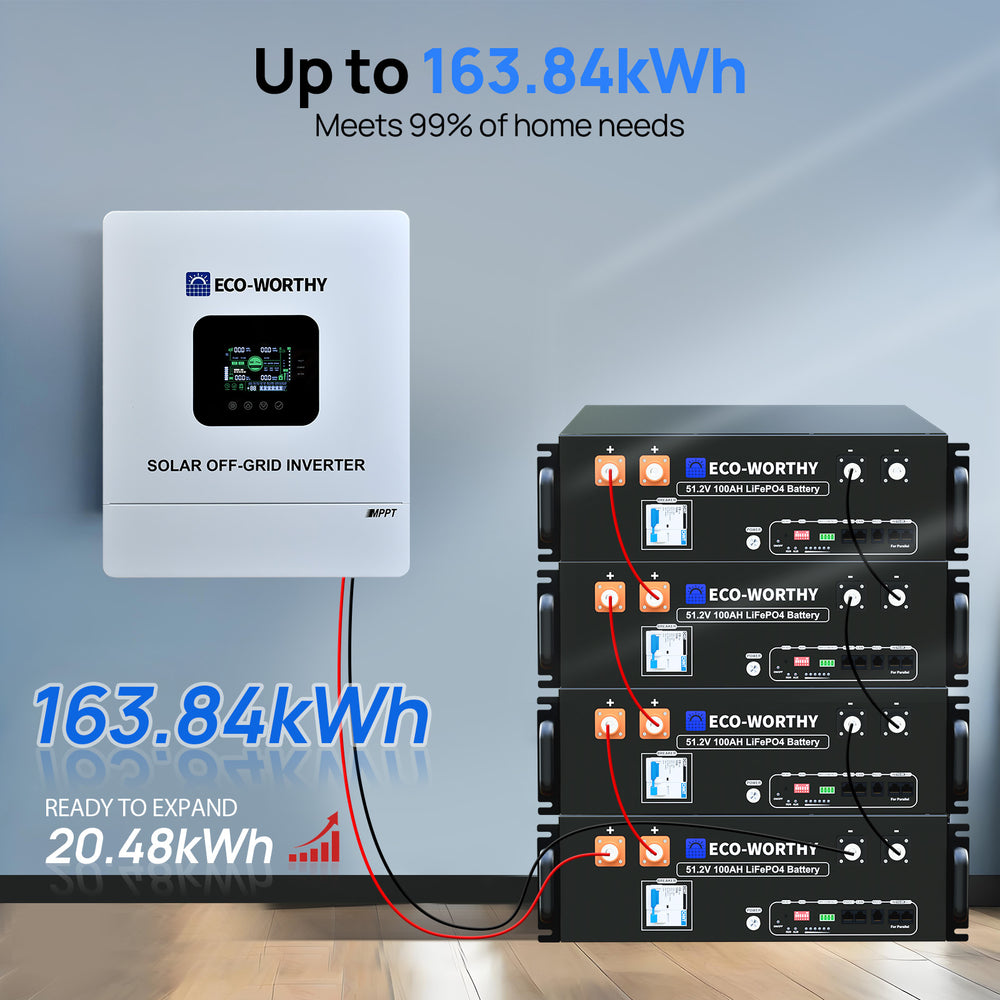

20.48kWh Lithium Battery Bank (optional)
with
4x 48V(51.2V) 100Ah Server Rack Battery

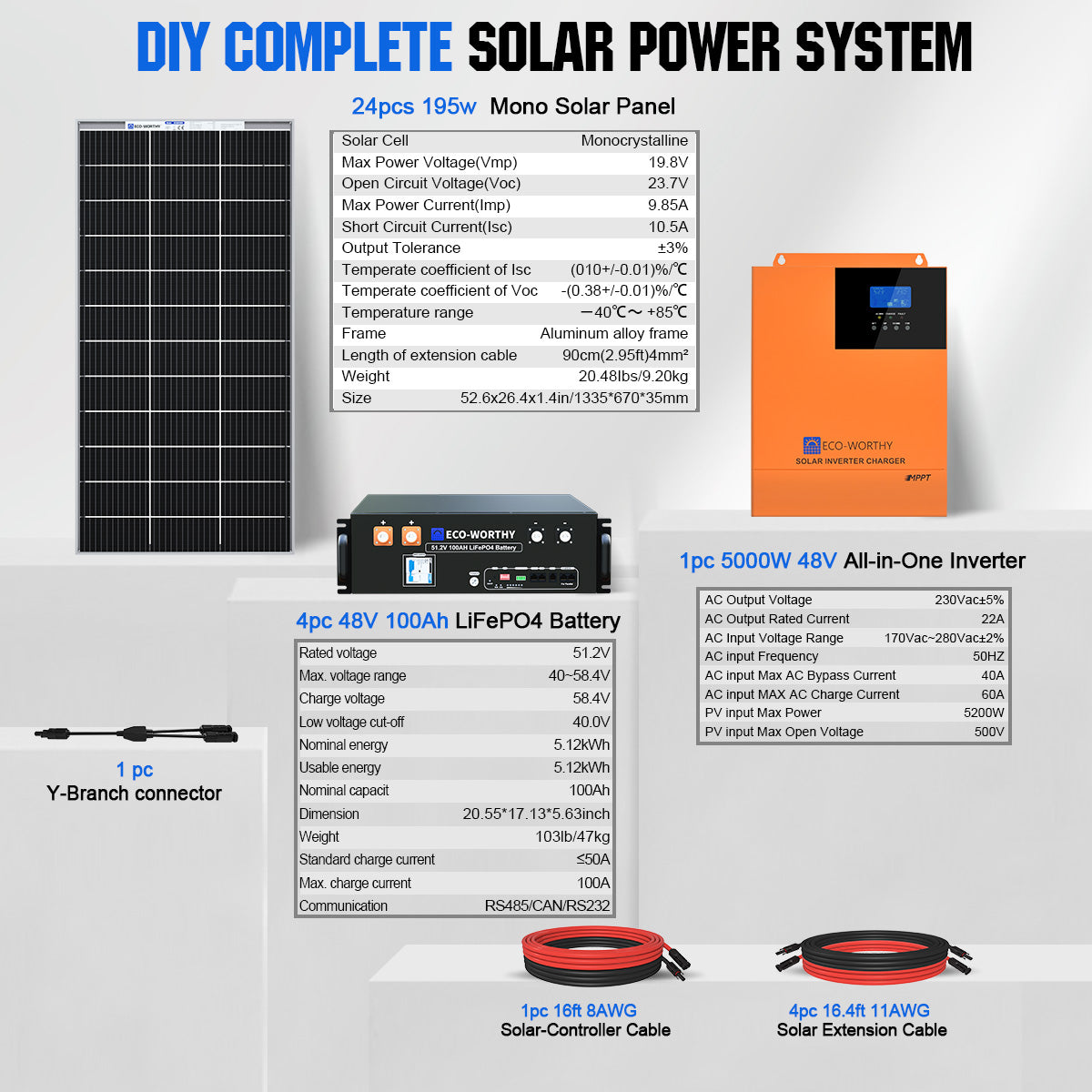

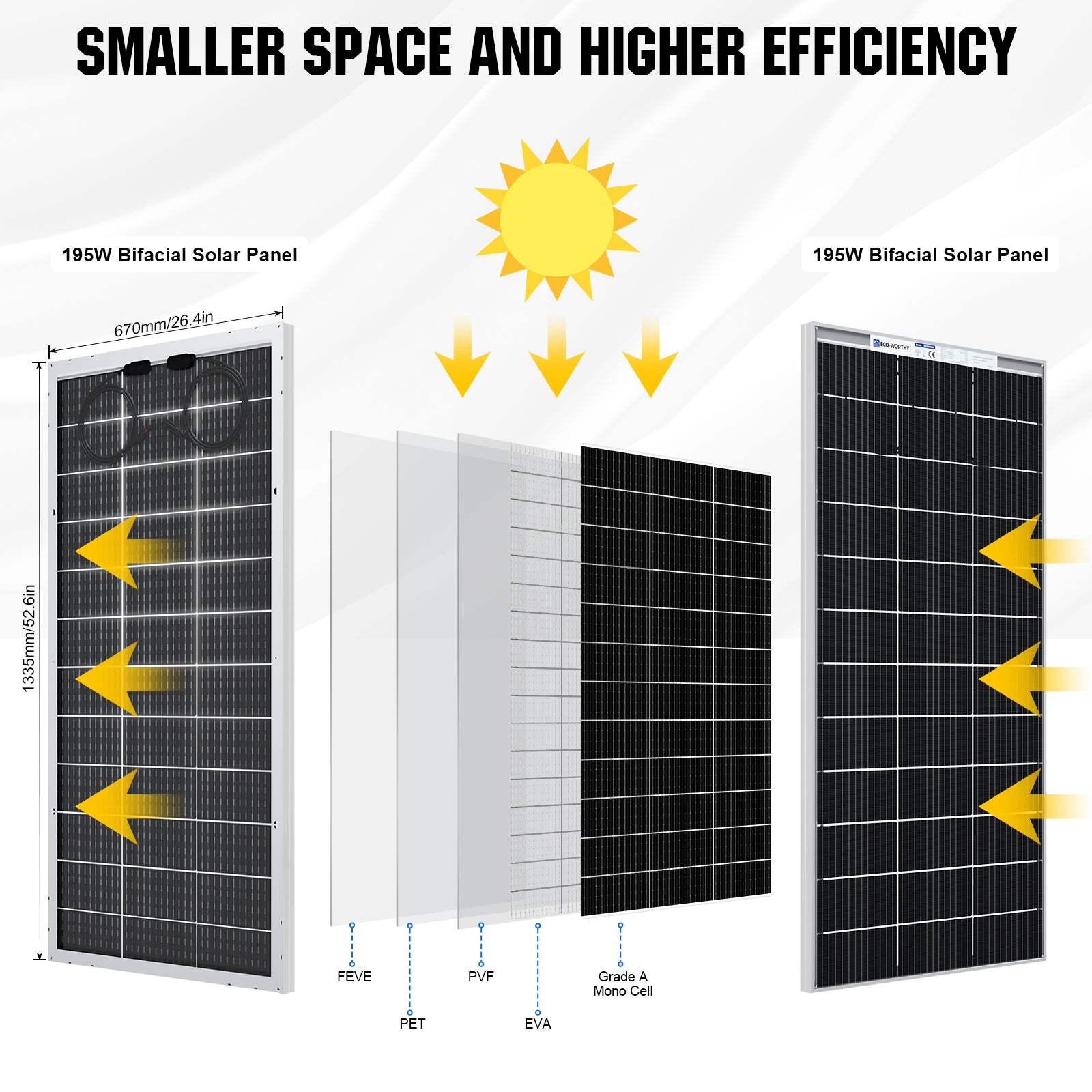

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A |
Maximum current: 9.85A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
|

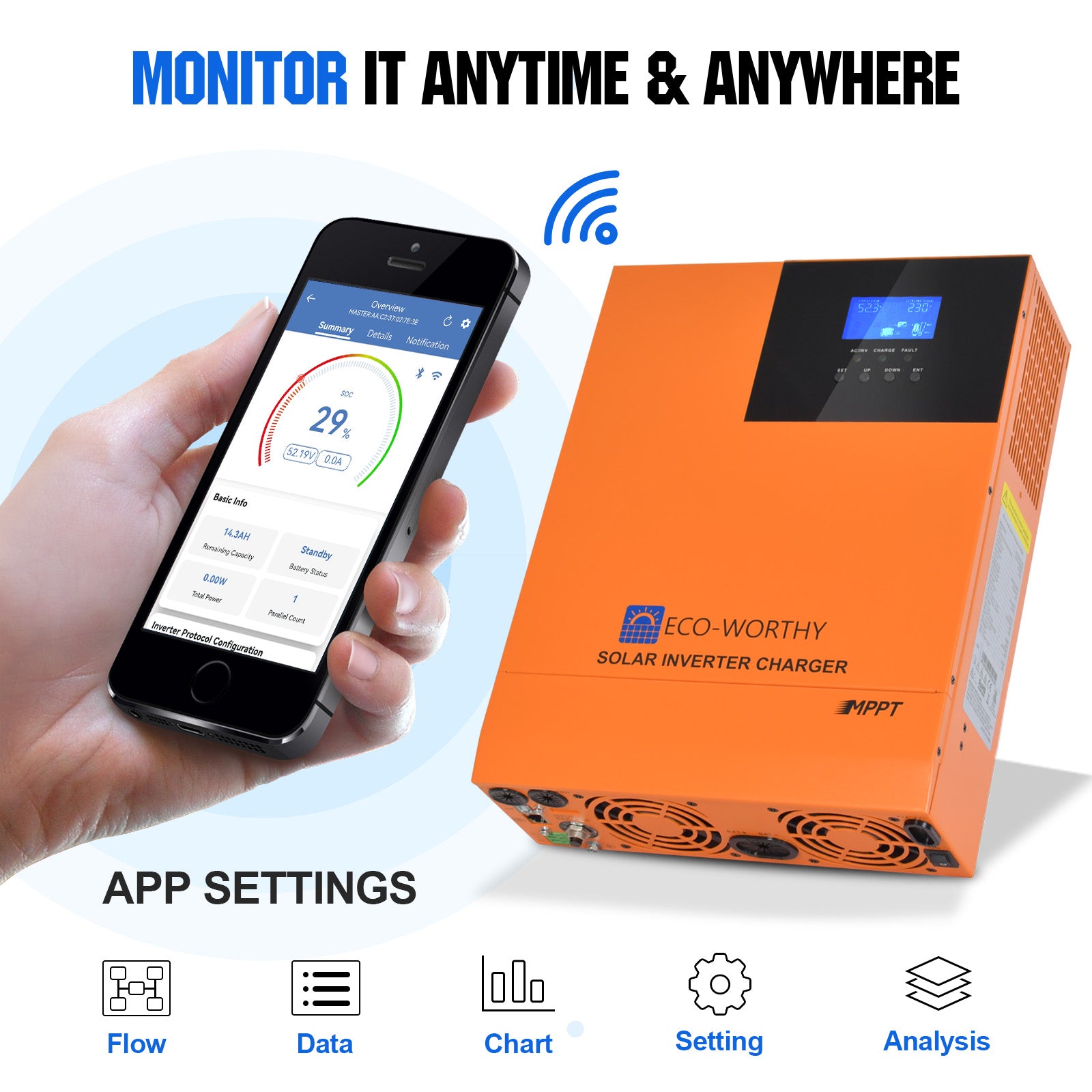

5000W 48V All-in-one Inverter with 80A MPPT
| AC Output Voltage ：230Vac±5% |
AC Output Rated Current ：22A |
| AC Input Voltage Range：170Vac~280Vac±2% |
AC input Frequency ：50HZ |
| AC input Max AC Bypass Current:40A |
AC input MAX AC Charge Current:60A |
| PV input Max Power：5200W |
PV input Max Open Voltage： 500V |

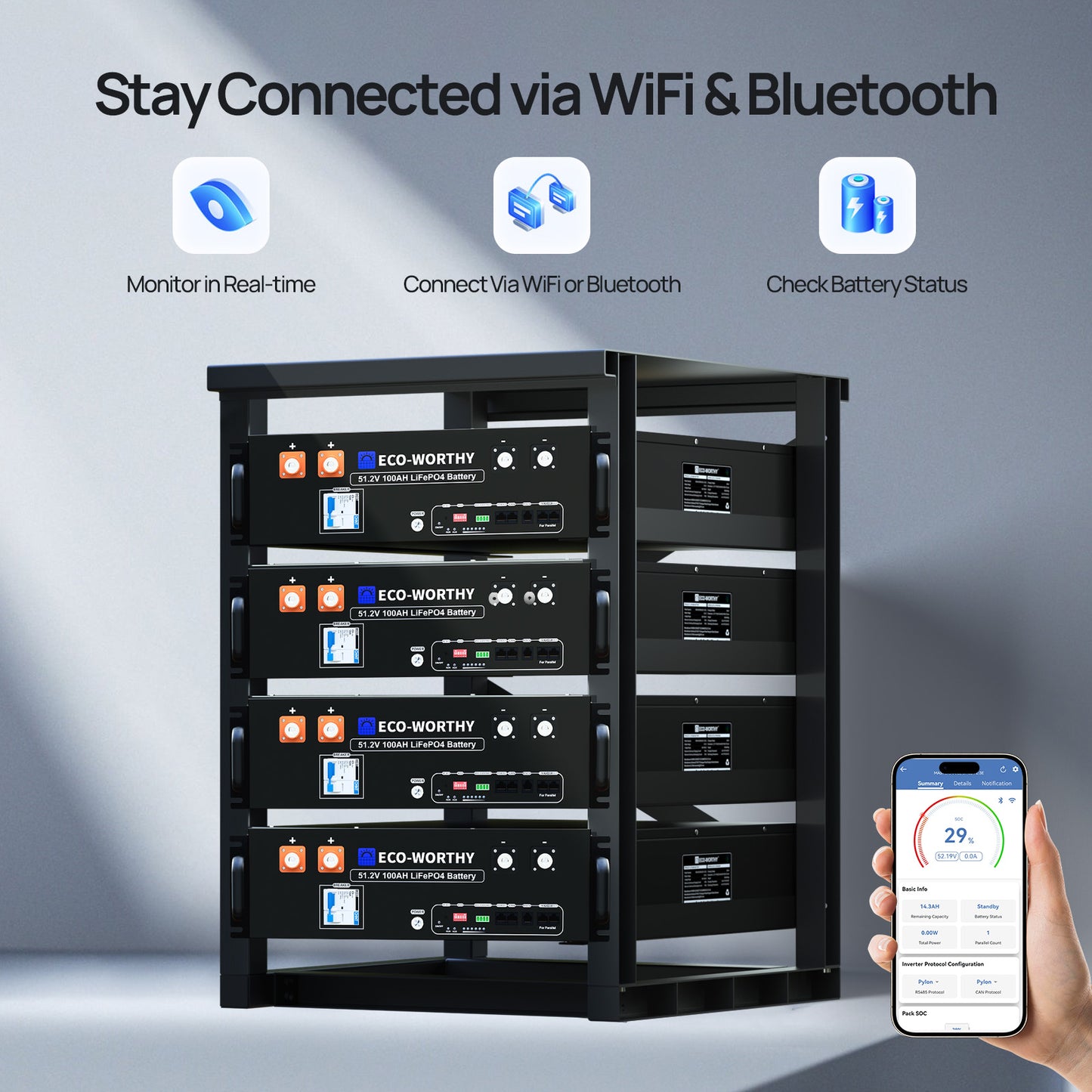

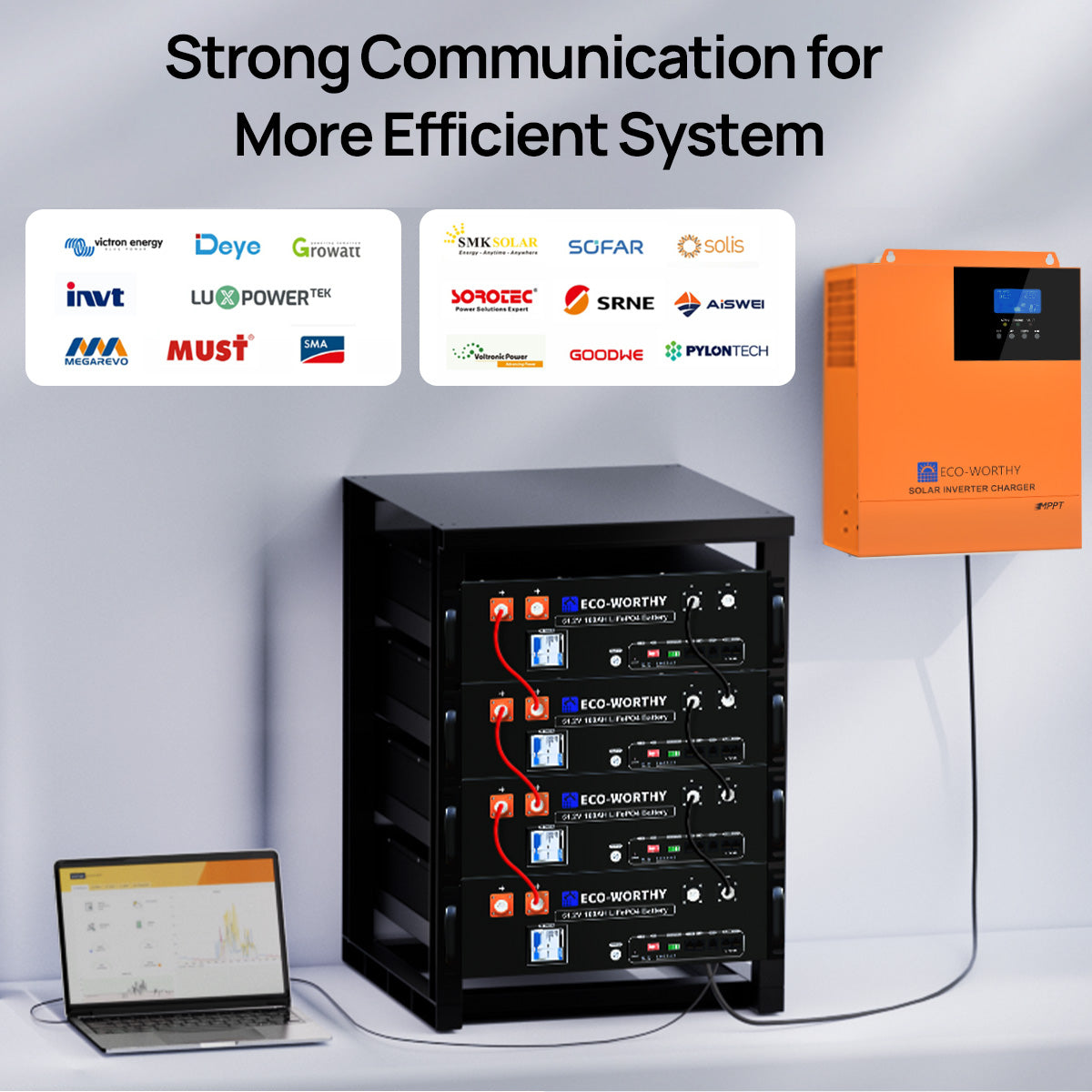

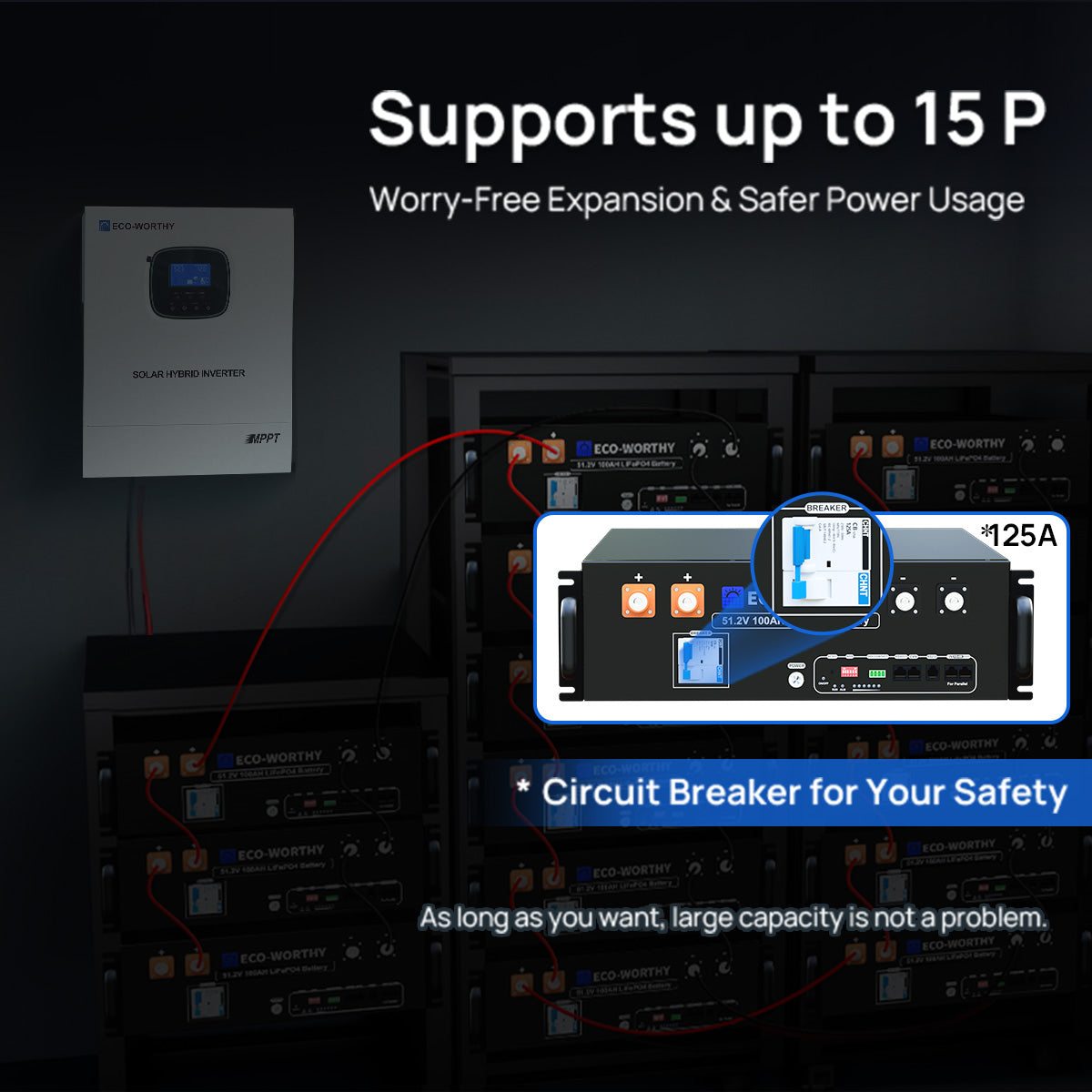

48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah |
Battery Power: 5120Wh |
| Rated Voltage: 51.2V |
Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A |
Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ |
Maximum Charge Voltage: 58.4V |
| Screw size: M8 |
Battery Size: 22.09*19.02*5.24inch |
| Battery Weight: 94.8 lbs |
Each battery comes with a pair of battery parallel cables |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 12 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
