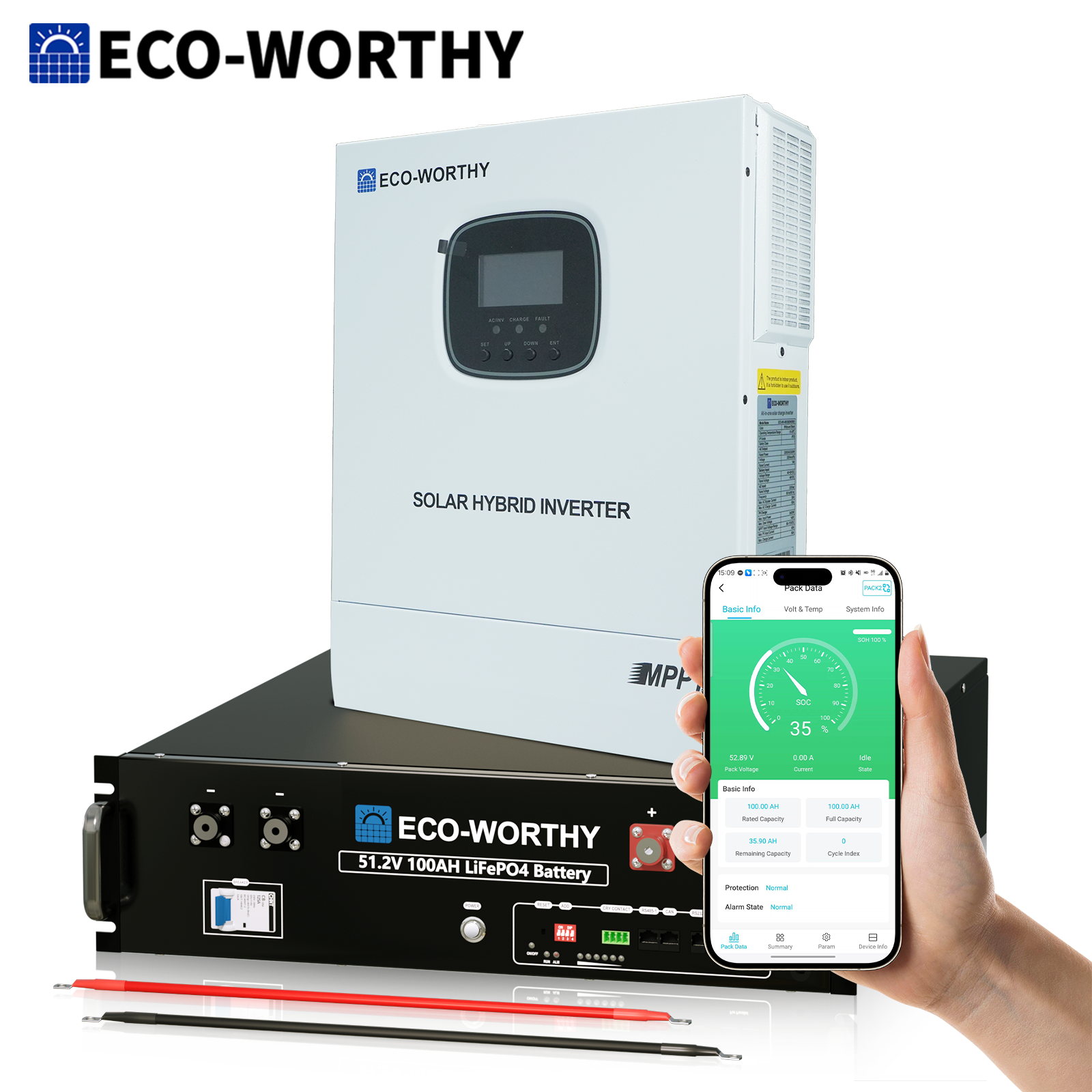

ECO-WORTHY 3KWh Solar Power Bundle with 48v 100AH Server Rack Battery & 3000W 48V Solar Inverter

Name: ECO-WORTHY 3KWh Solar Power Bundle with 48v 100AH Server Rack Battery & 3000W 48V Solar Inverter
Brand: eco-worthy-uk
SKU: UK-L03SRNK3KEU3U1U-1
Price: 1169.98 GBP
Availability: InStock

£1,169.98

£1,169.98 ~~£1,599.99~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L03SRNK3KEU3U1U-1

[Powerful Home Station]: 3000W All-in-One inverter with 48V 100Ah LiFePO4 lithium battery stores 5.12kWh energy.

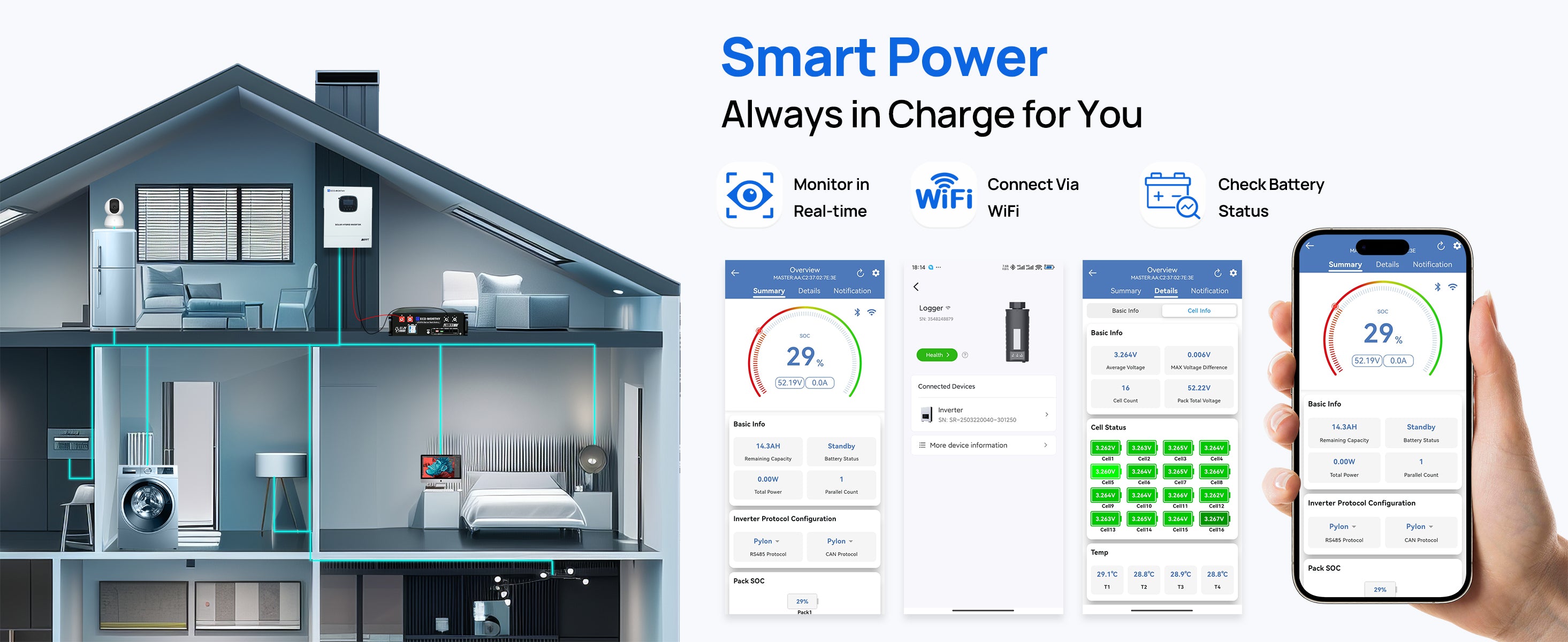

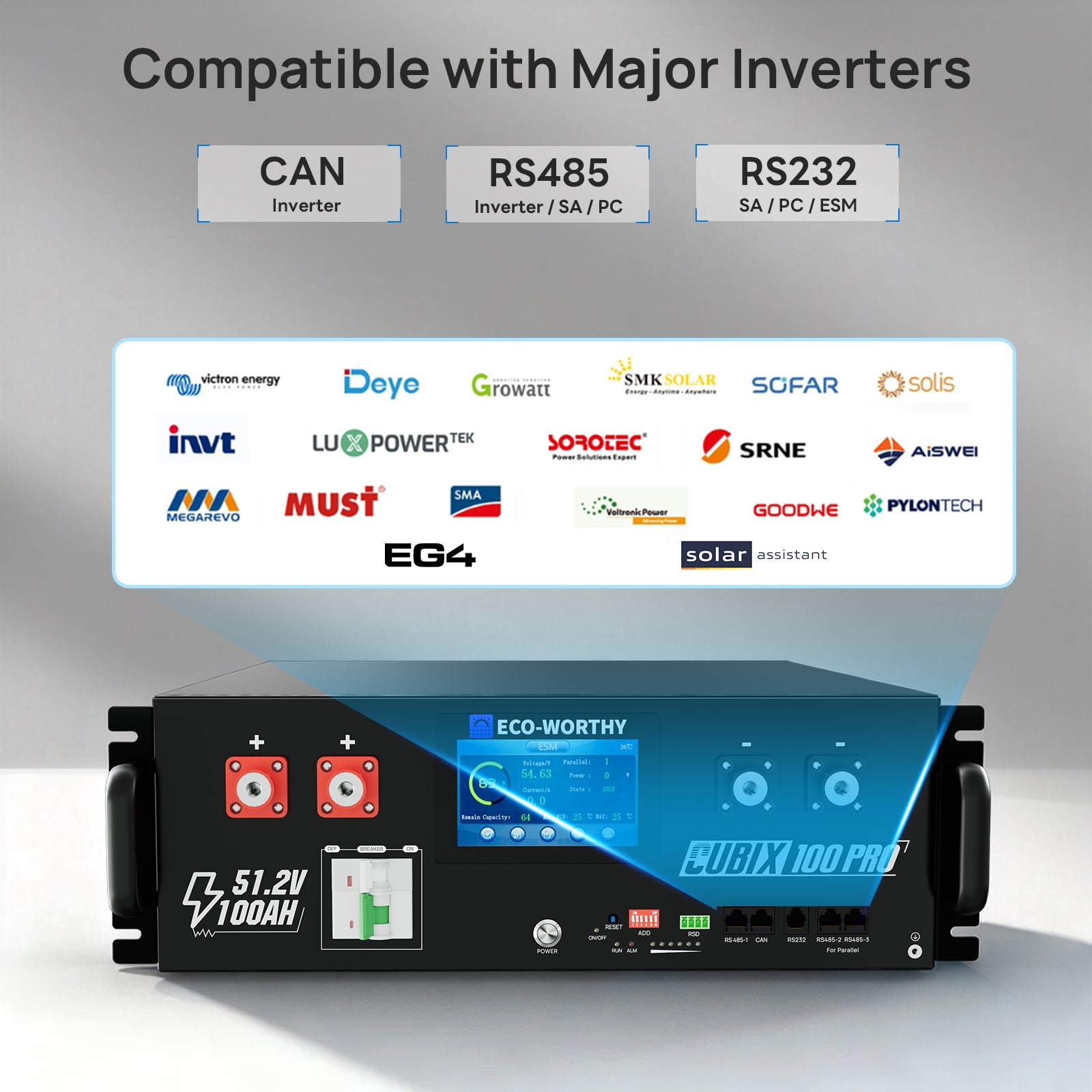

[Smart Communication Batteries]: Grade A LiFePO4 cells, CAN/RS485, Bluetooth & WiFi monitoring, 100A BMS.

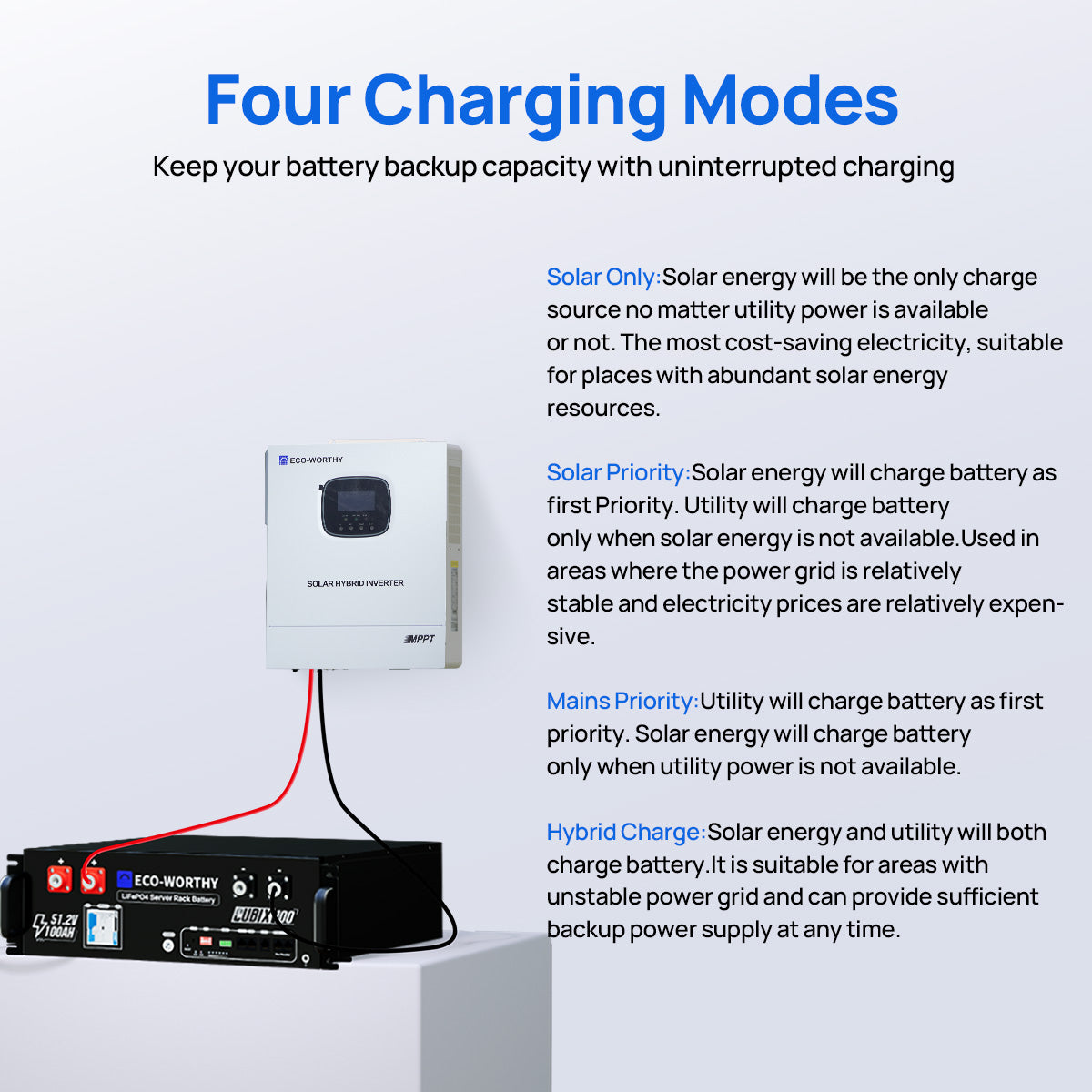

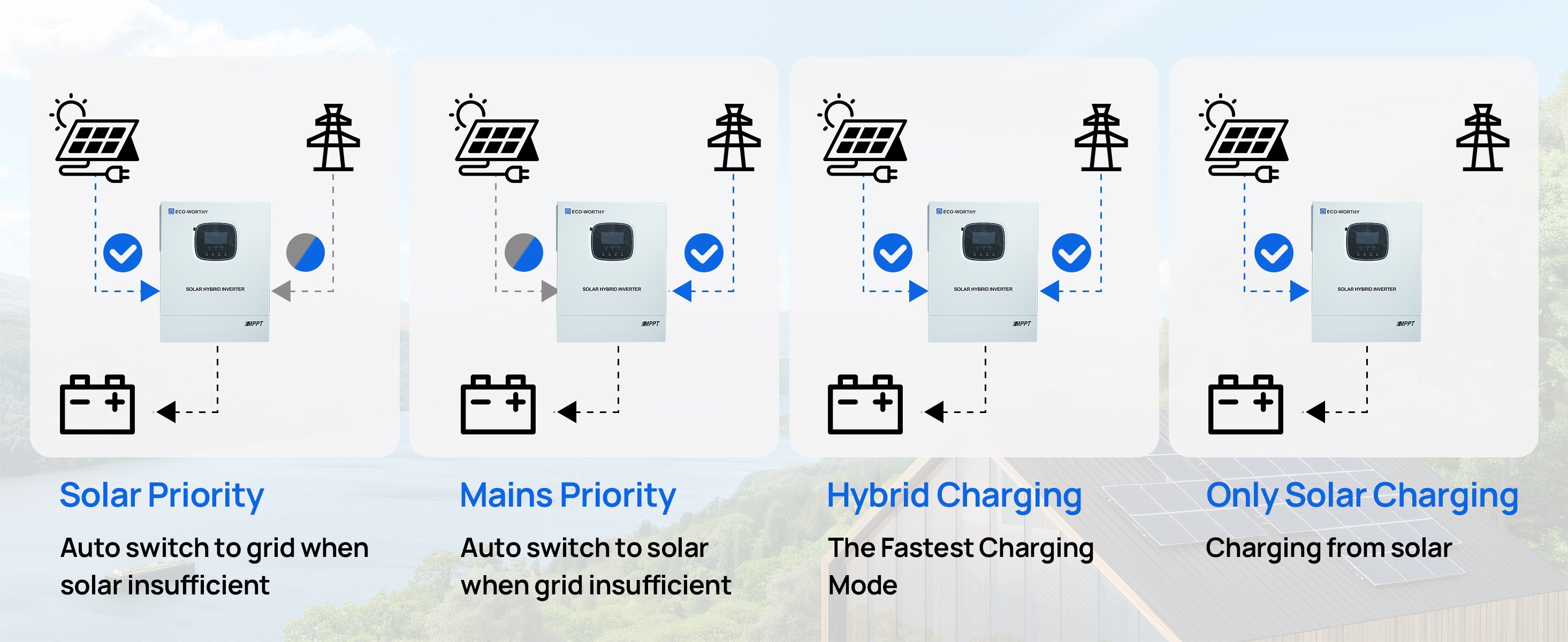

[Multiple Charging Methods]: AC up to 40A, solar up to 100A for faster full charge than typical 5kWh systems.

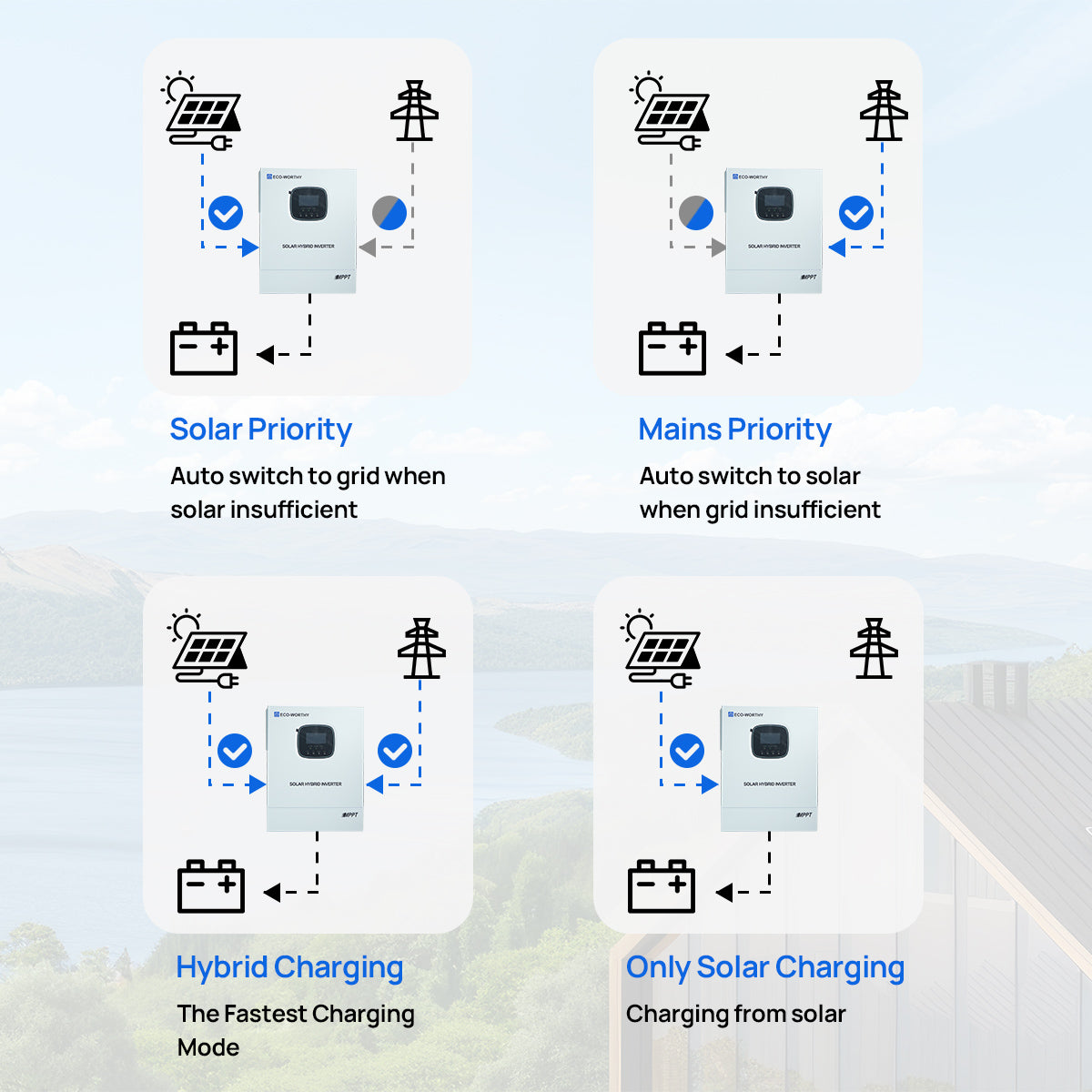

[UPS Automatic Switching]: Seamless transition to battery during outages, prioritise grid or inverter mode.

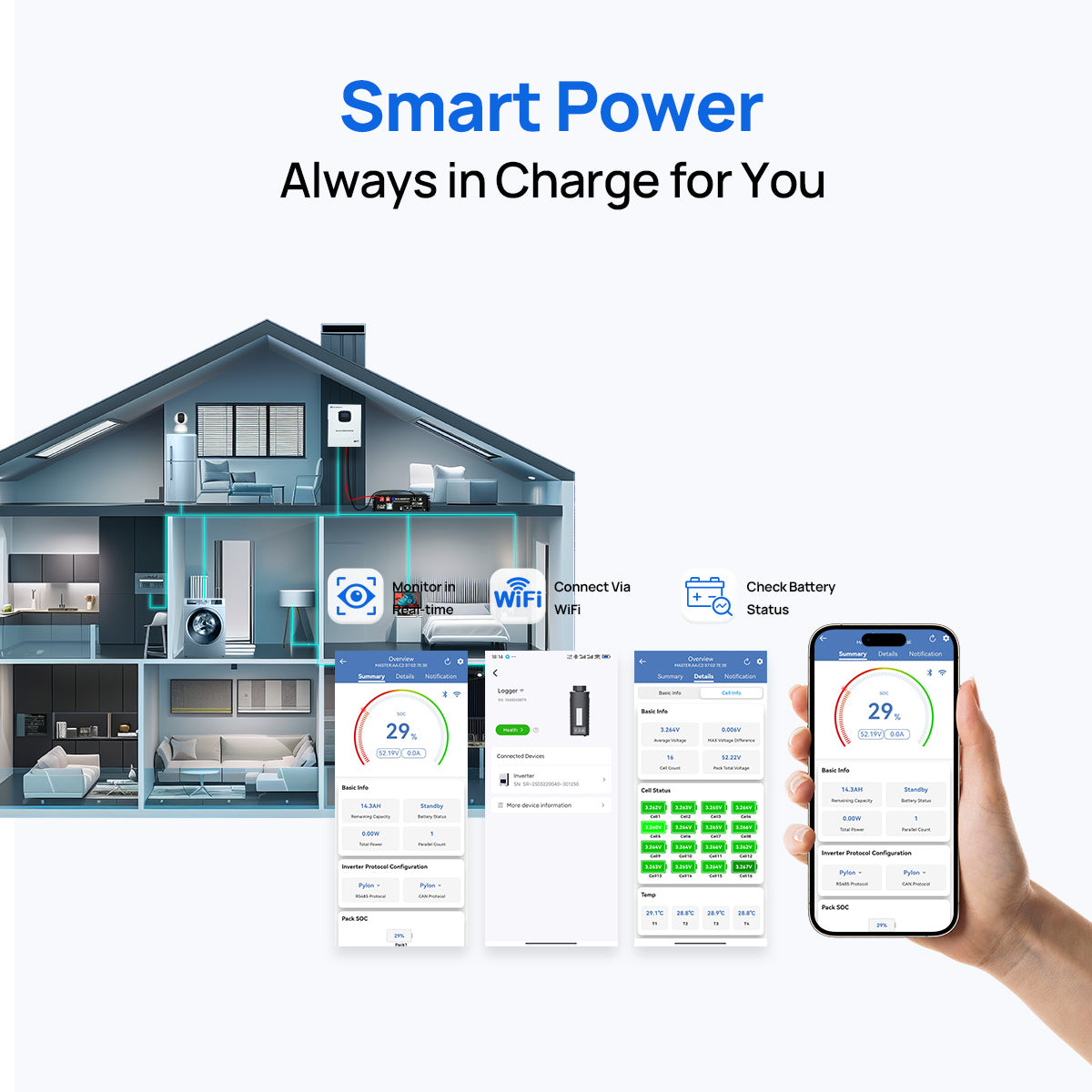

[Flexible Power Management]: App control for circuits and timed charging/discharging to optimise mains usage.

Quantity

Total price

£1,169.98

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £292.49 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£1,169.98 £1,599.99

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

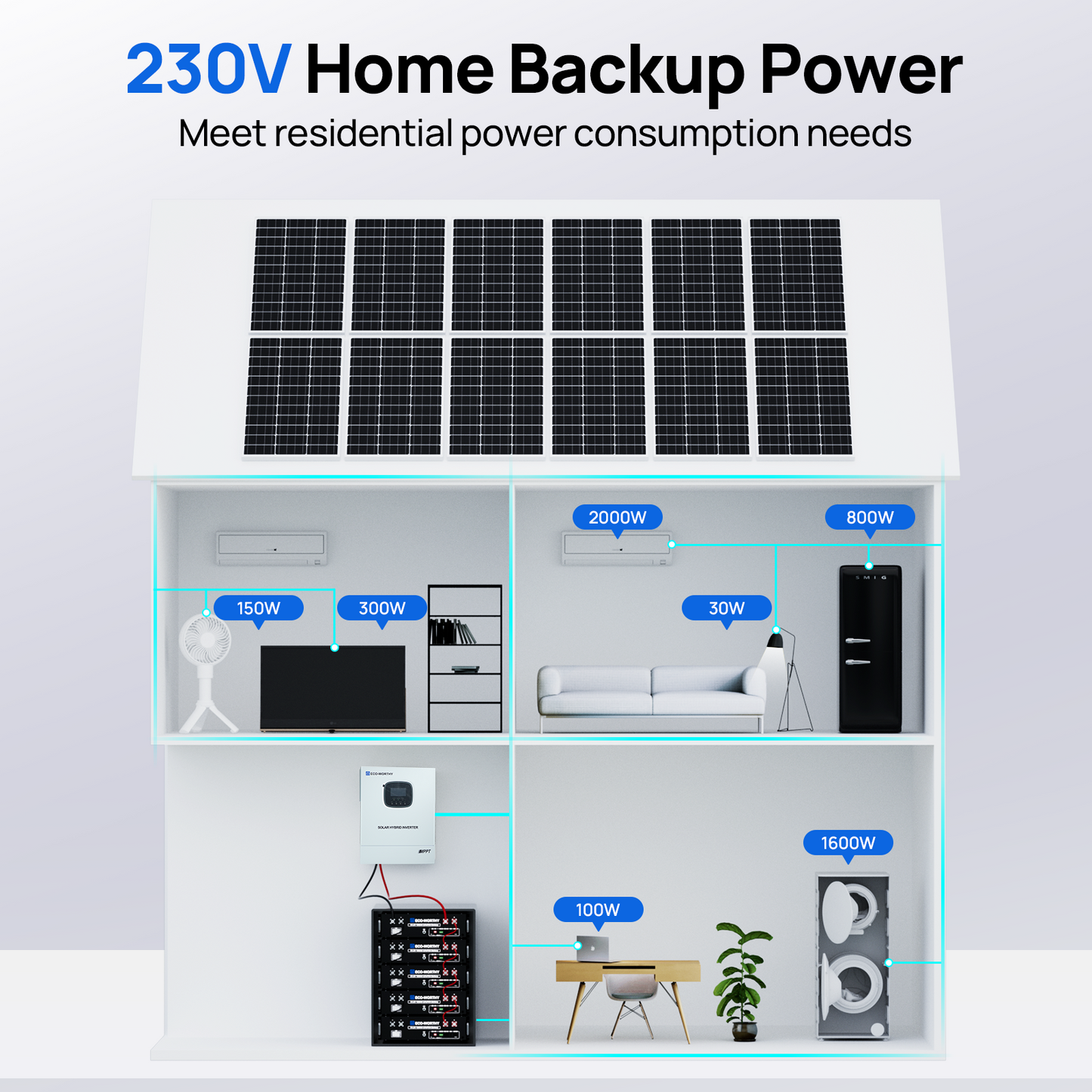

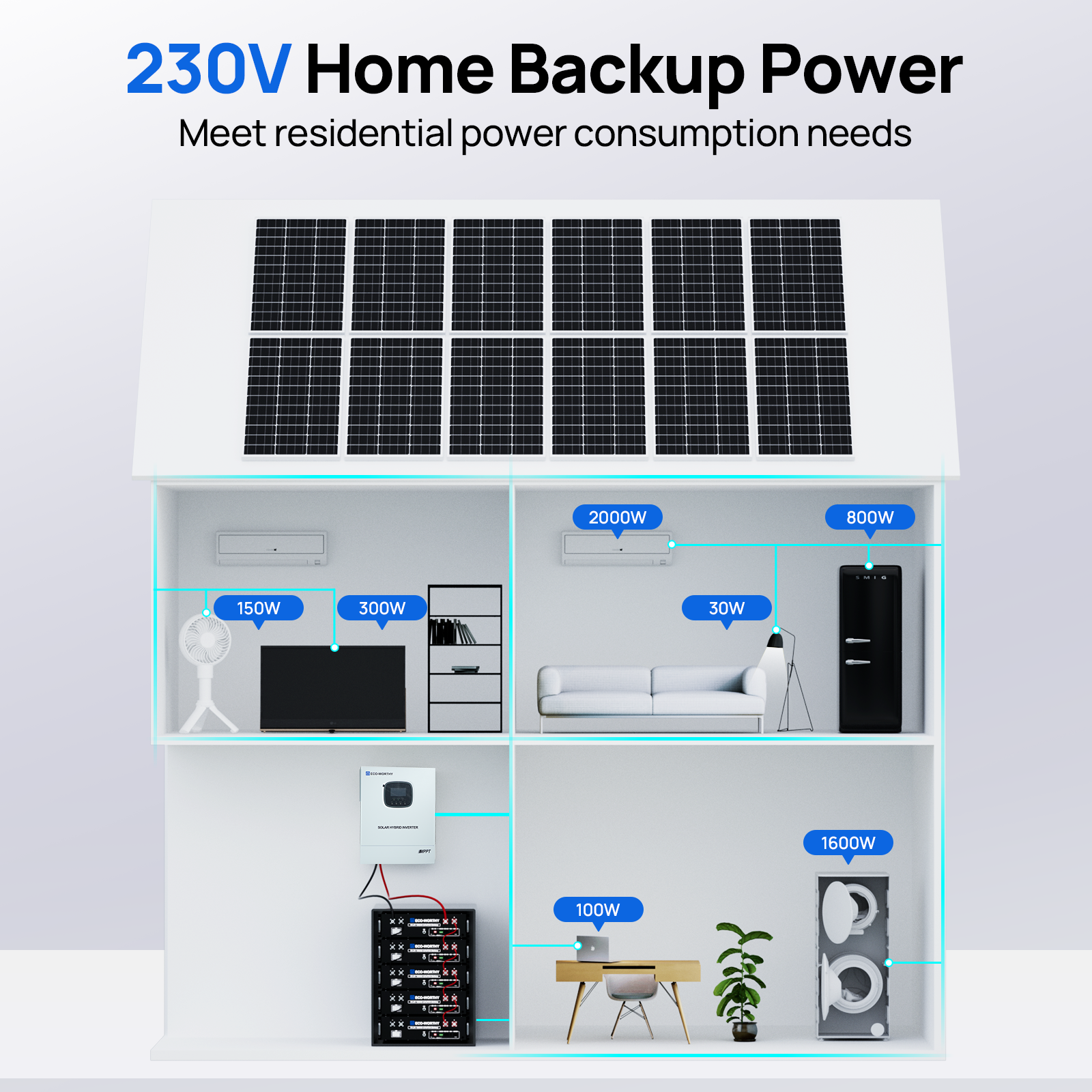

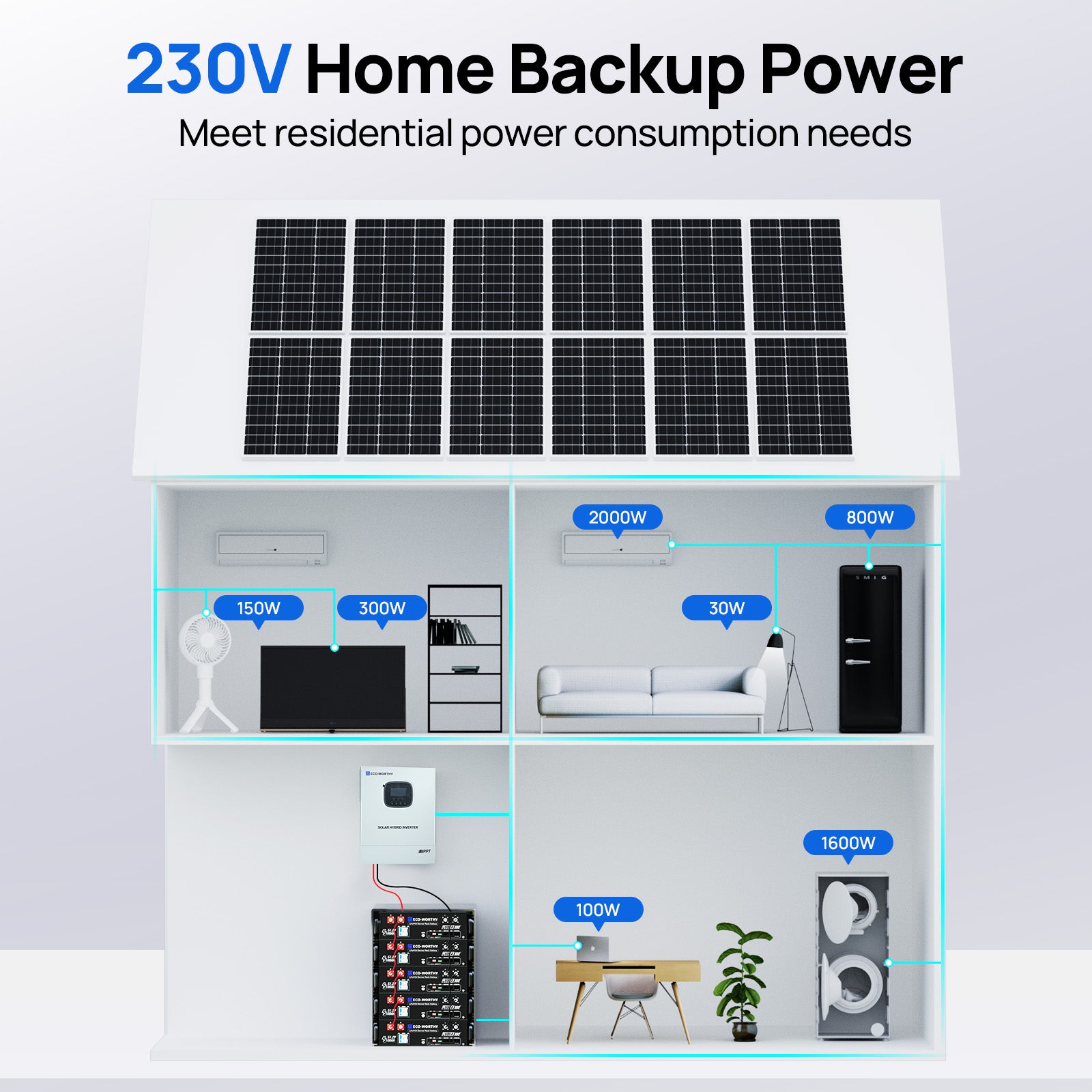

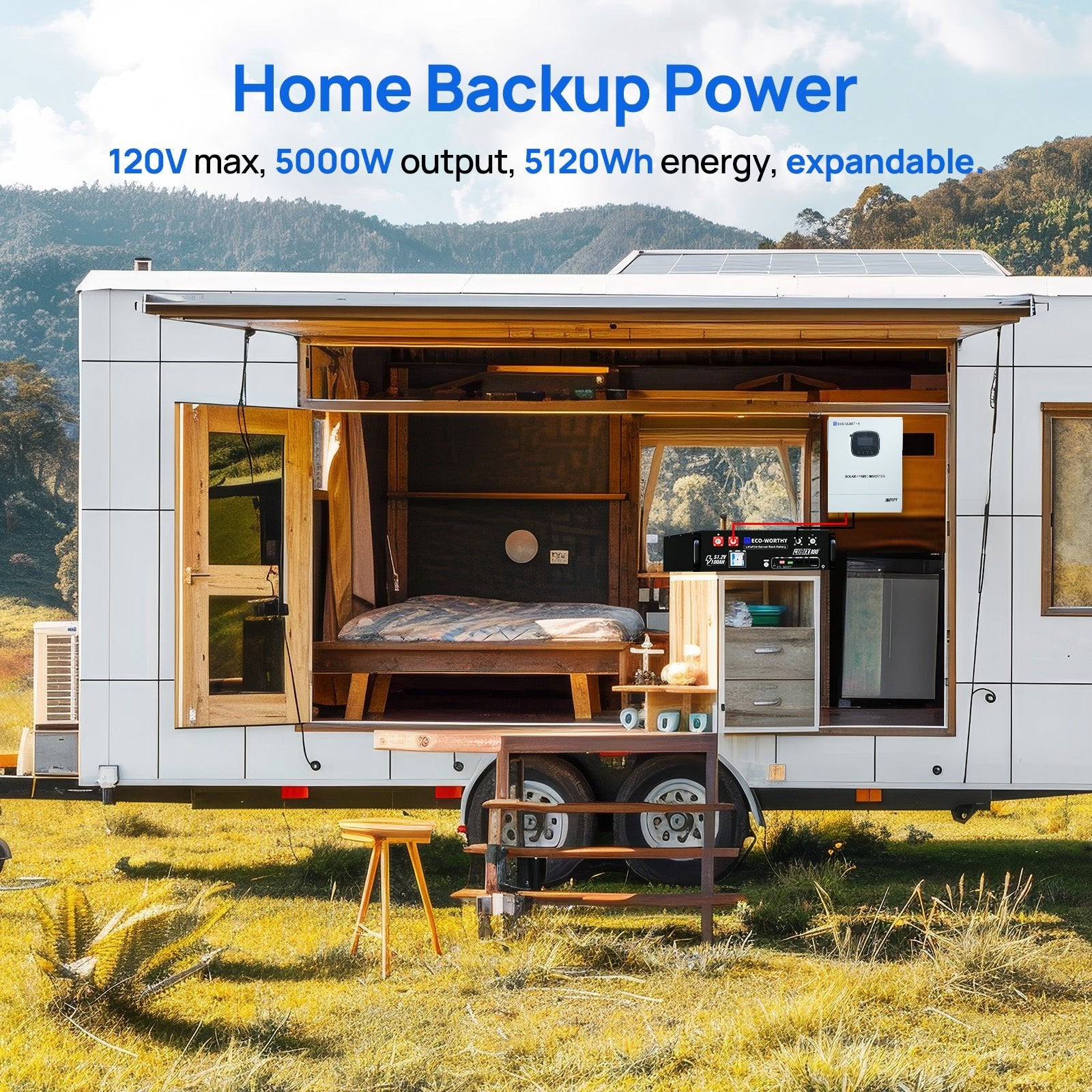

5.12KWh Home Backup Power

Upgrade your energy system with a 48V 100Ah LiFePO4 battery paired with a 3000W hybrid inverter, delivering an efficient and stable 5.12kWh backup power solution. Ideal for home and small business emergency backup, providing long-lasting, safe, and reliable power to help you easily handle outages.

Technical Specifications

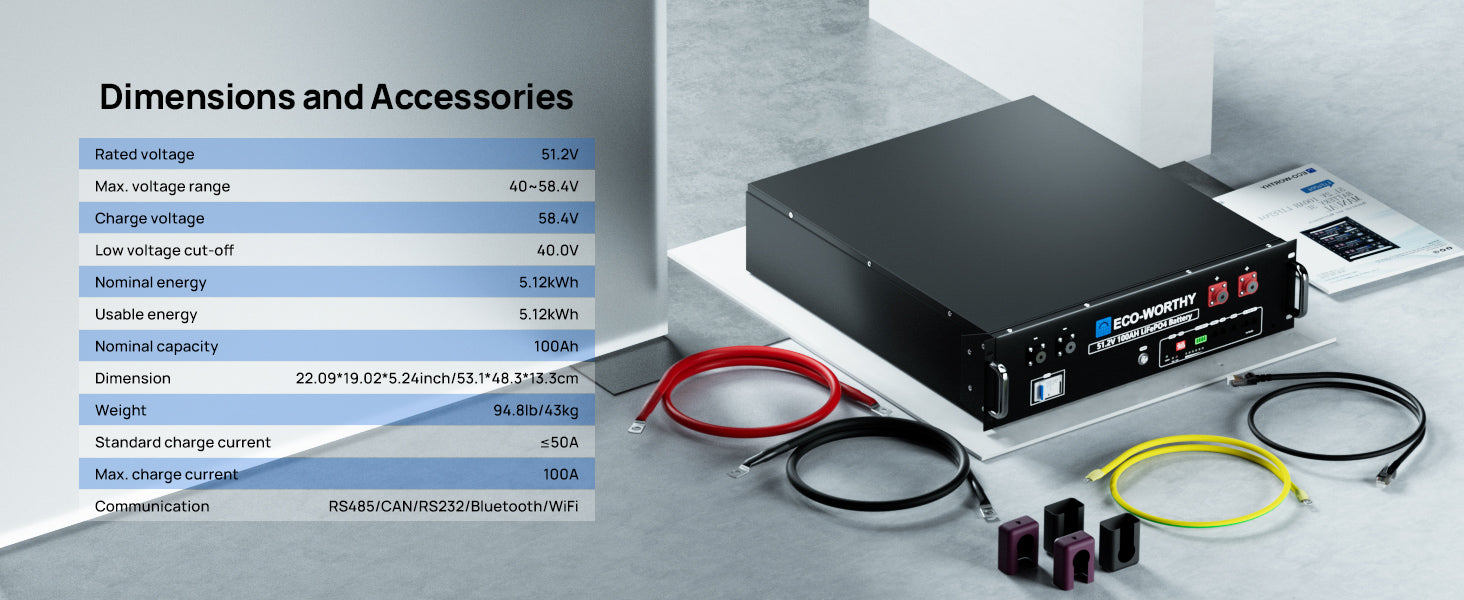

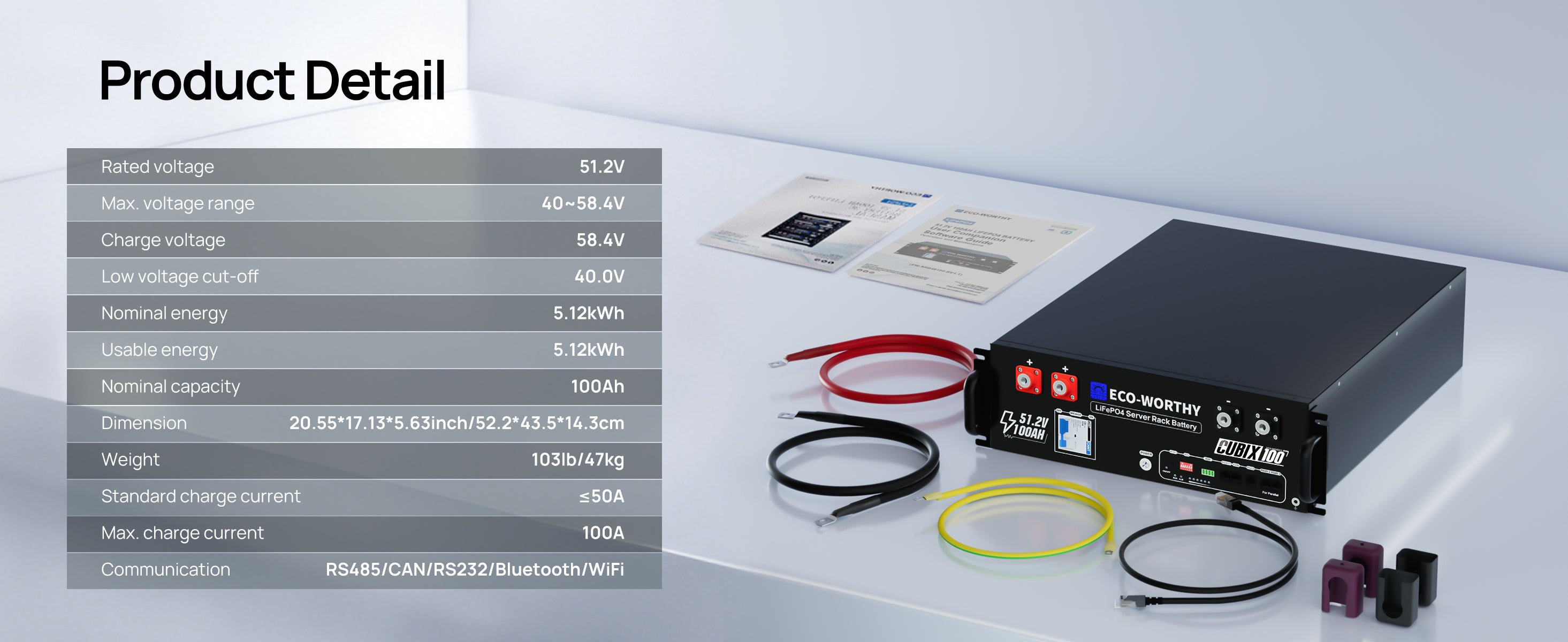

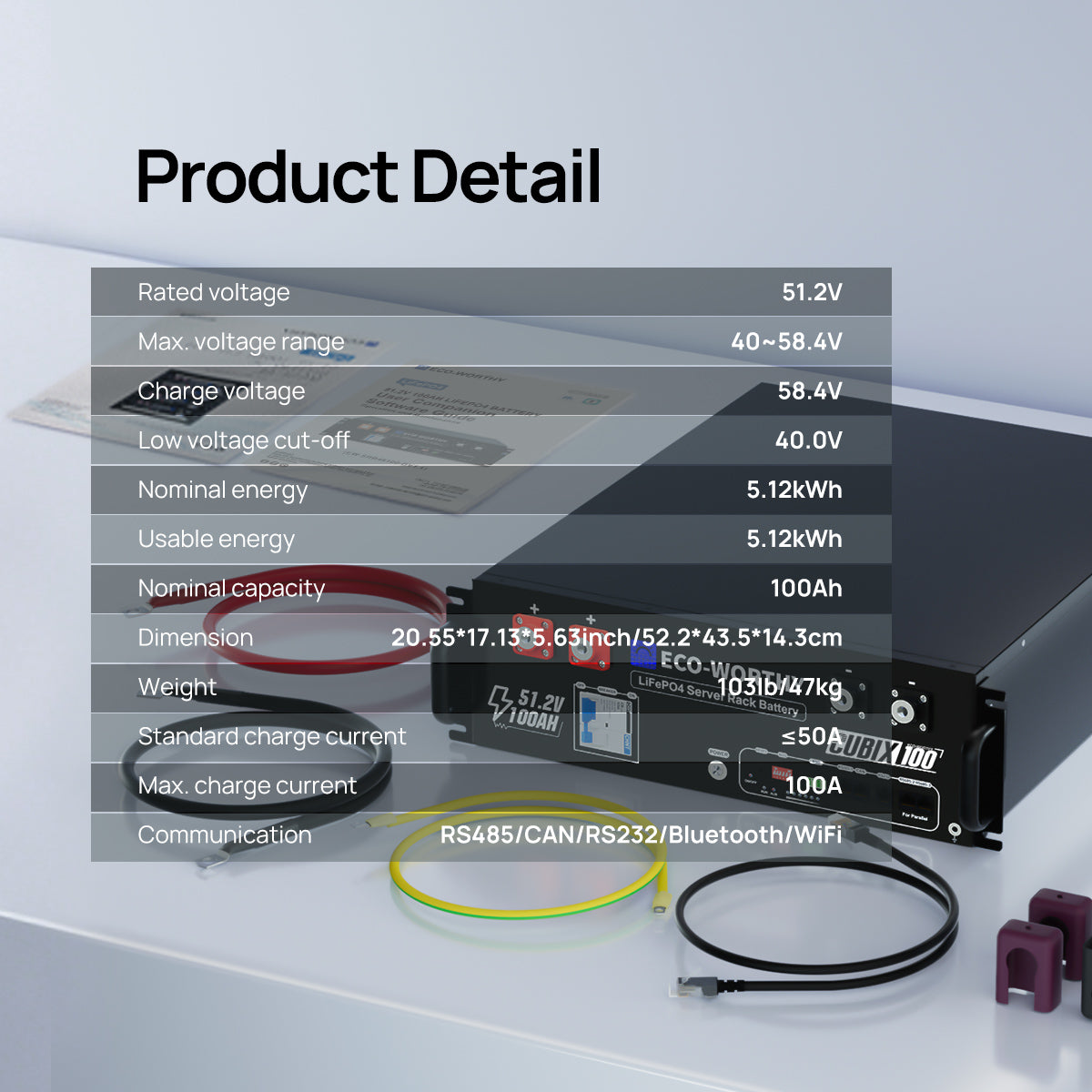

48V 100Ah Server Rack Battery

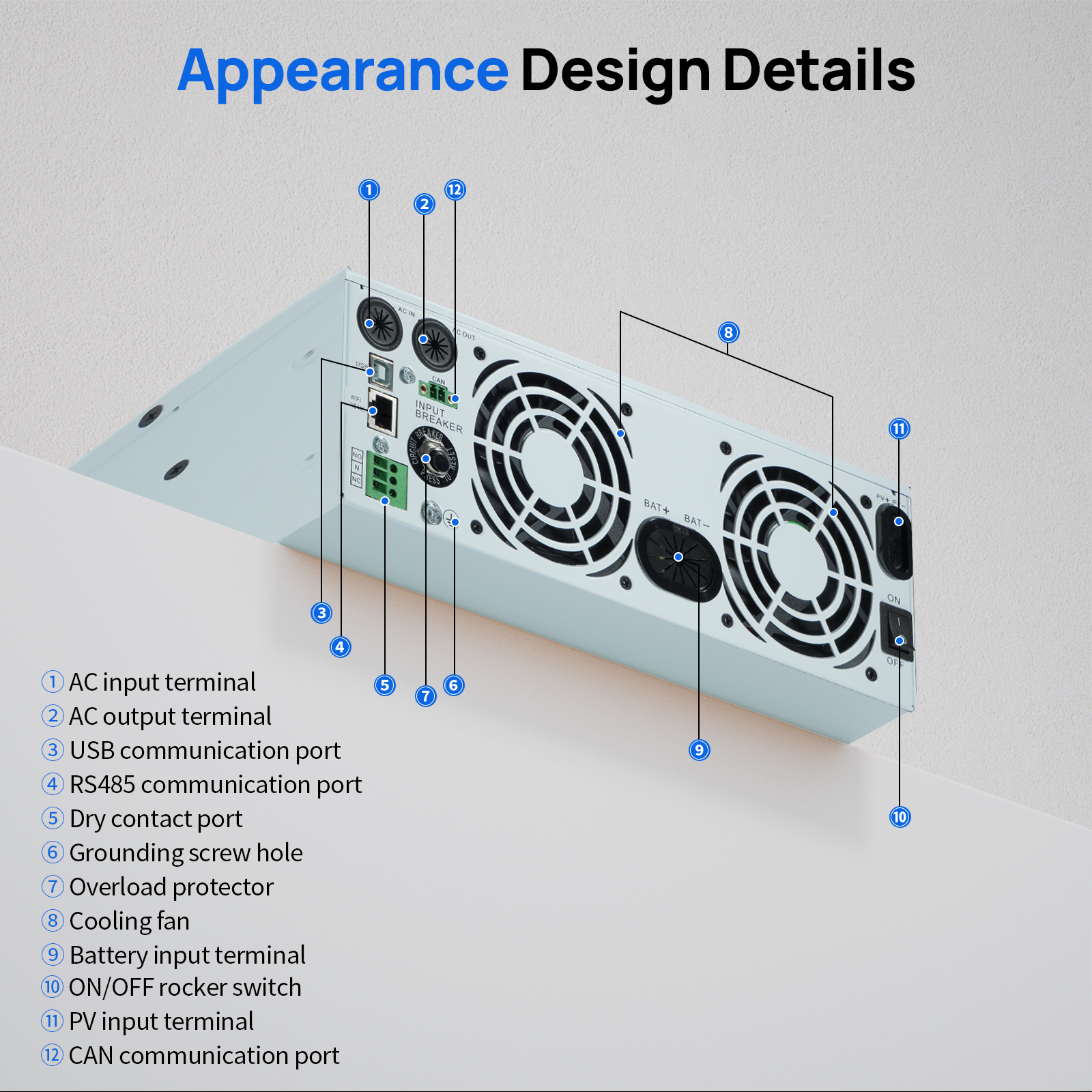

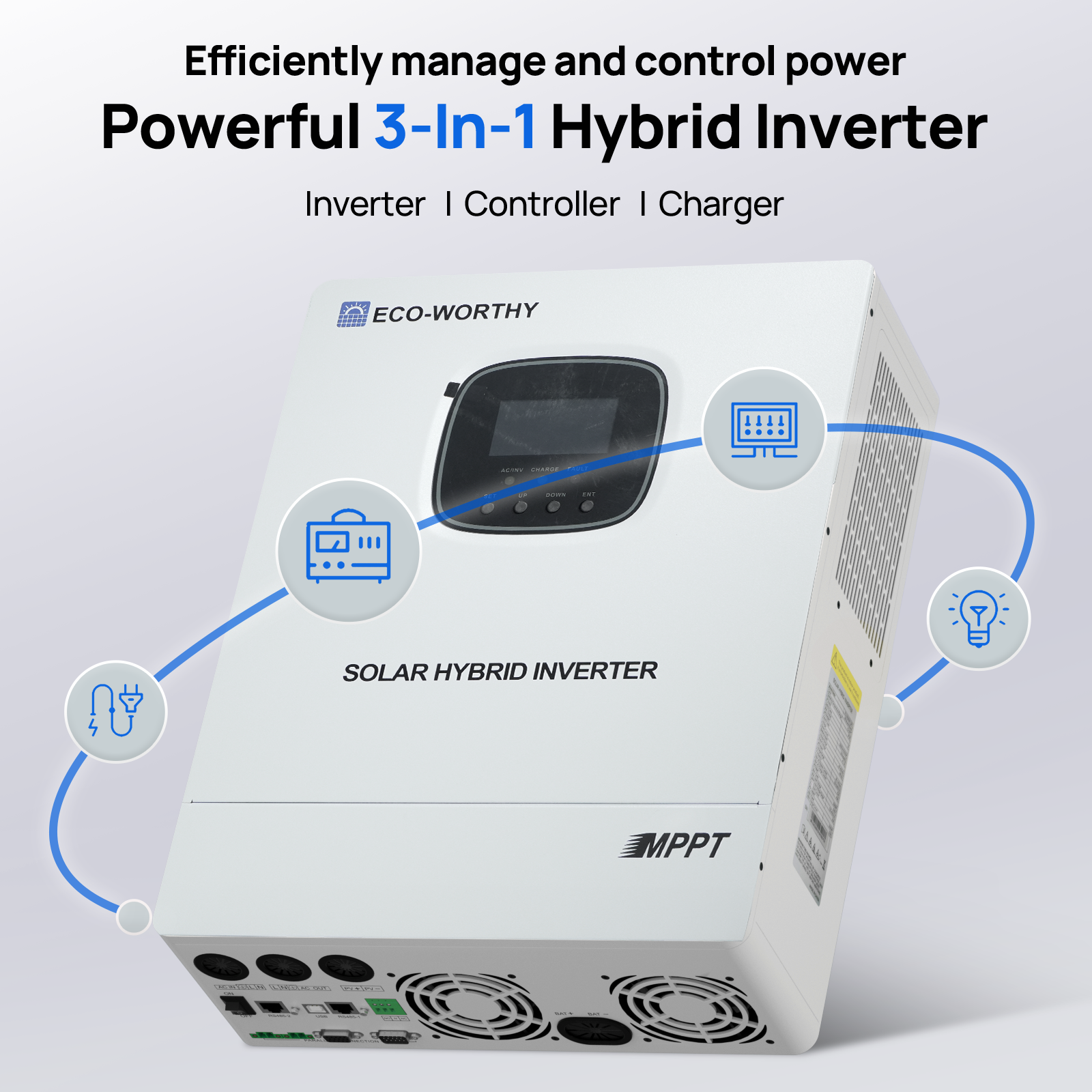

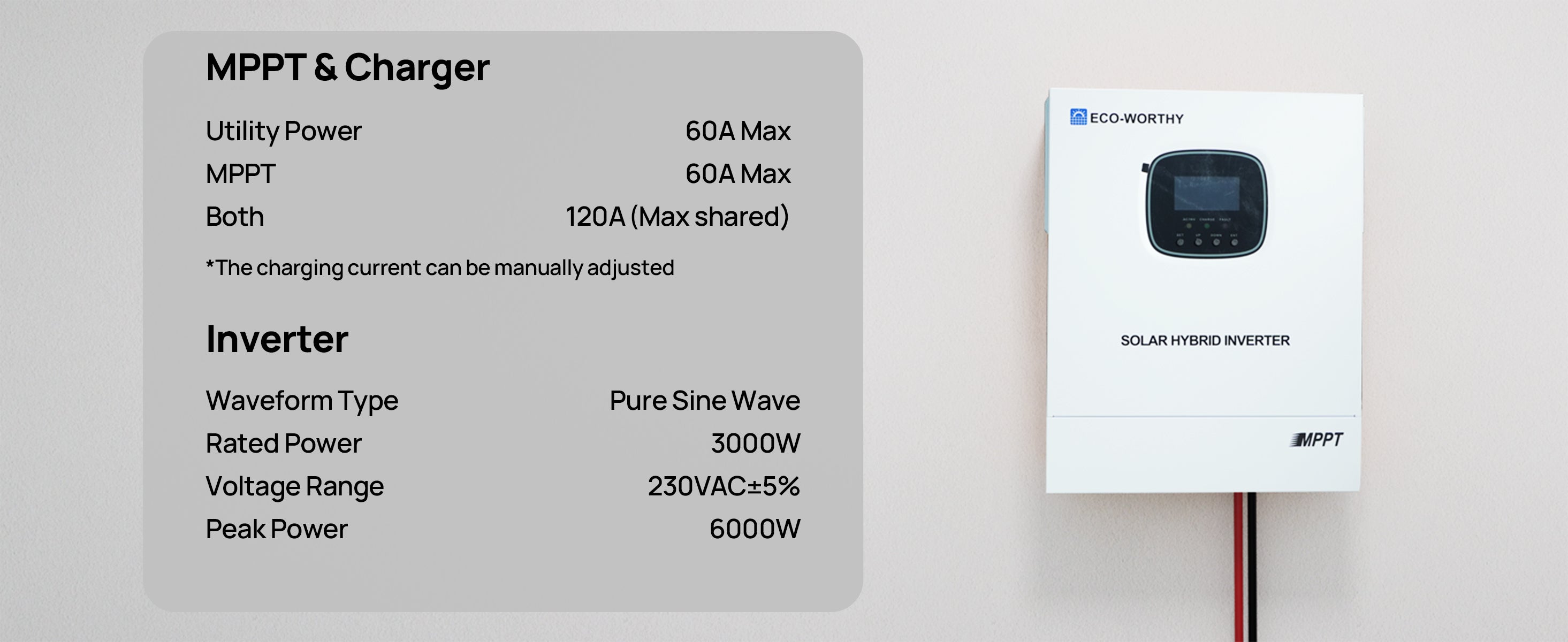

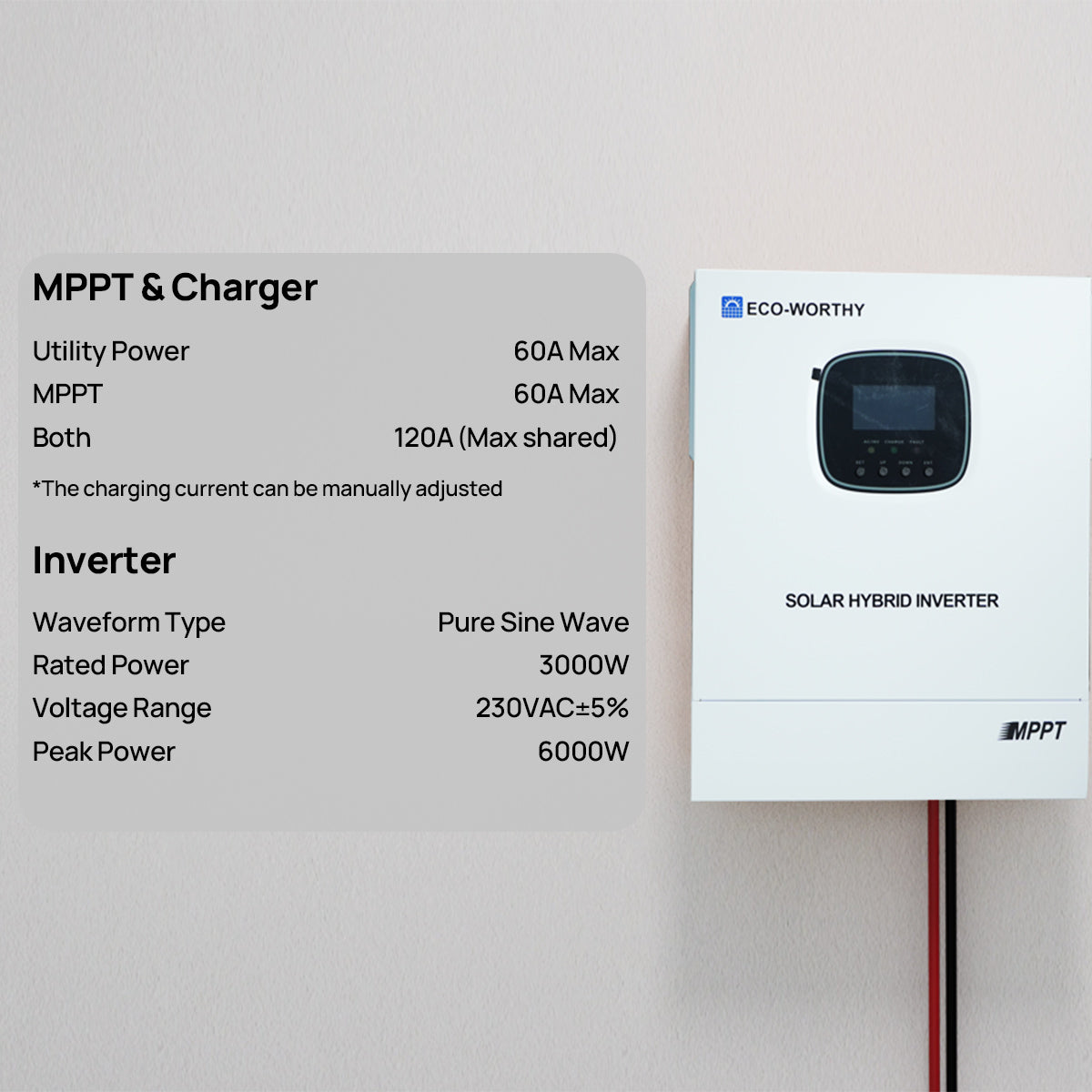

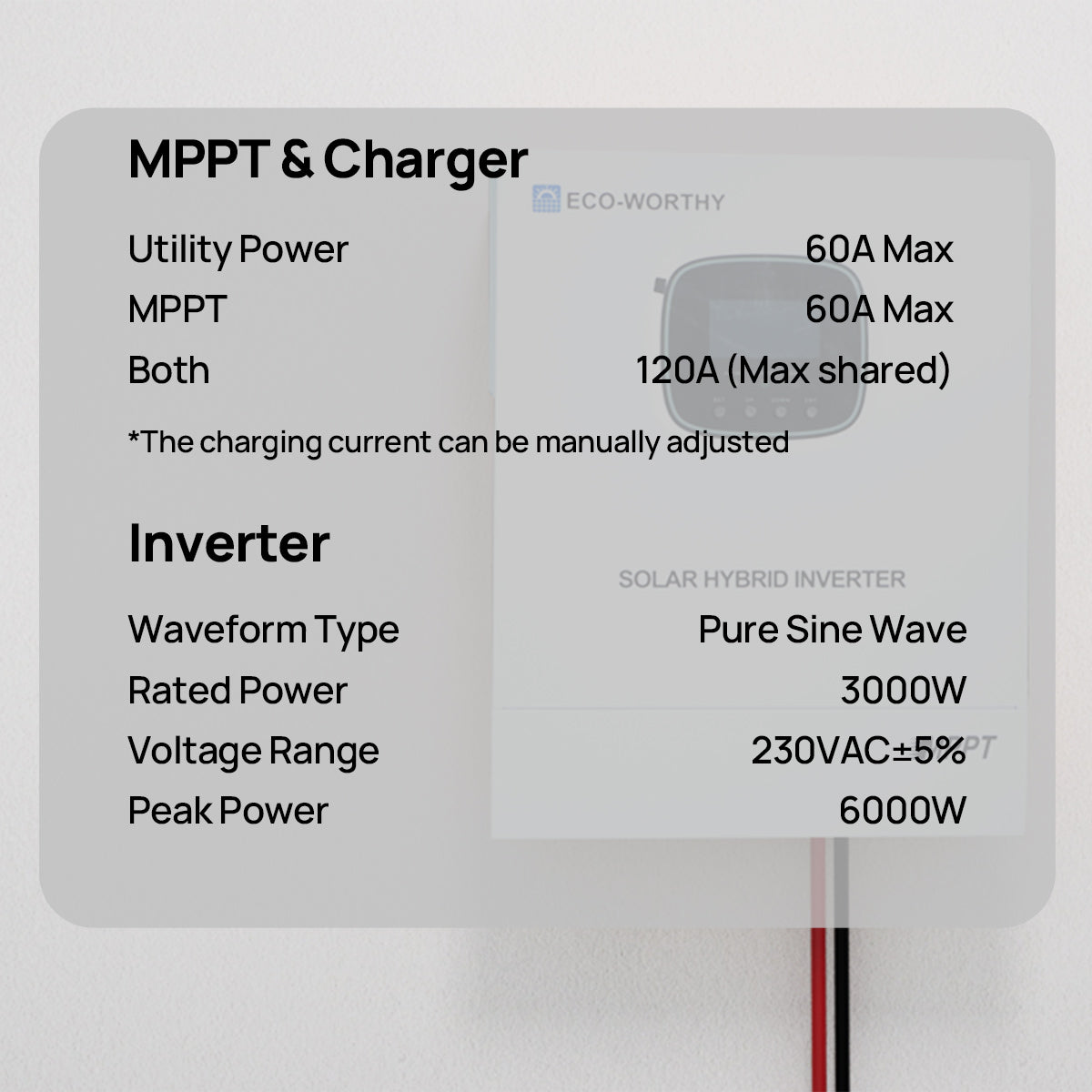

3000W 48V Pure Sine Wave Power Inverter

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/ Discharge Current

100A

Charge Temperature Range

0-55℃

Disharge Temperature Range

﹣20－55℃

Maximum Charge Voltage

58.4V

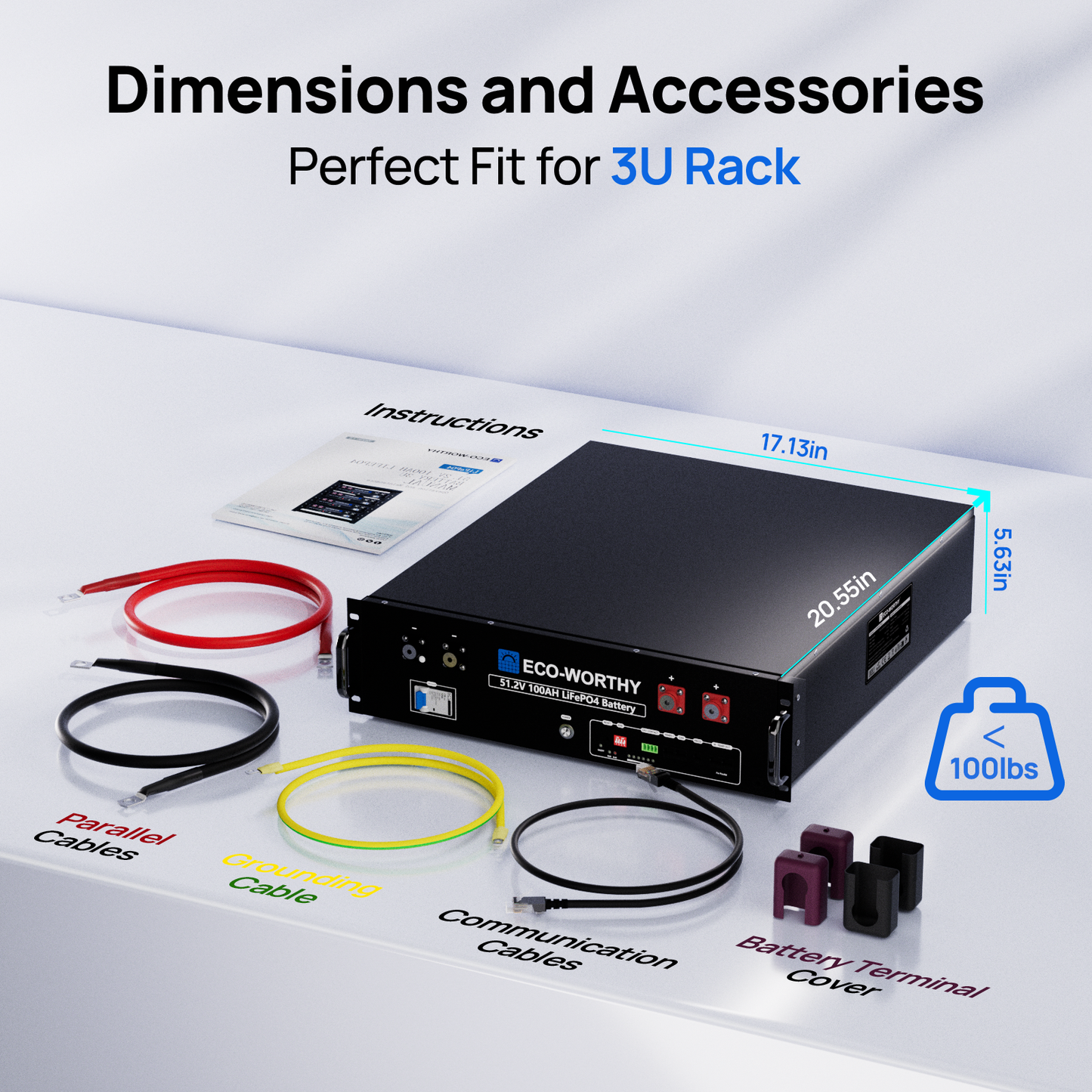

Screw size

Battery Size

22.55*17.13*5.63inch

Battery Weight

95 lbs

Cables

Each battery comes with a pair of battery parallel cables

Certification

IEC62619 | CEC

Models:

ECO3000W(SR)

AC Rated input voltage:

220/230Vac

AC Frequency:

50Hz/ 60Hz (Auto detection)

AC Overload/short circuit protection:

10ms (typical)

AC Maximum Efficiency:

Available

AC Maximum bypass overload current:

30A

Output voltage waveform:

Pure sine wave

Rated output power (W):

3300w

Rated output voltage (Vac):

230Vac

Output voltage error:

±5%5

Output frequency range (Hz):

0Hz ± 0.3Hz / 60Hz ± 0.3Hz

Efficiency:

＞92%

Size (L*W*D):

378mm*280mm*103mm

Weight (kg):

6.2kg

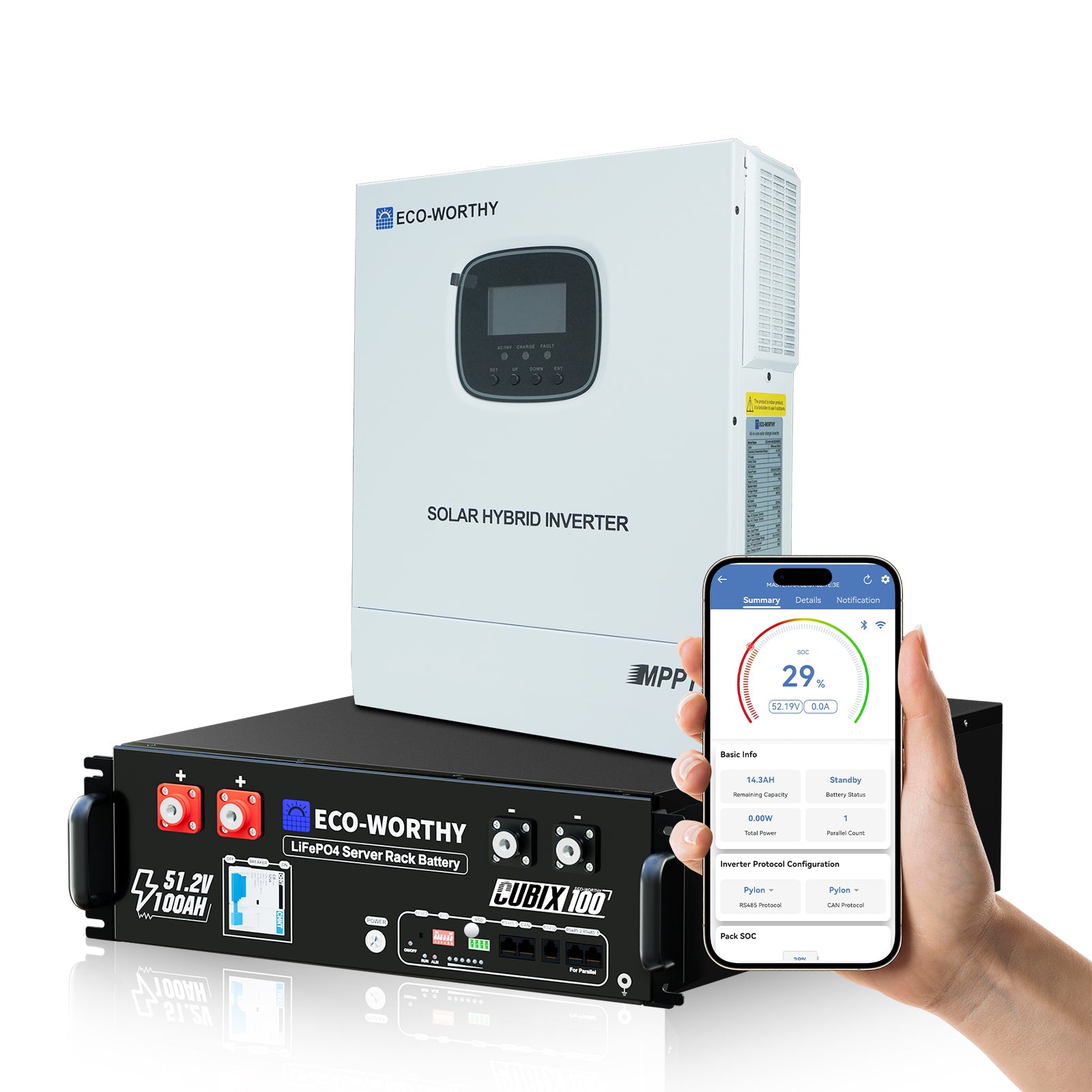

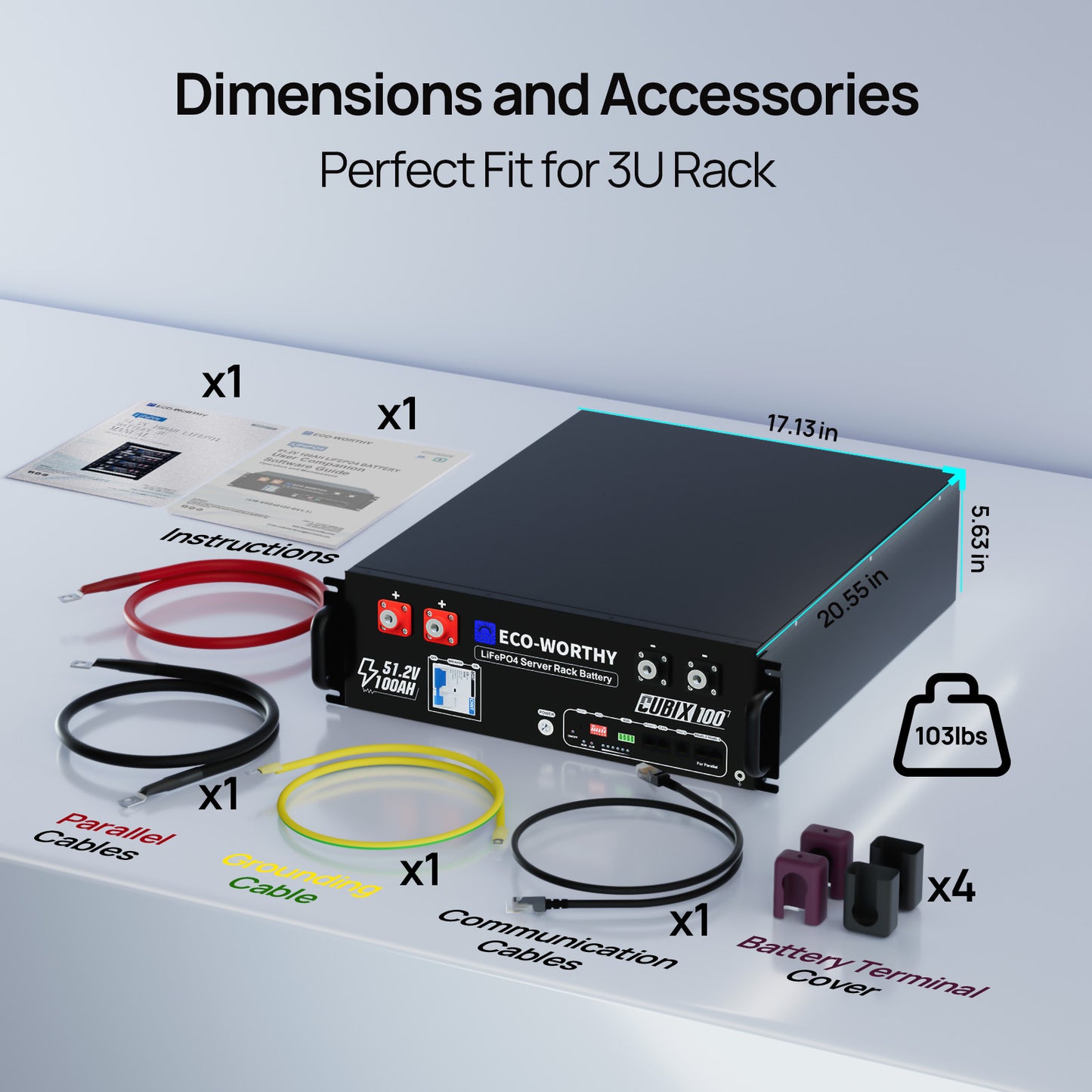

Included in the Box

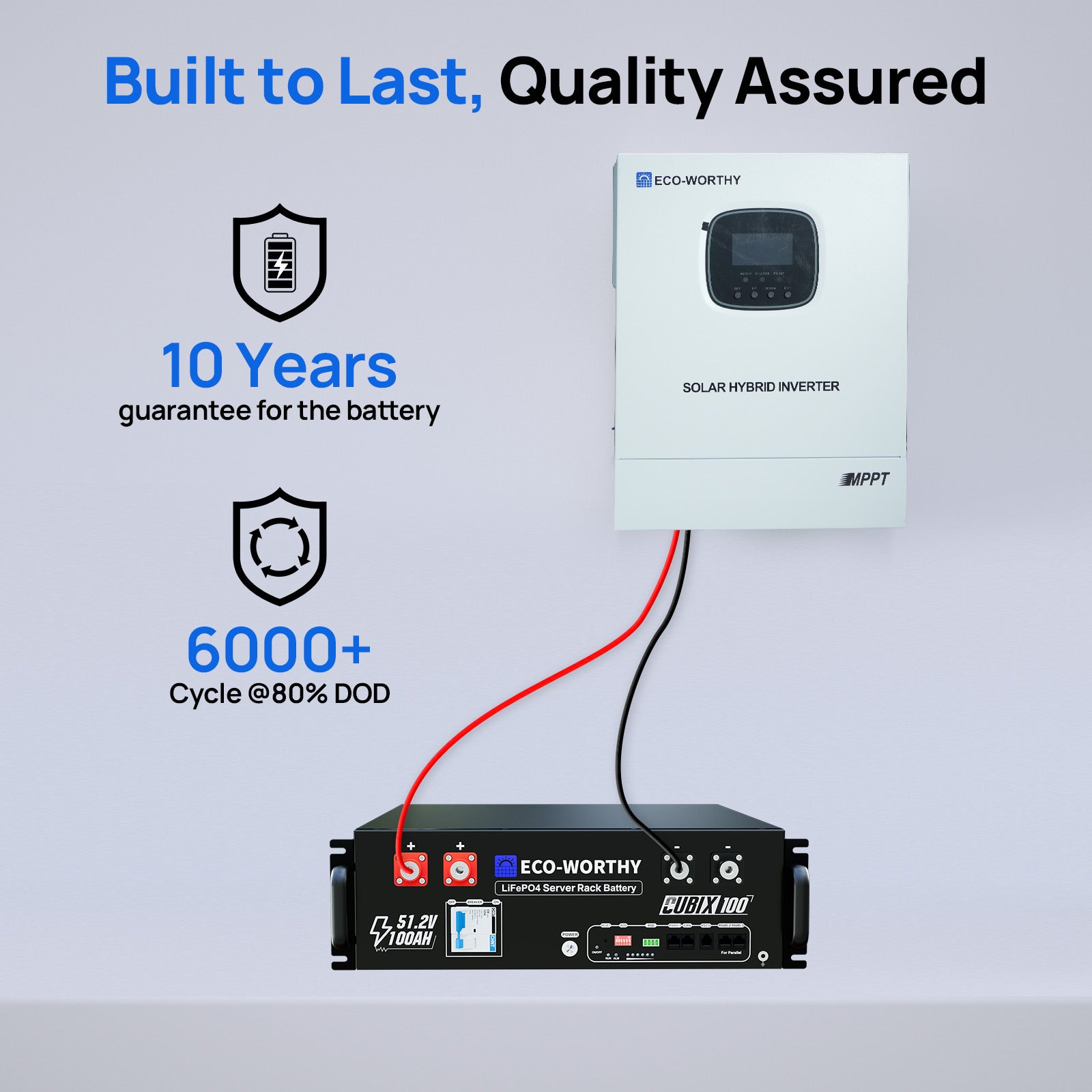

1X48V 100Ah server rack battery
1X3000W 48V All in One Off Grid Inverter
Accessories

User manual

Eco-Worthy 48V 3000W All in one Inverter - User Manual

Download

Eco-Worthy 48V 100Ah Server Rack Lithium Battery (cubix 100)- User Manual

Download

Eco-Worthy Cubix 100 Firmware.13.5.1-260225 (V3 compatible)

Download

Eco-Worthy Cubix 100 Software Manual Online-2026.3.17

Download

Eco-Worthyy_51.2V_100AH_9540A_VOC

Download

Eco-Worthy 48v 100ah BMS_Tool&Drive_for_Windows

Download

Eco-Worthy 48V(51.2V) 100Ah Server Rack Lithium Battery - IEC 62619

Download

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
