1. ELECTRICAL TEST: 100% OPEN, SHORT & MISWIRE TEST.
2. CONDUCTOR RESISTANCE: 20hm, INSULATOR RESISTANCE: 10M ohm.
3. HIGH VOLTAGE: DC 300V 0.01sec.
4. MUST BE ROHS COMPLIANT
SKU: L03SWJTXXRS232-1
Code:
Copy CodeCouldn't load pickup availability

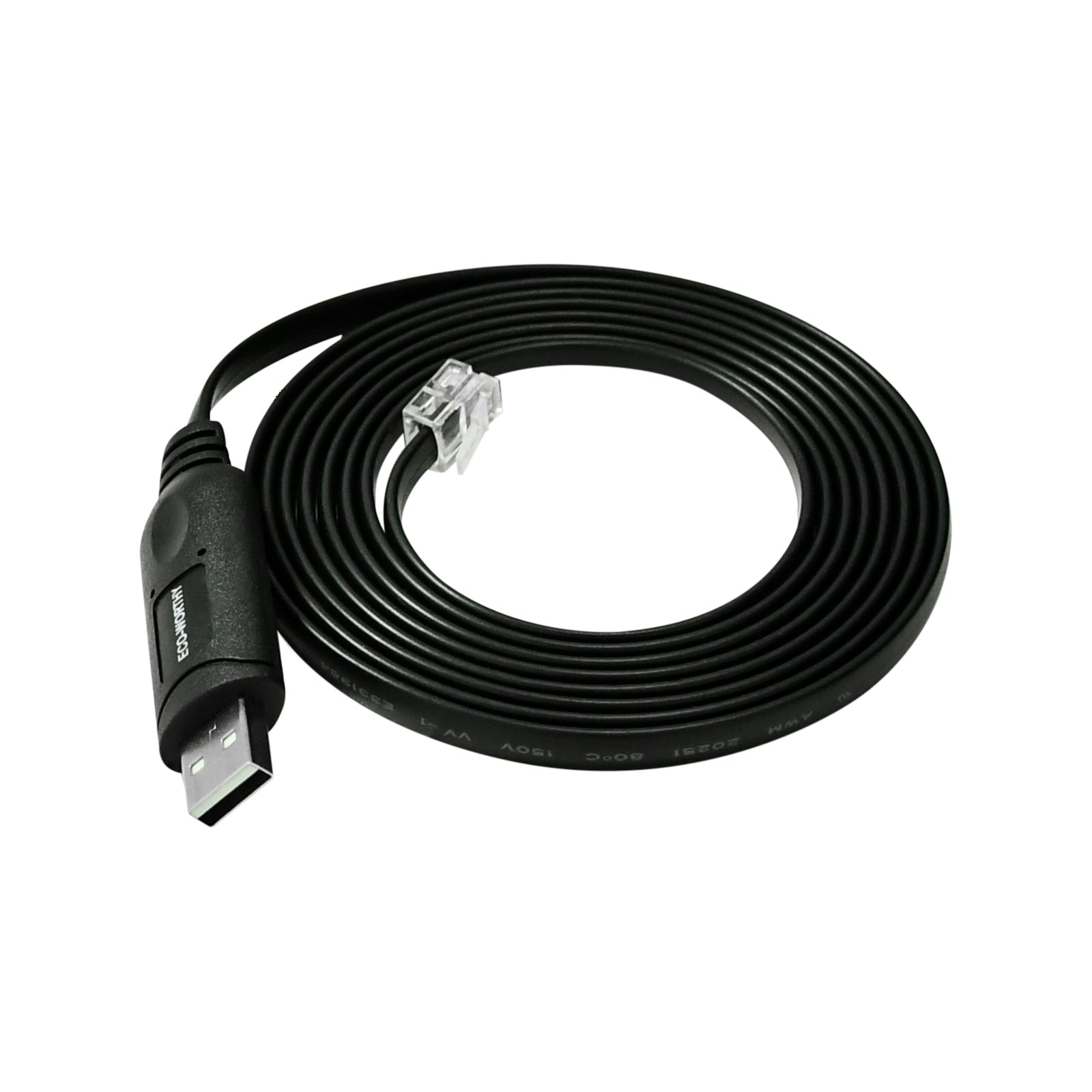

RS232 to USB | Item | Specification |
Chip | FTDI-FT232R | |
Cable Spec | UL20251 28AWG (7/0.12BC) 6C, PVC jacket, color: black | |
Outer Diameter | OD = 2.5mm × 7.0mm ± 0.2mm | |
Length | L = 2000mm ± 10mm | |
USB Connector | FTDI-FT232R + SP213 PCB, USB A male connector, plastic color: white | |
RS485 Connector | RJ12 6P6C male |
Port | RS232 | USB | ||
Pin Description | Pin | Description | Pin | Description |
1, 2, 6 | NC | 1 | VCC | |
4 | TXD | 2 | D+ | |
3 | RXD | 3 | D- | |
5 | GND | 4 | GND |

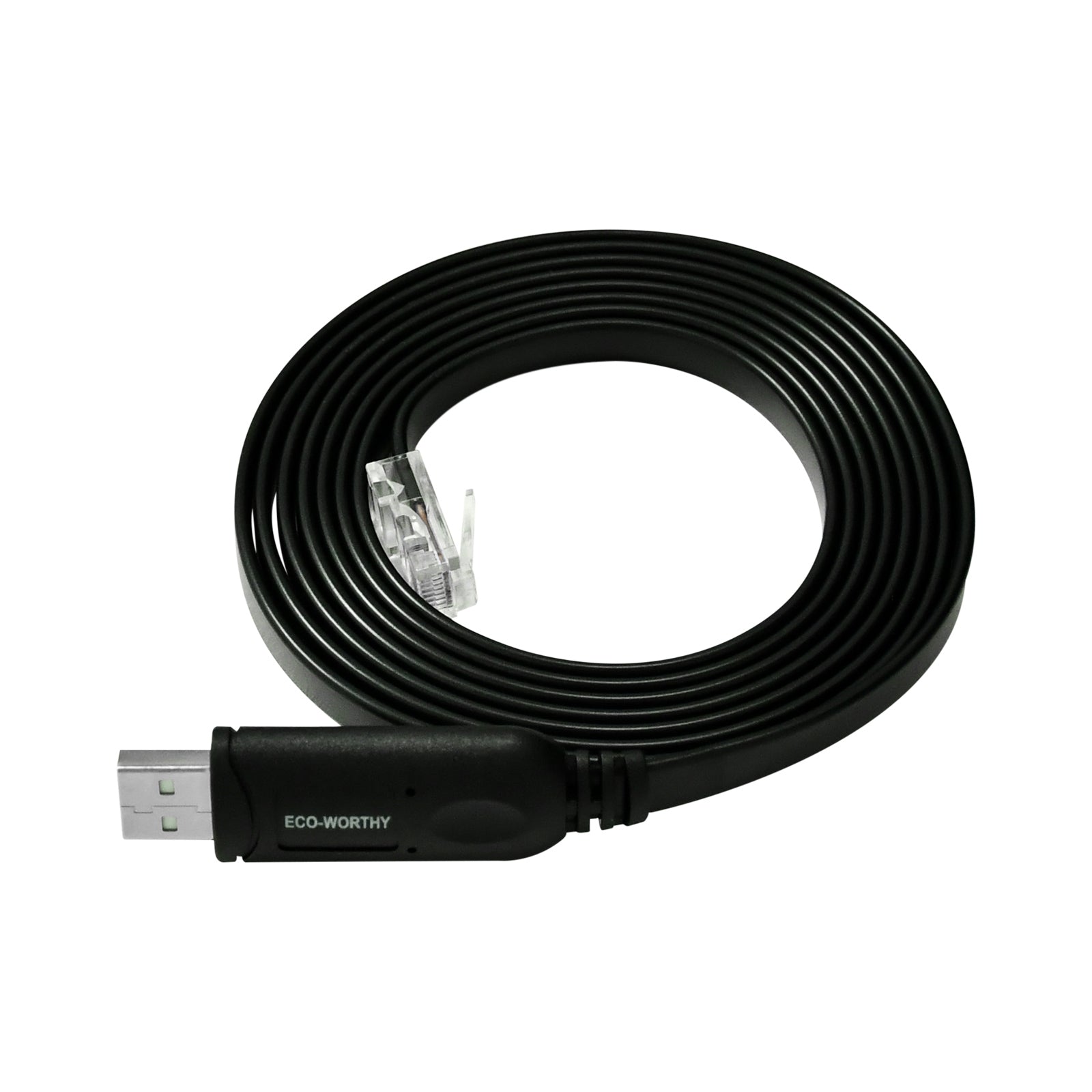

RS485 to USB | Item | Specification |
Chip | FTDI-FT232R | |
Cable Spec | 28AWG (7/0.12BC) 8C, PVC jacket, color: black | |
Outer Diameter | OD = 2.5mm × 8.5mm ± 0.2mm | |
Length | L = 2000mm ± 10mm | |
USB Connector | FTDI-FT232R + SP485 PCB, USB A male connector, plastic color: white | |
RS485 Connector | RJ45 8P8C male |
Port | RS485 | USB | ||
Pin Description | Pin | Description | Pin | Description |
2,7 | A+ | 1 | VCC | |
1,8 | B- | 2 | D+ | |
4,5 | NC | 3 | D- | |
3,6 | GND | 4 | GND |
1. ELECTRICAL TEST: 100% OPEN, SHORT & MISWIRE TEST.
2. CONDUCTOR RESISTANCE: 20hm, INSULATOR RESISTANCE: 10M ohm.
3. HIGH VOLTAGE: DC 300V 0.01sec.
4. MUST BE ROHS COMPLIANT
