ECO-WORTHY 300A Battery Monitor with Hall Sensor for AGM & Lifepo4 Lithium Battery

Name: ECO-WORTHY 300A Battery Monitor with Hall Sensor for AGM & Lifepo4 Lithium Battery
Brand: eco-worthy-uk
SKU: UK-L03BM100V3-1
Price: 49.99 GBP
Availability: InStock

£49.99

£49.99 ~~£89.99~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L03BM100V3-1

[3.5 inch Touch Screen Display]: ECO-WORTHY battery monitor features a 3.5-inch color touch screen with adjustable brightness and backlight. Ultra-low self-consumption of only 0.5mA and programmable auto-sleep mode help reduce power usage while keeping battery data clearly visible.

[Real-Time Battery Monitoring & Alarm]: Monitors voltage, current, capacity, and temperature in real time. Built-in buzzer alarm alerts when values are too high or too low. Supports custom battery parameters and stores data even after power loss.

[Accurate Battery Status Display]: After setting battery parameters and fully charging the battery, the monitor shows accurate capacity and status information. Helps you clearly understand battery performance and remaining power during daily use.

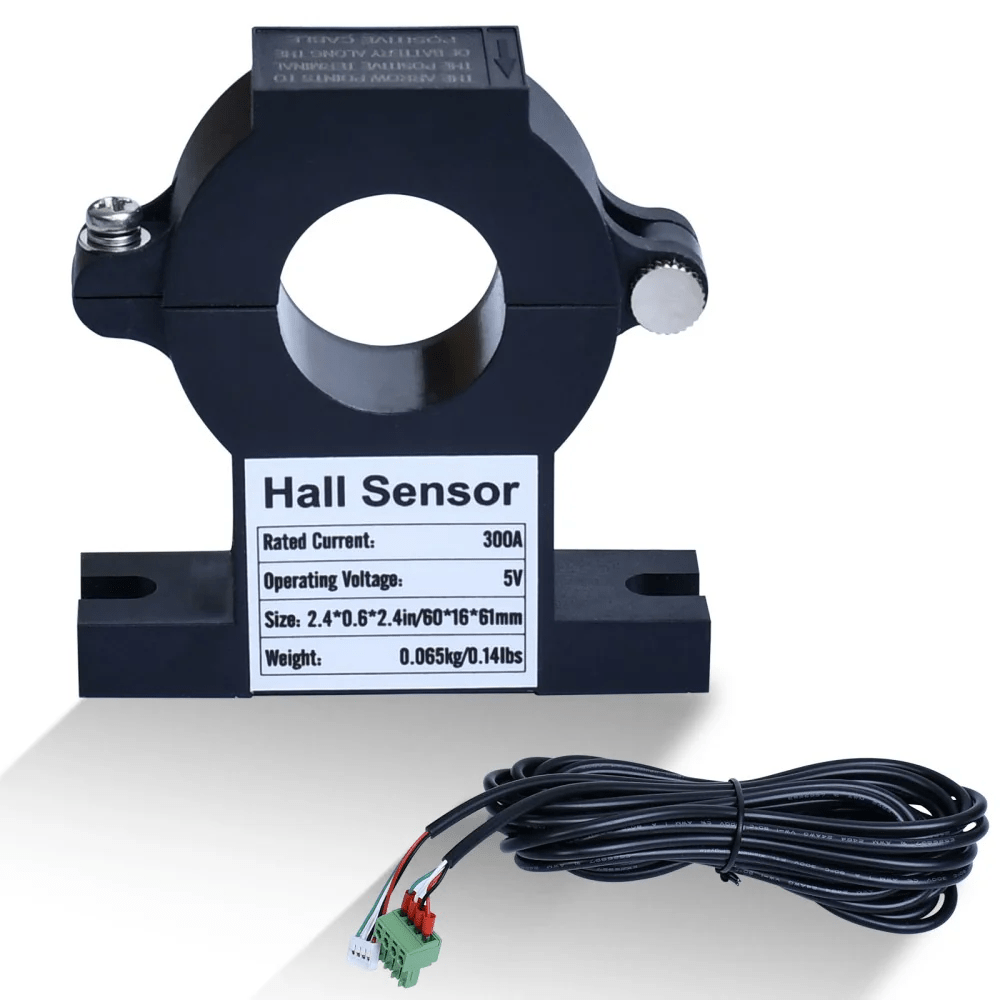

[Hall Sensor Easy Installation]: Uses Hall sensor detection instead of traditional shunt, making wiring easier and safer. No screws required, simply pass the cable through the sensor for quick installation, ideal for RV, solar, and DIY battery systems.

[300A Monitor & Wide Compatibility]: Supports up to 300A and can connect two Hall sensors to track charge and discharge separately. Works with 9-80V systems and multiple battery types including Lead-acid and LiFePO4, perfect for RV, golf cart, and solar storage.

Style 300A Battery Monitor with Hall Sensor

Quantity

Total price

£49.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £12.49 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£49.99 £89.99

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

with 3.5 Inch Touch Screen and Hall Sensor

Eco-Wortthy 300A Battery Monitor with Hall Sensor is an excellent addition to any solar system and will eliminate the guesswork from battery usage. This unit is able to monitor the amperage flowing out of the battery bank and will give an accurate state of charge reading on the LCD screen. Improve the overall performance and longevity of your battery bank. Compatible with various battery types, suitable for 9-80V 300A battery banks.

Technical Specifications

300A Battery Monitor

Test Voltage Range:

9-80V

Test Current Range:

0-300A

Operating Power:

＜2W

Standby Dissipation:

＜1W

Accuracy:

＜±1％

Screen Size:

3.5 inch

Hall Sensor Size:

60*23.7*61mm (L*W*H)

Monitor Size(L*W*H):

120*23*81mm （4.7*0.9*3.2 inch）

Included in the Box

1x300A Battery Monitor
Hall Sensor
Accessories

Only Hall Sensor Accessory

User manual

Eco-Worthy 300A 3.5" Touchable Display Battery Monitor with Hall Sensor - User Manual

Download

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
