ECO-WORTHY 480W 12V (4x Bifacial 120W) Complete MPPT Off Grid Solar Panel Kit for Campervans

Name: ECO-WORTHY 480W 12V (4x Bifacial 120W) Complete MPPT Off Grid Solar Panel Kit for Campervans
Brand: eco-worthy-uk
SKU: UK-L02M120TM-MCWMZIUK1000L100-4A
Price: 1149.99 GBP
Availability: InStock

£1,149.99

£1,149.99 ~~£1,499.98~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:UK-L02M120TM-MCWMZIUK1000L100-4A

[Output Power 2kWh per day]: The 480W solar power system maximum generates 2kWh per day under 4 hours full sunshine, ideal for home, shed,cabin,RV or energy backpack and provide enough power for air condition, TV, refrigerator, coffee maker,microwave and other AC 220V devices

[High Capacity Lithium Battery Pack]: Equipped with 1280Wh of 100Ah lithium battery,which have higher discharging efficiency and more than 4000 times deep cycles than lead acid batteries. Besides built-in BMS(battery management system), the updated 40A MPPTsolar charge controller can also prevent the lithium battery from getting damaged and provide double protection

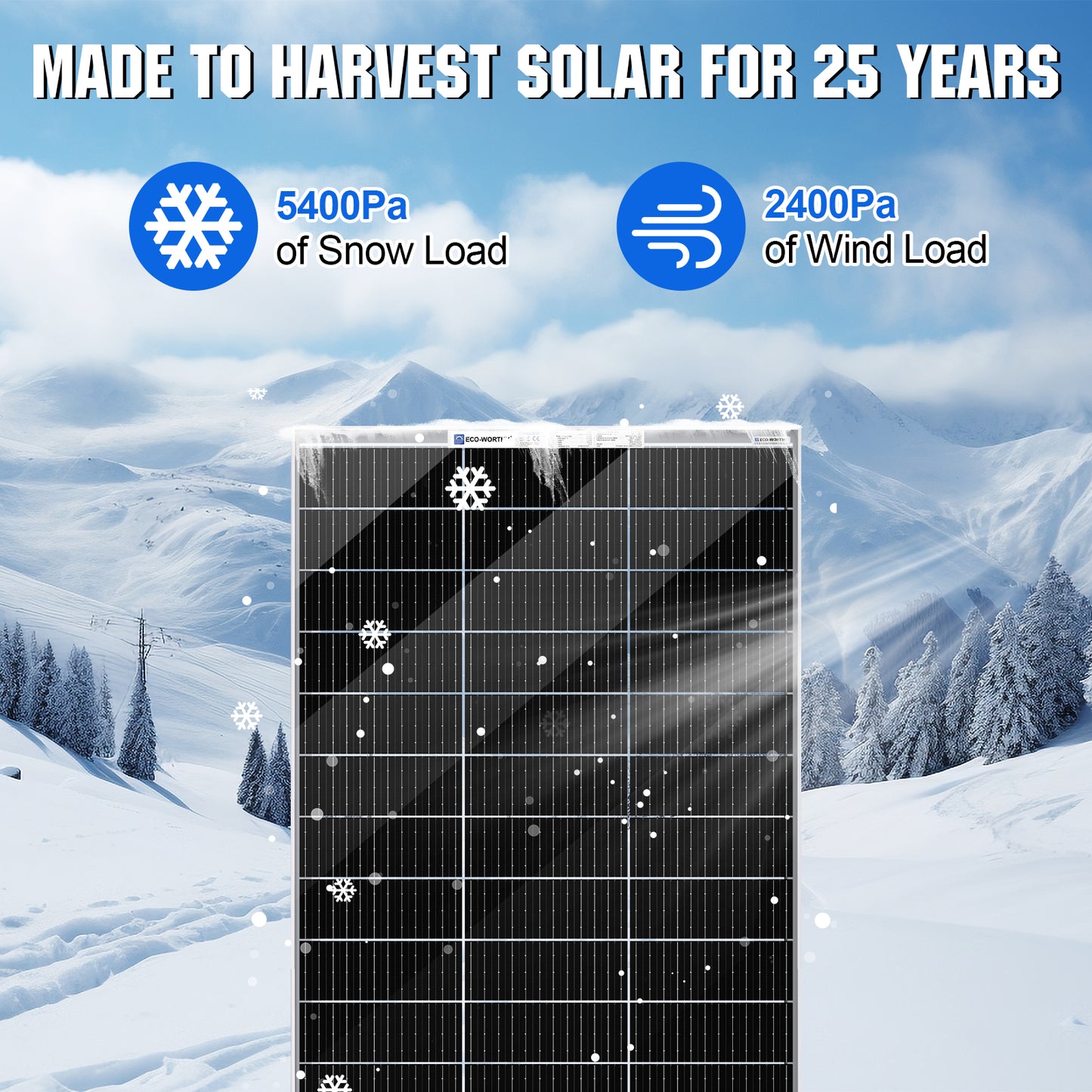

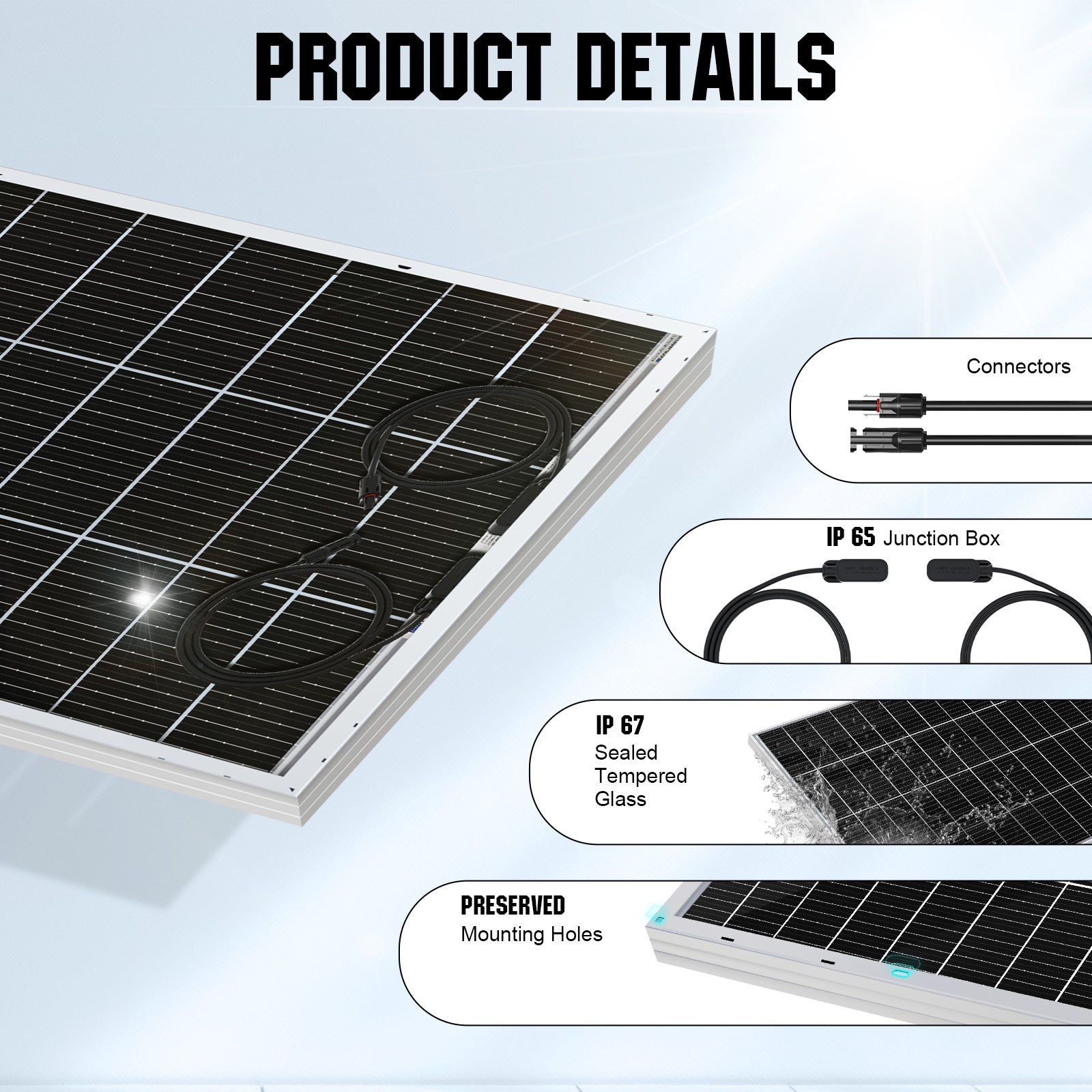

[Bifacial Solar Panels]: 120W Bifacial solar panels are designed with a transparent back of 12BB solar cells, the back panel uses composite materials, the light transmittance up to 91.5%, the conversion rate of 23%, the power generation is 552Wh per day under ideal conditions, compared to traditional solar panels, energy surge up to 15%

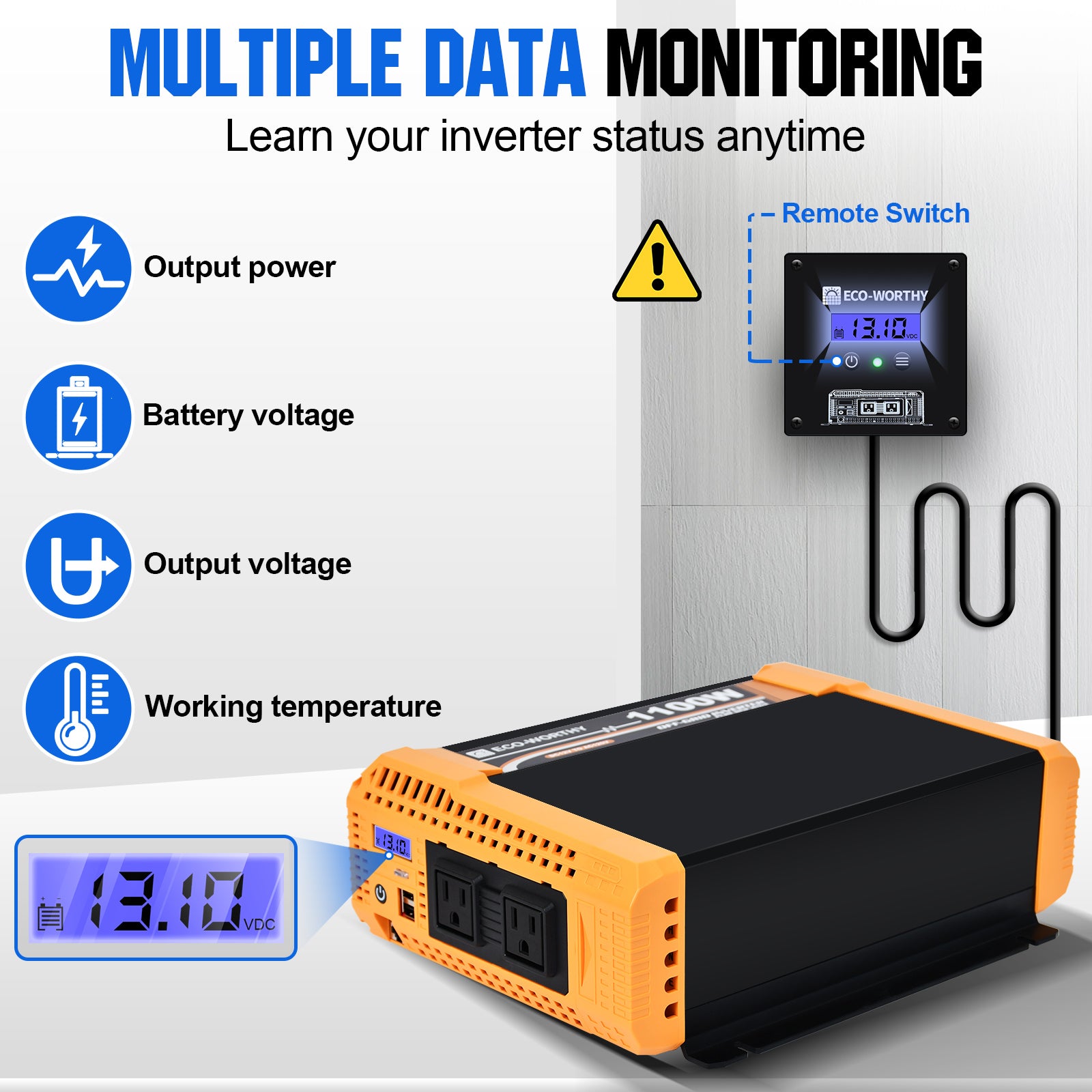

[1100W 12V Pure Sine Wave Inverter]: 2200W peak power can fulfill the need of high power applicances when started.With the inverter, DC 12V can be transformed into AC 230V and prevents from overload,overcurrent etc

[Package Included]: The ready-to-use solar system includes 4pcs 120W slar panel, 1pc 40A MPPT solar charge controller, 1pc 1100W 12V solar inverter,1pc 100Ah lithium battery as well as accessories needed

Over £499 Get £50 OFF, Over £999 Get £100 OFF at checkout

Inverter & Battery Bank Options Inverter & 3.58kWh Lithium Battery Bank None

Quantity

Total price

£1,149.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £287.49 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£549.99 £658.81

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

480W 12V Complete MPPT Off Grid Solar Kit

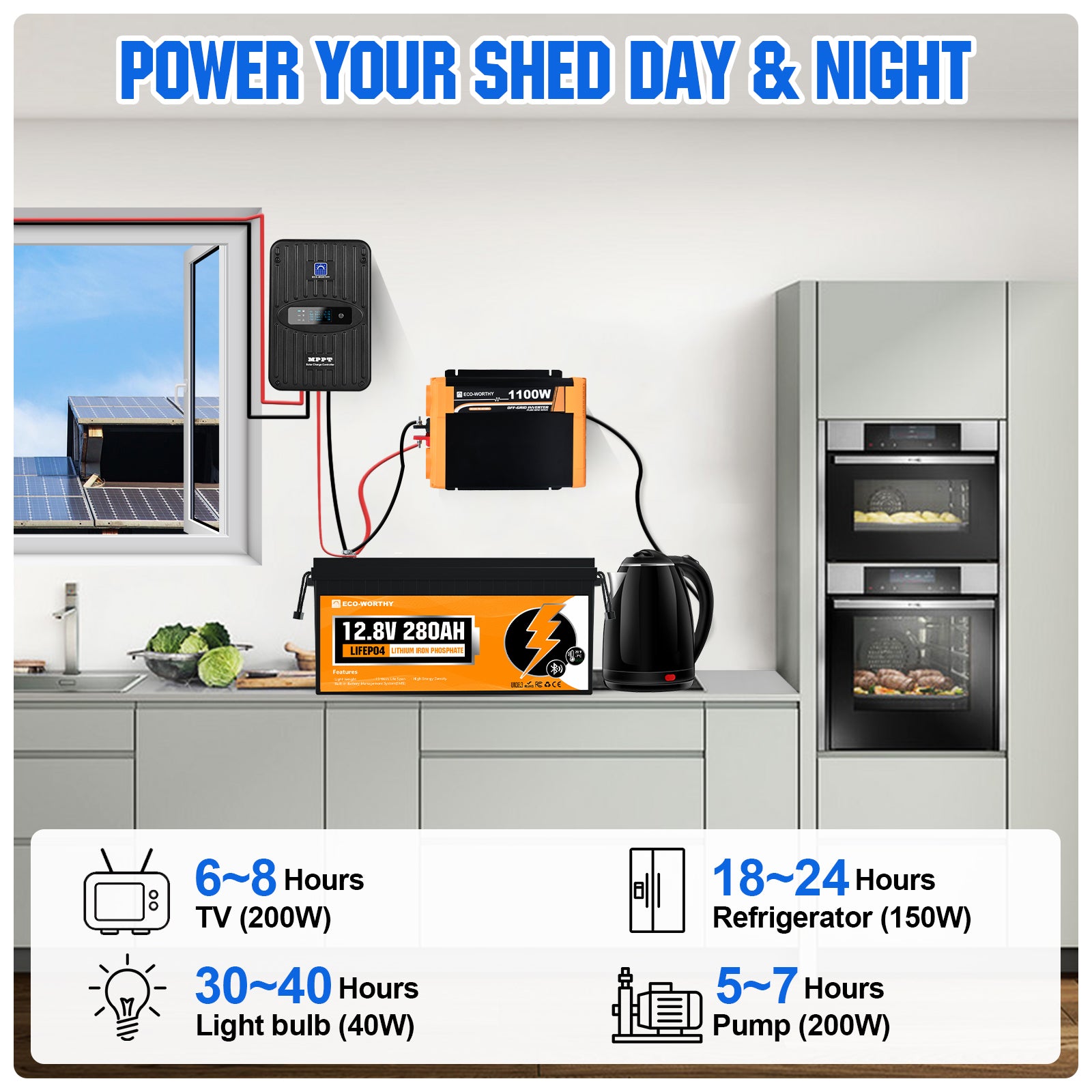

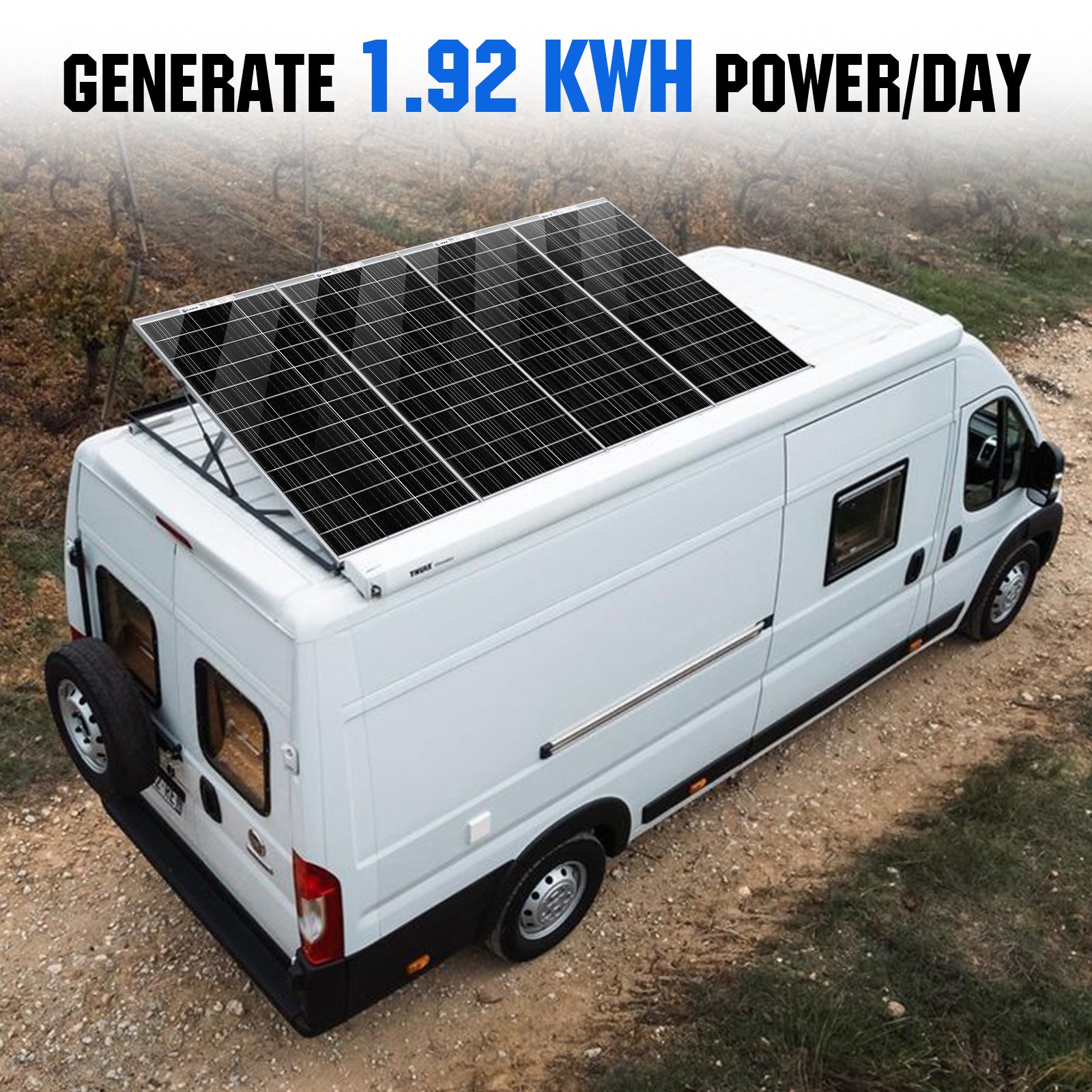

Eco-Worthy 480W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 1.92kWh per day. It can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small efficient refrigerator, stereo, computer, lights and TV. This size system needs conscious conservation of energy, but if you time your activities for daylight, you can also use a washing machine or even power tools.

Technical Specifications

12V 280Ah LiFePO4 Lithium Battery

1100W Off Grid Pure Sine Wave Inverter

Bifacial 195W 12V Monocrystalline Solar Panel

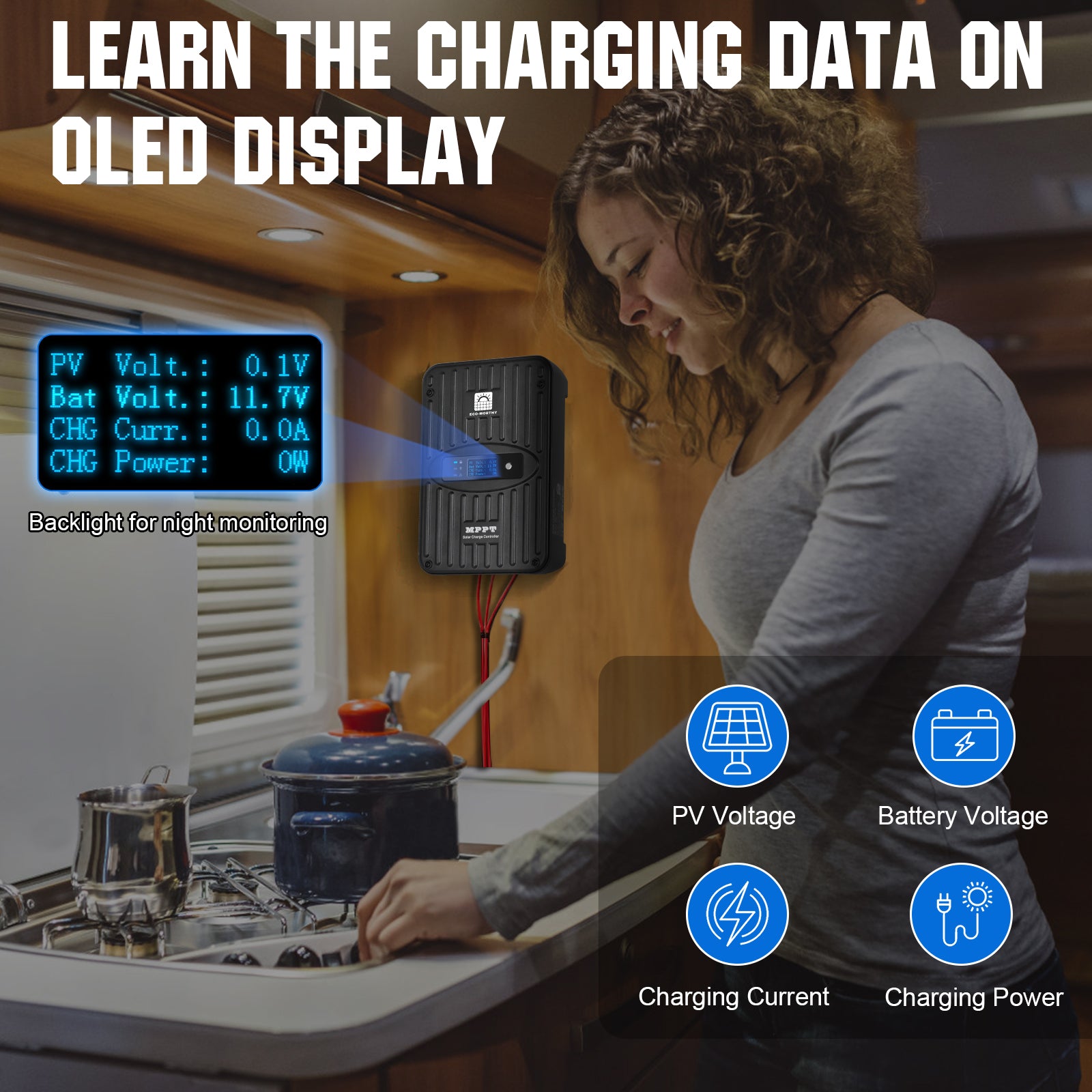

40A MPPT Solar Charge Controller

Y Parallel Branch Connectors MFF

Z Style Solar Panel Mounting Brackets

Rated Voltage:

12.8V

Rated Capacity:

3584Wh

Operation Voltage:

10-14.6V

Charging Voltage:

14.6V

Standard Charge/DischargeCurrent:

140A/140A

Max. Continuous Charging/ Discharging Current:

200A(0.7C)/ 200A(0.7C)

Discharge Peak Current:

220A/10s

Operating Temperature:

32~131°F/0~55℃

Cycle Life:

≥6000 at 50% DoD (depth of discharge)

Size:

453*238*221mm/17.8*9.37*8.7inch

Weight:

28.5kg(62.9lbs)

Recommended Charger:

12v 20A charger

Terminal Specification:

M8*16m

Communication Protocol:

Bluetooth 5.1

Supported Series Parallel Modes

2P、3P、4P、 2S、3S、4S、 2P2S/2P3S、 2P4S、3P2S、 4P2S

Discharge Temperature:

-4~131°F/-20~55℃

Output Continuous Watts(W):

1100W+18W USB

Surge Capacity (PeakPower):

2200W

Rated Input DC (V,A):

12V Battery, 100A

Input Voltage Range:

10.5-16Vdc±0.3V

Rated Frequency (Hz):

50Hz±1

Rated Output AC (V,A):

230Vac±10%, 4.8A

Rated Output USB (V,A):

2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)

No Load Current:

<1A

Optimum Efficiency:

85% min

Fuse (A):

30A*4

FuseType:

Internal Blade

Output Wave Form:

Pure Sine Wave

Touch Temperature:

65℃(149℉)max

Operating Temperature:

-20℃~40℃ (4℉~104℉)

Operating/Storage Humidity RH:Cooling System:

5~95%

Cooling System:

Thermo Fan

THD:

<4.5%

Dimensions (L*W*H):

13.5*9.8*4.1 in

Assembled Weight (kg):

7.67 lbs

External fuse(A):

120A

Rated Power:

195W

Solar Cell:

Monocrystalline Silicon N-Type

Maximum/Peak Voltage(Vmp):

20.2V

Open Circuit Voltage(Voc):

21.2V±3%

Short circuit current:

11.60A±3%

Maximum current:

9.65A

Connector Type:

MC4

Module Efficiency STC[%]

19.60%

Temperate coefficient of Voc:

-(0.38+/-0.01)%/℃

Temperature range:

－40℃～ +80℃

Frame:

Aluminum alloy frame

Weight:

20.2lbs

Size:

58.86x26.18x1.18in

Battery voltage:

12V/24V

Max Solar Input Power:

560/1120W

Charging mode:

MPPT

Rated Load Current:

20A

Charge Efficiency (Peak):

97%

Self-Consumption:

1~2W

Battey Type:

LiFePO4,AGM,Sealed,Gel,Flooded

Size:

220*148*64mm/8.7*5.8*2.5inch

Max Charge current:

40A

Weight:

1.5KG

Max.PV Open-Circuit Voltage:

<100V

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Material:

Aluminum Alloy

Size of Screw and Nut:

Weight:

0.85kg

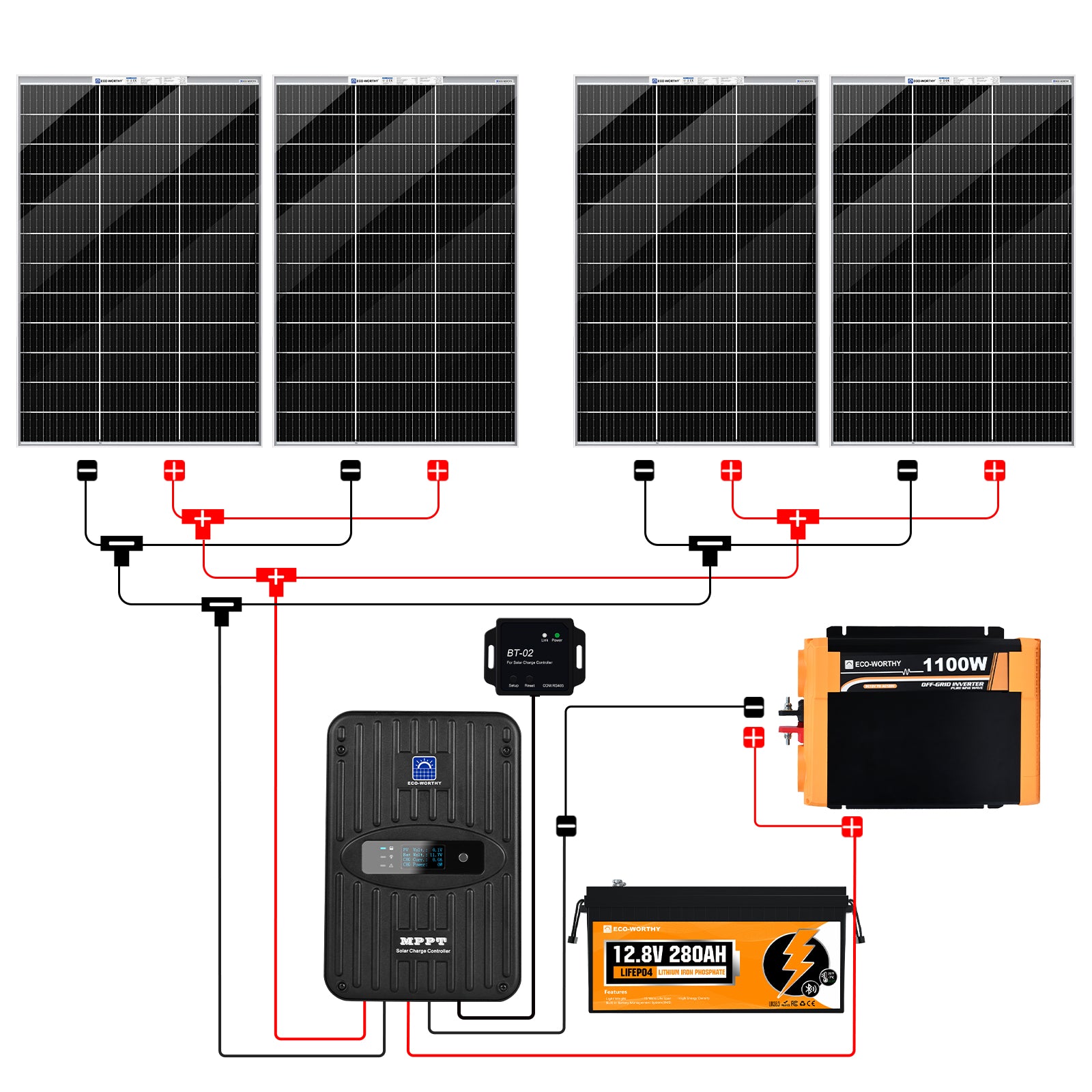

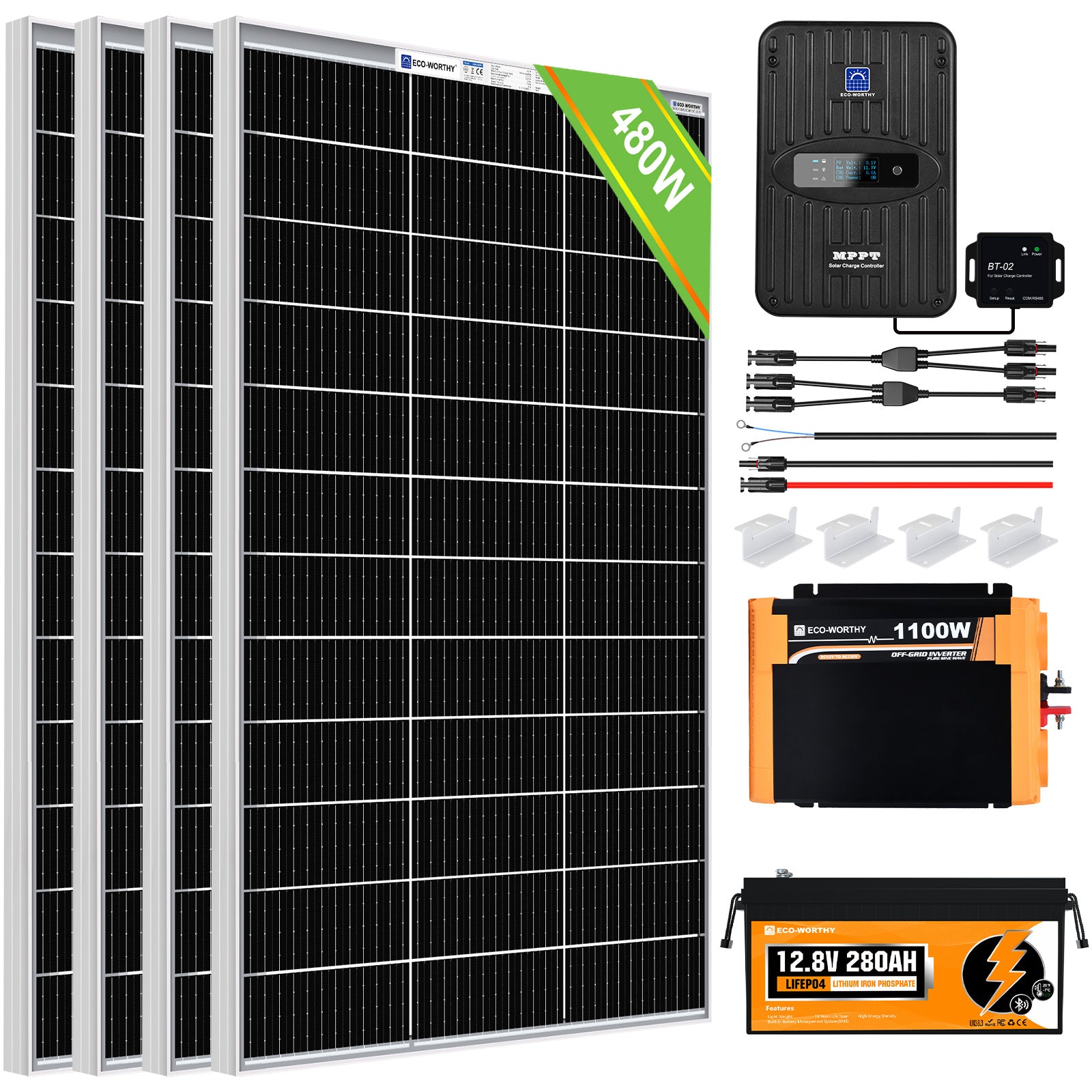

Included in the Box

4x Bifacial 120W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector
1x 1.5M Tray Cable
1x 1100W 12V-220V Pure Sine Wave Inverter
1x 12V 280Ah LiFePO4 Lithium Battery with Bluetooth

4x Bifacial 120W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector

User manual

Eco-Worthy Bluetooth APP - User Manual

Download

Eco-Worthy 12V 280Ah LiFePO4 Lithium Battery with Bluetooth - User Manual

Download

Eco-Worthy Bifacial 120W 12V Monocrystalline Solar Panel - User Manual

Download

Eco-Worthy 1100W Off Grid Pure Sine Wave Inverter 12V to 230V - User Manual

Download

Love this kit , easy to install , works

Second system I've bought , Love this 280ah kit , easy to install , works perfectly , our compressor fridge , lights and phone charging will go indefinitely with the 280ah battery added to the system great move from EW , the last kit with a 100ah strugged abit . We never use a microwave, but a small one would be ok , 1100w inverter kicks out 854w in really. We use a kettle on the gas for the whistle ! Maybe try a larger inverter if you need more 240 power .
A nice addition would be a cap for the solar cables to go though into the van . Its not with the kit , caught me out the first time. Just buy one in ready . Have some spare cable and electrical connects too as you may want to extend.
Overall I will defo be buying again. Thanks ecoworthy 5☆

Second kit

Its the second time I've bought a kit from ecoworthy , the first was excellent but lacked alittle power storage with 100ah battery , this new 280ah battery with this upgraded kit is ideal solves the only problem I had with the last kit .
Excellent , highly recommend.

Great service

Over all the system works , does it charge as good as id like “no” is it satisfactory & doing the job “yes” it could do with better i structions

Great service excellent customer care

Off grid package for my cabin

excellent service, packages arrived within 3 days and all items were well wrapped and protected, straightforward install and up and running in around 6 hours.
well done and many thanks

1 2

Frequently Asked Questions

How do you test lithium battery performance?

When measuring the battery's rated voltage, it is recommended to first disconnect the connection wires between the battery and the load, inverter, and charger to ensure accurate results.

What’s the relationship between lithium battery voltage and SOC?

①During battery use, it is recommended to keep the SOC at 20%~80% to extend the battery life (charge to at least 13.3V) ②If the battery is not used for a long time (more than half a year), at least 50% of the power should be guaranteed, otherwise the battery may be over-discharged and damaged. ③After fully charged, if the battery voltage is greater than or equal to 13.3V after one hour without any connections, it is within the normal range. ④This table is only the test result under ideal conditions. After adjusting to the correct parameters, the voltage drops to 13.26V, which does not prove that the battery capacity is insufficient. The actual capacity needs to test the power of the connected load and the length of use.

How to activate a protected lithium battery?

A:Take 12.8V battery as an example, when the voltage drops to 0~2V, the battery BMS may enter protection state, and the battery needs to be reactivated. Method 1: Use an AC-DC LiFePO4 Lithium charger with activation function, set the charging voltage to 14.6V for charging. After 30~60 minutes, use a multimeter to measure the voltage. If the voltage changes, continue to charge. Method 2: Use a solar panel and controller with activation function. In an environment with good lighting conditions, connect the solar panel, controller, and battery, and set the charging voltage to 14.6V for charging. After 30~60 minutes, remove the battery connection wire, use a multimeter to measure the voltage. If the voltage changes, continue to charge.

Solar Panel Performance Testing Method

Disconnect all wires from the solar panel. Use a multimeter to measure both short-circuit current (Isc) and open-circuit voltage (Voc) under sunny outdoor conditions.Note: Performance may vary due to controller temperature and battery charge level.

What kind of warranty and support do you offer?

We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
