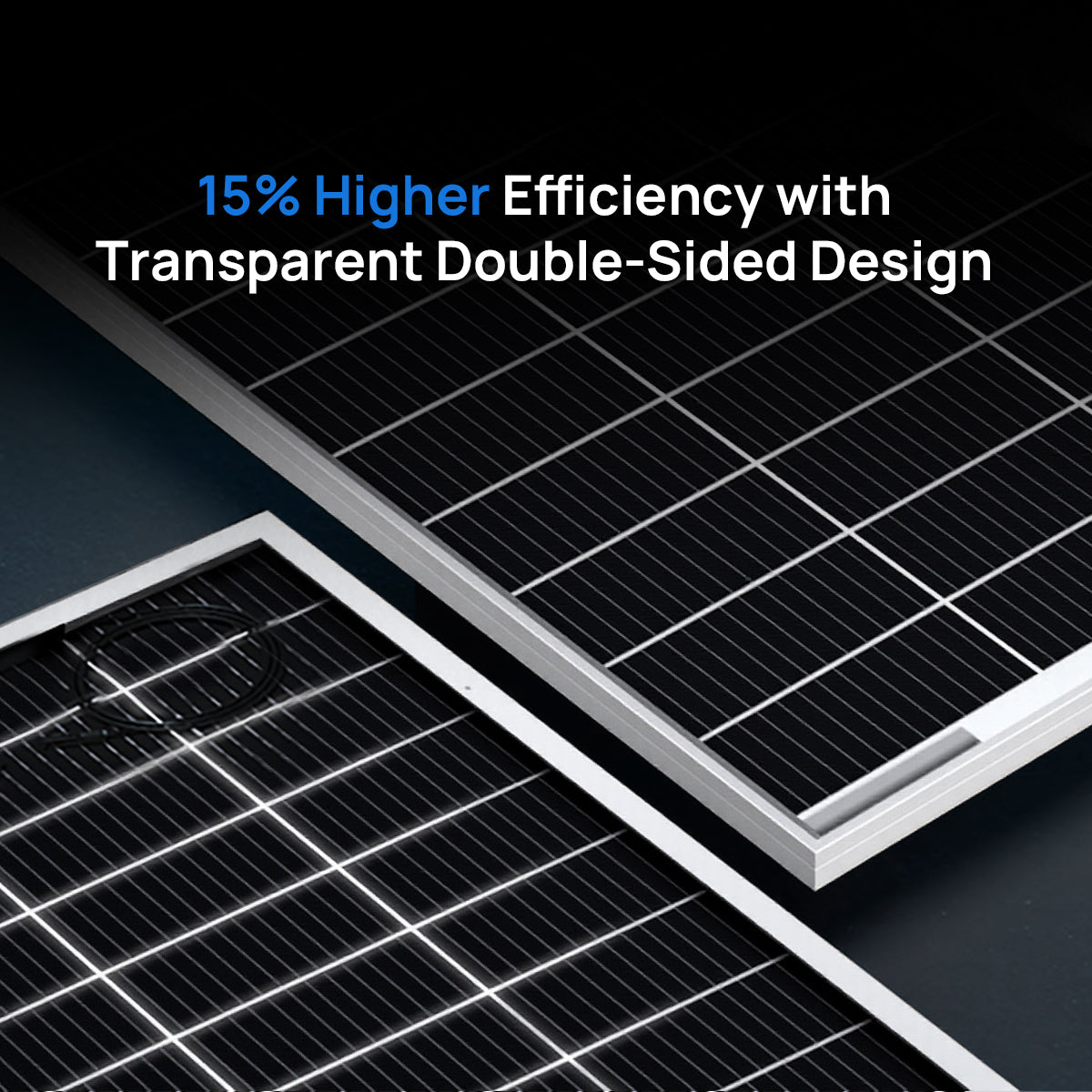

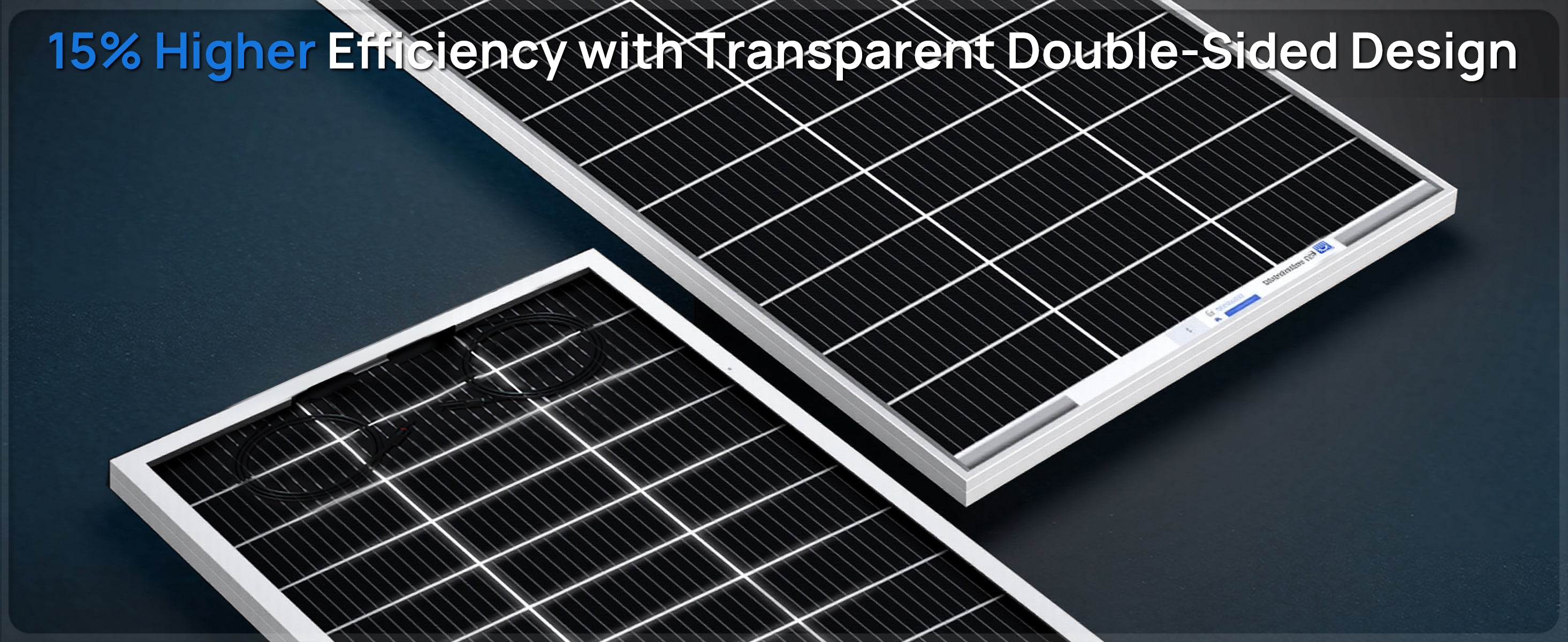

Power your home or off-grid property with the ECO-WORTHY 48V 1170W Solar Power System, featuring 6 high-efficiency 195W bifacial solar panels, a 48V 3000W hybrid inverter, and a 48V 100Ah LiFePO4 server rack battery. Generating up to 4.8kWh of electricity per day under optimal sunlight, this complete solar kit is ideal for homes, cabins, sheds, farms, and backup power applications. Advanced bifacial technology delivers up to 15% more energy than traditional panels, while the smart BMS and built-in 125A circuit breaker provide comprehensive battery protection. The compact 3U rack-mounted battery design saves installation space and supports expansion of up to 15 batteries in parallel, making it a scalable and reliable energy storage solution for growing power needs.

1170W 48V Complete MPPT Off Grid Solar Kit

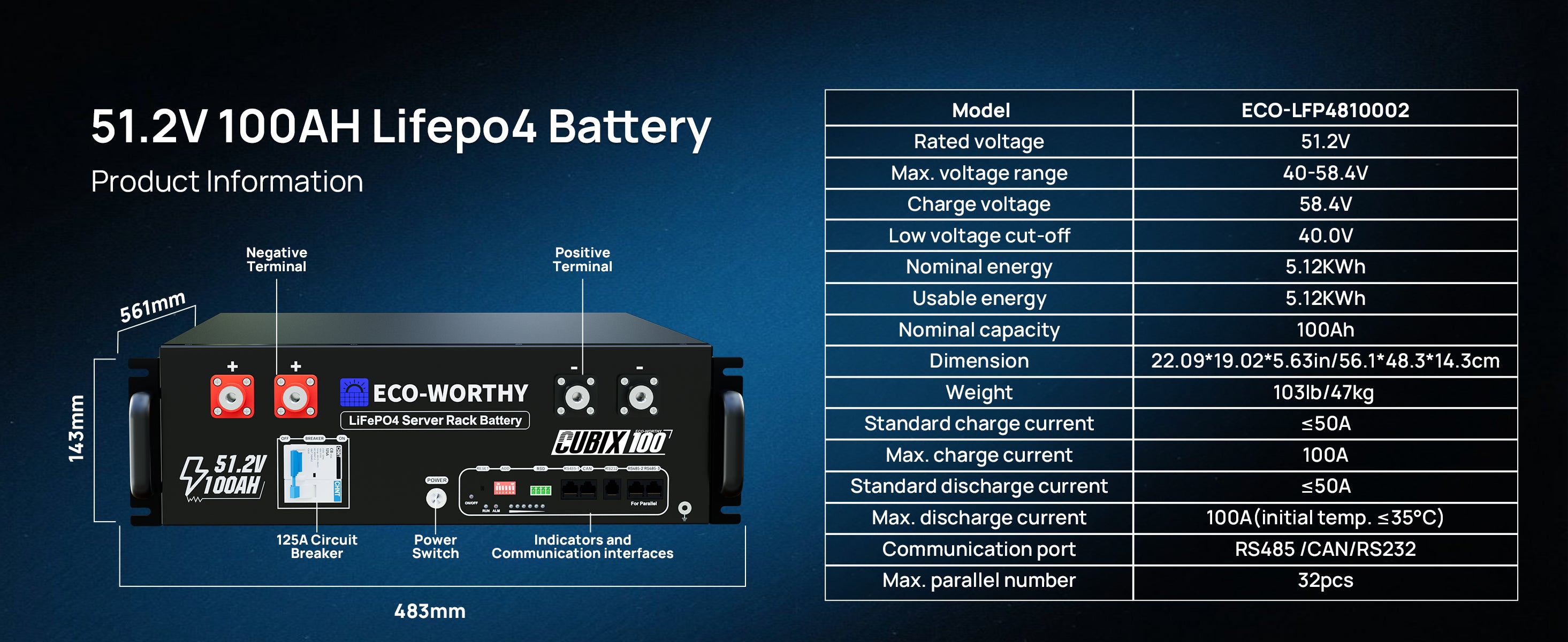

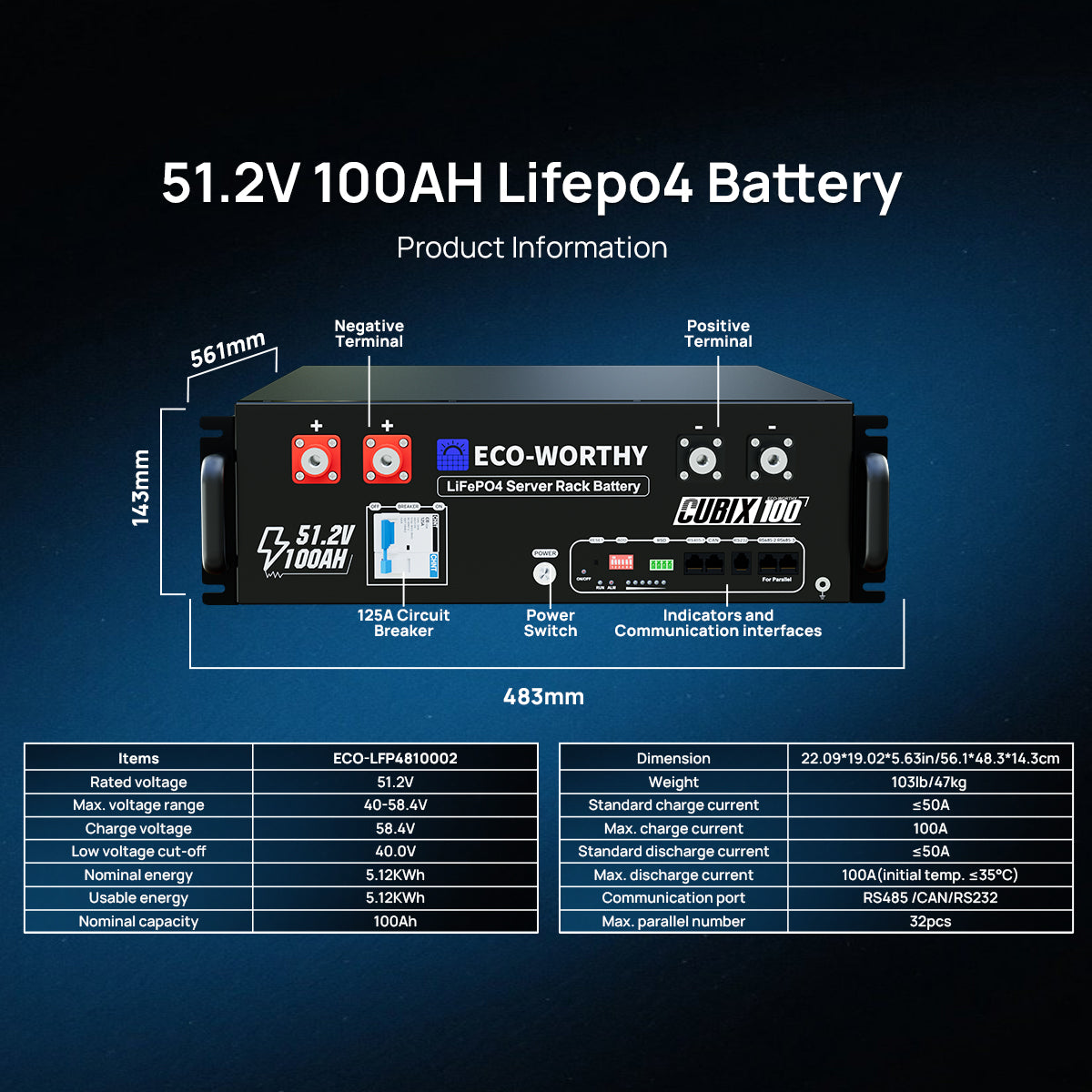

Technical Specifications
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
51.2V
Voltage Range
40~58V
Maximum Charge/ Discharge Current
100A
Charge Temperature Range
0-55℃
Disharge Temperature Range
﹣20-55℃
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.55*17.13*5.63inch
Battery Weight
95 lbs
Cables
Each battery comes with a pair of battery parallel cables
Certification
IEC62619 | CEC

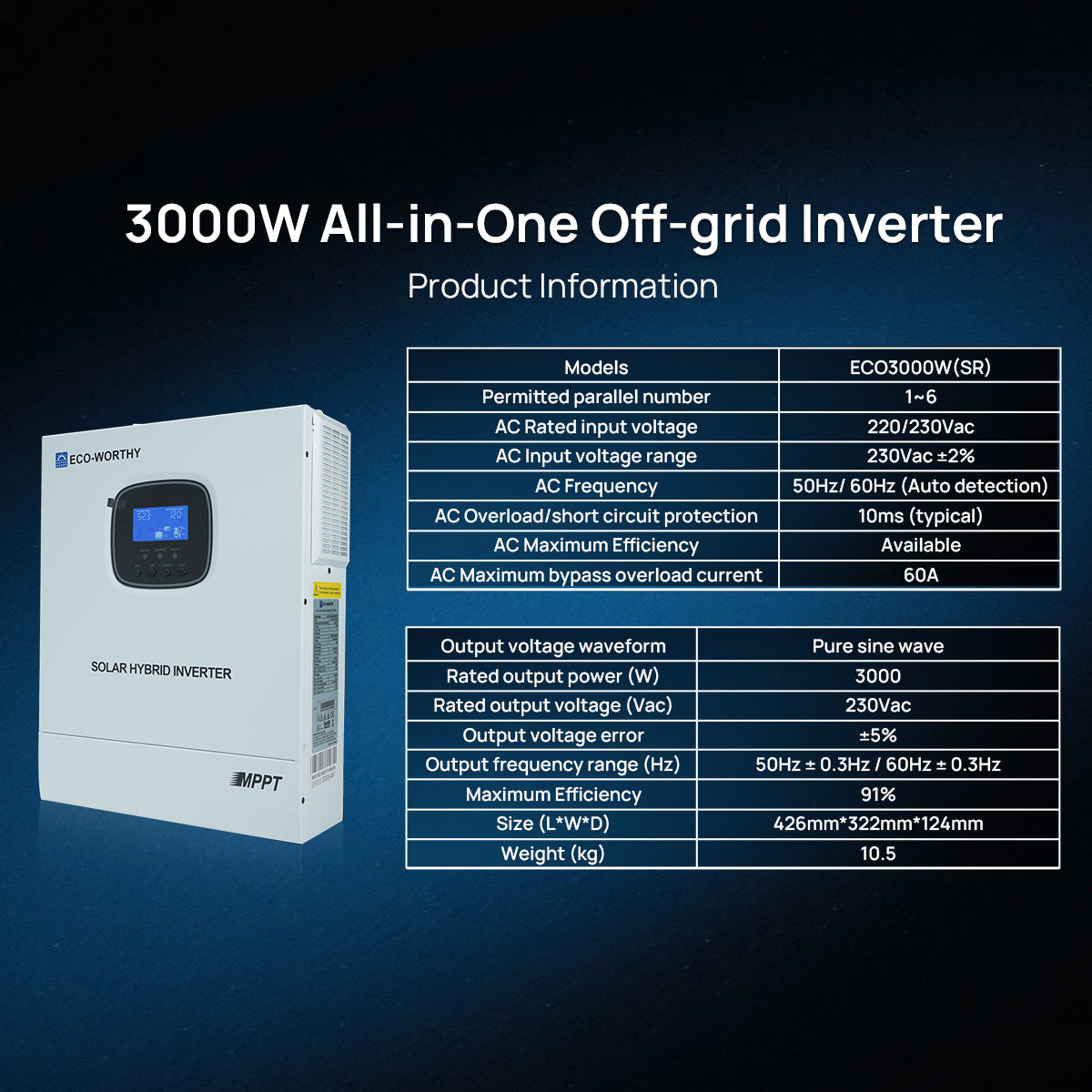

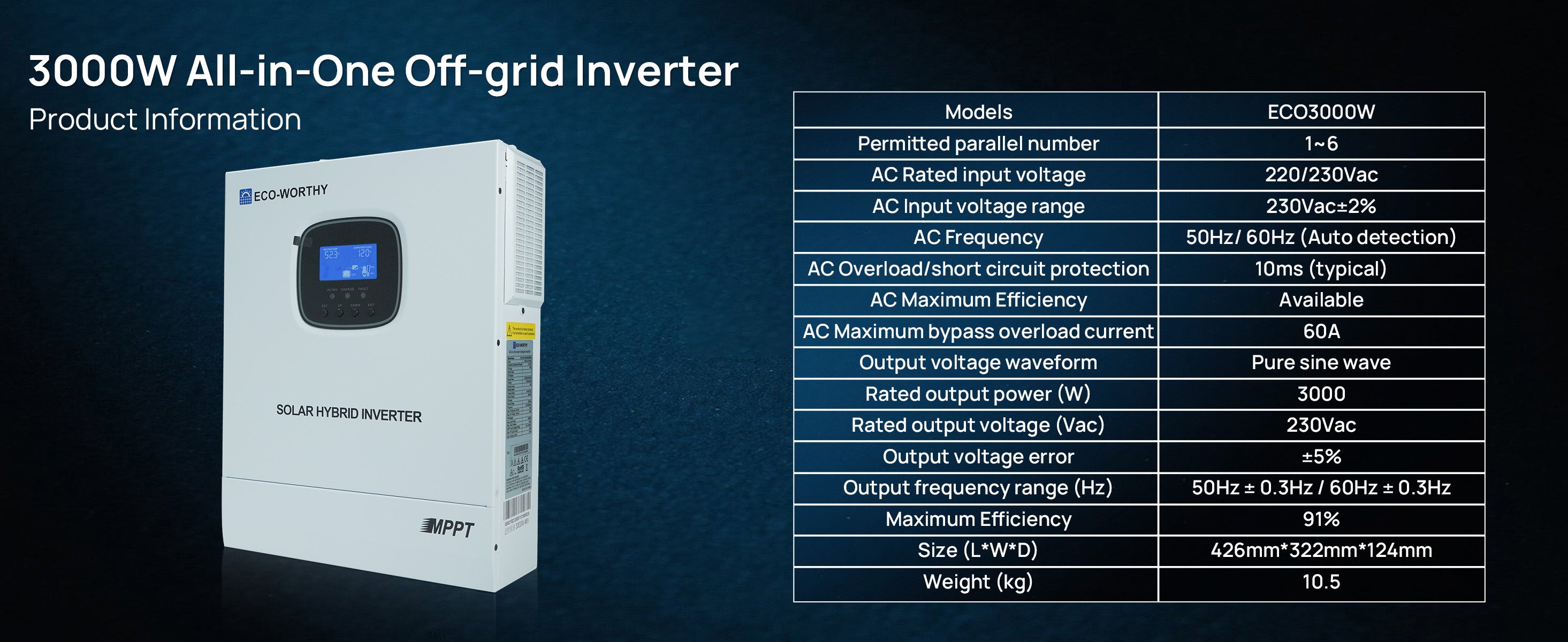

Models:
ECO3000W(SR)
AC Rated input voltage:
220/230Vac
AC Frequency:
50Hz/ 60Hz (Auto detection)
AC Overload/short circuit protection:
10ms (typical)
AC Maximum Efficiency:
Available
AC Maximum bypass overload current:
30A
Output voltage waveform:
Pure sine wave
Rated output power (W):
3300w
Rated output voltage (Vac):
230Vac
Output voltage error:
±5%5
Output frequency range (Hz):
0Hz ± 0.3Hz / 60Hz ± 0.3Hz
Efficiency:
>92%
Size (L*W*D):
378mm*280mm*103mm
Weight (kg):
6.2kg

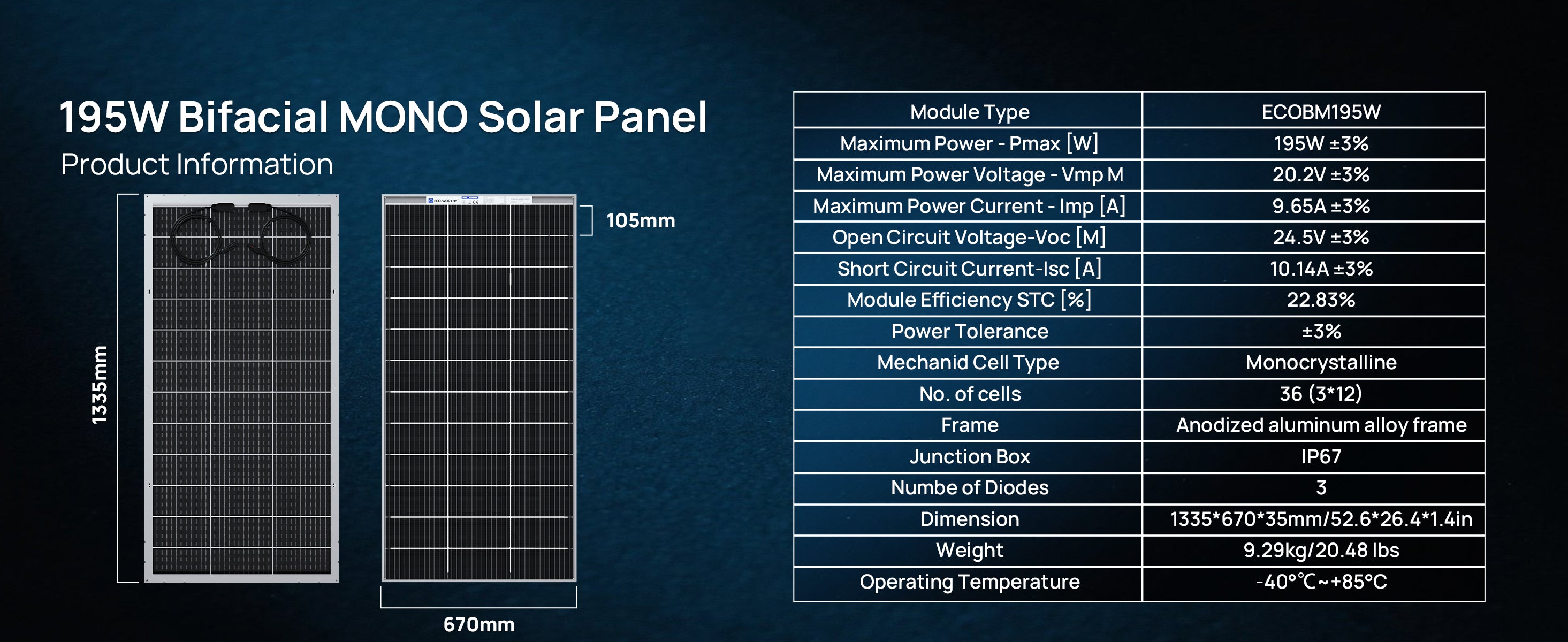

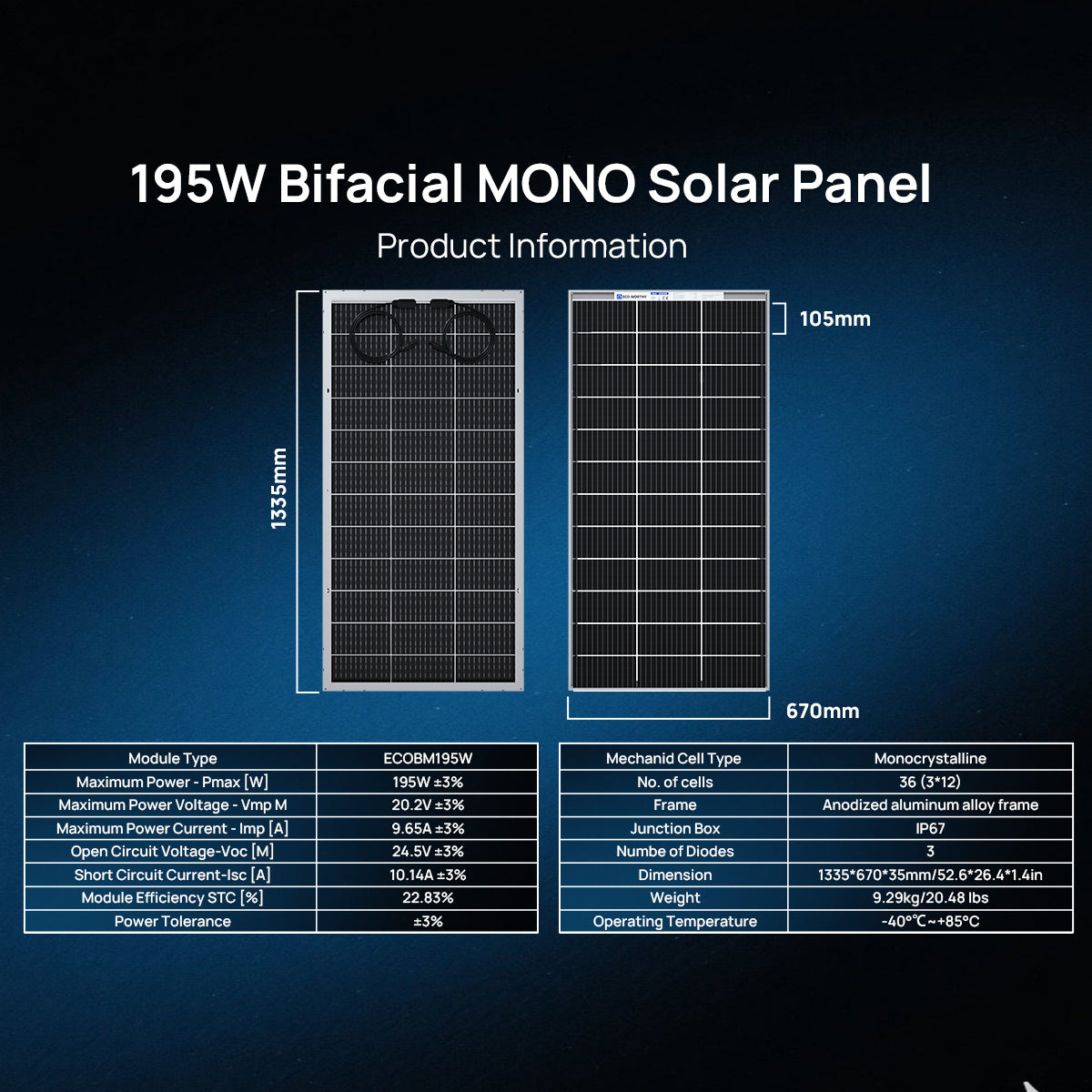

Rated Power:
195W
Solar Cell:
Monocrystalline
Maximum/Peak Voltage(Vmp):
19.8V
Open Circuit Voltage(Voc):
23.7V
Short circuit current:
10.5A
Maximum current:
9.85A
Output Tolerance:
±3%
Temperate coefficient of Isc:
(010+/-0.01)%/℃
Temperate coefficient of Voc:
-(0.38+/-0.01)%/℃
Temperature range:
-40℃~ +85℃
Frame:
Aluminum alloy frame
Weight:
20.48 lbs(9.29 kg)
Size:
52.6x26.38x1.38in (1335*670*35mm)
Cable Type:
Connecting Solar Panels to Charge Controllers
Rating Voltage:
600/1000V
Length:
5 meters(16 ft)
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
40°F to +185°F
Connector:
MC4
Cable Type:
Connecting Solar Panels to Combiner Box
Rating Voltage:
600/1000V
Length:
5 meters(16 ft)
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
-40°F to +185°F
Connector:
MC4
Model:
12AWG
Rated Current:
30A
Test Voltage:
6000V
Material:
Aluminum Alloy
Size of Screw and Nut:
M6
Weight:
0.85kg
Included in the Box
User manual
Eco-Worthy 48V 100Ah Server Rack Lithium Battery (cubix 100)- User Manual
DownloadEco-Worthy Cubix 100 Firmware.13.5.1-260225 (V3 compatible)
DownloadEco-Worthy 48V 3000W All in one Inverter - User Manual
DownloadEco-Worthy Bifacial 195W 12V Monocrystalline Solar Panel - User Manual
DownloadEco-Worthy Cubix 100 Software Manual Online-2026.3.17
DownloadEco-Worthy 48V(51.2V) 100Ah Server Rack Lithium Battery - IEC 62619
Download
