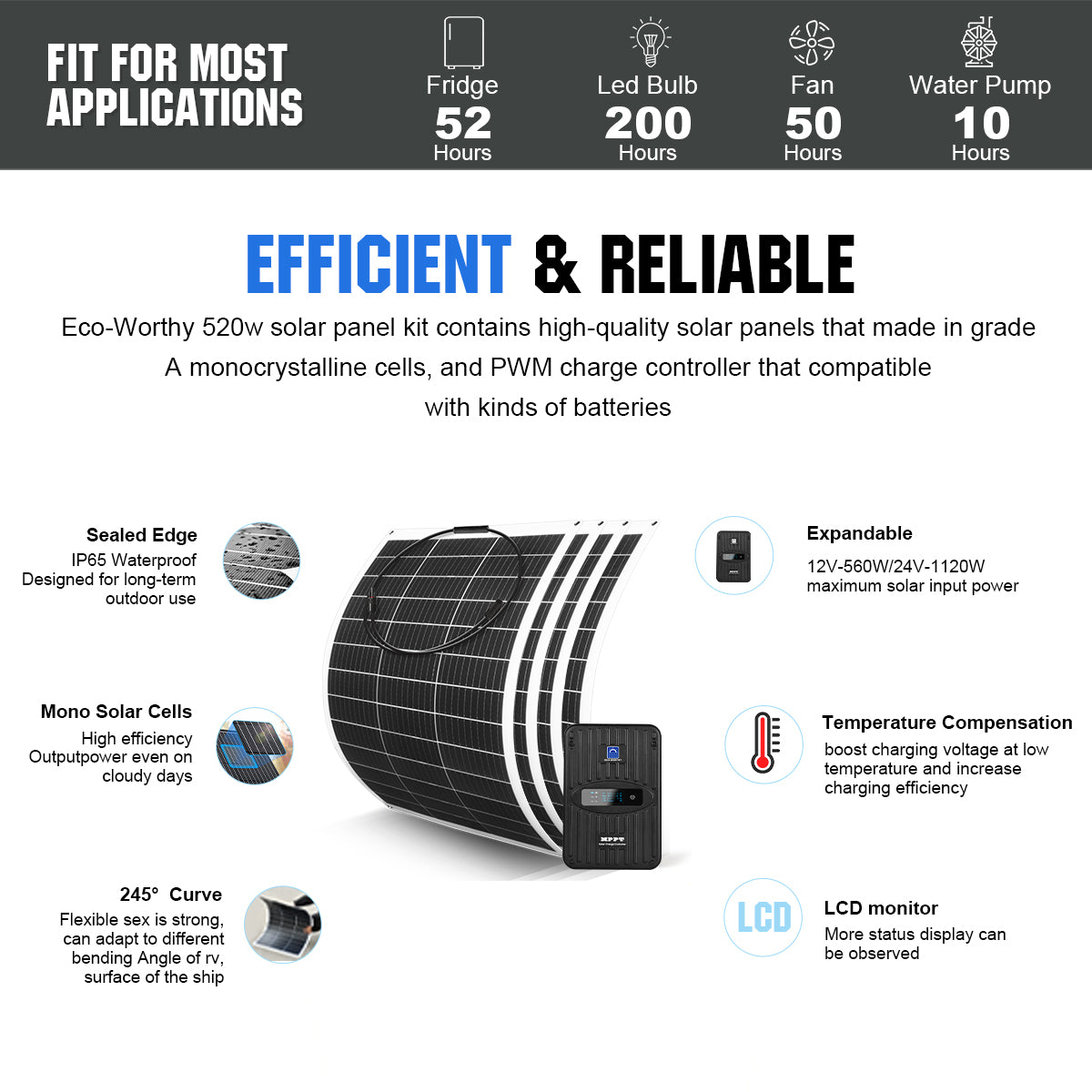

Eco-Worthy 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy.
💎Prime Day Sale
Eco-Worthy 130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits
Eco-Worthy 130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits
Regular price
£129.99
Sale price
£129.99
Regular price
£169.69
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:
SKU:UK-L02AM130-CW-1
Read more
Over £99 Get 5% OFF, Over £499 Get 10% OFF at checkout
Total price
£129.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of £32.49 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

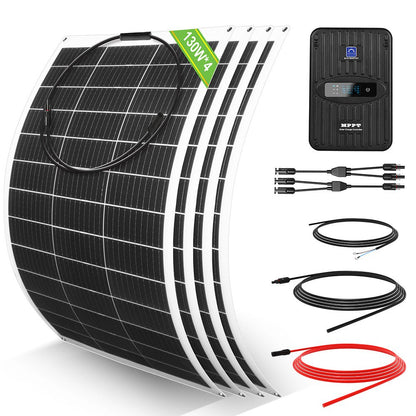

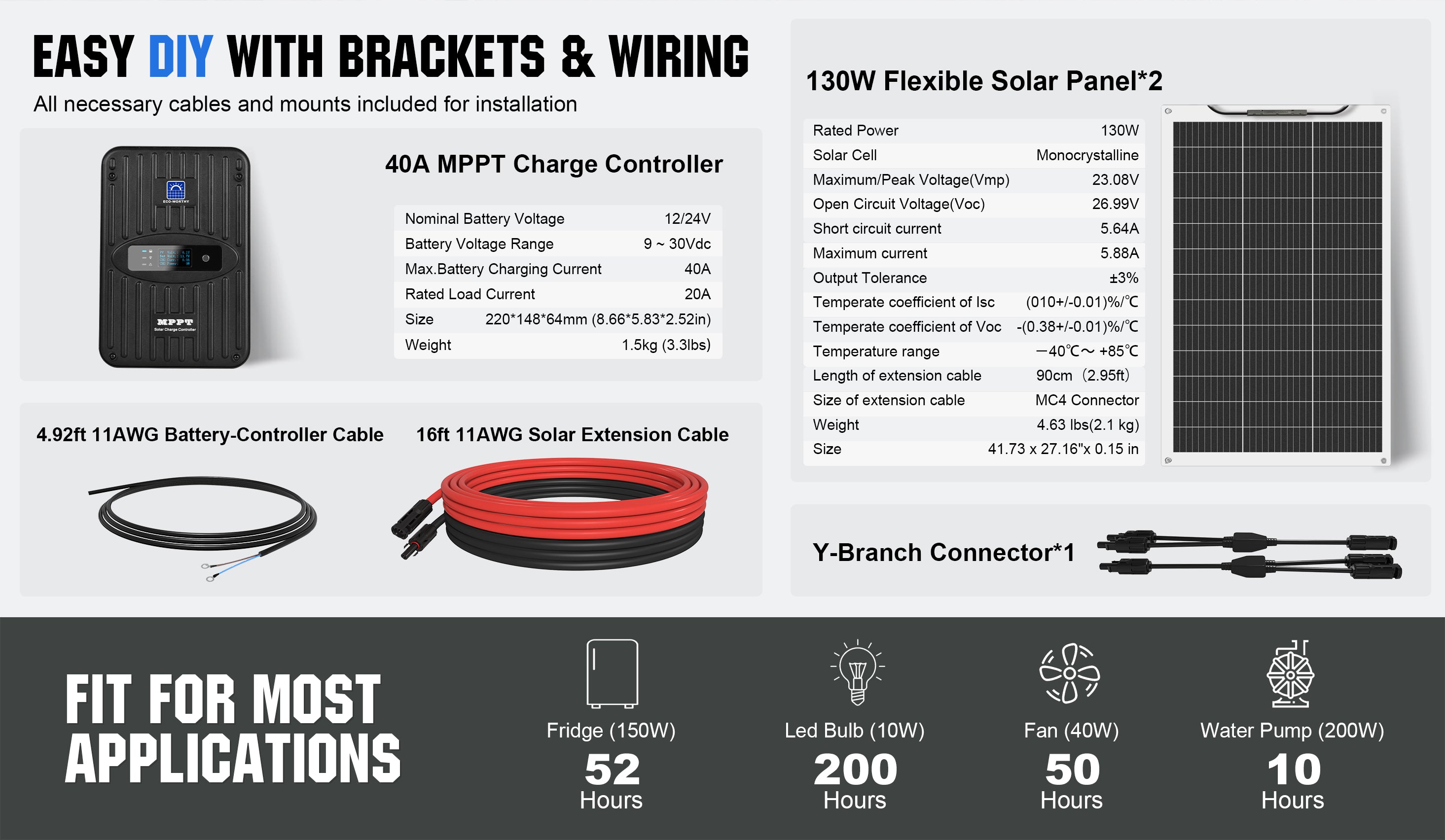

130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits
Technical Specifications

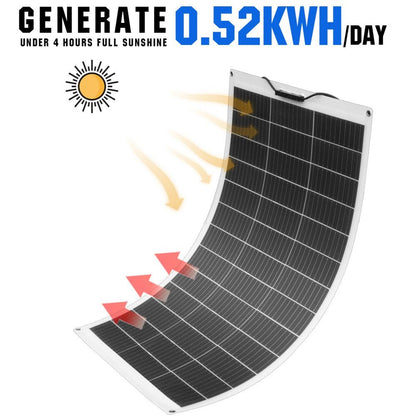

130W 12V Flexible Mono Solar Panel

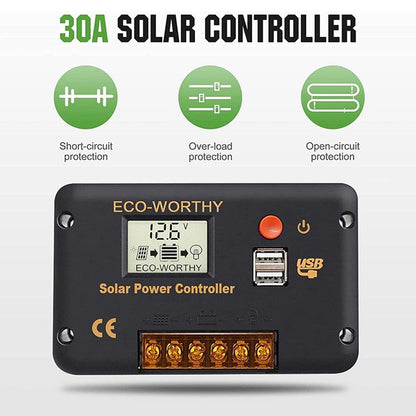

30A PWM LCD Display Solar Charge Controller

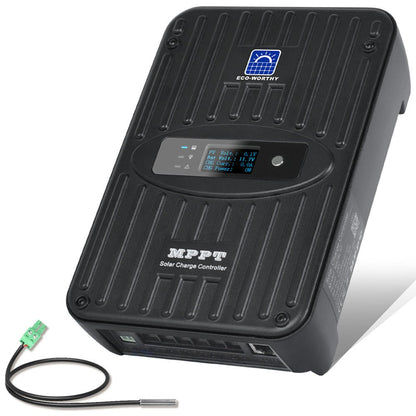

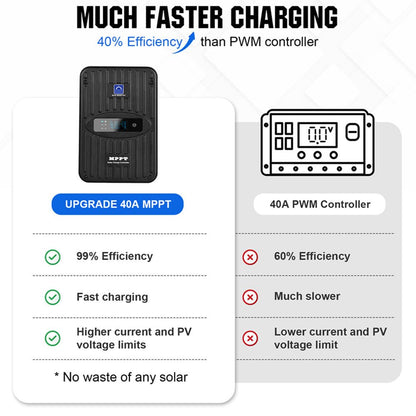

40A MPPT Solar Charge Controller

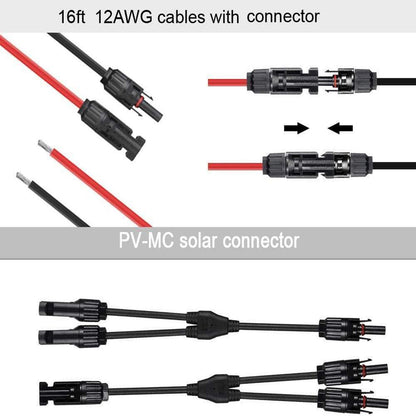

Solar Extension Cables Wires with MC4
Y Parallel Branch Connectors MFF
Rated Power:
130W
Solar Cell:
Monocrystalline
Maximum/Peak Voltage(Vmp):
21.10V
Open Circuit Voltage(Voc):
24.50V
Short circuit current:
6.50A
Maximum current:
6.16A
Output Tolerance:
±3%
Temperate coefficient of Isc:
(010+/-0.01)%/℃
Temperate coefficient of Voc:
(0.38+/-0.01)%/℃
Temperature range:
－40℃～ +85℃
Length of extension cable:
90cm（2.95ft）
Size of extension cable:
4mm²（11AWG）/MC4 Connector
Weight:
4.40 lbs(2.0 kg)

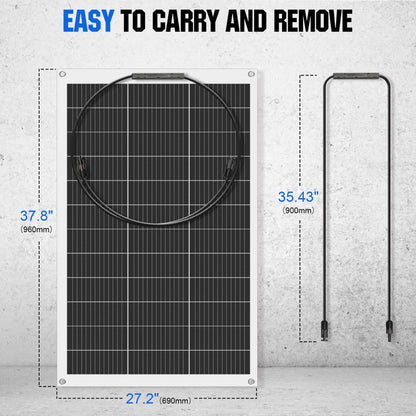

Size:
960x690x2.5 mm (37.8 x 27.16"x 0.1 in)
Battery voltage:
12V/24V
Charging mode:
PWM
Max Charge current:
30A
Discharge current:
30A
Max.PV Open-Circuit Voltage:
<50V
USB Output:
5V/2A
Working Temperature:
-20℃~60℃
Weight:
150g
Size:
138*85*30mm
Battery voltage:
12V/24V
Max Solar Input Power:
560/1120W
Charging mode:
MPPT
Rated Load Current:
20A
Charge Efficiency (Peak):
97%
Self-Consumption:
1~2W
Battey Type:
LiFePO4,AGM,Sealed,Gel,Flooded
Size:
220*148*64mm/8.7*5.8*2.5inch
Max Charge current:
40A
Weight:
1.5KG
Max.PV Open-Circuit Voltage:
<100V
Cable Type:
Connecting Solar Panels to Charge Controllers
Rating Voltage:
600/1000V
Length:
5 meters（16 ft）
Conductor:
Tinned copper wire
AWG:
12
Normal Cross Sectional Area of the Conductor (mm2):
4
Waterproof:
IP 65 Protection
Temperature:
40°F to +185°F
Connector:
MC4
Model:
12AWG
Rated Current:
30A
Test Voltage:
6000V
Included in the Box
Frequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.
Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.
How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.
Can I expand the system later?
+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
