Eco-Worthy 40A MPPT Solar Charge Controller 12V/24V DC Input with Bluetooth and Wireless Remote for Solar, RV and Off-Grid

Name: Eco-Worthy 40A MPPT Solar Charge Controller 12V/24V DC Input with Bluetooth and Wireless Remote for Solar, RV and Off-Grid
Brand: eco-worthy-uk
SKU: L03MPPT40NBT02-1
Price: 119.99 GBP
Availability: InStock

£119.99

£119.99 ~~£149.99~~

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:

SKU:L03MPPT40NBT02-1

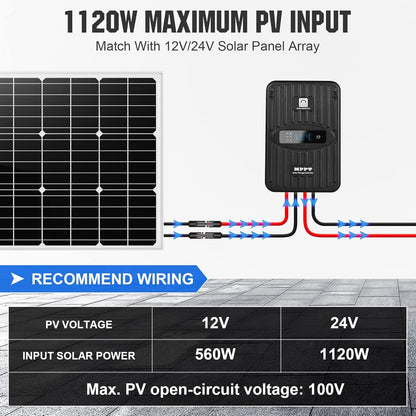

[Wide Range of Input&Output] Compatible with 12V or 24V DC PV system , it's able to handle maximum of 560W(12V)/1120W(24V) input solar array, and can draw maximum of 40A output current to battery bank.

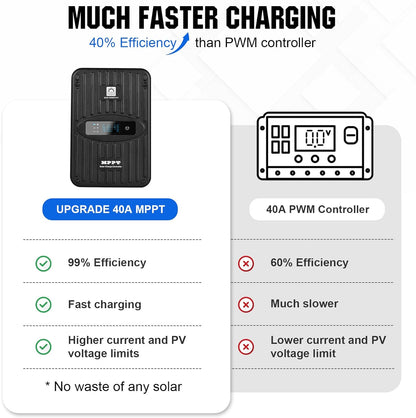

[Efficient MPPT Technology] Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%, 40% more than traditional PWM charge controller. It can keep a stable charging current even on cloudy days, making no waste of any sunlight.

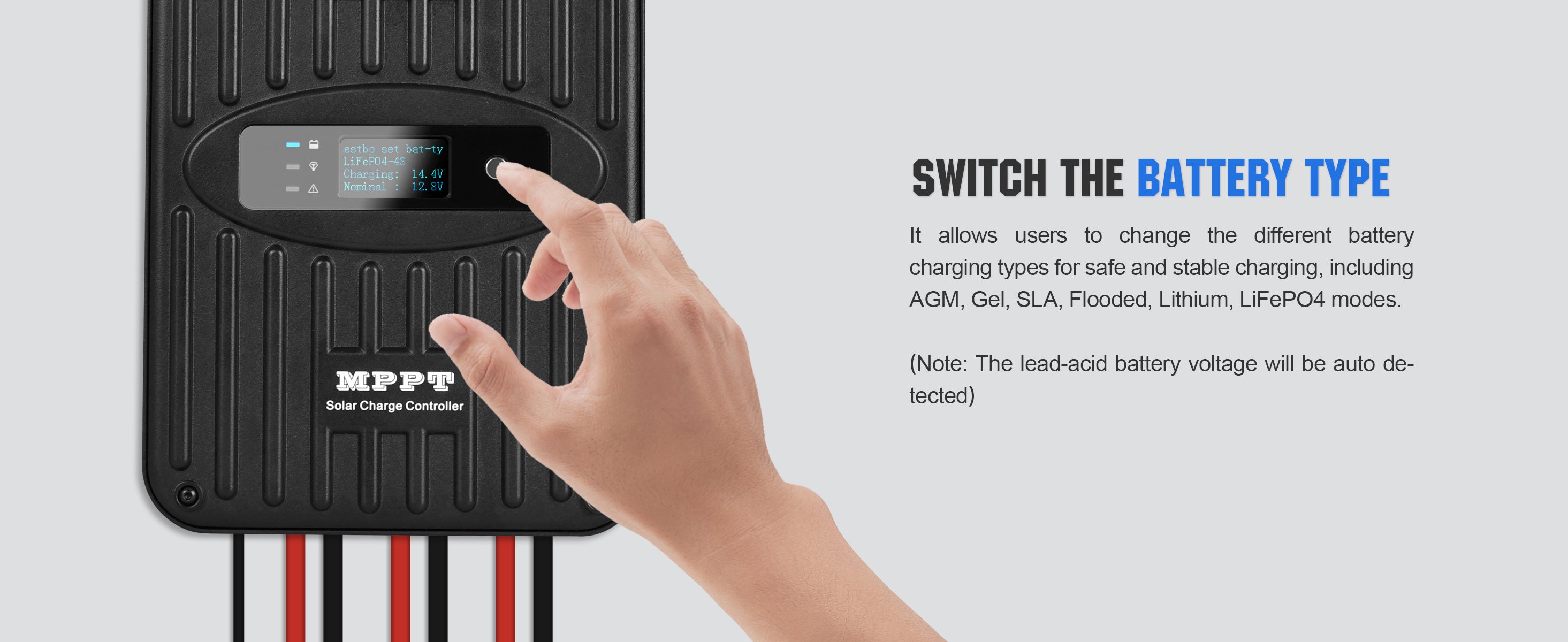

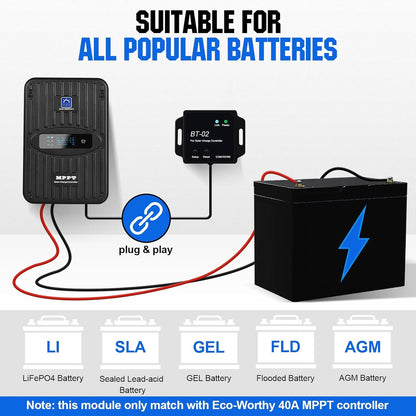

[Compatible with Various Batteries] It's able to charge and discharge different kinds of 12V/24V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries.

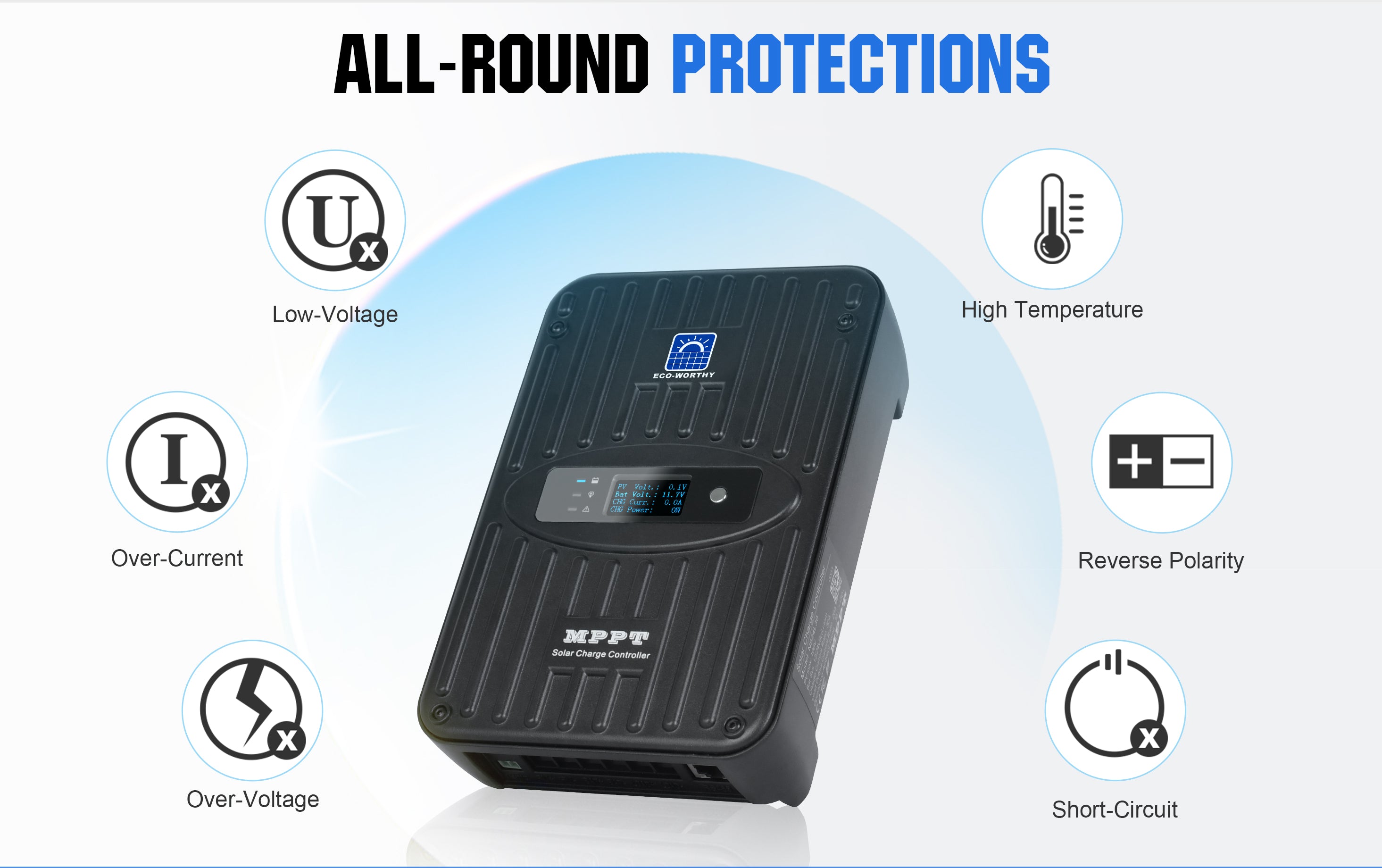

[Reliable Electronic Protections] It has multiple protections to prevent those circuit issues, including Reverse Polarity, Short-Circuit, High Temperature, Over-Current, and Over-Voltage/Low-Voltage. Prevent explosion and fire condition, keep the controller safe during all time work.

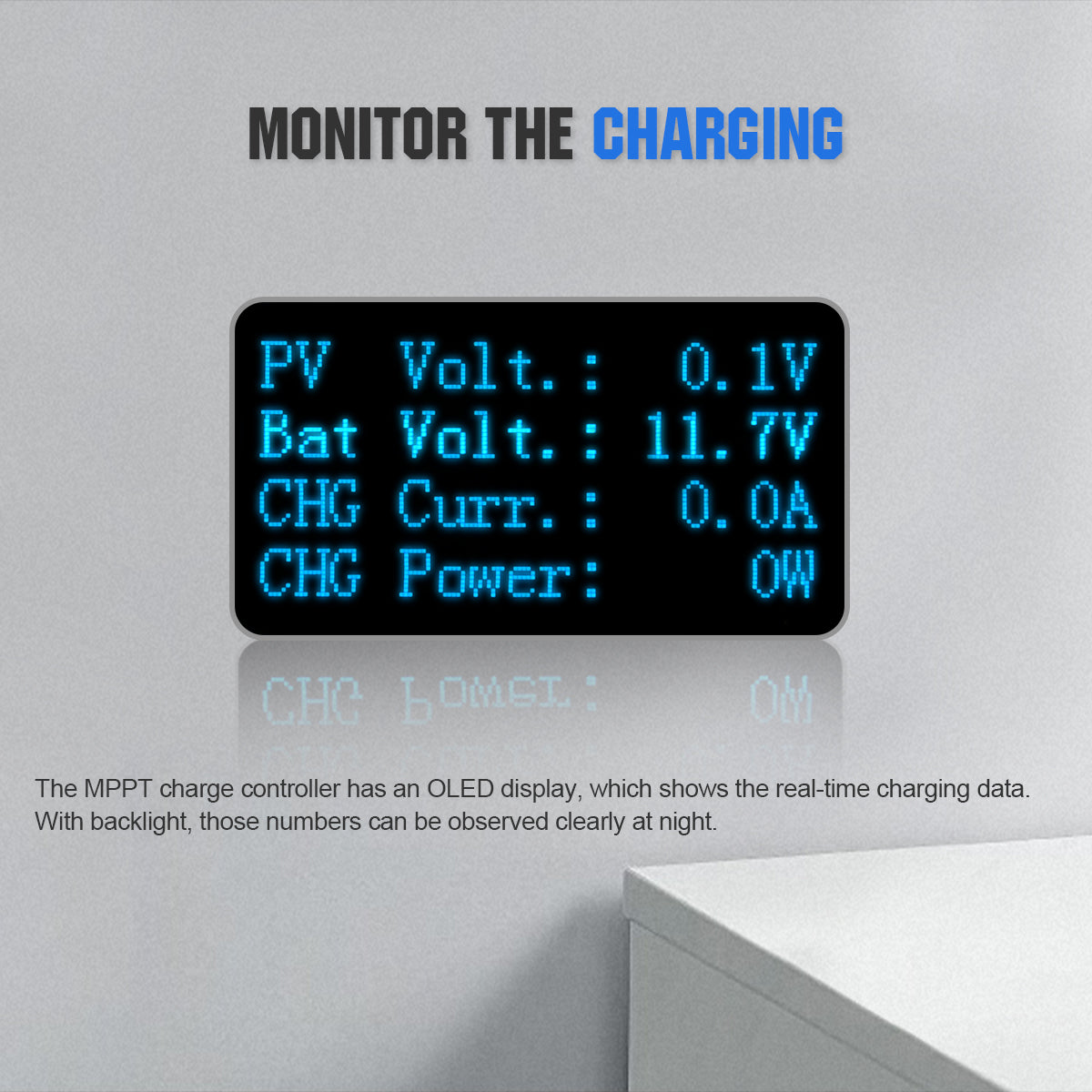

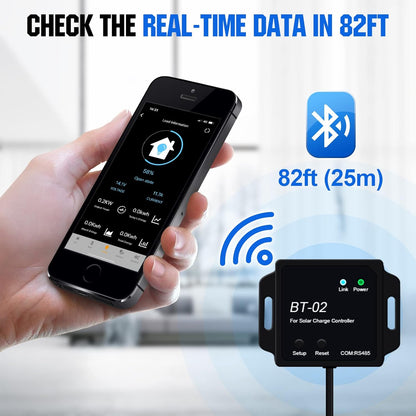

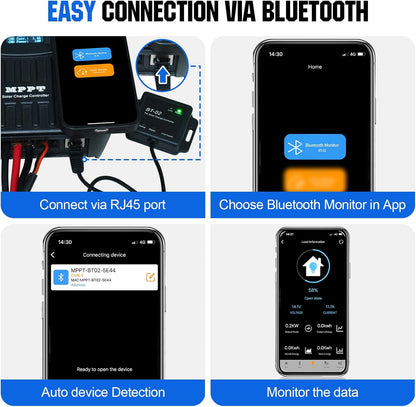

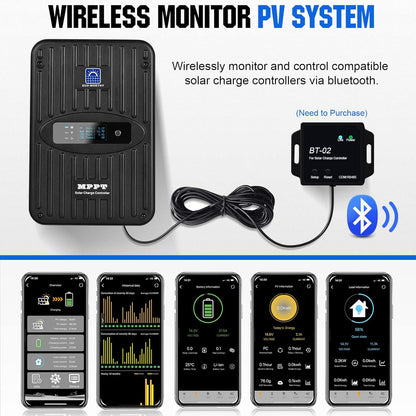

[Bluetooth Module] Real-time monitoring of solar panel, battery, load status and other data of power generation & consumption data, data memory (daily average, monthly average) and setting memory.Bluetooth 5.0 tech for 82ft long distance monitoring and control for solar charge controller.Remote control of the load and parameter setting of the controller can be realized through the APP.

Quantity

Total Price

£119.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £29.99 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

£119.99 £149.99

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

2V/24V DC Input with Bluetooth and Wireless Remote for Solar, RV and Off-Grid

Eco-Worthy 40A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded, Sealed batteries and Lithium batteries.

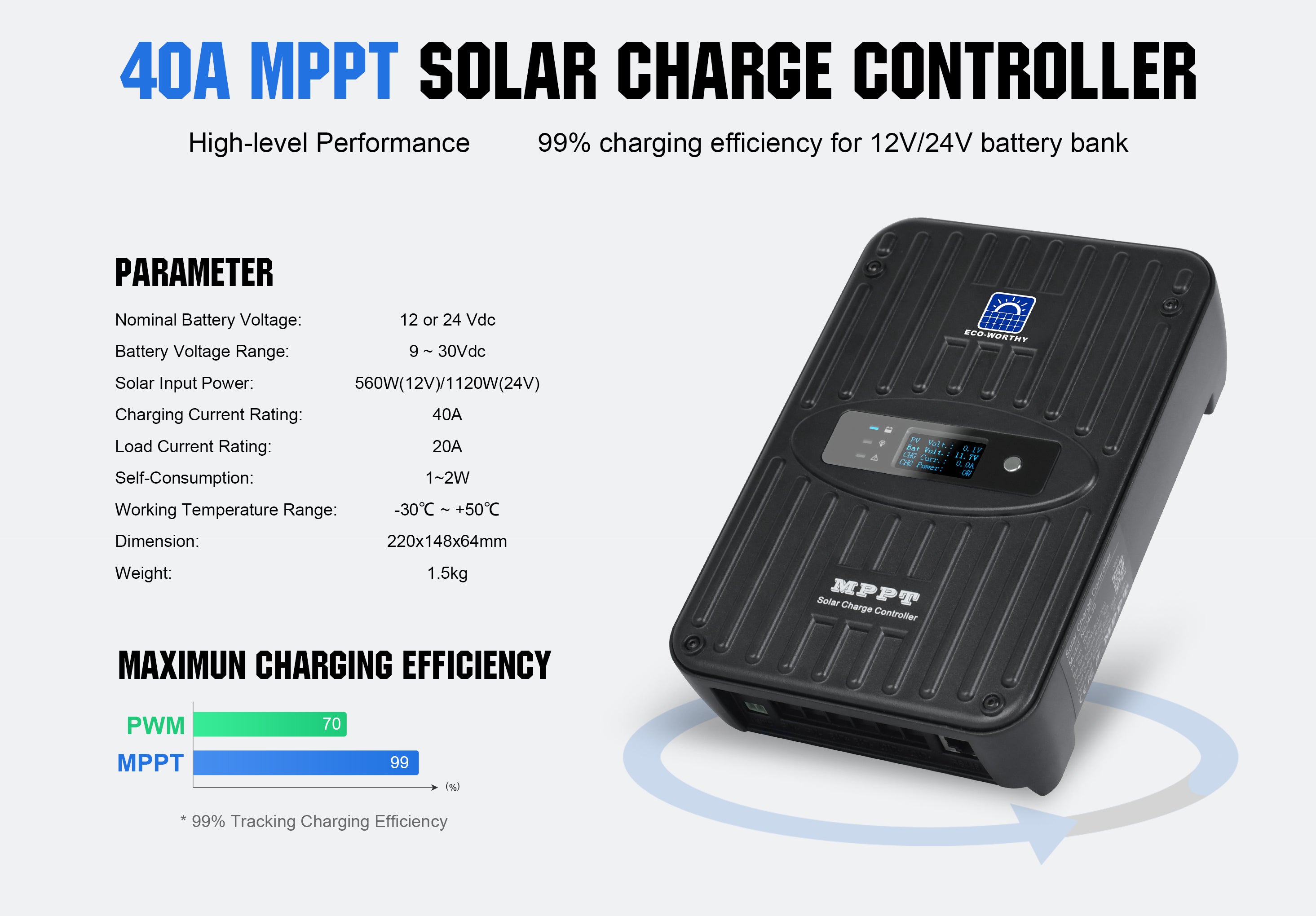

Technical Specifications

40A MPPT Solar Charge Controller

Battery voltage:

12V/24V

Max Solar Input Power:

560/1120W

Charging mode:

MPPT

Rated Load Current:

20A

Charge Efficiency (Peak):

97%

Self-Consumption:

1~2W

Battey Type:

LiFePO4,AGM,Sealed,Gel,Flooded

Size:

220*148*64mm/8.7*5.8*2.5inch

Max Charge current:

40A

Weight:

1.5KG

Max.PV Open-Circuit Voltage:

<100V

Included in the Box

1X40A MPPT Solar Charge Controller
Wireless Remote

User manual

Eco-Worthy 12V/24V 40A MPPT Solar Charge Controller - User Manual

Download

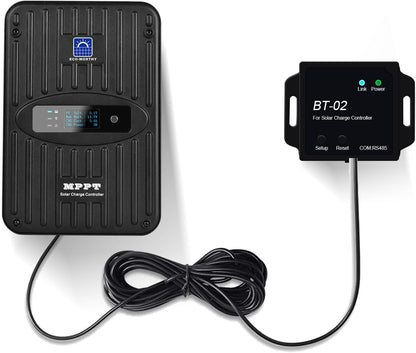

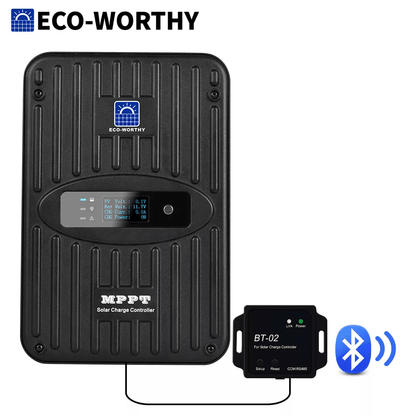

40A MPPT Solar Charge Controller With Bluetooth Module

Purchased for an off grid set up with Eco-Worthy Solar Panels and Battery. Comes well packaged and the quality of the unit externally looks excellent. Wiring and mounting is straight forward and terminals are of good quality securing terminations very securely. The only issue being as others mentioned is access to terminals due to the terminal cover on the back of the unit not accessible when the Controller is mounted, but not a major issue. Comes with manual for both Controller and Module which guides you through the set up procedure. After wiring, battery type and Bluetooth Module set up is straight forward and Bluetooth connection through the App reliable (same App for battery as well) Works well connected to the Solar Panels but not much sun around at the moment to see how it fully performs. So far pleased that the system works as a package.

Good value

Working well so far. I like that you can see the charge load in real time.

The Solar Mate software is functional enough but is a bit annoying to use. Sometimes it won’t save settings and won’t tell you why and the back button requires precise touching to work. Now that I’ve got used to its quirks I’m happy enough with it.

I have the parameters set just how I like to keep battery in optimum health.

The charge controller provides a good top-up for Lifepo4 batteries with peace of mind about no ov...

The charge controller works well with 260 Watts of charge coming from the solar panels. I could not connect the bluetooth module to my iphone despite repeated attempts over two hours. I will make-do without bluetooth control.

Great bit of kit

I have had six of these units running now for over six months and they have been performing faultlessly. When the units are producing maximum output they do get warm, as you would expect, so bear this in mind when locating and mounting them. The application for data reporting and to change settings works well via bluetooth.

Quality bit of kit not installed yet but build quality 👌
