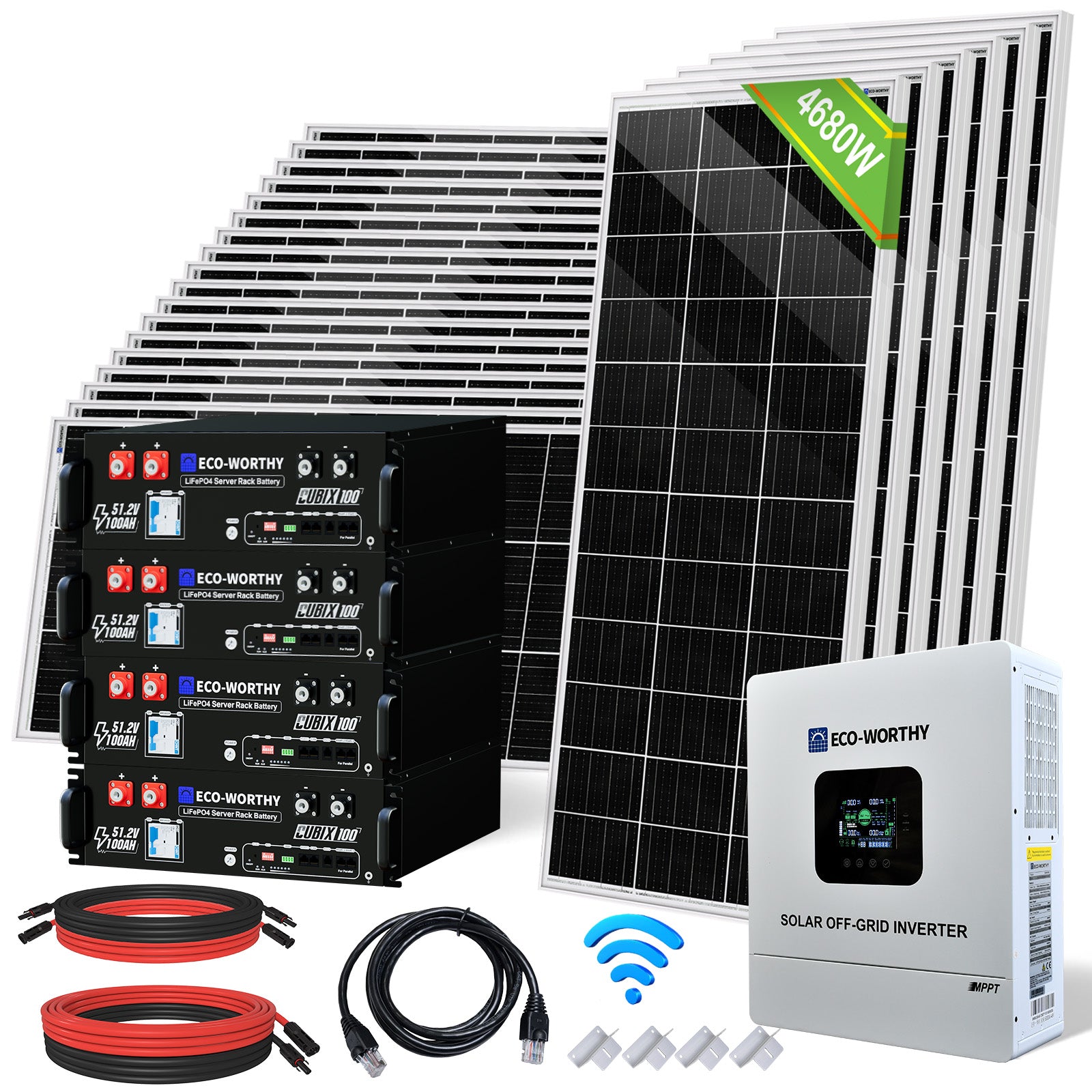

Eco-Worthy 48V 4680W (24x Bifacial 195W) Complete MPPT Off Grid Solar Kit

Eco-Worthy 48V 4680W (24x Bifacial 195W) Complete MPPT Off Grid Solar Kit

£6,599.99
£6,599.99 £9,999.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:

UK-L02M195TM-NKEU5KU3U4-24

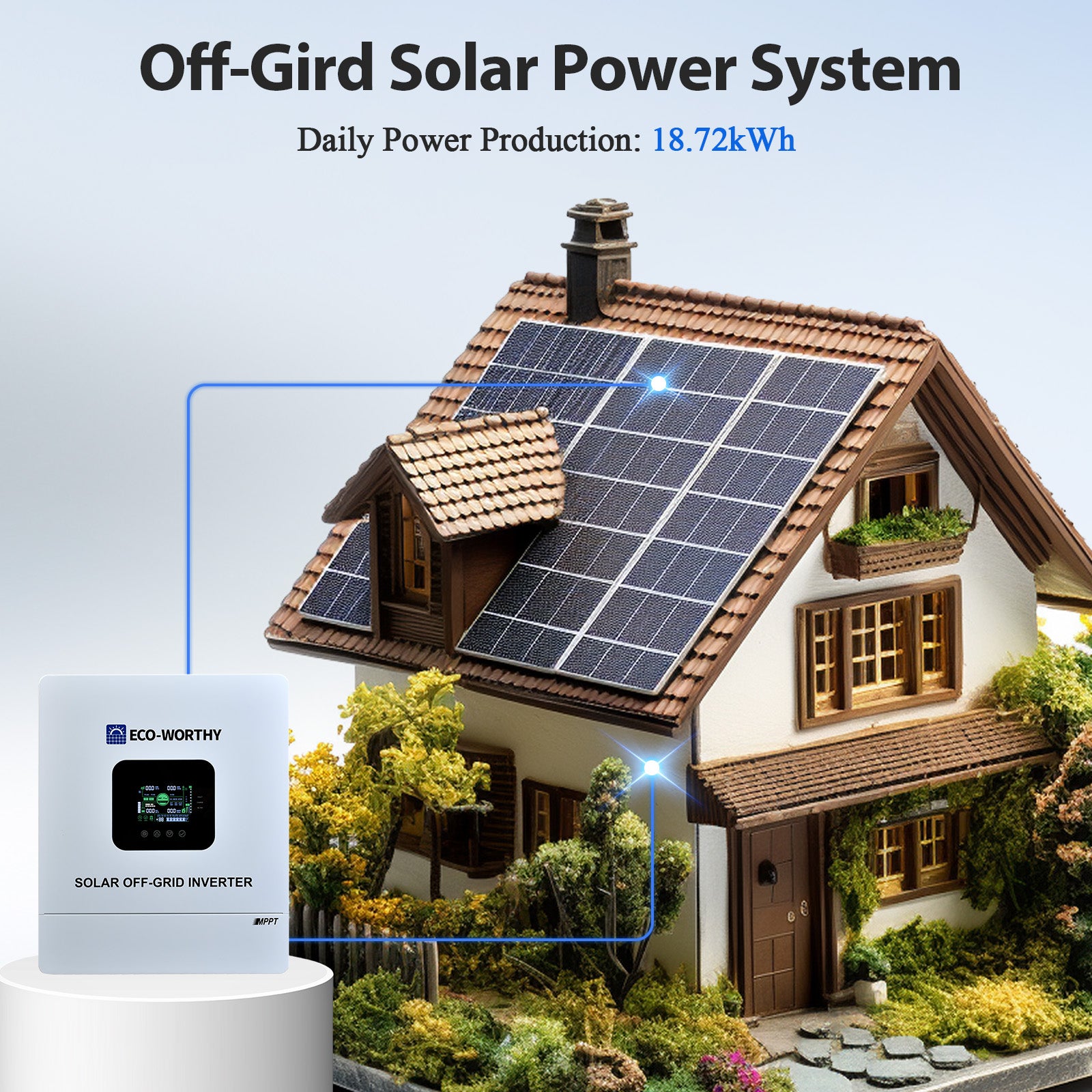

[High Daily Output – Up to 18.7kWh]
Equipped with 24 high-efficiency 195W bifacial monocrystalline panels (totaling 4680W), this system can generate up to 18.7kWh of power per day in full sunlight—ideal for homes, cabins, sheds, and off-grid living.

[Bifacial Solar Technology – Up to 33% More Energy]
Bifacial panels capture sunlight from both sides, increasing total yield by 15–33%. Best performance is achieved when installed above reflective surfaces like white gravel or concrete.

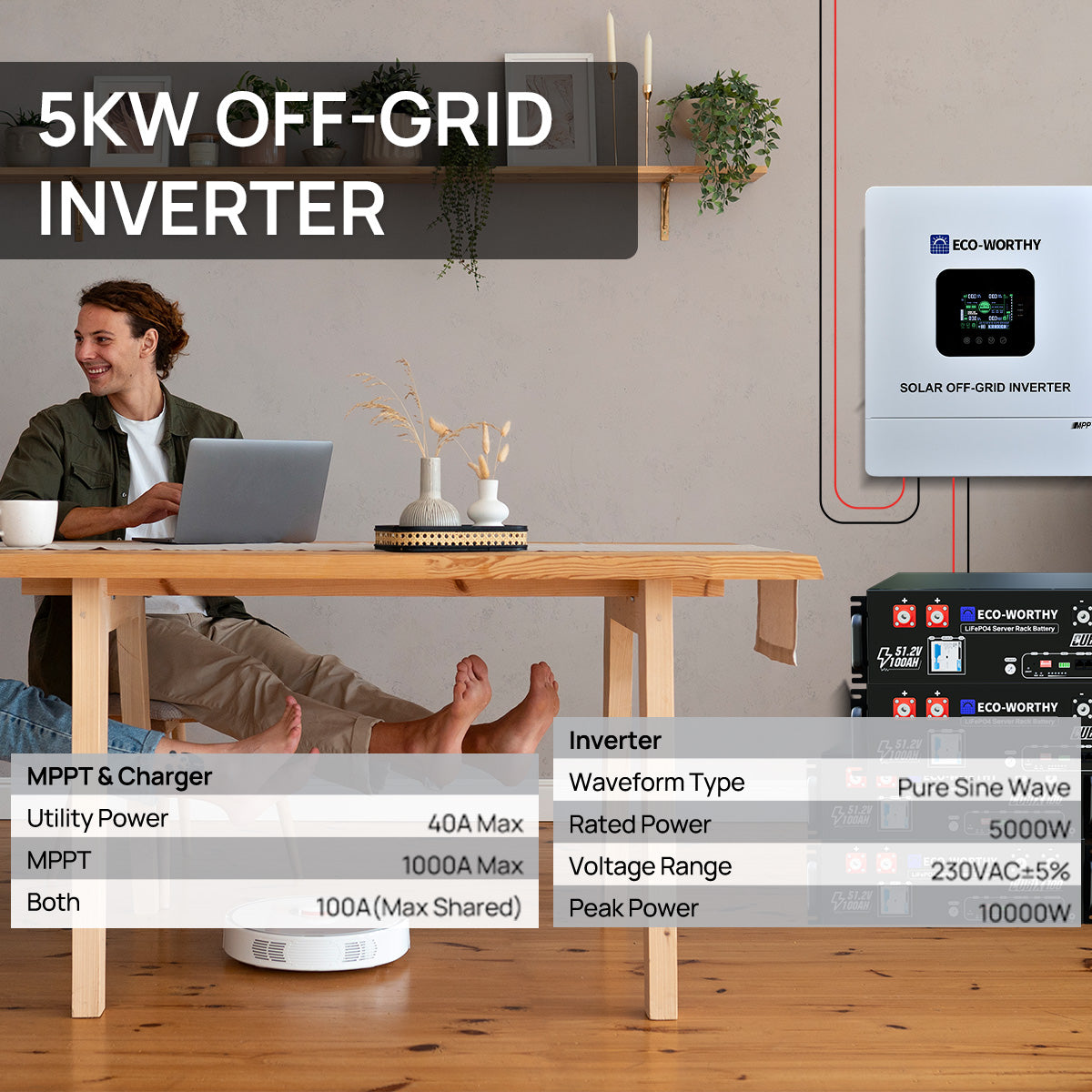

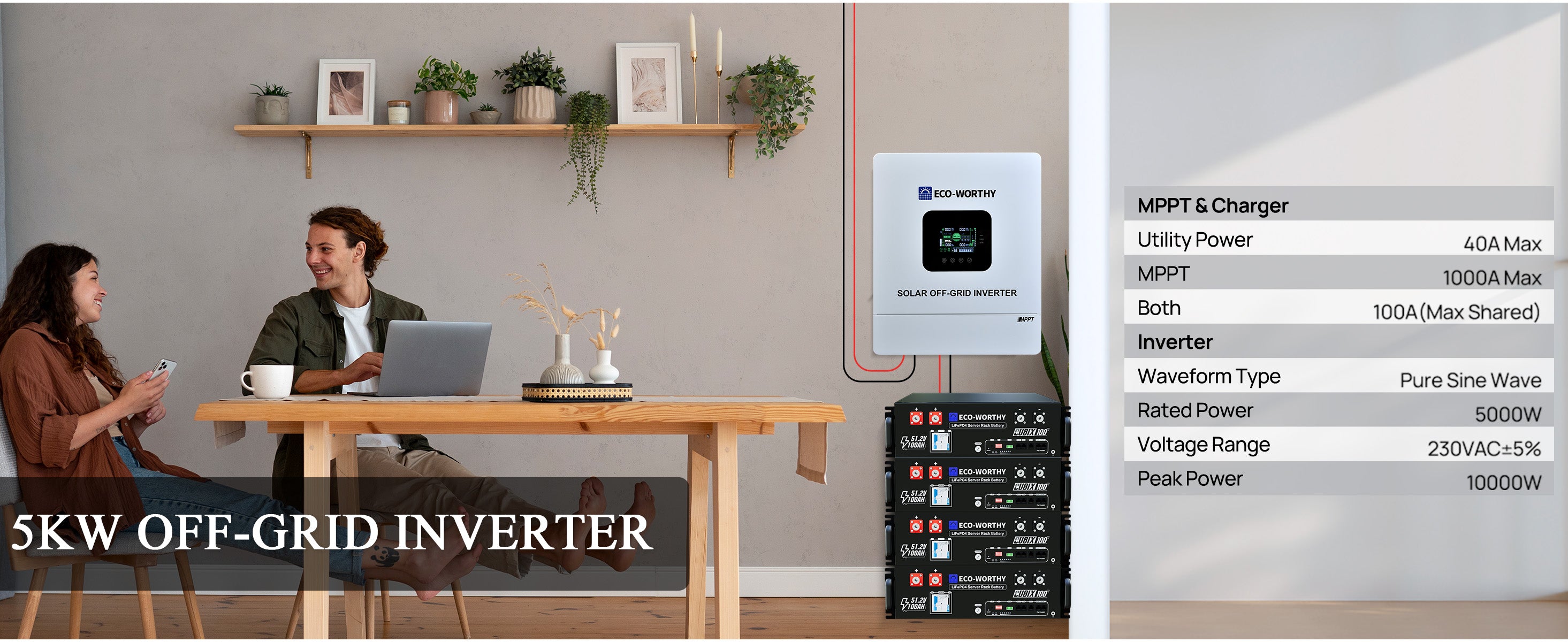

[Compact 5000W MPPT All in one Inverter]
It features ≤10ms UPS transfer, a wide 90–280VAC input range and over 92% efficiency for stable operation with grids or generators.
High-voltage MPPT supports up to 500VDC solar input with 99.9% tracking efficiency to maximise solar output.
Compatible with 48V lithium and lead-acid batteries, it supports AC and PV charging up to 100A.
With Time-of-Use automatic charging and discharging, it prioritises solar by day and low-rate power at night to reduce energy costs.

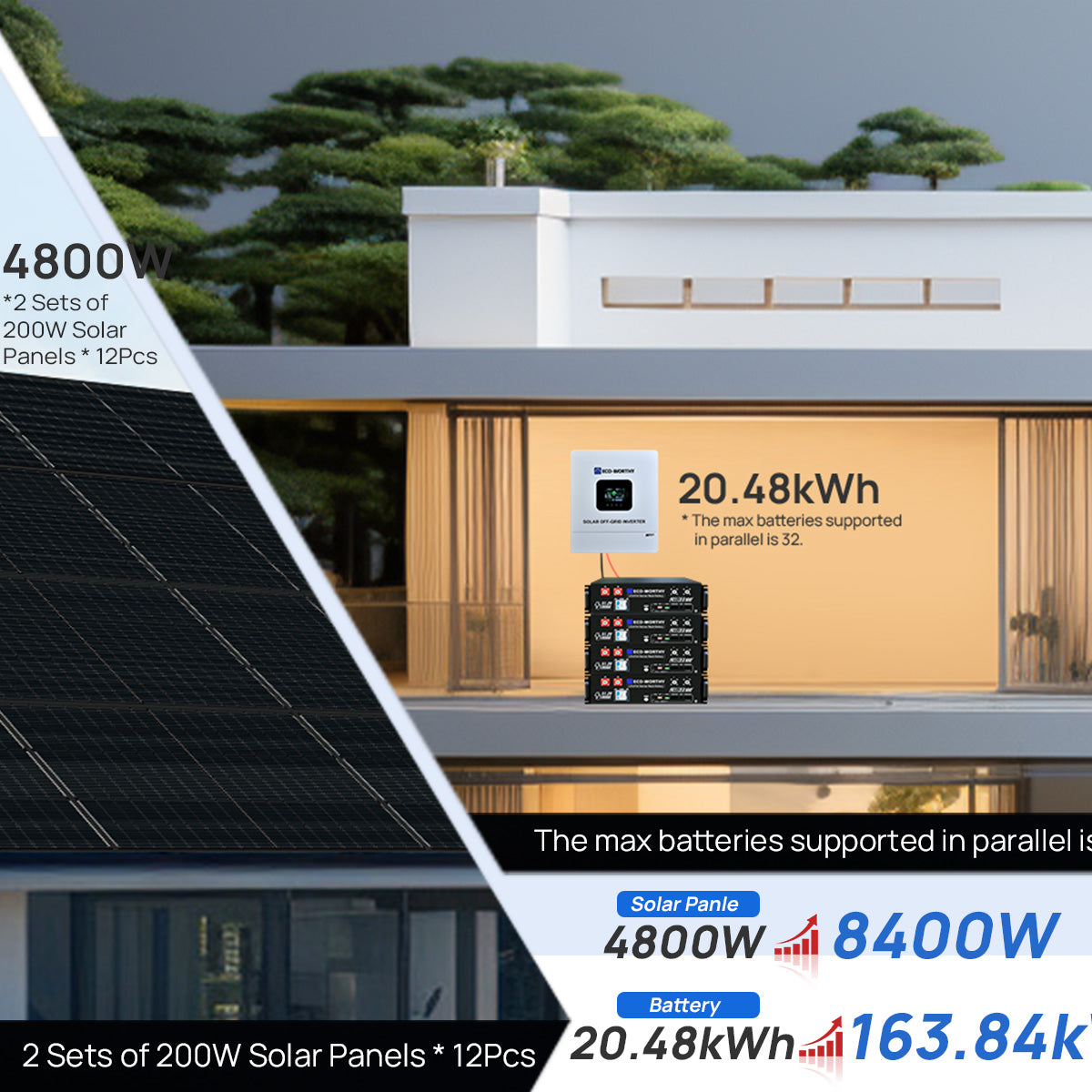

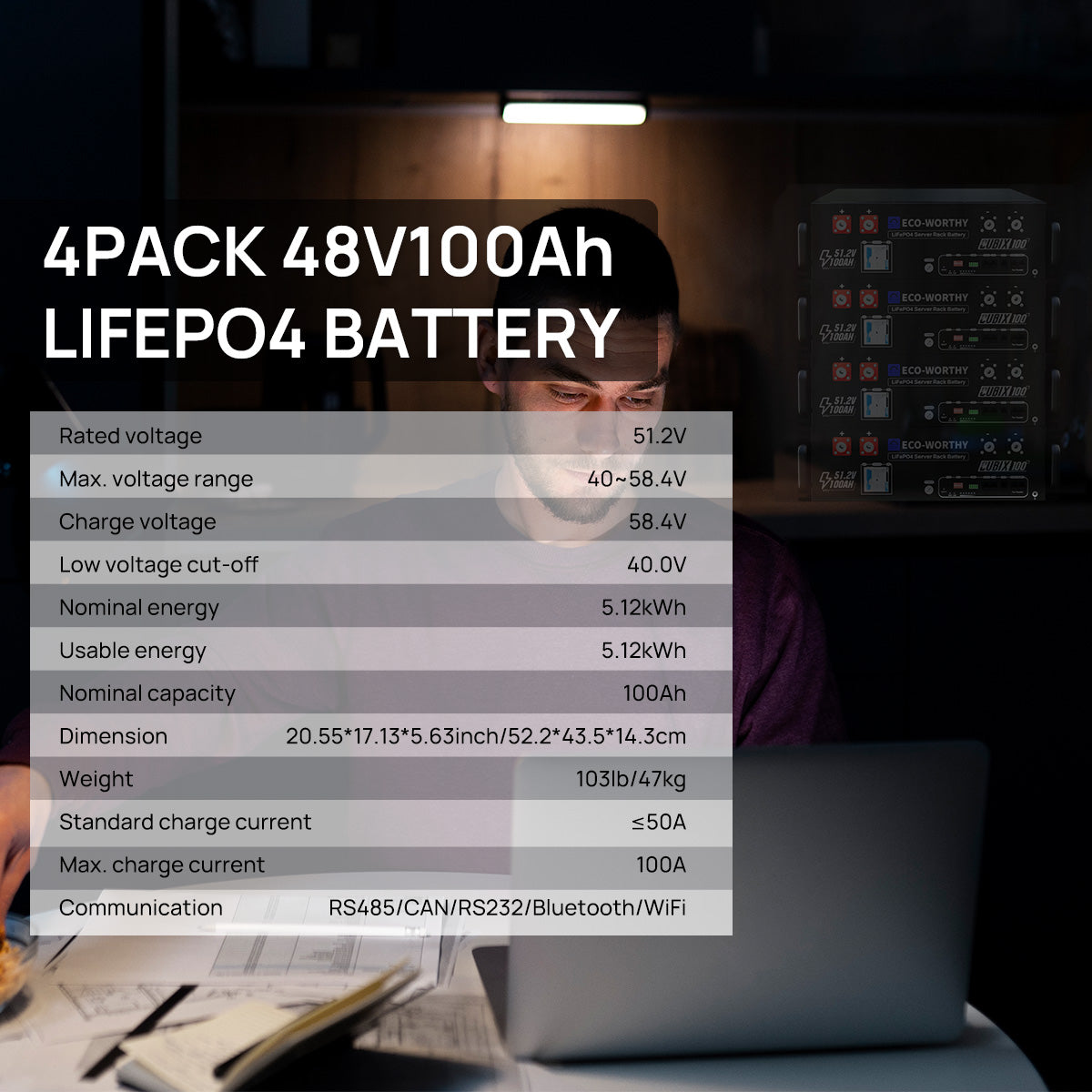

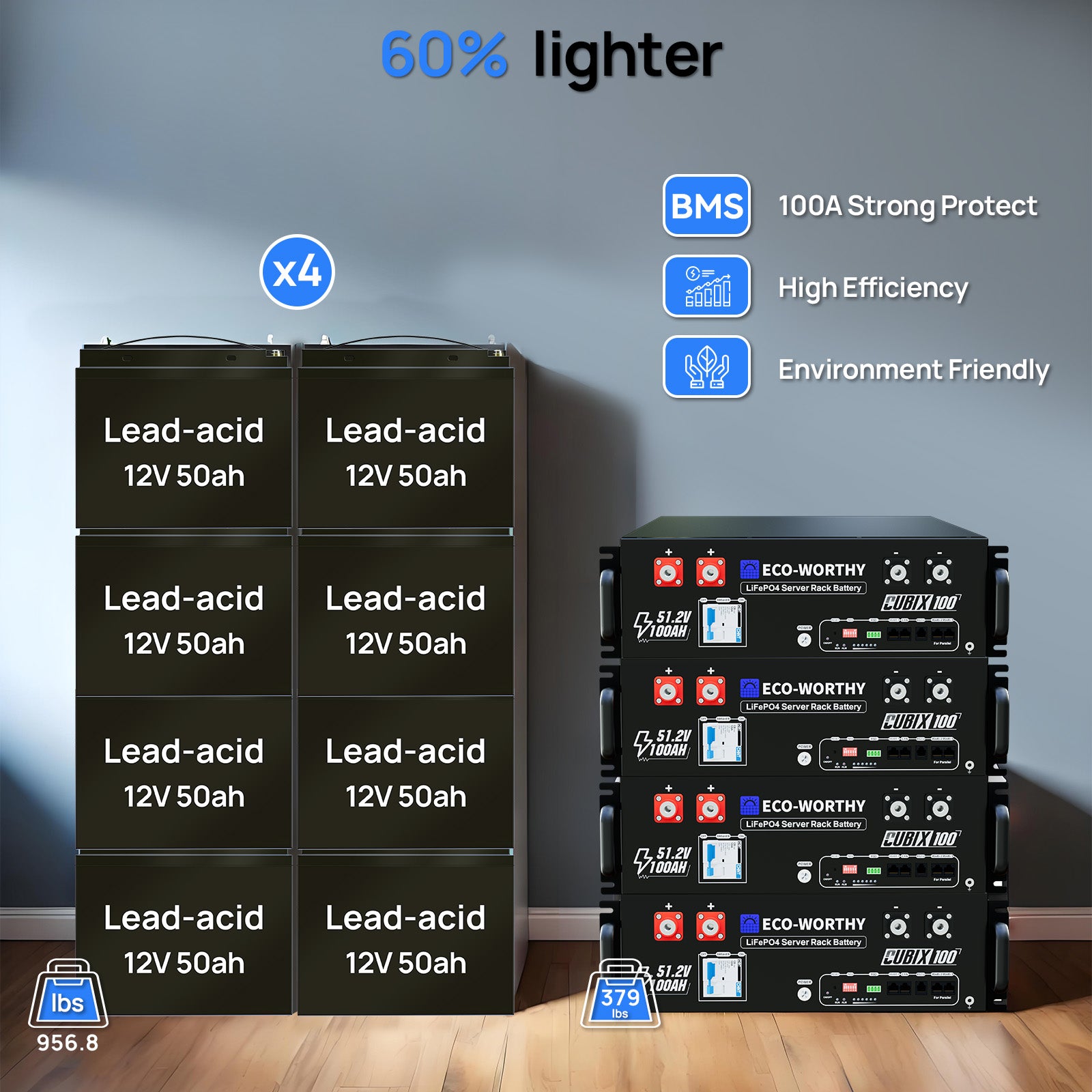

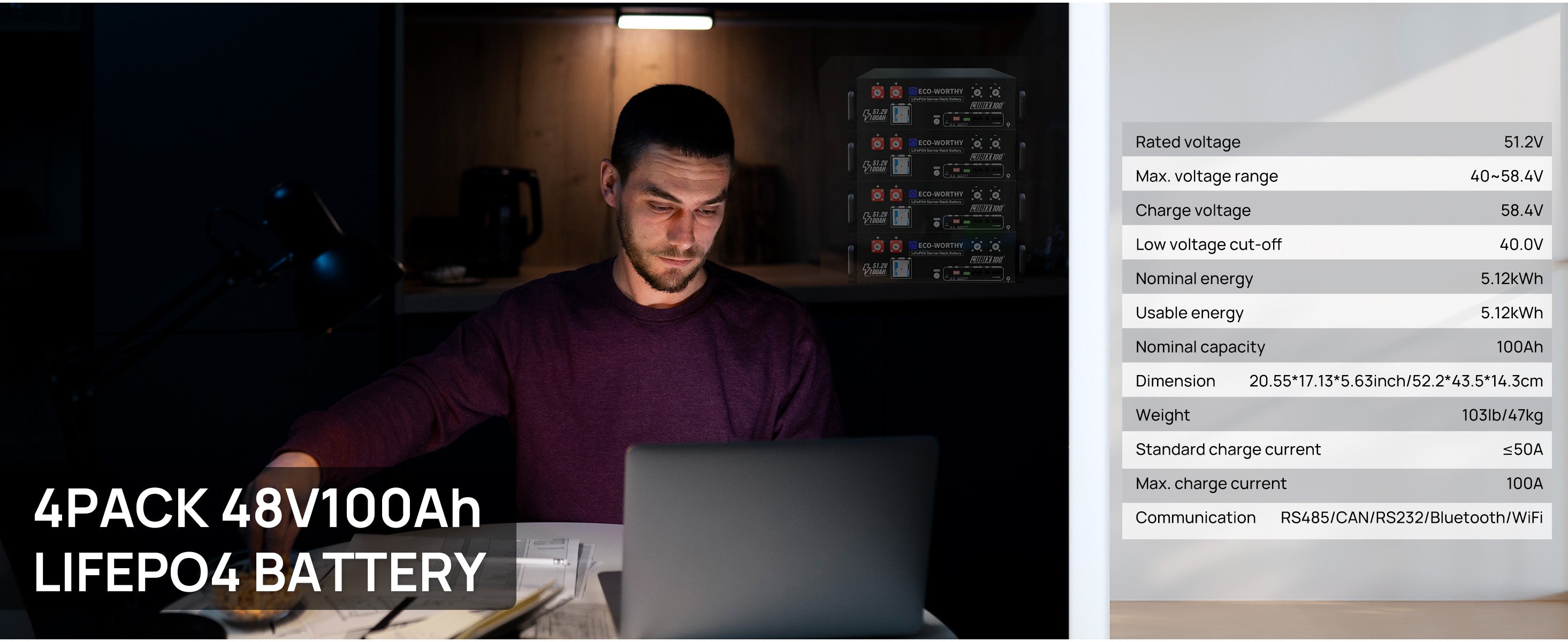

[20.48kWh LiFePO₄ Battery Bank – Long Life & Safe]
Includes four 51.2V 100Ah LiFePO₄ rack batteries with built-in 100A BMS and circuit protection. Offers over 6000 cycles at 90% DOD. Bluetooth/WiFi remote monitoring supported. Stackable up to 32 units.

[Complete Plug-and-Play Kit – Easy Setup]

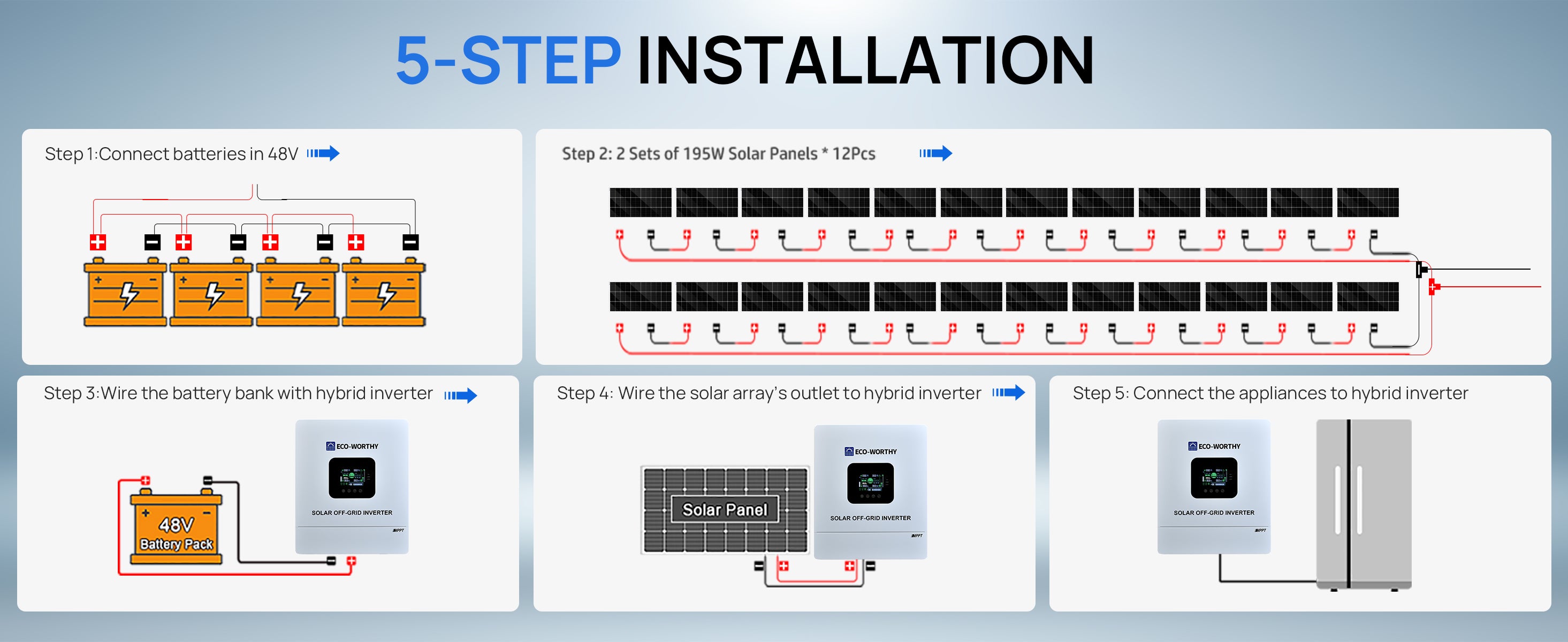

Comes with solar panels, mounting brackets, MC4 cables, combiner wires, battery connectors, and rack mounts. All key components included—perfect for DIY installation and long-term energy independence.

Read More
Over £5000 Get £1000 OFF at checkout

Total Price

£6,599.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of £1,649.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
£6,599.99 £9,999.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
48V 4680W Complete MPPT Off Grid Solar Kit

The Eco-Worthy 20.48kWh Solar Power System is a complete high-capacity energy solution featuring 24 premium 195W bifacial solar panels, a 5000W MPPT all-in-one inverter, and four 51.2V 100Ah LiFePO4 server rack batteries. Delivering up to 18.7kWh of electricity per day under optimal sunlight conditions, this system is ideal for whole-home backup power, off-grid living, cabins, farms, workshops, and energy-independent properties.

Technical Specifications

48V 100Ah Server Rack Battery

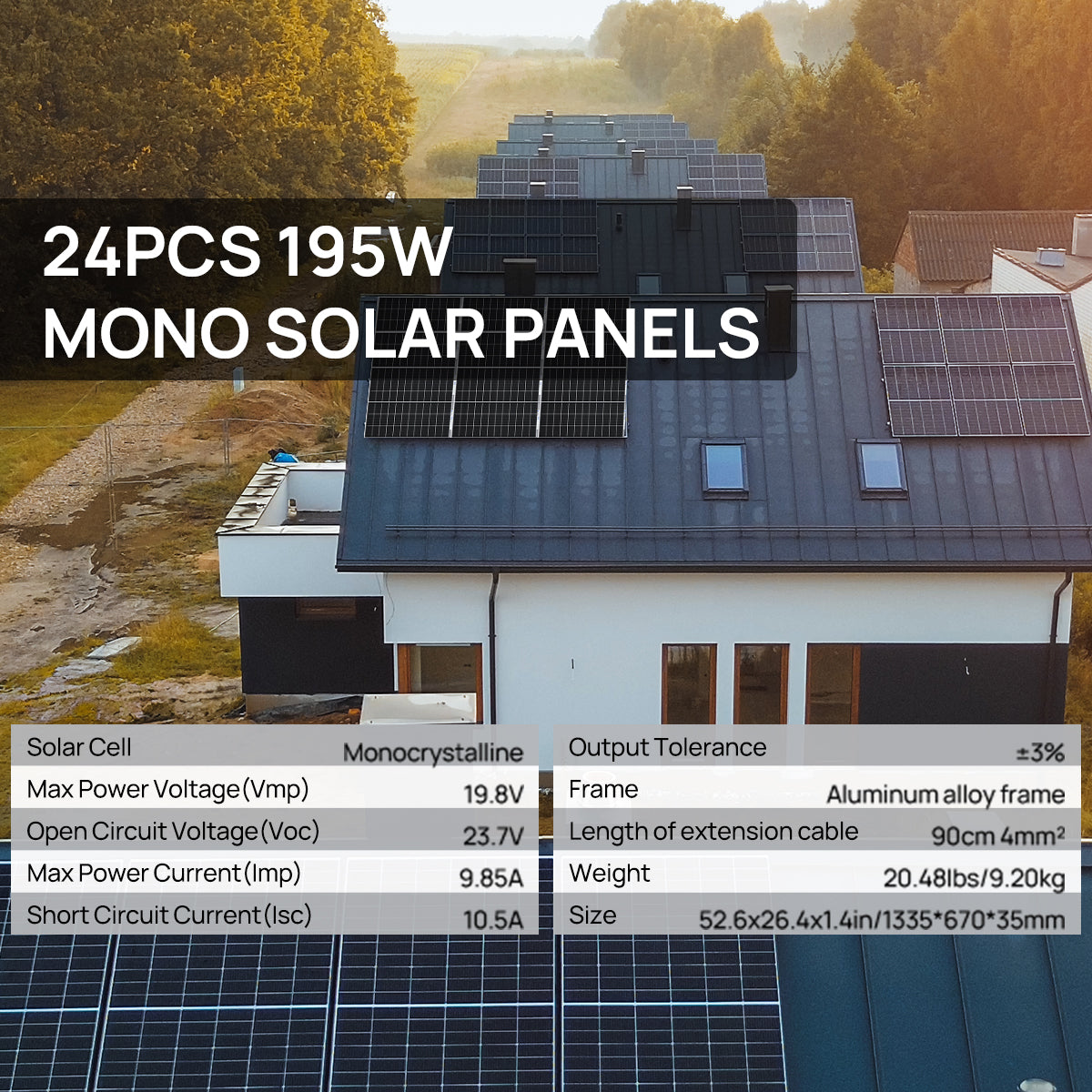

Bifacial 195W 12V Monocrystalline Solar Panel
5000W 48V All-in-one Inverter
Y Parallel Branch Connectors MFF
Solar Extension Cables Wires with MC4-MC4
Solar Extension Cables Wires with MC4
Z Style Solar Panel Mounting Brackets

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/ Discharge Current

100A

Charge Temperature Range

0-55℃

Disharge Temperature Range

﹣20－55℃

Maximum Charge Voltage

58.4V

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

95 lbs

Cables

Each battery comes with a pair of battery parallel cables

Certification

IEC62619 | CEC

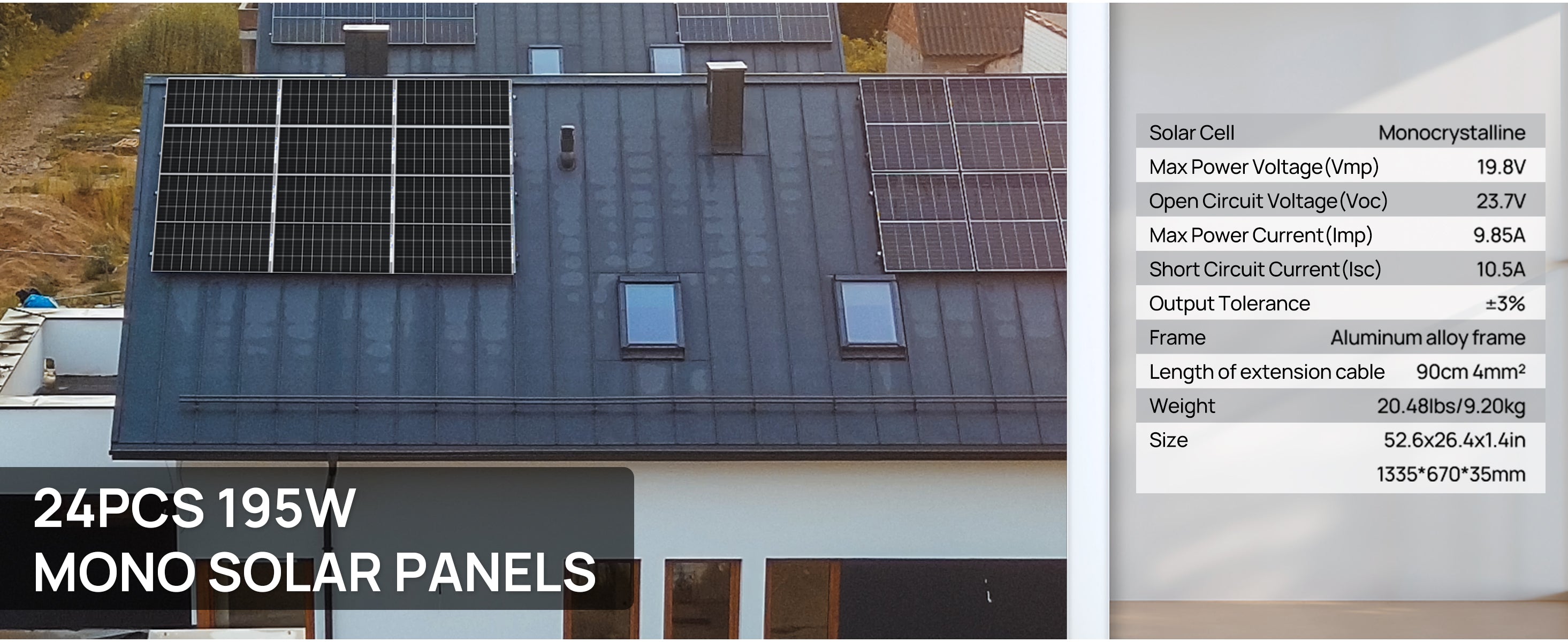

Rated Power:

195W

Solar Cell:

Monocrystalline

Maximum/Peak Voltage(Vmp):

19.8V

Open Circuit Voltage(Voc):

23.7V

Short circuit current:

10.5A

Maximum current:

9.85A

Output Tolerance:

±3%

Temperate coefficient of Isc:

(010+/-0.01)%/℃

Temperate coefficient of Voc:

-(0.38+/-0.01)%/℃

Temperature range:

－40℃～ +85℃

Frame:

Aluminum alloy frame

Weight:

20.48 lbs(9.29 kg)

Size:

52.6x26.38x1.38in (1335*670*35mm)

Rated Input Voltage:

220/230VAC

Input Voltage Range:

(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%

Frequency:

50Hz/ 60Hz (Auto detection)

Overload/Short Circuit Protection:

Circuit breaker

Efficiency:

>92%

AC Reverse Protection:

Available

Max Bypass Overload Current:

40A

Conversion time (bypass：

10ms (typical)

Output Voltage Waveform:

Pure Sine Wave

Rated Output Power:

5000W

Rated Output Voltage:

230VAC

Peak Power:

10000W

Output frequency range :

50Hz ± 0.3Hz, 60Hz ± 0.3Hz

Maximum Efficiency:

>92%

Rated battery i:

4HP

Rated battery input:

48v

Battery Type:

Lead acid or lithium battery

Max Charge Current:

60A

Charge Voltage Range:

40 ‒58Vdc

Short circuit protection:

Circuit breaker and blown fuse

Max Input Power:

5500W

PV Charging Current Range:

0-100A(can be set)

Max PV Open Circuit Voltage:

500VDC

PV Operating Voltage Range:

120-500VDC

MPPT Voltage Range:

120-450VDC

Battery Voltage Range:

40-60VDC

Maximum PV input current:

22A

Charging Short Circuit Protection:

Blown fuse

Max charger current(can be set):

100A

Weight:

12kg (26.46lb)

EMC certification level:

EN61000

Operating temperature range:

-10°C to 55°C (14°F ~131°F)

Storage temperature range:

-25°C ~ 60°C (-13°F ~140°F )

Humidity range:

5% to 95%

Noise:

≤60dB

Heat dissipation:

Forced air cooling, variable speed of fan

Communication interface:

USB / RS485 (WiFi/GPRS) / Dry contact control

Dimension (L*W*D):

446.9*350*133mm (1.47*1.15*0.44ft)

Model:

12AWG

Rated Current:

30A

Test Voltage:

6000V

Cable Type:

Connecting Solar Panels to Combiner Box

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

-40°F to +185°F

Connector:

MC4

Cable Type:

Connecting Solar Panels to Charge Controllers

Rating Voltage:

600/1000V

Length:

5 meters（16 ft）

Conductor:

Tinned copper wire

AWG:

12

Normal Cross Sectional Area of the Conductor (mm2):

4

Waterproof:

IP 65 Protection

Temperature:

40°F to +185°F

Connector:

MC4

Material:

Aluminum Alloy

Size of Screw and Nut:

M6

Weight:

0.85kg

Included in the Box
box image
  1. 24x Bifacial 195W Mono Solar Panel
  2. 1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
  3. 1x 5M 12AWG Extension Cable with MC4
  4. 4x 5M 12AWG Extension Cable with MC4-MC4
  5. 1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair
  6. 24x Z Mounting Bracket
  7. 4x 48V(51.2V) 100Ah Server Rack Battery
User manual

Eco-Worthy 48V 100Ah Server Rack Lithium Battery (cubix 100)- User Manual

Download

Eco-Worthy Cubix 100 Firmware.13.5.1-260225 (V3 compatible)

Download

Eco-Worthy 48V 5000W Solar off grid Inverter - User Manual

Download

Eco-Worthy Bifacial 195W 12V Monocrystalline Solar Panel - User Manual

Download

Eco-Worthy Cubix 100 Software Manual Online-2026.3.17

Download

Eco-Worthy 48V(51.2V) 100Ah Server Rack Lithium Battery - IEC 62619

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

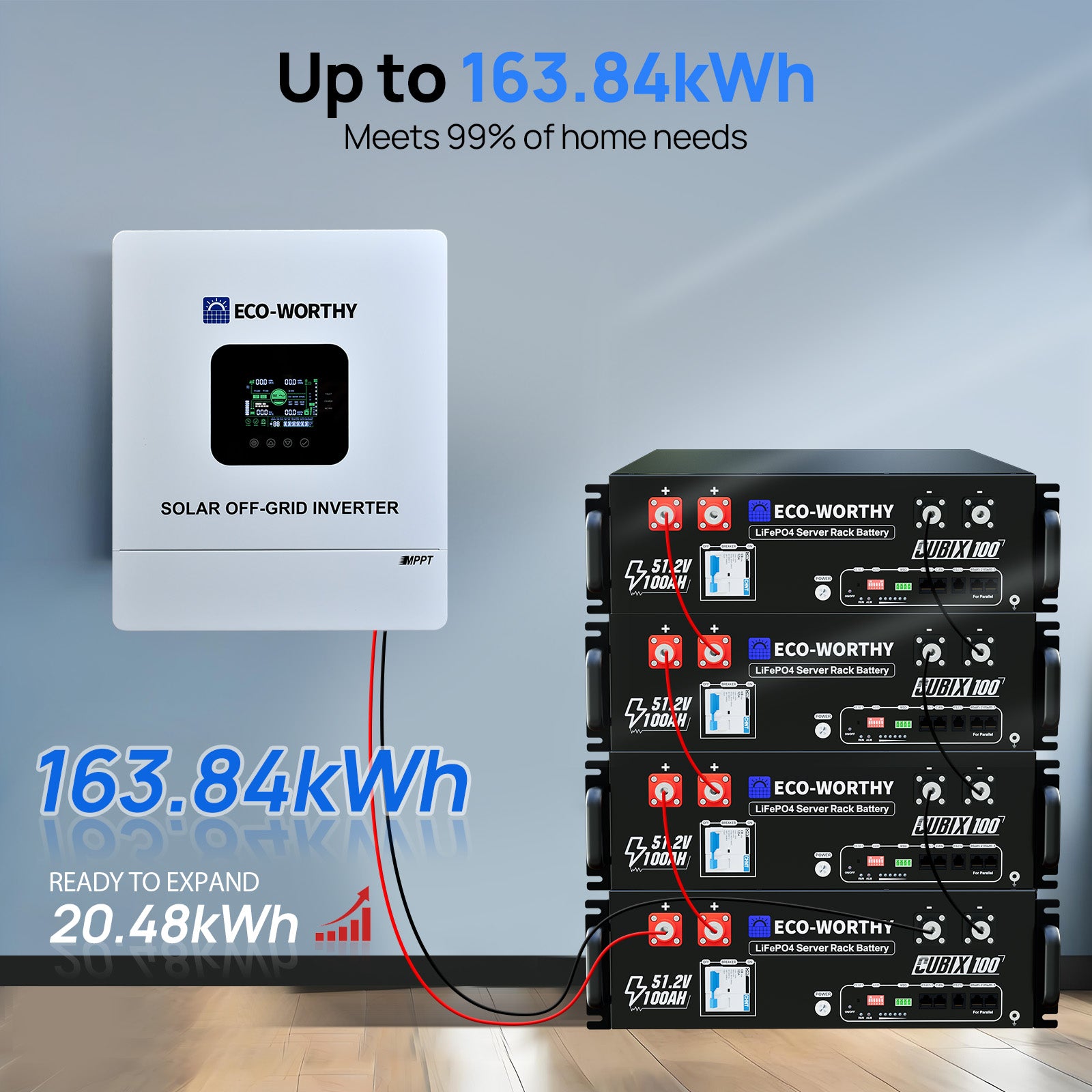

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
