130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits with Lithium Battery

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 130W 260W 520W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 130 Watt 12V Flexible Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

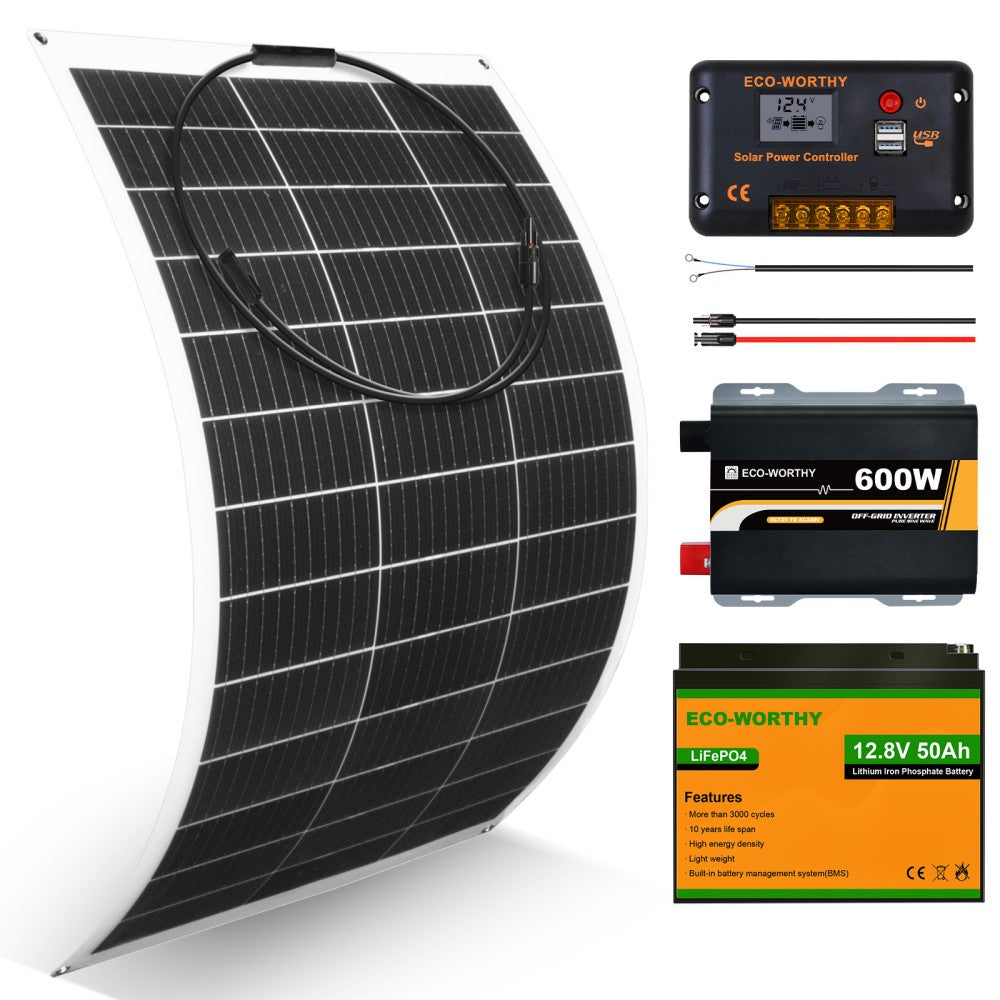

130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

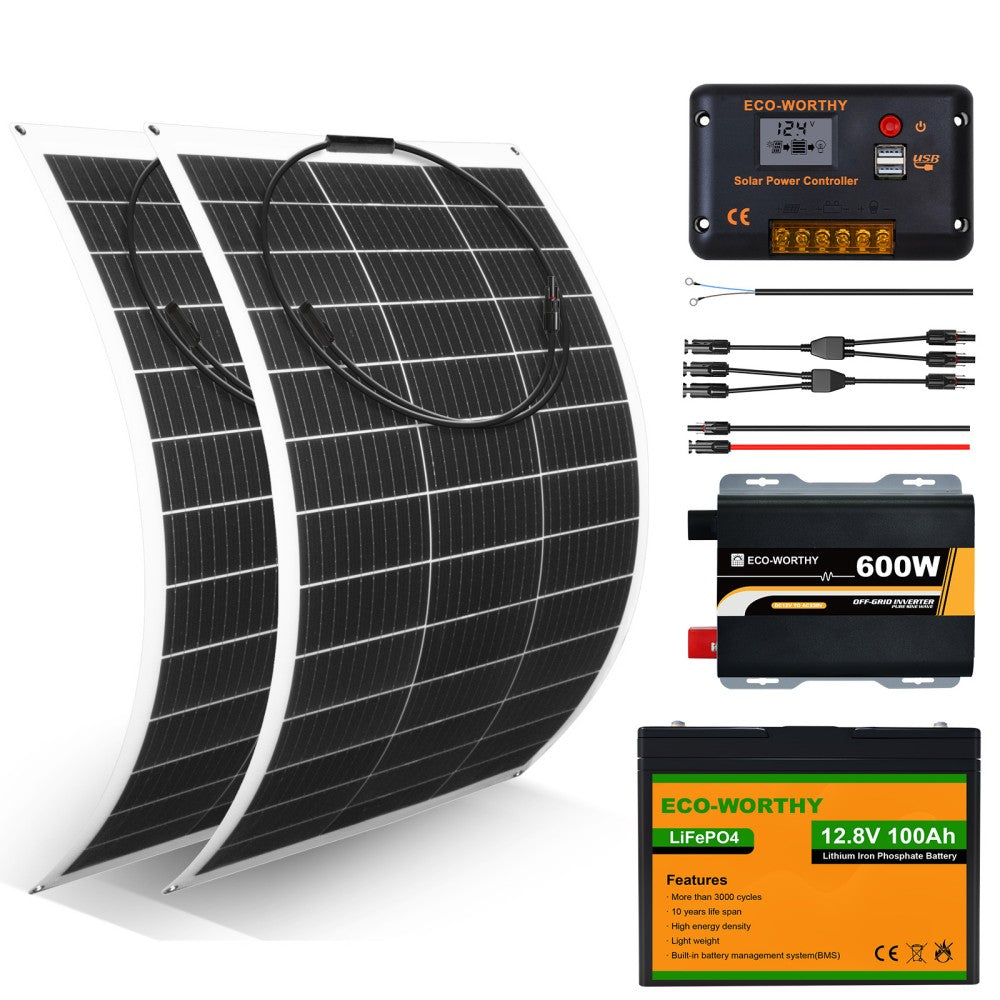

260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery

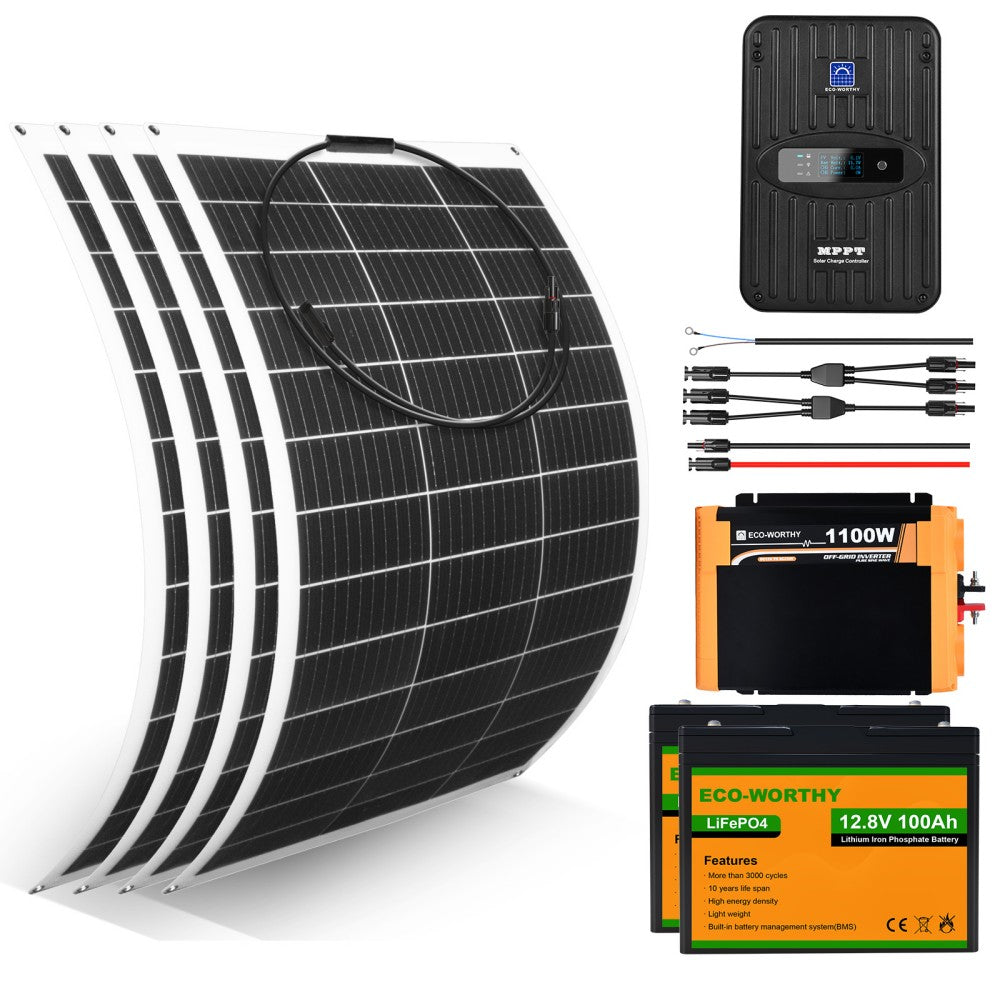

520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 1100W 12V-220V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery
1x 16mm² 35cm Battery Interconnect Cable

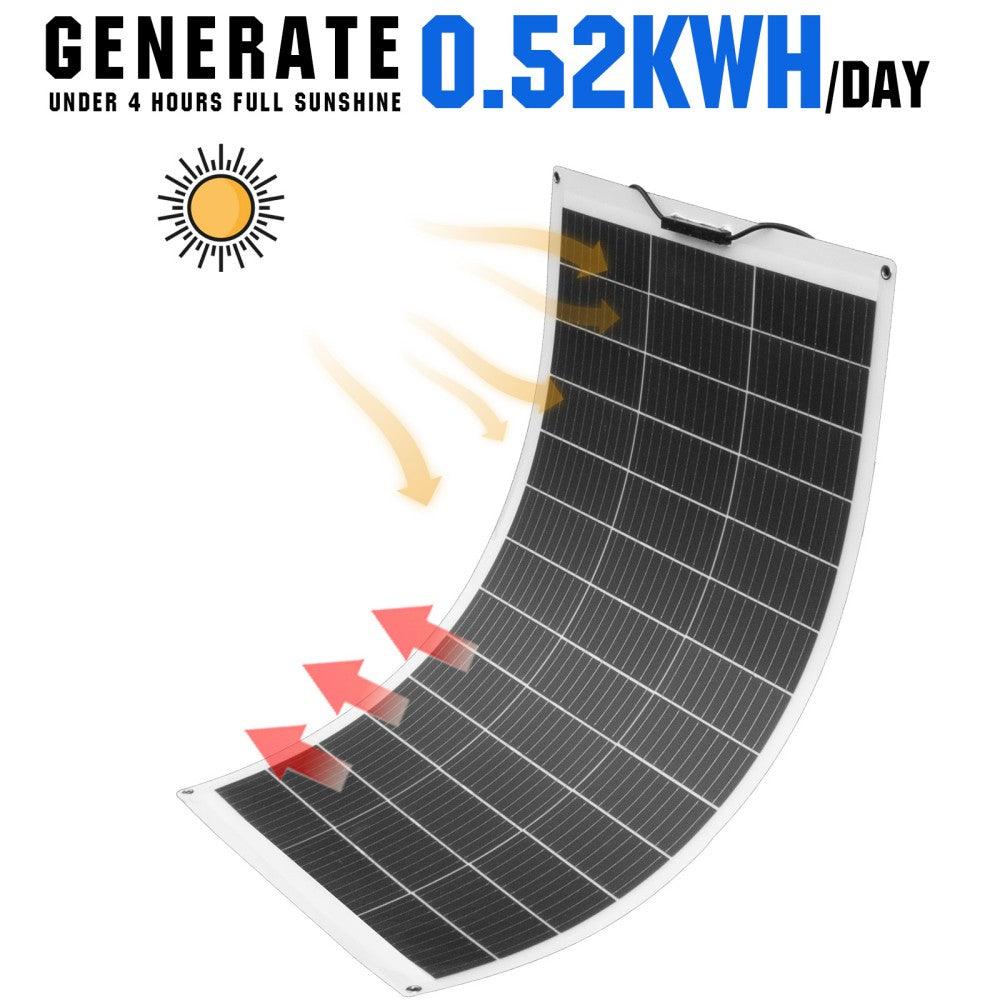

130W 12V Flexible Mono Solar Panel

Rated Power: 130W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 21.10V	Open Circuit Voltage(Voc): 24.50V
Short circuit current: 6.50A	Maximum current: 6.16A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Length of extension cable: 90cm（2.95ft）	Size of extension cable: 4mm²（11AWG）/MC4 Connector
Weight: 4.40 lbs(2.0 kg)	Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in)

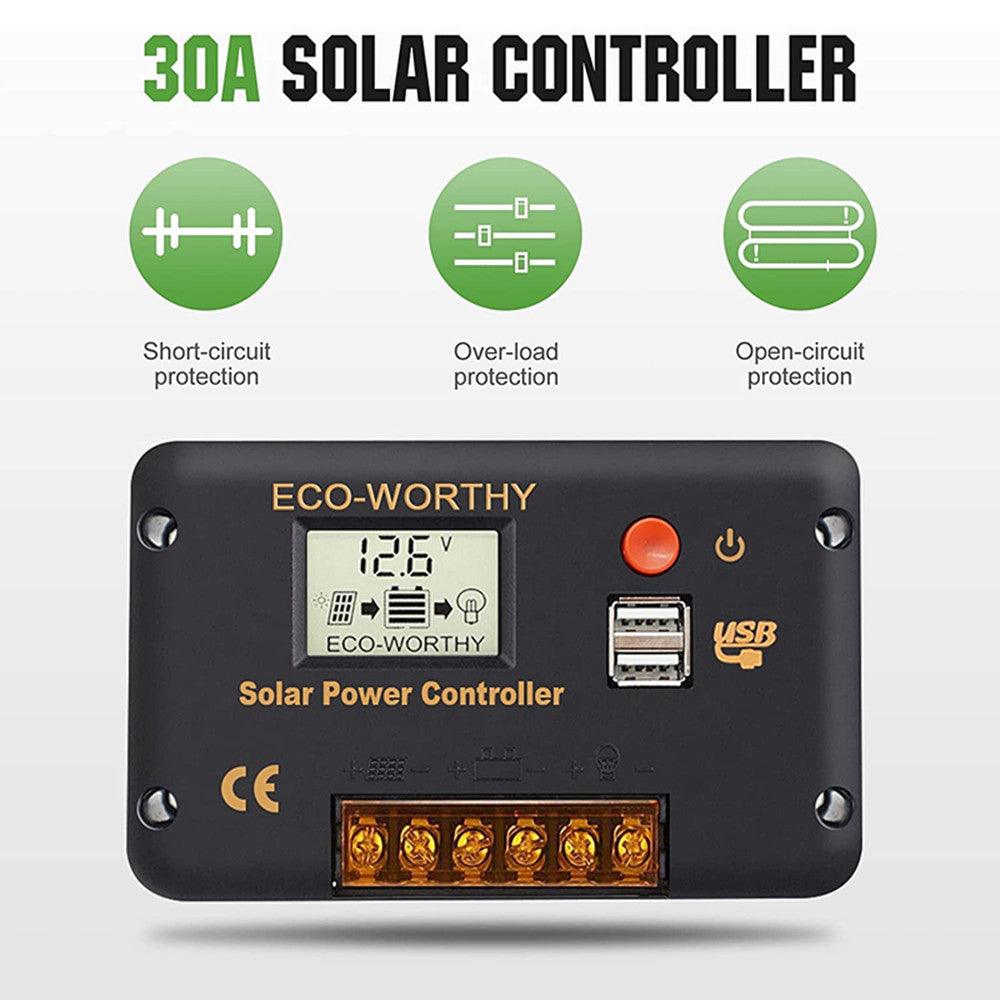

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

40A MPPT Solar Charge Controller

Battery voltage：12V/24V	Max Solar Input Power：560/1120W
Charging mode：MPPT	Rated Load Current：20A
Charge Efficiency (Peak)：97%	Self-Consumption：1~2W
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	Size：220*148*64mm/8.7*5.8*2.5inch
Max Charge current：40A	Weight：1.5KG
Max.PV Open-Circuit Voltage：<100V

600W 12V Off Grid Inverter

Battery Input Voltage: 12V	Rated Power: 600W
Peak Power: 1200W	Output Waveform: Pure Sine Wave
Output Voltage: 220Vac	USB Output: 5V 1.2A
Extension Cable: 6mm²,9AWG,1 meter	Output Frequency: 50HZ ± 0.3HZ
AC Output Sockets: 1	Temperature: -20℃-40℃

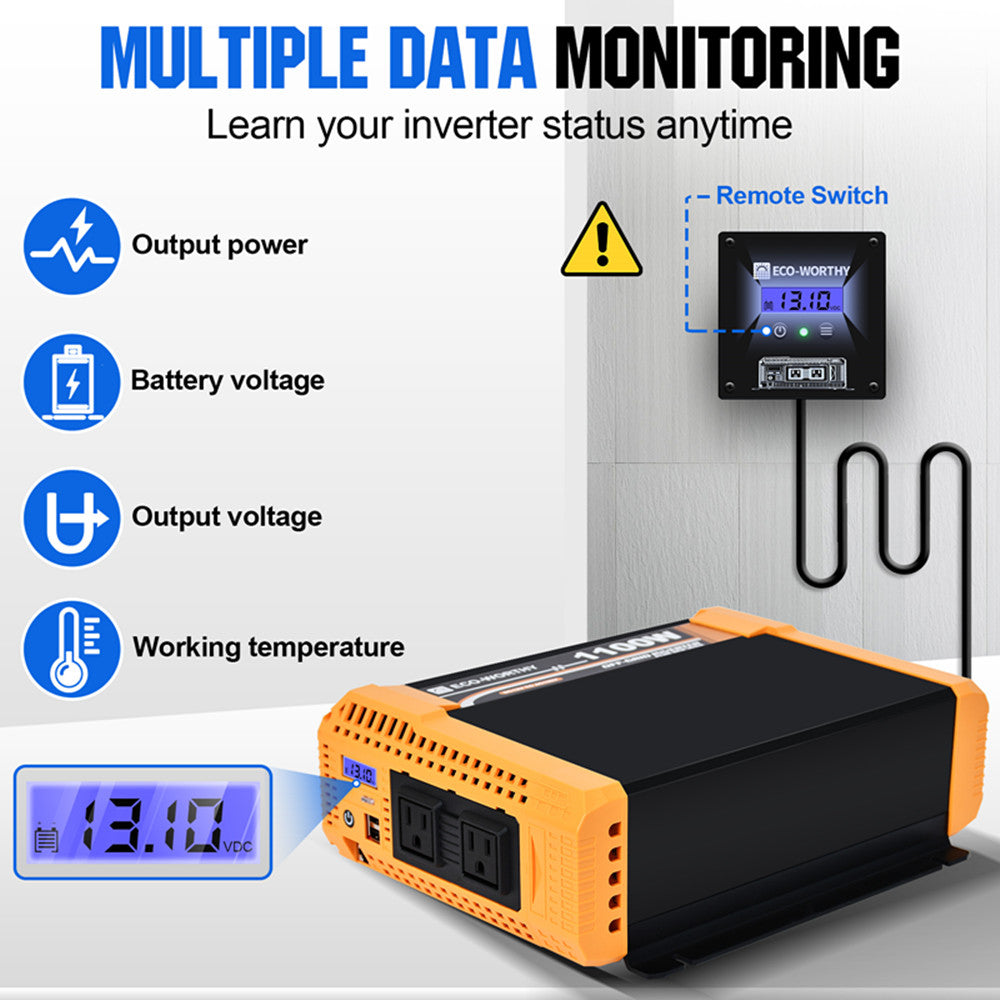

1100W 12V Off Grid Inverter

Output Continuous Watts(W): 1100W+18W USB	Surge Capacity (PeakPower): 2200W
Rated Input DC (V,A): 12V Battery, 100A	Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 50Hz±1	Rated Output AC (V,A): 230Vac±10%, 4.8A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)	No Load Current: <1A
Optimum Efficiency: 85% min	Fuse (A): 30A*4
FuseType: Internal Blade	Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max	Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95%	Cooling System: Thermo Fan
THD: <4.5%	Dimensions (L*W*H): 13.5*9.8*4.1 in
Assembled Weight (kg): 7.67 lbs

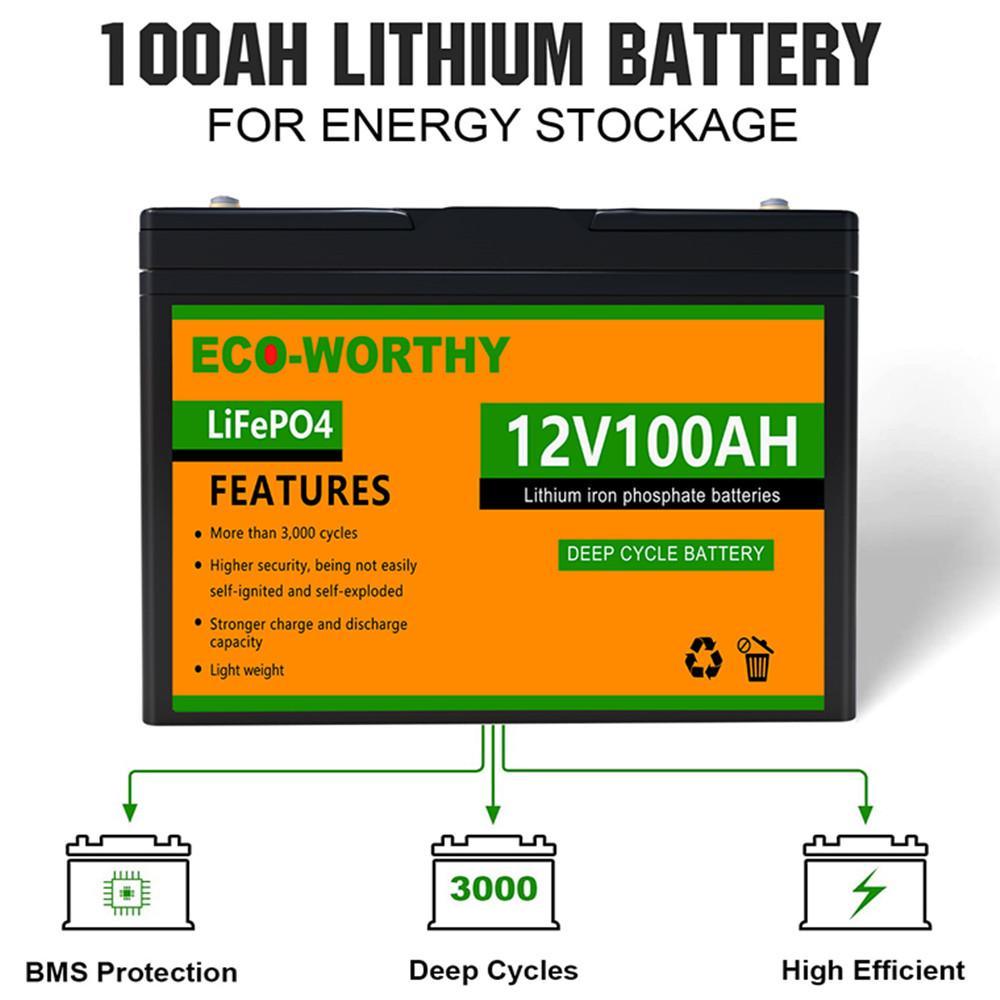

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100ah	Battery Power: 1280Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 100A/100A
Charge Temperature Range: 0-45℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.6V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*214mm(10.24*6.61*8.43inch）
Battery Weight: 10.5kg(23.15lbs)

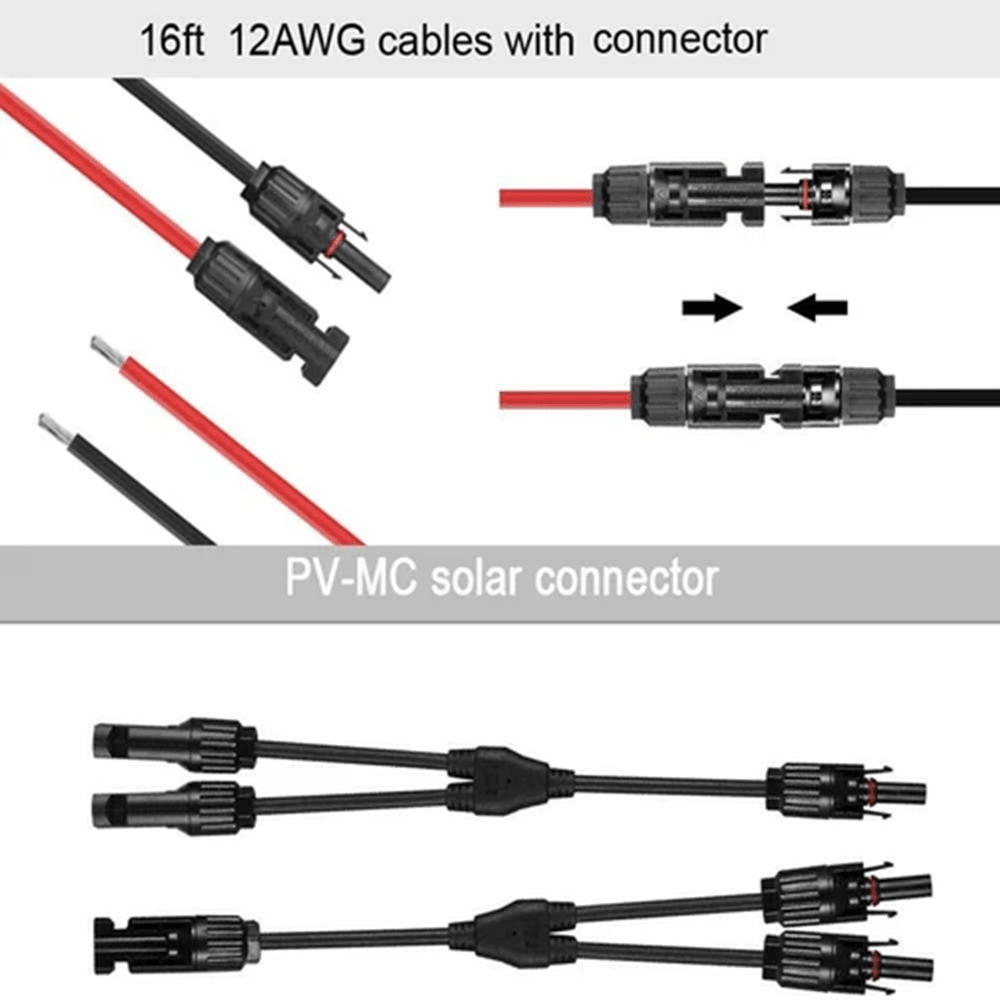

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
