170W 12V Monocrystalline Solar Panel

Save 15%
SKU: L02M170-1

Price:
Sale price£135.99 Regular price£159.99

Description

ECO-WORTHY 170W 12V Monocrystalline Solar Panel is ideal for any off-grid application and has high conversion efficiency. It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.
Wide range of applications: RVs, motorhomes, cabins, marine areas, home backup power, and more, Off-grid systems.
Rugged aluminum frame: Corrosion-resistant aluminum frame design with sturdy corner supports, ensures that it endures the outdoors for an extended period of time without damage or loss of performance.
Long module life:
--cells encapsulated in EVA (ethylene vinyl acetate),
--safety glass for solar installations on the front side,
-- protective film resistant to atmospheric agents.
Multifunctional junction box sealed waterproof for a high level of security.
High-performance bypass diodes for better protection against hot spot effects in the event of partial blanking.
MC4 solar connectors.
Power guarantee of 25 years at 80% of the minimum power.

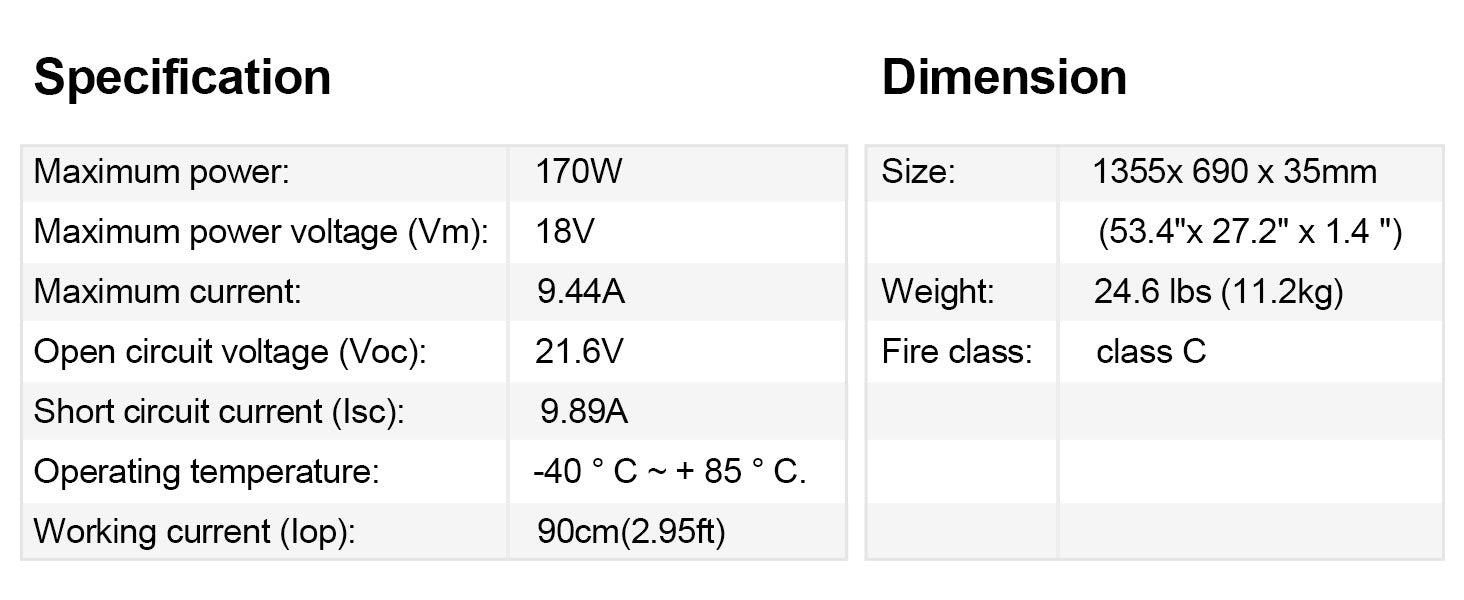

170W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 170W
Open Circuit Voltage (Voc): 21.6V
Peak voltage (Vmp): 16.6V
Short Circuit Current (Isc): 9.89A
Working Current (Iop): 9.44A
Frame: heavy duty aluminium
SLA Battery Voltage: 12V
Size: 1355*690*35mm (53.3*27.2*1.38inch)
Weight: 25.17Lbs(11.42kg)

Junction Box
IP Rating: IP65
Number of Diodes: 2 Diodes
Output Cables: 12AWG(35 inches long)

Connectors
Rated Current: 30A
Maximum Voltage: 1000V DC
Maximum AWG Size Range: 10AWG
IP Rating: IP67

Solar Cells
The solar panel was made of A grade solar cells with hight efficiency, works better in sunshine with more efficiency.

Duarable Aluminum Frame
Resistant to extreme weather, can withstand high wind (2400Pa) and snow loads (5400Pa).


Warranty Information

Panels 5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
